  1. Finding A Chessboard: An Introduction To Computer Vision Martin C. Martin

  2. Motivation & Inspiration • A spare time project, because I thought it would be fun • Project: Chess against the computer, where board and your pieces are real, it’s pieces are projected • Working so far: very robust localizing of chessboard (full 3D location and orientation)

  3. Requirements • Interaction should be as natural as possible • E.g. pieces don’t have to be centered in their squares, or even completely in them • Should be easy to set up and give demonstrations • Little calibration as possible • Work in many lighting conditions • Although only with this board and pieces • Camera needs to be at angle to board • Board made by my father just before he met my mother • My brother and I learned to play on it • I’m not a big chess fan, I just like project

  4. Computer Vision ’70s to ’80s: Feature Detection • Initial Idea: Corners are unique, look for them • Compute the “cornerness” at each pixel by adding the values of some nearby pixels, and subtracting others, in this pattern: • Constant Image (e.g. middle of square): output = 0 • Edge between two regions (e.g. two squares side-by-side): output = 0 • Where four squares come together: output max (+ or -) + + + - - - + + + - - - + + + - - - - - - + + + - - - + + + - - - + + +

  5. Corner Detector In Practice • Actually, the absolute value of the output

  6. Problems With Corner Detection • Edge effects • Strong response for some non-corners • Easily obscured by pieces, hand • How to link them up when many are obscured? • Go back to something older: Find edges

  7. Computer Vision ’60s toEarly ’70s: Line Drawings

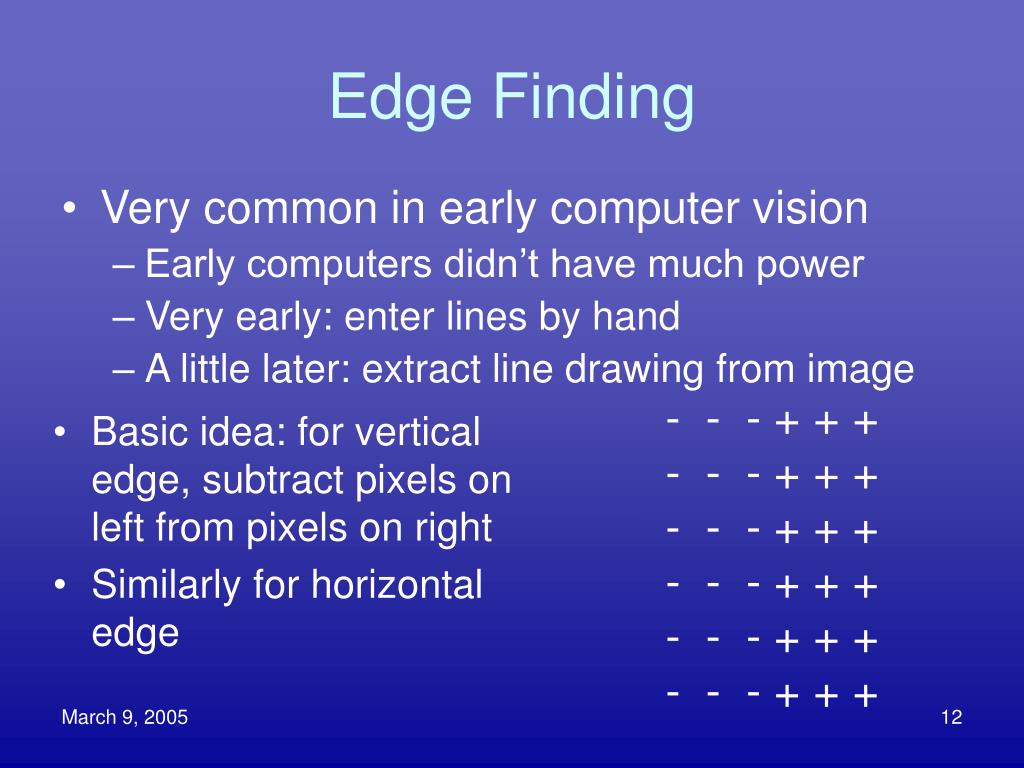

  8. Edge Finding • Very common in early computer vision • Early computers didn’t have much power • Very early: enter lines by hand • A little later: extract line drawing from image - - - + + + - - - + + + - - - + + + - - - + + + - - - + + + - - - + + + • Basic idea: for vertical edge, subtract pixels on left from pixels on right • Similarly for horizontal edge

  9. Edge Finding • Need separate mask for each orientation? • No! Can compute intensity gradient from horizontal & vertical gradients • Think of intensity as a (continuous) function of 2D position: f(x,y) • Rate of change of intensity in direction (u, v) is • Magnitude changes as cosine of (u, v) • Magnitude maximum when (u, v) equals (∂f/∂x, ∂f/∂y) • (∂f/∂x, ∂f/∂y) is called the gradient • Magnitude is strength of line at this point • Direction is perpendicular to line

  10. Gradient

  11. Localizing Line • How do we decide where lines are & where they aren’t? • One idea: threshold the magnitude • Problem: what threshold to use? Depends on lighting, etc. • Problem: will still get multiple pixels at each image location

  12. Laplacian • Better idea: find the peak • i.e. where the 2nd derivative crosses zero • Image shows magnitude • One ridge is positive, one negative

  13. Gradient: Before And After Suppression

  14. Extracting Whole Lines • So Far: intensity image  “lineness” image • Next: “lineness” image  list of lines • Need to accumulate contributions from across image • Could be many gaps • Want to extract position & orientation of lines • Boundaries won’t be robust, so consider lines to run across the entire image

  15. Parameterize lines by angle and distance to center of image Discretize these and create a 2D grid covering the entire range Each unsuppressed pixel is part of a line Perpendicular to the gradient Add it’s strength to the bin for that line d θ Hough Transform

  16. Hough Transform Distance To Center Angle

  17. Take The 24 Biggest Lines

  18. Demonstration

  19. Coordinate Systems • In 2D (u, v) (i.e. on the screen): • Origin at center of screen • u horizontal, increasing to the right • v vertical, increasing down • Maximum u and v determined by field of view. • In 3D (x, y, z) (camera’s frame): • Origin at eye • Looking along z axis • x & y in directions of u & v respectively

  20. 2D  3D • Perspective projection • (u, v): image coordinates (2D) • (x, y, z): world coordinates (3D) • Similar Triangles • Free to assume virtual screen at d = 1 • Relation: u = x/z, v = y/z y v d z

  21. Lines in 3D map to lines on screen • Proof: the 3D line, plus the origin (eye), form a plane. • All light rays from the 3D line to the eye are in this plane. • The intersection of that plane and the image plane form a line

  22. From 2D Lines To 3D Lines • If a group of lines are parallel in 3D, what’s the corresponding 2D constraint? • Equation of line in 2D: Au + Bv + C = 0 • Substituting in our formula for u & v: • Ax/z + By/z + C = 0 • Ax + By + Cz = 0 • A 3D plane through the origin containing the 3D line • Let L = (A, B, C) & p = (x, y, z). Then L•p = 0

  23. Recovering 3D Direction • Let’s represent the 3D line parametrically, i.e. as the set of p0+td for all t, where d is the direction. • The 9 parallel lines on the board have the same d but different p0. • For all t: L•(p0+td) = L•p0 + t L•d = 0 • Since p0 is on the line, L•p0 = 0. • Therefore, L•d = 0, i.e. Axd + Byd + Czd = 0 • That is, the point (xd, yd, zd) (which is not necessarily on the 3D line) projects to a point on the 2D line • d is the same for all 9 lines in a group; so it must be the common intersection point, i.e. the vanishing point • Knowing the 2D vanishing point gives us the full 3D direction!

  24. Vanishing Point

  25. Viewing Direction Ames Room

  26. Finding The Vanishing Point • Want to find a group of 9 2D lines with a common intersection point • For two lines A1u+B1v+C1 = 0 and A2u+B2v+C2 = 0, intersection point is on both lines, therefore satisfies both linear equations: • In reality, only approximately intersect at a common location

  27. Representing the Vanishing Point • Problem: If camera is perpendicular to board, 2D lines are parallel  no solution • Problem: If camera is almost perpendicular to board, small error in line angle make for big changes in intersection location • Euclidean distance between points is poor measure of similarity

  28. Desired Metric • Sensitivity Analysis for Intersection Point: • Of the form u’/w, v’/w. If -1 ≤ A,B,C ≤ 1, then -2 ≤ u’, v’, w ≤ 2 • So, the only way for the intersection point to be large is if w is small; the right metric is roughly 1/w • A representation with that property is…

  29. Homogeneous Coordinates • Introduced by August Ferdinand Möbius • An example of projective geometry • Represent a 2D point using 3 numbers • The point (u, v, w) corresponds to u/w, v/w • Formula for perspective projection means any 3D point is already the homogeneous coordinate of its 2D projection • Multiplying by a scalar doesn’t change the point: • (cu, cv, cw) represents same 2D point as (u, v, w)

  30. Homogeneous Coordinates w=1 (u, v, 1)

  31. Project Intersection Point Onto Unit Sphere

  32. Lines Become “Great Circles”

  33. Clustering: Computer Vision In The Nineties • 60s and 70s: Promise of human equivalence right around the corner • 80s: Backlash against AI • Like an “internet startup” now • 90s: Extensions of existing engineering techniques • Applied statistics: Bayesian Networks • Control Theory: Reinforcement Learning

  34. K Means

  35. 2D to 3D: Distance • How do we get the distance to the board? From the spacing between lines. • While 3D lines map to 2D lines, points equally spaced along a 3D line AREN’T equally spaced in 2D:

  36. Let c = (0, 0, zc) be the point were the z axis hits the board For each line in group 1, we find the 3D perpendicular distance from c to the line, along d2 These should be equally spaced in 3D Find the common difference, like Millikan oil drop expr. Distance To Board

  37. Distance To Board • Let Li = (Ai, Bi, Ci) be the ith line in group 1. • We want to find ti such that the point c + ti d2 is on Li, i.e. • Li•(c + ti d2) = 0 • Li•c + ti Li•d2 = 0 • ti = - Li•c / Li•d2 = - Cizc / Li•d2 • zc is the only unknown, so put that on the left • Let si = ti/zc = -Ci / Li•d2 • If we choose our 3D units so that the squares are 1x1, then the common difference is 1/zc

  38. Distance To Board • So, given the si, we need to find t0 and zc such that: • si = ti/zc = (i + t0) / zc, i = 0…8 • But, we have outliers & occasional omission • So we use robust estimation

  39. Robust Estimation • Many existing parameter estimation algorithms optimize a continuous function • Sometimes there’s a closed form (e.g. MLE of center of Gaussian is just the sample mean) • Sometimes it’s something more iterative (e.g. Newton-Rhapson) • However, these are usually sensitive to outliers • Data cleaning is often a big part of the analysis • The reason why decision trees (which are extreemly robust to outliers) are the best all-round “off-the-shelf” data mining technique

  40. Robust Estimation • Find distance (and offset) to maximize score: • Involves evaluating on a fine grid • Isn’t time consuming here, since the number of data points is small
