NAV 2. FLIGHT PLANNING. WEATHER TERMINOLOGY. IFR: less than 1000 ft 3 miles MVFR: 1000-3000 ft 3-5 miles VFR: greater than 3000 ft better than 5. Cross Country #2. Aircraft: Cessna 150 C-GULP White with Red/Orange trim Owner: Yourself c/o Kingston Federal Pen, Kingston, ON

trung
Download Presentation

NAV 2

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. NAV 2 FLIGHT PLANNING

  2. WEATHER TERMINOLOGY • IFR: less than 1000 ft 3 miles • MVFR: 1000-3000 ft 3-5 miles • VFR: greater than 3000 ft better than 5

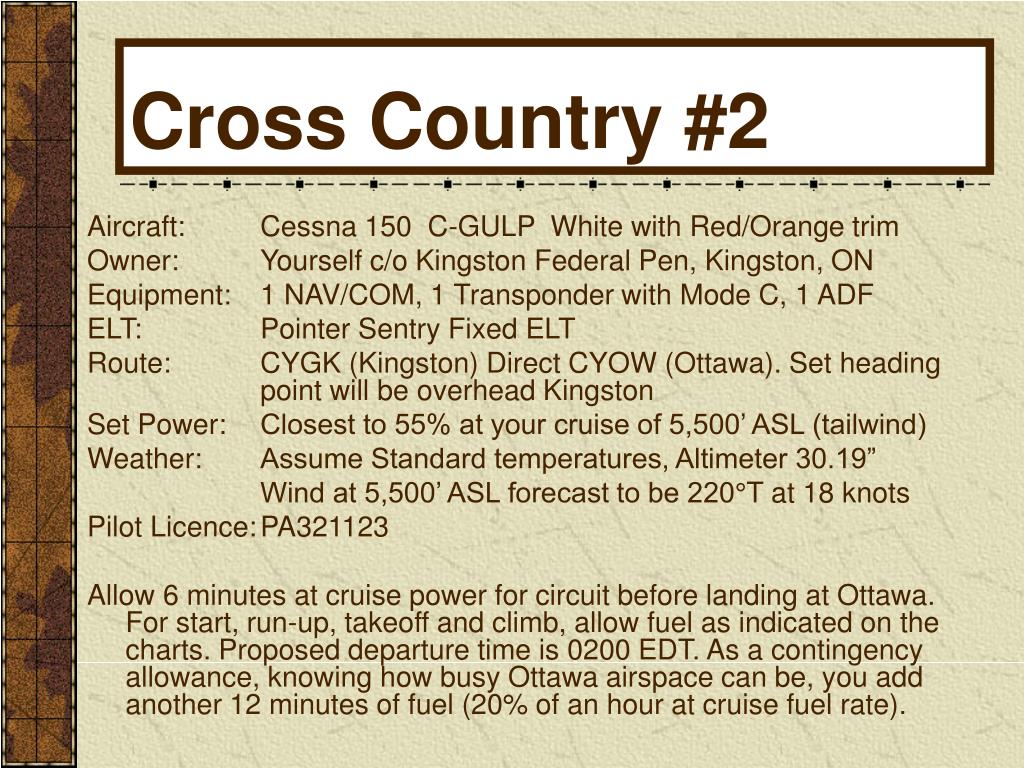

  3. Cross Country #2 Aircraft: Cessna 150 C-GULP White with Red/Orange trim Owner: Yourself c/o Kingston Federal Pen, Kingston, ON Equipment: 1 NAV/COM, 1 Transponder with Mode C, 1 ADF ELT: Pointer Sentry Fixed ELT Route: CYGK (Kingston) Direct CYOW (Ottawa). Set heading point will be overhead Kingston Set Power: Closest to 55% at your cruise of 5,500’ ASL (tailwind) Weather: Assume Standard temperatures, Altimeter 30.19” Wind at 5,500’ ASL forecast to be 220°T at 18 knots Pilot Licence: PA321123 Allow 6 minutes at cruise power for circuit before landing at Ottawa. For start, run-up, takeoff and climb, allow fuel as indicated on the charts. Proposed departure time is 0200 EDT. As a contingency allowance, knowing how busy Ottawa airspace can be, you add another 12 minutes of fuel (20% of an hour at cruise fuel rate).

  4. Today's CLIMB To 5500 10 min. To s.l. 0 min. To climb 10 min To 5500 1.5 gal. To s.l. 0.0 gal. To climb 1.5 gal. To 5500 12 nm. To s.l. 0 nm. To climb 12 nm.

  5. C150 CRUISEPERFORMANCECHART – 55-75% bhp recommended 5500 w/30. 19 is 5230 pres alt 58% @ 5230 is 95k and 4.5gph

  6. CYGK FLIGHT PLANNING LOG GULP ME 22 MAR 01 4.5gph :30 2.3

  7. CYGK FLIGHT PLANNING LOG GULP ME 22 MAR 01 4.5gph :30 2.3

  8. One in Sixty Rule • 1:60 is the same as 1 degree

  9. Triangle of Velocities Wind = 240@28kt Track = 351 TAS = 102 kt

  10. Triangle of Velocities Wind = 240@28kt Track = 351o TAS = 102 kt 351o

  11. Triangle of Velocities Wind = 240@28kt Track = 351o TAS = 102 kt 28 kt

  12. Triangle of Velocities Wind = 240@28kt Track = 351o TAS = 102 kt 102 kt 28 kt

  13. 351o Direction of travel Triangle of Velocities Wind = 240@28kt Track = 351 TAS = 102 kt MEASURE from graph Heading = 336 Gnd speed = 109 kt 336o Airspeed 102 kt 28 kt magnitude for windspeed
