Presentation Transcript
slide1

Instruction Manual

ProgrammingTerminal

PT200-G

Production No.

Caution:for System Engineer ONLY

No.4 Tools

Panasonic Factory Solutions Co., Ltd.

2014/8/21

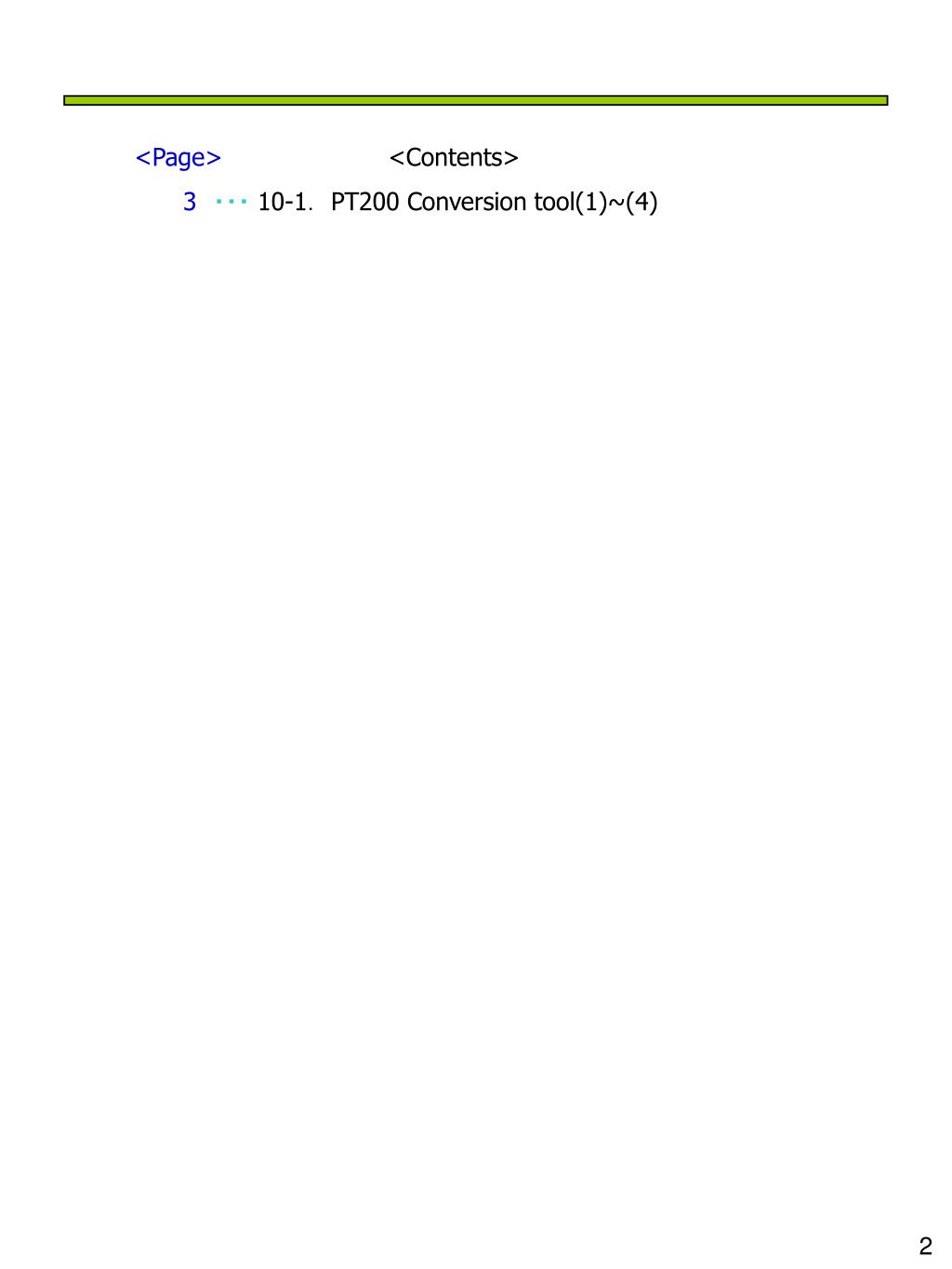

slide2

<Page> <Contents>

3・・・10-1. PT200 Conversion tool(1)~(4)

slide3

10.PT200SystemTools

10_1.PT200 Conversion tool(1)

1.ConvertStep(CM88/CM20F)

PT200

PT200 Shift Tool

LineConverter

PT100

PT200

PT200

PT200

System Install

(Tool→Convert Other Line)

(PT200conversionTool)

Data of PT100 is shifted to Virtual Line PT100_001

based on left Imformation.

It is the preservation place

of the undermentioned files that is maintained in the PT100 / PT100 to PT200.ini.

・PT100

Data

PTBAK/PT100/DATA

PT100/VData0001/

/Sort/Lib

PT100/VData0001/PT100_001/Lib

・Sort/Lib

PT100/PT100.CFG

・Registry

(Export data of the Registry)

nothing

PartsData

Registration

Ini File is shifted to Actual Line.

Special Nozzle is shifted to Actual Line.

*PT100 Machine Data

→It is shifted to Actual Line.

(including PRU data)

→It is shifted to Virtual Line.

(including PRU data)

(Virtual Name : PT100_001)

*Ini File is shifted to Virtual Line.

*Special Nozzle is shifted to

Virtual Line.

*ChipData

→It is registered to Actual Line.

→It is registered to Virtual Line.

(Virtual Name : PT100_001)

ChipData

iniFile

(Option setting files)

Special Nozzle

Machine Data

Feeder fixed

Nozzle fixed

CM88/CM20

slide4

10.PT200SystemTools

10_1.PT200 Conversion tool(2)

2.ConvertStep (Modular Machine)

PT200 Shift Tool

LineConverter

PT200

PT200

PT200

PT200

PT100

System Ins.Tool

(Tool→Convert Other Line)

(PT200conversionTool)

Data of PT100 is shifted to Virtual Line PT100_001

based on left Imformation.

It is the preservation place

of the undermentioned files that is maintained in the PT100 / PT100 to PT200.ini.

・PT100

Data

PTBAK/PT100/DATA

PT100/VData0001/

/Sort/Lib

PT100/VData0001/PT100_001/Lib

・Sort/Lib

PT100/PT100.CFG

・Registry

(Export data of the Registry)

nothing

PartsData

Registration

Data of Virtual Line

→SomeMachines

that is shifted to Actual Line as 1 Module.

*Integration ChipData

*Check on Common Data

*Check on Skip Data

*Check on Mount/ Block/BlockAttribute Data

*PT100 Machine Data

→It is shifted to Virtual Line

as 1 Machine 1 Module.

Module1

Module2

Module3

*Ini File is shifted to Virtual Line.

*Special Nozzle

→It is shifted to Actual Line.

→It is shifted to Virtual Line.

*ChipData

→It is registered to Virtual Line.

Modular Machine

When the computer is restarted,ini File is shifted to Autual Line.

Module1

slide5

10.PT200SystemTools

10_1.PT200 Conversion tool(3)

3. LineConverter Module統合時の contents of Check

Board・・・ The result of the comparison of all models of the lot is displayed

on substrate size of substrate data L,W,T and Offset coordinates X,Y.

BDRecog・・・ The result of the comparison of all models of the lot is displayed

on Board Recognition Data(Block Recognition) of Board Data and Badmark

Recognition Data.

BlkAttrib・・・ The result of the comparison of all models of the lot is displayed

on Block Attribute Data(Block coordinates X,Y)

Mount・・・ The interrelation of Mount Data,Block Attribute Data and Block Data

is checked.

1. Is it correct that the Number of records?

2. Is it a numerical value which the Mount Data coordinates which contain the

adjustment value was developed from the block data?

Skip ・・・ Is there skip data in Mount Data and Stock Data, or not?

When the shown numerical value which BoardData,BoardRecognitionData,

BlockAttributeData is a disagreement between the each module, While

convert the message for Confirmation is displayed.

Select item you need and keep on convert.

When A point of the substrate recognition and the Origin offset are the disagreements,

It can be selected whether to correct coordinates. At that time, some notes are

displayed. Read it and select item.

Whether data skip can be selected. Select item after you confirms data.

slide6

【Assumable things when data shifts without correcting data. 】

Substrate size L,W,T

There is a possibility of the transportation trouble.

※There is a possibility of the machine individual difference.

Coordinate regerence

Mounting is shifts without fail.

Subtsrate recognition point/Origin offset

There is a possibility Mounting gap.

1:The substrate data must be the same.

【Reason】

It is common in the modular editor.

(The same data is used.)

Substrate size L,W,T

Coordinate reference

Substrate recognition point

Origin offset

2:BlockAttributeData(Number of Blocks/

Coordinates value) must be the same.

【Reason】

It is common in the modular editor.

(The same data is used.)

【Assumable things when data is different.】

Mount Data reversely generates to Block Data.

The block attribute becomes one. ※1

3:Relation between block data and mount data must be the same.

【Reason】

It is a specification which Mount Data reversely

generates to Block Data.

【Assumable things when data is different. 】

Mount Data reversely generates to Block Data.

The block attribute becomes one. ※1

【Assumable things when data is different. 】

becomes an error of the data check.

The data correction is necessary.

4:the data check in the production data must be OK.

【Reason】

It makes an error of the data check after version up.

5:When the bat mark detection setting is turning onMeet the requirement of <above-mentioned> 2.3.

【Reason】

The bat mark coordinates are lost.

(The block attribute becomes one.)

Because It is a specification which Mount Data reversely generates to Block Data.

【Assumable things when data is different. 】

The bat mark cannot be normally detected. ※1

6:The Skip Data is deleted if it is not necessary because the Skip Data is released when data shifts. After data shifts, it is necessary to setting the Skip again.

【Reason】

It can’t import to the LineConverter if the data has skip setteing.

【Assumable things when data is different. 】

There is a possibility Mounting gap.

7:When data shifts (import) if either machine is passing setting ON the message about whether substrate recognition correctinh or not is displayed. But Don’t select correcting.

【Reason】

When you do not input the substrate recognition coordinates

message Substrate recognition correction is displayed.

【Assumable things when correcting 】

There is a possibility Mounting gap.

8:It is necessary to setting Mounting point recognition,

After the Version improves.

【Reason】

The data of Mounting point recognition can’t shift.

※1

Before the data shift, sorting are done the relation between Block Data and Mount Data becomes correct. And it will not do Mount Data reversely generates to Block Data.

It can shift untouched data of BlockData,BlockAttributeData.

10.PT200SystemTools

10_1.PT200 Conversion tool(4)

Notes : when The version improves from PT100 to PT200 between machines in module.
