Possible Process Automation Devices

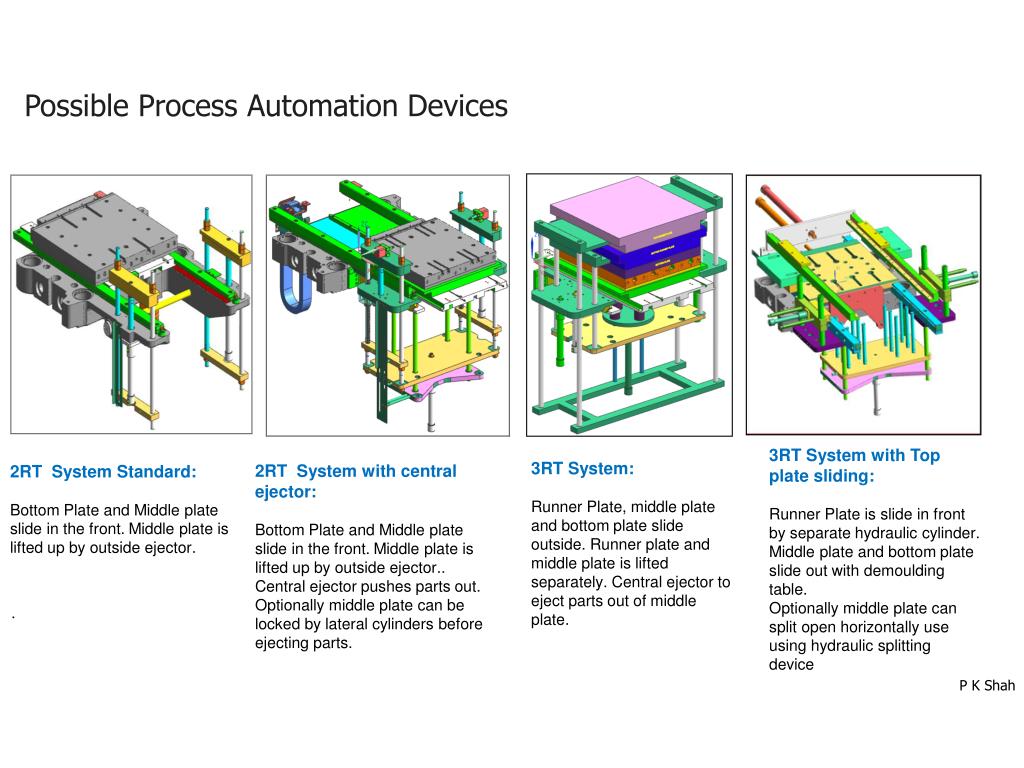

3RT System with Top plate sliding:

Runner Plate is slide in front by separate hydraulic cylinder. Middle plate and bottom plate slide out with demoulding table.

Optionally middle plate can split open horizontally use using hydraulic splitting device

3RT System:

Runner Plate, middle plate and bottom plate slide outside. Runner plate and middle plate is lifted separately. Central ejector to eject parts out of middle plate.

2RT System with central ejector:

Bottom Plate and Middle plate slide in the front. Middle plate is lifted up by outside ejector.. Central ejector pushes parts out. Optionally middle plate can be locked by lateral cylinders before ejecting parts.

2RT System Standard:

Bottom Plate and Middle plate slide in the front. Middle plate is lifted up by outside ejector.

.

P K Shah
