Presentation Transcript

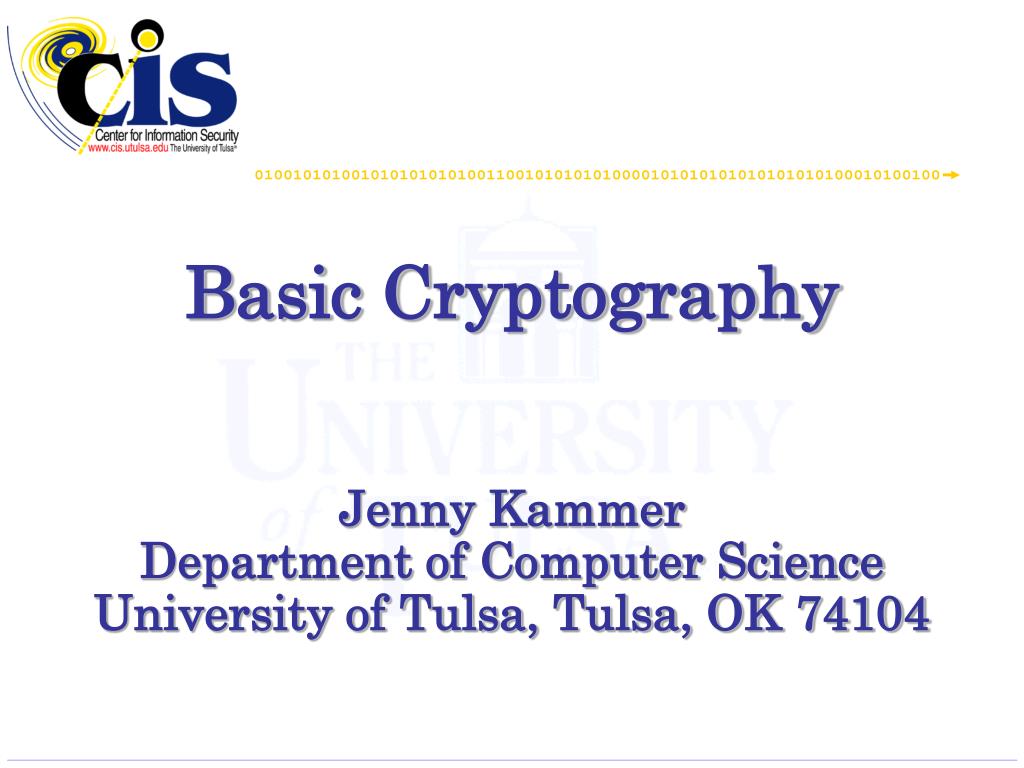

Basic cryptography jenny kammer department of computer science university of tulsa tulsa ok 74104

Basic CryptographyJenny KammerDepartment of Computer ScienceUniversity of Tulsa, Tulsa, OK 74104

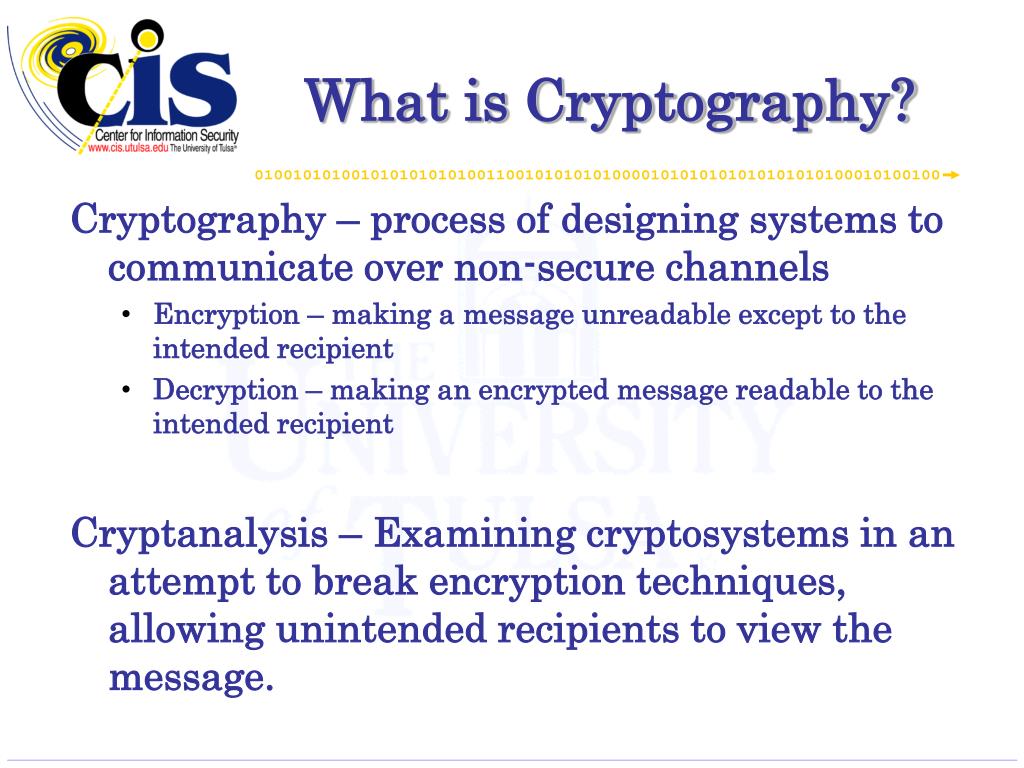

What is cryptography

What is Cryptography?

  • Cryptography – process of designing systems to communicate over non-secure channels

    • Encryption – making a message unreadable except to the intended recipient

    • Decryption – making an encrypted message readable to the intended recipient

  • Cryptanalysis – Examining cryptosystems in an attempt to break encryption techniques, allowing unintended recipients to view the message.


Why do we need cryptography

Why do we Need Cryptography?

  • Want to transmit or send a message securely over an insecure medium

  • Ensures confidentiality – making sure data is secret from all except authorized persons


Cryptography in a nutshell

Cryptography in a Nutshell

Alice wants to send a message to Bob

Bob

Message: Hi Bob!

Message: Hi Bob!

ciphertext

plaintext

plaintext

Message: qks9!h&

Eve


Secret algorithm vs secret key

Secret Algorithm vs. Secret Key

  • Secret Algorithm – Only the two parties communicating know how to encrypt/decrypt

  • Secret Key – Everyone knows how to encrypt and decrypt, but you need a secret key to do it, and only the two parties communicating have the key(s)

    • Better if we want to communicate with large numbers of people

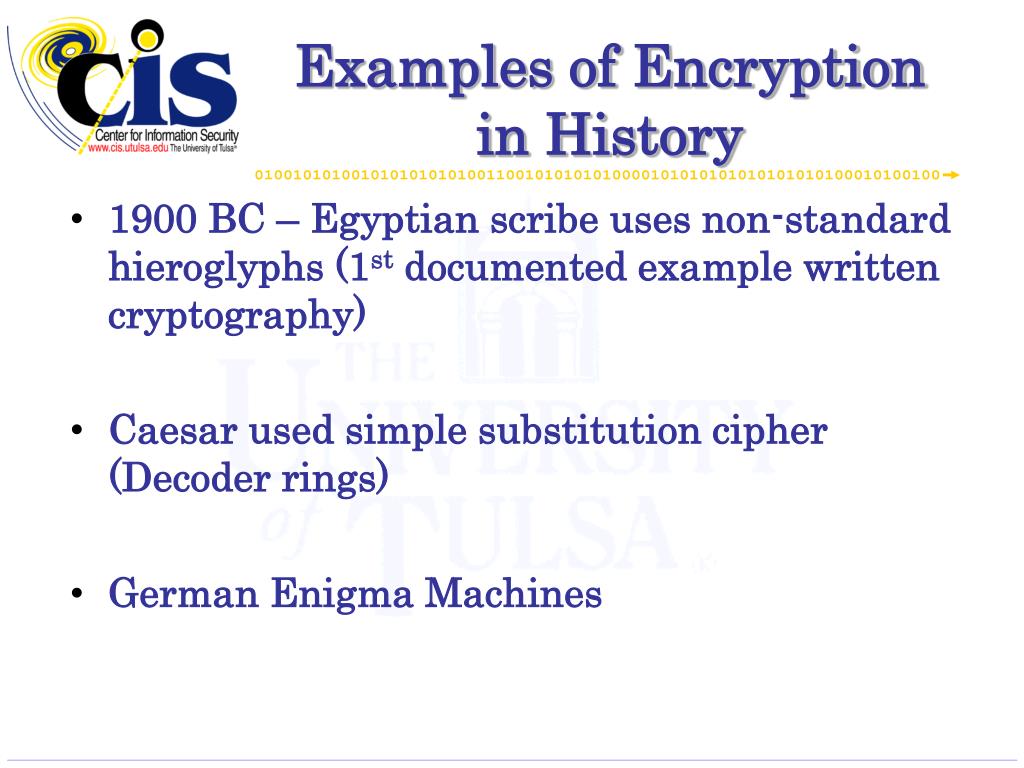

Examples of encryption in history

Examples of Encryption in History

  • 1900 BC – Egyptian scribe uses non-standard hieroglyphs (1st documented example written cryptography)

  • Caesar used simple substitution cipher (Decoder rings)

  • German Enigma Machines

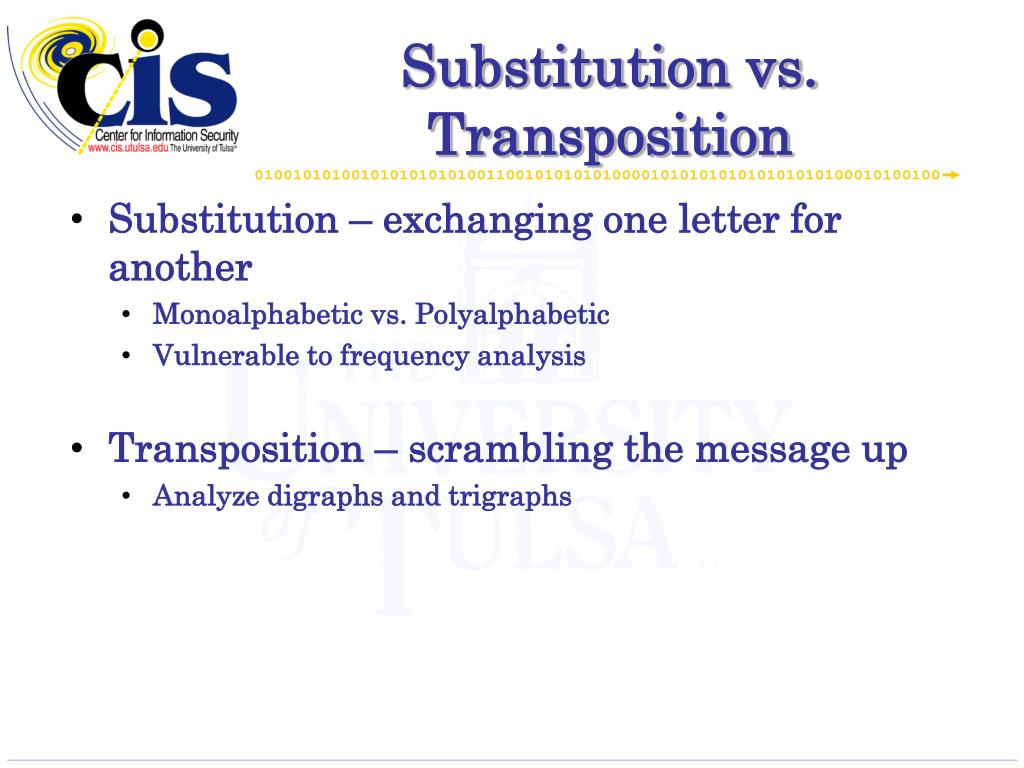

Substitution vs transposition

Substitution vs. Transposition

  • Substitution – exchanging one letter for another

    • Monoalphabetic vs. Polyalphabetic

    • Vulnerable to frequency analysis

  • Transposition – scrambling the message up

    • Analyze digraphs and trigraphs


Symmetric vs asymmetric encryption

Symmetric vs. Asymmetric Encryption

  • Symmetric – Same key used to encrypt and to decrypt message

    • How do we share the key?

    • Lots of keys to keep (n*(n-1)/2 )

  • Asymmetric – Uses key pairs. Key pair is a set of a public and private key where public key is used to encrypt a message and private key is used to decrypt a message.

    • Don’t have to share secret keys

    • Fewer keys – (2n)


Hashing and checksums

Hashing and Checksums

  • Hashing and checksums are similar to encryption, but they are NOT the same

  • Encryption can be decrypted; hashes cannot be decrypted (hashes are one-way functions)

  • Hashes are used to verify the integrity of message, not ensure the confidentiality of a message


Limitations of cryptography

Limitations of Cryptography

  • Flaws in cryptosystems

  • Start to finish problem

    • If data is encrypted during transport but stored on a server in plaintext, it is still vulnerable

  • Weak passwords

  • Moore’s Law

  • Human component

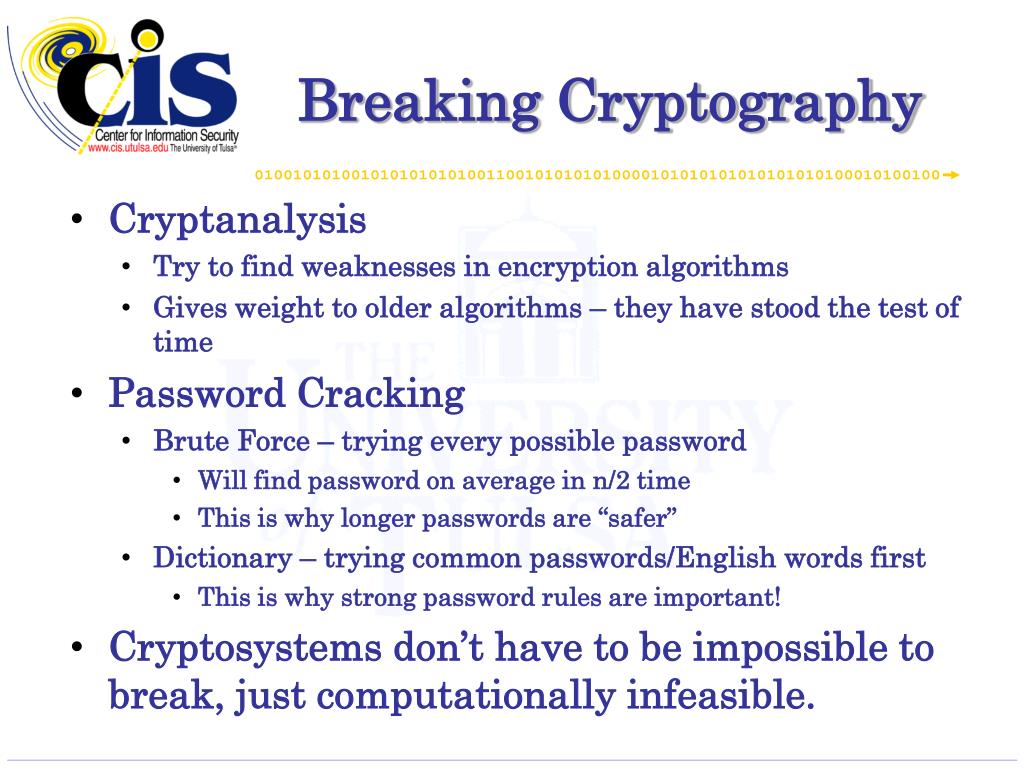

Breaking cryptography

Breaking Cryptography

  • Cryptanalysis

    • Try to find weaknesses in encryption algorithms

    • Gives weight to older algorithms – they have stood the test of time

  • Password Cracking

    • Brute Force – trying every possible password

      • Will find password on average in n/2 time

      • This is why longer passwords are “safer”

    • Dictionary – trying common passwords/English words first

      • This is why strong password rules are important!

  • Cryptosystems don’t have to be impossible to break, just computationally infeasible.


Recent standards

Recent Standards

  • DES was standard from 1976 until 2002

    • 1977 – Diffe and Hellman propose a parallel attack, which required 10^6 chips, each testing 1 key per microsecond would require 20 hrs and cost $20,000/solution

    • 1997 – An attack on DES cracked it in 120 days

    • 1998 – EFF broke DES in 56 hours

    • 1999 – EFF’s Deep Crack and a distributed net break DES in 22 hours

    • 2001 – AES is published

    • 2002 – AES is adopted as new standard


Des vs aes

DES vs. AES


Des vs aes1

DES vs. AES

  • “Assuming that one could build a machine that could recover a DES key in a second (i.e., try 255 keys per second), then it would take that machine approximately 149 thousand-billion (149 trillion) years to crack a 128-bit AES key. To put that into perspective, the universe is believed to be less than 20 billion years old.”

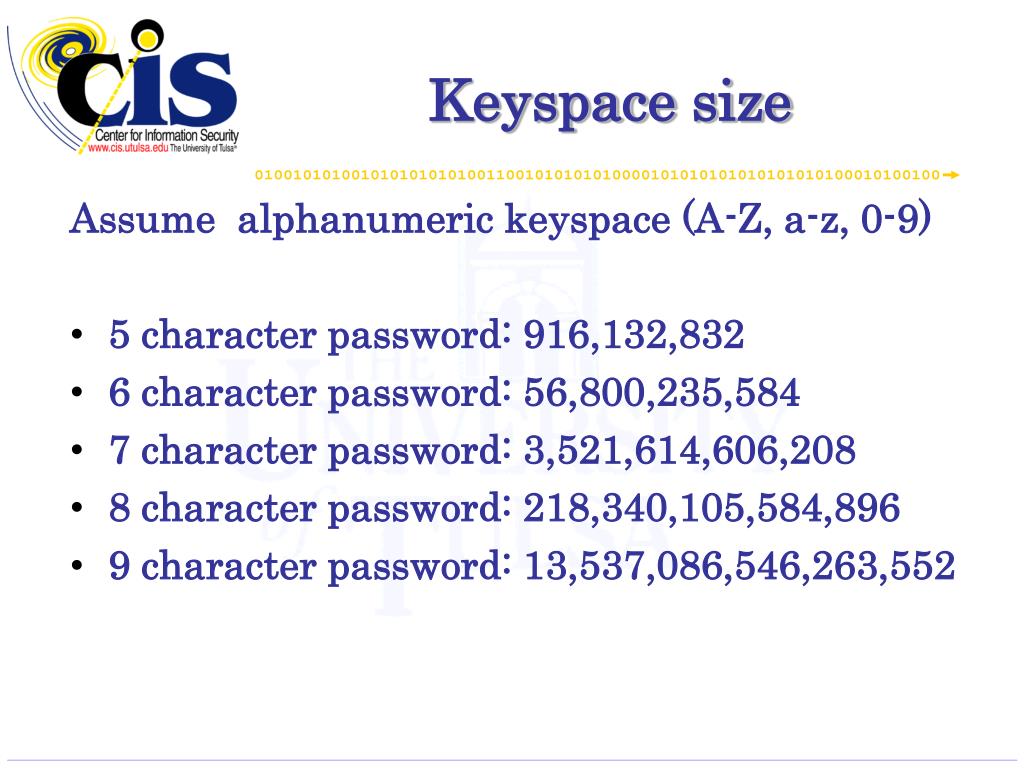

Keyspace size

Keyspace size

  • Assume alphanumeric keyspace (A-Z, a-z, 0-9)

  • 5 character password: 916,132,832

  • 6 character password: 56,800,235,584

  • 7 character password: 3,521,614,606,208

  • 8 character password: 218,340,105,584,896

  • 9 character password: 13,537,086,546,263,552

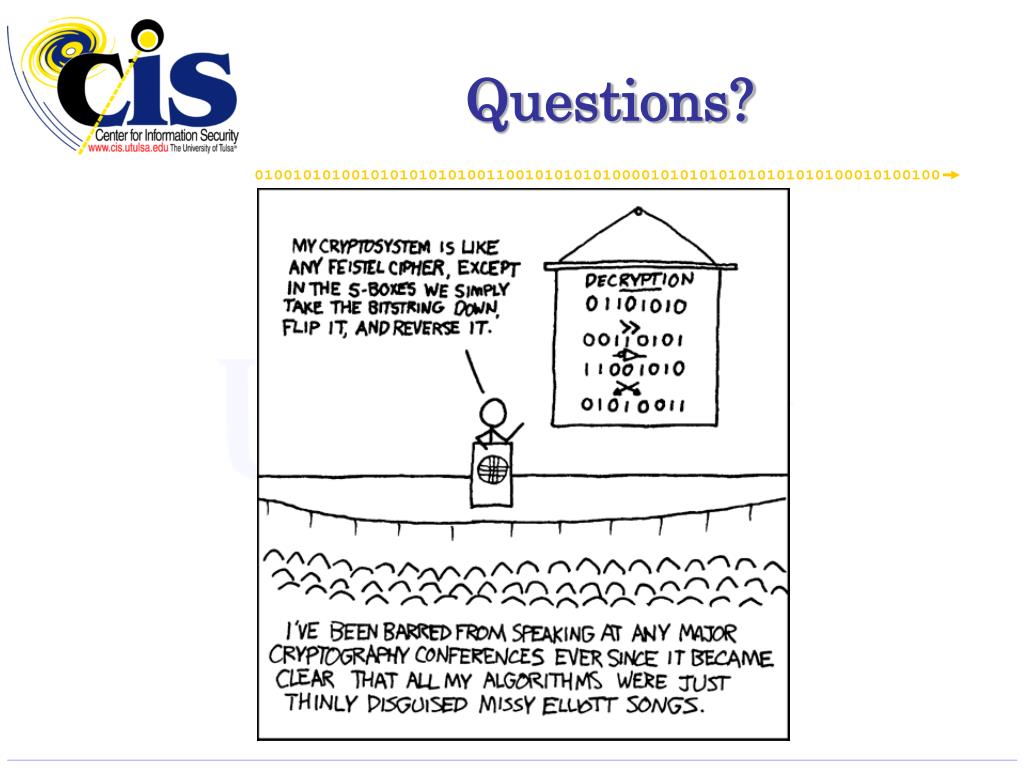

Questions

Questions?


Sources

Sources

  • Trappe, Wade and Washington, Lawrence. Introduction to Cryptography with Coding Theory. Pearson Prentice Hall. New Jersey. 2006.

  • Loehr, Nick. Class Lecture. Cryptography I. Virginia Tech, Blacksburg, VA. 2008.

  • Shenoi, Sujeet. Class Lecture. Computer and Network Security. University of Tulsa, Tulsa, OK. Feb 2010.


Sources1

Sources

  • www.Cryptographyworld.com

  • http://www.ciphersbyritter.com/LEARNING.HTM#WhatCryptCanNotDo

  • http://www.sans.org/reading_room/whitepapers/vpns/history_of_encryption_730

  • http://xkcd.com/

  • http://www.cisco.com/web/about/ac123/ac147/archived_issues/ipj_4-2/goodbye_des.html

  • http://www.nist.gov/public_affairs/releases/aesq&a.htm

  • http://en.wikipedia.org/wiki/Data_Encryption_Standard
