Presentation Transcript


The tablet pc at five l.jpg

The Tablet PC at Five

Chuck Thacker

Distinguished Engineer

Microsoft Corporation

July 20, 2005

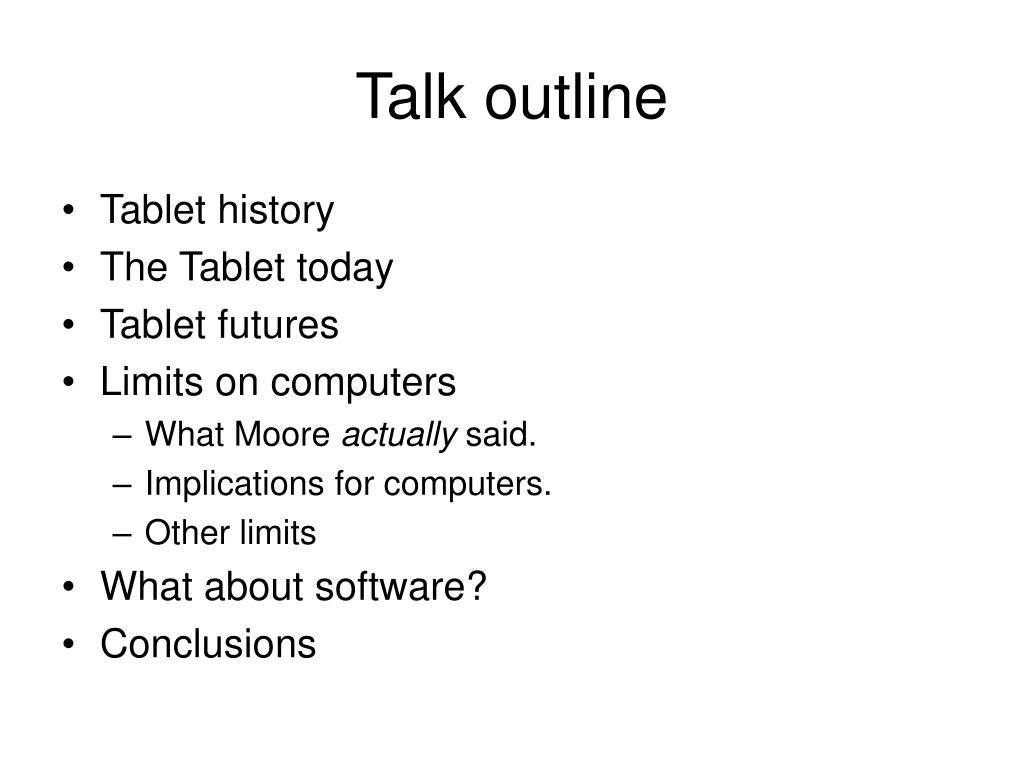

Talk outline l.jpg

Talk outline

  • Tablet history

  • The Tablet today

  • Tablet futures

  • Limits on computers

    • What Moore actually said.

    • Implications for computers.

    • Other limits

  • What about software?

  • Conclusions


Prehistory before 2000 l.jpg

Prehistory – before 2000

  • Lots of earlier attempts – mostly failures.

    • DEC, Go, Newton, Pen Windows

  • Technology wasn’t ready

  • But vertical markets had limited success.

  • Needed: better UI, better handwriting recognition (without relying on it).

  • Key: Better digitizer (with hover).


An earlier attempt 1983 l.jpg

An earlier attempt -- 1983

  • TRS 80 Model 100

  • Reporters and students loved it

  • Ran for days on AA cells

  • Solved most computing needs for its (low aspiration) users.


Another attempt 1993 l.jpg

Another attempt -- 1993

  • DEC Lectrice

  • 5.5 pounds

  • 1.5 hour battery

  • Wireless network

  • $5K LCD panel

  • VxWorks OS, X11 server optimized for reading


Where we started internal ms 1999 l.jpg

Where we started: Internal MS (1999)

  • Microsoft proof of concept

    • Transmeta TM5800

    • 256MB DRAM, 20GB HDD

    • 10.4” Slate

  • Good points:

    • Proved viability

    • Pushed the Power Efficiency Envelope

      • 5 Hours runtime, 200 Hours standby

    • Provided a development platform

      to get MS to Tablet PC launch.

  • On the Other Hand:

    • It was so sloooooow


Today s market new slates l.jpg

Tatung B12D

12.1” 1.2 GHz Centrino

Today’s Market: New Slates

MotionComputing

LE 1600

LS 800

Sahara i213

12.1”, 1.6GHz Centrino

NEC

VersaPro, 10.4”, 1.1 GHz

Fujitsu 5000

10.4/12.1, Indoor/Outdoor

1.1 GHz ULV

Tatung TTAB

10.4”, 1 GHz ULV


Today s market new convertibles l.jpg

Acer

C1xx

Gateway M275

14.1”, DVD

1.8 GHz Pentium-M

C300

C250

SHARP

Actius TN10W

12.1”, 1.1 GHz

Today’s Market: New Convertibles

Toshiba

Averatec C3500

AMD 2200+

12.1”, DVD

M200, 12.1” SXGA+

2 GHz Pentium-M

Electrovaya

1.4 GHz Centrino

12.1”, Biometrics

Scribbler SC-2200

Fujitsu

T4000

HP tc4200

IBM ThinkPad x41

ViewSonic

12.1”, 1 GHz


Today s market new hybrids ruggeds l.jpg

Today’s Market: New Hybrids & Ruggeds

Ruggedized

Hybrid

Itronix

8.4”, 933 MHz ULV

HP Compaq TC1100ULV Celeron or Pentium

10.4”, 1.1 GHz

Walkabout Hammerhead

10.4”, 4.5 lbs

933 MHz P-III M

Xplore iX104

10.4” 1.1 GHz ULV


Concept design new hinge l.jpg

Concept Design: New hinge

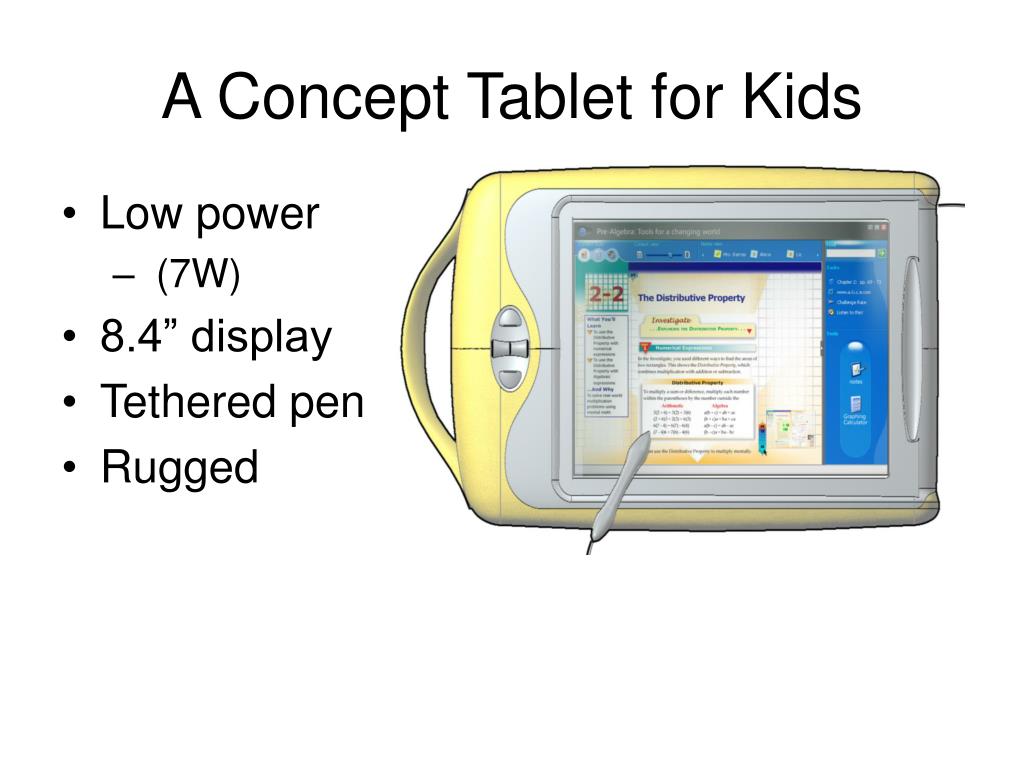

A concept tablet for kids l.jpg

A Concept Tablet for Kids

  • Low power

    • (7W)

  • 8.4” display

  • Tethered pen

  • Rugged


Other form factors l.jpg

Other Form Factors

Vulcan FlipStart

OQO Model 1

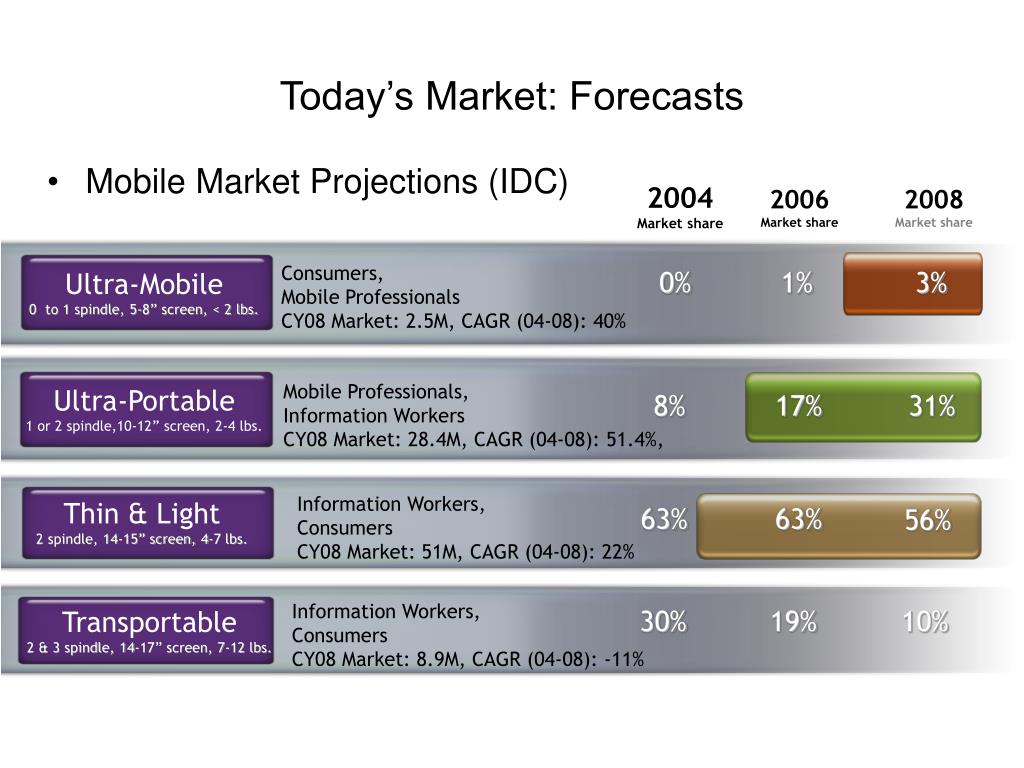

Today s market forecasts l.jpg

Today’s Market: Forecasts

2004

Market share

2006

Market share

2008

Market share

  • Mobile Market Projections (IDC)

Consumers,

Mobile Professionals

CY08 Market: 2.5M, CAGR (04-08): 40%

0%

1%

3%

Ultra-Mobile

0 to 1 spindle, 5-8” screen, < 2 lbs.

Mobile Professionals,

Information Workers

CY08 Market: 28.4M, CAGR (04-08): 51.4%,

Ultra-Portable

1 or 2 spindle,10-12” screen, 2-4 lbs.

8%

17%

31%

Information Workers,

Consumers

CY08 Market: 51M, CAGR (04-08): 22%

Thin & Light

2 spindle, 14-15” screen, 4-7 lbs.

63%

63%

56%

Information Workers,

Consumers

CY08 Market: 8.9M, CAGR (04-08): -11%

30%

19%

10%

Transportable

2 & 3 spindle, 14-17” screen, 7-12 lbs.

Data source: IDC


Moore s law 1967 l.jpg

Moore’s Law (1967)

  • Not really a “law”, but an observation, intended to hold for “..the next few years”.

  • (Nt/A)(t1) = (Nt/A)(t0) * 1.58t1-t0(t in years)

  • Most exponential curves in the real world turn out to be “S” shaped, but Moore’s observation has held for 35 years.


The woolly bear book of vlsi scaling l.jpg

The Woolly Bear Book of VLSI scaling

  • Scaling requires lithography and process changes.

  • Get more and faster transistors in the same area.

  • Power per transistor goes down, power per unit area goes up (sometimes way up).

  • Power ≈ CV2f (plus leakage)


How to use moore s law l.jpg

How to use Moore’s Law

  • Lower cost: Same Nt, reduced A (“die shrinks”) used in video consoles.

  • More complex chips: Larger Nt, same A.

    • Lower the voltage and increase frequency

    • Add larger caches to overcome latency

    • Add architectural features to increase ILP

  • Superchips (SOC): Increase Nt and A.


Moore s law for memory l.jpg

Moore’s Law for Memory

  • Capacity improvement: 1,000,000 X since 1970.

  • Bandwidth improvement: 100 X.

  • Latency reduction: only 10-20 X.

    • Dealing with latency is the largest problem for a computer system designer.

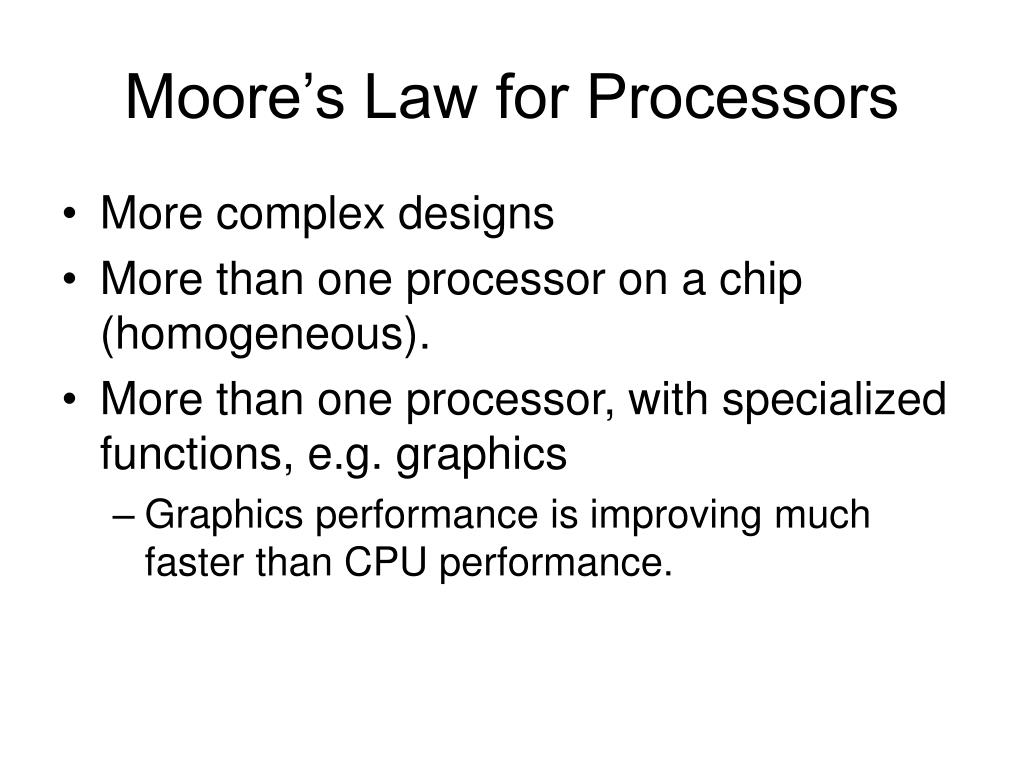

Moore s law for processors l.jpg

Moore’s Law for Processors

  • More complex designs

  • More than one processor on a chip (homogeneous).

  • More than one processor, with specialized functions, e.g. graphics

    • Graphics performance is improving much faster than CPU performance.


Thirty years of progress l.jpg

Thirty years of progress


Possible future limits l.jpg

Possible Future Limits

  • Physical limits:

    • “Atoms are too large, and light is too slow”

    • Today, the problem isn’t making the transistors faster, it’s the time for signals to propagate on the wires (latency again).

    • Power. Lots of transistors => lots of power. Cooling is hard.

  • Design complexity:

    • Designing a billion-transistor chip takes a large team, even with good design tools.

    • The “junk DNA” problem.

  • Economics:

    • Factories are very expensive.


Scaling limits l.jpg

Scaling Limits

  • Voltage scaling is about over. It’s very hard to operate below 1 volt.

  • Frequency increases are also difficult.

    • Intel runs out at 3 – 4 GHz.

  • Static leakage is also a big problem.

  • So, we’ll see more transistors in the future, but they won’t be better or faster transistors.


Future processors l.jpg

Future processors

  • We’ll see chips with many processor cores.

  • Each core will be simpler than today’s superscalar machines. Probably hyperthreaded, to hide latency.

  • Optimized to increase thread-level parallelism, rather than instruction-level parallelism.

  • The story about caching is very unclear…

  • See Intel’s “Platform 2015” white papers.


Other limits l.jpg

Other Limits

  • Not all technologies used in computers follow Moore’s Law

    • Disks don’t

    • Displays don’t

    • Batteries don’t

  • The bandwidth vs. latency problem.

    • See D. Patterson, “Latency Lags Bandwidth”, CACM, October 2004


What about software l.jpg

What about software?

  • For scientific computing and servers, the future seems fine.

    • There are lots of important problems that are embarrassingly parallel.

  • For client software, the picture is more bleak.


Many core challenges for clients l.jpg

Many-core challenges for clients

  • Windows doesn’t use threads well

    • Exceptions: Kernel, SQL

    • Competitors don’t do any better

  • Applications don’t use threads well

    • Outlook is the poster child

    • Until recently, inking on Tablet was problematic

  • Problems:

    • Writing multi-threaded code is hard

    • Threading model and primitives are overly complicated

    • Threads don’t compose

    • Debugging multi-threaded code is harder

    • Testing multi-threaded code is a crapshoot

    • Tool support isn’t very good

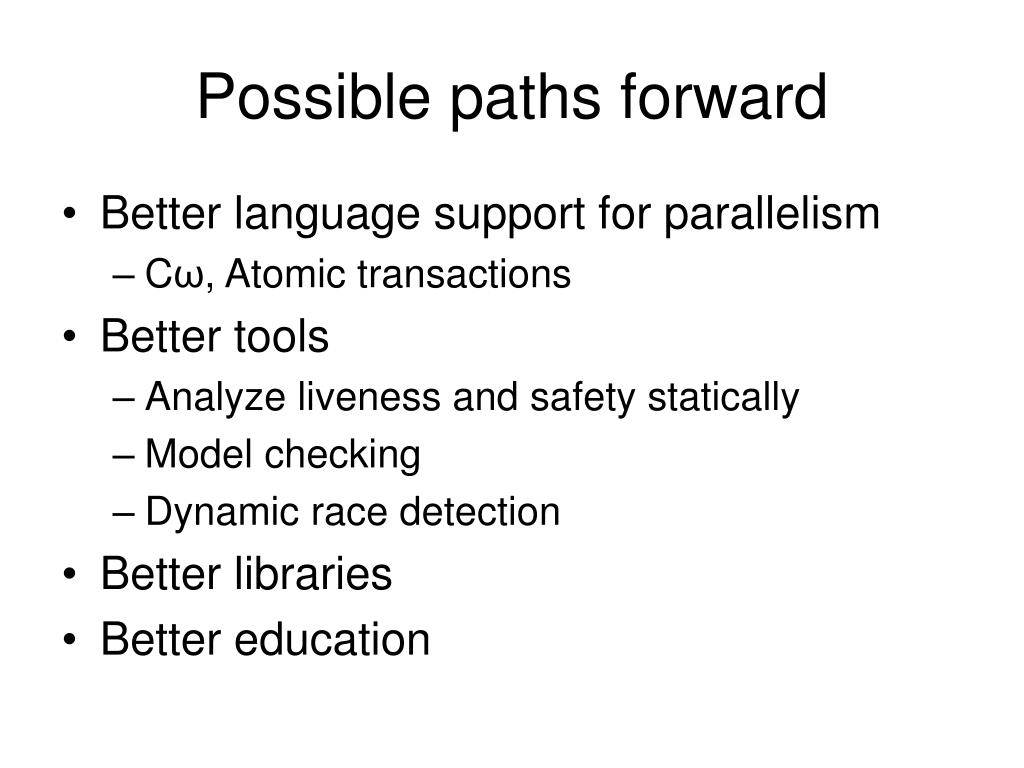

Possible paths forward l.jpg

Possible paths forward

  • Better language support for parallelism

    • Cω, Atomic transactions

  • Better tools

    • Analyze liveness and safety statically

    • Model checking

    • Dynamic race detection

  • Better libraries

  • Better education


Conclusions l.jpg

Conclusions

  • Popularity of portable devices, including Tablet PC, is growing

  • Much of the innovation in the industry is in this area.

  • Energy-efficiency can open up new markets.

  • Silicon trends favor the high end

  • There are lots of challenges and opportunities for new software.
