The Bean Lab: Allele Frequency

The Bean Lab: Allele Frequency. The Bean Allele Frequency Lab. Purpose : The following pictures are a guide to show one example of how the allele frequency could change in a population due to a genetic disorder.

travis
Download Presentation

The Bean Lab: Allele Frequency

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

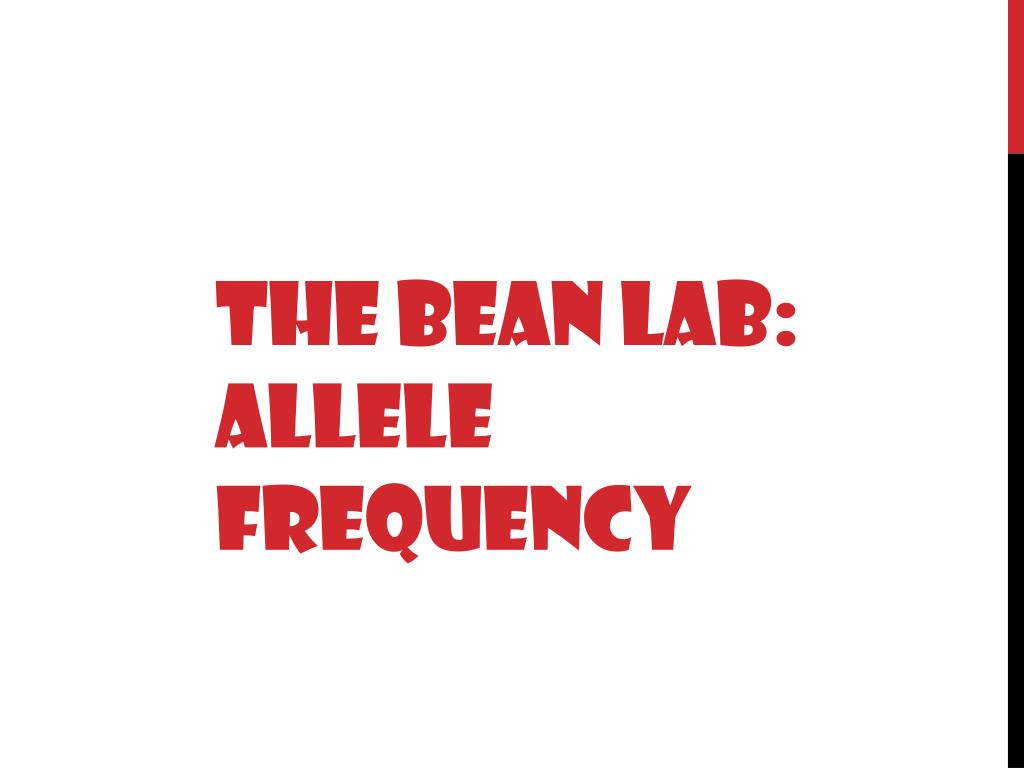

  1. The Bean Lab:Allele Frequency

  2. The Bean Allele Frequency Lab • Purpose: The following pictures are a guide to show one example of how the allele frequency could change in a population due to a genetic disorder. • Setup: The three types of beans (red [RR], pinto [Rr] and white [rr]) will be used to represent a population of individuals with a certain trait. If an individual has the recessive phenotype (rr) then there is a 50% chance of surviving to reproduce. Being a carrier of the trait (Rr) has no bearing on mortality. • The 2012-13 class has gone through the lab and developed a set of instructions to go along with the following pictures to help walk you through how to do the lab.

  3. Slide #1 • White, rr • (16) • Red, RR • (16) • Pinto, Rr • (32) R and r frequency = 16 + 16 + 32 64 +64

  4. Slide #2 White, rr (8) Red, RR (16) Pinto, Rr (32)

  5. Slide #3 The Dating Game

  6. Slide #4 Who got married to who from this Parent Generation (P)

  7. Slide #5 The offspring of those couple, now known as the First Generation (F1).

  8. How did we get these numbers of beans?

  9. How did we get these numbers of beans?

  10. Slide #6 Red, RR (37) Pinto, Rr (54) White, rr (21)

  11. Slide #7 Red, RR (37) Pinto, Rr (54) White, rr(11)

  12. Slide #8

  13. Slide #9

  14. Slide #10

  15. Slide #11 Red, RR (82) Pinto, Rr(92) White, rr(30)

  16. Slide #12 Red, RR (82) Pinto, Rr (92) White, rr(15)

  17. Slide #13

  18. Slide #14

  19. Slide #15

  20. Slide #16 Red, RR (172) Pinto, Rr(166) White, rr (38)

  21. IF we continued on this path, what should the next slide show?

  22. Slide #17 Red, RR (172) Pinto, Rr(166) White, rr(19)

  23. DaTa Analysis

  24. What is happening to the overall bean population? • Why is this happening to the OVERALL bean population? • Could we expect this pattern to continue indefinitely? • What factors could stop this pattern?

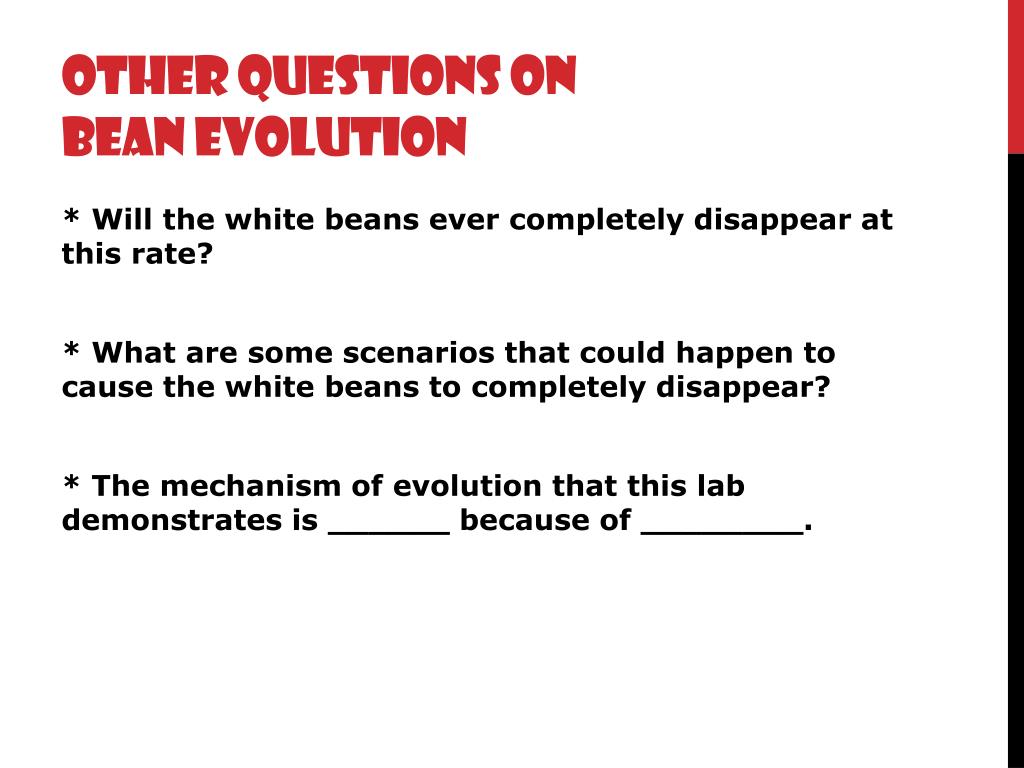

  25. Other Questions on Bean Evolution • * Will the white beans ever completely disappear at this rate? • * What are some scenarios that could happen to cause the white beans to completely disappear? • * The mechanism of evolution that this lab demonstrates is ______ because of ________.

  26. Other Mechanisms that Could affect Allele Frequency

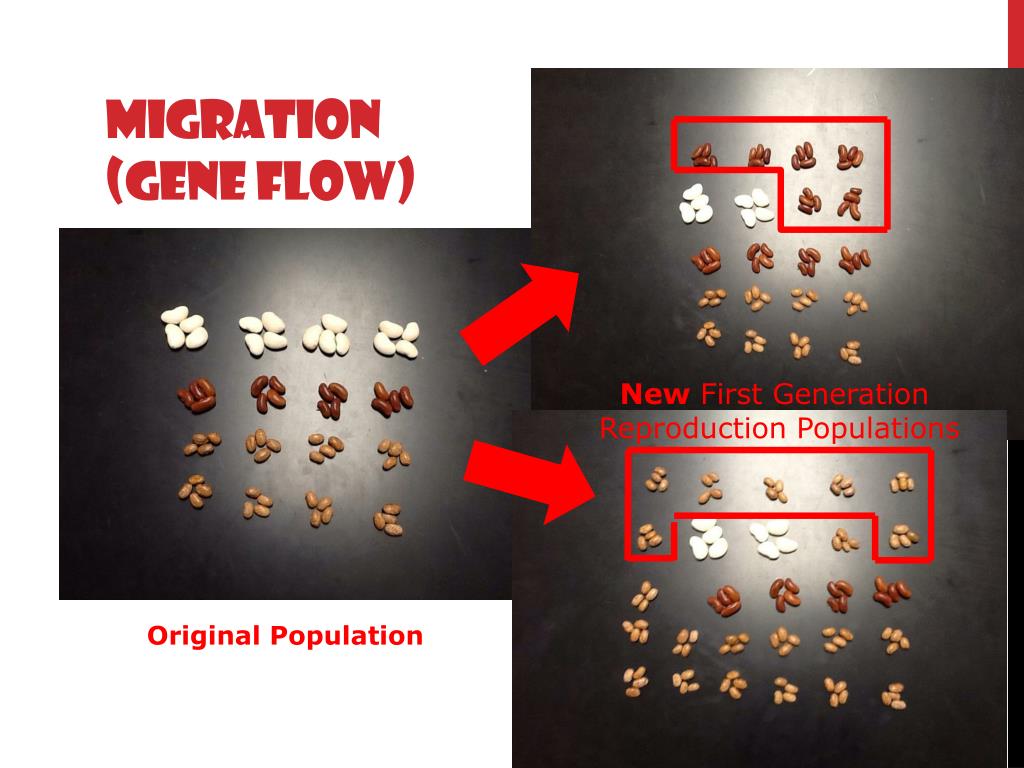

  27. Migration (Gene Flow) New First Generation Reproduction Populations Original Population

  28. Mate Selection Original Parent Pairs New Parent Pairs

  29. Small Population + Chance Event – Dangerous Mutation Original Population Reproduction Population

  30. Introduction of a Predator Fire Breathing Dragon who eats red beans for lunch Original Population
