Reducing phosphorus concentration in rivers wetlands not always to the rescue

Reducing phosphorus concentration in rivers: wetlands not always to the rescue

Ben Surridge, Catchment Science Centre

Louise Heathwaite, Lancaster Environment Centre

Andrew Baird, Queen Mary, University of London


Phosphorus a life support element

Macro-nutrient, 2-4% dry weight of most cells, mostly PO4

Constituent of DNA and RNA

Cell structure – phospholipids

Cell energy – ATP and ADP

Phosphorus: a life-support element

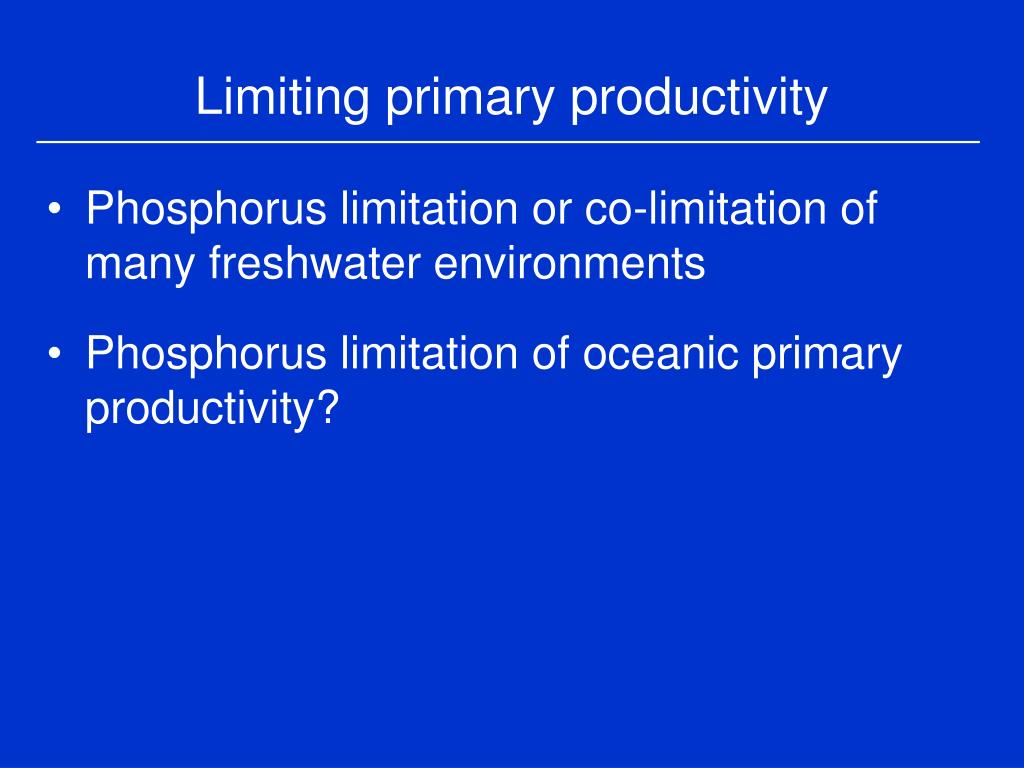

Limiting primary productivity
Limiting primary productivity of most cells, mostly PO

  • Phosphorus limitation or co-limitation of many freshwater environments

  • Phosphorus limitation of oceanic primary productivity?

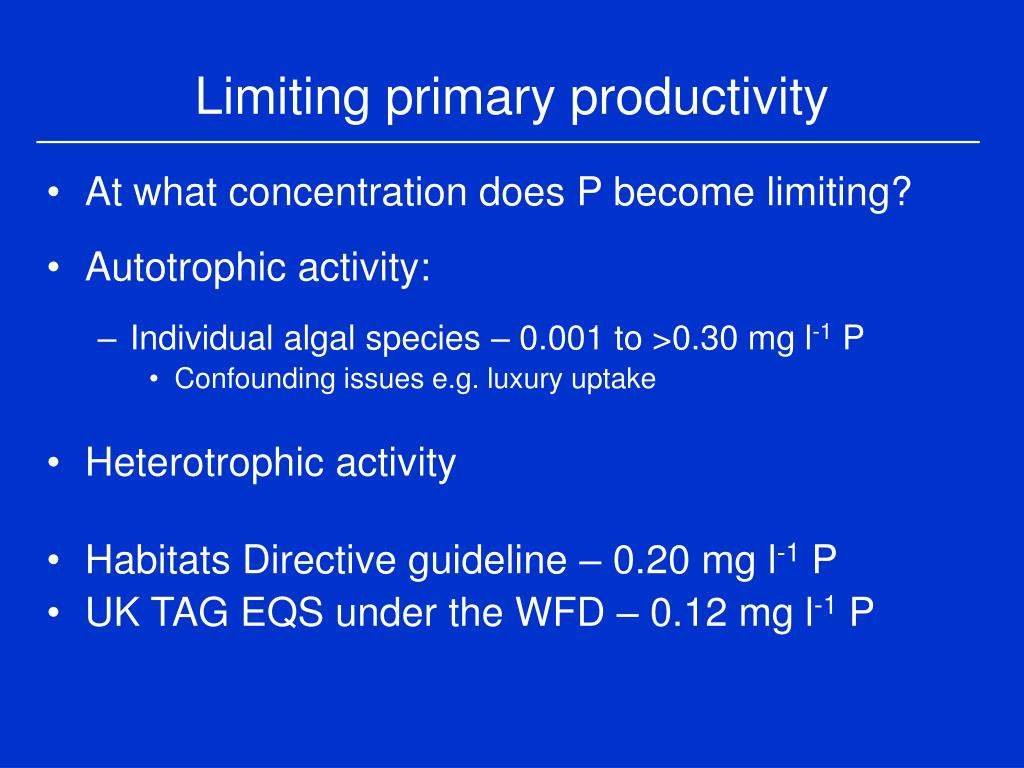

Limiting primary productivity1
Limiting primary productivity of most cells, mostly PO

  • At what concentration does P become limiting?

  • Autotrophic activity:

    • Individual algal species – 0.001 to >0.30 mg l-1 P

      • Confounding issues e.g. luxury uptake

  • Heterotrophic activity

  • Habitats Directive guideline – 0.20 mg l-1 P

  • UK TAG EQS under the WFD – 0.12 mg l-1 P

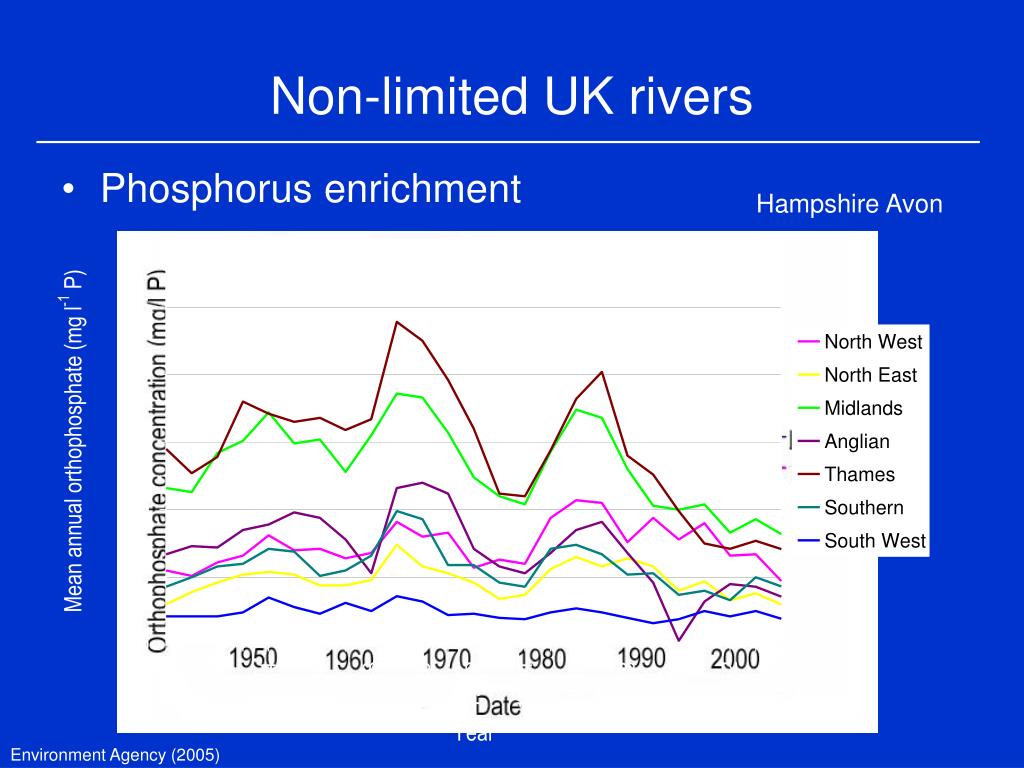

Non limited uk rivers

Hampshire Avon of most cells, mostly PO

Non-limited UK rivers

  • Phosphorus enrichment

Environment Agency (2005)

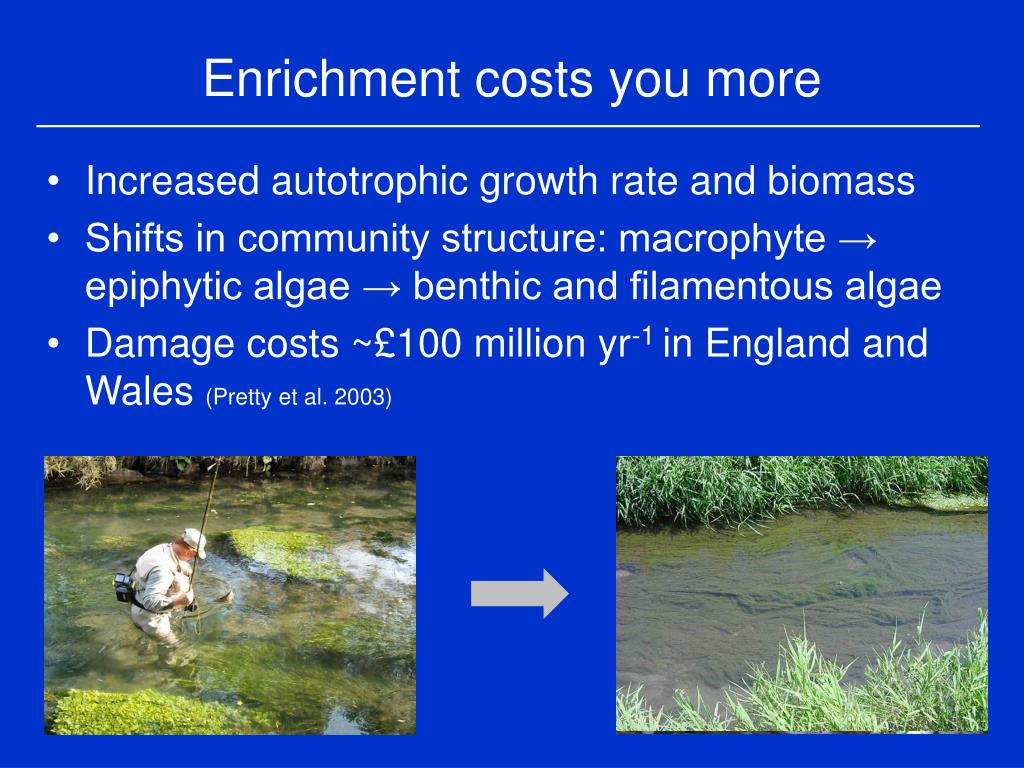

Enrichment costs you more
Enrichment costs you more of most cells, mostly PO

  • Increased autotrophic growth rate and biomass

  • Shifts in community structure: macrophyte → epiphytic algae → benthic and filamentous algae

  • Damage costs ~£100 million yr-1 in England and Wales (Pretty et al. 2003)

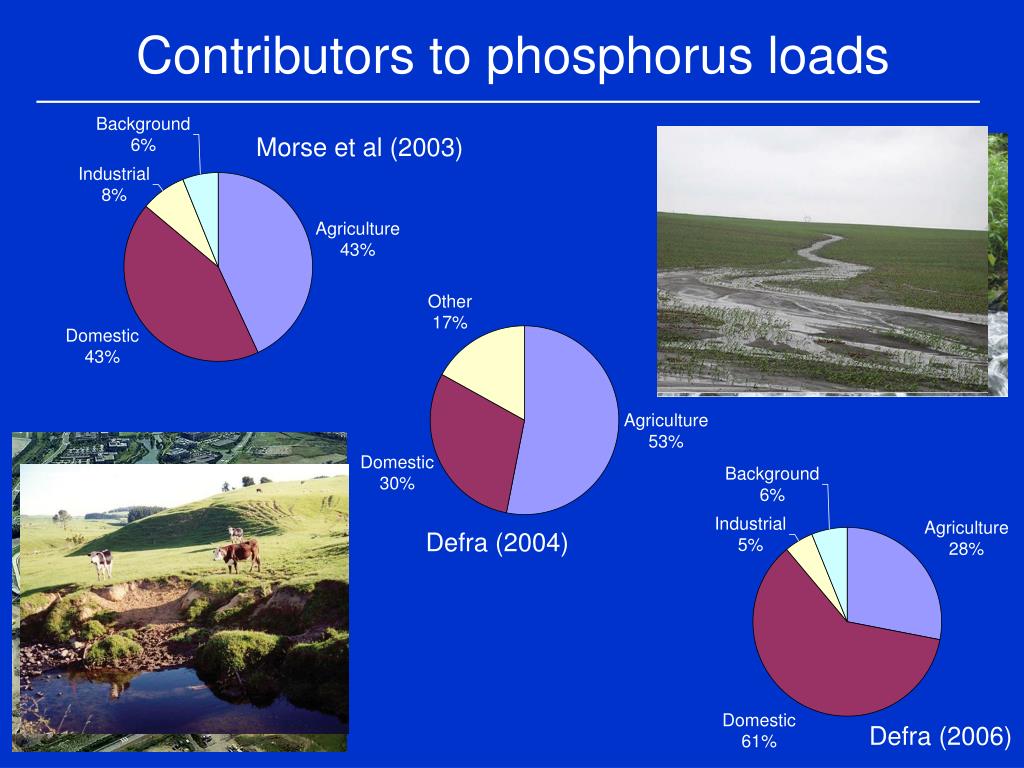

Contributors to phosphorus loads
Contributors to phosphorus loads of most cells, mostly PO

Morse et al (2003)

Defra (2004)

Defra (2006)

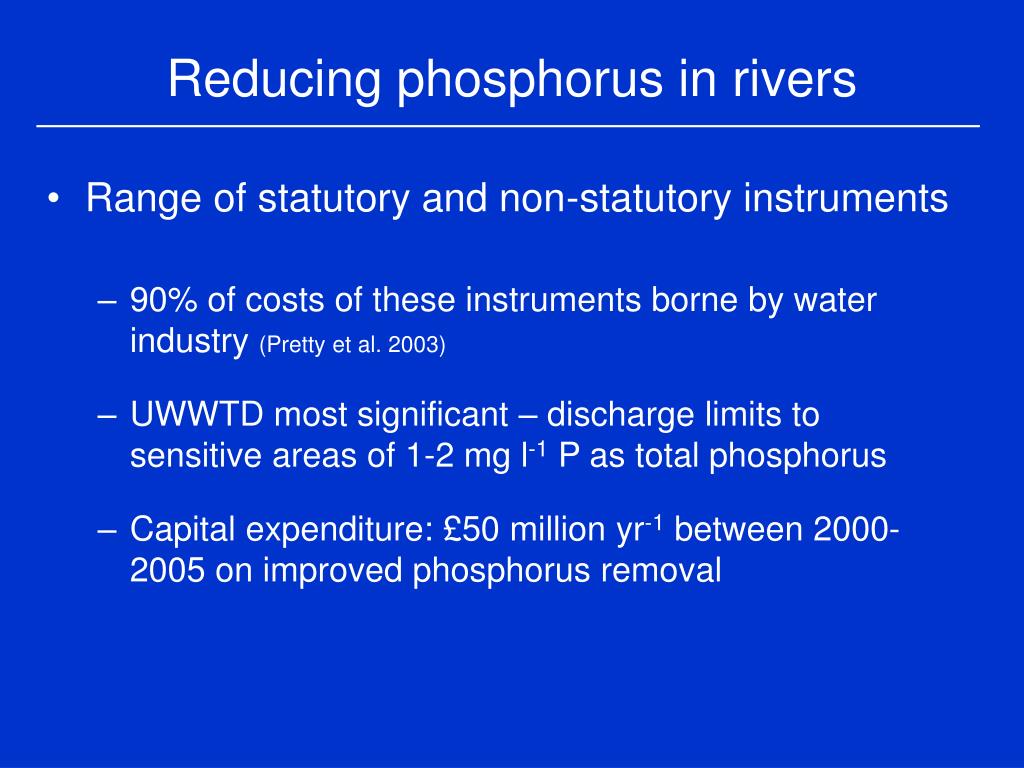

Reducing phosphorus in rivers
Reducing phosphorus in rivers of most cells, mostly PO

  • Range of statutory and non-statutory instruments

    • 90% of costs of these instruments borne by water industry (Pretty et al. 2003)

    • UWWTD most significant – discharge limits to sensitive areas of 1-2 mg l-1 P as total phosphorus

    • Capital expenditure: £50 million yr-1 between 2000-2005 on improved phosphorus removal


Justified water industry investment

River Kennet of most cells, mostly PO

Jarvie et al. (2004)

Justified water industry investment?


…….but of most cells, mostly PO

  • Macrophyte growth still affected by epiphytic and benthic algae

    • Because of compounding factors – phosphorus is not the only factor affecting productivity

    • Because targeting WWTPs is not sufficient – baseline and spikes in river phosphorus concentration


The diffuse problem
The diffuse problem of most cells, mostly PO

  • Engagement – changing nutrient management at source – Defra’s CSF

  • Inducement – nutrient management and targeted mitigation – Environmental Stewardship

    • Entry level – 3.5 million hectares

    • Higher level – 65,000 hectares


Wetlands at our service

Kronvang et al (2005) of most cells, mostly PO

Wetlands at our service?

  • Nutrient attenuation function

  • Riparian zone an effective sediment and P trap


Wetlands at our service1
Wetlands at our service? of most cells, mostly PO

  • Drive to re-establish and create wetlands:

    • UK BAP ~18,000 ha wetland

    • 50-year wetland vision – 12% of Yorkshire and Humber study area has potential for restoring wetland habitat


A second nutrient time bomb
A second nutrient time bomb? of most cells, mostly PO

  • Riparian zones are productive agricultural land

    ~30% of applied phosphorus removed in produce

    ~70% remains in soil or is exported

  • UK floodplain sediments ~500 - >2500 mg kg-1 total phosphorus (Walling et al. 2000)

    • How stable is this phosphorus?

    • Could chemical, and potentially ecological, status be affected?

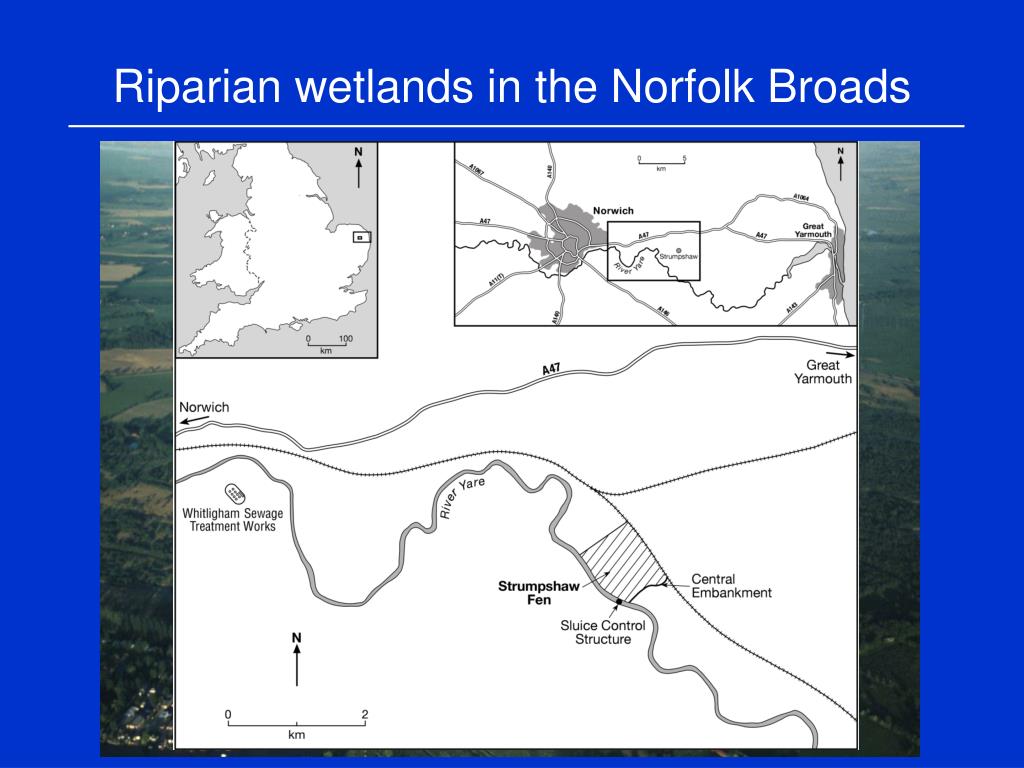

Riparian wetlands in the norfolk broads
Riparian wetlands in the Norfolk Broads of most cells, mostly PO


External nutrient loads
External nutrient loads of most cells, mostly PO

River Yare

Lackford Run

Environment Agency (2005)

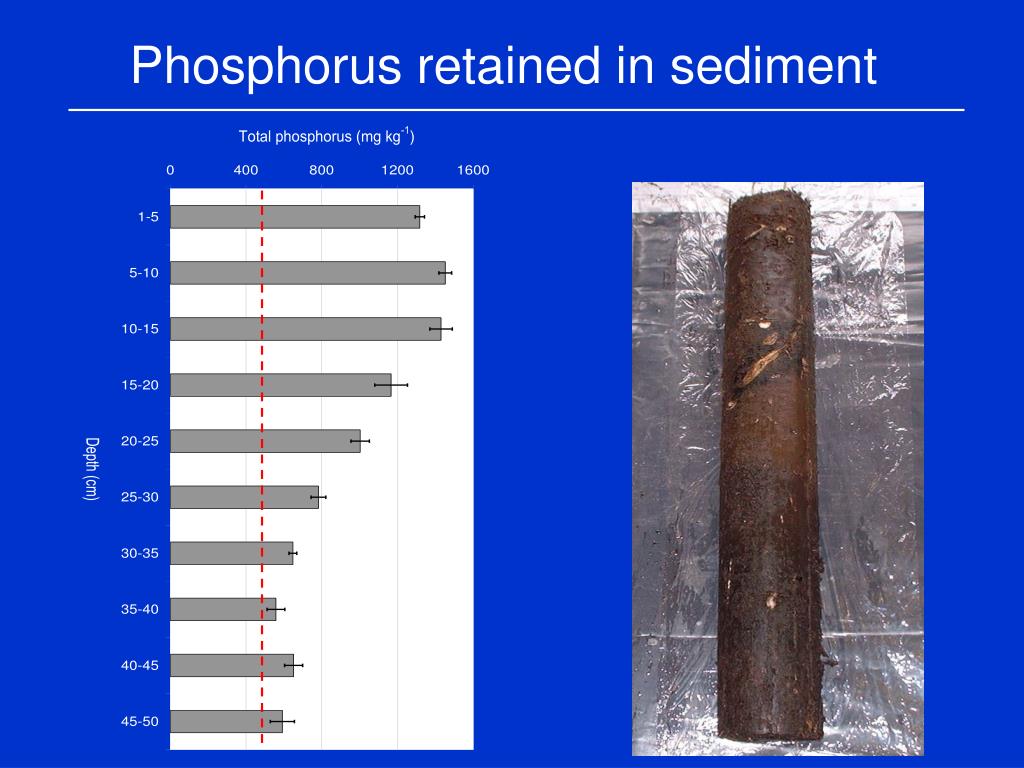

Phosphorus retained in sediment
Phosphorus retained in sediment of most cells, mostly PO


Chemical extraction of phosphorus
Chemical extraction of phosphorus of most cells, mostly PO

  • Majority of TP present as organic P

  • Up to 30% of TP as inorganic P:

    • Ca/Mg-P pH sensitive

    • Fe-P sensitive to redox conditions

  • During seasonal water table fluctuation both pH and redox change significantly

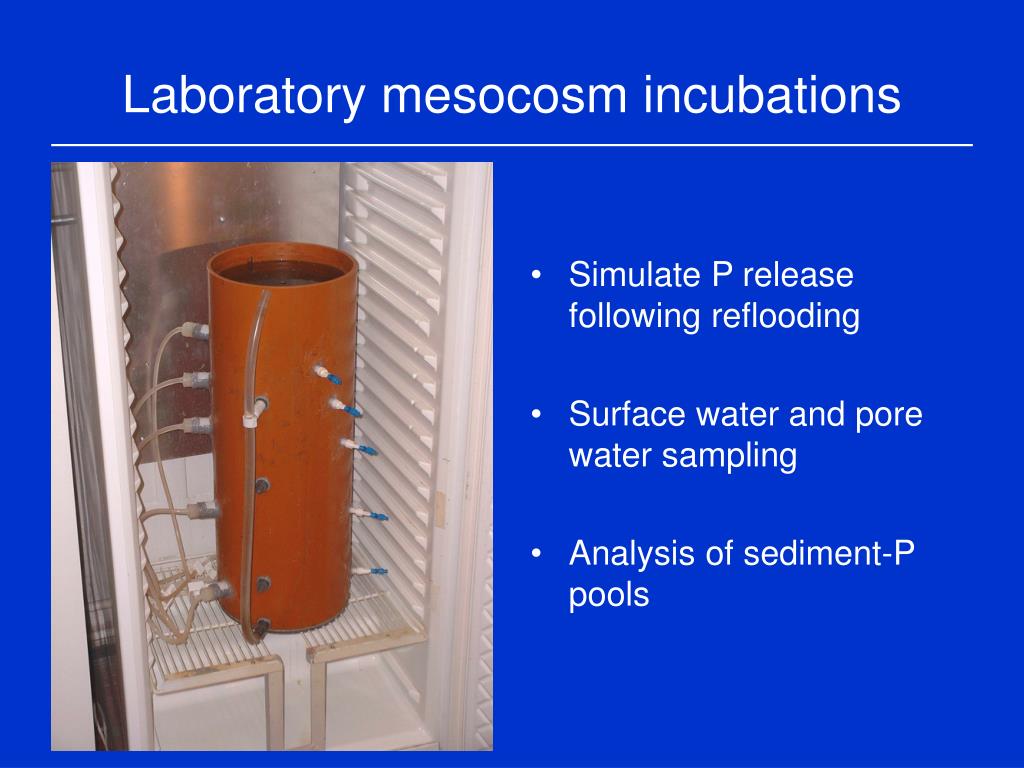

Laboratory mesocosm incubations

Simulate P release following reflooding of most cells, mostly PO

Surface water and pore water sampling

Analysis of sediment-P pools

Laboratory mesocosm incubations


Mrp release to surface and subsurface
MRP release to surface and subsurface of most cells, mostly PO

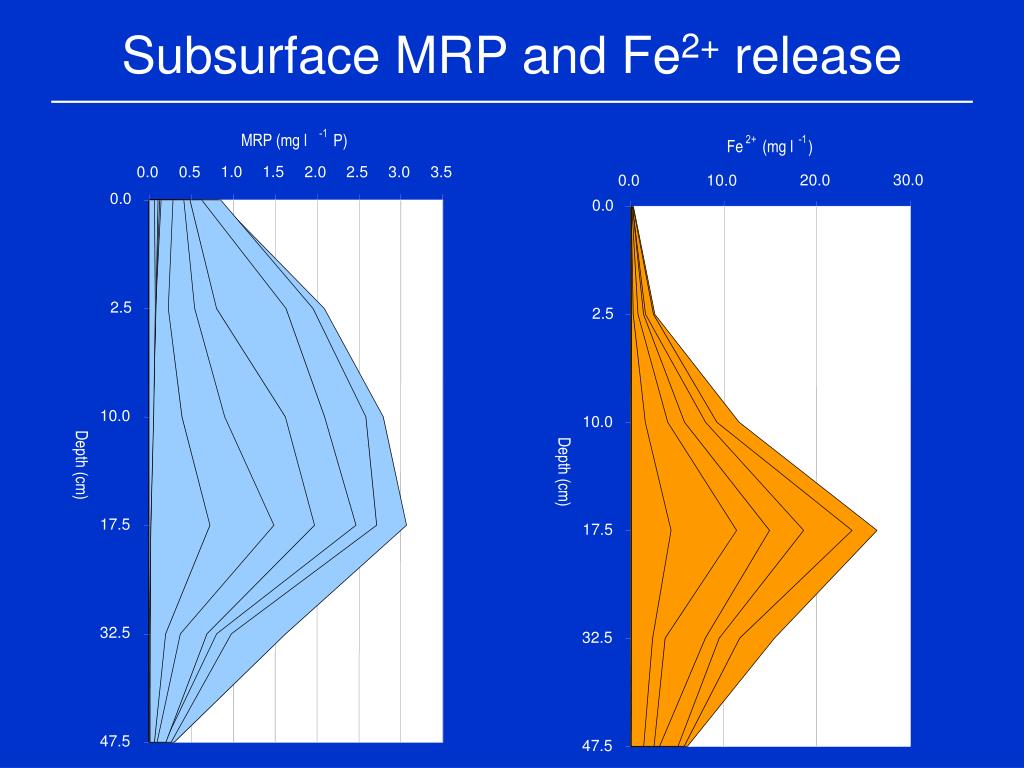

Subsurface mrp and fe 2 release

-1 of most cells, mostly PO

MRP (mg l

P)

Subsurface MRP and Fe2+ release

-1

2+

Fe

(mg l

)

1.0

1.5

0.0

0.5

2.0

2.5

3.0

3.5

30.0

20.0

0.0

10.0

0.0

0.0

2.5

2.5

10.0

10.0

Depth (cm)

Depth (cm)

17.5

17.5

32.5

32.5

47.5

47.5

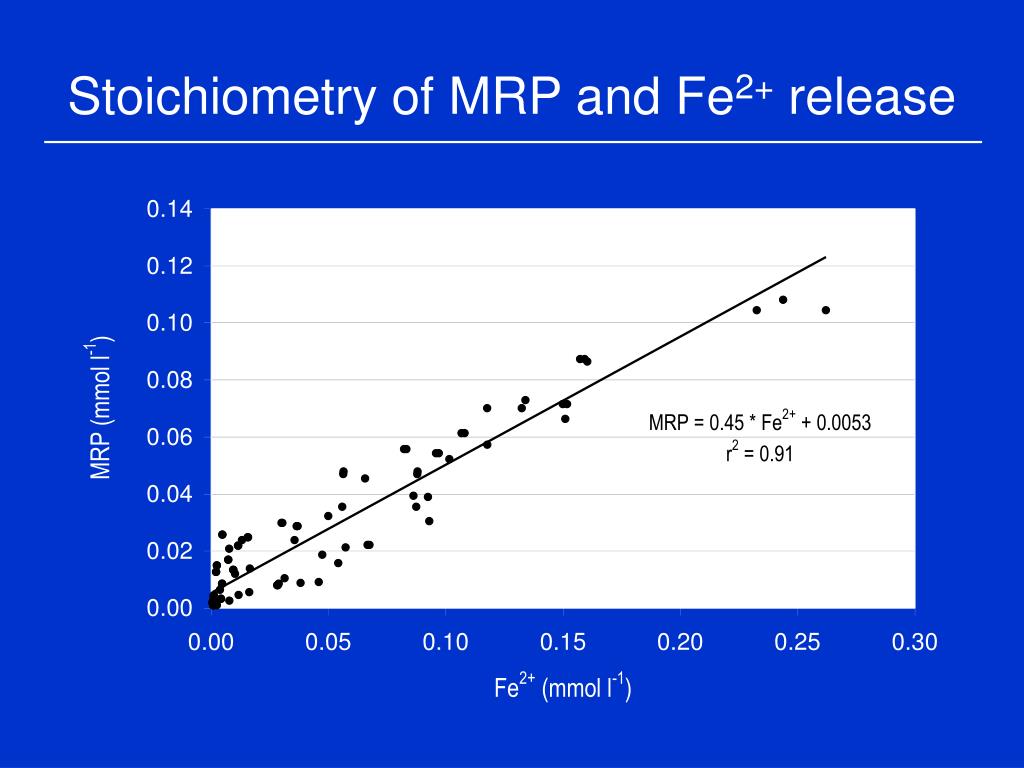

Stoichiometry of mrp and fe 2 release
Stoichiometry of MRP and Fe of most cells, mostly PO2+ release

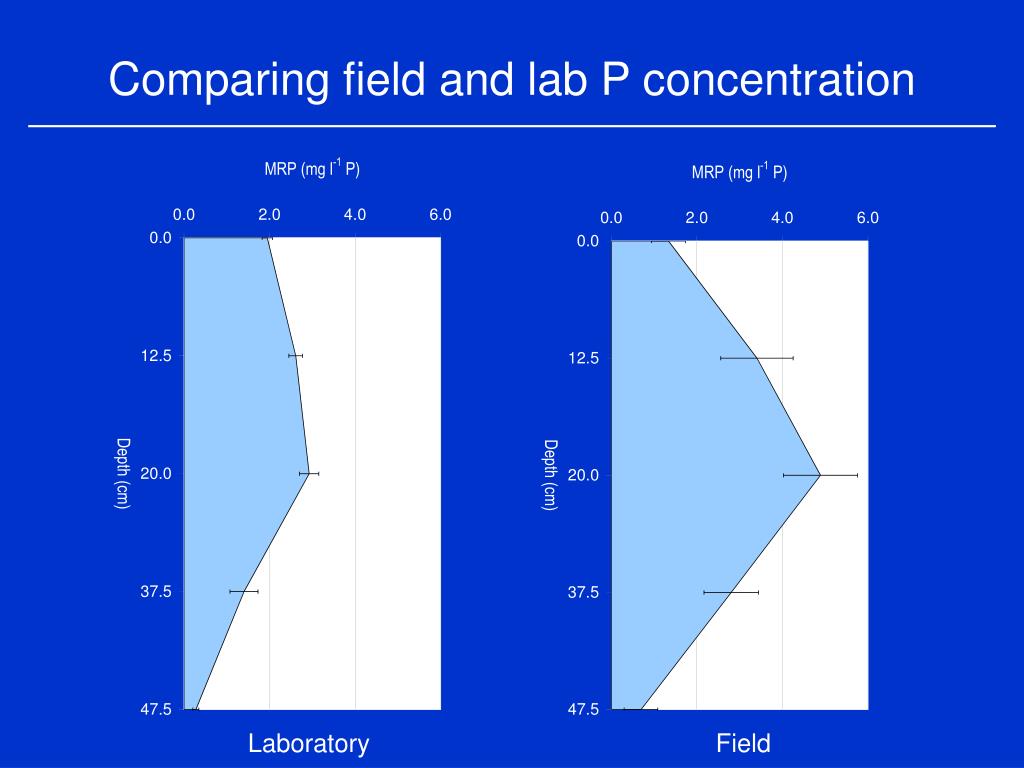

Comparing field and lab p concentration
Comparing field and lab P concentration of most cells, mostly PO

Laboratory

Field

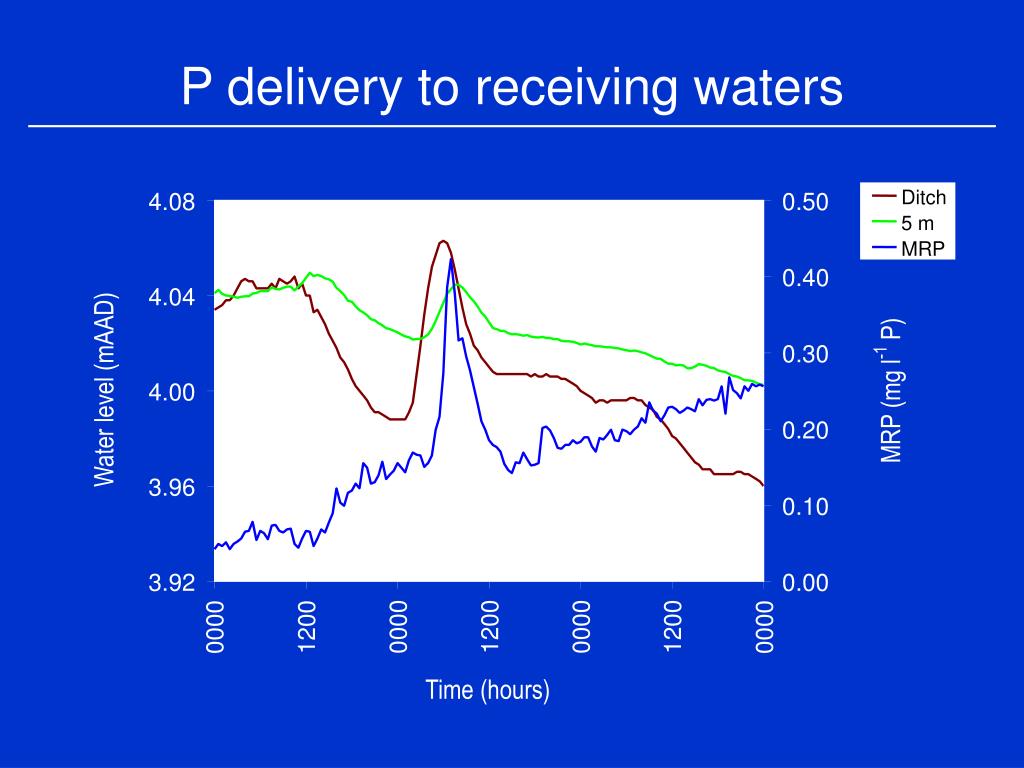

P delivery to receiving waters
P delivery to receiving waters of most cells, mostly PO

Ditch

4.08

0.50

5 m

MRP

0.40

4.04

P)

0.30

-1

Water level (mAAD)

4.00

MRP (mg l

0.20

3.96

0.10

3.92

0.00

1200

0000

1200

0000

1200

0000

0000

Time (hours)

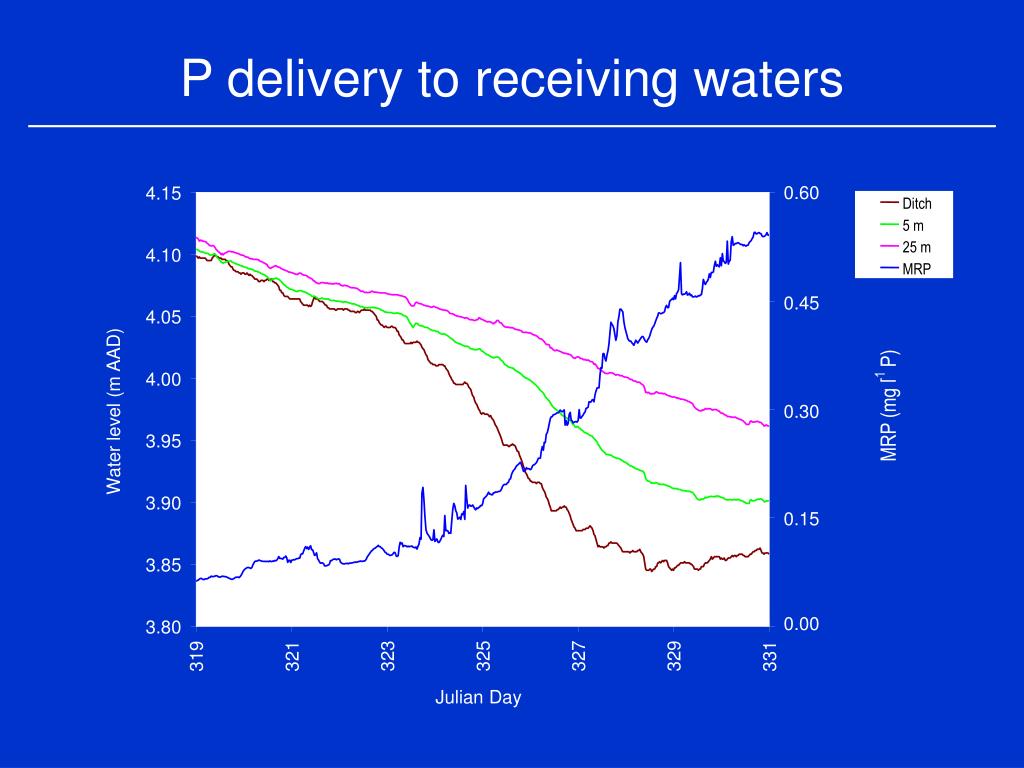

P delivery to receiving waters1
P delivery to receiving waters of most cells, mostly PO

0.60

4.15

1050.0

Ditch

5 m

25 m

4.10

MRP

950.0

0.45

4.05

P)

4.00

-1

850.0

Water level (m AAD)

0.30

MRP (mg l

3.95

3.90

750.0

0.15

3.85

0.00

3.80

650.0

323

325

327

329

319

321

331

Julian Day

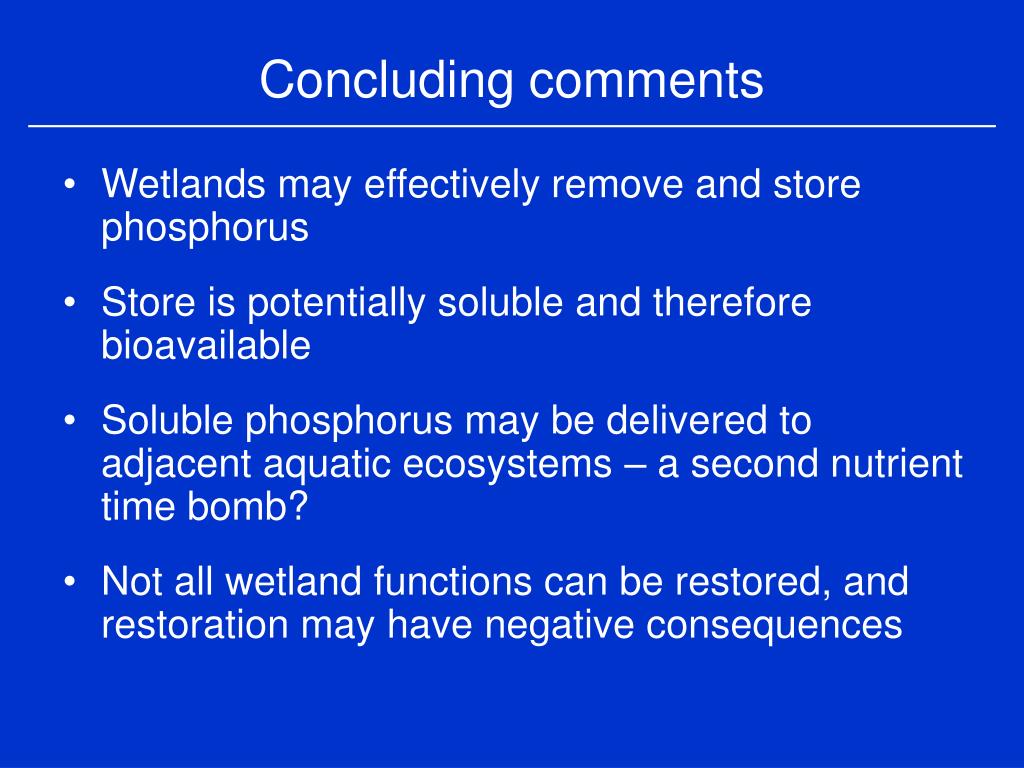

Concluding comments
Concluding comments of most cells, mostly PO

  • Wetlands may effectively remove and store phosphorus

  • Store is potentially soluble and therefore bioavailable

  • Soluble phosphorus may be delivered to adjacent aquatic ecosystems – a second nutrient time bomb?

  • Not all wetland functions can be restored, and restoration may have negative consequences
