Properties of parallel lines

The angles 1-3, 2-4, 6-8 and 5-7 are vertically opposite angles.

Vertically opposite angles are equal.

The angles 2-6, 1-5, 7-3 and 8-4 are corresponding angles.

Corresponding angles are equal.

The angles 3-4 and 4-6 are alternate angles.

Alternate angles are equal.

The angles 3-6 and 4-5 are cointerior angles.

Cointerior angles are supplementary (180∘).


Example:Find the values of the pronumerals.


Properties of triangles

1. a ° , b° and c° are the magnitudes of the interior angles of the triangle ABC.

d° is the magnitude of an exterior angle at C. A triangle is said to be a right-angled triangle if it has one angle of magnitude 90°. 2. The sum of the magnitudes of the interior angles of a triangle is equal to

a ◦ + b◦ + c◦ = 180° . 3. The magnitude of an exterior angle is equal to the sum of the magnitudes of the two opposite interior angles. b° + a ° = d °.

4. A triangle is said to be equilateral if all its sides are of the same length: AB = BC = CA.

5. The angles of an equilateral triangle are all of magnitude 60◦ .


6.The bisector of each of the angles of an equilateral triangle meets the opposite side at right angles and passes through the midpoint of that side.

7. A triangle is said to be isosceles if it has two sides of equal length. If a triangle is isosceles, the angles opposite each of the equal sides are equal.

8. The sum of the magnitudes of the exterior angles of a triangle is equal to 360°: e° +d°+f°=360°

Example 1: Find the values of the pronumerals.

Solution: 20° +22°+x°=180° (sum angles△=180°)

∴42° +x°=180° or x =138° 138°+y°=180° (sum angles=180°) ∴y =42°


Example: triangle meets the opposite side at right angles and passes through the midpoint of that side. Find the values of the pronumerals.

Solution:100°+2x°=180° (sum angles△=180°)

∴2x° =80° or x =40°


Properties of regular polygons triangle meets the opposite side at right angles and passes through the midpoint of that side.

A regular polygon has all sides of equal length and all angles of equal magnitude. A polygon with n sides can be divided into n triangles.


The triangle meets the opposite side at right angles and passes through the midpoint of that side. angle sum of the interior angles of an n-sided polygon is given by the

formula: S = [180(n − 2)]◦ = (180n − 360)◦

The magnitude of each of the interior angles of an n-sided polygon is given by: x = (180n − 360)◦

n interior angle

exterior angle

The sum of the exterior angles of a regular polygon is 360◦ .

Example1: The diagram opposite shows a regular octagon.

a Show that x = 45.

b Find the size of angle y.

Solution

ax = 360°÷ 8 = 45°

b BOC is isosceles

∧ ∧

then OBC and OCB are equal

x° + 2y°= 180°

45° + 2y° = 180°

2y°= 180° - 45°

2y°= 135°

y° = 67.5°


Example: triangle meets the opposite side at right angles and passes through the midpoint of that side. Find the sum of the interior angles of an 8-sided polygon(octagon).

Solution

Use the formula x°= (180n-360)°

x°= 180×8-360 = 1080 °

Pythagoras theorem

Example 1: Find the value, correct to two decimal places, of the unknown length for the triangle below.

Solution: x2 = 5.32 + 6.12

√x2 = √(5.32 + 6.12)

x = 8.08cm


Example 2: triangle meets the opposite side at right angles and passes through the midpoint of that side. Find the value, correct to two decimal places, of the unknown length for the triangle below.

Solution: 8.62 = y2 + 5.62

y2 = 8.62 - 5.62

y = √( 8.62 - 5.62)

y = 6.53cm

Similar figures

Shapes are similar when they have the same shape but not the same size.


Similar Triangles triangle meets the opposite side at right angles and passes through the midpoint of that side.

Two triangles are similar if one of the following conditions holds:

1.The corresponding angles in the triangles are equal

A = A′, B = B′, C = C′

2. The ratio of the corresponding sides is equal

A′B′ = B′C′ = A′C′ =k

AB BC AC

k is the scale factor.

If AB = 2, BC = 3, AC =4 and A′B′ = 6, B′C′ = 9, A′C′= 12 then 6 = 9 = 12 = 3= k

2 3 4

3.Two pairs of corresponding sides have the same ratio and the included angles are equal


Example 1: triangle meets the opposite side at right angles and passes through the midpoint of that side. Find the value of length of side AC in △ABC,correct to two decimal places.

Solution: Prove that the triangles are similar.

B= B′and 5 = 4 3 = 4

6.25 5 3.75 5

k = 4

5

(Two pairs of corresponding sides of equal ratio and the included angles equal).

Use k to find x

x = 5

3.013 6.25

x = 3.013 x 5 = 2.4103 ≈2.41cm

6.25


Example 2: triangle meets the opposite side at right angles and passes through the midpoint of that side.

Find the value of length of side AB in △ABC.

Solution: Prove that the triangles ACB and AYX are similar.

A is a common angle

∧ ∧

C = Y ( corresponding angles)

∧ ∧

B = X ( corresponding angles)

Use the ratio to find x

x = 3

x + 6 3+ 2.5

x = 3 cross multiply

x+6 5.5

5.5x = 3(x + 6)

5.5x = 3x + 18

2.5x = 18

x = 18

2.5

x = 7.2cm


Volumes and surface areas triangle meets the opposite side at right angles and passes through the midpoint of that side.

A prism is a solid which has a constant cross-section. Examples are cubes, cylinders, rectangular prisms and triangular prisms

Cross section is the side of the prism that does not change.

volume of prism =area of cross-section × height (or length)

V = A × h

Example 1:Find the volume of the cylinder which has radius 3 cm and height 4cm, correct to two decimal places.

Solution: The cross section is the circular part of the cylinder

cross section = πr2

Volume of cylinder = πr2h =

π(3)24 = 113. 10 cm3


The formulas for determining the volumes of some ‘standard’ prisms are given here.


Volume of a pyramid ‘standard’ prisms are given here.

Pyramidsare shapes where the outer surfaces are triangular and converge at a point.The base of the pyramid can be square,triangular...

Volume of pyramid = 1 × base area × perpendicular height

3

For the square pyramid shown: V = 1 x2 h

3

Example: Find the volume of this hexagonal pyramid with a base area of 40cm2

and a height of 20 cm.Give the answer correct to one decimal place.

Solution

V = 1 ×A×h = 1 ×40×20 =266.7cm3

3 3


Example: ‘standard’ prisms are given here.Find the volume of this square pyramid with a square base

with each edge 10 cm and a height of 27 cm.

Solution

V = 1 ×A×h = 1 ×10×10 x 27 = 900 cm3

3 3

Volume of cone

Cones are shapes where the outer surfaces are rounded and converge at a point.

The base of the cone is circular.

The formula for finding the volume of a cone can be stated as:

Volume of cone = 1 × base area × height

3

Volume of cone = 1 × π r2 × height

3


Volume of a sphere ‘standard’ prisms are given here.

The formula for the volume of a sphere is:

V = 4 π r3 where r is the radius of the sphere.

3

Example: Find the volume of the sphere with radius 4cm.

Solution

Volume of sphere = 4 π r3 = 4 × π × 43 = 268.08cm3

3 3

Composite shapes

Using the shapes above, new shapes can be made.The volumes of these can be found by summing the volumes of the component solids.


Example: ‘standard’ prisms are given here.A hemisphere is placed on top of a cylinder to form a capsule. The radius of both the hemisphere and the cylinder is 5 mm. The height of the cylinder is also 5 mm. What is the volume of the composite solid in cubic millimeters, cor rect to two decimal places?

Solution:

Volume of the composite = volume of cylinder+volume of hemisphere

= π r 2 h + 1 (4 π r3)

2 3

= π 52 × 5 + 1 (4 π 53)

2 3

= 654.50 mm3


Surface area of three-dimensional shapes ‘standard’ prisms are given here.

The surface area of a solid can be found by calculating and totalling the area of each of its

surfaces. The net of the cylinder in the diagram demonstrates how this can be done.

Here are some more formulas for the surface areas of some solids.


Example: ‘standard’ prisms are given here.Find the surface of the right square pyramid shown if the square base has each edge 10 cm in length and the isosceles triangles each have height 15 cm.

Solution:

TSA = 4 × 1 10 × 15 + 10 × 10 = 300 + 100 = 400cm2

2

Lengths, Areas,Volumes and Similarity

Definition 1: When two shapes are similar the ratio of their sides is k.

where k = scale factor

Ratio of lengths = length 1 =3 = k

length 2 4


Definition 2: ‘standard’ prisms are given here.When two shapes are similar the ratio of their areas is k2.

Ratio of areas = area 1=π× 32=(3)2 = 9 =k2

area 2 π× 42 (4)2 16

Definition 3: When two shapes are similar the ratio of their volumes is k3.

Ratio of volumes = of volume 1=4/3π× 33 =(3)3 = 27 =k3

of volume 24/3π× 43 (4)3 64

Example 1:

The two triangles shown are similar. The base of the smaller triangle has a length of 10 cm. Its area is 40 cm2.

The base of the larger triangle has a length of 25 cm. Determine its area.

Solution:

Ratio of lengths = length small = 10 = 2 = k

length big 255

k2 = 4 1

25

Ratio of areas = k2 = 40 2

x

1=2 and 4 = 40

25 x

x = 25 ×40 = 250 cm2

4


Example 2: ‘standard’ prisms are given here.The two cuboids shown are similar solids. The height of the larger cuboid is 6 cm. Its volume is 120 cm3. The height of the smaller cuboid is 1.5 cm. Determine its volume.

Solution:

Ratio of lengths = length small = 1.5 = 1 = k

length big 64

k3 = 1 1

64

Ratio of volume= k3 = x 2

120

1=2 and 1 = x

64 120

x = 120 = 1.875 cm3

64

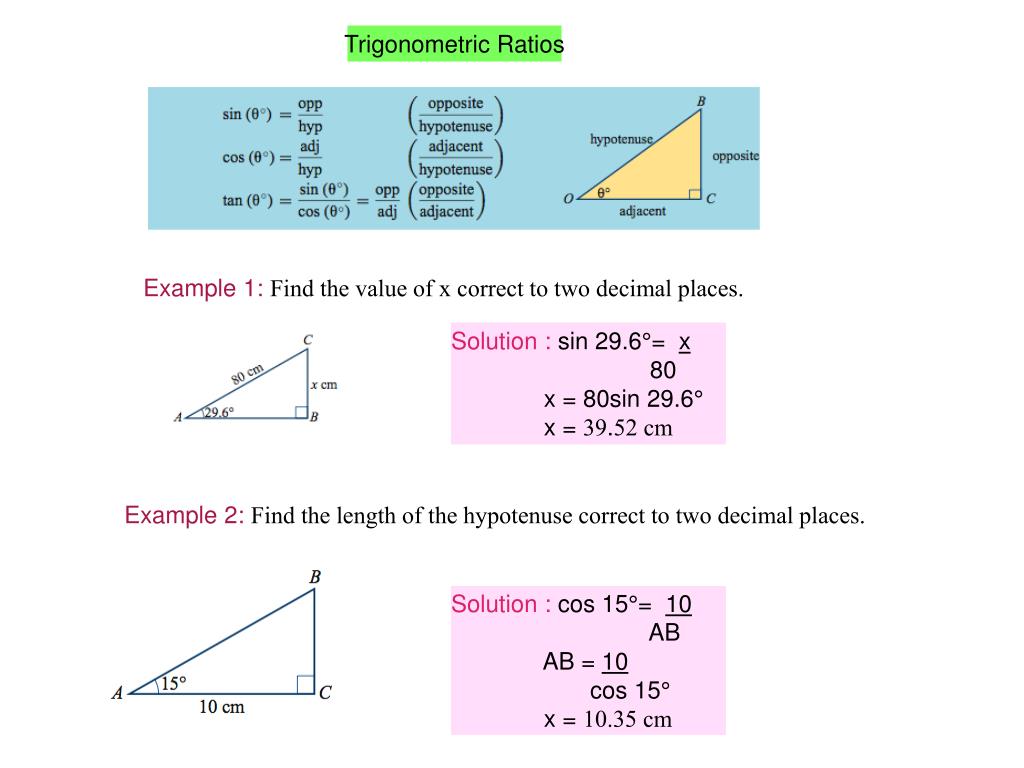

Trigonometric Ratios ‘standard’ prisms are given here.

Example 1: Find the value of x correct to two decimal places.

Solution : sin 29.6°= x

80

x = 80sin 29.6°

x = 39.52 cm

Example 2: Find the length of the hypotenuse correct to two decimal places.

Solution : cos 15°= 10

AB

AB = 10

cos 15°

x = 10.35 cm


Example 3: ‘standard’ prisms are given here.Find the magnitude of ∠ABC.

tan x° = 11

3

x° = tan-1 11

3

x°= 74.74°

When the triangles are not right-angled then the pythagoras theorem and the trigonometric

ratios are not appropriate for finding unknown lenghts and angles. The appropriate rules to use

are the sine rule and the cosine rule.

The sine rule

We use the sine rule when we are given:

1. Two sides and the non- included angle

2. One side and two angles

Considering that the lower- case letters represent the sides of the triangle and the upper- case represent angles, then the following formula states the sine rule.

a = b = c

sinA sinB sinC


The cosine rule ‘standard’ prisms are given here.

We use the cosine rule when is given:

1. Two sides and the included angle of the triangle.

2. All sides.


Example 1: ‘standard’ prisms are given here.Find the length of AB.

Solution: Two angles and a side -sine rule

b = c

sin B sinC

10 = c

sin 70° sin 31°

c = 10 sin 31° = 5.48cm

sin 70°

Example 2: For triangleABC, find the length ofABin centimetres,

correct to two decimal places.

Solution: Two sides and the included angle - cosine rule

AB2 = 102 + 52- 2×5×10 cos67°

AB = √(100 + 25 - 100 cos67°)

AB = 9.27cm


Example 3: ‘standard’ prisms are given here.Find the magnitude of angle B.

Solution: Three sides- cosine rule

cosB = 62 + 122 - 152

2×6×12

B = cos-1(62 + 122 - 152)

2×6×12

B =cos-1(-45/144) = 108.21°

Area of the triangle

It is known that the area of a triangle is given by theformula

Area = 1 × base length ×height

2

A = 1bh

2


When the triangle is not a right angled and the ‘standard’ prisms are given here.2 sides and the included angle is given thenthe following formula can be used

A = 1 × side a × side b × sin (angle in between a and b)

2

Example 1: Find the area of triangleABC. Give your answercorrect to two decimal places.

Solution:

The triangle is not right angled and we are given 2 sides and the included angle.

We can use the formula A =1/2 ac sinB

A= 1/2 × 6.5 × 7.2 × sin 140° = 15.04°


Heron’s Formula ‘standard’ prisms are given here.

When the 3 sides of the triangle are given, then Heron’s Formula can be used to determine the area of the triangle:

Example 1: Find the area of the triangle with sides 6 cm, 4 cm and 4 cm. Give your answer correct to twodecimal places.

Solution:

s = (6+4+4) = 7

2

A = √7(7 - 6)(7 - 4)(7 - 4) = √ 7 × 1 × 3 × 3 = √63 = 7.94cm2


Angles of elevation and depression ‘standard’ prisms are given here.

Theangle of elevationis the anglebetween the horizontal and adirection above the horizontal.

Theangle of depressionis the anglebetween the horizontal and a direction below the horizontal.

Example 1: The pilot of a helicopter flying at 400 m observes a small boat at an angle of depression of1.2◦. Draw a diagram and calculate the horizontal distance of the boat to the helicopter, correctto the nearest 10 metres.

Solution: The horizontal distance of the boat to the helicopter is AB. The angle of depression H = B ( alternate).

tan(1.2◦) = 400

AB

AB = 400

tan(1.2◦)

AB = 19 095.80 m


Example 2: ‘standard’ prisms are given here.The light on a cliff-top lighthouse, known to be 75 m above sea level, is observed from a boatat an angle of elevation of 7.1◦. Draw a diagram and calculate the distance of the boat from thelighthouse, to the nearest metre.

Solution: tan (7.1◦) = 75

AB

AB = 75

tan (7.1◦)

AB =602 m

Example 3: From a pointA, a man observes that the angle of elevation of the summit of a hill is 10◦. Hethen walks towards the hill for 500 m along flat ground. The summit of the hill is now at anangle of elevation of 14◦. Draw a diagram and find the height of the hill above the level ofA, tothe nearest metre.

Solution: We need to find HC

To find HC we need to find HB

3 angles and a side are given- sine rule

HB = 500

sin(10◦) sin(4◦)

HB = 500 sin(10◦) = 1244.67 m

sin(4◦)

sin(14◦) = HC

1244.67

HC = 1244.67 sin(14◦) = 301.11m


BEARINGS ‘standard’ prisms are given here.

Bearings are used to indicate direction.

Thethree-figure bearing the True Bearing is the direction measured clockwise fromnorth and starts from 0° to 360°.

For the Compass Bearing we seperate the plane in 4 sections of 90°.

Example:

A True Bearing is 30°.

Compass Bearing = N 30°E

B True Bearing = 150°

Compass Bearing = E 30°B

C True Bearing = 210°

Compass Bearing = S 30°W

D True Bearing = 330°

Compass Bearing = W60°N


Example: ‘standard’ prisms are given here.The road from townAruns due west for 14 km to townB. A television mast is located duesouth ofBat a distance of 23 km. Draw a diagram and calculate the distance of the mast fromthe centre of townA, to the nearest kilometre. Find the bearing of the mast from the centre ofthe town.

Solution: AT2 = 142 + 232

AT = √( 142 + 232 ) = 26.93 km

For Bearing find θ

tan θ = 23

14

θ = tan-1(23/14) = 58.67°

Bearing = 270°- 58.67°= 211.33°

The bearing of the mast from A is 211.33°T


Example: ‘standard’ prisms are given here.A yacht starts from a point A and sails on a bearing of 038◦ for3000m. It then alters its course to a bearing of 318◦, and aftersailing for 3300 m it reaches a point B.

aFind the distance AB,correct to the nearest metre.

bFind the bearing of B from A, correct to the nearest degree.

Solution: a 2 sides and the included angle are given- cosine rule

AB = √(33002 +30002 - 2 × 3300 × 3000 cos 100°)

AB = 4830 m

b To find the bearing of B from A we need to find angle A

We may use sine and cosine rule

3300 = 4830

sinA° sin100°

A°= sin-1 (3300sin100° ) = 42.28°

4830

The bearing of B from A = 360◦ −(42.29◦- 38◦) = 355.71◦

The bearing of B from A is 356◦T , to thenearest degree.


Example : ‘standard’ prisms are given here.Two points,AandB, are on opposite sides of a lake so that the distancebetween them cannot be measured directly. A third point,C, is chosenat a distance of 100 m fromAand with anglesBACandBCAof 65◦and 55◦, respectively. Calculate the distance betweenAandB,correct to two decimal places.

Solution: 2 angles and a side- sine rule

AB = 100

sin55° sin60°

AB = 100sin55°

sin60°

AB = 94.59m


Problems in three dimensions ‘standard’ prisms are given here.

Problems in three dimensions are solved by picking out triangles from a main figure and

finding lengths and angles through these triangles.

Example 1:ABCDEFGHis a cuboid. Find:

adistanceDB

bdistanceHB

cthe magnitude of angleHBD

ddistanceHA

ethe magnitude of angleHBA

Solution:

a.Byselecting the appropriate triangle from the diagram and by using the Pythagoras Theorem:

DB2 = 82 + 102

DB = √(82 + 102) = √164 =12.81 cm

b. Using the information from a

HB2 = 72 + √1642

HB = √(49 + 164)

HB = √213 = 14.59 cm

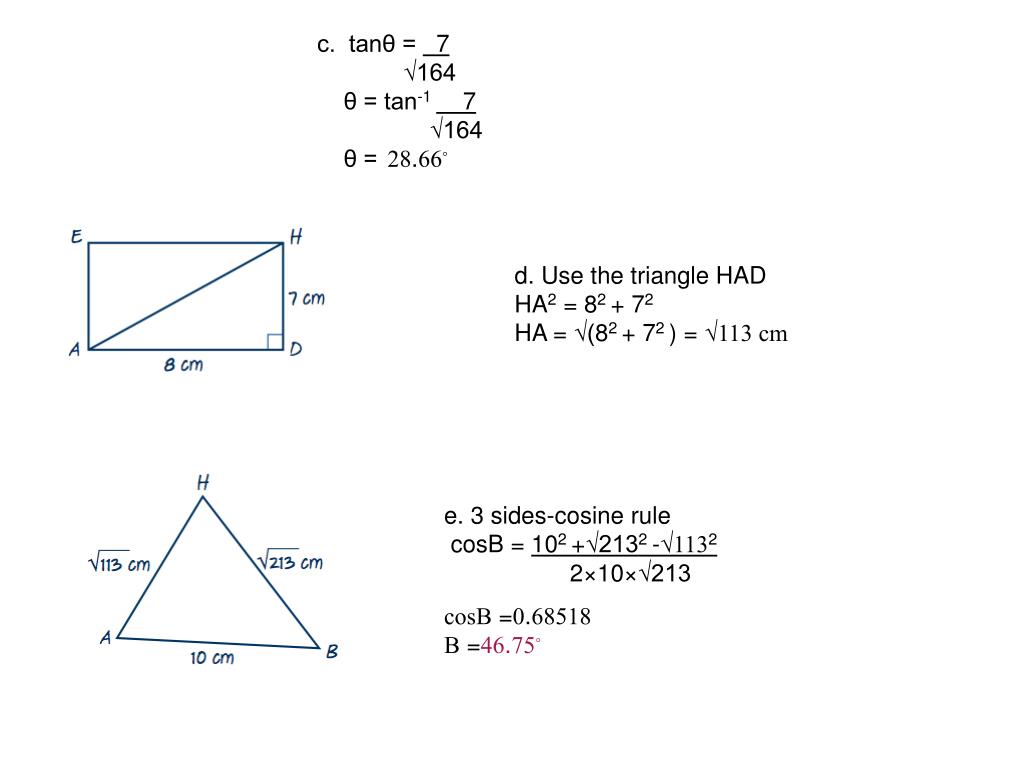

c. tanθ = ‘standard’ prisms are given here. 7

√164

θ = tan-1 7

√164

θ = 28.66◦

d. Use the triangle HAD

HA2 = 82 + 72

HA = √(82 + 72 ) = √113 cm

e. 3 sides-cosine rule

cosB = 102 +√2132 -√1132

2×10×√213

cosB =0.68518

B =46.75◦


Example 2: ‘standard’ prisms are given here.The diagram shows a pyramid with a square base.The base hassides 6 cm long and the edges VA,VB,VC,VD are each10 cm long.

aFind the length of DB.

bFind the length of BE.

cFind the length of VE.

dFind the magnitude of angle VBE.

Give all answers correct to two decimal places.

Solution:

a DB2 = 62 + 62

DB = √( 62 + 62 )

DB = 8.49cm

b BE = 8.49/2 = 4.24 cm

c VE = √( 102 - 4.242) = 9.06 cm

d sin (VBE) = 9.06

10

VBE = sin-1(9.06/10) = 64.90°


Example 3: ‘standard’ prisms are given here.A communications mast is erected at the cornerAof a rectangularcourtyardABCDwhose sides measure 60 m and 45 m. If theangle of elevation of the top of the mast fromCis 12◦, find:

athe height of the mast

bthe angle of elevation of the top of the mastfromB(whereAB = 45 m)

Give answers cor rect to two decimal places.

Solution :

aWe need to find AC first.

AC = √(452 + 602) = 75m

Then we can use AC to find the height of the mast.

tan(12°) = HA

75

HA = 75tan (12°) = 15.94m

b tanθ = 15.94

45

θ = tan-1( 15.94/45) = 19.51◦


Contour maps ‘standard’ prisms are given here.

The diagram above is called contour map.

The lines are called contour linesand they represent different hights above sea level.

The map gives the horizontal scaled distance between the lines and not the actual distance.

The real/cross-sectional representation of the contour map above is as follows:


To find the distance between B and C, first determine from the diagram the horizontal distance B′C′. Suppose this distance is 80 m.Then triangle BCH in thefirst diagram can be used to find the distance between B and C and the average slope betweenB and C.


A cross-sectional profile can be drawn from a contour map for a given cross-section AB.

This is illustrated below. The horizontal distance that is represented on the cross-sectional profile is the real distance.The distance AB on the contour map is 6cm then the distance on the cross-sectional profile will be 600cm which is 6m.

scale 1:100

CONVERSION OF UNITS

When we are converting from smaller units to larger we divide

When we are converting from larger to smaller units we multiply

Example 1: Convert 10cm to m

Answer: There are 100 cm in a m

10cm /100 = 0.1m


Conversion of units of length for a given cross-section AB.

a 1 cm (mm) = 1 × 10 = 10 mm

b 1 m (cm) = 1 × 100 = 100 cm

c 1 km (m) = 1 × 1000 = 1000km

d 1 mm(cm) = 1/10 = 0.1 cm

e 1 cm ( m) = 1/100 = 0.01 m

f 1m (km) = 1/1000 = 0.001 km

Conversion of units of area

1 cm2 (mm2) = 1 × 102 = 100 mm2

1 m2 (cm2) = 1 × 1002 = 10000 cm2 = 104 cm2

1 km2 (m2) = 1 × 10002 = 1000000km2 = 106 km2

1 mm2(cm2) = 1/102 = 0.01 cm2 = 10-2 cm2

1 cm2 (m2) = 1/1002 = 0.0001 m2 = 10-4 m2

1m2 (km2) = 1/10002 = 0.000001 km2= 10-6

Example:

aConvert 156000 m2 to km2

Answer: 156000 m2 / 10002 = 156000/1000000 = 0.156 km2

b Convert 20000mm2 to cm2

Answer: 20000mm2 /102 = 20000/100 = 200 cm2


Conversion of units of volume for a given cross-section AB.

1000mm3 (cm3) = 1000/103 = 1000/1000 = 1 cm3

1000000cm3(m3) = 1000000/1003 = 1000000/1000000 = 1 m3

1 litre = 1000cm3

1000 litres = 1m3


ad
