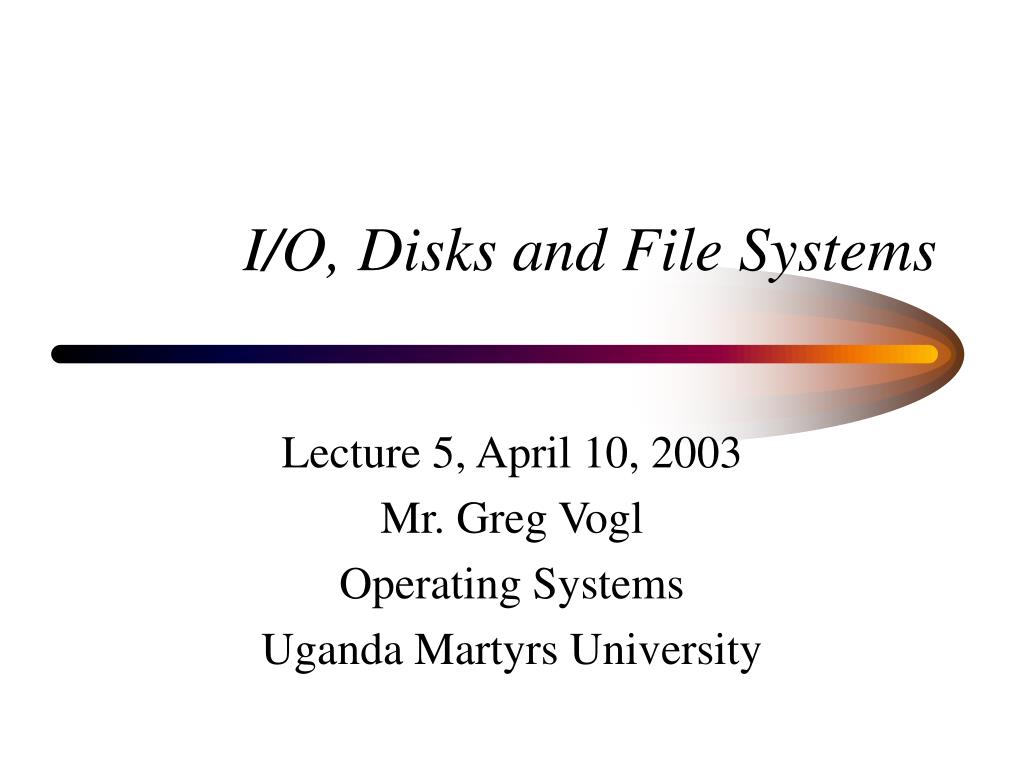

  1. I/O, Disks and File Systems Lecture 5, April 10, 2003 Mr. Greg Vogl Operating Systems Uganda Martyrs University

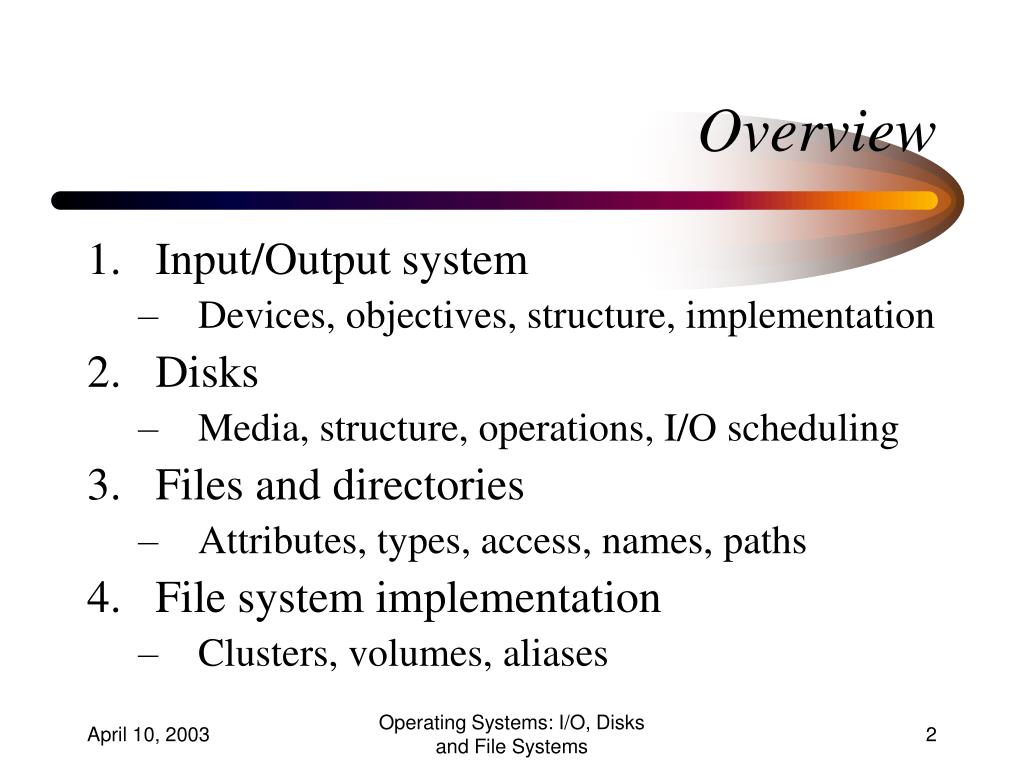

  2. Overview • Input/Output system • Devices, objectives, structure, implementation • Disks • Media, structure, operations, I/O scheduling • Files and directories • Attributes, types, access, names, paths • File system implementation • Clusters, volumes, aliases Operating Systems: I/O, Disks and File Systems

  3. Sources • Ritchie ch. 8-10 • Burgess 5.3-5.4, Solomon: Disks, File Systems • Contact lecturer for help copying these to your disk • Linux Admin. Made Easy, Frampton, ch. 4 • You may want to download free resources from the MScIS electronic library • Many are <1.5 MB, can fit on a floppy disk • A 700MB CD-RW disc is only Ushs 5000 Operating Systems: I/O, Disks and File Systems

  4. 1. Input/Output Devices • Slower than processor, memory, filesystem • Not consistent; each device is different • speed, transfer unit, operations, error conditions • Use address, data and control buses • Each device is assigned an address Operating Systems: I/O, Disks and File Systems

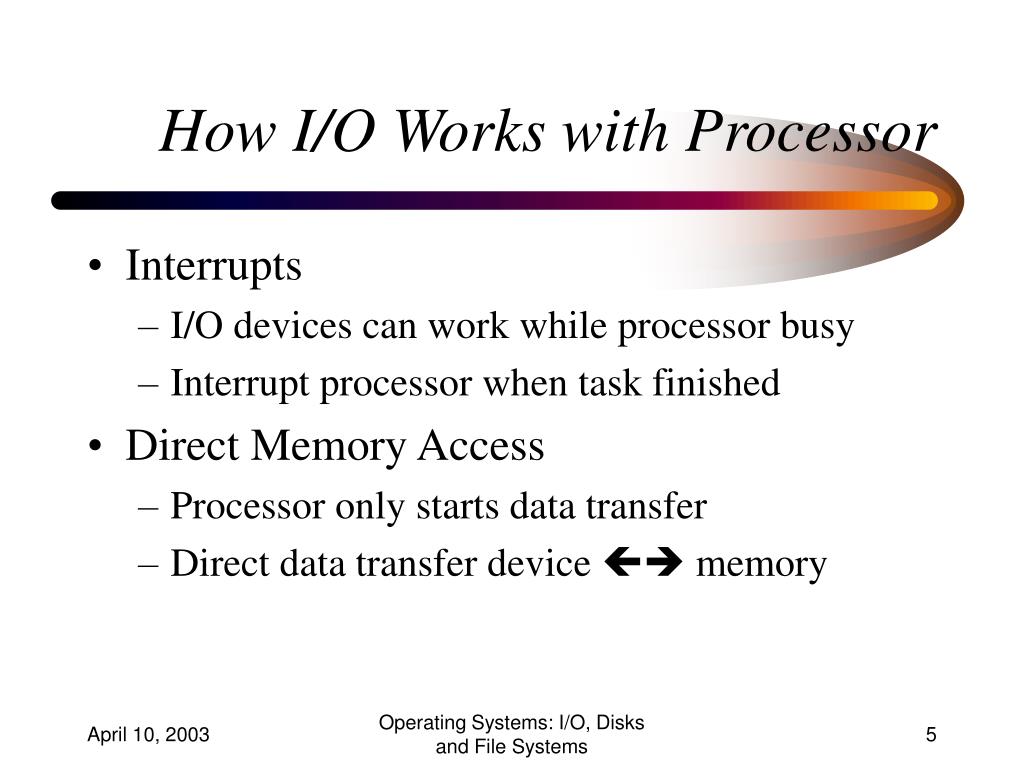

  5. How I/O Works with Processor • Interrupts • I/O devices can work while processor busy • Interrupt processor when task finished • Direct Memory Access • Processor only starts data transfer • Direct data transfer device memory Operating Systems: I/O, Disks and File Systems

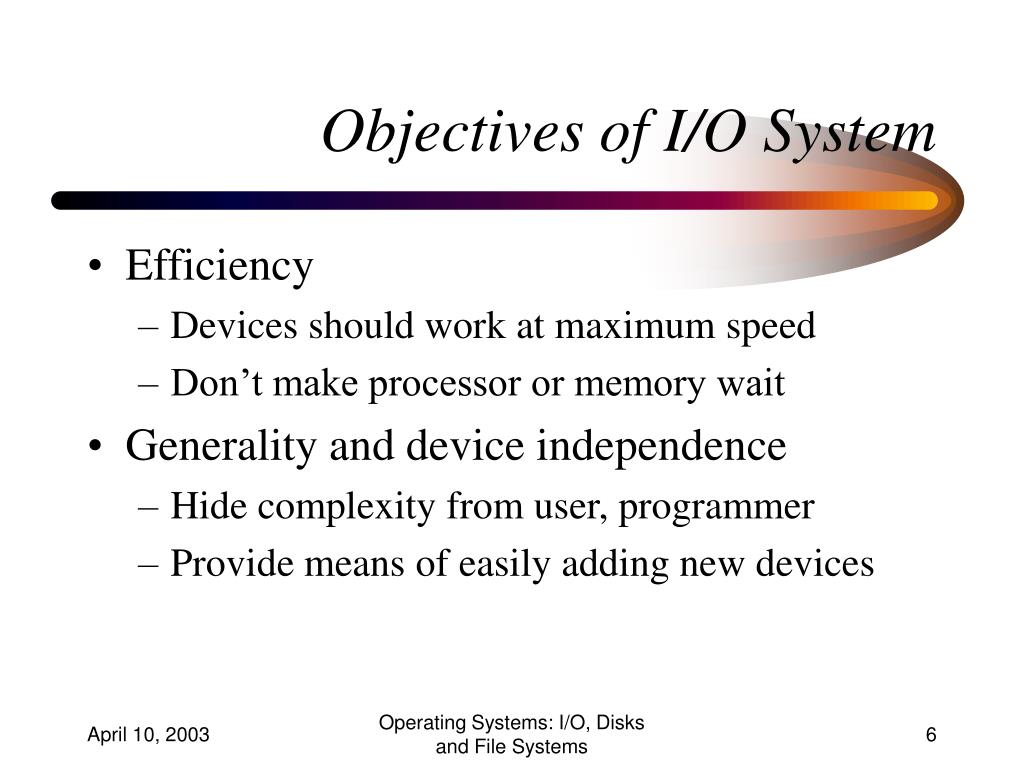

  6. Objectives of I/O System • Efficiency • Devices should work at maximum speed • Don’t make processor or memory wait • Generality and device independence • Hide complexity from user, programmer • Provide means of easily adding new devices Operating Systems: I/O, Disks and File Systems

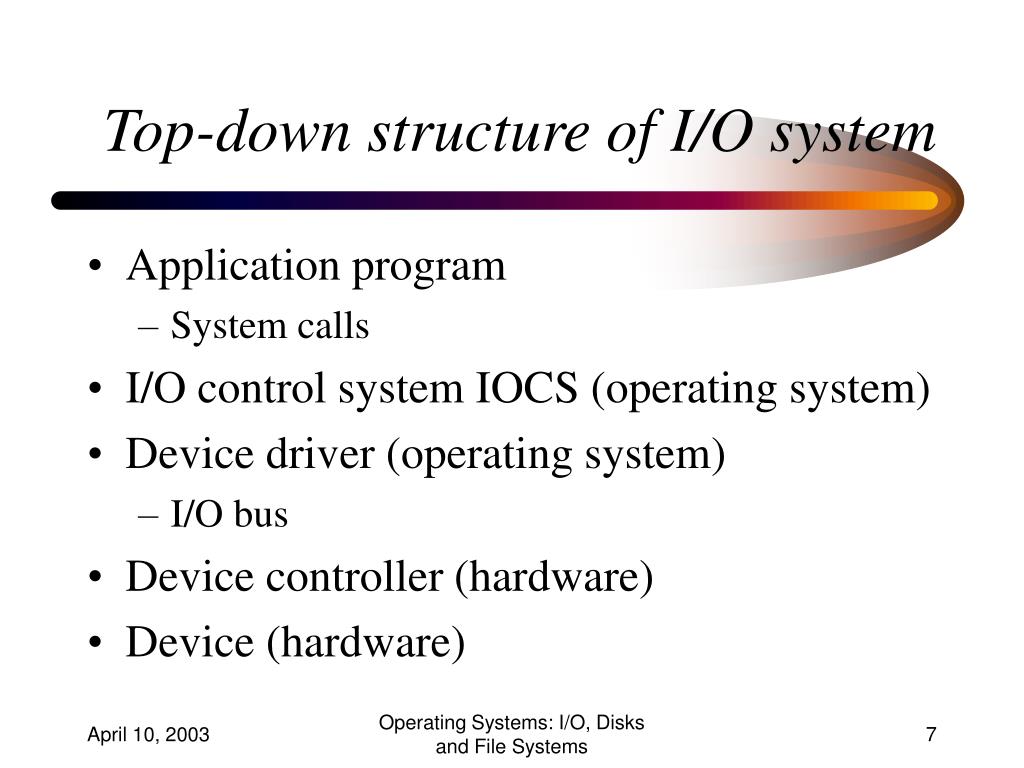

  7. Top-down structure of I/O system • Application program • System calls • I/O control system IOCS (operating system) • Device driver (operating system) • I/O bus • Device controller (hardware) • Device (hardware) Operating Systems: I/O, Disks and File Systems

  8. Device Drivers • Translate user’s logical request to physical • Added on when device is installed • DOS allows dynamically adding drivers • UNIX requires linking with kernel Operating Systems: I/O, Disks and File Systems

  9. Types of Devices • Block devices • Transfer data in groups of characters • Random access, bidirectional flow, error checks • Secondary storage (e.g. magnetic tape, disks) • Character devices • Transfer data one character at a time • Simpler, fewer services from OS • Most other devices Operating Systems: I/O, Disks and File Systems

  10. Virtual Devices • OS simulates a hardware device • Responds to system calls like a real device • E.g. print spooler behaves like a real printer • Reduces app. contact with slow devices • Apps use more devices than actually present • Device independence • Transparent to user and application Operating Systems: I/O, Disks and File Systems

  11. Buffering • Disk drive  OS buffer  user process • Intermediate storage in main memory • Frees processor to do other things • Processing and disk transfer in parallel • Double-buffering uses two buffers • One is emptied while the other is filled • Multiple buffers put in circular queue • Pointers to buffers being filled, emptied Operating Systems: I/O, Disks and File Systems

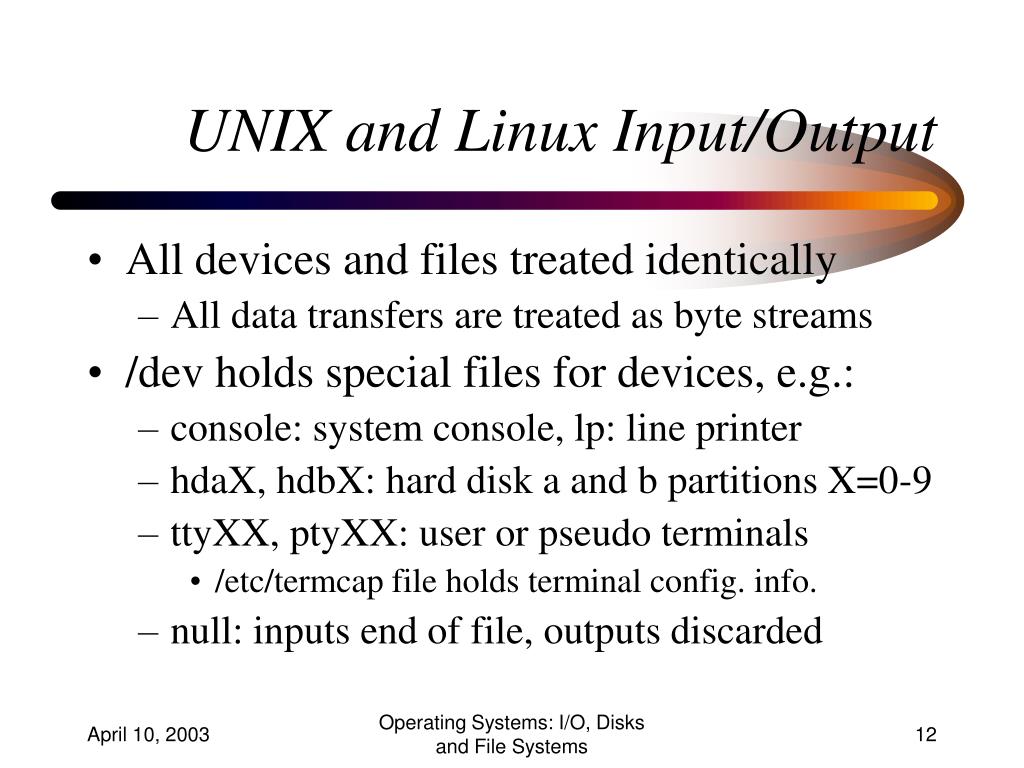

  12. UNIX and Linux Input/Output • All devices and files treated identically • All data transfers are treated as byte streams • /dev holds special files for devices, e.g.: • console: system console, lp: line printer • hdaX, hdbX: hard disk a and b partitions X=0-9 • ttyXX, ptyXX: user or pseudo terminals • /etc/termcap file holds terminal config. info. • null: inputs end of file, outputs discarded Operating Systems: I/O, Disks and File Systems

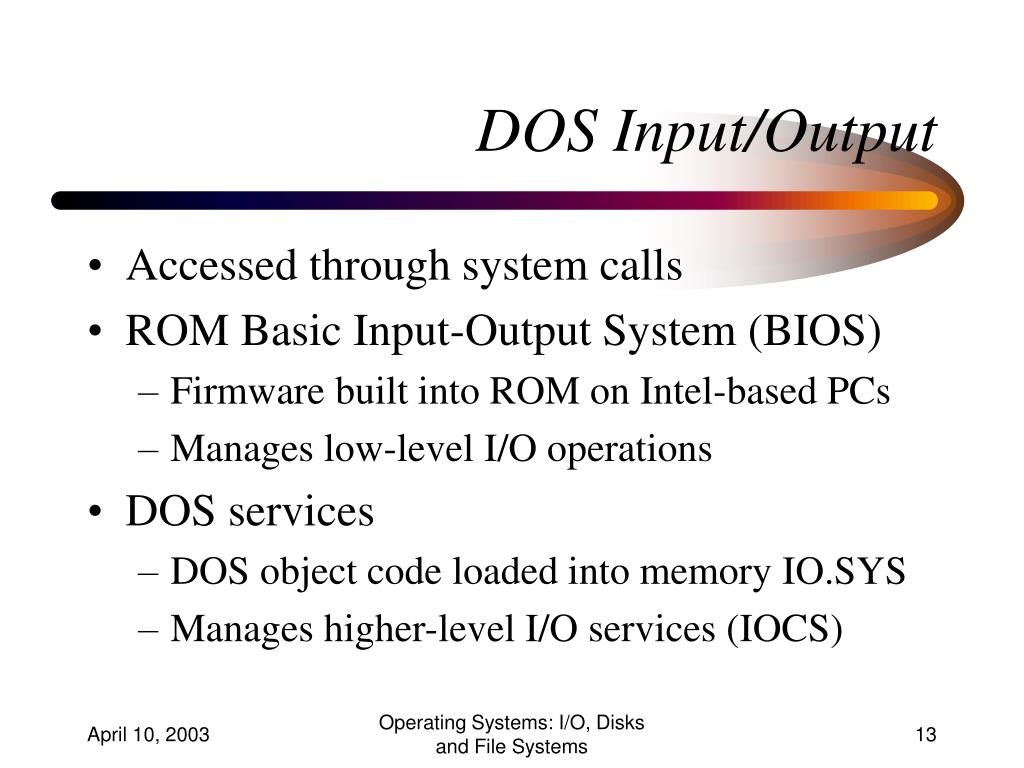

  13. DOS Input/Output • Accessed through system calls • ROM Basic Input-Output System (BIOS) • Firmware built into ROM on Intel-based PCs • Manages low-level I/O operations • DOS services • DOS object code loaded into memory IO.SYS • Manages higher-level I/O services (IOCS) Operating Systems: I/O, Disks and File Systems

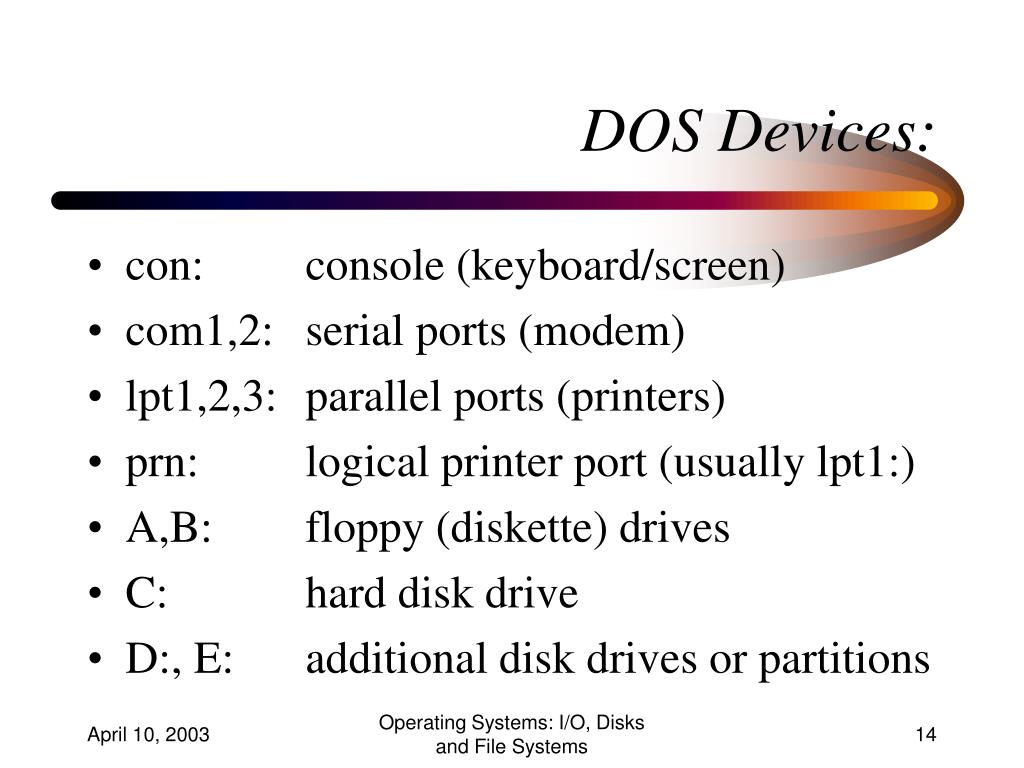

  14. DOS Devices: • con: console (keyboard/screen) • com1,2: serial ports (modem) • lpt1,2,3: parallel ports (printers) • prn: logical printer port (usually lpt1:) • A,B: floppy (diskette) drives • C: hard disk drive • D:, E: additional disk drives or partitions Operating Systems: I/O, Disks and File Systems

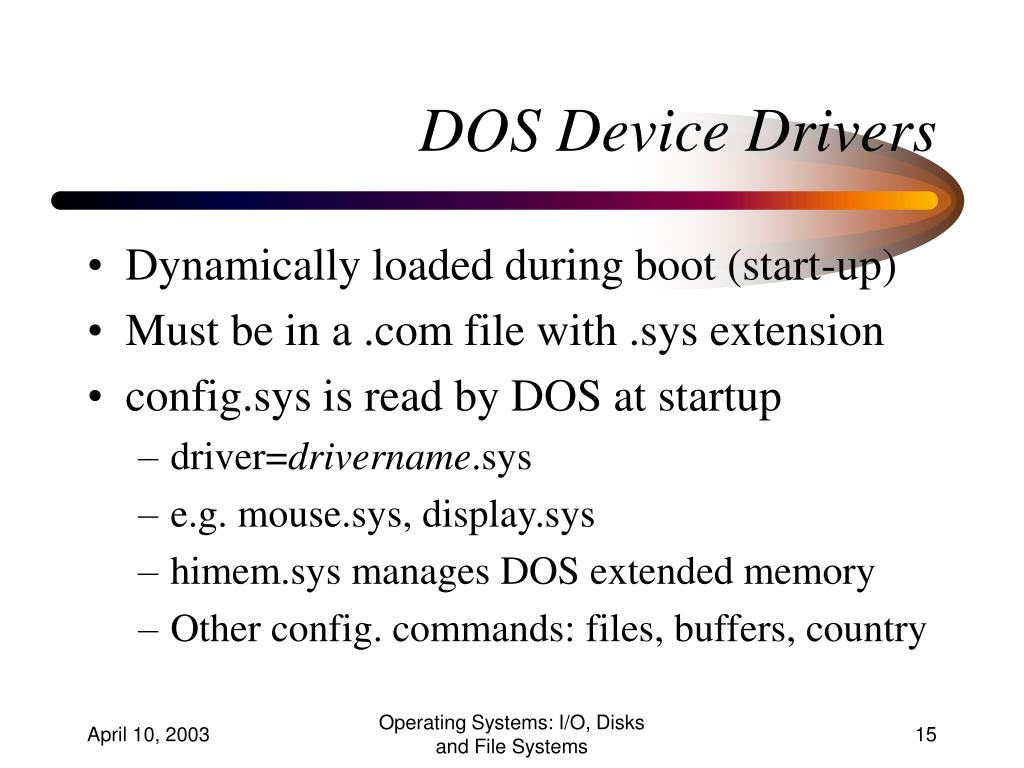

  15. DOS Device Drivers • Dynamically loaded during boot (start-up) • Must be in a .com file with .sys extension • config.sys is read by DOS at startup • driver=drivername.sys • e.g. mouse.sys, display.sys • himem.sys manages DOS extended memory • Other config. commands: files, buffers, country Operating Systems: I/O, Disks and File Systems

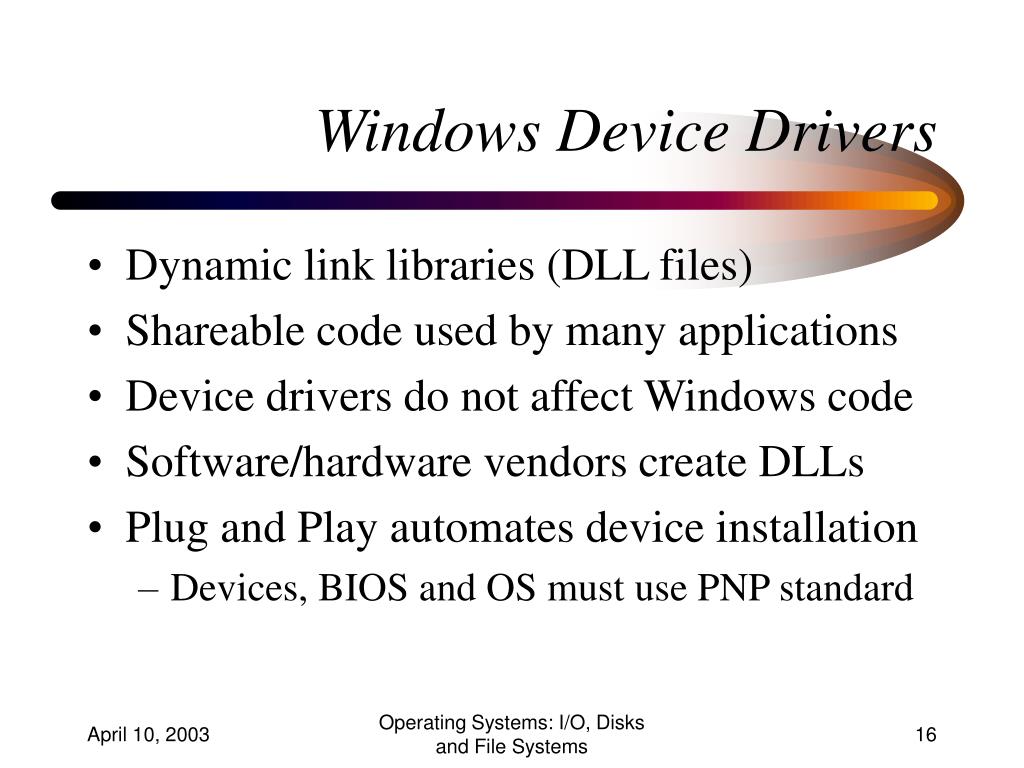

  16. Windows Device Drivers • Dynamic link libraries (DLL files) • Shareable code used by many applications • Device drivers do not affect Windows code • Software/hardware vendors create DLLs • Plug and Play automates device installation • Devices, BIOS and OS must use PNP standard Operating Systems: I/O, Disks and File Systems

  17. 2. Secondary Storage Media • Magnetic media • Hard drive • Most common and important type of disk • Several metal disk platters, sealed, constant spin rate • Floppy disk • Plastic disk, low speed and capacity, exposed to air • Tape drives • Similar to cassettes, sequential access, for backups • Optical media includes CD, DVD Operating Systems: I/O, Disks and File Systems

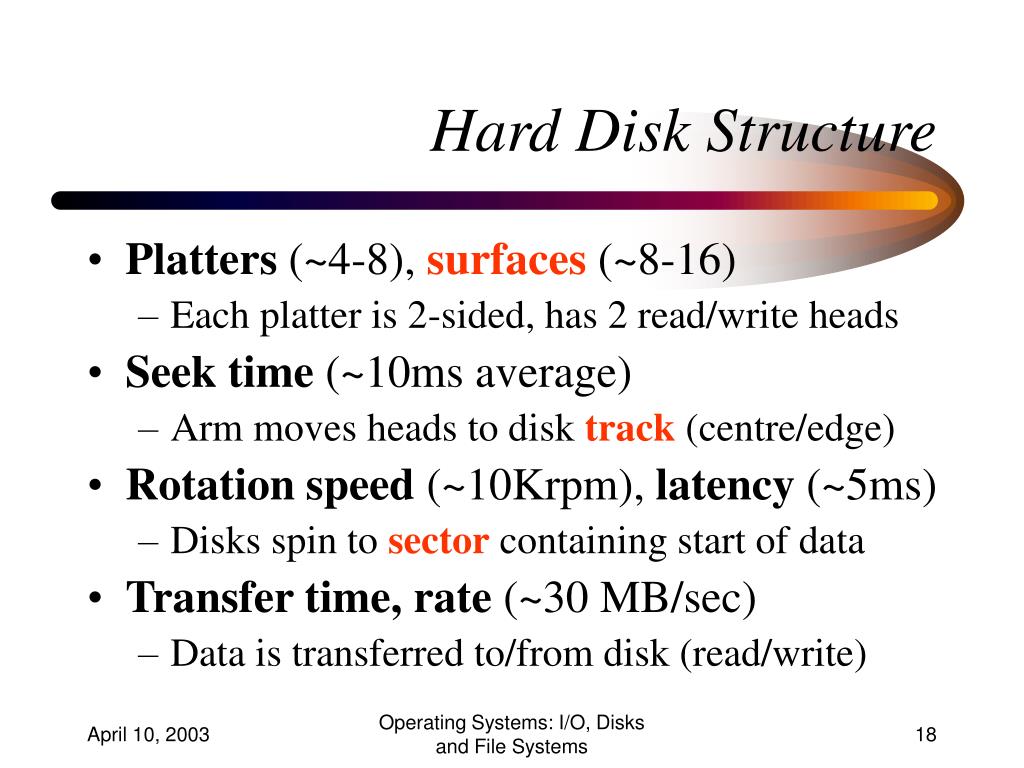

  18. Hard Disk Structure • Platters (~4-8), surfaces (~8-16) • Each platter is 2-sided, has 2 read/write heads • Seek time (~10ms average) • Arm moves heads to disk track (centre/edge) • Rotation speed (~10Krpm), latency (~5ms) • Disks spin to sector containing start of data • Transfer time, rate (~30 MB/sec) • Data is transferred to/from disk (read/write) Operating Systems: I/O, Disks and File Systems

  19. Disk Physical Locations cylinder platters Operating Systems: I/O, Disks and File Systems

  20. Disk Formatting • Low-level formatting by manufacturer • Sectors are smallest unit of physical storage • usually 29 = 512 bytes • Sectors per track can vary (less near centre) • High-level formatting by OS (file system) • Clusters: allocation units of 2n sectors, n~5 • FAT16/32 is used by DOS/Win9x/Linux • FAT12 by floppies, NTFS by WinNT/2000/XP Operating Systems: I/O, Disks and File Systems

  21. Disk Partitioning • Partition • Divide disk into sections, act like separate disks • Common uses of Partitions • Separate OS, application software, and data • Different OS in each partition • Partitioning software • fdisk (DOS/Windows and UNIX) • Displays, adds or removes partitions Operating Systems: I/O, Disks and File Systems

  22. Disk Compression • Disks can store in compressed format • Different compression algorithms • Use short codes for long data repetitions • Different amounts of compression (~0-50%) • Tradeoff: speed vs. space • Danger of losing info. increases Operating Systems: I/O, Disks and File Systems

  23. Disk and File System Checking • Checksum or CRC used in each sector • Bad sectors are labelled, avoided • When too many bad sectors, must replace disk • Software to check/fix hard and floppy disks: • DOS chkdsk, Windows scandisk, UNIX fsck • Check: allocation unit size, used/free space • Fix: marks bad sectors, frees lost chains Operating Systems: I/O, Disks and File Systems

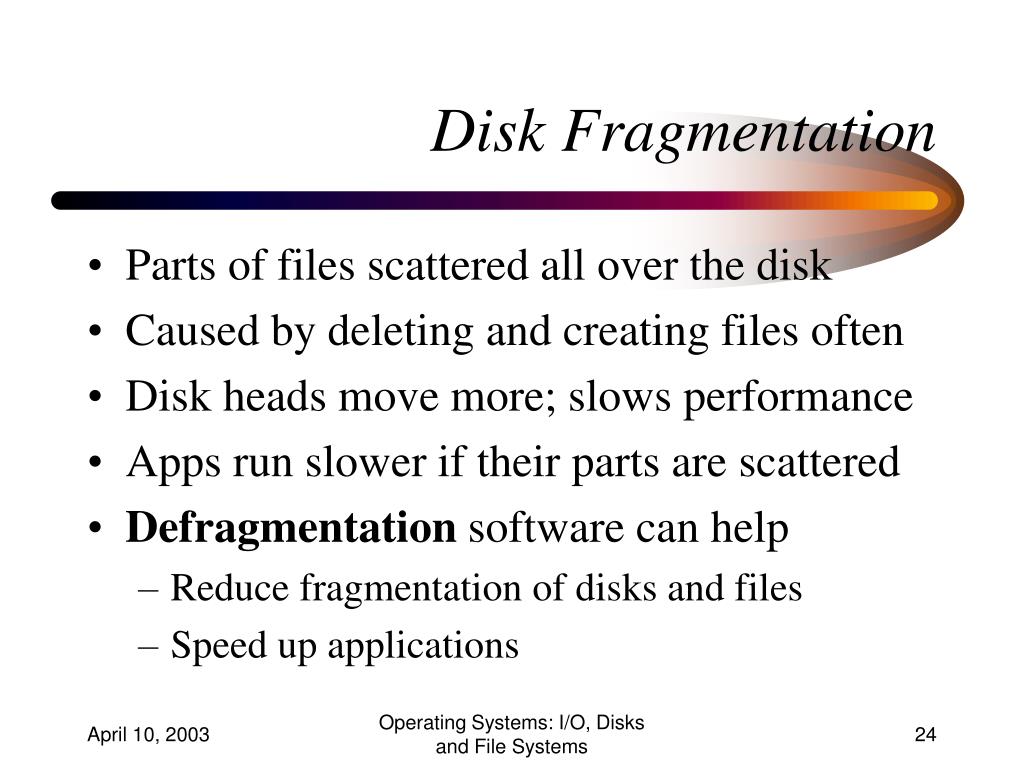

  24. Disk Fragmentation • Parts of files scattered all over the disk • Caused by deleting and creating files often • Disk heads move more; slows performance • Apps run slower if their parts are scattered • Defragmentation software can help • Reduce fragmentation of disks and files • Speed up applications Operating Systems: I/O, Disks and File Systems

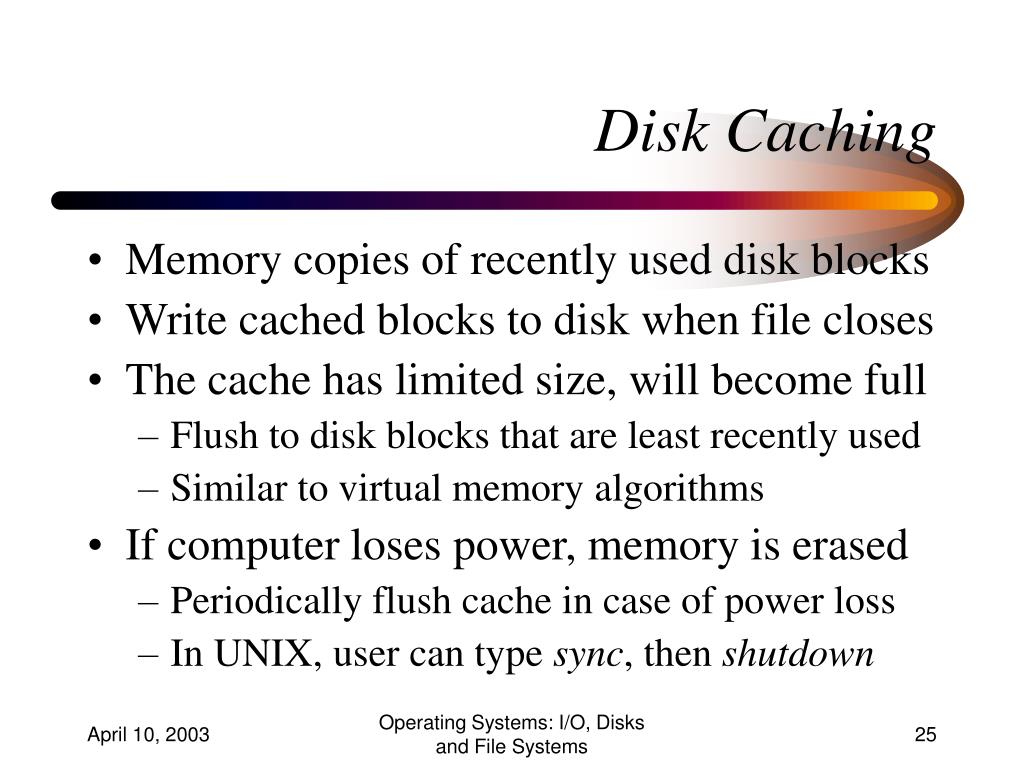

  25. Disk Caching • Memory copies of recently used disk blocks • Write cached blocks to disk when file closes • The cache has limited size, will become full • Flush to disk blocks that are least recently used • Similar to virtual memory algorithms • If computer loses power, memory is erased • Periodically flush cache in case of power loss • In UNIX, user can type sync, then shutdown Operating Systems: I/O, Disks and File Systems

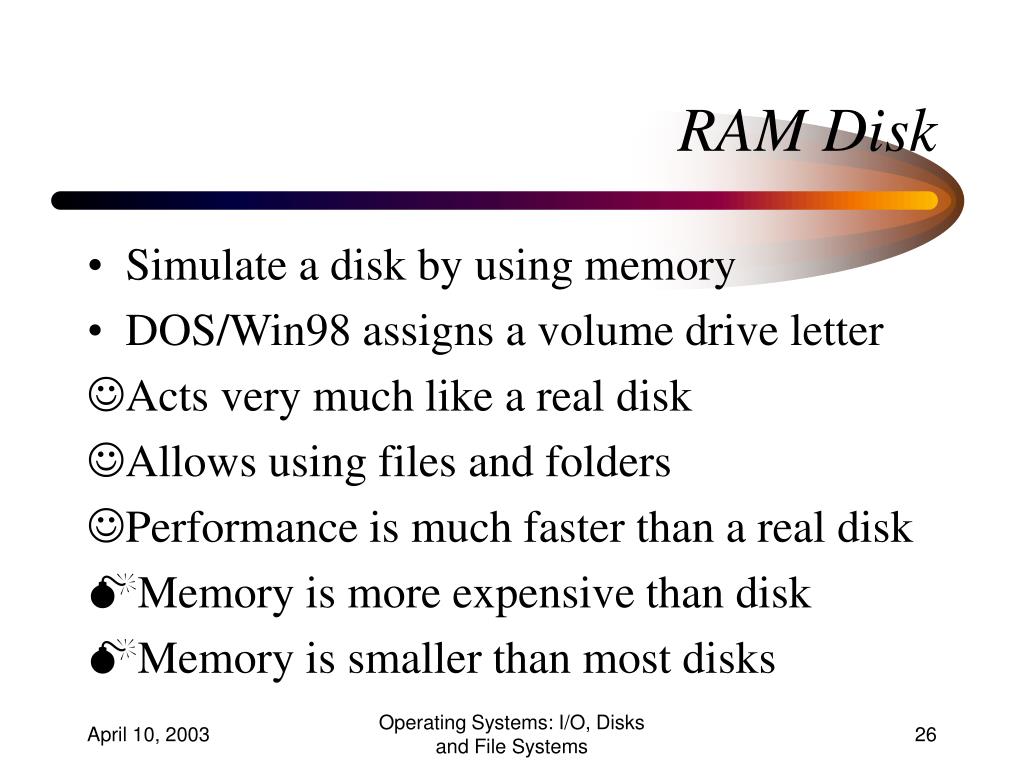

  26. RAM Disk • Simulate a disk by using memory • DOS/Win98 assigns a volume drive letter • Acts very much like a real disk • Allows using files and folders • Performance is much faster than a real disk • Memory is more expensive than disk • Memory is smaller than most disks Operating Systems: I/O, Disks and File Systems

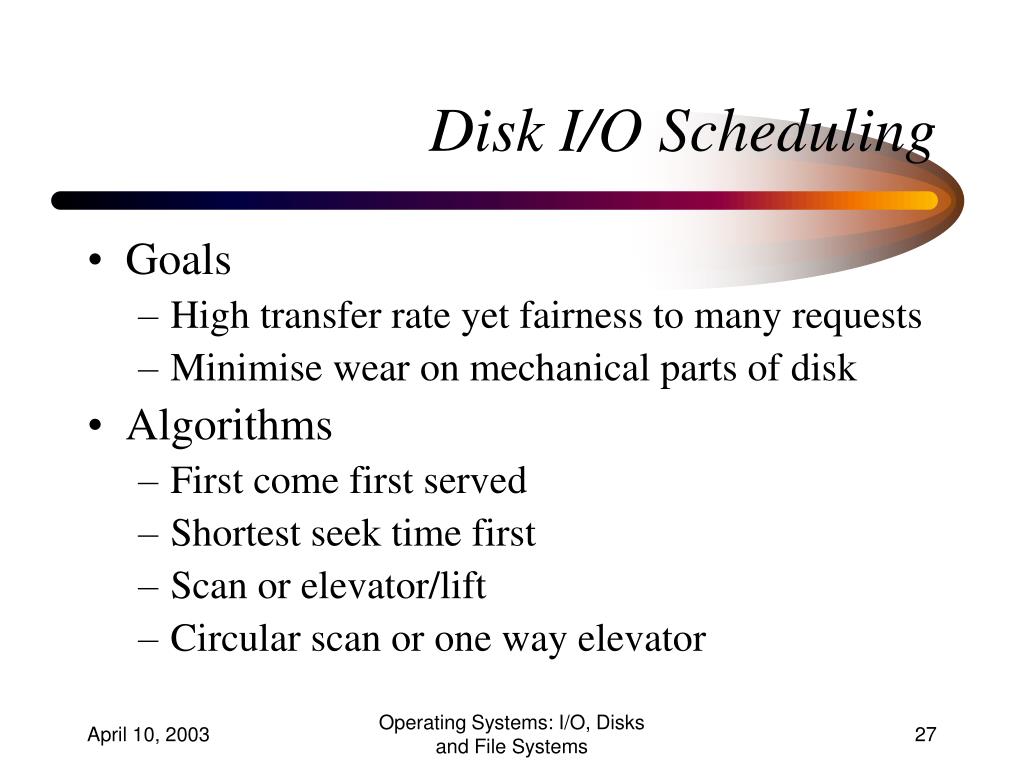

  27. Disk I/O Scheduling • Goals • High transfer rate yet fairness to many requests • Minimise wear on mechanical parts of disk • Algorithms • First come first served • Shortest seek time first • Scan or elevator/lift • Circular scan or one way elevator Operating Systems: I/O, Disks and File Systems

  28. First Come First Served • Each disk access is first-come-first-serve • Appropriate for single-process systems • Disk may thrash among multiple user requests • First user uses disk until file access finished • Simplest; better performance than above • Disk requests may still be scattered all over Operating Systems: I/O, Disks and File Systems

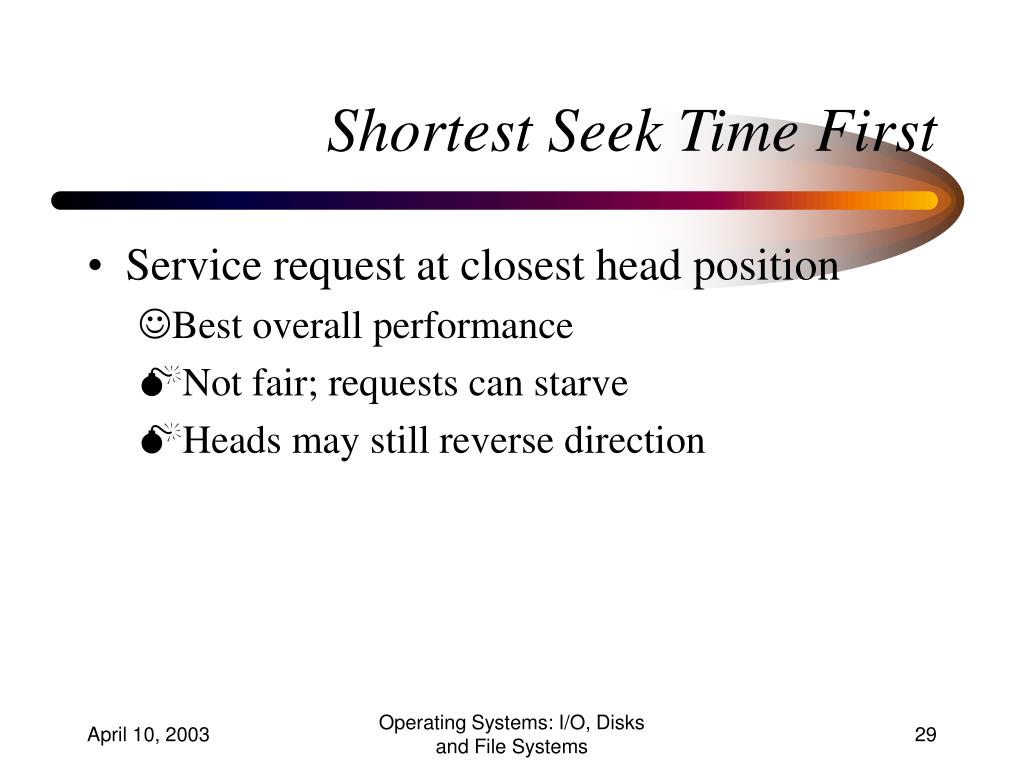

  29. Shortest Seek Time First • Service request at closest head position • Best overall performance • Not fair; requests can starve • Heads may still reverse direction Operating Systems: I/O, Disks and File Systems

  30. Scan or Elevator/Lift • Only move disk head one direction at a time • Move toward next request • When reaching one end of disk, reverse • Usually fairer than SSTF • Inner/outer edges get half as much use • Can still lead to starvation • if same cylinder keeps getting new requests Operating Systems: I/O, Disks and File Systems

  31. Circular Scan/One Way Elevator • Only seek in one direction (centreedge) • Return to centre before seeking again • One long seek increases total seek time • May be insignificant on heavily loaded disk • Also no need to scan areas without requests Operating Systems: I/O, Disks and File Systems

  32. 3. Files • A file is a logical unit of user/program info. • Files kept in “permanent” secondary storage • Files can be of almost any length • User doesn’t need to worry about block size • Files can be named for easier reference • Files can be grouped by storing in folders • Many files per disk, per user • Files can be protected with access rights Operating Systems: I/O, Disks and File Systems

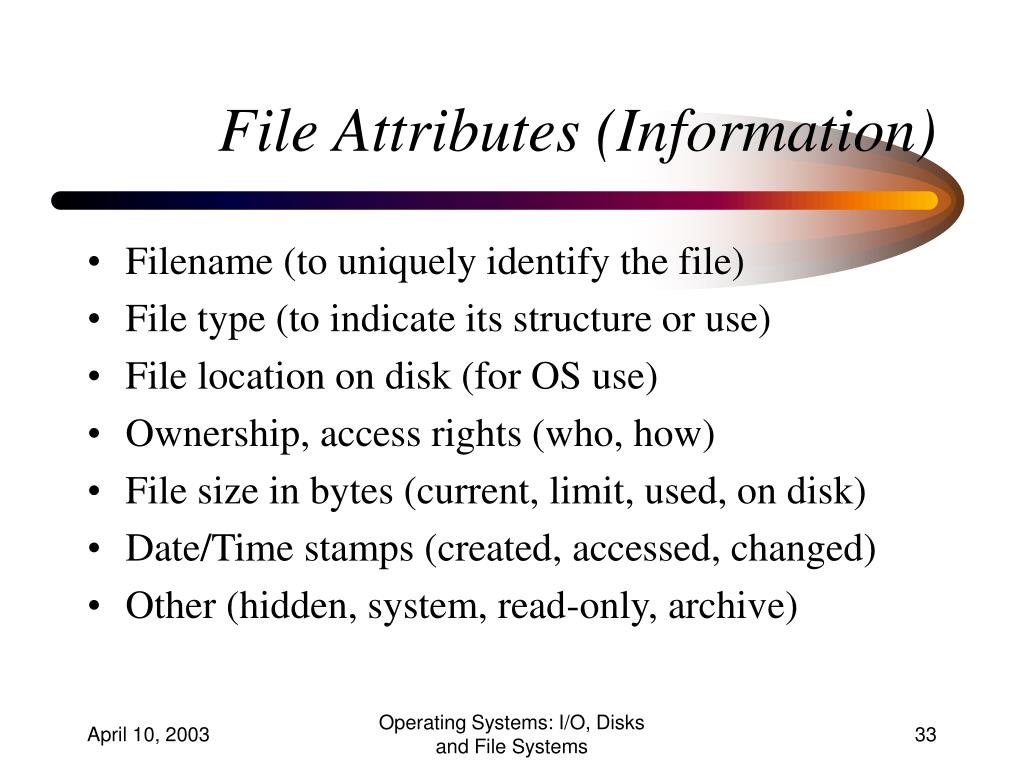

  33. File Attributes (Information) • Filename (to uniquely identify the file) • File type (to indicate its structure or use) • File location on disk (for OS use) • Ownership, access rights (who, how) • File size in bytes (current, limit, used, on disk) • Date/Time stamps (created, accessed, changed) • Other (hidden, system, read-only, archive) Operating Systems: I/O, Disks and File Systems

  34. File Types • File types may be enforced/supported/used by • the operating system (e.g. executables, folders) • certain programs (e.g. Java compiler, Word) • convention (or not at all!) • File types may be indicated by • name and/or extension • information outside the file (e.g. directory) • its contents (e.g. first two bytes of UNIX file) • UNIX and DOS let apps manage file types • A file is treated as unstructured stream of bytes Operating Systems: I/O, Disks and File Systems

  35. Some Ways to Classify Files • Text (ASCII) • Plain text (human languages e.g. readme files) • Source files (programming language code) • Markup language (e.g. HTML) • Database • Records file (array of records, fixed or variable length) • Index file (maps keysvalues) • Binary • Executable (machine code language) • Data/App. (graphics, sound, Word, Excel) Operating Systems: I/O, Disks and File Systems

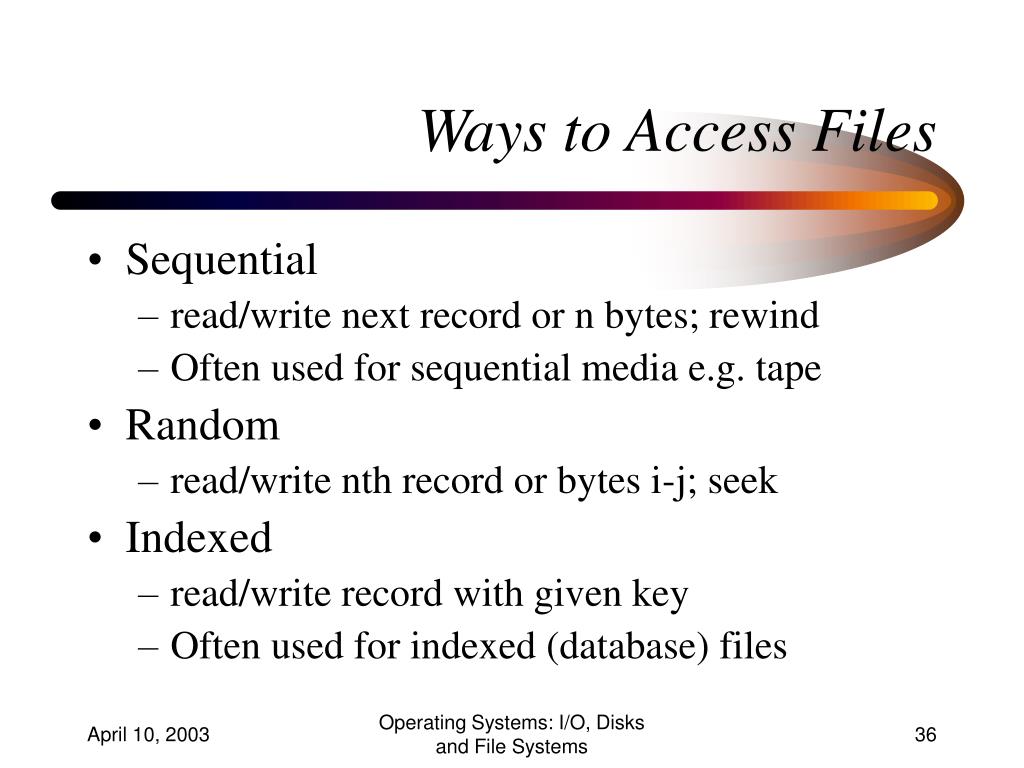

  36. Ways to Access Files • Sequential • read/write next record or n bytes; rewind • Often used for sequential media e.g. tape • Random • read/write nth record or bytes i-j; seek • Indexed • read/write record with given key • Often used for indexed (database) files Operating Systems: I/O, Disks and File Systems

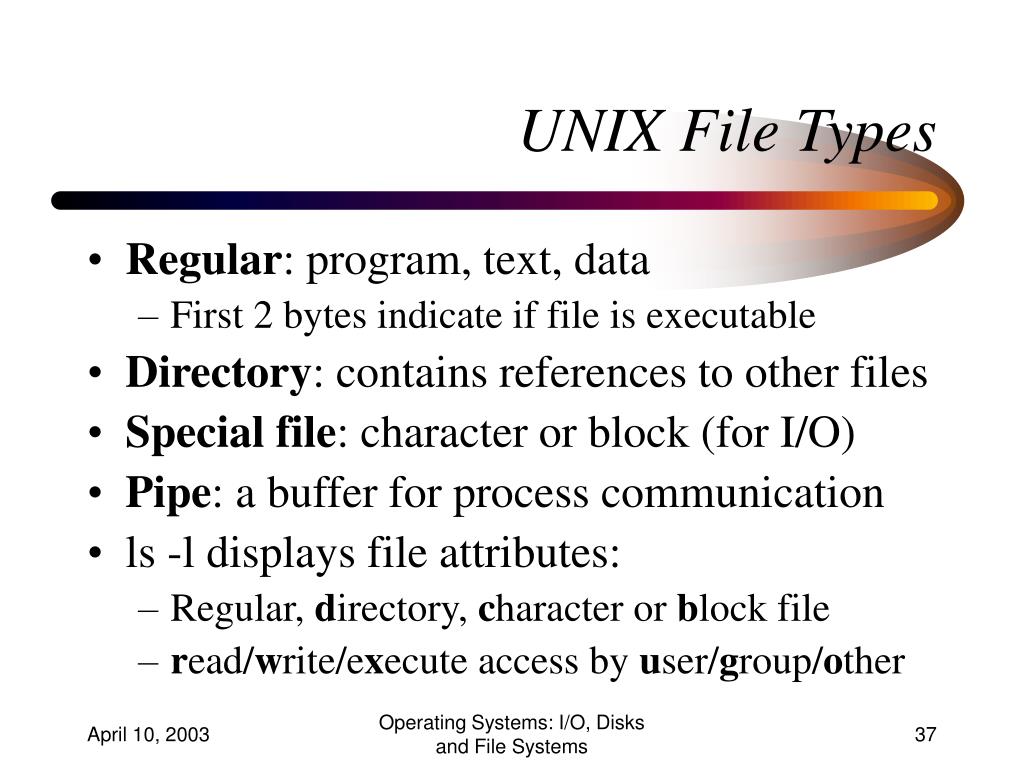

  37. UNIX File Types • Regular: program, text, data • First 2 bytes indicate if file is executable • Directory: contains references to other files • Special file: character or block (for I/O) • Pipe: a buffer for process communication • ls -l displays file attributes: • Regular, directory, character or block file • read/write/execute access by user/group/other Operating Systems: I/O, Disks and File Systems

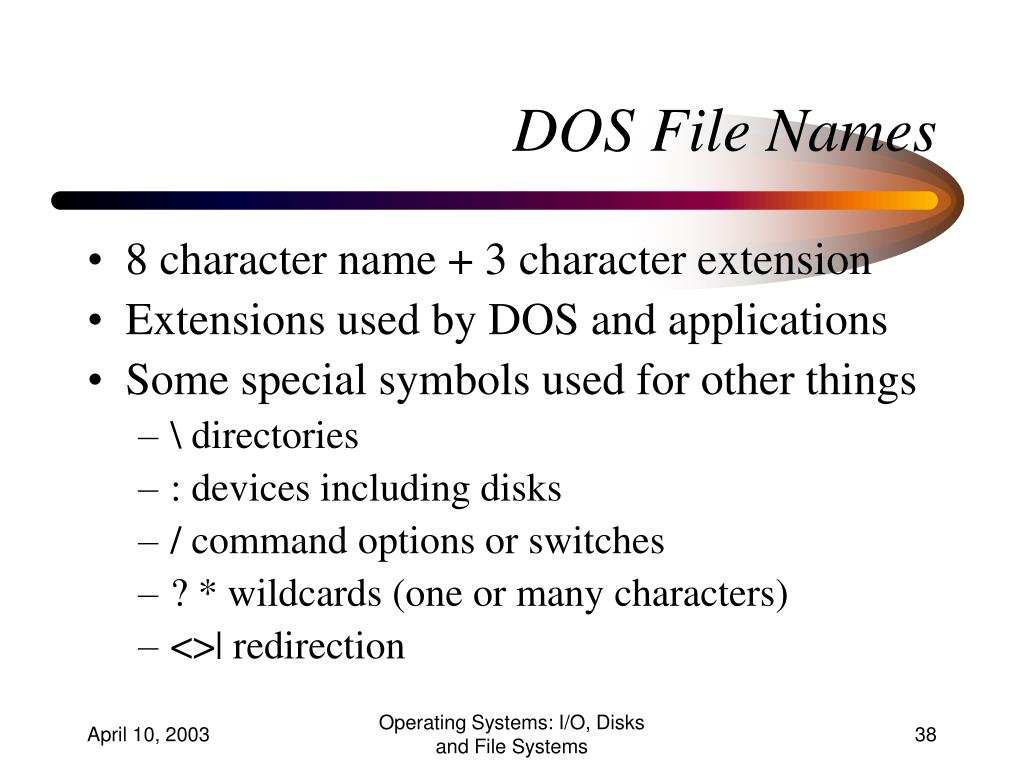

  38. DOS File Names • 8 character name + 3 character extension • Extensions used by DOS and applications • Some special symbols used for other things • \ directories • : devices including disks • / command options or switches • ? * wildcards (one or many characters) • <>| redirection Operating Systems: I/O, Disks and File Systems

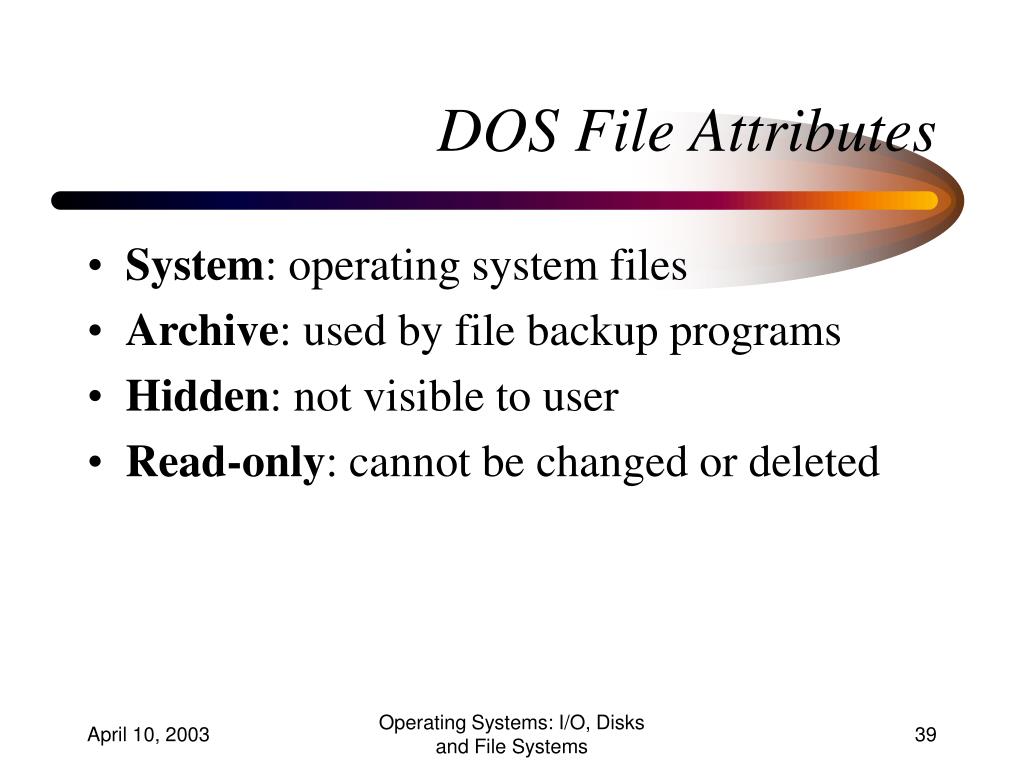

  39. DOS File Attributes • System: operating system files • Archive: used by file backup programs • Hidden: not visible to user • Read-only: cannot be changed or deleted Operating Systems: I/O, Disks and File Systems

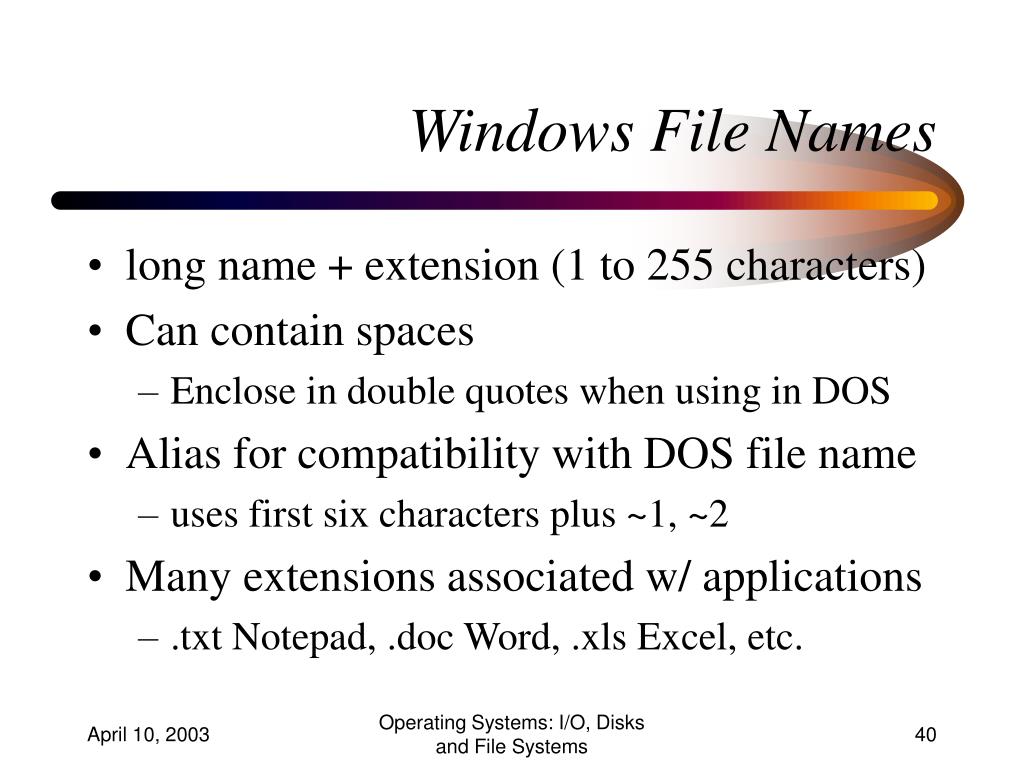

  40. Windows File Names • long name + extension (1 to 255 characters) • Can contain spaces • Enclose in double quotes when using in DOS • Alias for compatibility with DOS file name • uses first six characters plus ~1, ~2 • Many extensions associated w/ applications • .txt Notepad, .doc Word, .xls Excel, etc. Operating Systems: I/O, Disks and File Systems

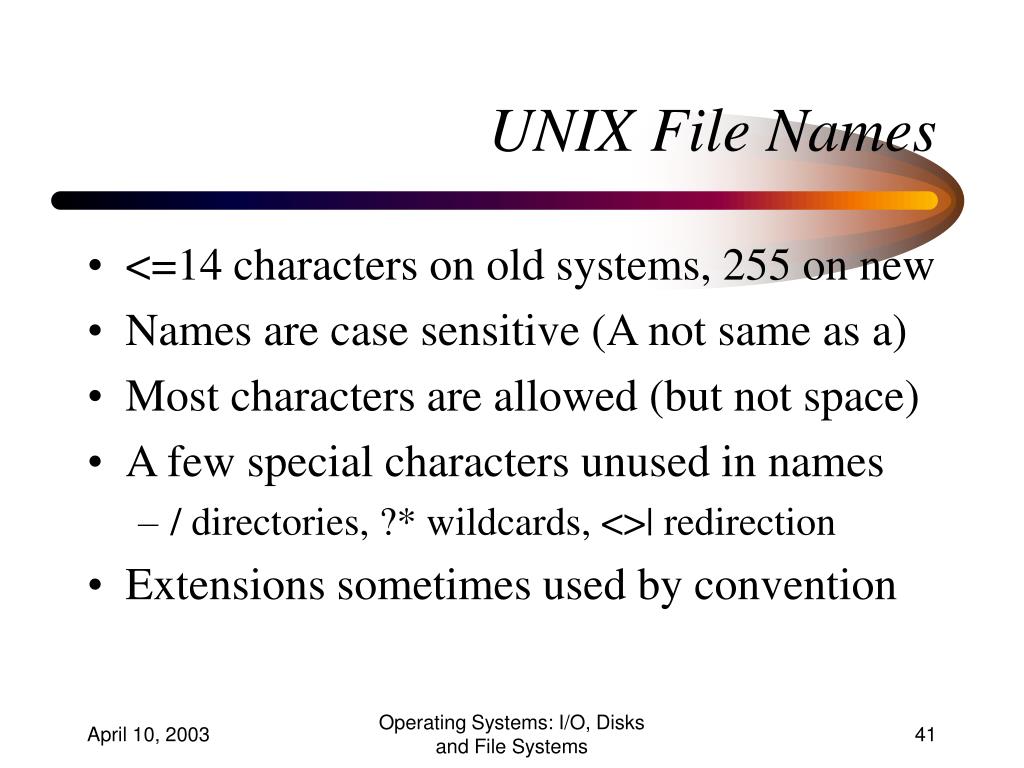

  41. UNIX File Names • <=14 characters on old systems, 255 on new • Names are case sensitive (A not same as a) • Most characters are allowed (but not space) • A few special characters unused in names • / directories, ?* wildcards, <>| redirection • Extensions sometimes used by convention Operating Systems: I/O, Disks and File Systems

  42. Directories or Folders • Contains references to files, other folders • Directory commands (DOS and/or UNIX) • dir, ls, cd, pwd, mkdir, md, rmdir, rd • Current or working directory (.) • Directory where a shell or process is working • cd or pwd displays working directory of shell Operating Systems: I/O, Disks and File Systems

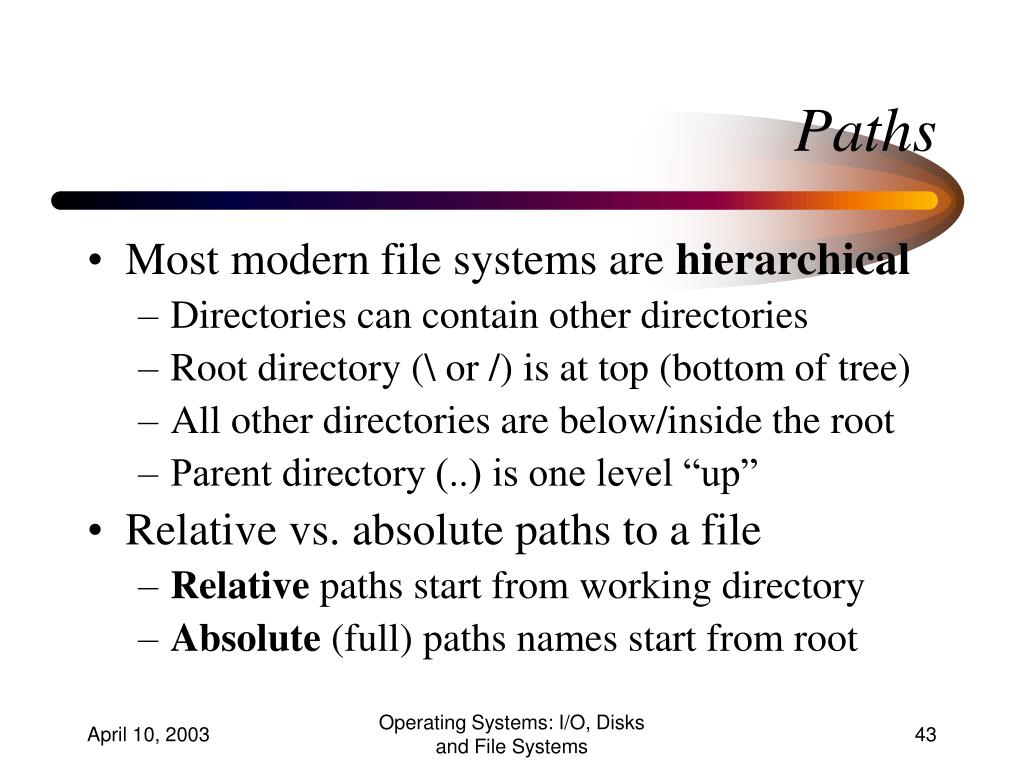

  43. Paths • Most modern file systems are hierarchical • Directories can contain other directories • Root directory (\ or /) is at top (bottom of tree) • All other directories are below/inside the root • Parent directory (..) is one level “up” • Relative vs. absolute paths to a file • Relative paths start from working directory • Absolute (full) paths names start from root Operating Systems: I/O, Disks and File Systems

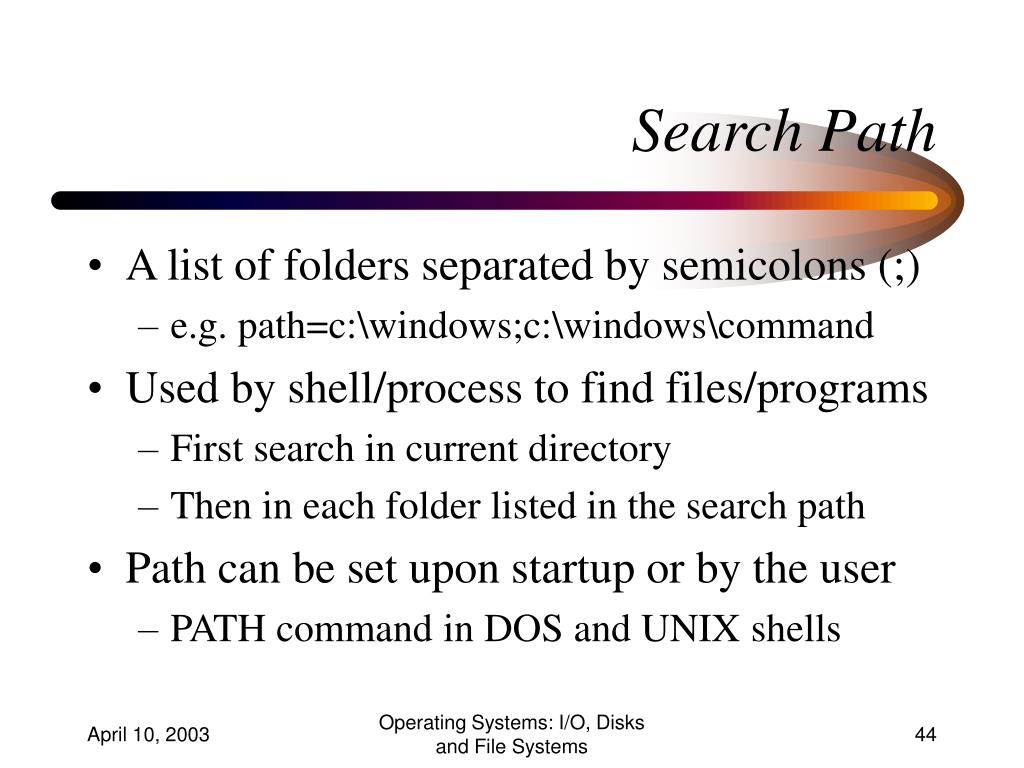

  44. Search Path • A list of folders separated by semicolons (;) • e.g. path=c:\windows;c:\windows\command • Used by shell/process to find files/programs • First search in current directory • Then in each folder listed in the search path • Path can be set upon startup or by the user • PATH command in DOS and UNIX shells Operating Systems: I/O, Disks and File Systems

  45. 4. Clusters • Each file uses at least one full cluster • Tradeoffs of large cluster sizes • Fewer disk accesses; better performance • Few FAT entries: take less space, fast to search • Small files waste most of the cluster • Floppies use only one sector per cluster Operating Systems: I/O, Disks and File Systems

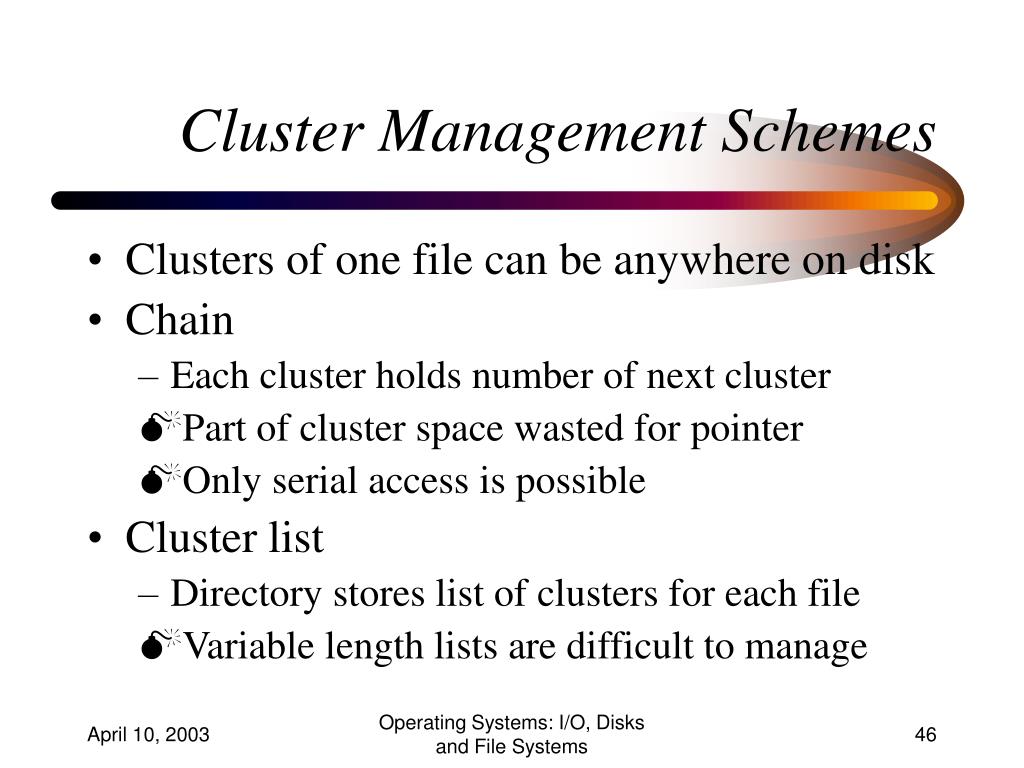

  46. Cluster Management Schemes • Clusters of one file can be anywhere on disk • Chain • Each cluster holds number of next cluster • Part of cluster space wasted for pointer • Only serial access is possible • Cluster list • Directory stores list of clusters for each file • Variable length lists are difficult to manage Operating Systems: I/O, Disks and File Systems

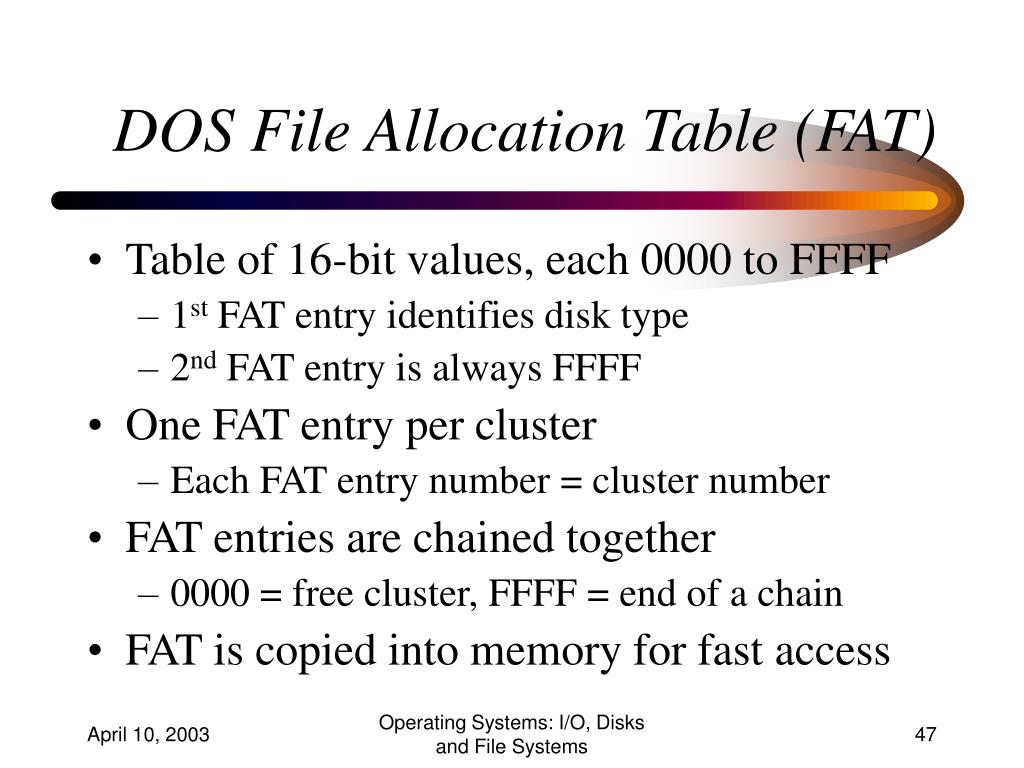

  47. DOS File Allocation Table (FAT) • Table of 16-bit values, each 0000 to FFFF • 1st FAT entry identifies disk type • 2nd FAT entry is always FFFF • One FAT entry per cluster • Each FAT entry number = cluster number • FAT entries are chained together • 0000 = free cluster, FFFF = end of a chain • FAT is copied into memory for fast access Operating Systems: I/O, Disks and File Systems

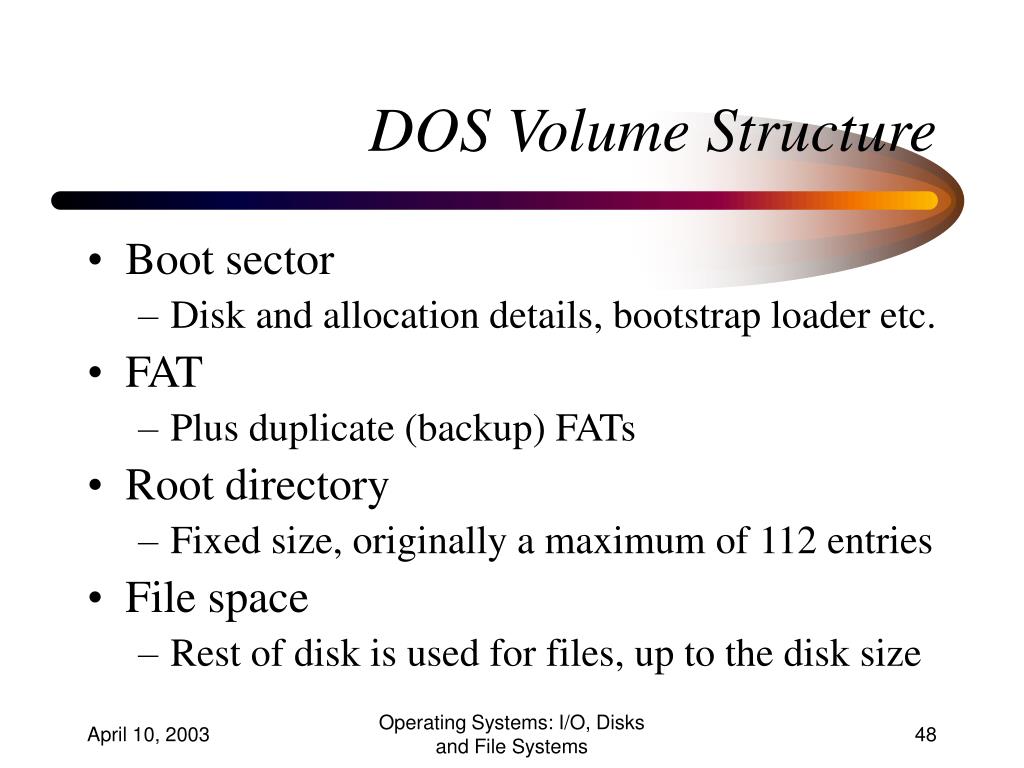

  48. DOS Volume Structure • Boot sector • Disk and allocation details, bootstrap loader etc. • FAT • Plus duplicate (backup) FATs • Root directory • Fixed size, originally a maximum of 112 entries • File space • Rest of disk is used for files, up to the disk size Operating Systems: I/O, Disks and File Systems

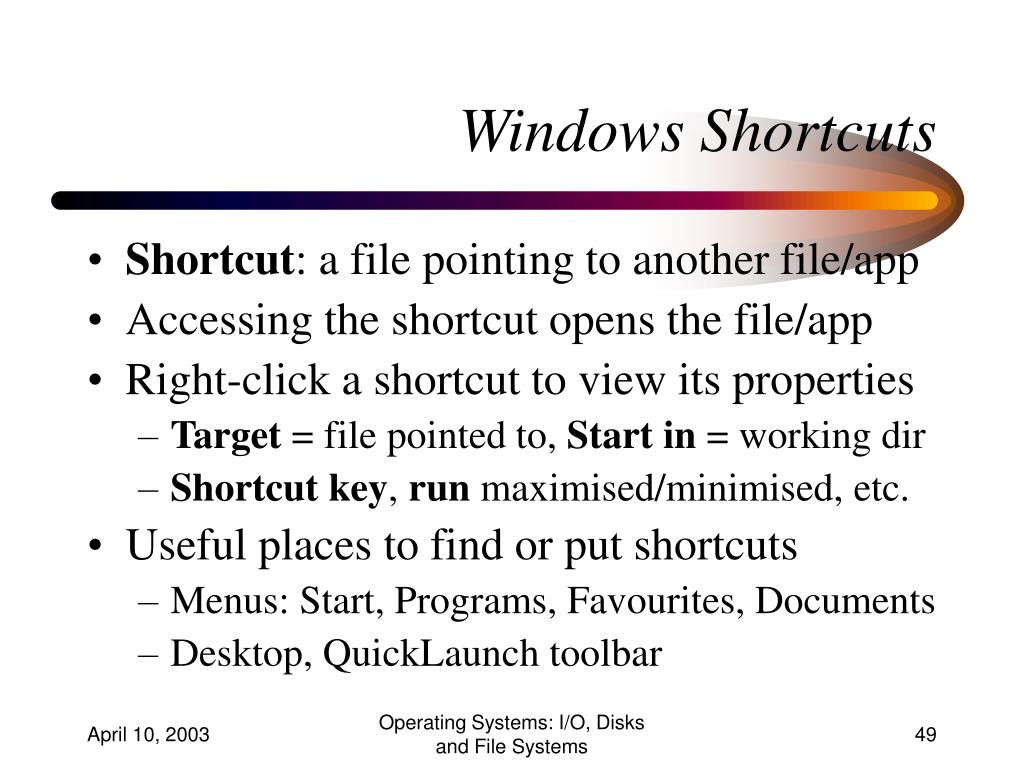

  49. Windows Shortcuts • Shortcut: a file pointing to another file/app • Accessing the shortcut opens the file/app • Right-click a shortcut to view its properties • Target = file pointed to, Start in = working dir • Shortcut key, run maximised/minimised, etc. • Useful places to find or put shortcuts • Menus: Start, Programs, Favourites, Documents • Desktop, QuickLaunch toolbar Operating Systems: I/O, Disks and File Systems

  50. Windows NT File System • Security and reliability • Recovery, bad sector repair, parity disk striping • Large file sizes • 64-bit file space, up to 264 bytes • Unicode file names • 16-bit characters for international symbols • Some POSIX (portable UNIX) compliance • Case sensitive file names, hard links (aliases) Operating Systems: I/O, Disks and File Systems
