3G/HD/SD-SDI Distribution Amplifier (NSDA-1000A). NSDA-1000A 는 3G/SDI Distribution Amp 는 SMPTE 424M(3Gb/s) , SMPTE 292M(1.485Gbps, 1.485/1.001Gbps) 또는 SMPTE259M(143M,177M,270M,340Mbps) 비디오 표준 규격 신호를 지원합니다 .

traci
Download Presentation

nesdigital

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

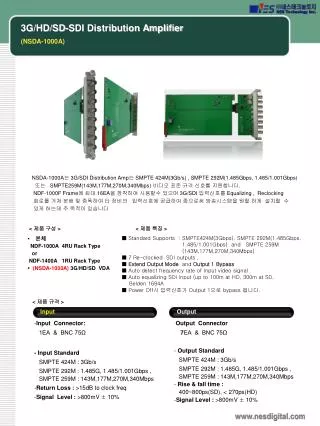

  1. 3G/HD/SD-SDI Distribution Amplifier (NSDA-1000A) NSDA-1000A는 3G/SDI Distribution Amp는 SMPTE 424M(3Gb/s) , SMPTE 292M(1.485Gbps, 1.485/1.001Gbps) 또는 SMPTE259M(143M,177M,270M,340Mbps) 비디오 표준 규격 신호를 지원합니다. NDF-1000F Frame에 최대 16EA을 장착하여 사용할수 있으며 3G/SDI 입력신호를 Equalizing , Reclocking 회로를 거쳐 분배 및 증폭하여 타 장비의 입력신호에 공급하여 줌으로써 방송시스템을 원할 하게 설치할 수 있게 하는데 주 목적이 있습니다 < 제품 구성 > < 제품 특징 > • 본체 • NDF-1000A 4RU Rack Type • or • NDF-1400A 1RU Rack Type •  (NSDA-1000A) 3G/HD/SD VDA ■ Standard Supports : SMPTE424M(3Gbps), SMPTE 292M(1.485Gbps, 1.485/1.001Gbps) and SMPTE 259M (143M,177M,270M,340Mbps) ■ 7 Re-clocked SDI outputs , ■ Extend Output Mode and Output 1 Bypass ■ Auto detect frequency rate of Input video signal ■ Auto equalizing SDI Input (up to 100m at HD, 300m at SD, Belden 1694A ■ Power Off시 입력신호가 Output 1으로 bypass 됩니다. < 제품 규격 > Output Input • Input Connector: • 1EA & BNC 75Ω • - Input Standard • SMPTE 424M : 3Gb/s • SMPTE 292M : 1.485G, 1.485/1.001Gbps , • SMPTE 259M : 143M,177M,270M,340Mbps • Return Loss : >15dB to clock freq • Signal Level : >800mV ± 10% • Output Connector • 7EA & BNC 75Ω • Output Standard • SMPTE 424M : 3Gb/s • SMPTE 292M : 1.485G, 1.485/1.001Gbps , • SMPTE 259M : 143M,177M,270M,340Mbps • Rise & fall time : • 400~800ps(SD), < 270ps(HD) • Signal Level : >800mV ± 10% www.nesdigital.com

  2. 3G/HD/SD-SDI Distribution Amplifier (NSDA-1000A) < Output Mode 별 사용법 > <Extend Output Mode 시> Ex) In:1ea / Out:15ea 구성 시 3G/SDI Input(Embedded Audio 포함) 3G/SDI Output-8 3G/SDI Output-1 3G/SDI Output-9 3G/SDI Output-2 3G/SDI Output-10 3G/SDI Output-3 3G/SDI Output-11 3G/SDI Output-4 3G/SDI Output-12 3G/SDI Output-5 3G/SDI Output-13 3G/SDI Output-6 3G/SDI Output-14 3G/SDI Output-7 3G/SDI Output-15 NSDA-1000A (2) NSDA-1000A (1) <Single Output Mode 시> <Power Off 시 Output-1 Bypass > 3G/SDI Input(Embedded Audio 포함) 3G/SDI Input(Embedded Audio 포함) 3G/SDI Output-1 Output-1 Bypass 3G/SDI Output-2 3G/SDI Output-3 3G/SDI Output-4 3G/SDI Output-5 3G/SDI Output-6 3G/SDI Output-7 서울시 금천구 가산동 470-5 에이스테크노타워10차 205호 Tel : 02-6670-5130 / Fax : 02-6670-5131 www.nesdigital.com / jini92@nesdigital.com www.nesdigital.com www.nesdigital.com
