Understanding oracle9 i automatic undo management and flashback query

Understanding Oracle9i Automatic Undo Managementand Flashback Query

Kirtikumar Deshpande

CLTOUG

July 14, 2005


About me

About Me

  • Senior Oracle DBA

    • Verizon Information Services

      • Phone Directories Publication


Agenda

Agenda

  • Automatic Undo Management

  • Flashback Query Feature

  • Demonstration

  • Q & A


New terminology

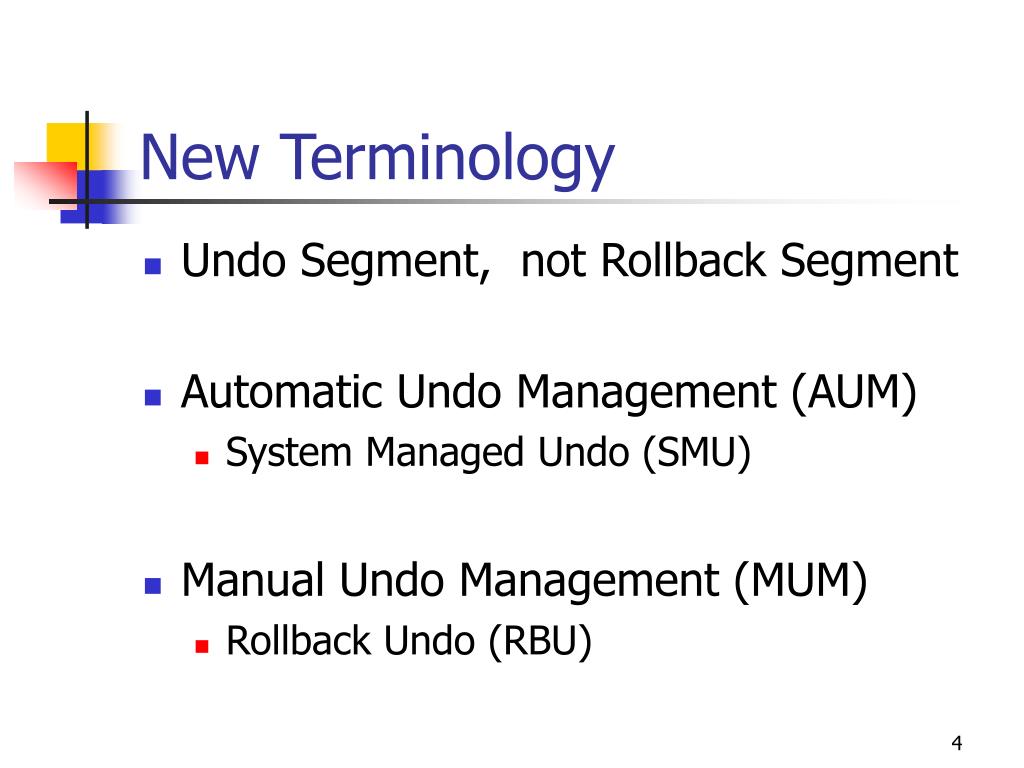

New Terminology

  • Undo Segment, not Rollback Segment

  • Automatic Undo Management (AUM)

    • System Managed Undo (SMU)

  • Manual Undo Management (MUM)

    • Rollback Undo (RBU)


Automatic v s manual undo

AUTOMATIC v/s MANUAL UNDO

  • Oracle9i database can operate in:

    • Automatic Undo Management Mode (AUM)

      • Default if database is created using DBCA

      • Possible only when COMPATIBLE is 9.0.0 and higher

    • Manual Undo Management Mode (MUM)

      • Possible when COMPATIBLE is 9.x, or 8.x

      • Use it when you are not ready for AUM or you are upgrading a lower release database

  • Changing UNDO mode requires instance startup


Automatic v s manual undo1

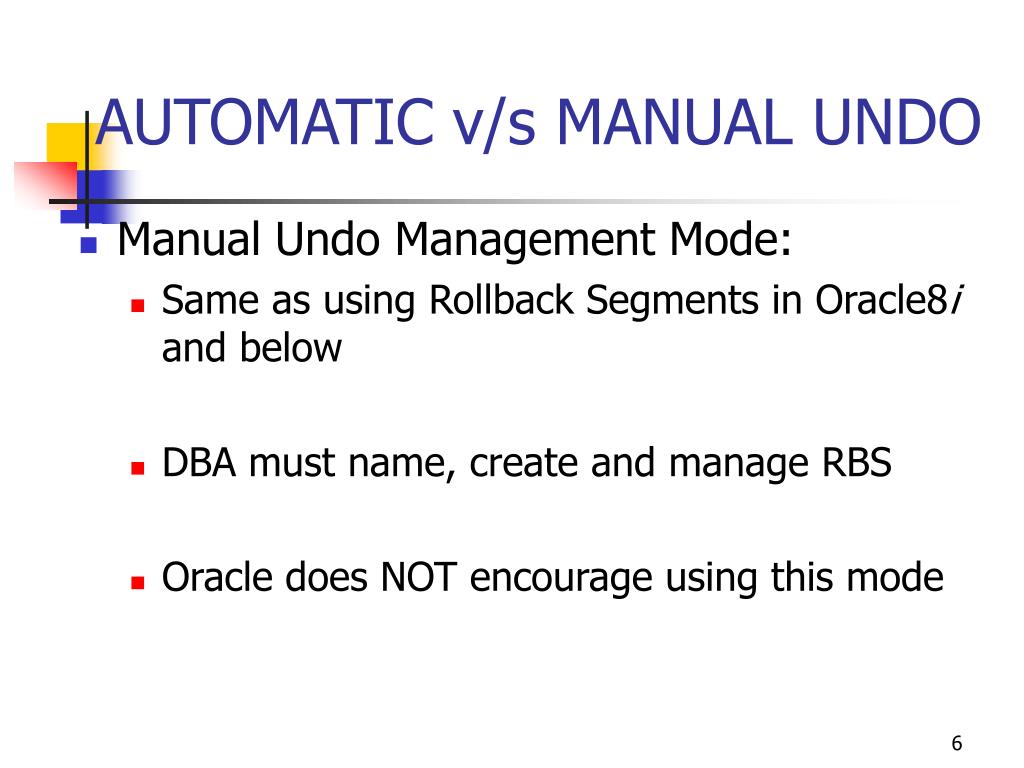

AUTOMATIC v/s MANUAL UNDO

  • Manual Undo Management Mode:

    • Same as using Rollback Segments in Oracle8i and below

    • DBA must name, create and manage RBS

    • Oracle does NOT encourage using this mode


Automatic v s manual undo2

AUTOMATIC v/s MANUAL UNDO

  • Automatic Undo Management Mode:

    • Oracle to name, create, manage Undo Segments

    • Oracle to control sizing, number of undo segments

    • Requires a new type of tablespace: UNDO

    • New init.ora parameters


Undo tablespace creation

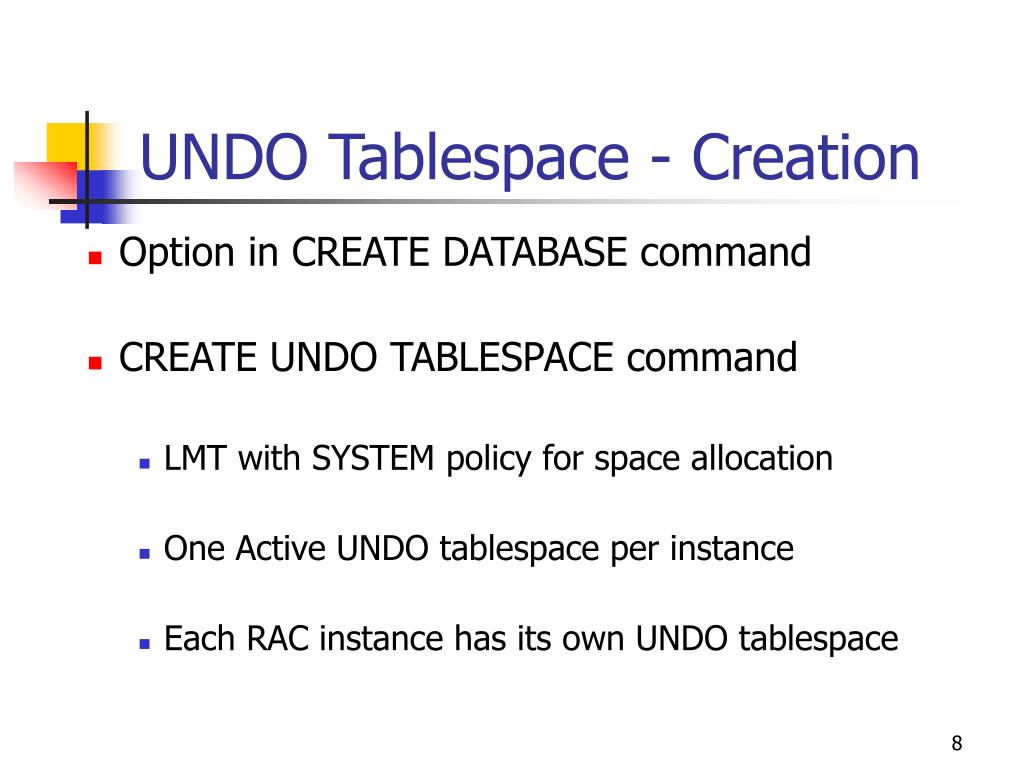

UNDO Tablespace - Creation

  • Option in CREATE DATABASE command

  • CREATE UNDO TABLESPACE command

    • LMT with SYSTEM policy for space allocation

    • One Active UNDO tablespace per instance

    • Each RAC instance has its own UNDO tablespace


Undo tablespace creation1

UNDO Tablespace - Creation

CREATE database KED9

controlfile reuse

datafile '/u01/oradata/KED9/system_01.dbf' size 250M

undo tablespace undo_tbs

datafile '/u02/oradata/KED9/undo_tbs_01.dbf' size 500M

logfile

group 1

('/u10/oradata/KED9/redo_g1m1.log') size 25M,

. . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . .

;

CREATE undo tablespace undo_tbs

datafile '/u02/oradata/KED9/undo_tbs_01.dbf' size 500M;

CREATE database KED9

controlfile reuse

datafile '/u01/oradata/KED9/system_01.dbf' size 250M

undo tablespace undo_tbs

datafile '/u02/oradata/KED9/undo_tbs_01.dbf' size 500M

logfile

group 1

('/u10/oradata/KED9/redo_g1m1.log') size 25M,

. . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . .

;

CREATE undo tablespace undo_tbs

datafile '/u02/oradata/KED9/undo_tbs_01.dbf' size 500M;

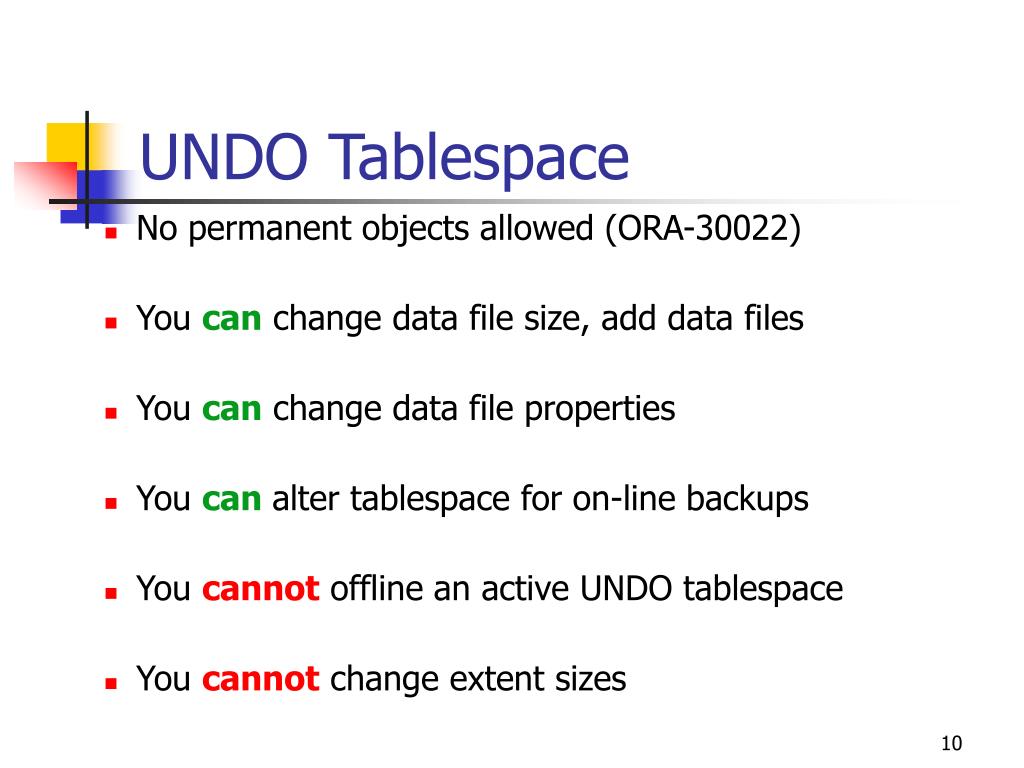

Undo tablespace

UNDO Tablespace

  • No permanent objects allowed (ORA-30022)

  • You can change data file size, add data files

  • You can change data file properties

  • You can alter tablespace for on-line backups

  • You cannot offline an active UNDO tablespace

  • You cannot change extent sizes

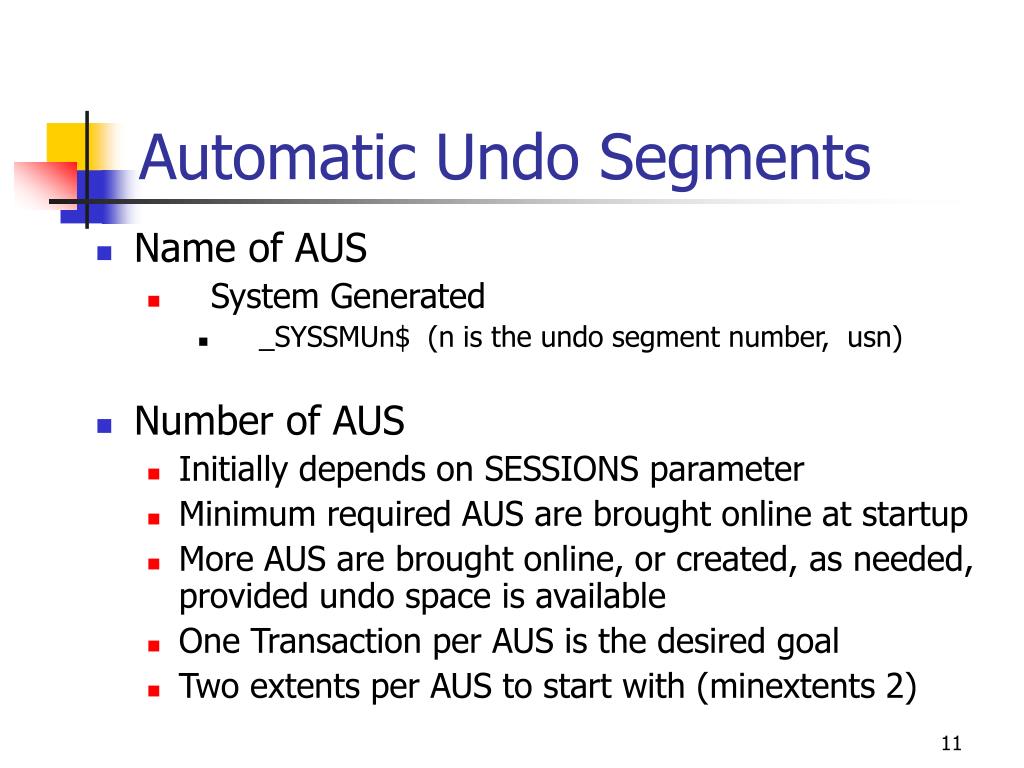

Automatic undo segments

Automatic Undo Segments

  • Name of AUS

    • System Generated

      • _SYSSMUn$ (n is the undo segment number, usn)

  • Number of AUS

    • Initially depends on SESSIONS parameter

    • Minimum required AUS are brought online at startup

    • More AUS are brought online, or created, as needed, provided undo space is available

    • One Transaction per AUS is the desired goal

    • Two extents per AUS to start with (minextents 2)


Automatic undo segments1

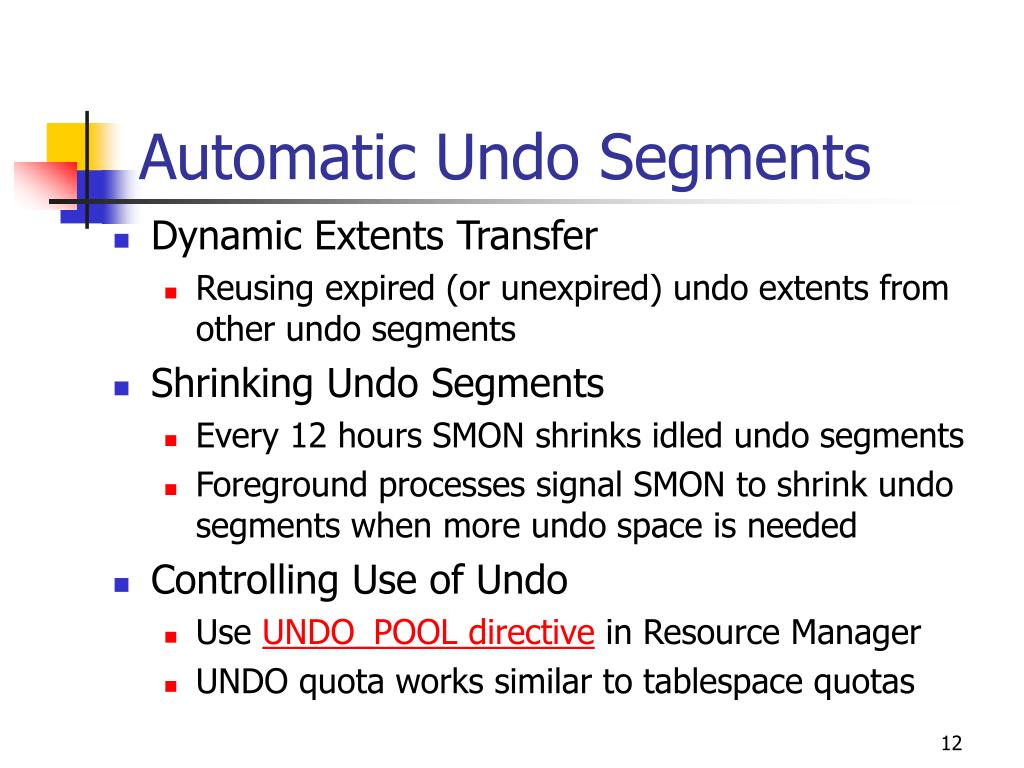

Automatic Undo Segments

  • Dynamic Extents Transfer

    • Reusing expired (or unexpired) undo extents from other undo segments

  • Shrinking Undo Segments

    • Every 12 hours SMON shrinks idled undo segments

    • Foreground processes signal SMON to shrink undo segments when more undo space is needed

  • Controlling Use of Undo

    • Use UNDO_POOL directive in Resource Manager

    • UNDO quota works similar to tablespace quotas

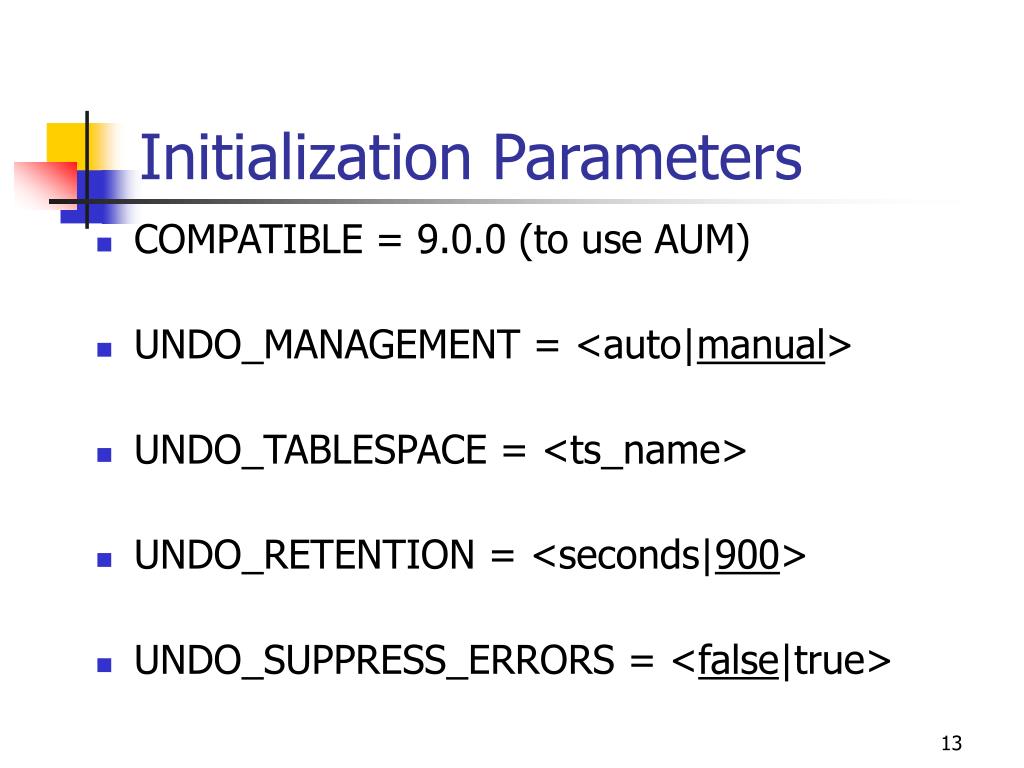

Initialization parameters

Initialization Parameters

  • COMPATIBLE = 9.0.0 (to use AUM)

  • UNDO_MANAGEMENT = <auto|manual>

  • UNDO_TABLESPACE = <ts_name>

  • UNDO_RETENTION = <seconds|900>

  • UNDO_SUPPRESS_ERRORS = <false|true>


Undo management

UNDO_MANAGEMENT

  • Auto:

    • Oracle deals with undo segments

  • Manual:

    • DBA deals with rollback segments

  • Not dynamic, instance restart needed when changed

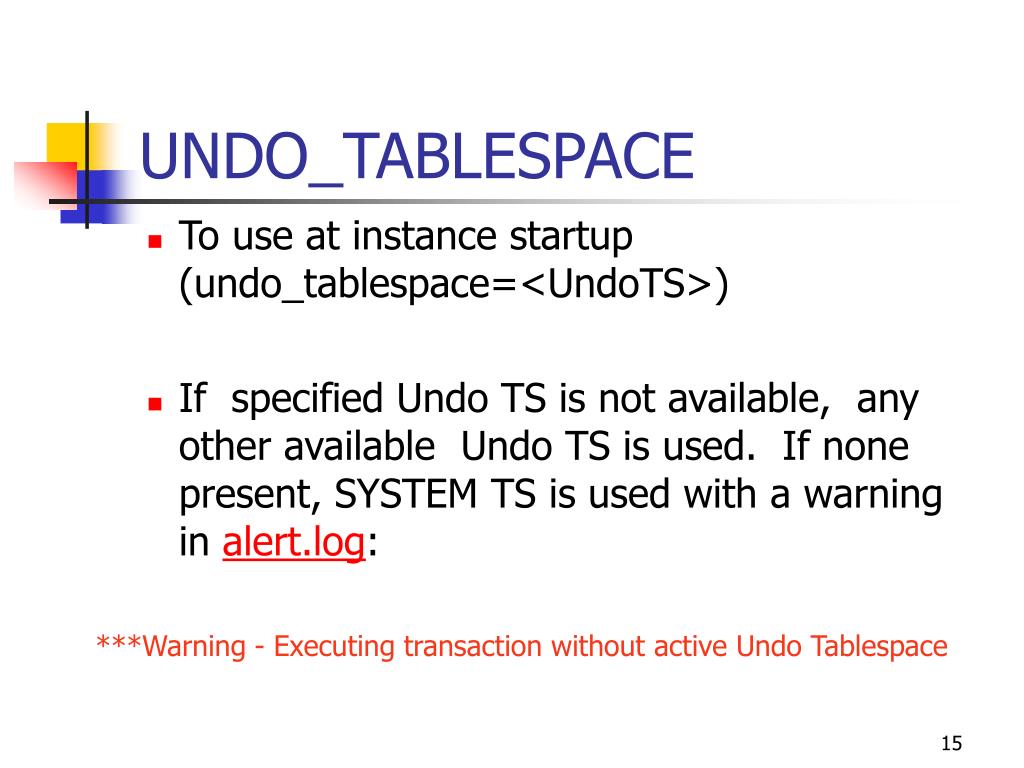

Undo tablespace1

UNDO_TABLESPACE

  • To use at instance startup (undo_tablespace=<UndoTS>)

  • If specified Undo TS is not available, any other available Undo TS is used. If none present, SYSTEM TS is used with a warning in alert.log:

    ***Warning - Executing transaction without active Undo Tablespace


Undo tablespace2

UNDO_TABLESPACE

  • When creating new database, if Undo TS is specified but no ‘undo tablespace’ in ‘CREATE DATABASE’ command, the database creation fails.

    ORA-01092: ORACLE instance terminated. Disconnection forced

    ORA-30045: No undo tablespace name specified

  • Undo TS Can be changed dynamically (not advisable)

    alter system set undo_tablespace = <New Undo TS Name>;


Undo retention

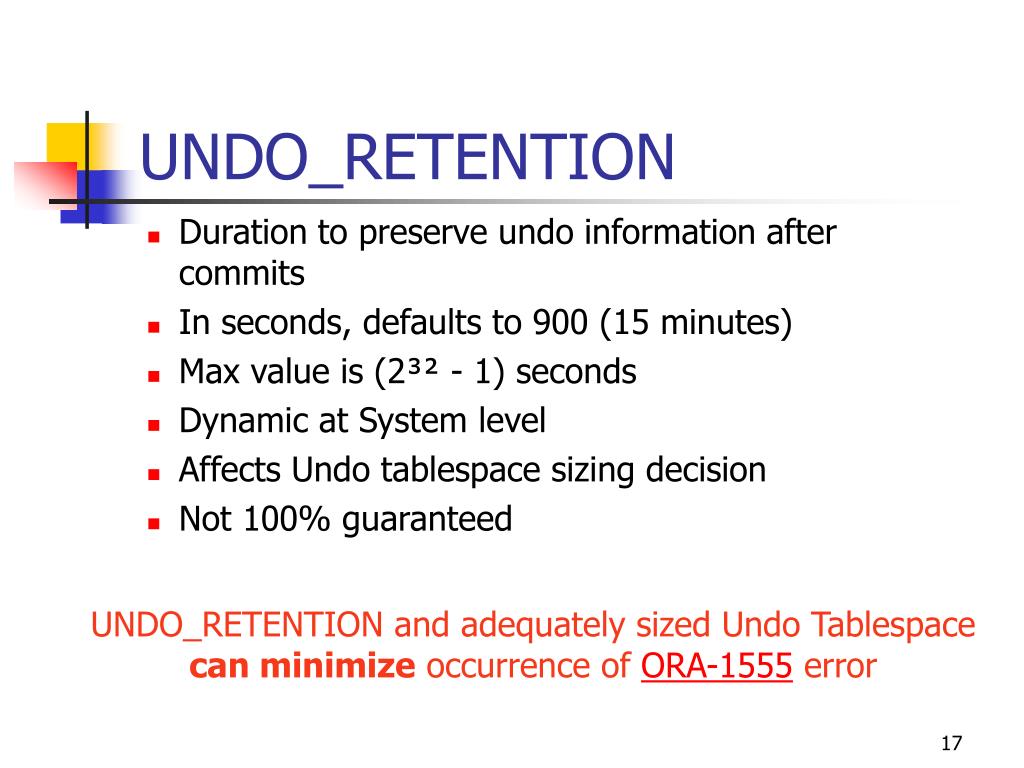

UNDO_RETENTION

  • Duration to preserve undo information after commits

  • In seconds, defaults to 900 (15 minutes)

  • Max value is (2³² - 1) seconds

  • Dynamic at System level

  • Affects Undo tablespace sizing decision

  • Not 100% guaranteed

UNDO_RETENTION and adequately sized Undo Tablespace can minimize occurrence of ORA-1555 error


Undo suppress errors

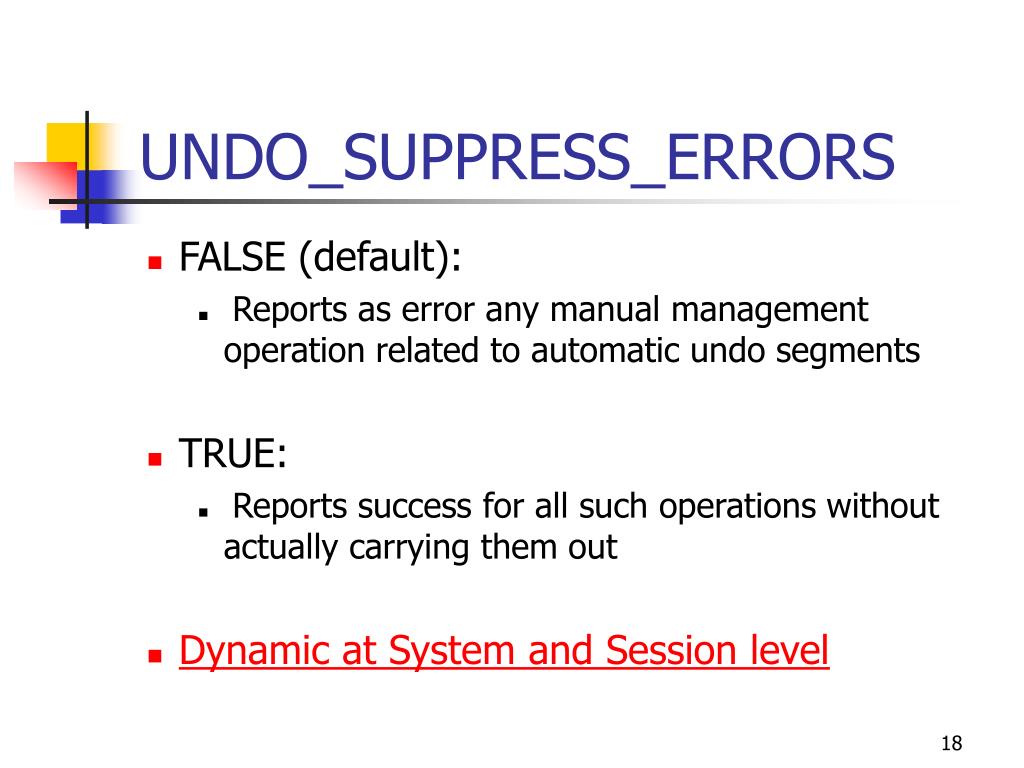

UNDO_SUPPRESS_ERRORS

  • FALSE (default):

    • Reports as error any manual management operation related to automatic undo segments

  • TRUE:

    • Reports success for all such operations without actually carrying them out

  • Dynamic at System and Session level


New undo views

New UNDO Views

  • DBA_UNDO_EXTENTS

    • Lists the commit times for each extent in the undo tablespace

      (from Oracle9i Database Reference, Release 1)

    • Describes the extents comprising the segments in all undo tablespaces in the database

      (from Oracle9i Database Reference, Release 2)

  • V$UNDOSTAT

    • Statistics for monitoring and tuning Undo space


Dba undo extents

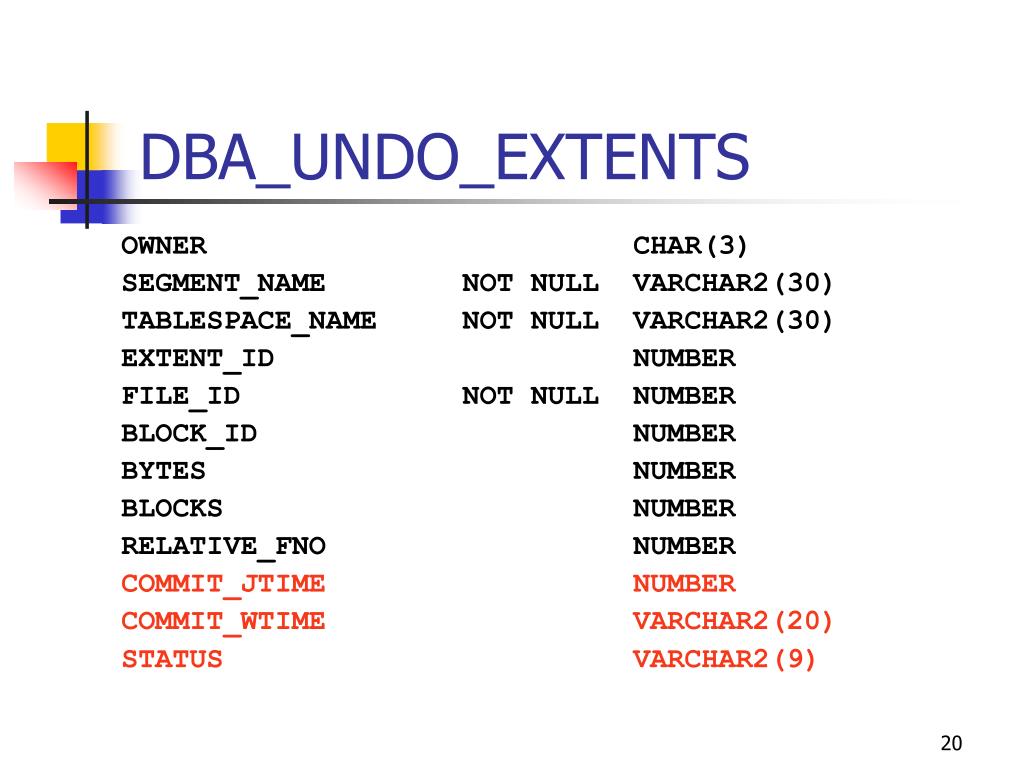

DBA_UNDO_EXTENTS

OWNER CHAR(3)

SEGMENT_NAME NOT NULL VARCHAR2(30)

TABLESPACE_NAME NOT NULL VARCHAR2(30)

EXTENT_ID NUMBER

FILE_ID NOT NULL NUMBER

BLOCK_ID NUMBER

BYTES NUMBER

BLOCKS NUMBER

RELATIVE_FNO NUMBER

COMMIT_JTIME NUMBER

COMMIT_WTIME VARCHAR2(20)

STATUS VARCHAR2(9)


Dba undo extents1

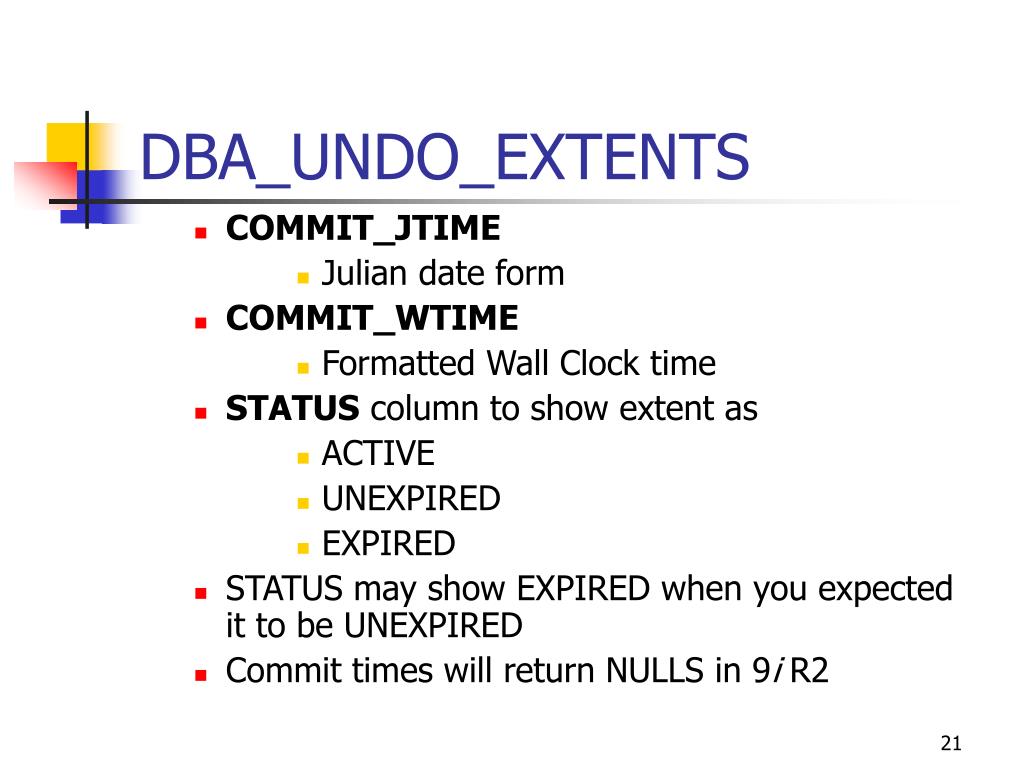

DBA_UNDO_EXTENTS

  • COMMIT_JTIME

    • Julian date form

  • COMMIT_WTIME

    • Formatted Wall Clock time

  • STATUS column to show extent as

    • ACTIVE

    • UNEXPIRED

    • EXPIRED

  • STATUS may show EXPIRED when you expected it to be UNEXPIRED

  • Commit times will return NULLS in 9i R2


  • V undostat

    V$UNDOSTAT

    BEGIN_TIME DATE -- Sample start date/time

    END_TIME DATE -- Sample end date/time

    UNDOTSN NUMBER -- Last Active Undo TS Number

    UNDOBLKS NUMBER -- Undo blocks used

    TXNCOUNT NUMBER -- Number of Transactions in sample

    MAXQUERYLEN NUMBER -- MAX Query Length

    MAXCONCURRENCY NUMBER -- Max Concurrency

    UNXPSTEALCNT NUMBER -- Attempts to steal un-expired blocks

    UNXPBLKRELCNT NUMBER -- Un-expired blocks released

    UNXPBLKREUCNT NUMBER -- Un-expired blocks reused

    EXPSTEALCNT NUMBER -- Attempts to steal expired blocks

    EXPBLKRELCNT NUMBER -- Expired blocks released

    EXPBLKREUCNT NUMBER -- Expired blocks reused

    SSOLDERRCNT NUMBER -- Snapshot Old Error Count

    NOSPACEERRCNT NUMBER -- No Space Left Error Count

    BEGIN_TIME DATE -- Sample start date/time

    END_TIME DATE -- Sample end date/time

    UNDOTSN NUMBER -- Last Active Undo TS Number

    UNDOBLKS NUMBER -- Undo blocks used

    TXNCOUNT NUMBER -- Number of Transactions in sample

    MAXQUERYLEN NUMBER -- MAX Query Length

    MAXCONCURRENCY NUMBER -- Max Concurrency

    UNXPSTEALCNT NUMBER -- Attempts to steal un-expired blocks

    UNXPBLKRELCNT NUMBER -- Un-expired blocks released

    UNXPBLKREUCNT NUMBER -- Un-expired blocks reused

    EXPSTEALCNT NUMBER -- Attempts to steal expired blocks

    EXPBLKRELCNT NUMBER -- Expired blocks released

    EXPBLKREUCNT NUMBER -- Expired blocks reused

    SSOLDERRCNT NUMBER -- Snapshot Old Error Count

    NOSPACEERRCNT NUMBER -- No Space Left Error Count


    V undostat1

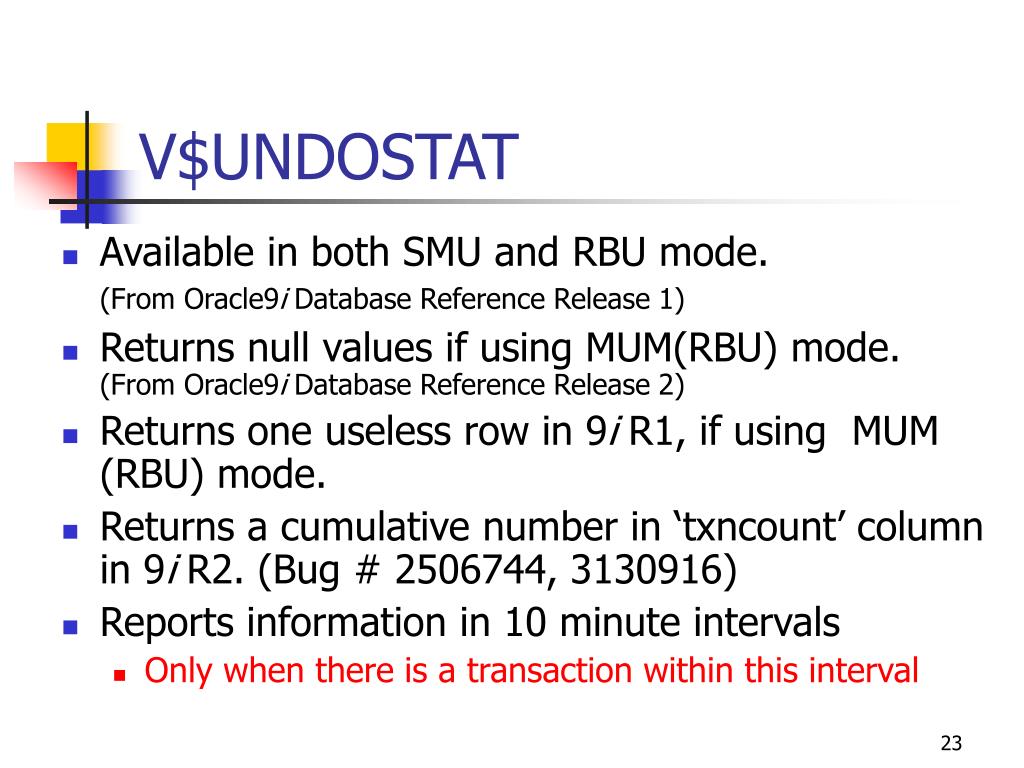

    V$UNDOSTAT

    • Available in both SMU and RBU mode. (From Oracle9i Database Reference Release 1)

    • Returns null values if using MUM(RBU) mode. (From Oracle9i Database Reference Release 2)

    • Returns one useless row in 9i R1, if using MUM (RBU) mode.

    • Returns a cumulative number in ‘txncount’ column in 9i R2. (Bug # 2506744, 3130916)

    • Reports information in 10 minute intervals

      • Only when there is a transaction within this interval


    V undostat2

    V$UNDOSTAT

    BEGIN_TIME END_TIME UNDOBLKS TXNCOUNT

    ----------------- ----------------- ---------- ----------

    11/08/04 02:32:23 11/08/04 02:52:23 0 0

    11/08/04 02:22:23 11/08/04 02:32:23 0 206

    11/08/04 02:12:23 11/08/04 02:22:23 0 203

    11/08/04 02:02:23 11/08/04 02:12:23 0 200

    11/08/04 01:52:23 11/08/04 02:02:23 0 195

    11/08/04 00:32:23 11/08/04 01:52:23 0 0

    11/08/04 00:22:23 11/08/04 00:32:23 1 170

    11/08/04 00:02:23 11/08/04 00:22:23 0 0

    11/07/04 23:52:23 11/08/04 00:02:23 1 160

    11/07/04 18:12:23 11/07/04 23:52:23 0 0

    11/07/04 18:02:23 11/07/04 18:12:23 0 54

    11/07/04 17:52:23 11/07/04 18:02:23 0 49

    11/07/04 15:52:23 11/07/04 17:52:23 0 0

    BEGIN_TIME END_TIME UNDOBLKS TXNCOUNT

    ----------------- ----------------- ---------- ----------

    11/08/04 02:32:23 11/08/04 02:52:23 0 0

    11/08/04 02:22:23 11/08/04 02:32:23 0 206

    11/08/04 02:12:23 11/08/04 02:22:23 0 203

    11/08/04 02:02:23 11/08/04 02:12:23 0 200

    11/08/04 01:52:23 11/08/04 02:02:23 0 195

    11/08/04 00:32:23 11/08/04 01:52:23 0 0

    11/08/04 00:22:23 11/08/04 00:32:23 1 170

    11/08/04 00:02:23 11/08/04 00:22:23 0 0

    11/07/04 23:52:23 11/08/04 00:02:23 1 160

    11/07/04 18:12:23 11/07/04 23:52:23 0 0

    11/07/04 18:02:23 11/07/04 18:12:23 0 54

    11/07/04 17:52:23 11/07/04 18:02:23 0 49

    11/07/04 15:52:23 11/07/04 17:52:23 0 0

    Not a 10 minute interval if TXNCOUNT = 0

    TXNCOUNT column is cumulative


    V undostat3

    V$UNDOSTAT

    B_TIME E_TIME UNDOBLKS TXNCOUNT EXPSTEALCNT EXPBLKRELCNT EXPBLKREUCNT

    ----------- ------------ ---------------- ---------------- ------------------- ------------------------- -------------------------

    13:00:27 13:10:27 31636 138 27 11776 0

    12:50:27 13:00:27 18606 35 5 15864 0

    12:40:27 12:50:27 18571 17 3 15864 0

    12:30:27 12:40:27 18570 12 1 5112 0

    12:20:27 12:30:27 18569 3 0 0 0

    12:10:27 12:20:27 9313 2 0 0 0

    12:00:27 12:10:27 9269 3 0 0 0

    EXPSTEALCNT > 0

    • Dynamic Extent Transfer

    B_TIME E_TIME UNDOBLKS TXNCOUNT EXPSTEALCNT EXPBLKRELCNT EXPBLKREUCNT

    ----------- ------------ ---------------- ---------------- ------------------- ------------------------- -------------------------

    13:00:27 13:10:27 31636 138 27 11776 0

    12:50:27 13:00:27 18606 35 5 15864 0

    12:40:27 12:50:27 18571 17 3 15864 0

    12:30:27 12:40:27 18570 12 1 5112 0

    12:20:27 12:30:27 18569 3 0 0 0

    12:10:27 12:20:27 9313 2 0 0 0

    12:00:27 12:10:27 9269 3 0 0 0

    EXPSTEALCNT > 0

    => Dynamic Extent Transfer


    Undo tablespace sizing

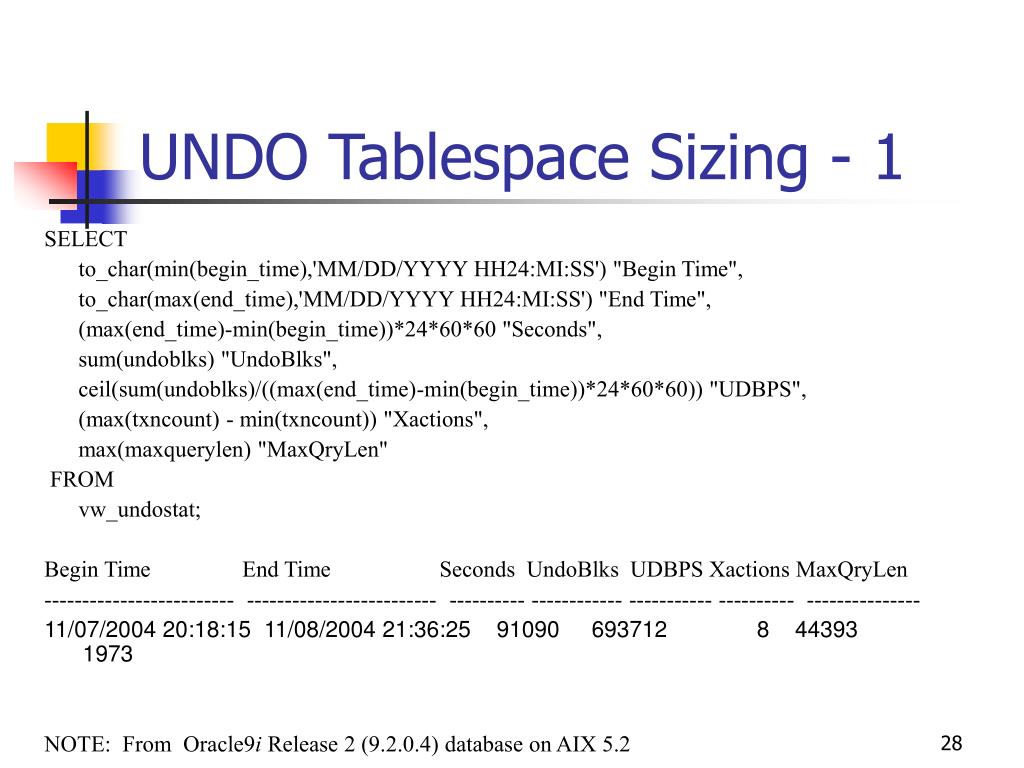

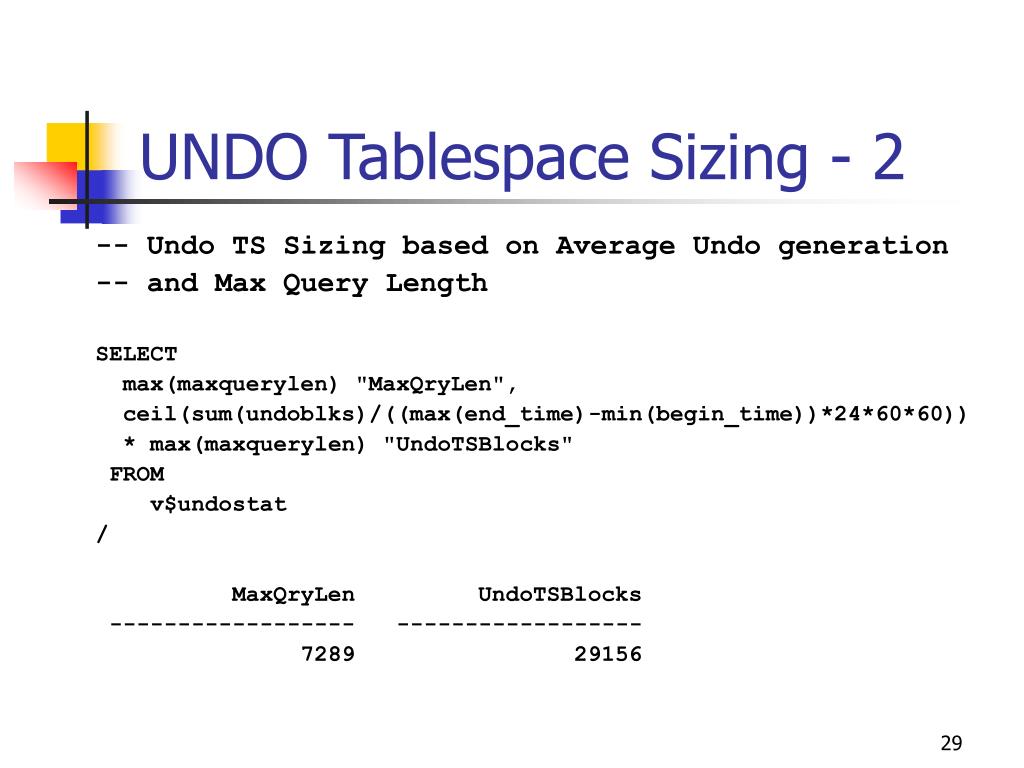

    UNDO Tablespace Sizing

    • Monitor V$UNDOSTAT

      • Number of Transactions

      • Number of Undo Blocks consumed

      • Maximum Query length

    • Formula:

      Undo Space in Bytes = (UR * UDBPS * DB_Block Size)

      + Overhead

      UR = Undo Retention Time in Seconds

      UDBPS = Undo Blocks used Per Second

      Overhead = One DB block for metadata


    Custom view for v undostat

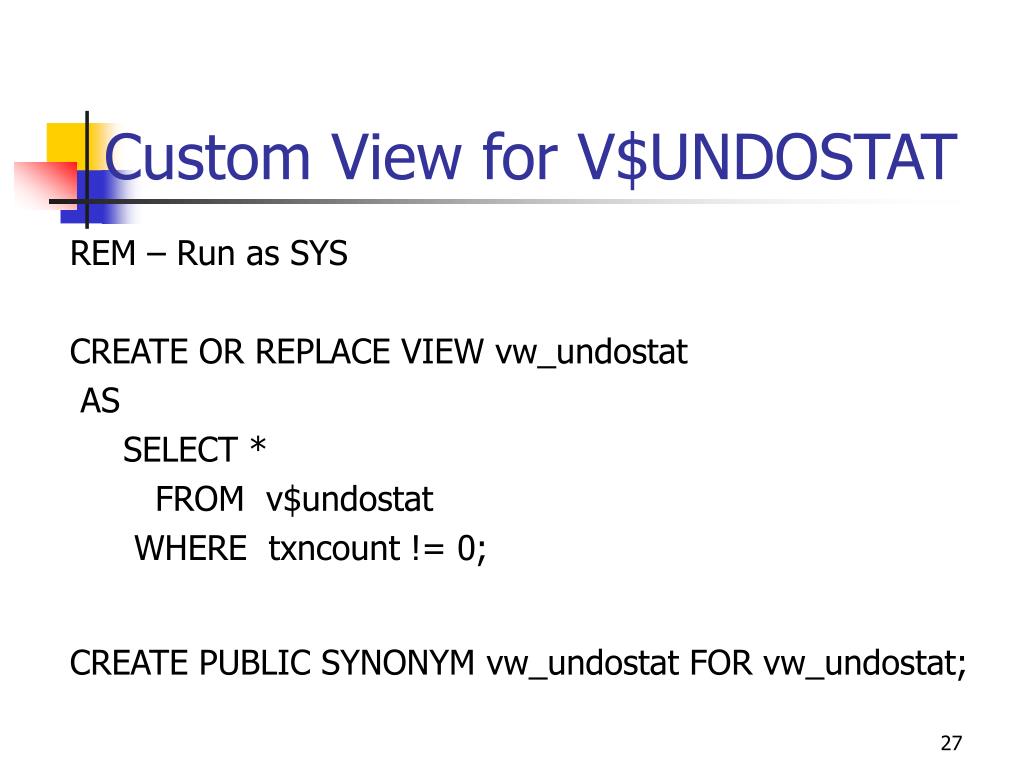

    Custom View for V$UNDOSTAT

    REM – Run as SYS

    CREATE OR REPLACE VIEW vw_undostat

    AS

    SELECT *

    FROM v$undostat

    WHERE txncount != 0;

    CREATE PUBLIC SYNONYM vw_undostat FOR vw_undostat;


    Undo tablespace sizing 1

    UNDO Tablespace Sizing - 1

    SELECT

    to_char(min(begin_time),'MM/DD/YYYY HH24:MI:SS') "Begin Time",

    to_char(max(end_time),'MM/DD/YYYY HH24:MI:SS') "End Time",

    (max(end_time)-min(begin_time))*24*60*60 "Seconds",

    sum(undoblks) "UndoBlks",

    ceil(sum(undoblks)/((max(end_time)-min(begin_time))*24*60*60)) "UDBPS",

    (max(txncount) - min(txncount)) "Xactions",

    max(maxquerylen) "MaxQryLen"

    FROM

    vw_undostat;

    Begin Time End Time Seconds UndoBlks UDBPS Xactions MaxQryLen

    ------------------------- ------------------------- ---------- ------------ ----------- ---------- ---------------

    11/07/2004 20:18:15 11/08/2004 21:36:25 91090 693712 8 44393 1973

    NOTE: From Oracle9i Release 2 (9.2.0.4) database on AIX 5.2


    Undo tablespace sizing 2

    UNDO Tablespace Sizing - 2

    -- Undo TS Sizing based on Average Undo generation

    -- and Max Query Length

    SELECT

    max(maxquerylen) "MaxQryLen",

    ceil(sum(undoblks)/((max(end_time)-min(begin_time))*24*60*60))

    * max(maxquerylen) "UndoTSBlocks"

    FROM

    v$undostat

    /

    MaxQryLen UndoTSBlocks

    ------------------ ------------------

    7289 29156


    Undo tablespace sizing 3

    UNDO Tablespace Sizing - 3

    -- Undo TS sizing for Current Load and Current Undo

    SELECT

    rd AS “Retention”,

    (rd * (udbps * overhead) + overhead) as "Bytes"

    FROM

    (SELECT value AS RD FROM v$parameter

    WHERE name = 'undo_retention'),

    (SELECT (sum (undoblks) /

    sum ( ((end_time - begin_time) * 86400))) as UDBPS

    FROM v$undostat),

    (SELECT value AS OVERHEAD FROM v$parameter

    WHERE name = 'db_block_size')

    /

    Retention Bytes

    ----------------- --------------

    3600 88515698.5

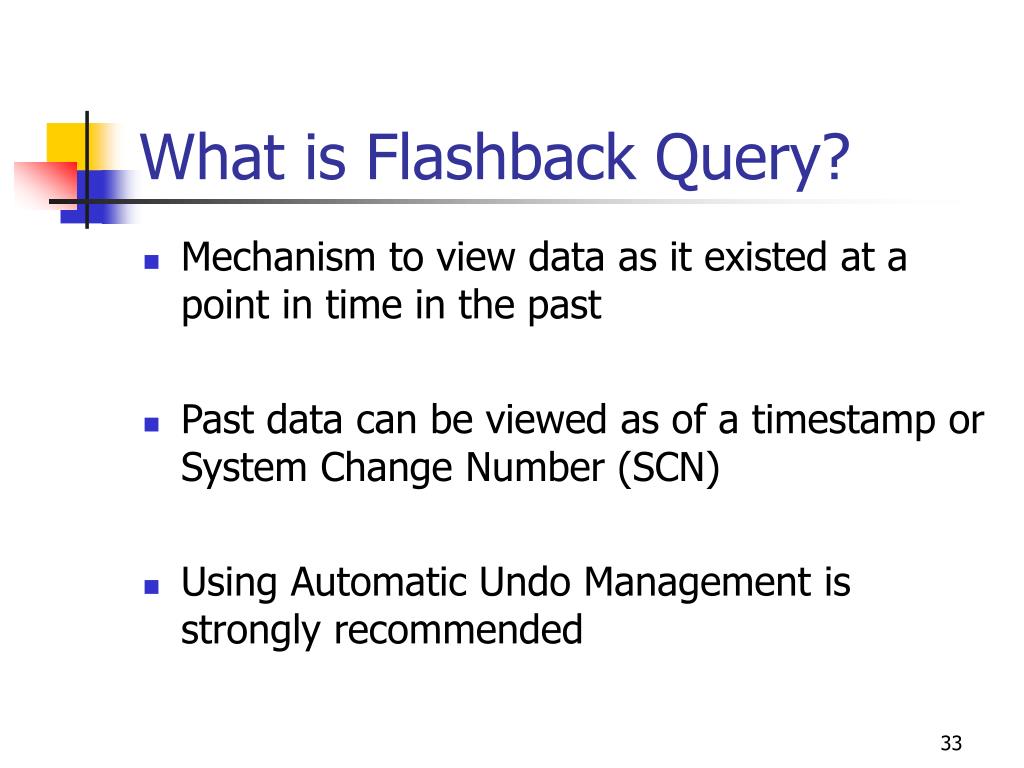

    What is flashback query

    What is Flashback Query?

    • Mechanism to view data as it existed at a point in time in the past

    • Past data can be viewed as of a timestamp or System Change Number (SCN)

    • Using Automatic Undo Management is strongly recommended


    What can flashback query do

    What can Flashback Query do?

    • Recover from accidental data modification

    • Extract data as of past time (export)

    • Compare current data with data in the past

    • Track data changes


    Fbq how it works

    FBQ: How it Works?

    • Relies on Oracle’s read consistency model

    • Undo information in undo segments is used to construct past data

    • Sufficient Undo information MUST be available for FBQ to work

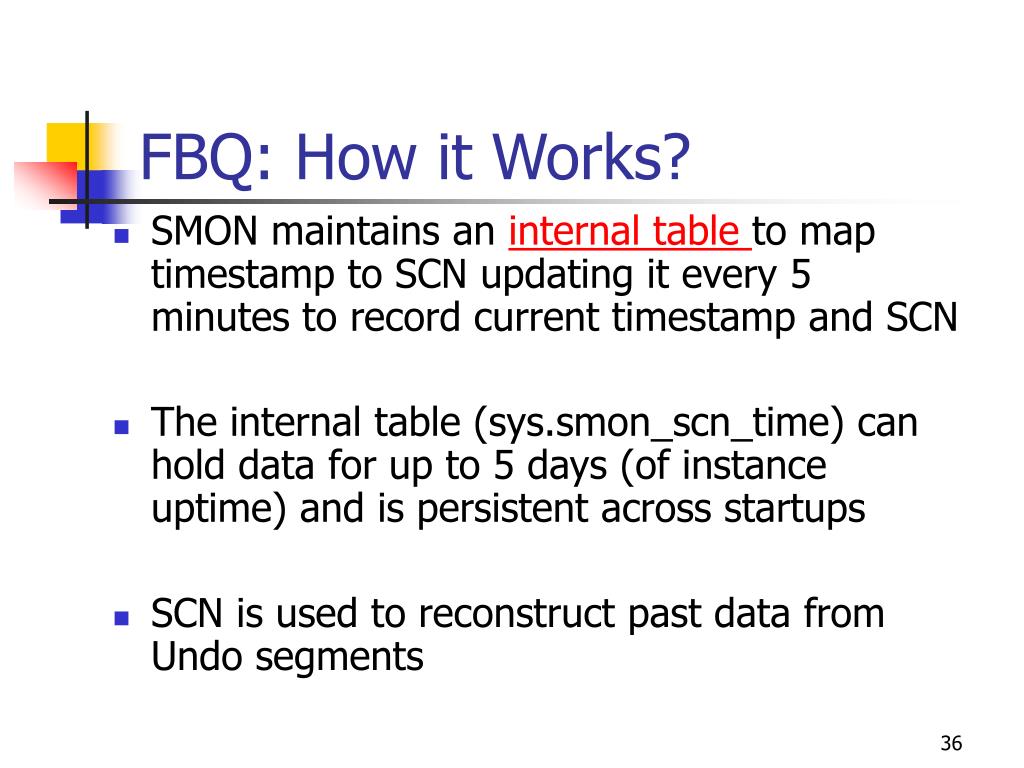

    Fbq how it works1

    FBQ: How it Works?

    • SMON maintains an internal table to map timestamp to SCN updating it every 5 minutes to record current timestamp and SCN

    • The internal table (sys.smon_scn_time) can hold data for up to 5 days (of instance uptime) and is persistent across startups

    • SCN is used to reconstruct past data from Undo segments

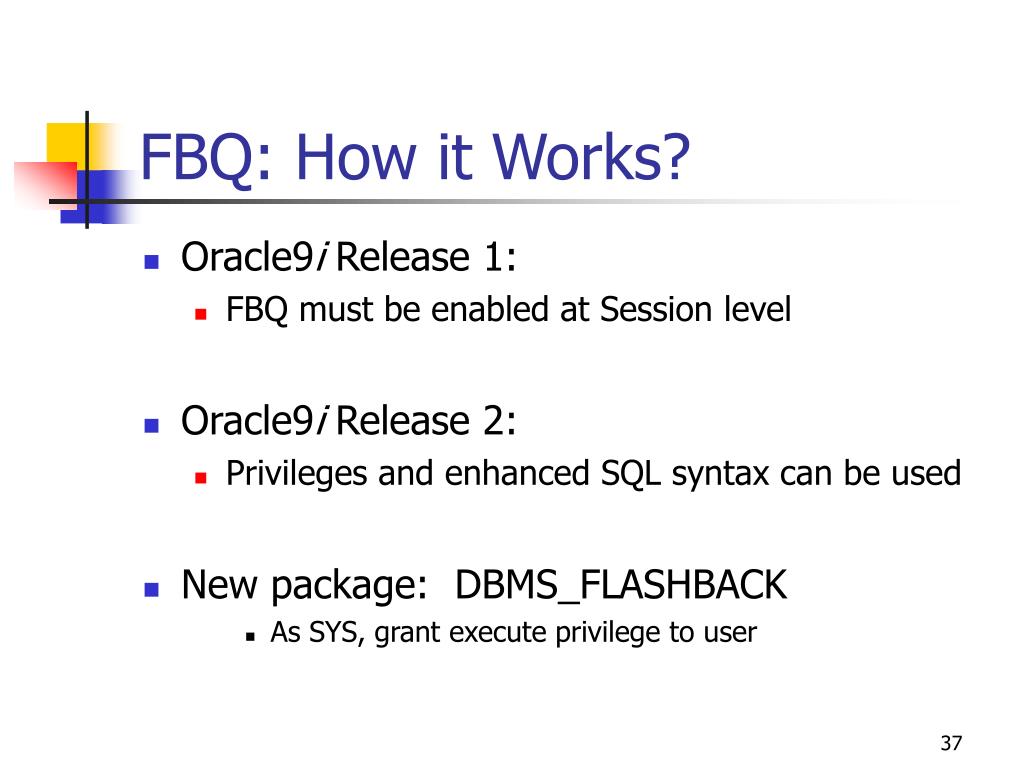

    Fbq how it works2

    FBQ: How it Works?

    • Oracle9i Release 1:

      • FBQ must be enabled at Session level

    • Oracle9i Release 2:

      • Privileges and enhanced SQL syntax can be used

    • New package: DBMS_FLASHBACK

      • As SYS, grant execute privilege to user


    Dbms flashback

    DBMS_FLASHBACK

    • Procedures:

      • ENABLE_AT_TIME

        exec dbms_flashback.enable_at_time (past_date);

        exec dbms_flashback.enable_at_time (to_timestamp

        ('10-MAR-2002:11:47:00','DD-MON-YYYY:HH24:MI:SS'));

      • ENABLE_AT_SYSTEM_CHANGE_NUMBER

        exec dbms_flashback.enable_at_system_change_number

        (23488);

      • DISABLE

        exec dbms_flashback.disable;


    Dbms flashback1

    DBMS_FLASHBACK

    • Function:

      • GET_SYSTEM_CHANGE_NUMBER

        SQL> SELECT dbms_flashback.get_system_change_number

        2 FROM dual;

        GET_SYSTEM_CHANGE_NUMBER

        ------------------------------------------------

        5.98E+12

        SQL> set numwidth 18

        SQL> /

        GET_SYSTEM_CHANGE_NUMBER

        ------------------------------------------------

        5976736332383

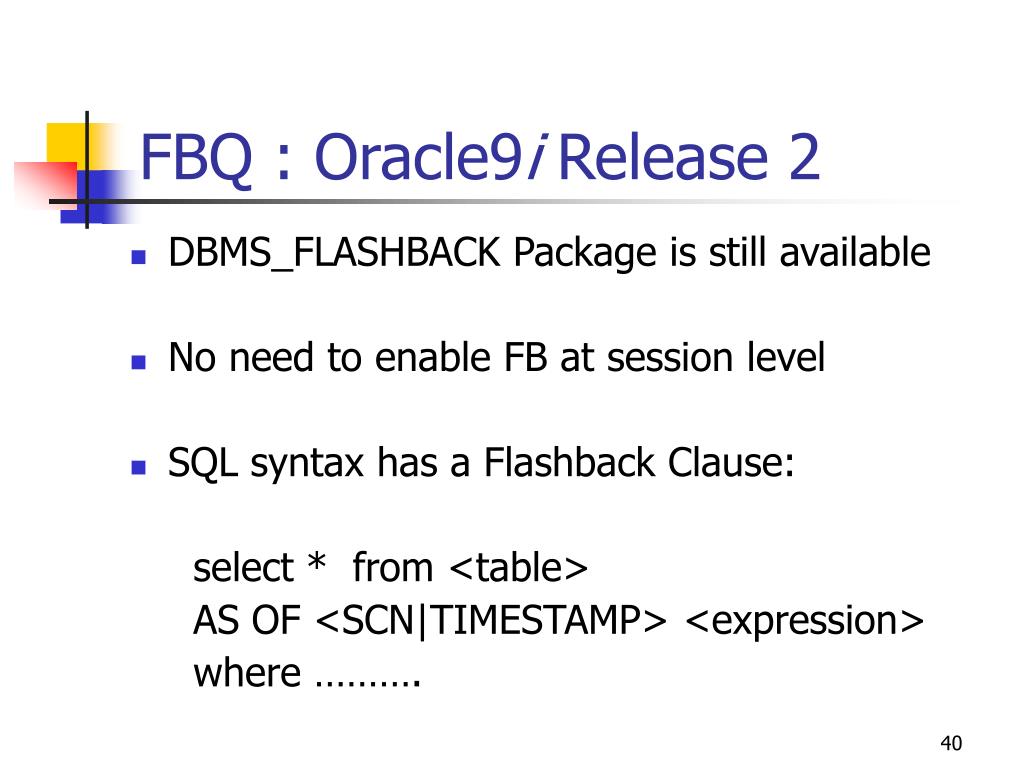

    Fbq oracle9 i release 2

    FBQ : Oracle9i Release 2

    • DBMS_FLASHBACK Package is still available

    • No need to enable FB at session level

    • SQL syntax has a Flashback Clause:

      select * from <table>

      AS OF <SCN|TIMESTAMP> <expression>

      where ……….


    Fbq oracle9 i release 21

    FBQ : Oracle9i Release 2

    select *

    from emp as of scn 23478

    where emp_id = 100;

    select *

    from emp as of timestamp sysdate – 1/24;

    select * from emp

    minus

    select * from emp as of timestamp trunc(sysdate);

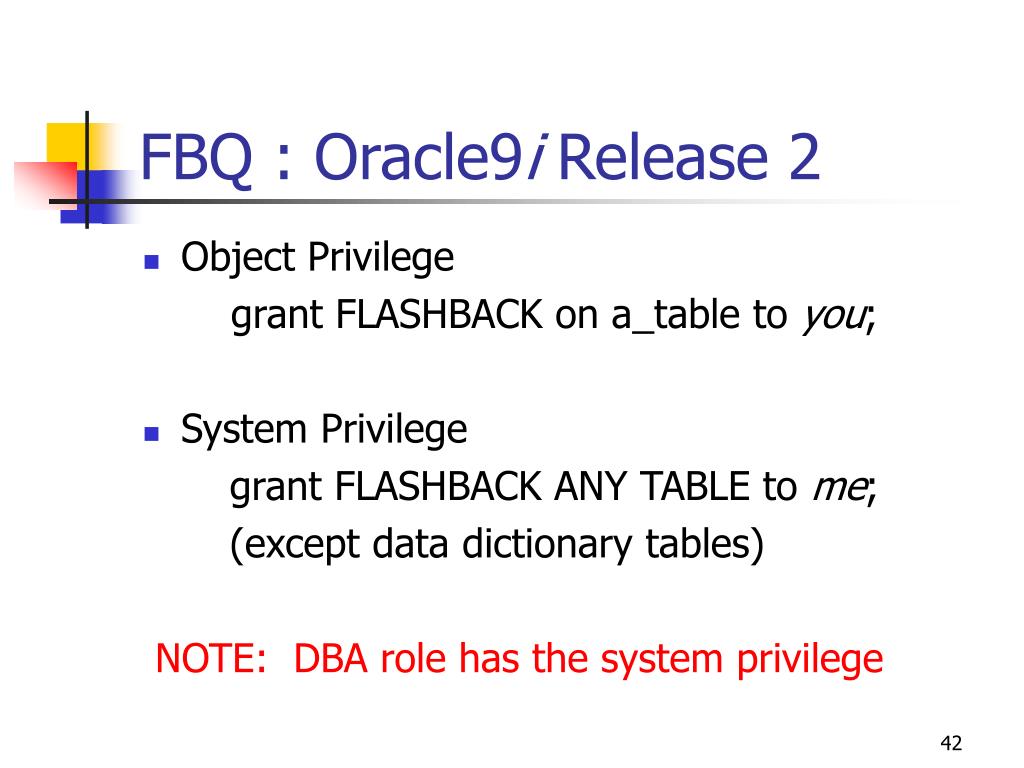

    Fbq oracle9 i release 22

    FBQ : Oracle9i Release 2

    • Object Privilege

      grant FLASHBACK on a_table to you;

    • System Privilege

      grant FLASHBACK ANY TABLE to me;

      (except data dictionary tables)

      NOTE: DBA role has the system privilege


    Fbq with export

    FBQ: With Export

    • Export options

      • FLASHBACK_SCN

        • Export Data as of SCN

          exp tables=employees flashback_scn = 3853558 file=emp.dmp

      • FLASHBACK_TIME

        • Export Data as of TimeStamp

          exp tables=test flashback_time=‘”2004-10-14 13:30:00”’

          file=test.dmp

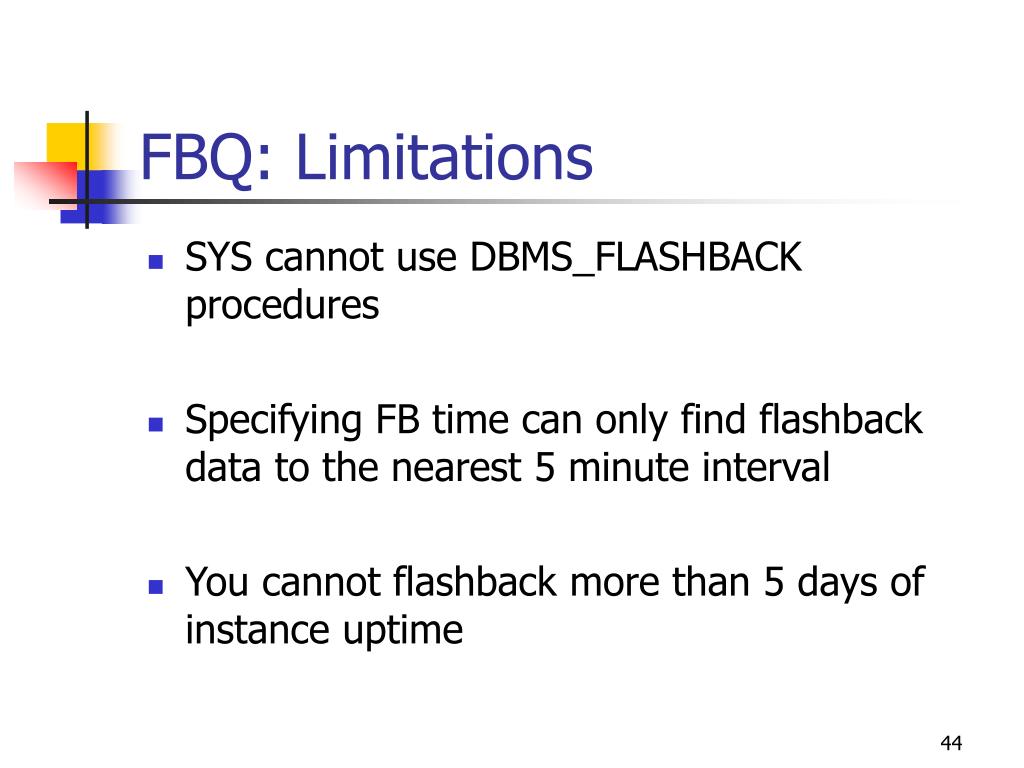

    Fbq limitations

    FBQ: Limitations

    • SYS cannot use DBMS_FLASHBACK procedures

    • Specifying FB time can only find flashback data to the nearest 5 minute interval

    • You cannot flashback more than 5 days of instance uptime


    Fbq limitations1

    FBQ: Limitations

    • Flashback not possible beyond the time of DDL operation that changed, or altered, the table

    • Not possible for remote table accessed via DB link


    Understanding oracle9 i automatic undo management and flashback query1

    Understanding Oracle9i Automatic Undo Management andFlashback Query

    Demonstration

    Q & A

    [email protected]


  • Login
