CORRELATION

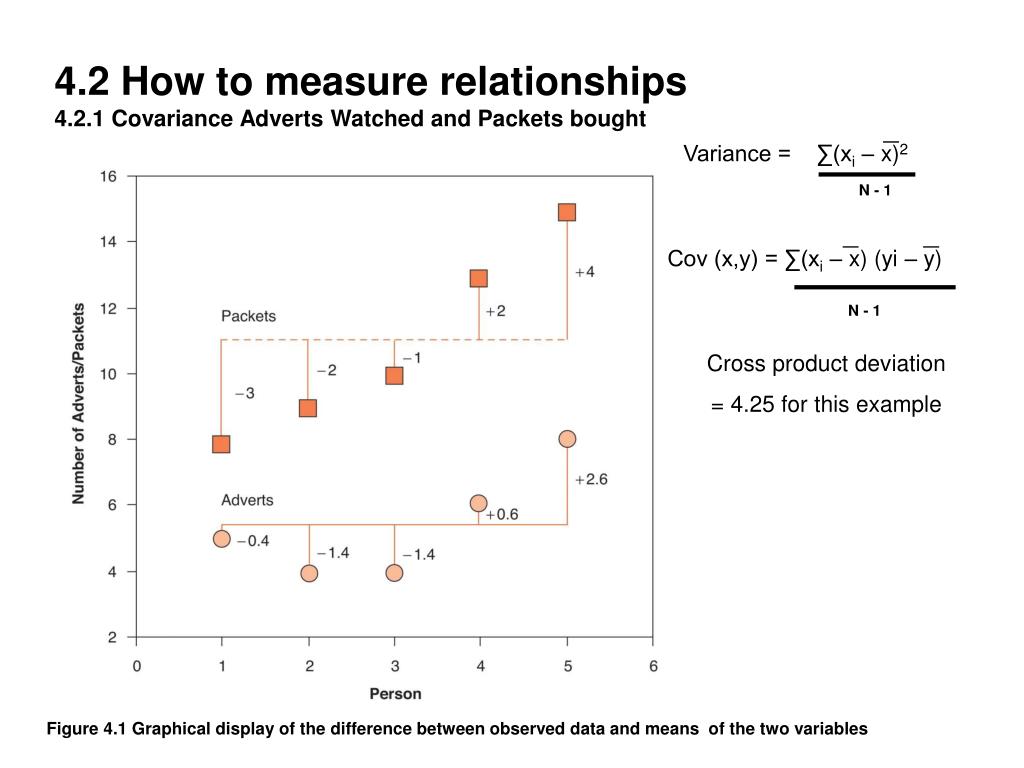

### 4.2 How to measure relationships4.2.1 Covariance Adverts Watched and Packets bought

Variance = ∑(xi – x)2

N - 1

Cov (x,y) = ∑(xi – x) (yi – y)

N - 1

Cross product deviation

= 4.25 for this example

Figure 4.1 Graphical display of the difference between observed data and means of the two variables

To overcome the problem of dependence on measurement scale, we convert covariance in to standard set of units.

By standardising we end up with a value that lies between -1 and +1.

+1 means variables are perfectly positively related.

This correlation coefficient can be called as the

Pearson product moment correlation coeffiecient or Pearson correlation coefficient

### 4.2.2. Standardisation and the correlation coefficient

r = Cov (x,y) = ∑(xi – x) (yi – y)

sx sy (N – 1) sx sy

### 4.4 Graphing Relationships: The scatter Plot4.4.1 Simple Scatter Plot : Load the file ExamAnxiety.sav

SPSS

Graphs-Interactive-Scatterplot

Figure 4.5

### 4.4.2 3D Scatter plot

Figure 4.6 – 3D Scatter Plot

SPSS

Graphs-Scatter

Figure 4.9

### 4.4.4 Matrix Scatter Plot

Figure 4.11

After a prelimnary glance at the data, we can conduct the correlation analysis.

SPSS Analyze –Correlate-Bivariate

4.5.1 Pearsons Correlation Coefficient

4.5.2 A word of warning about interpretation: Causality

The third variable problem (There may be other measured or unmeasured variables affecting the results)

Direction of causality (The correlation coefficients say nothing about which variable causes the other to change)

### 4.5 Bivariate Correlation

We can go a step further by squaring r

The correlation coefficient squared (coefficient of determination) is a measure of the amount of variability in one variable that is explained by the other.

R2 = 19.4

Exam anxiety accounts for 19.4% of the variability in exam performance.

### 4.5.3 Using R2 for Interpretation

4.5.4 Spearman´s correlation coefficient

4.5.5 Kendall´ tau (non parametric)

### Partial Correlation

X2

X1

The shaded area of X1 as a portion of the area Y represents the partial correlation of X1 with Y given X2. This shaded area as a proportion of Y, denotes the incremental variance explained by X1, given that X2 is already in the equation.

Y

Part Correlation

X2

The unique predictive effect of the due to a single independent variable among a set of independent variables.

Y

X1

X2

c

a = Variance of Y uniquely explained by X1

b = Variance of Y uniquely explained by X2

c = Variance of Y explained jointly by X1and X2

d = Variance of Y not explained by X1 or X2

a

b

d

Y

Figure 4.17

Figure 4.20
