Presentation Transcript


Continuous time random walks and fractional calculus theory and applications

Continuous-time random walks and fractional calculus: Theory and applications

Enrico Scalas (DISTA East-Piedmont University)

www.econophysics.org

DIFI Genoa (IT) 20 October 2004

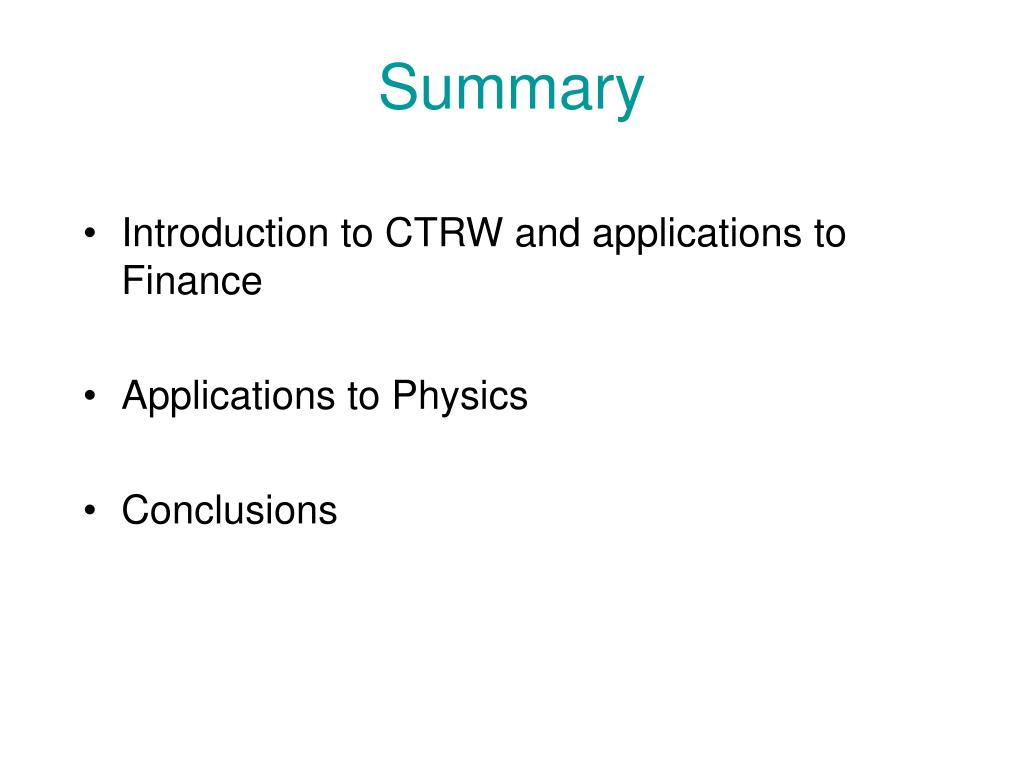

Summary

Summary

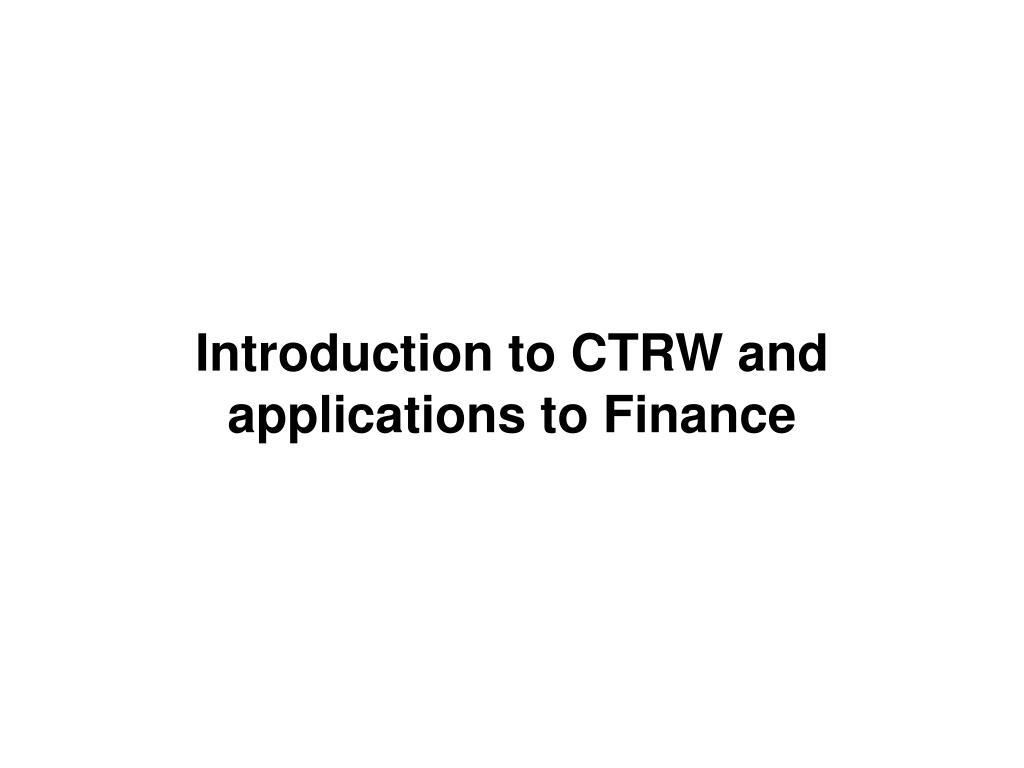

  • Introduction to CTRW and applications to Finance

  • Applications to Physics

  • Conclusions


Continuous time random walks and fractional calculus theory and applications

  • Introduction to CTRW and applications to Finance


1999 2004 five years of continuous time random walks in econophysics

1999-2004: Five years of continuous-time random walks in Econophysics

Enrico Scalas (DISTA East-Piedmont University)

www.econophysics.org

WEHIA 2004 - Kyoto (JP) 27-29 May 2004

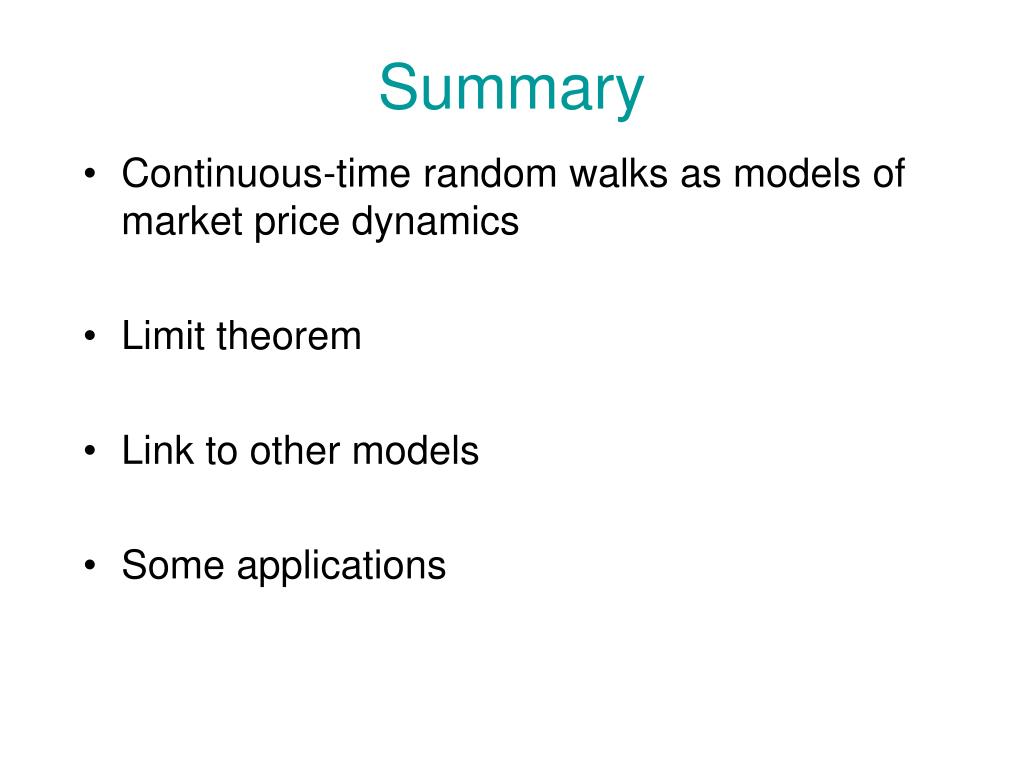

Summary1

Summary

  • Continuous-time random walks as models of market price dynamics

  • Limit theorem

  • Link to other models

  • Some applications


Tick by tick price dynamics

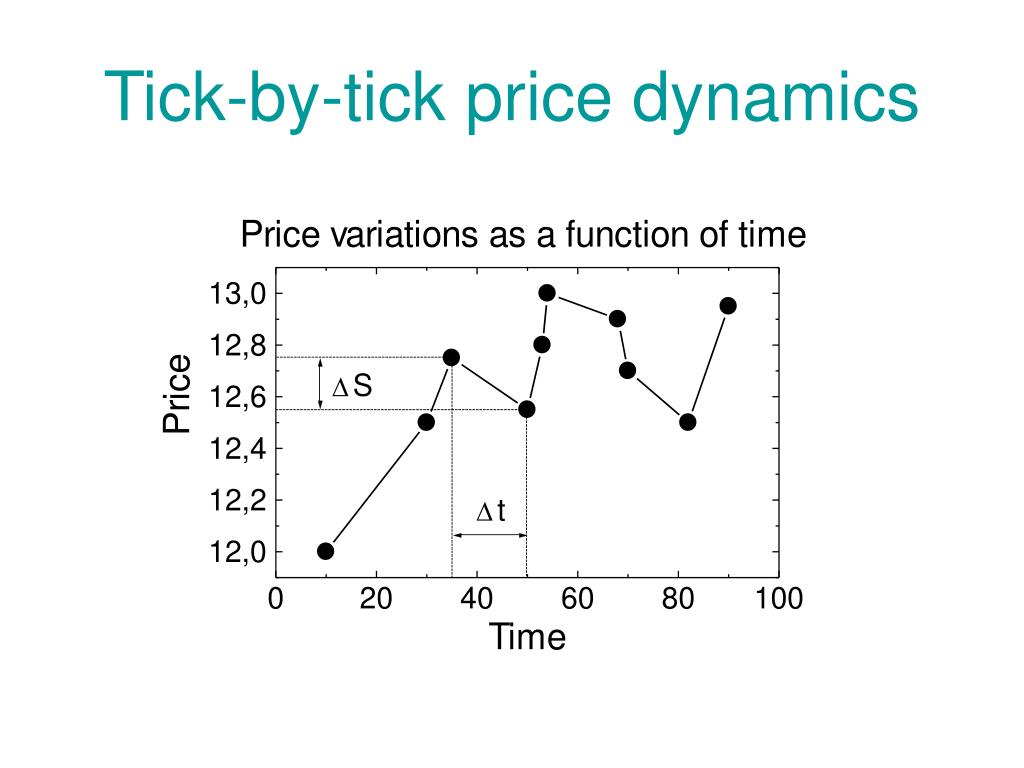

Tick-by-tick price dynamics


Continuous time random walks and fractional calculus theory and applications

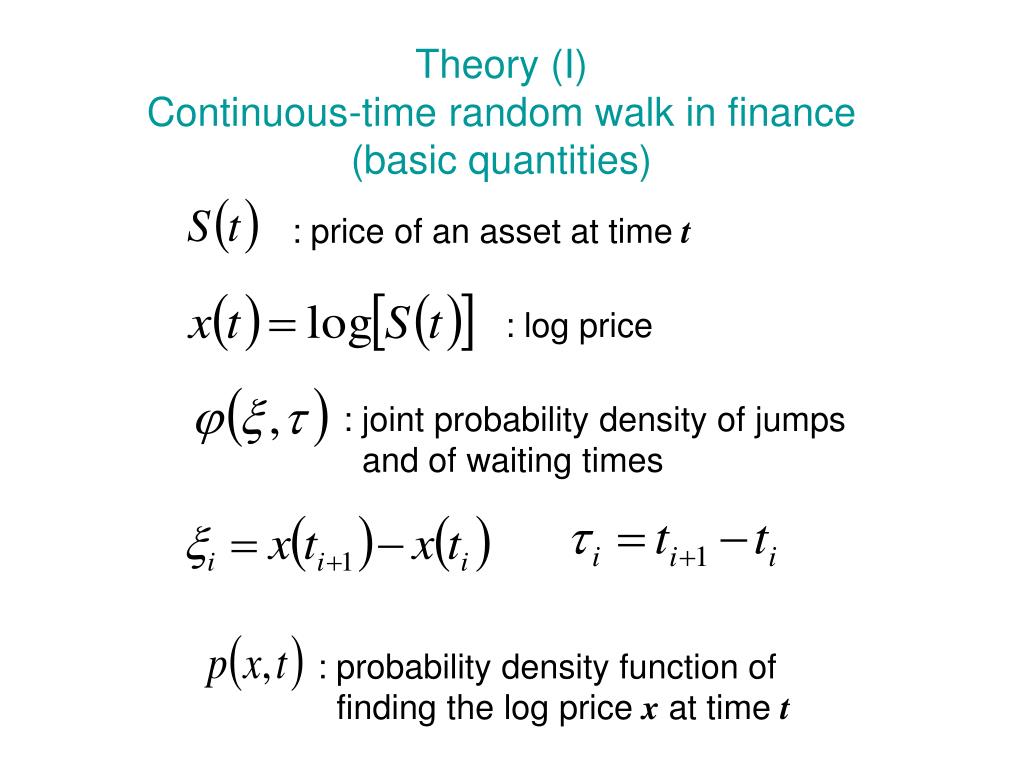

Theory (I)

Continuous-time random walk in finance

(basic quantities)

: price of an asset at timet

: log price

: joint probability density of jumps

and of waiting times

: probability density function of

finding the log price xat timet


Continuous time random walks and fractional calculus theory and applications

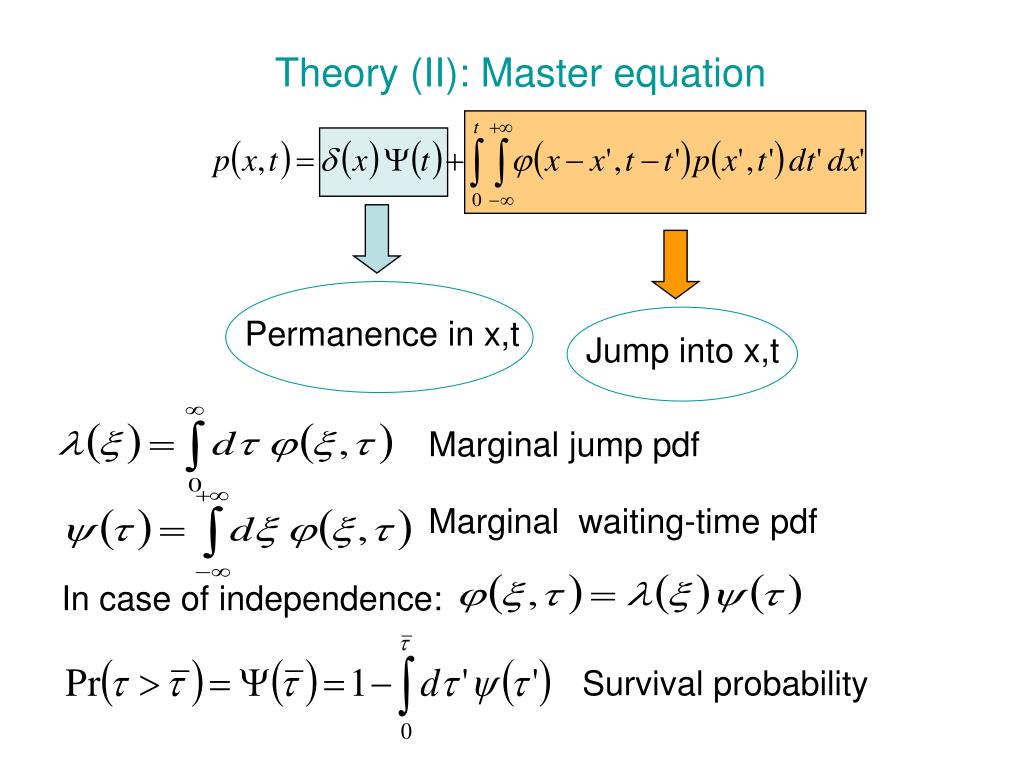

Theory (II): Master equation

Permanence in x,t

Jump into x,t

Marginal jump pdf

Marginal waiting-time pdf

In case of independence:

Survival probability


Continuous time random walks and fractional calculus theory and applications

Theory (III): Limit theorem, uncoupled case (I)

(Scalas, Mainardi, Gorenflo, PRE, 69, 011107, 2004)

Mittag-Leffler function

This is the characteristic

function of the log-price process

subordinated to a generalised

Poisson process.

Subordination: see Clark, Econometrica,

41, 135-156 (1973).


Continuous time random walks and fractional calculus theory and applications

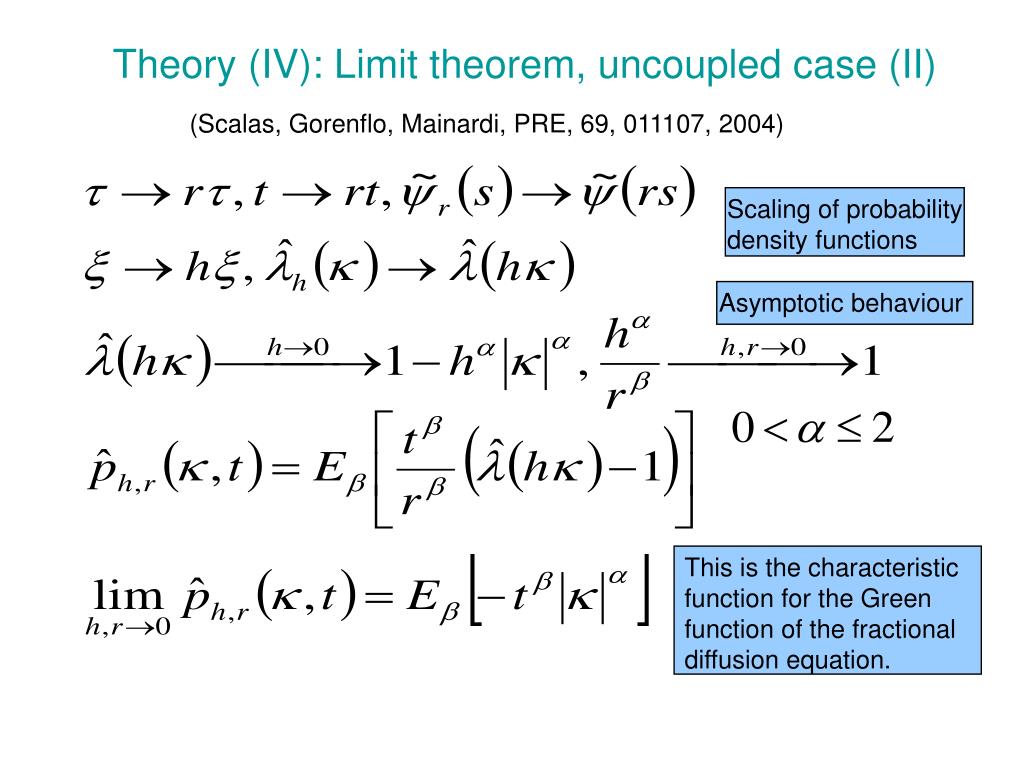

Theory (IV): Limit theorem, uncoupled case (II)

(Scalas, Gorenflo, Mainardi, PRE, 69, 011107, 2004)

Scaling of probability

density functions

Asymptotic behaviour

This is the characteristic

function for the Green

function of the fractional

diffusion equation.


Continuous time random walks and fractional calculus theory and applications

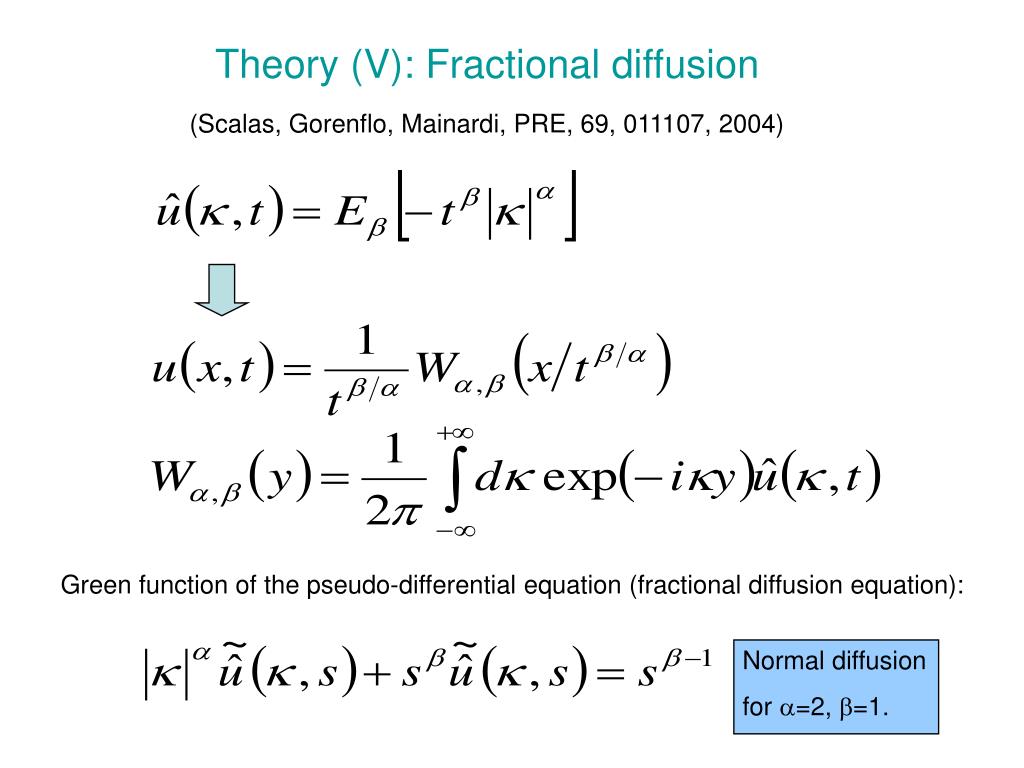

Theory (V): Fractional diffusion

(Scalas, Gorenflo, Mainardi, PRE, 69, 011107, 2004)

Green function of the pseudo-differential equation (fractional diffusion equation):

Normal diffusion

for =2, =1.


Continuous time random walks and fractional calculus theory and applications

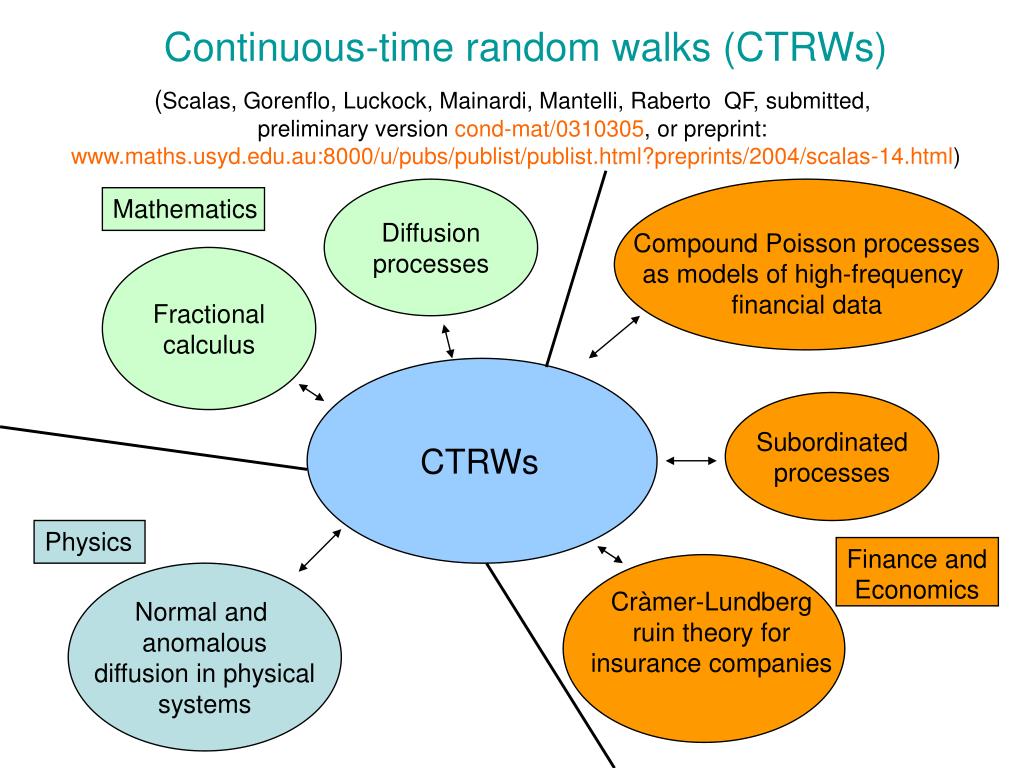

Continuous-time random walks (CTRWs)

(Scalas, Gorenflo, Luckock, Mainardi, Mantelli, Raberto QF, submitted,

preliminary version cond-mat/0310305, or preprint:

www.maths.usyd.edu.au:8000/u/pubs/publist/publist.html?preprints/2004/scalas-14.html)

Diffusion

processes

Mathematics

Compound Poisson processes

as models of high-frequency

financial data

Fractional

calculus

Subordinated

processes

CTRWs

Physics

Finance and

Economics

Normal and

anomalous

diffusion in physical

systems

Cràmer-Lundberg

ruin theory for

insurance companies


Continuous time random walks and fractional calculus theory and applications

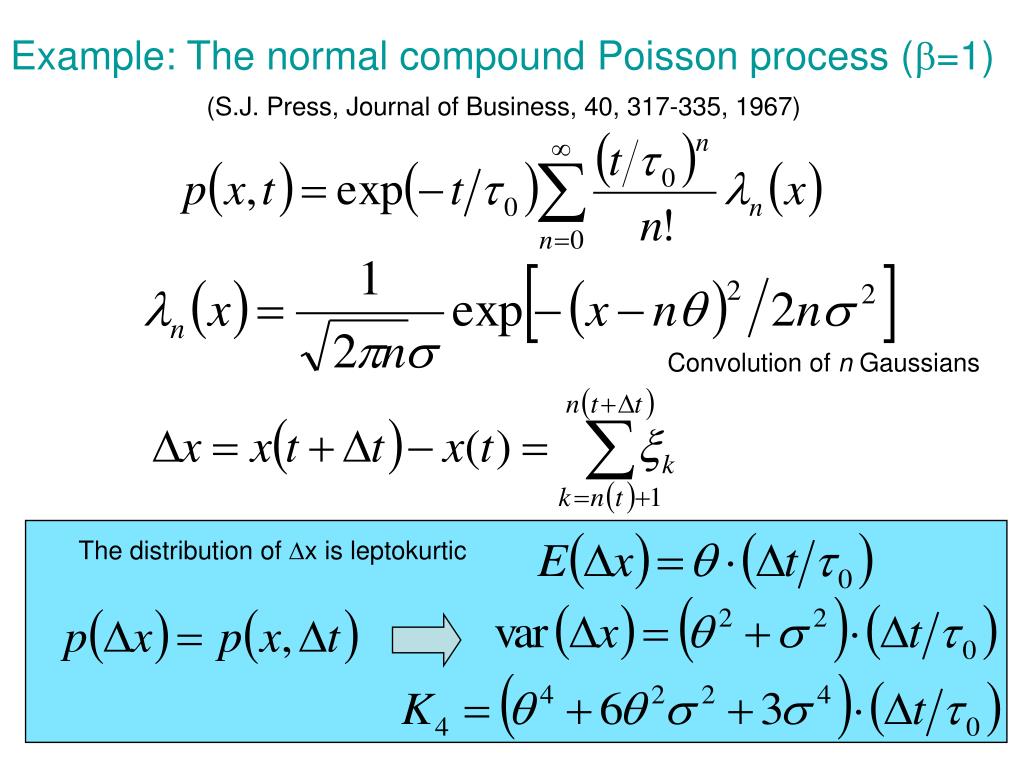

Example: The normal compound Poisson process (=1)

Convolution of n Gaussians

The distribution of x is leptokurtic


Continuous time random walks and fractional calculus theory and applications

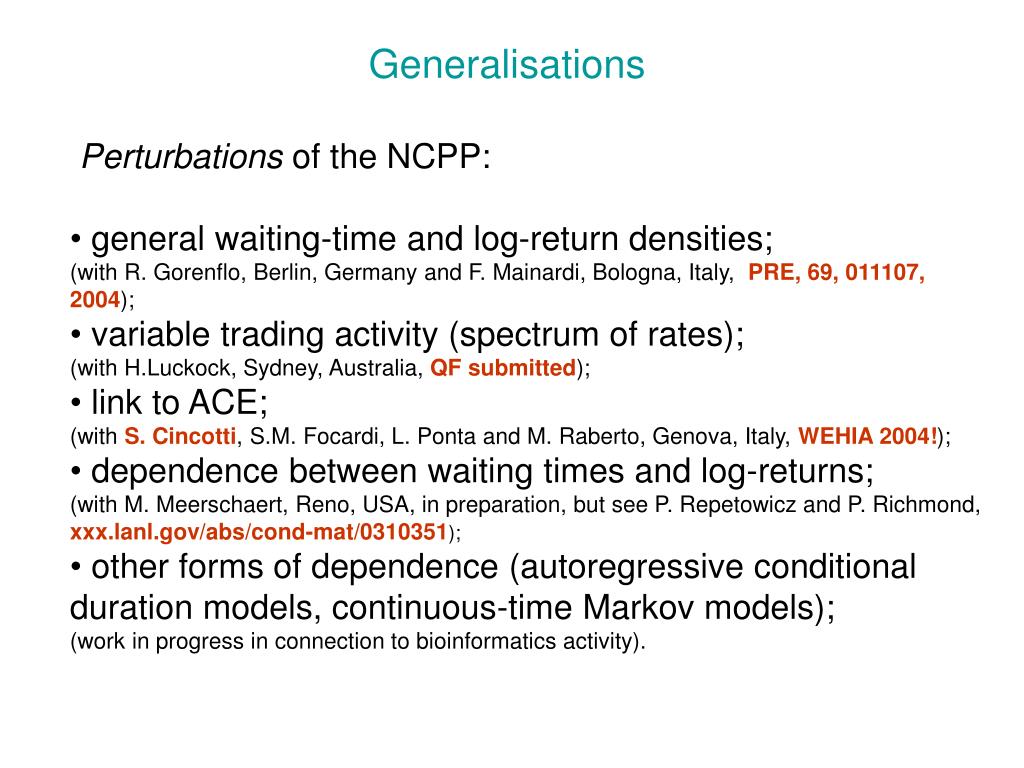

Generalisations

  • Perturbations of the NCPP:

  • general waiting-time and log-return densities;

  • (with R. Gorenflo, Berlin, Germany and F. Mainardi, Bologna, Italy, PRE, 69, 011107, 2004);

  • variable trading activity (spectrum of rates);

  • (with H.Luckock, Sydney, Australia, QF submitted);

  • link to ACE;

  • (with S. Cincotti, S.M. Focardi, L. Ponta and M. Raberto, Genova, Italy, WEHIA 2004!);

  • dependence between waiting times and log-returns;

  • (with M. Meerschaert, Reno, USA, in preparation, but see P. Repetowicz and P. Richmond,

  • xxx.lanl.gov/abs/cond-mat/0310351);

  • other forms of dependence (autoregressive conditional

  • duration models, continuous-time Markov models);

  • (work in progress in connection to bioinformatics activity).


Continuous time random walks and fractional calculus theory and applications

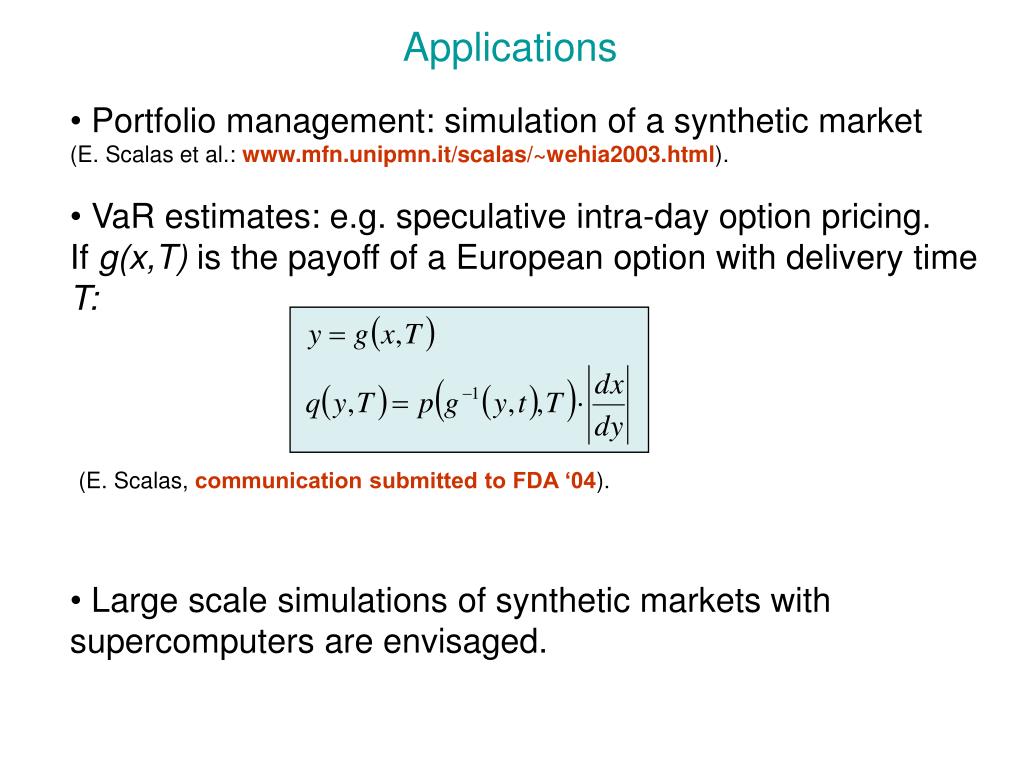

Applications

  • Portfolio management: simulation of a synthetic market

  • (E. Scalas et al.: www.mfn.unipmn.it/scalas/~wehia2003.html).

  • VaR estimates: e.g. speculative intra-day option pricing.

  • If g(x,T) is the payoff of a European option with delivery time T:

  • (E. Scalas, communication submitted to FDA ‘04).

  • Large scale simulations of synthetic markets with

  • supercomputers are envisaged.


Continuous time random walks and fractional calculus theory and applications

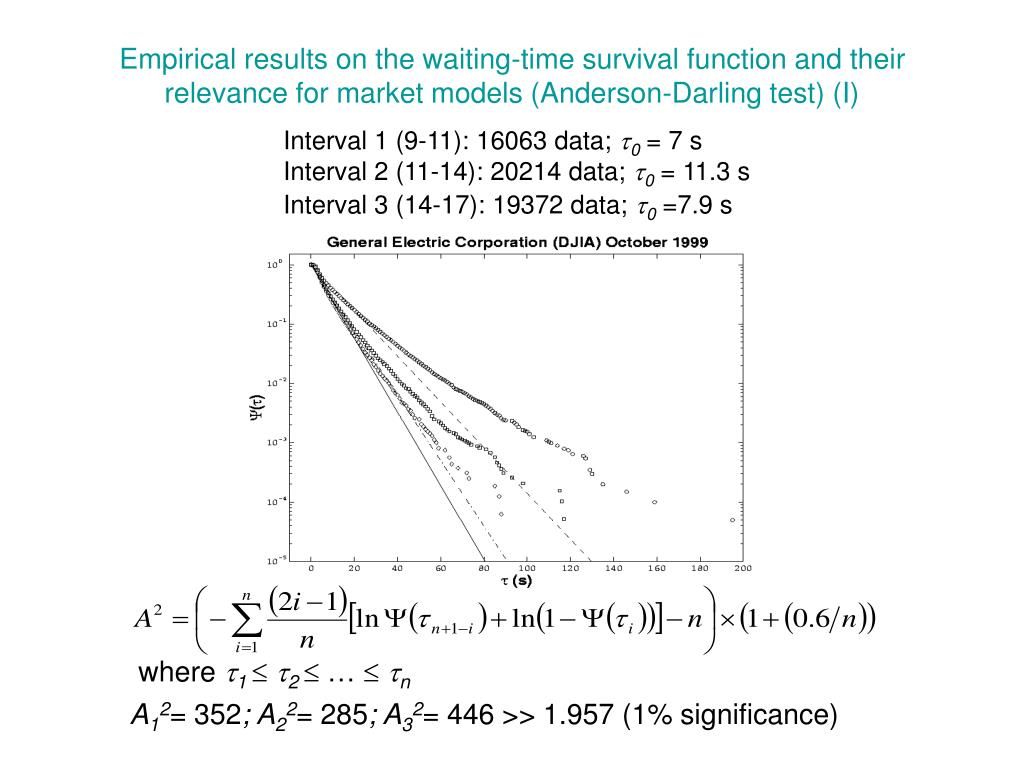

Empirical results on the waiting-time survival function and their relevance for market models (Anderson-Darling test) (I)

Interval 1 (9-11): 16063 data; 0 = 7 s

Interval 2 (11-14): 20214 data; 0 = 11.3 s

Interval 3 (14-17): 19372 data; 0 =7.9 s

where 1 2  …  n

A12= 352; A22= 285; A32= 446>>1.957 (1% significance)


Continuous time random walks and fractional calculus theory and applications

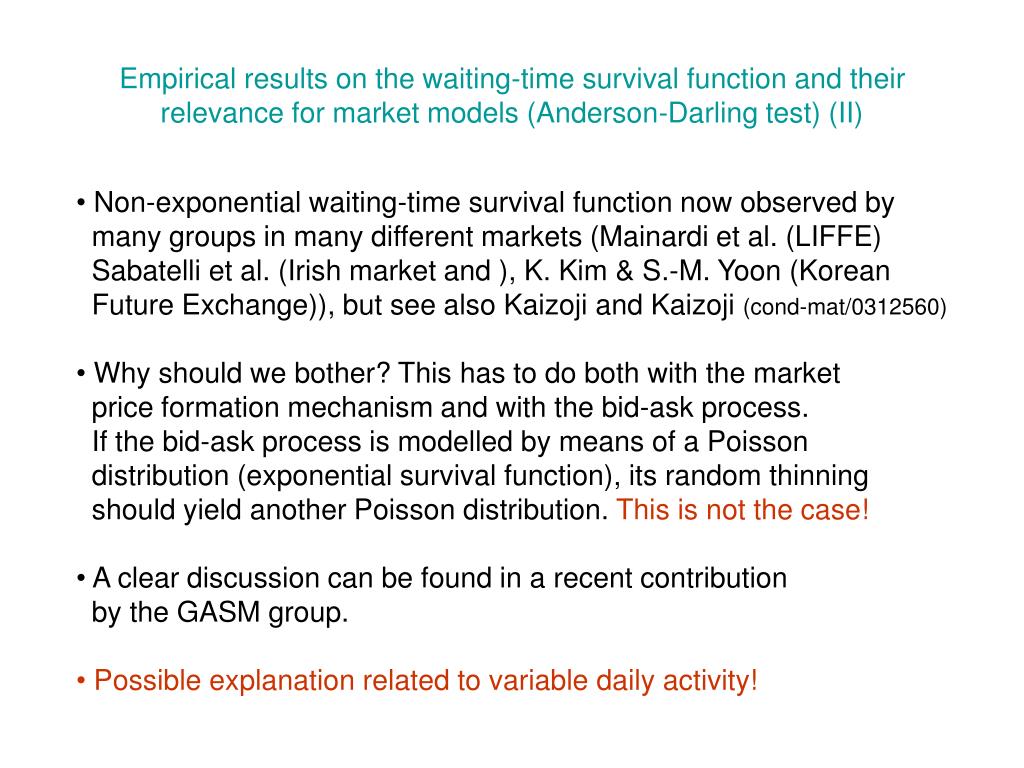

Empirical results on the waiting-time survival function and their relevance for market models (Anderson-Darling test) (II)

  • Non-exponential waiting-time survival function now observed by

  • many groups in many different markets (Mainardi et al. (LIFFE)

  • Sabatelli et al. (Irish market and ), K. Kim & S.-M. Yoon (Korean

  • Future Exchange)), but see also Kaizoji and Kaizoji (cond-mat/0312560)

  • Why should we bother? This has to do both with the market

  • price formation mechanism and with the bid-ask process.

  • If the bid-ask process is modelled by means of a Poisson

  • distribution (exponential survival function), its random thinning

  • should yield another Poisson distribution. This is not the case!

  • A clear discussion can be found in a recent contribution

  • by the GASM group.

  • Possible explanation related to variable daily activity!


Continuous time random walks and fractional calculus theory and applications

  • Applications to Physics


Continuous time random walks and fractional calculus theory and applications

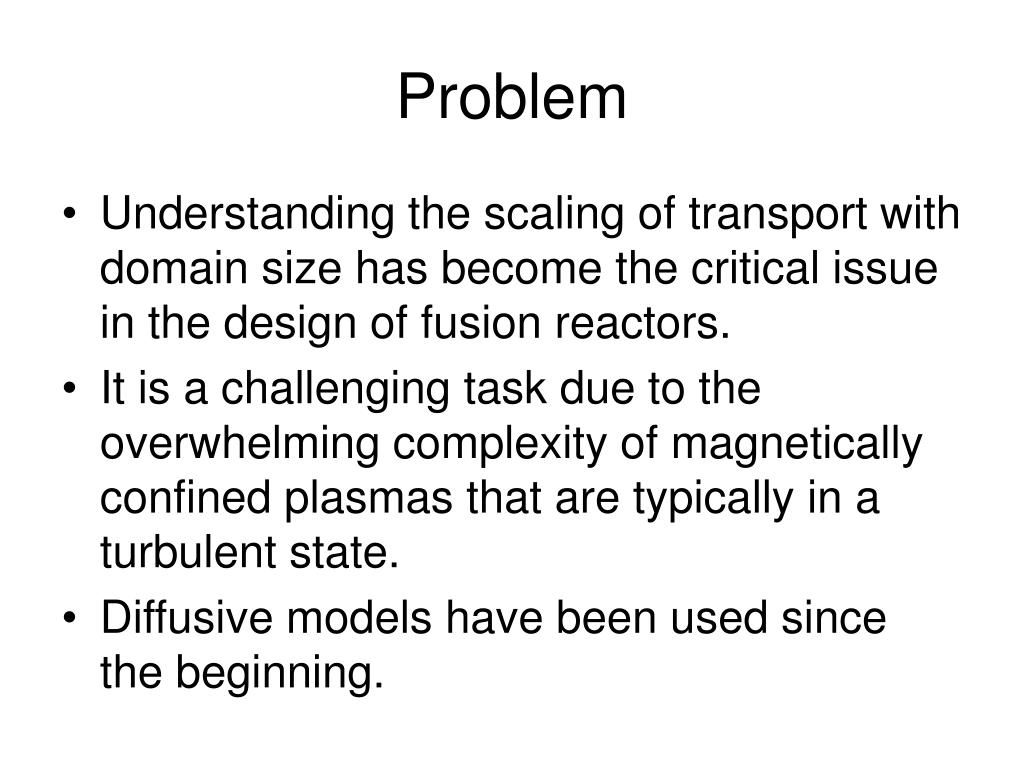

Problem

  • Understanding the scaling of transport with domain size has become the critical issue in the design of fusion reactors.

  • It is a challenging task due to the overwhelming complexity of magnetically confined plasmas that are typically in a turbulent state.

  • Diffusive models have been used since the beginning.


Continuous time random walks and fractional calculus theory and applications

Focus and method

  • Tracer transport in pressure-gradient-driven plasma turbulence.

  • Variations in pressure gradient trigger instabilities leading to intermittent and avalanchelike transport.

  • Non-linear equations for the motion of tracers are numerically solved.

  • The pdf of tracer position is non-Gaussian with algebraic decaying tails.


Continuous time random walks and fractional calculus theory and applications

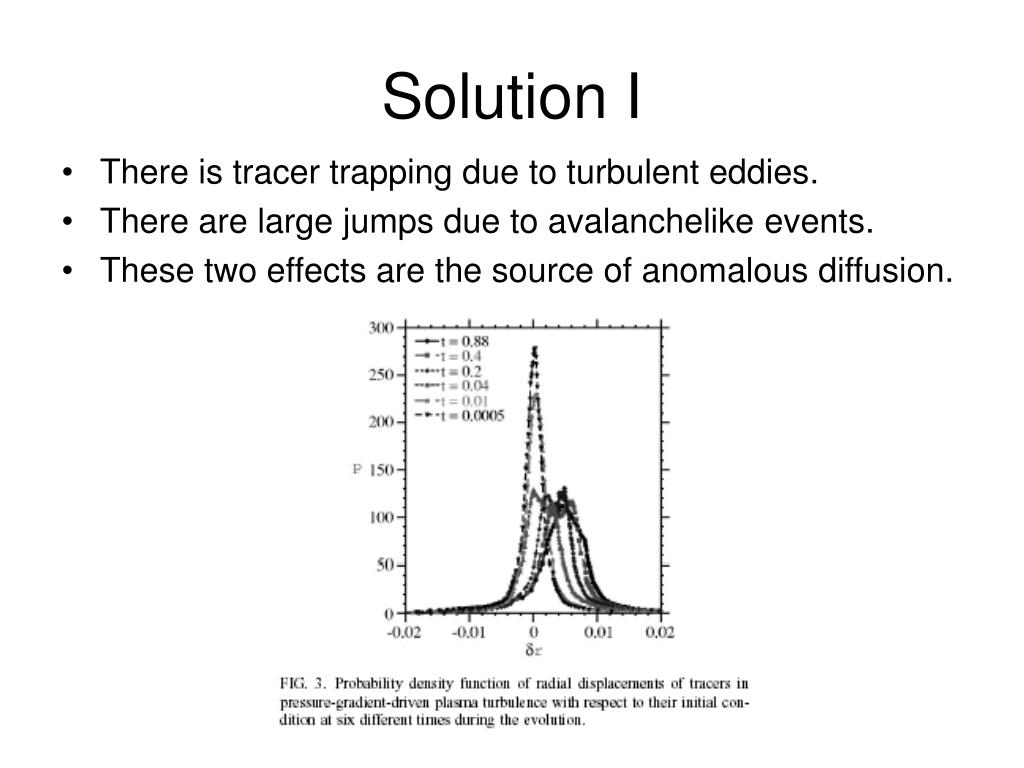

Solution I

  • There is tracer trapping due to turbulent eddies.

  • There are large jumps due to avalanchelike events.

  • These two effects are the source of anomalous diffusion.


Continuous time random walks and fractional calculus theory and applications

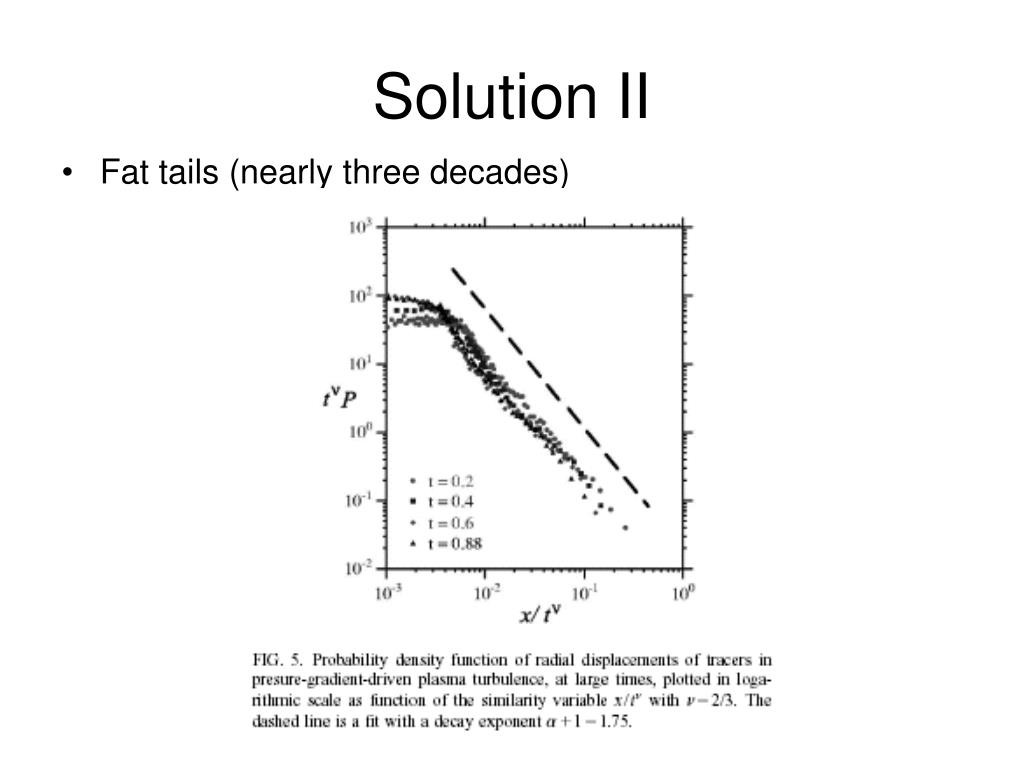

Solution II

  • Fat tails (nearly three decades)


Continuous time random walks and fractional calculus theory and applications

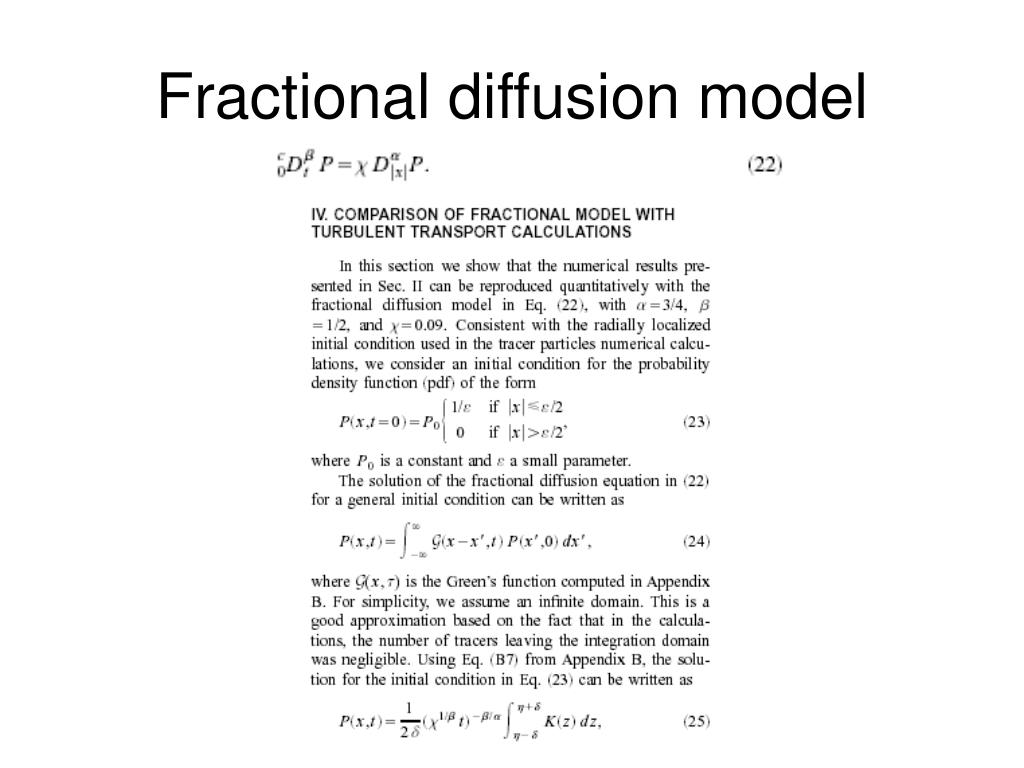

Fractional diffusion model


Continuous time random walks and fractional calculus theory and applications

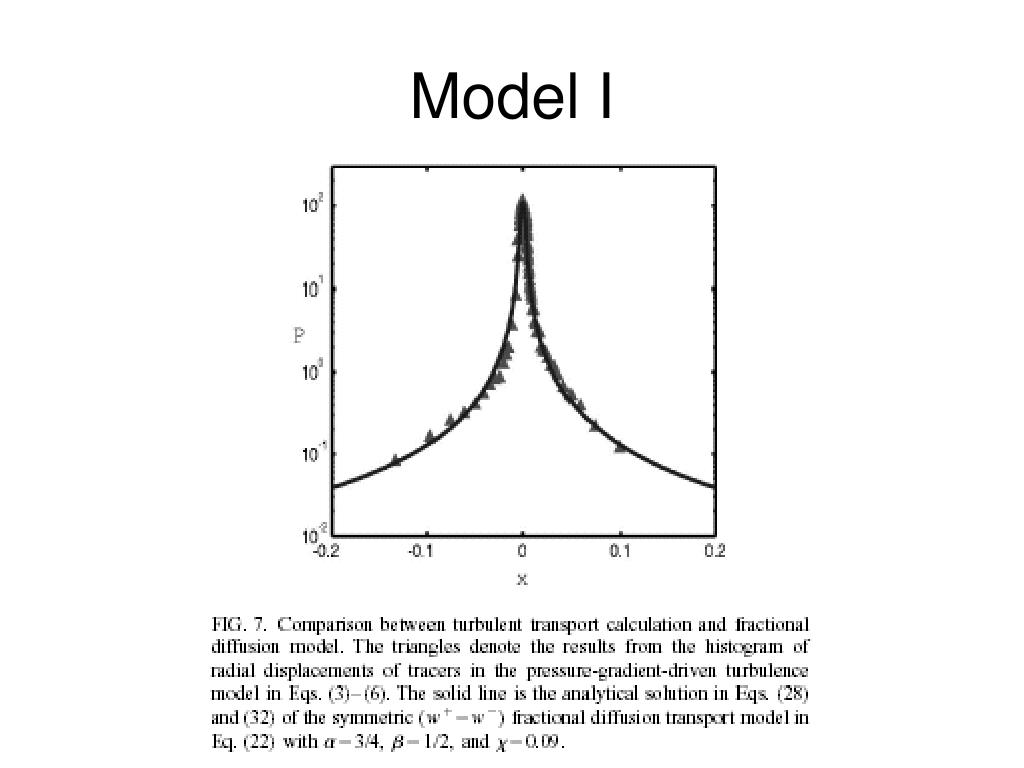

Model I


Continuous time random walks and fractional calculus theory and applications

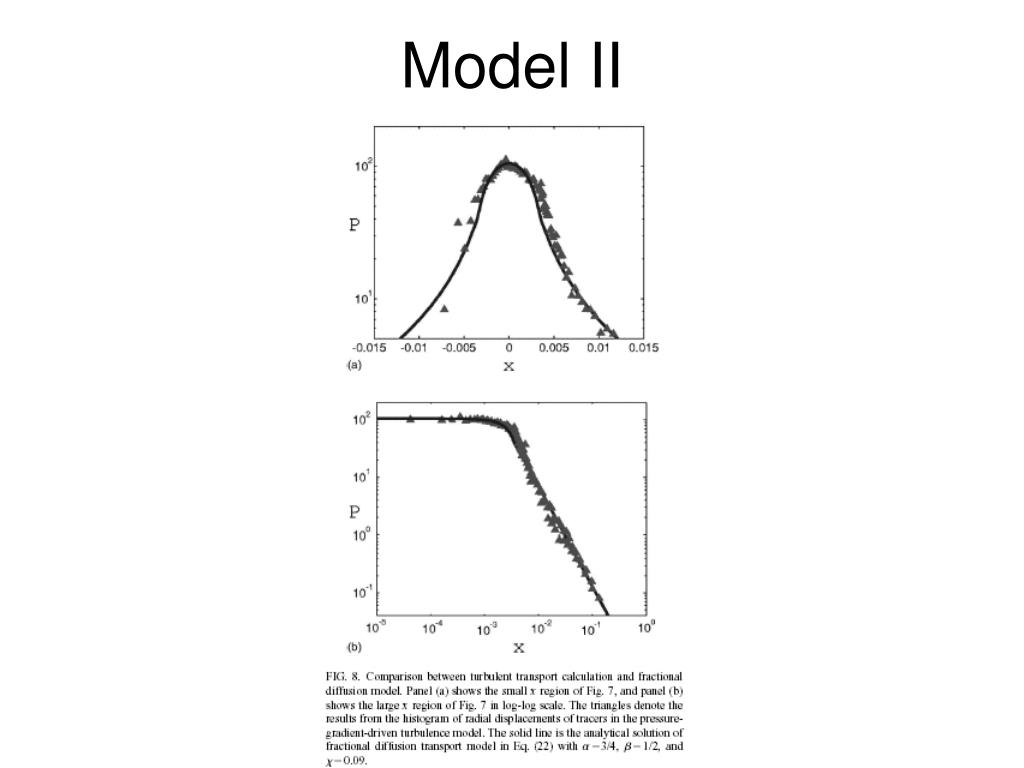

Model II

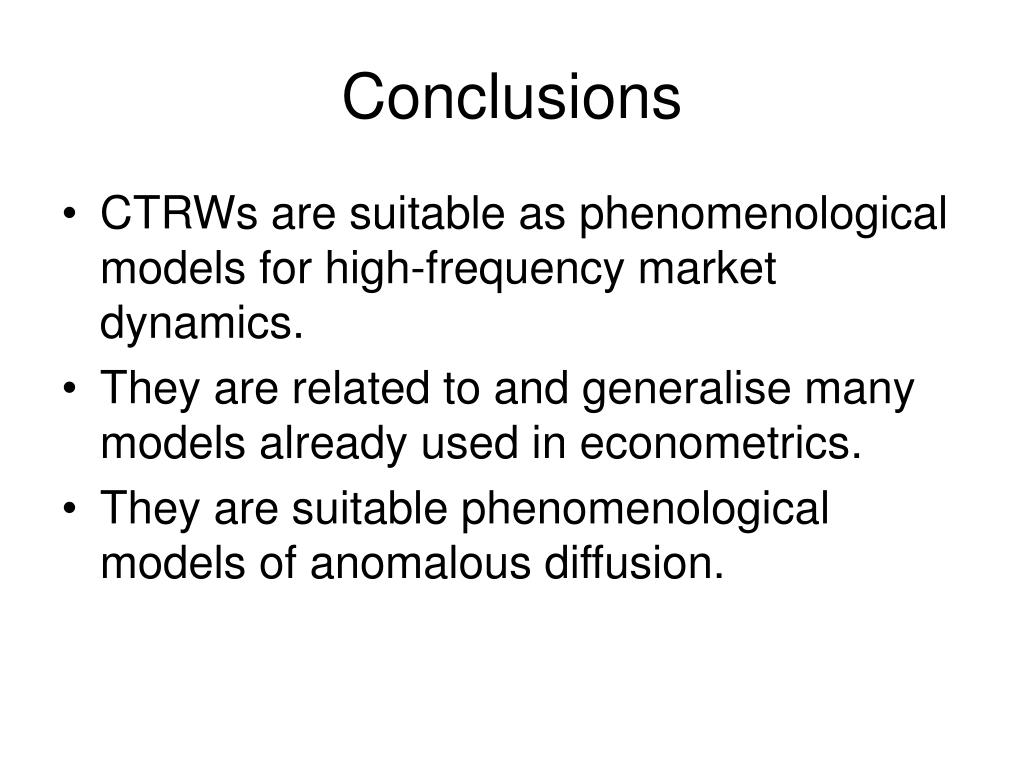

Conclusions

Conclusions

  • CTRWs are suitable as phenomenological models for high-frequency market dynamics.

  • They are related to and generalise many models already used in econometrics.

  • They are suitable phenomenological models of anomalous diffusion.
