  1. Study Sheet for Chapter 7 Test ANSWERS

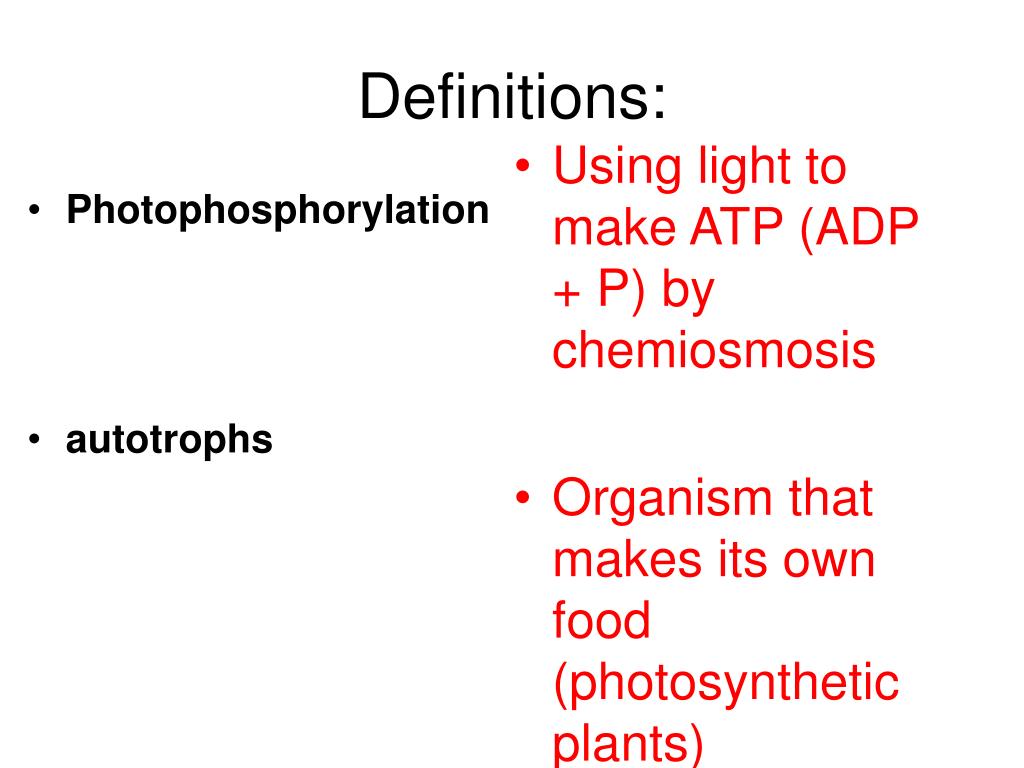

  2. Photophosphorylation autotrophs Using light to make ATP (ADP + P) by chemiosmosis Organism that makes its own food (photosynthetic plants) Definitions:

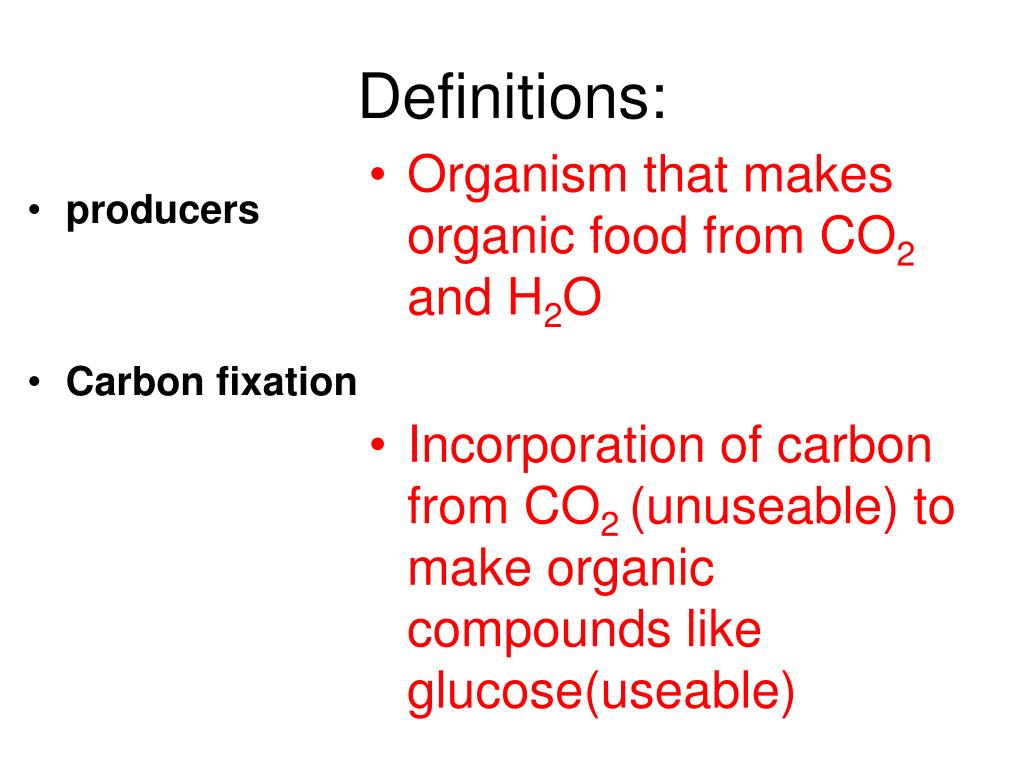

  3. producers Carbon fixation Organism that makes organic food from CO2 and H2O Incorporation of carbon from CO2 (unuseable) to make organic compounds like glucose(useable) Definitions:

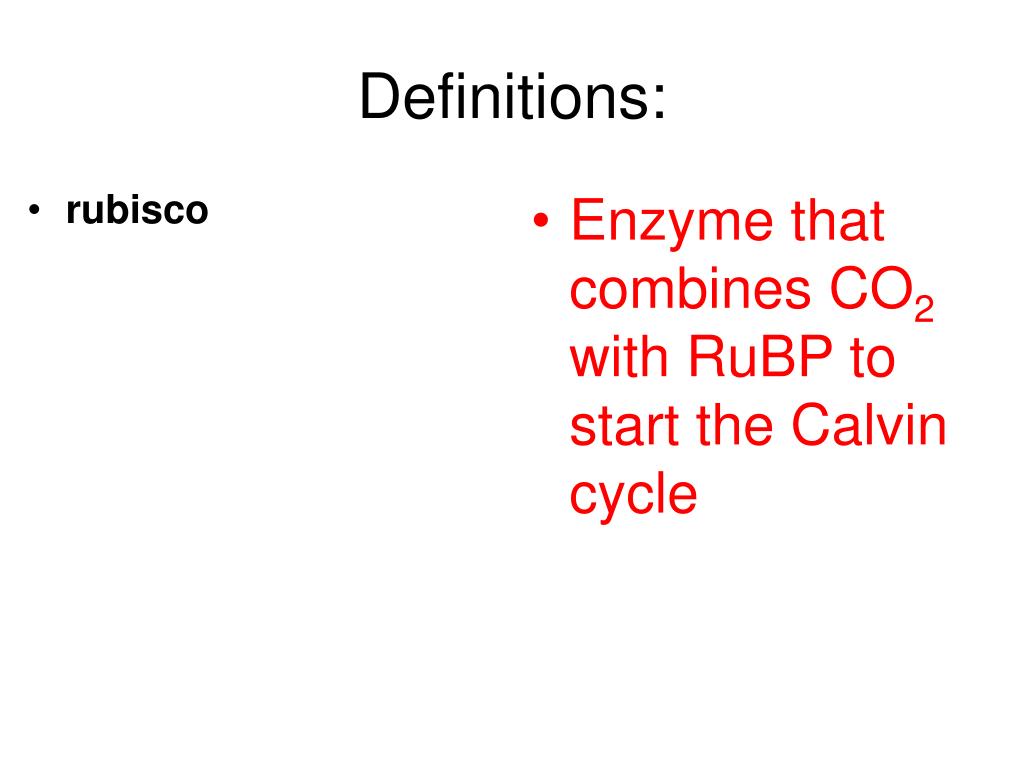

  4. rubisco Enzyme that combines CO2 with RuBP to start the Calvin cycle Definitions:

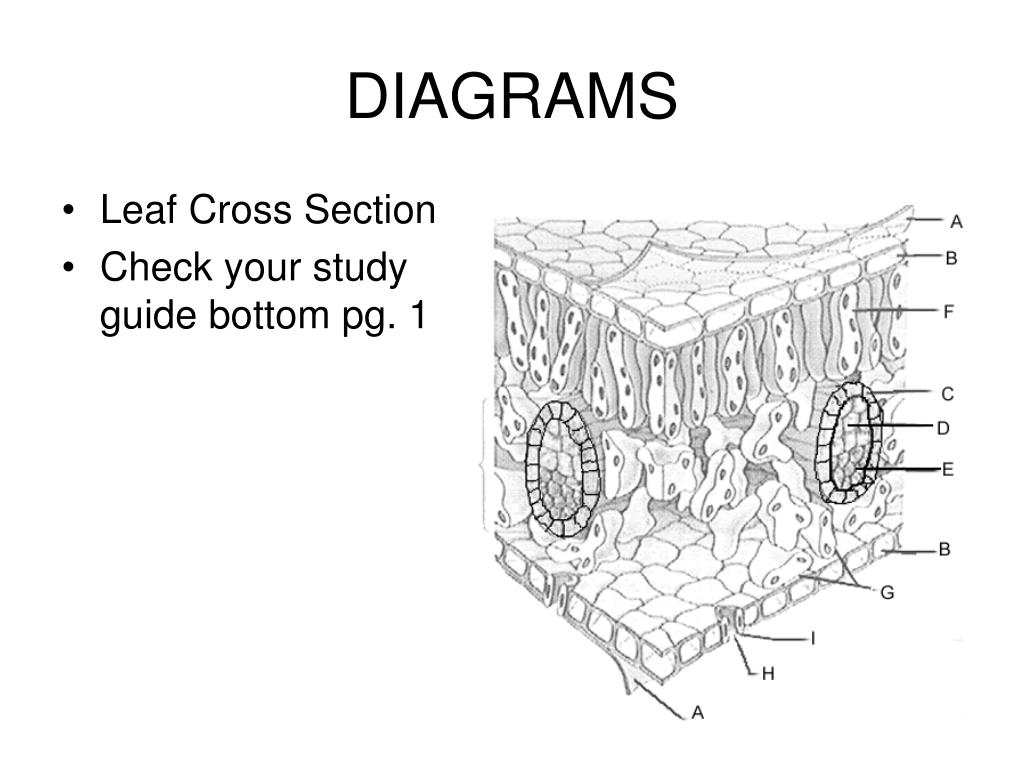

  5. DIAGRAMS • Leaf Cross Section • Check your study guide bottom pg. 1

  6. Answers • A=cuticle • B=Upper epidermis • C=Vein • D=Phloem • E=xylem • F=Palisade layer • G=spongy layer • H=guard cell • I=stomata

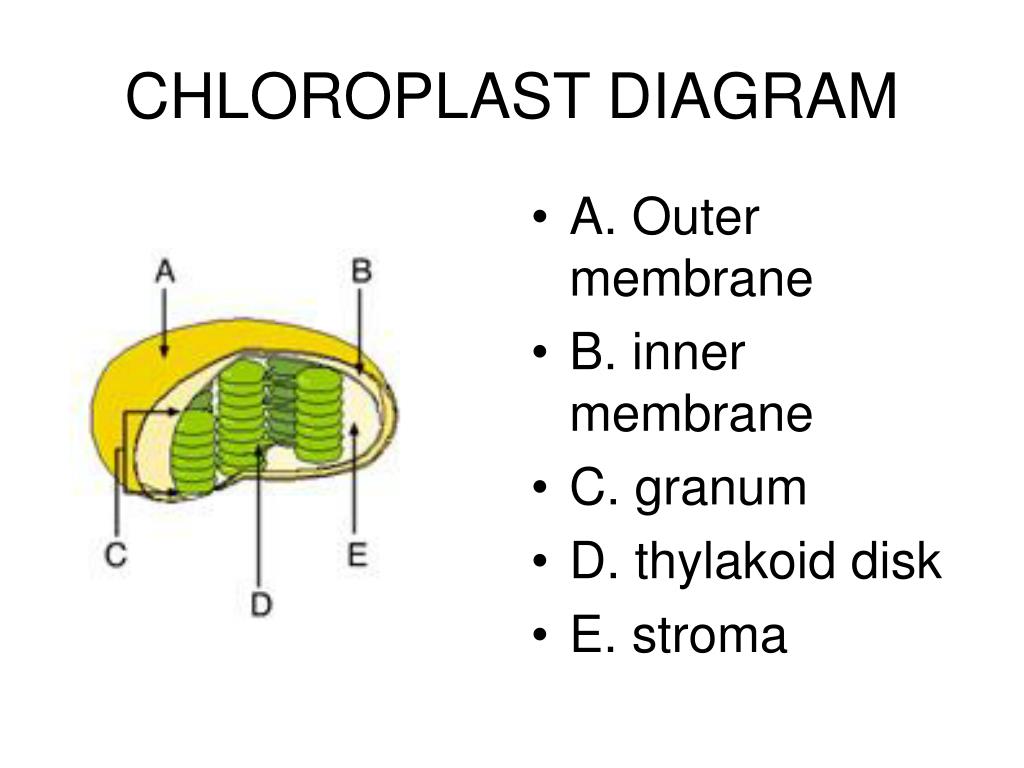

  7. A. Outer membrane B. inner membrane C. granum D. thylakoid disk E. stroma CHLOROPLAST DIAGRAM

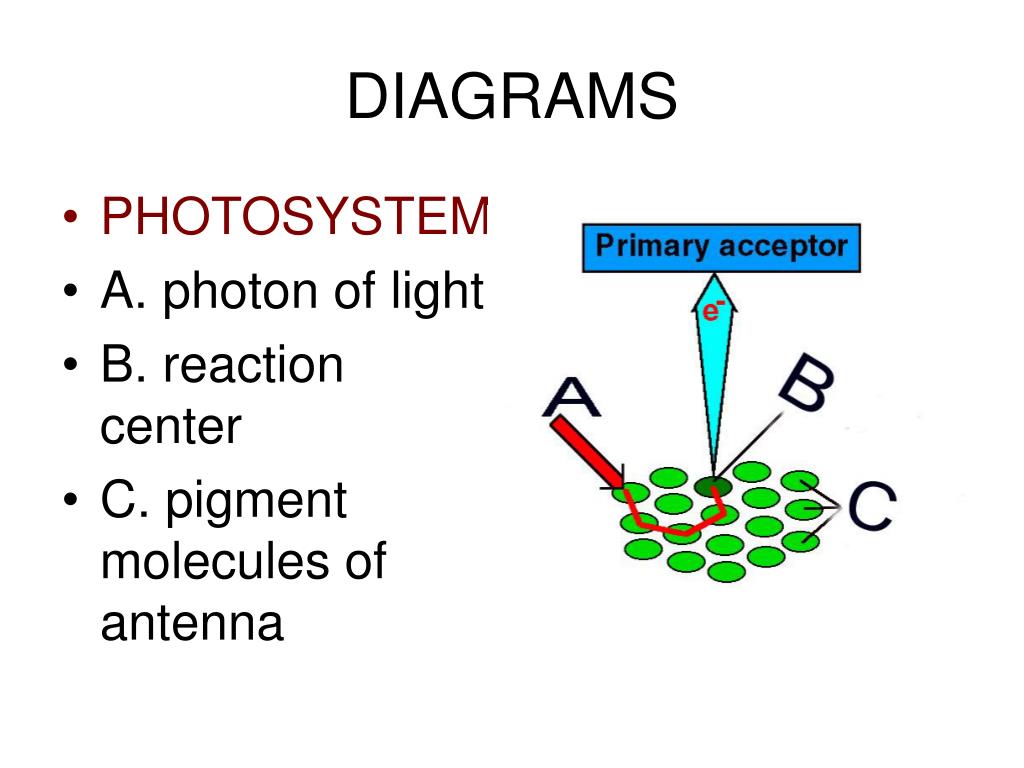

  8. DIAGRAMS • PHOTOSYSTEM • A. photon of light • B. reaction center • C. pigment molecules of antenna

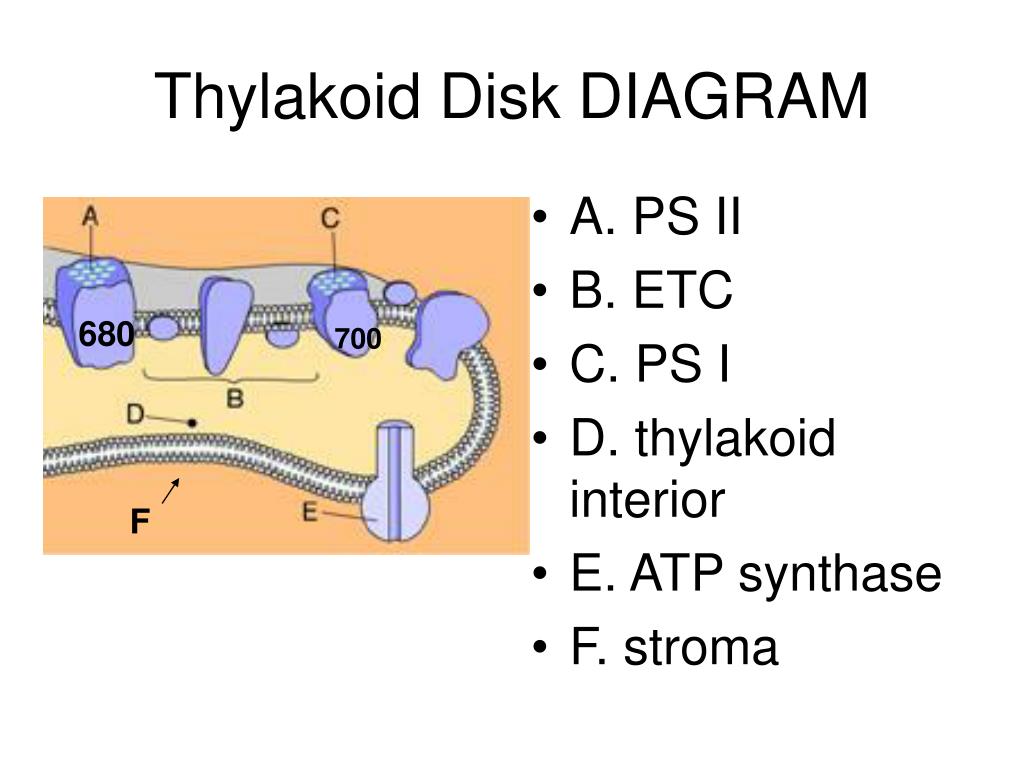

  9. A. PS II B. ETC C. PS I D. thylakoid interior E. ATP synthase F. stroma Thylakoid Disk DIAGRAM 680 700 F

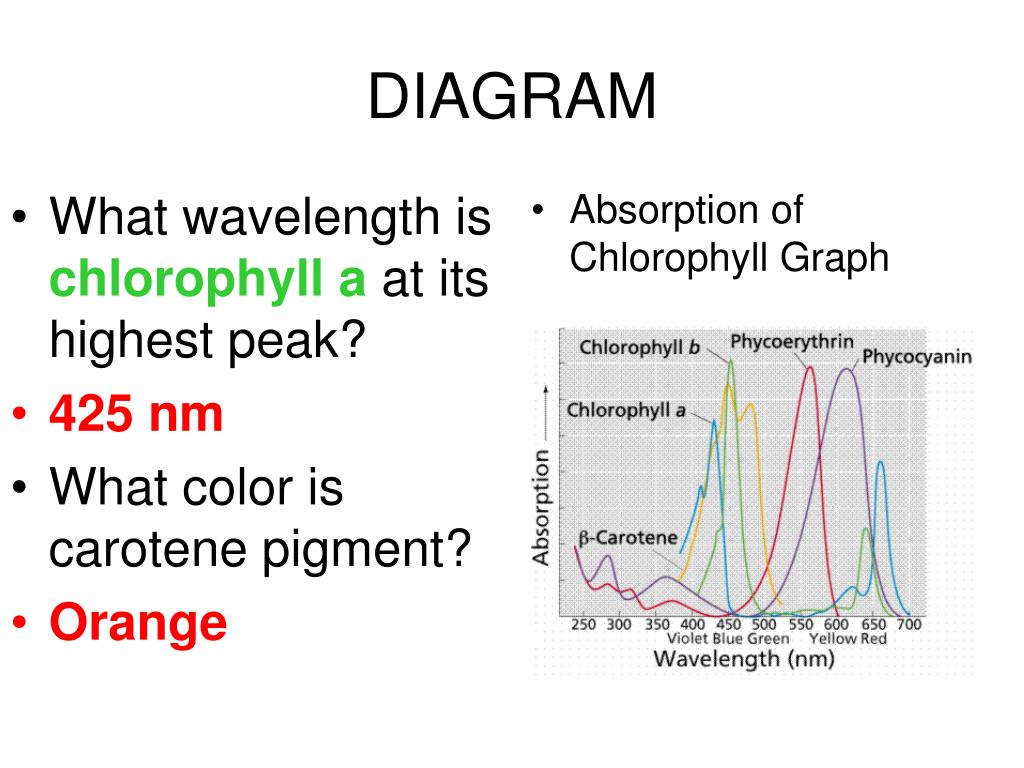

  10. What wavelength is chlorophyll a at its highest peak? 425 nm What color is carotene pigment? Orange Absorption of Chlorophyll Graph DIAGRAM

  11. #1 EQUATION • For photosynthesis • 6 H2O + 6 CO2 -----> C6H12O6+ 6 O2 light

  12. What goes into the stoma? What goes out of the stoma? H20 and CO2 Water and O2 #2 Going in and out

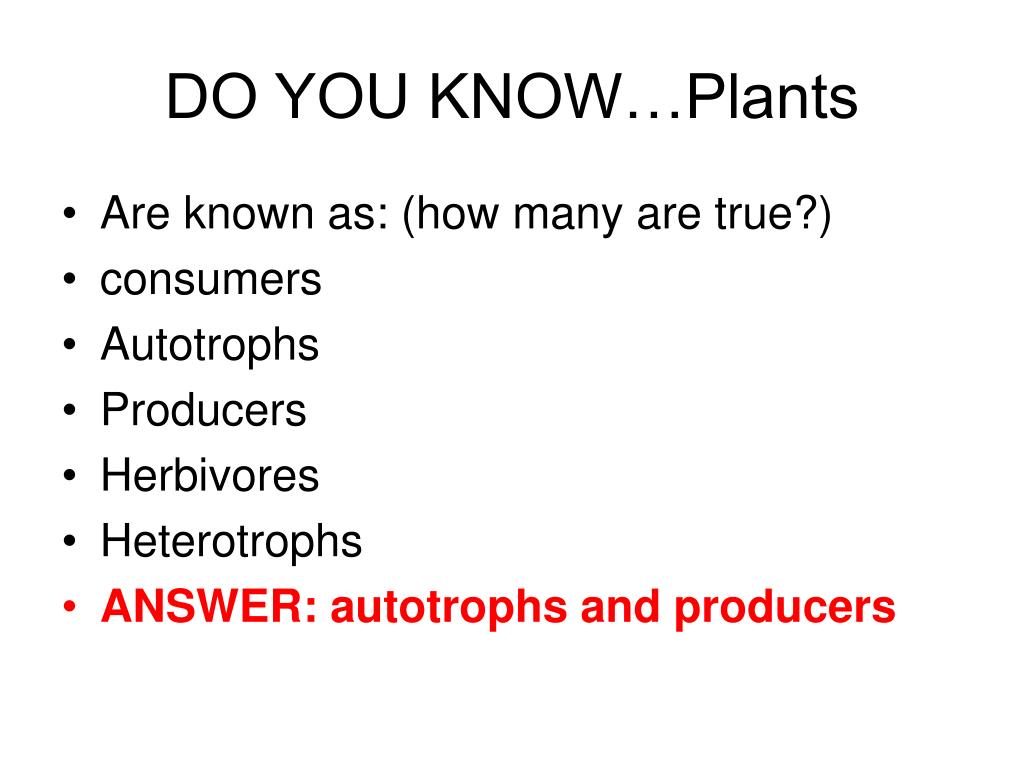

  13. DO YOU KNOW…Plants • Are known as: (how many are true?) • consumers • Autotrophs • Producers • Herbivores • Heterotrophs • ANSWER: autotrophs and producers

  14. #3 Main function of chlorophyll • A. Make rubisco • B. Turn the leaf yellow • C. Capture sunlight energy • D. Make sugar from carbon dioxide • ANSWER: C. capture sunlight energy

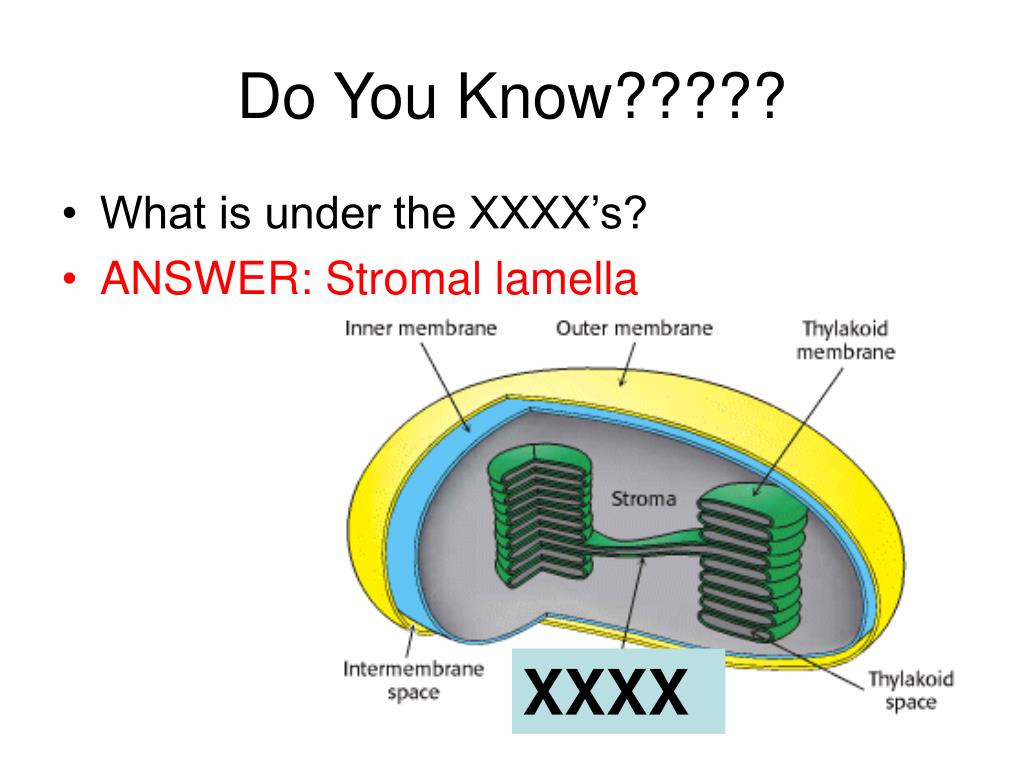

  15. Do You Know????? • What is under the XXXX’s? • ANSWER: Stromal lamella XXXX

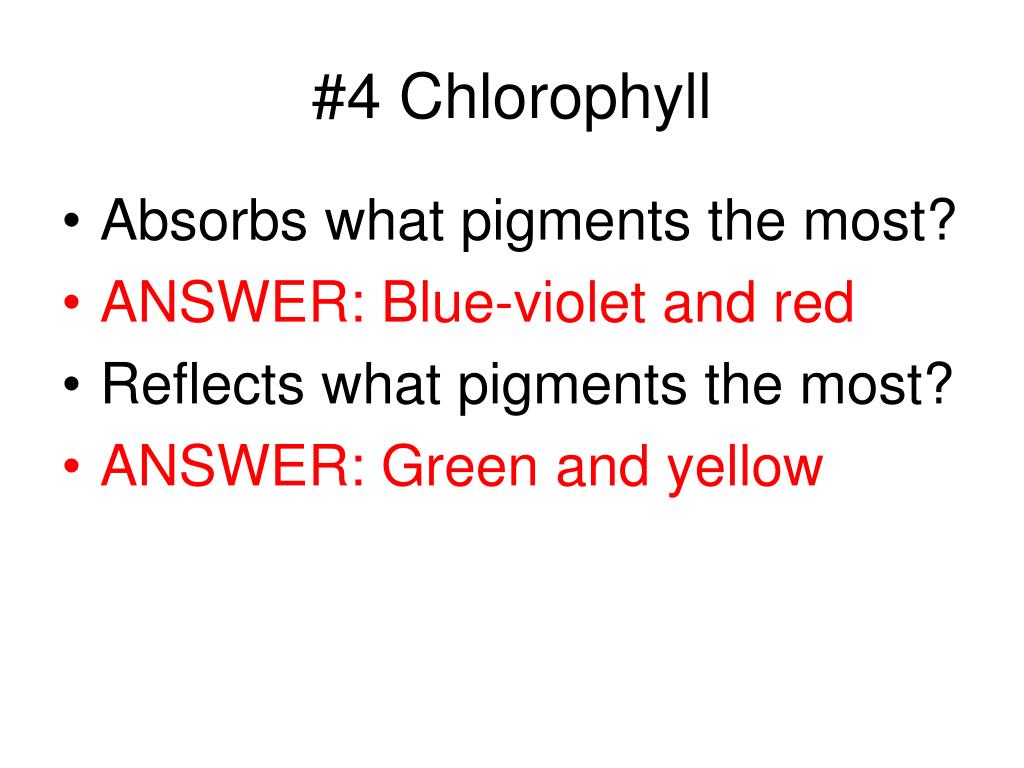

  16. #4 Chlorophyll • Absorbs what pigments the most? • ANSWER: Blue-violet and red • Reflects what pigments the most? • ANSWER: Green and yellow

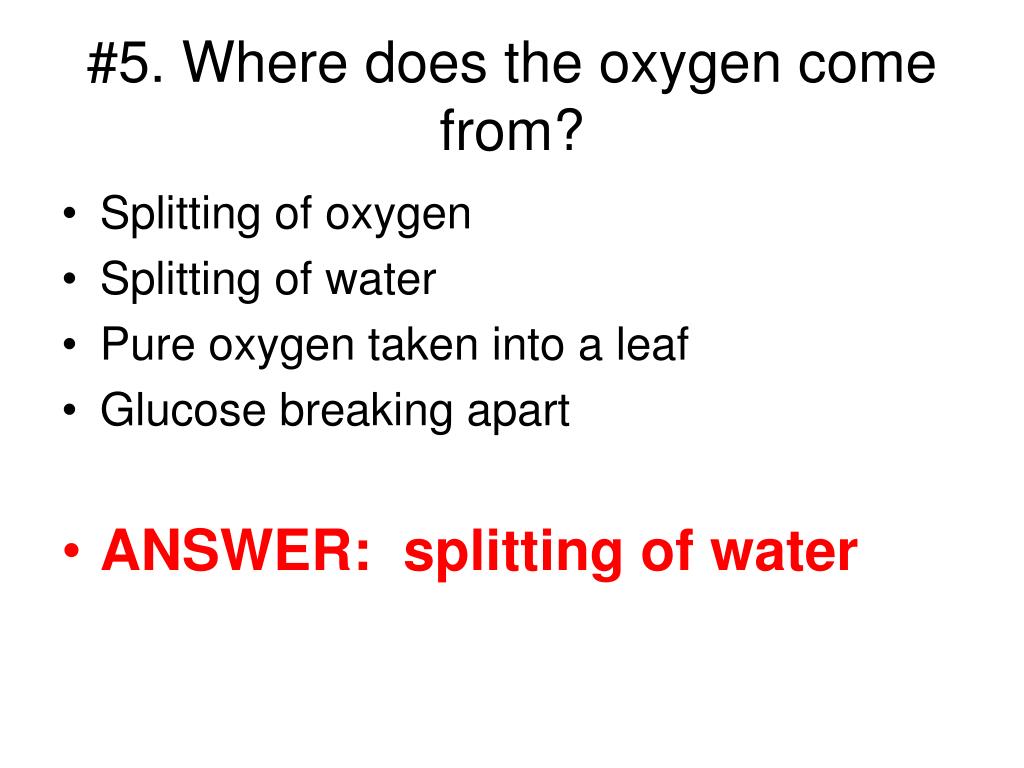

  17. #5. Where does the oxygen come from? • Splitting of oxygen • Splitting of water • Pure oxygen taken into a leaf • Glucose breaking apart • ANSWER: splitting of water

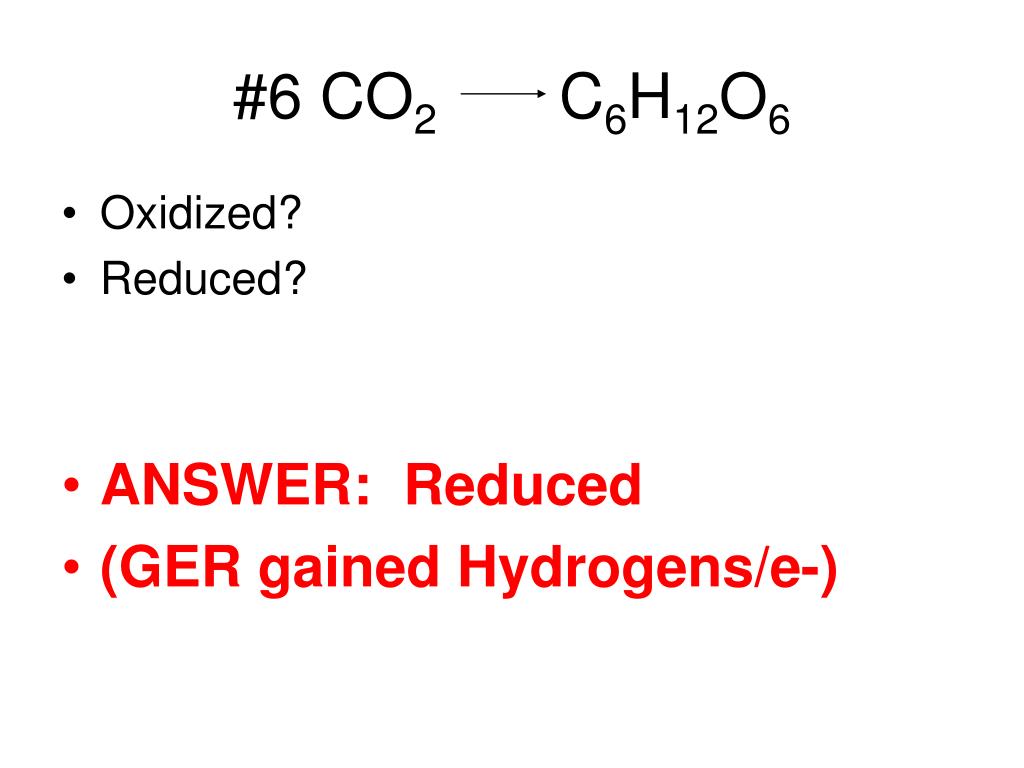

  18. #6 CO2 C6H12O6 • Oxidized? • Reduced? • ANSWER: Reduced • (GER gained Hydrogens/e-)

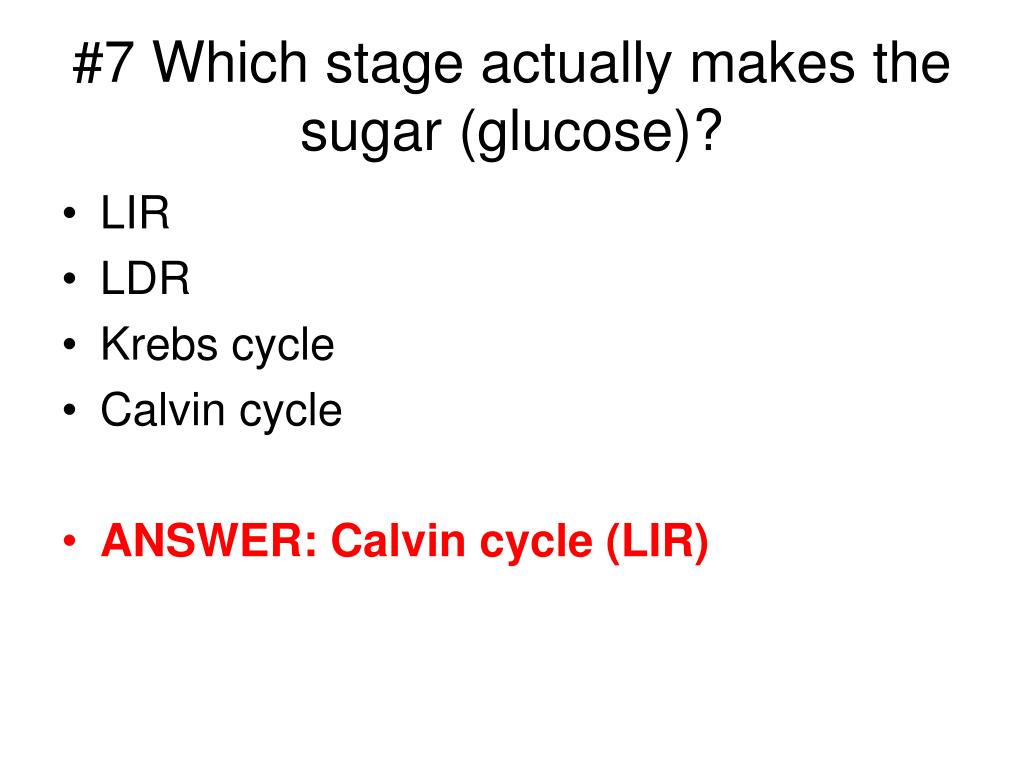

  19. #7 Which stage actually makes the sugar (glucose)? • LIR • LDR • Krebs cycle • Calvin cycle • ANSWER: Calvin cycle (LIR)

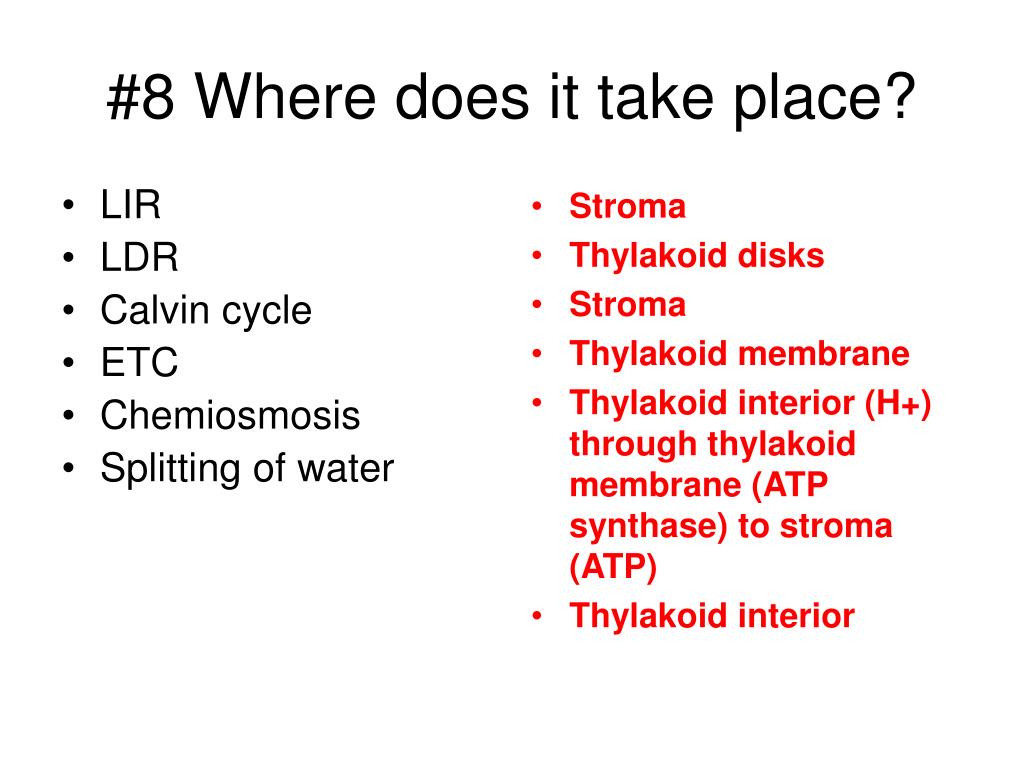

  20. LIR LDR Calvin cycle ETC Chemiosmosis Splitting of water Stroma Thylakoid disks Stroma Thylakoid membrane Thylakoid interior (H+) through thylakoid membrane (ATP synthase) to stroma (ATP) Thylakoid interior #8 Where does it take place?

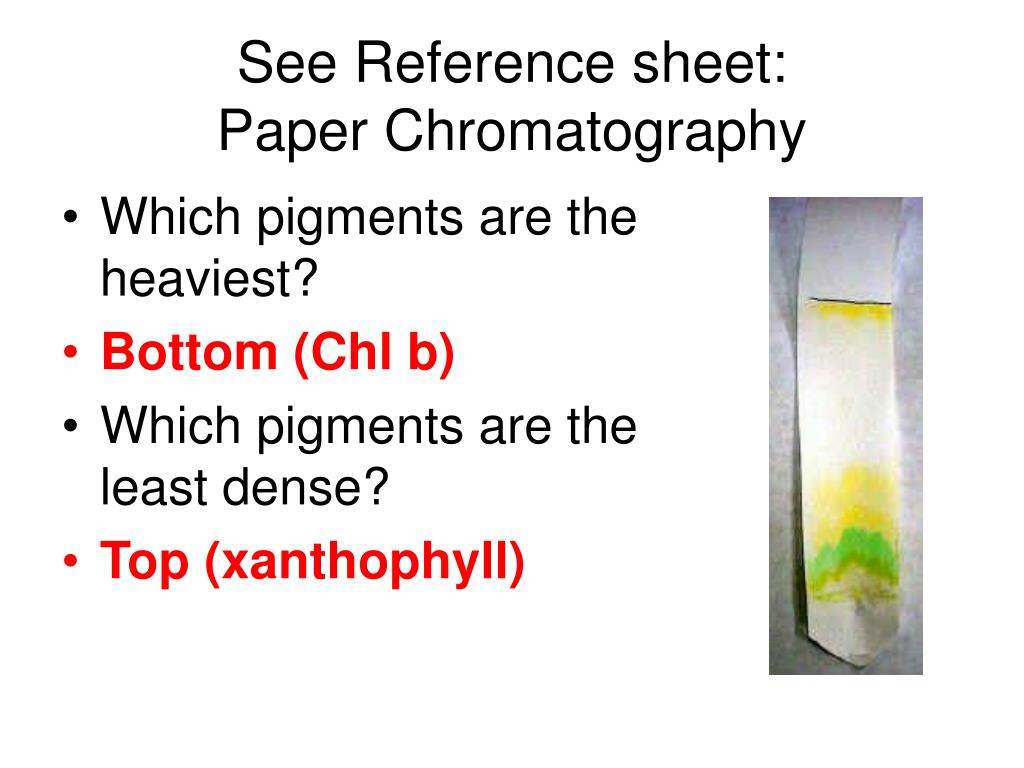

  21. Which pigments are the heaviest? Bottom (Chl b) Which pigments are the least dense? Top (xanthophyll) See Reference sheet:Paper Chromatography

  22. #9 What are the high energy molecules made in • LDR to run the LIR? • ATP and NADPH

  23. #10 What is the other name of LIR? • Krebs cycle • LDR • Calvin cycle • ETC • Chemiosmosis • ANSWER: Calvin cycle

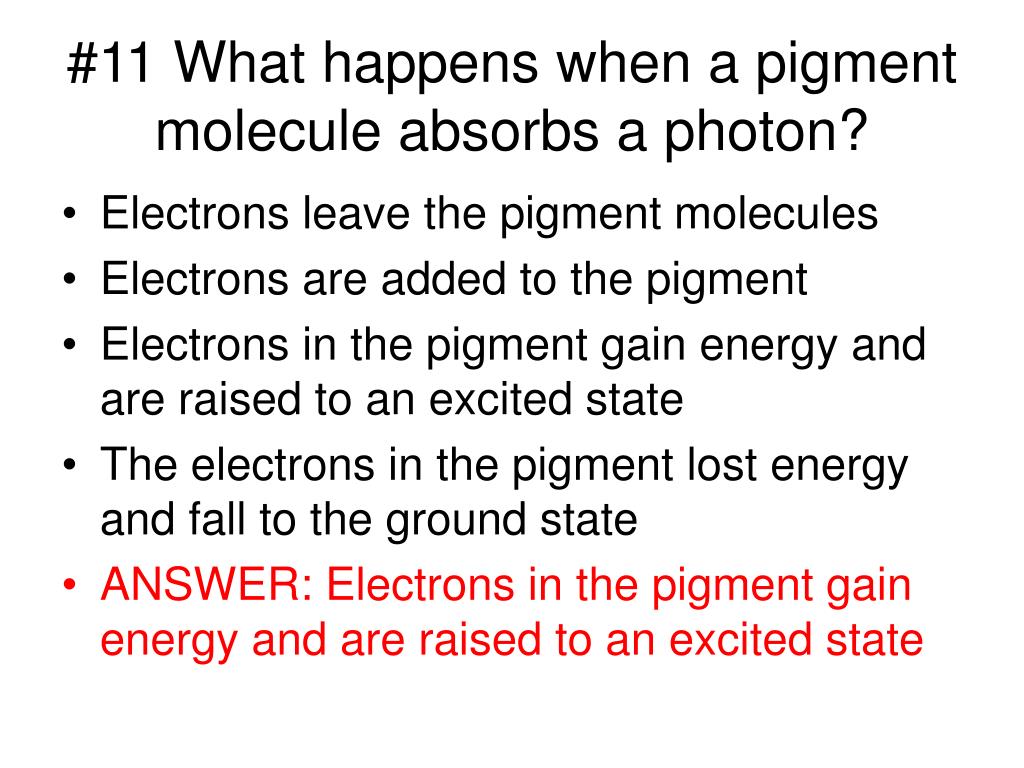

  24. #11 What happens when a pigment molecule absorbs a photon? • Electrons leave the pigment molecules • Electrons are added to the pigment • Electrons in the pigment gain energy and are raised to an excited state • The electrons in the pigment lost energy and fall to the ground state • ANSWER: Electrons in the pigment gain energy and are raised to an excited state

  25. Of LDR? Of LIR? ATP and NADPH and oxygen Glucose and ADP and NADP #12 WHAT ARE THE PRODUCTS?

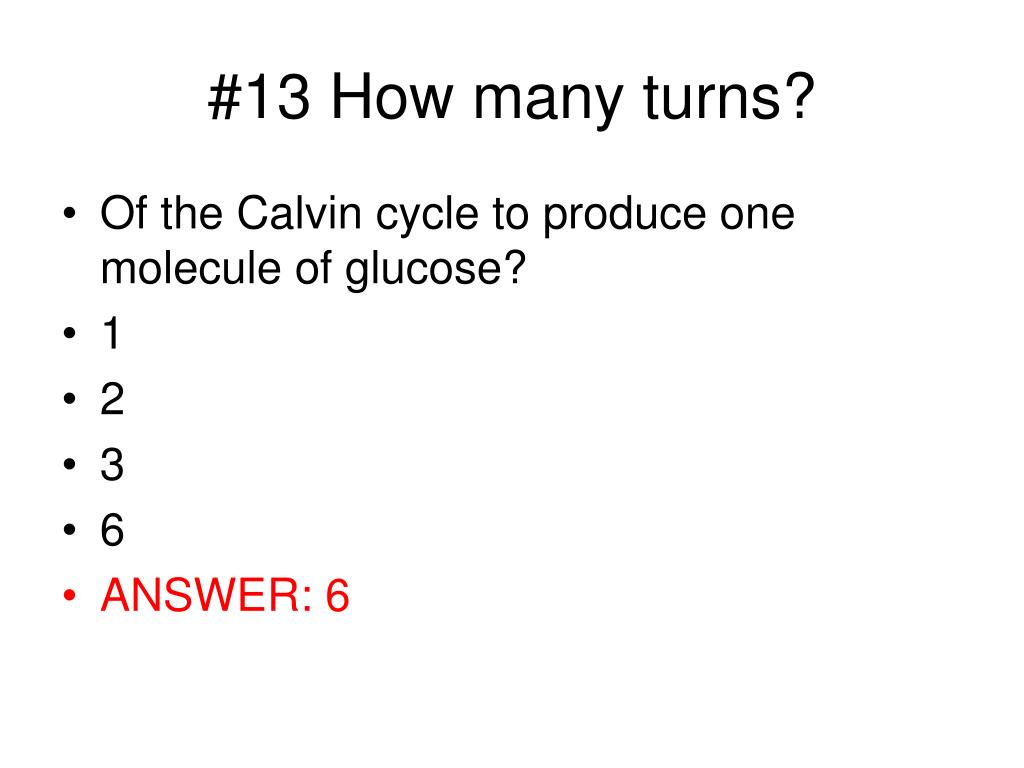

  26. #13 How many turns? • Of the Calvin cycle to produce one molecule of glucose? • 1 • 2 • 3 • 6 • ANSWER: 6

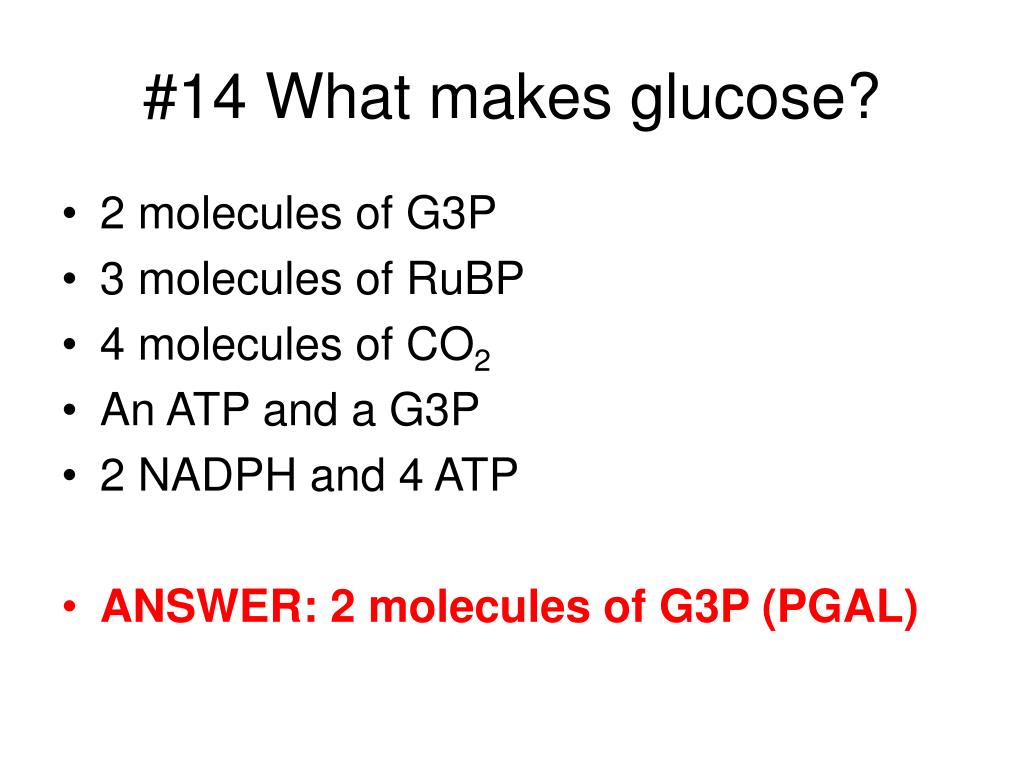

  27. #14 What makes glucose? • 2 molecules of G3P • 3 molecules of RuBP • 4 molecules of CO2 • An ATP and a G3P • 2 NADPH and 4 ATP • ANSWER: 2 molecules of G3P (PGAL)

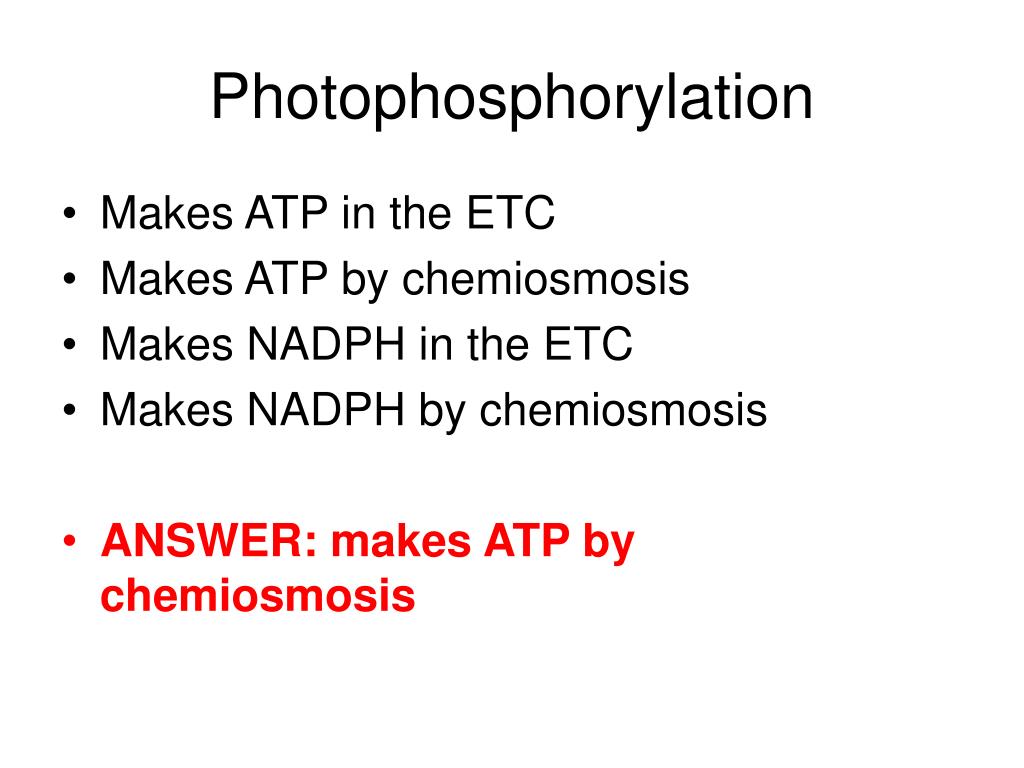

  28. Photophosphorylation • Makes ATP in the ETC • Makes ATP by chemiosmosis • Makes NADPH in the ETC • Makes NADPH by chemiosmosis • ANSWER: makes ATP by chemiosmosis

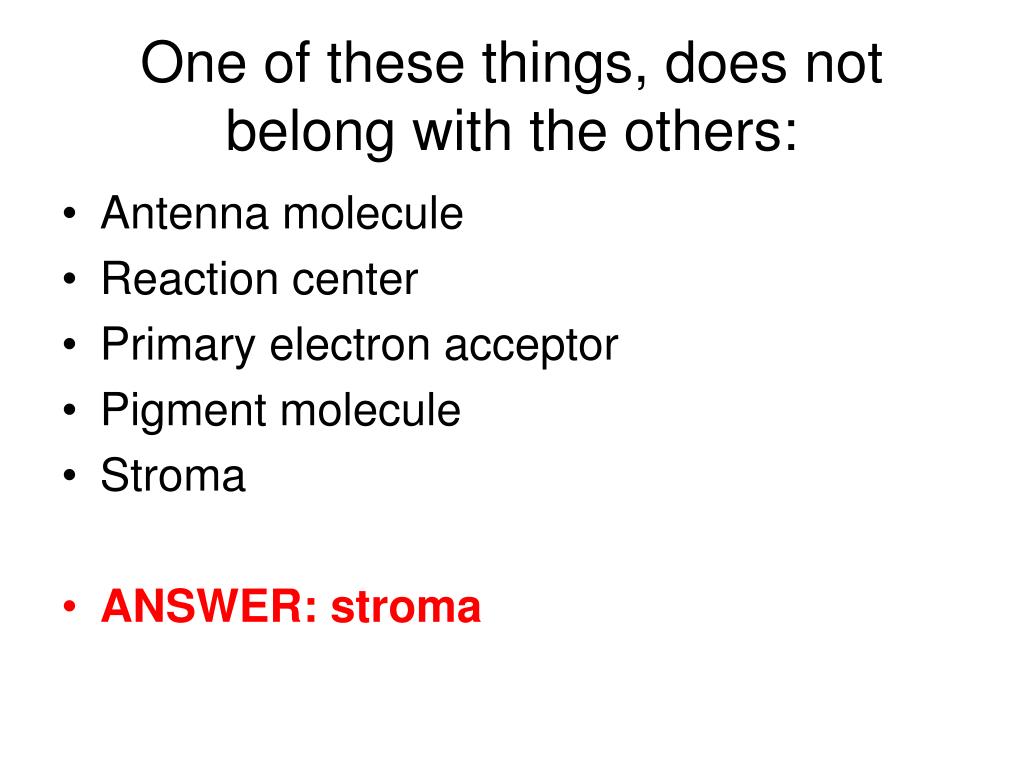

  29. One of these things, does not belong with the others: • Antenna molecule • Reaction center • Primary electron acceptor • Pigment molecule • Stroma • ANSWER: stroma

  30. What is the enzyme? • Most abundant in the world? • Amylase • Rubisco • ATP synthase • Peptidase • ANSWER: rubisco

  31. # 15 Where do the H+ collect after they are split from water? F

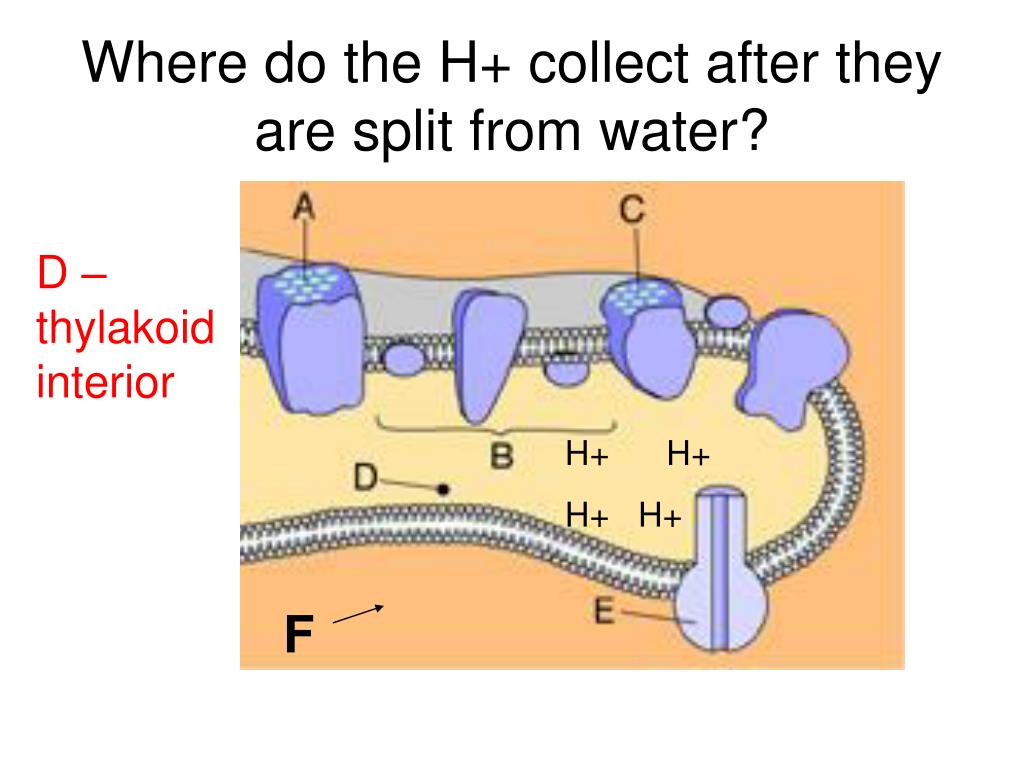

  32. Where do the H+ collect after they are split from water? D – thylakoid interior H+ H+ H+ H+ F

  33. #15 Where is the ATP synthase located? F

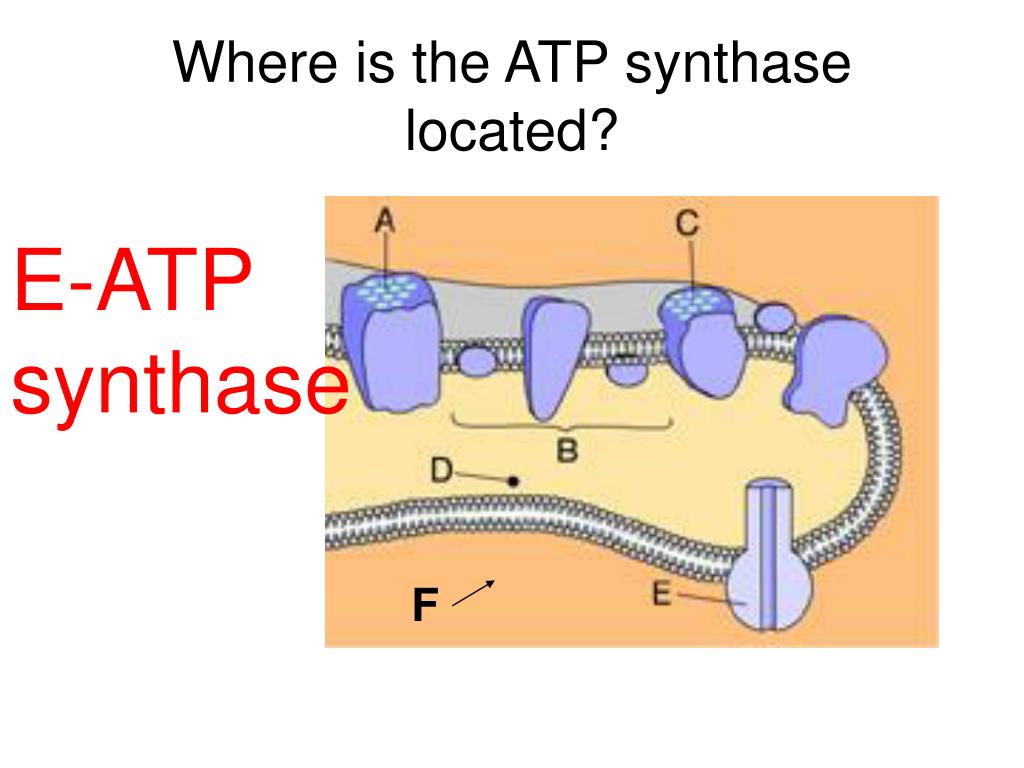

  34. Where is the ATP synthase located? E-ATP synthase F

  35. #15 Where would NADPH and ATP be found? F

  36. Where would NADPH and ATP be found? F-stroma F
