  1. bizhub C203/C253/C353 Configuration

  2. Basic Configuration • Standards for C203 – C253 – C353(P) • Max. Memory • Hard disc (option for P) • Emperon controller • 1GB Ethernet • Highspeed USB • 2 paper trays • Fax connection kit (not for P) • Minimum requirements for C203 – C253 – C353 • ADF or Original Cover • Minimum requirements for C353P • none

  3. Input • DF-611 • Document Feeder • 100 sheets • A6 – A3 • 35 – 210 g/m² • Requirements • none • Supported machines • All MFP

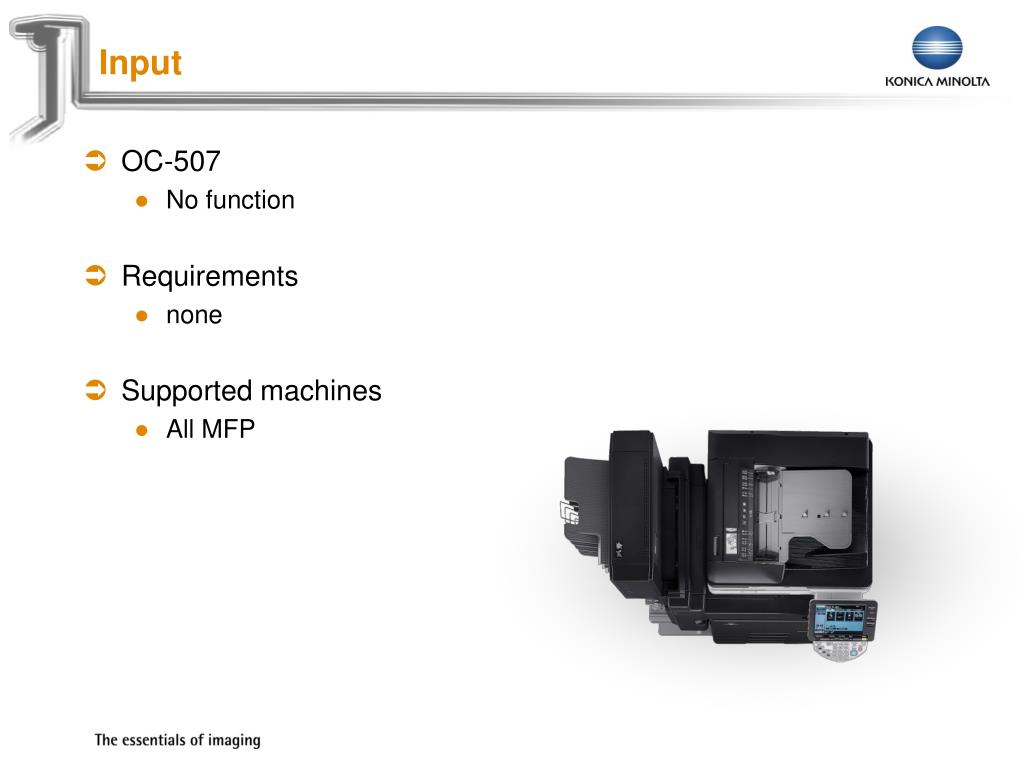

  4. Input • OC-507 • No function • Requirements • none • Supported machines • All MFP

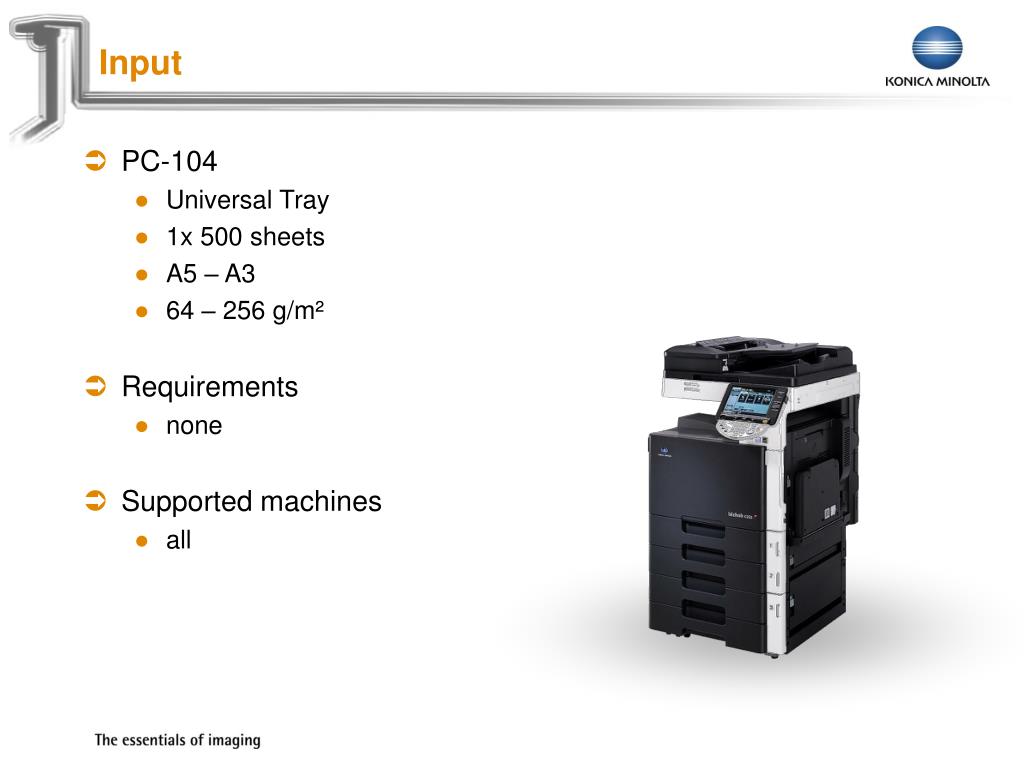

  5. Input • PC-104 • Universal Tray • 1x 500 sheets • A5 – A3 • 64 – 256 g/m² • Requirements • none • Supported machines • all

  6. Input • PC-204 • Universal Tray • 2x 500 sheets • A5 – A3 • 64 – 256 g/m² • Requirements • none • Supported machines • all

  7. Input • PC-405 • Large Capacity Tray • 1x 2.500 sheets • A4 • 64 – 256 g/m² • Requirements • none • Supported machines • all

  8. Input • BT-C1 • Banner Tray extension • 30 sheets • Banner 297 x 1200 m • 127 – 210 g/m² • FE3 implementation of Superclick 2x (max. 10) • Requirements • none • Supported machines • all

  9. Input • CD-26 • Copier Desk • Print media storage • Requirements • none • Supported machines • all

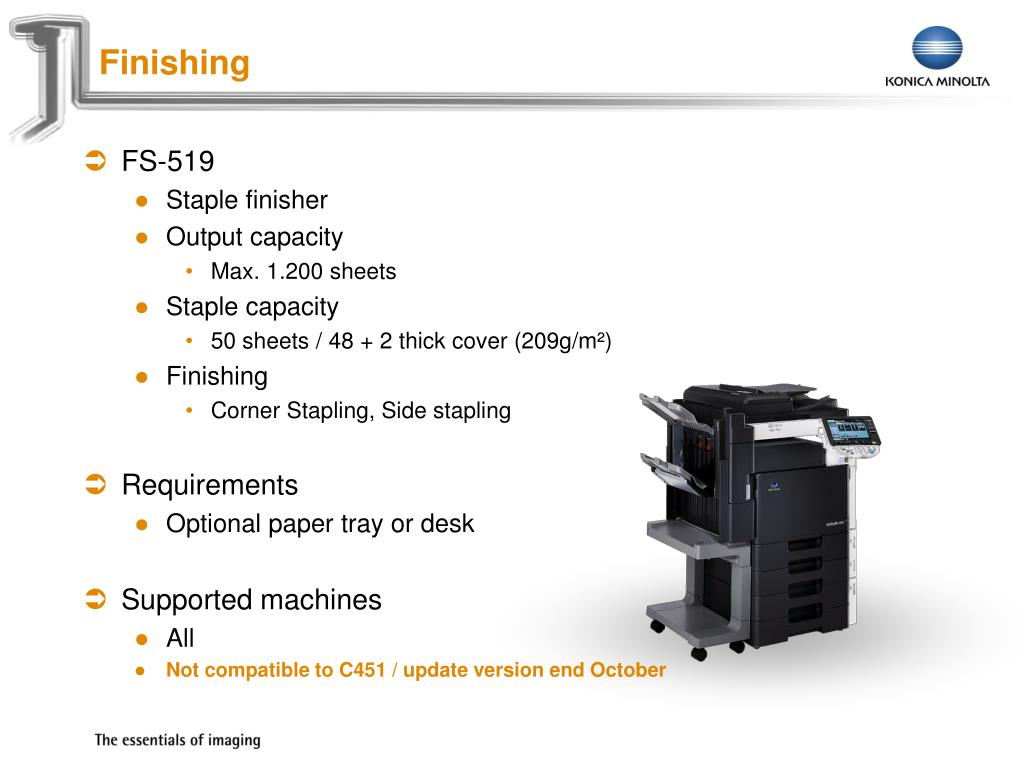

  10. Finishing • FS-519 • Staple finisher • Output capacity • Max. 1.200 sheets • Staple capacity • 50 sheets / 48 + 2 thick cover (209g/m²) • Finishing • Corner Stapling, Side stapling • Requirements • Optional paper tray or desk • Supported machines • All • Not compatible to C451 / update version end October

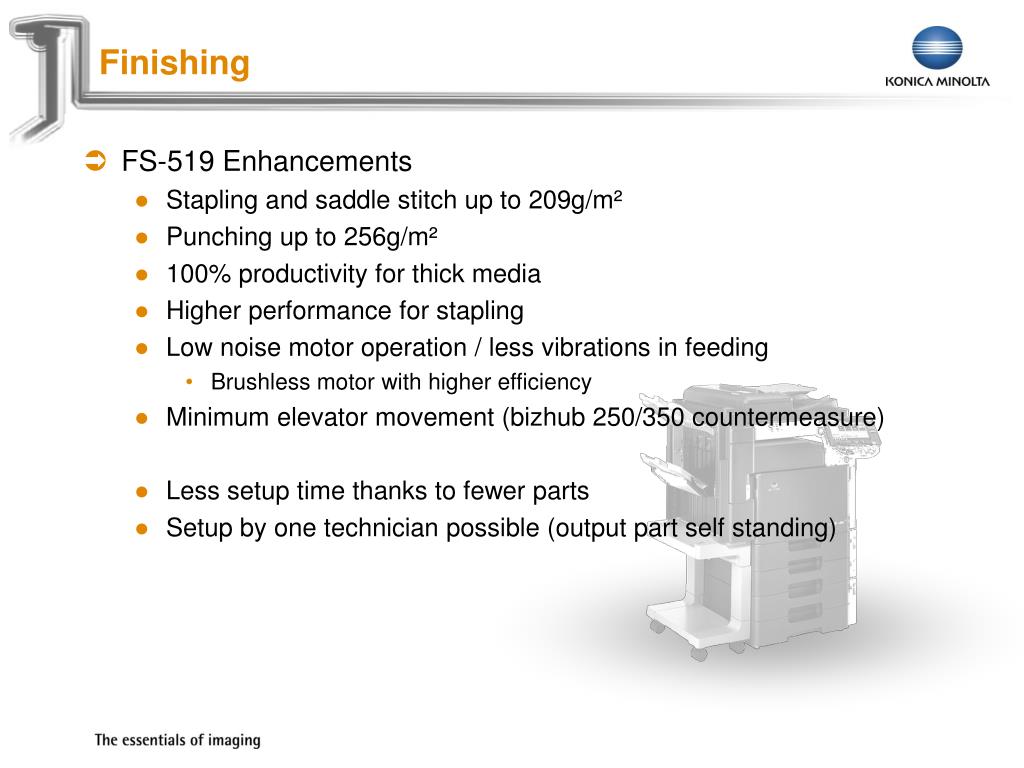

  11. Finishing • FS-519 Enhancements • Stapling and saddle stitch up to 209g/m² • Punching up to 256g/m² • 100% productivity for thick media • Higher performance for stapling • Low noise motor operation / less vibrations in feeding • Brushless motor with higher efficiency • Minimum elevator movement (bizhub 250/350 countermeasure) • Less setup time thanks to fewer parts • Setup by one technician possible (output part self standing)

  12. Finishing • OT-602 • Output Tray • Output capacity • Max. 200 sheets • Requirements • FS-519 • Supported machines • all

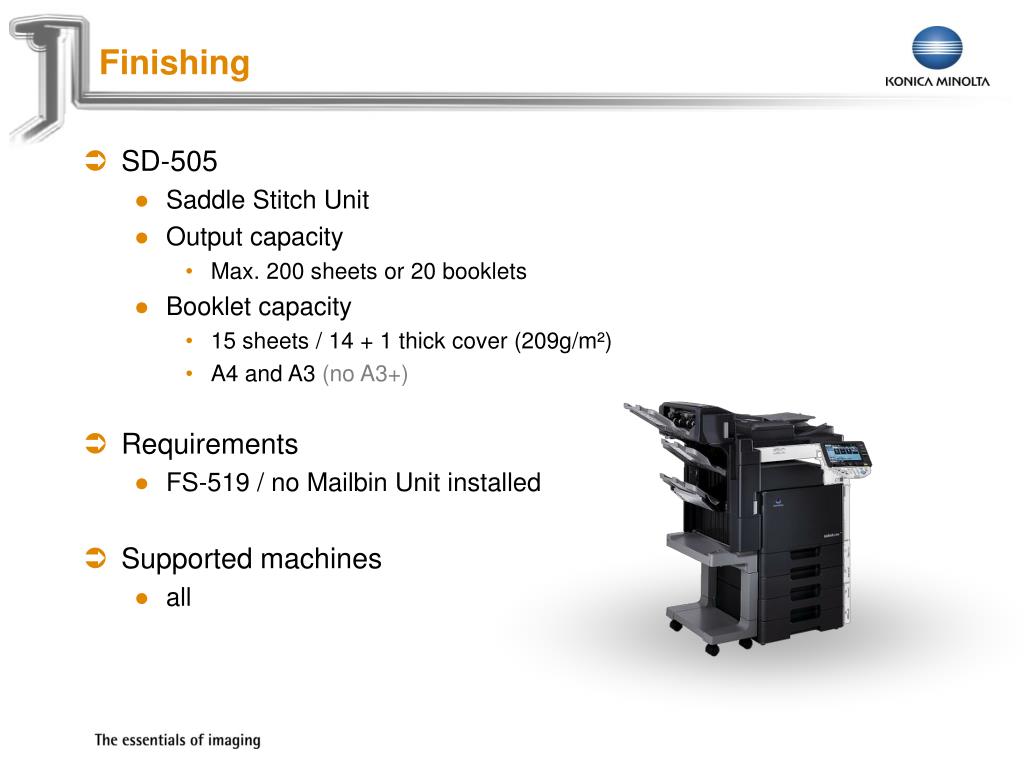

  13. Finishing • SD-505 • Saddle Stitch Unit • Output capacity • Max. 200 sheets or 20 booklets • Booklet capacity • 15 sheets / 14 + 1 thick cover (209g/m²) • A4 and A3 (no A3+) • Requirements • FS-519 / no Mailbin Unit installed • Supported machines • all

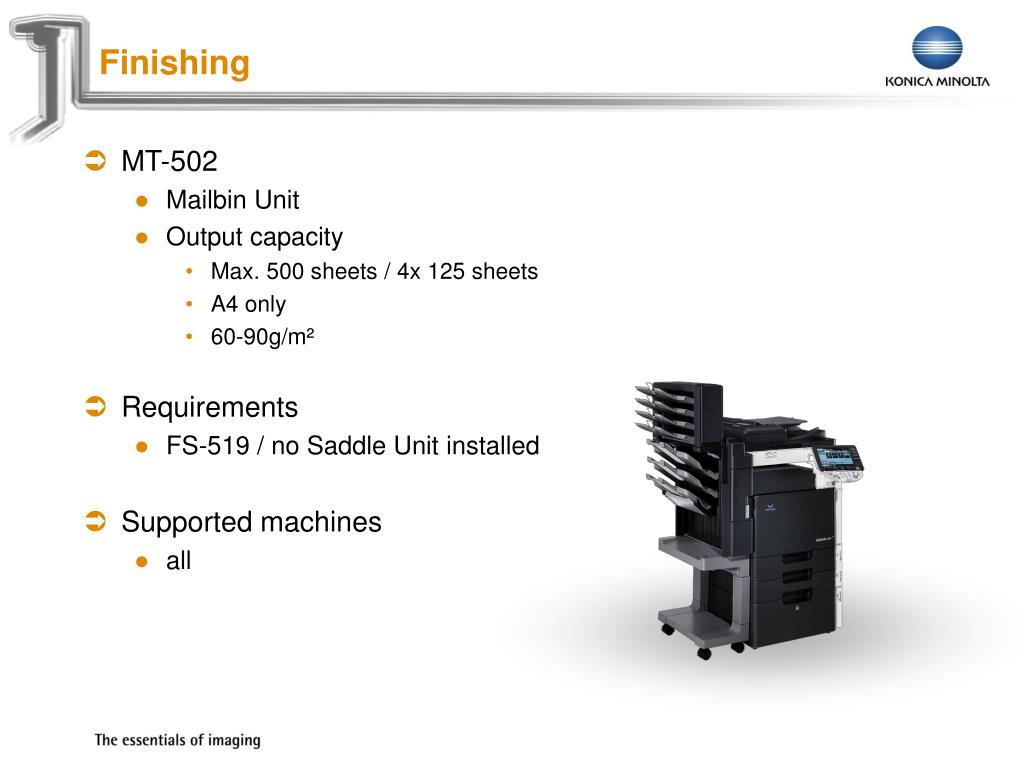

  14. Finishing • MT-502 • Mailbin Unit • Output capacity • Max. 500 sheets / 4x 125 sheets • A4 only • 60-90g/m² • Requirements • FS-519 / no Saddle Unit installed • Supported machines • all

  15. Finishing • JS-505 • Job Separator • Output capacity • Tray 1 • 50 sheets • 60- • A5- • Tray 2 • 150 sheets • 60-268g/m² • A6-A3+ • Requirements • none • Supported machines • All MFP

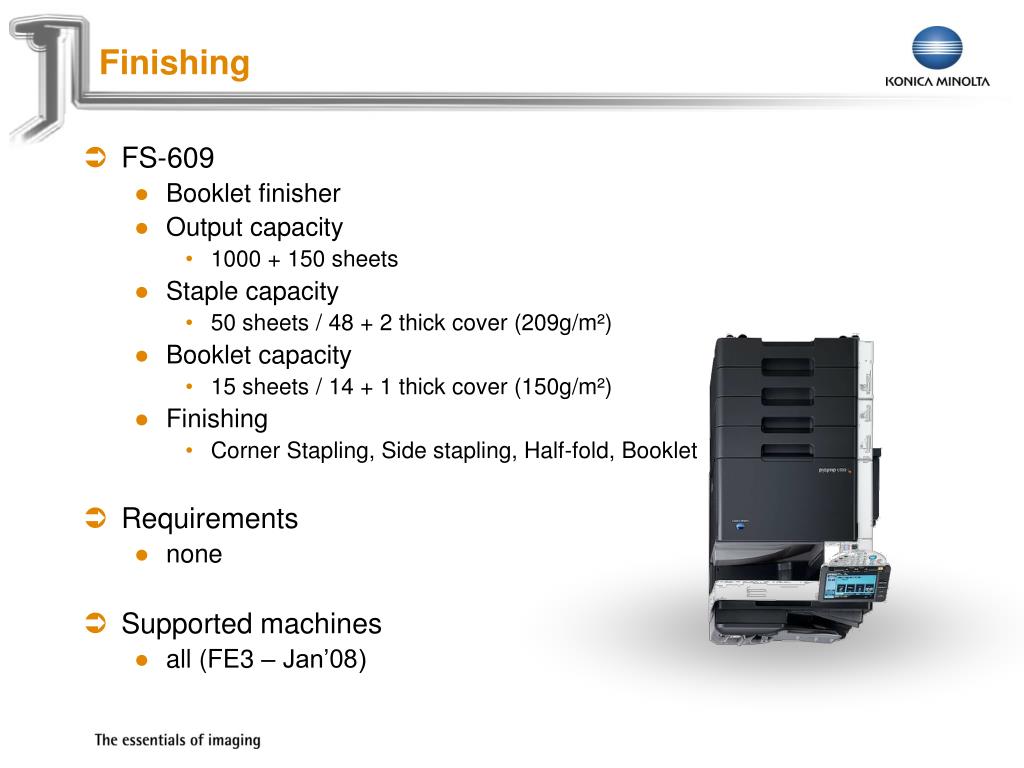

  16. Finishing • FS-609 • Booklet finisher • Output capacity • 1000 + 150 sheets • Staple capacity • 50 sheets / 48 + 2 thick cover (209g/m²) • Booklet capacity • 15 sheets / 14 + 1 thick cover (150g/m²) • Finishing • Corner Stapling, Side stapling, Half-fold, Booklet • Requirements • none • Supported machines • all (FE3 – Jan’08)

  17. Finishing • PK-515 • Punchkit • 4 hole • 60 - 256g/m² • Supported finisher • FS-519 • PK-501 • Punchkit • 4 hole • 60 - 256g/m² • Supported finisher • FS-609

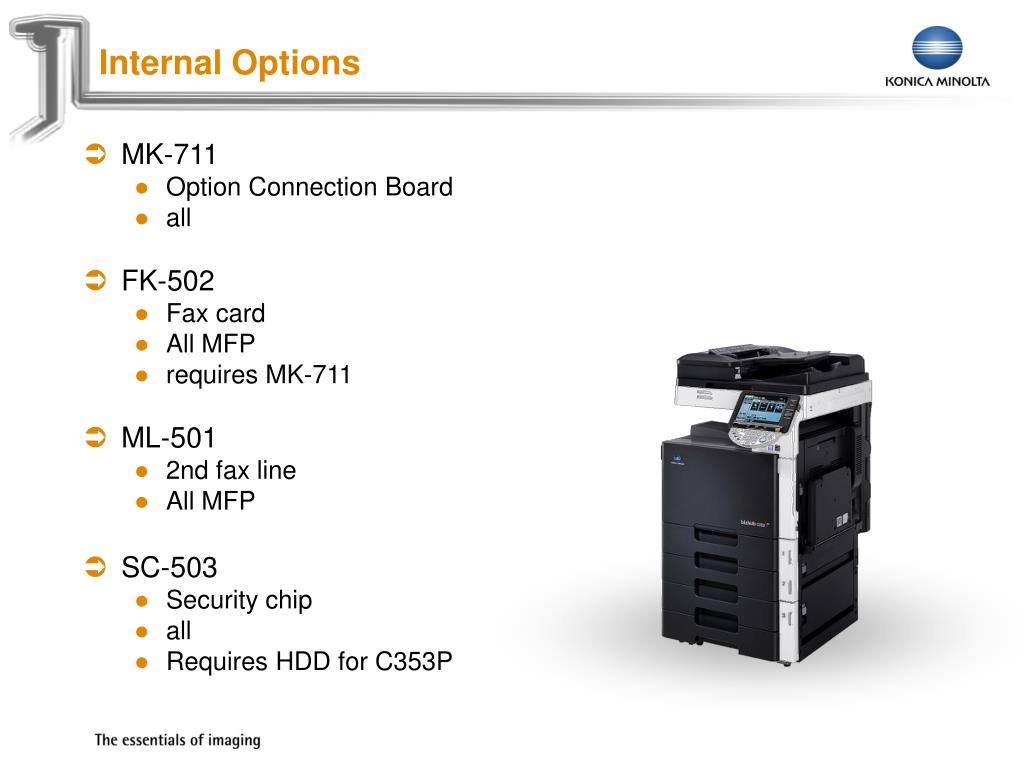

  18. Internal Options • MK-711 • Option Connection Board • all • FK-502 • Fax card • All MFP • requires MK-711 • ML-501 • 2nd fax line • All MFP • SC-503 • Security chip • all • Requires HDD for C353P

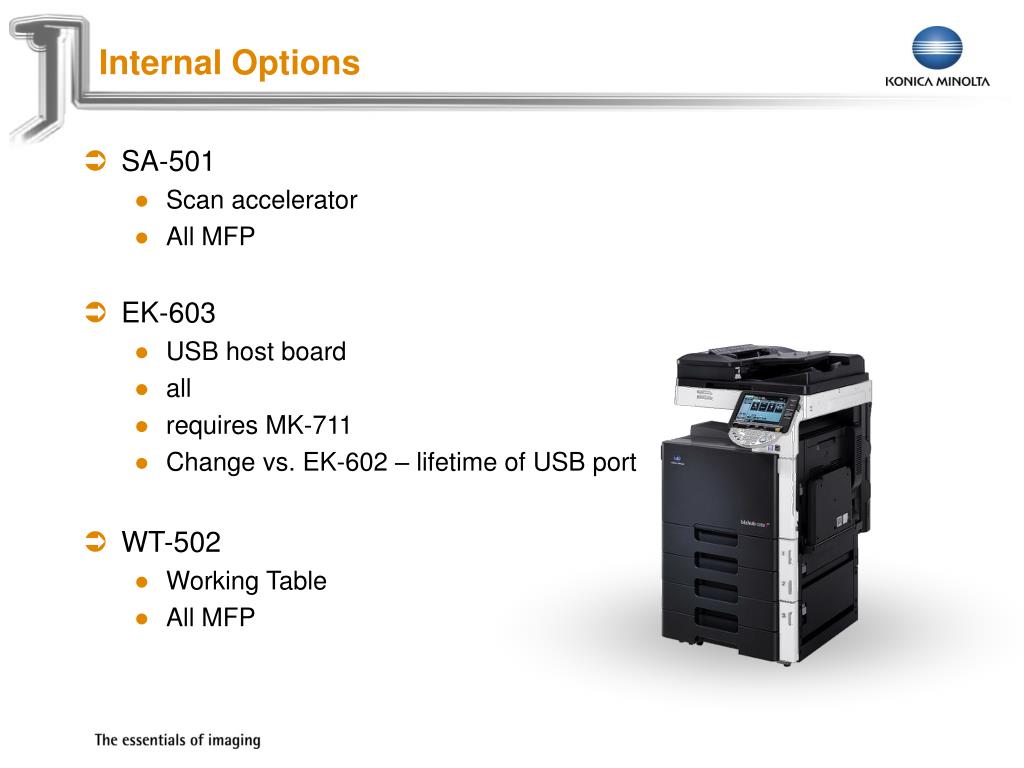

  19. Internal Options • SA-501 • Scan accelerator • All MFP • EK-603 • USB host board • all • requires MK-711 • Change vs. EK-602 – lifetime of USB port • WT-502 • Working Table • All MFP

  20. Authentication • AU-101 • Finger Vein authentication device • requires EK-603 • all • AU-201 • IC Card authentication device • requires EK-603 • all

  21. Authentication • AU-201 • Current status • searching for card supplier • Spec changes • No full support for IC cards • Type LEGIC PRIME - not supported • Type LEGIC Advant card (ISO14443A) - supported • Type LEGIC Advant card (ISO15693) - not supported • Type MIFARE - supported • Recommendation • Check as well for local supplier • Card print service provider

  22. Fiery • VI-504 • Fiery interface board • C253 and C353 • IC-409 • Fiery controller • System 8e based • 2.8 GHz / 512 MB / 80 GB • C253 and C353 • Identical to C550 Fiery

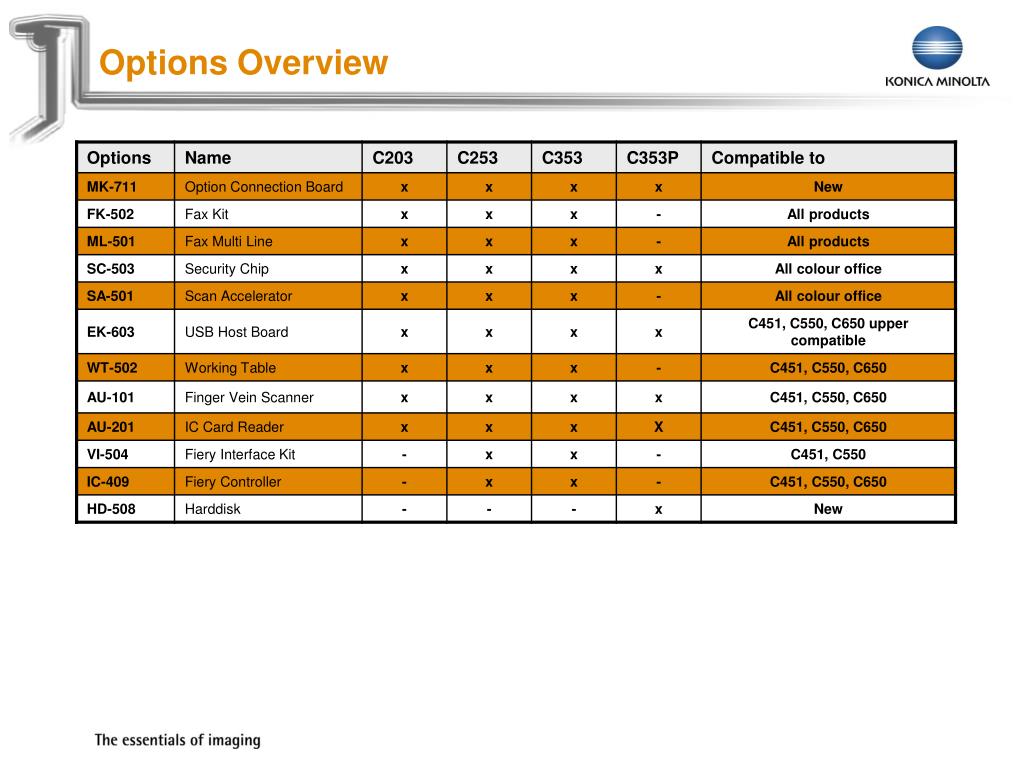

  23. Options Overview

  24. Options Overview

  25. Documentation • Documentation • 7 manuals as PDF EFIGS+NL • Copy • Print • Network Admin • Box • Scan/Fax/Network Fax • Fax driver • Approx. 1700 pages • New User Manual • User Function of all parts • All languages • Approx. 550 pages A4 • Printed

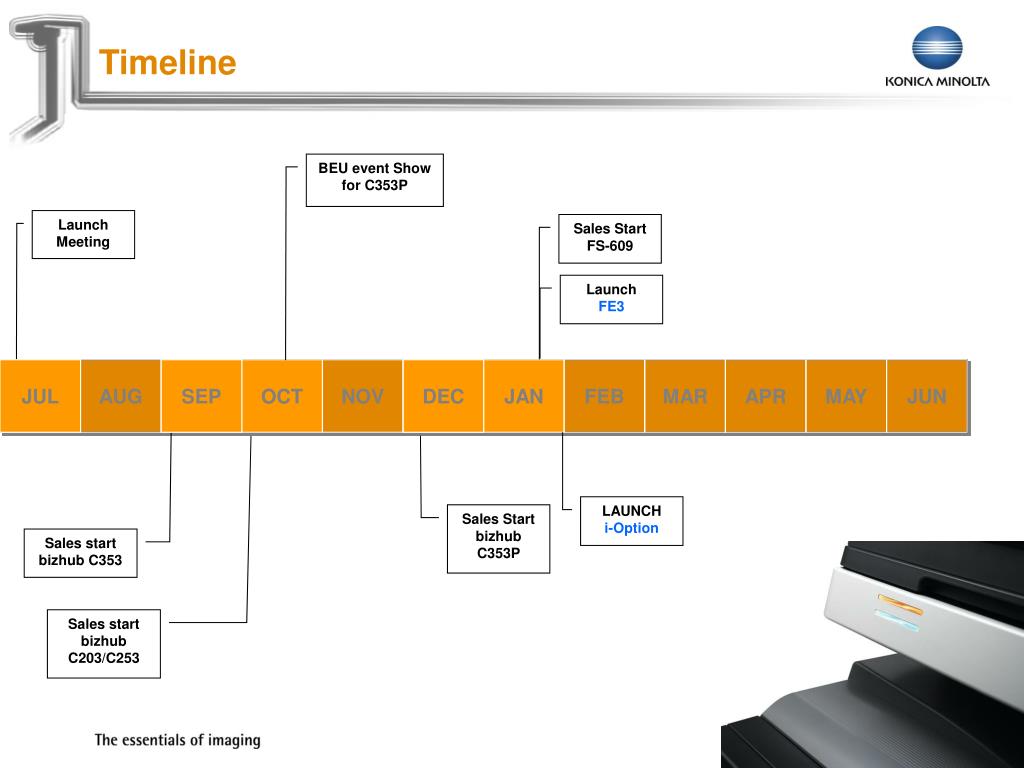

  26. Timeline BEU event Show for C353P Launch Meeting Sales Start FS-609 Launch FE3 JUL JUL AUG SEP SEP OCT NOV DEC DEC JAN FEB MAR APR MAY JUN LAUNCH i-Option Sales Start bizhub C353P Sales start bizhub C353 Sales start bizhub C203/C253
