  1. SiNVR – Video Management System

  2. SiNVR Video Management What is SiNVR? • Management systemfor digital und analog videosources • DVR forvideo and audio • Integratedvideoanalysis • Scalablesolutionevenforsmallinstallations • Modular toolsforcustomizedmodification • Open interfaceconceptforexternalsystemintegration

  3. SiNVR Video Management Philosophy • SiNVRisbased on standards • SiNVRpatchesseamlesslyinto IT-structures • SiNVRoffers open interfacesforexternalsystems • SiNVRis a client/serverstructurewithout a centralpedency • SiNVRconnectstheworld of analogue and digital video • SiNVRintegratesfacility and security technology • SiNVRoffersoptimizedprocessesfor large installation

  4. SiNVR Video Management Software • SiNVRdoes not needanythird-partysoftware • on customercomputers • An effectiveprogrammcodeaffords an installation and rebuildwithinoneminute • SiNVRdoes not changesystem software-settings • SiNVRcanbeused on smallcomputerswithoutaffectingtheresources

  5. SiNVR Video Management What offers SiNVR? • SiNVRis ONVIF 1 and 2 certified • SiNVRoffers a completeimplementation of everydemand of dataprotection • SiNVRisthefirst VMS with Common Criteria PPI0023 conformity • SiNVRis BGV-certifiedfortheapplicationoffinancialinstiutes (GER) • SiNVRisapplicated in morethan 200 projects, worldwide, overthe last 6 years • SiNVRsupportsvideosourceswith 50 MPixeland 100 fps • SiNVRmanages up to 16.000 videochannels, 512 workstations and 512 servers Data protection ONVIF 1 & 2 BGV certified Resolution Frame rate Projects 50 MPixel 100 fps > 200 Videochannels Workstations Server 512 512 16.000

  6. SiNVR Video Management Ergonomics • Clearuserinterface • Unavailablefunctions will behide • Free definablelayout • Multiple-monitor-operation • 50 video-windows at the same time • PTZ-videooverlayforcameracontrol • Digital zoom foreverysource • Functionkeyprogramming • Externalcontrolpanel • Seperatedtouchuserinterface

  7. SiNVR Video Management Video interface • Interface tomorethan 400 digitale videosystemsofeverysignificantproducer • ONVIF version 1 and 2 • Integrated encoderfor NTSC/PAL and HD-SDI • Integration of digital videorecorder • Remote-PC screenasvideosource • Decoder for analog conversion • Video wall and videomatrixcontrol • AnaloguePTZ-protocol • Video format MJPEG, MPEG-4 and H.264 • Audio supportfor AAC, G.711, G.726 and MPEG-Audio IP-Cameras IP-Encoder IP-Decoder Video matrix Analogue-PTZ DVRs HD-SDI Encoder Video walls Remote PCs

  8. SiNVR Video Management Data interface • SiNVRintegratesfacility-, IT- andsecuritytechnology • OPC-server and -client available • SNMP-agents and -manager • SQL-database MS-SQL, MySQL, ORACLE • Active Directory authentication • RTSP Server, OPC and SDK forexternalsystems Communication Intrusion Access control IT-Systems Automation Firedetection AutoCAD & DXF SQL-Database XML/SOAP

  9. SiNVR Video Management Integration into the IT world • SiNVRpatchesseamlesslyinto IT-world • Operating system Windows from XP 32/64 Bit to Server 2008 • Servers availablefor Linux and MacOS • Virtual environmentsaresupported • Hardenedoperatingsystem Windows 7 Embedded avoidupdates and virusprotection • SQL-databaseselectablebycustomer • SNMP monitoresnetworkcompenents • SNMP-agentsprovideseverystatus • Integrated harddiskmonitoringfortemperatureanddefectsectors

  10. SiNVR Video Management Components • SiNVRis a modular managementsystem • Components build an individual customersolution • All systemscommunicate via documentedstandardinterfaces • Interface servercommunicateswiththe outside world • Additional Services, such as cloud- and forensicservercompletethissolution Video server Workstations Video walls WEB-Clients Management Touch-PCs Interfaces Video analysis Services

  11. SiNVR Video Management Video server • Collecting video- andaudiostreams • Storingmediadata • Monitoring andmanagingofvideosources • Distributingmediastreams • Controlledtransfertoexternalsystems • Encoding of transmissions • Unicast/Multicastconversion • Optional with 32 analogueencoders per server • 64 channels, multiple in virtualenviroments • Dual-streamingsupport • Archiving on internaldisks, SAN, NAS • Archivingwith up to 16 TBytes per channel scrambling convert control archive SiNVR Server XXXX

  12. SiNVR Video Management SiNVR DVR 32/64 • Digital Hybrid recorderwith up to 32 analogue and 32 digital videoinputs • 800 frames/secondwith 4 CIF for analog inputs (32 x 25 fps) • FBAS/NTSC und optional HD-SDI inputs • Individual MJPEG/MPEG-4/H.264 encoding • Full integrationintoSiNVRmanagement • Economicencoderfordigitalisation of analoguetechnologies 32 x Analogue SiNVR DVR XXXX 32 x Digital

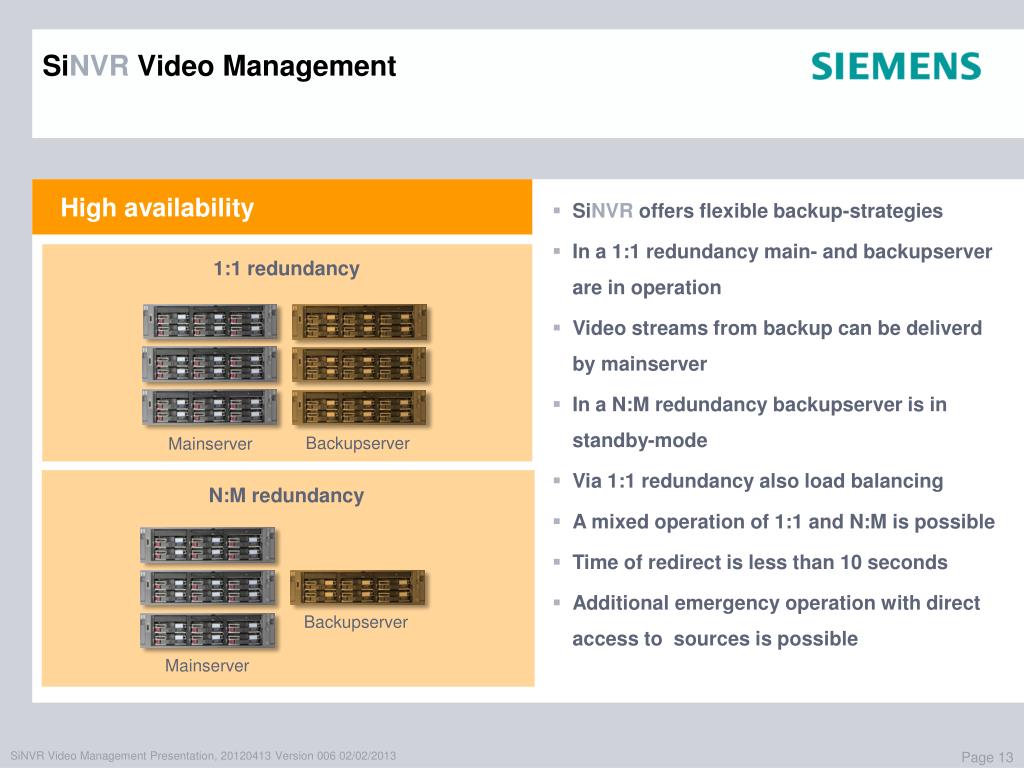

  13. SiNVR Video Management High availability • SiNVRoffers flexible backup-strategies • In a 1:1 redundancy main- andbackupserverare in operation • Video streamsfrombackupcanbedeliverdbymainserver • In a N:M redundancybackupserveris in standby-mode • Via 1:1 redundancy also loadbalancing • A mixedoperationof 1:1 and N:M ispossible • Time ofredirectislessthan 10 seconds • Additional emergencyoperationwithdirectaccesstosourcesispossible 1:1 redundancy Backupserver Mainserver N:M redundancy Backupserver Mainserver

  14. SiNVR Video Management Work stations • SiNVRworkstationssupportmultiple-displays • Notificationmanagement, graphicaldisplay, layout drawning and GIS-Clientavailable Graphicdisplay GIS/Site plans Main screen Secondaryscreen

  15. SiNVR Video Management Touch- and web clients • SiNVRoffers optional workstationsfortouch-application and WEB-Browser

  16. SiNVR Video Management Video wall • Video wall contolavailable on anyworkstation • Video streamscanbedragged to videowalls, decoders and work-stations • Interfaces supports AXIS decoders, Barco and Eyeviswalls and others

  17. SiNVR Video Management Message management • Integratedmessage and alert managementbased on SQL database • SecuredXML-transmissionwithoutdriverinstallation on Client • Access via user-definedqueries • Directrequest of recodedeventrecords • Acknowledging and commenting of alerts • Compilationofplay-back-layouts for multiple monitoringas a live- andarchive-display Video system Interfaces Third party States Events Alerts Alarmes States Events Alerts Alarmes Card numbers Scanner data Video analysis

  18. SiNVR Video Management Management server • Central monitoring of everycomponent • Directory serviceforconfiguration-backup and userdata • PTZ-prioritization • User managementwithActive Directory • Common Criteriauserlogging • Central statusdatabase • Update management • Archive of installationforservers and clients • Interface toexternalsystemanddata-sources • Fail-proofdue to dataredundancy of server and work-stations Monitoring Rights management Backup services PTZ-Verwaltung Management XXXX Video system Third party Database

  19. SiNVR Video Management Communication server • Scalablehigh-performancedataserver • Integration ofeverytechnicalsystem • Processing up to 100000 datapointswithcycles < 1 ms • Processing ofeverydata-type • OPC- and SOAP-interface • Seamlessaccess to videosystem • Interface to externalsystem Monitoring Control Ruleengine Calculation Communication XXXX Interfaces Thrird party Video system

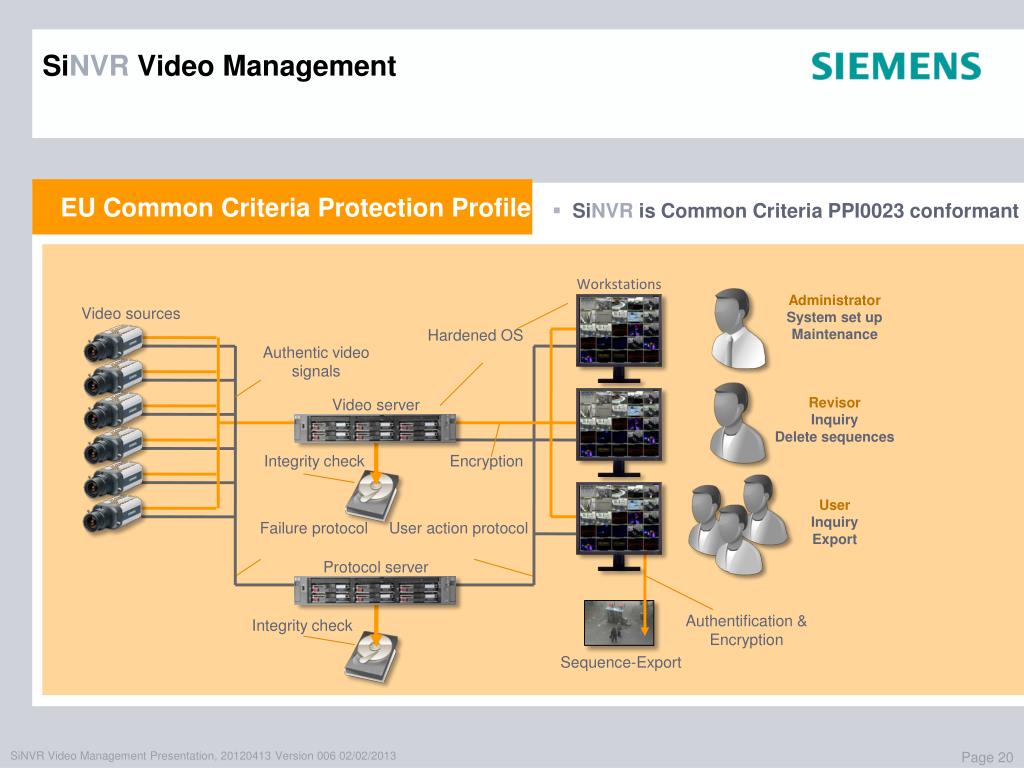

  20. SiNVR Video Management EU Common Criteria Protection Profile • SiNVRis Common Criteria PPI0023 conformant Workstations Administrator System set up Maintenance Video sources Hardened OS Authenticvideosignals Revisor Inquiry Deletesequences Video server Integrity check Encryption User Inquiry Export Failureprotocol User actionprotocol Protocolserver Authentification & Encryption Integrity check Sequence-Export

  21. SiNVR Video Management Privacy protection • SiNVRofferspixelated and hidefunction of picturecontent • Protection of privacy in public and private sectors • The functionisuseablewithineveryvideosource and useraccountdependent

  22. SiNVR Video Management Large project set up and maintanance • Thecompleteconfiguration of videosourcescanbemaintained via MS Excel™ • The serverholdsautomatically back upsforsystemrecovery • The serversuppliesinstallation-packagesforserver and clientset up • The server controls all clients, server, videosources and hard disks Management Clients Servers Services

  23. SiNVR Video Management Site plans • SiNVRcandirectlyread and displayAutoCAD™ and DXF™ -files • Thesite plan canbezoomed and scrolled • Layerscanbeindividuallyhided • Dynamicelementsareoverlayedautomatically • The sitemapcanbedirectlyallocatedfromthe CAD-system tothe VMS-work-stations • Thefunctionoffers a fast and exactconstruction of dynamical layout plans Kamera 1010

  24. SiNVR Video Management Camera tampering detection • Cyclic check of videosources • Detection of rotation, blurring , barrier, blinding and noise-level • Optional detection of contamination and bit rate • Permanent ortime-contolled check • Part ofthe video-analysis-server

  25. SiNVR Video Management Video analysis • SiNVRvideoanalysisoccurs on the video-server orseperatesystems • Camera tamperingdetection • Smoke detection • Parking-area-management • Motion analysis • Licenseplaterecognition • Object lost and foundalgorithm • Seamlessintegration of Siemens Siveillance and third-partyanalysis such as Aimetis, Bosch, iOmniscient, Viasys

  26. SiNVR Video Management Video forensics • Storage of videoanalysismeta-data on seperatedserver • Search and playback of anyevent

  27. SiNVR Video Management SiNVR Command • PSIM versionofSiNVR • Additional functionalities • Native AutoCAD-Client • GIS-Client forGEO-Daten • Automaticgraficlayout • Forensicclient • Extended messagemanagement • Dynamic messagecommentaries • Individual acknowledgementrequests

  28. SiNVR Video Management Typical system configuration Video sources Max 64 videosources per Server Storage on location/central Workstations Video server1 Video server-backup 1 Max 512 workstations Video sources Max 512 videoservers Communication server Access control Communication I/O … Videoserver N Redundancy al cluster Management server Video server-backup N Users Third partysystems Redundancy al cluster

  29. SiNVR Video Management SiNVR key features • 400 video-interfaces, ONVIF, DVRs, audio, analogue technology, HD-SDI and encoder • Integration offacility-, security-, communications- andinformationtechnology • Seamlessintegration to third party systems • Ergonomicallyand high effectively Software • Integratesvideoanalysis and forensics, automaticalcontrol of sabotage • Flexible Backup strategies • Automaticalconstrucionoflayout plan Video interfaces Data interfaces System integration Data protection Video analysis Software Large projects High available GIS/Site plans

  30. SiNVR Video Management References • More than 200 installationsworldwide Bayer Healthcare BLG Car terminals Credit Suisse EON Energy Formula One Course Portugal HDI Insurance HuggerLogistics IBM Zurich IWC Schaffhausen IKEA Ulm Nestlé Singen Police Braunschweig Police Hildesheim City of Frankfurt Swisscom Volkswagen AG Football stadium Bremen
