  1. A Rely-Guarantee-Based Simulation for Verifying Concurrent Program Transformations Hongjin Liang, XinyuFeng & Ming Fu Univ. of Science and Technology of China

  2. Concurrent program transformations: Source code Multithreaded Java programs T Target code Java bytecode Compilers for concurrent programs

  3. local d,t; d = 0; while(d==0){ t = x; d = cas(&x, t, t+1); } Impl. of x++; Concurrent program transformations: T x++; Compilers for concurrent programs Fine-grained impl. of algorithms & objects

  4. Concurrent program transformations: • Compilers for concurrent programs • Fine-grained impl. of algorithms & objects • Impl. of software transactional memory (STM) • Atomic block (transaction)  fine-grained impl.

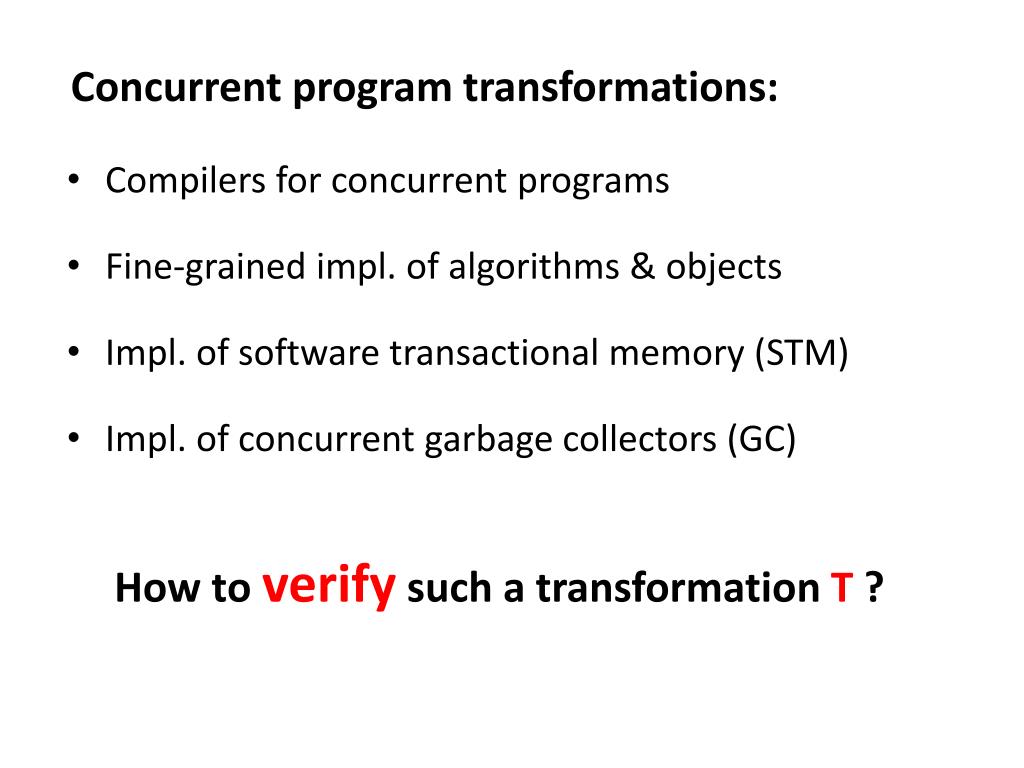

  5. Concurrent program transformations: How to verifysuch a transformation T ? Compilers for concurrent programs Fine-grained impl. of algorithms & objects Impl. of software transactional memory (STM) Impl. of concurrent garbage collectors (GC)

  6. How to define correctness of T ? T: Source  Target C Print a rectangle. C O T O Print a square. Print a triangle.   refinement O  C: O has no more observable behaviors (e.g. I/O events by print(…)) than C.

  7. How to define correctness of T ? T: Source  Target Correct(T): C, O. O = T(C)  O  C O  C: O has no more observable behaviors (e.g. I/O events by print(…)) than C.

  8. To verify a concurrent program transformation T : O1  C1 O2  C2  (Compositionality)  O1 || O2 C1 || C2 Correct(T): C, O. O = T(C)  O  C • T(C)  C • for trans. unit C 

  9.  is NOT compositional w.r.t. parallel composition: O1  C1 O2  C2 O: local t; t = x; x = t + 1; print( x ); C: x++; print( x ); O1 ||O2  C1 || C2 We have O  C, since output(O)  output(C) ; but we do NOT have O||O  C||C .

  10. RGSim = Rely/Guarantee + Simulation Our contribution: • Compositional w.r.t. parallel composition • A proof theory for verifying T • Stronger than O  C • Applications: optimizations, fine-grained obj., concurrent GC, …

  11. Background: simulation in CompCert [Leroy et al.] • Source state e … (C, ) (C’, ’) (C’’, ’’) * * • observable event (e.g. I/O)  • Target state   e (O, ) … (O’, ’) (O’’, ’’)

  12. Simulation in CompCert[Leroy et al.]  Can verify T for sequential programs  NOT compositional w.r.t. parallel composition O: local t; t = x; x = t + 1; print( x ); C: x++; print( x ); We haveO  C , but notO||OC||C

  13. Simulation in CompCert[Leroy et al.]  Can verify T for sequential programs  NOT compositional w.r.t. parallel composition • Consider NO environments • Simulation in process calculus (e.g. CCS [Milner et al.]) • Assume arbitrary environments •  Compositional •  Too strong: limited applications

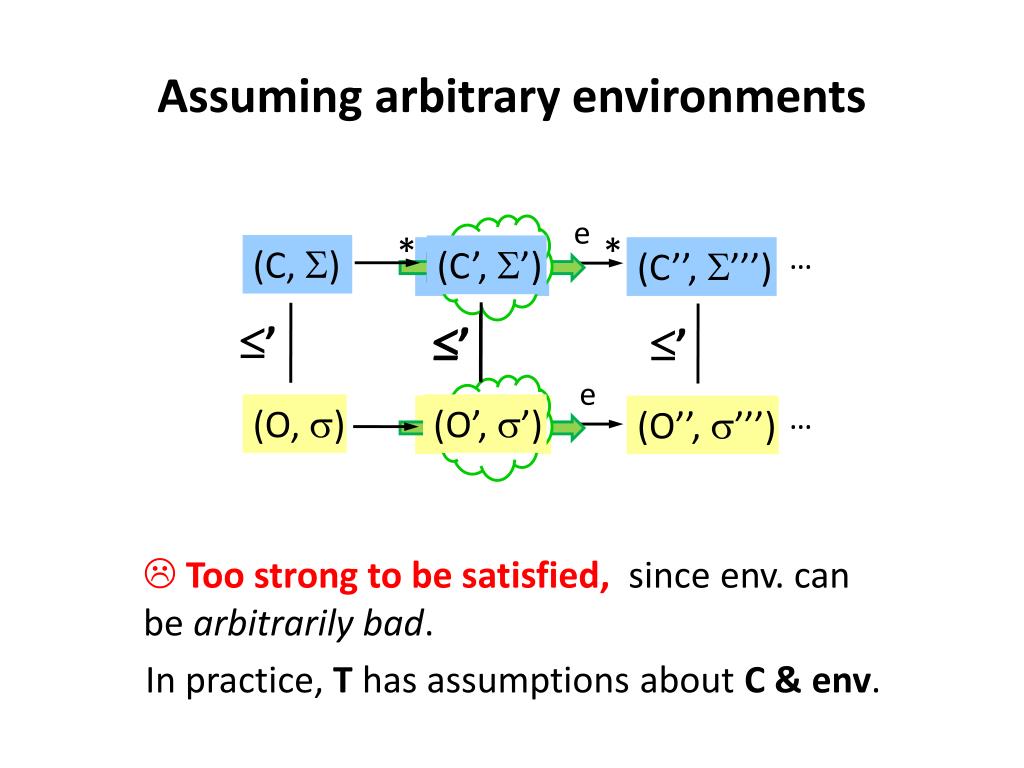

  14. Assuming arbitrary environments (C, ) (C’, ’) e * ’ ’ * env … (C’, ’’) (C’’, ’’’) (O’, ’) (O, ) ’ ’ e (O’’, ’’’) env … (O’, ’’) • Too strong to be satisfied, since env. can be arbitrarily bad. • In practice, T has assumptions about C & env.

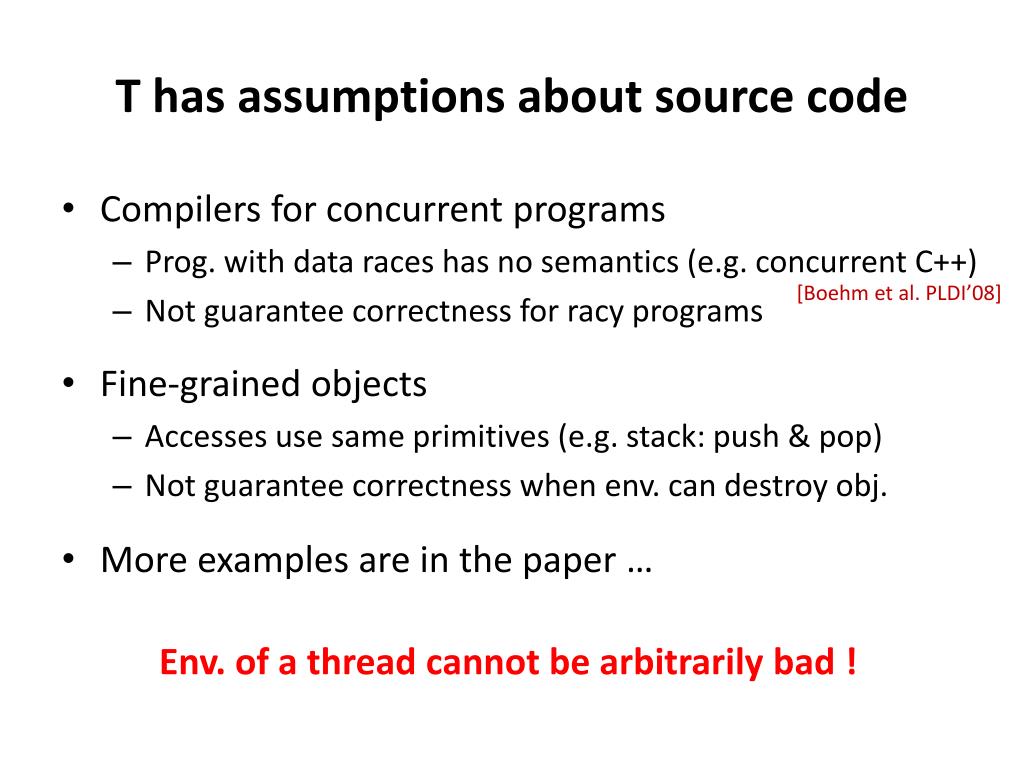

  15. T has assumptions about source code • Compilers for concurrent programs • Prog. with data races has no semantics (e.g. concurrent C++) • Not guarantee correctness for racy programs • Fine-grained objects • Accesses use same primitives (e.g. stack: push & pop) • Not guarantee correctness when env. can destroy obj. • More examples are in the paper … [Boehm et al. PLDI’08] Env. of a thread cannot be arbitrarily bad !

  16. Problems of existing simulations : • Considers noenv. in CompCert[Leroy et al.]  NOT compositional w.r.t. parallel composition • Assumes arbitraryenv. in process calculus (e.g. [Milner et al.])  Too strong: limited applications Our RGSim : • Parameterized with the interference with env. •  Compositional • More applications • Use rely/guarantee to specify the interference

  17. What is rely/guarantee? [Jones'83] • r: acceptable environment transitions • g: state transitions made by the thread y = y’ x = x’ y = y’ x = x’     ’ ’ ’ ’ Thread1 Thread2 • g2: • g1: • r2: • r1: Nobody else would update y Nobody else would update x I guarantee I would not touch x I guarantee I would not touch y Compatibility (Interference Constraints): • g2  r1 and g1  r2

  18. RGSim = Rely/Guarantee + Simulation * (C’, ’’) R … (C, ) (C’, ’) (C’’, ’’’) e * * G G ≲ ≲ ≲ ≲ (O’, ’) (O’, ’’) r … e (O, ) g g (O’’, ’’’) (O, r, g) ≲(C, R, G)

  19. Soundness theorem If we can find r, g, R and G such that • (O, r, g) ≲ (C, R, G) then we have: O  C

  20. Parallel compositionality (O1, r1, g1) ≲(C1, R1, G1) (O2, r2, g2) ≲(C2, R2, G2) g1  r2 g2  r1 G1  R2 G2  R1 (PAR) (O1||O2, r1r2, g1g2) ≲(C1||C2, R1R2, G1G2)

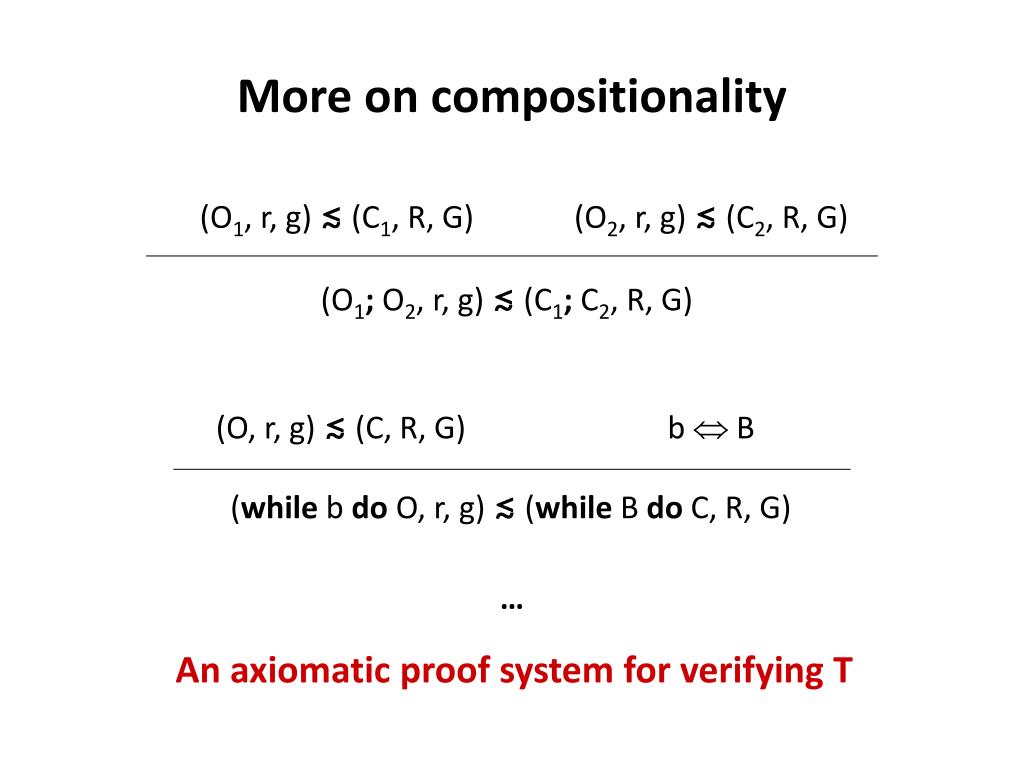

  21. More on compositionality (O1, r, g) ≲(C1, R, G) (O2, r, g) ≲(C2, R, G) (O1; O2, r, g) ≲(C1; C2, R, G) (O, r, g) ≲(C, R, G) b  B (while b do O, r, g) ≲(while B do C, R, G) … An axiomatic proof system for verifying T

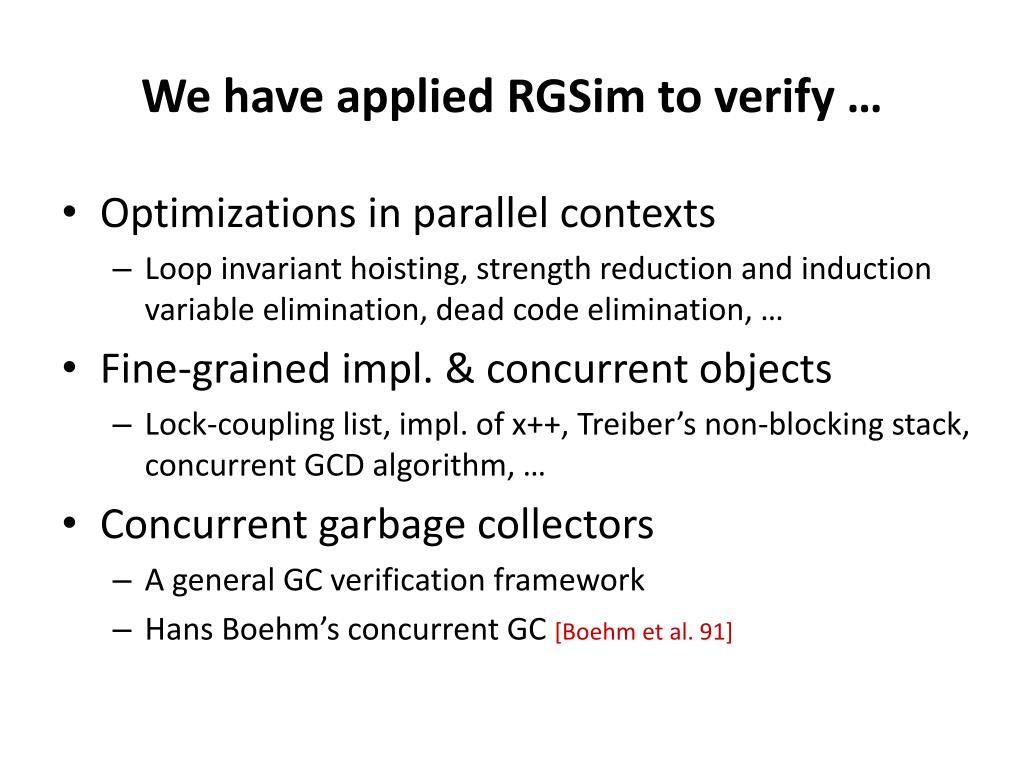

  22. We have applied RGSim to verify … • Optimizations in parallel contexts • Loop invariant hoisting, strength reduction and induction variable elimination, dead code elimination, … • Fine-grained impl. & concurrent objects • Lock-coupling list, impl. of x++, Treiber’s non-blocking stack, concurrent GCD algorithm, … • Concurrent garbage collectors • A general GC verification framework • Hans Boehm’s concurrent GC [Boehm et al. 91]

  23. rB(x) … wB(x, v) … aB() … Application: concurrent GC verification Programmer’s view of execution: ||AbsGC read x … write x, v … alloc … T Turns garbage into reusable memory Real execution: || GC code • Concurrent GC impl. = Barriers + GC code • How to defineCorrect(GC) ? Reduce to Correct(T) ! C. T(C) || GC code  C ||AbsGC

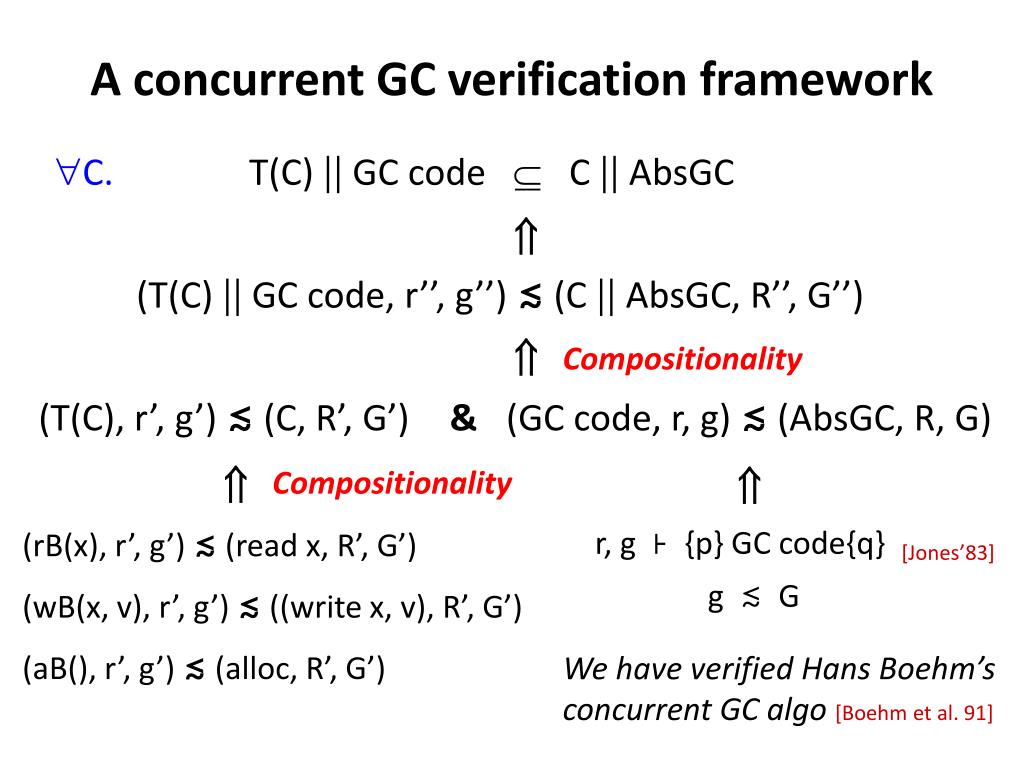

  24. A concurrent GC verification framework C. T(C) || GC code  C ||AbsGC  • (T(C) ||GC code, r’’, g’’) ≲(C ||AbsGC, R’’, G’’)  Compositionality • (T(C), r’, g’) ≲(C, R’, G’) • (GC code, r, g) ≲(AbsGC, R, G) & Compositionality   r, g ⊦{p} GC code{q} (rB(x), r’, g’) ≲(read x, R’, G’) (wB(x, v), r’, g’) ≲((write x, v), R’, G’) (aB(), r’, g’) ≲(alloc, R’, G’) [Jones’83] g ≲G We have verified Hans Boehm’s concurrent GC algo[Boehm et al. 91]

  25. Conclusion • RGSim= Rely/Guarantee + Simulation • Idea: parameterized with interference with env. • Compositional! • A proof theory for verifying T • Optimizations, fine-grained obj., concurrent GC, … http://kyhcs.ustcsz.edu.cn/relconcur/rgsim
