Modeling the model athlete

Modeling the Model Athlete

Simon Fothergill,

Fourth Year Ph.D. student,

Digital Technology Group, Computer Laboratory,

University of Cambridge

Automatic Coaching of Rowing Technique

DTG Monday Meeting, 10th November 2008

Based on paper:

Modelling the Model Athlete : Automatic Coaching of Rowing Technique; Simon Fothergill, Rob Harle, Sean Holden; S+SSPR08; Orlando, Florida, USA, December 2008


Supplementary sports coaching
Supplementary Sports coaching

  • Feedback is vital

  • Rowing technique is complex, precise and easy to capture

  • Good coaches aren’t enough

  • Sensor signals need interpreting

  • Biomechanical rules are complex and require specific sensors, if they exist at all


Pattern recognition

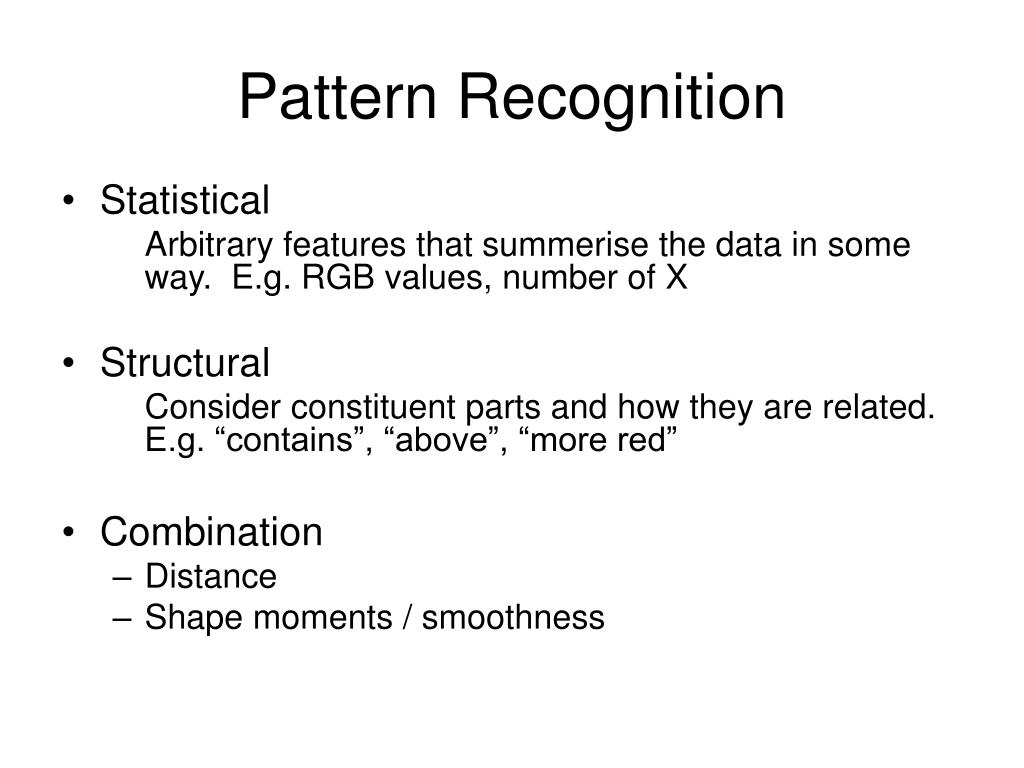

Pattern Recognition

  • Statistical

    Arbitrary features that summerise the data in some way. E.g. RGB values, number of X

  • Structural

    Consider constituent parts and how they are related. E.g. “contains”, “above”, “more red”

  • Combination

    • Distance

    • Shape moments / smoothness


System overview
System overview

Population of

strokes

Individual

aspect of

technique

Good

Stroke quality classifier

stroke

Bad

Motion capture system Lightweight markers

Preprocessing of motion data

Feature extraction

Classification


Motion capture
Motion capture

  • Bat system

  • Inertial sensors

  • Optical motion capture

    • VICON

    • Nintendo Wii controllers

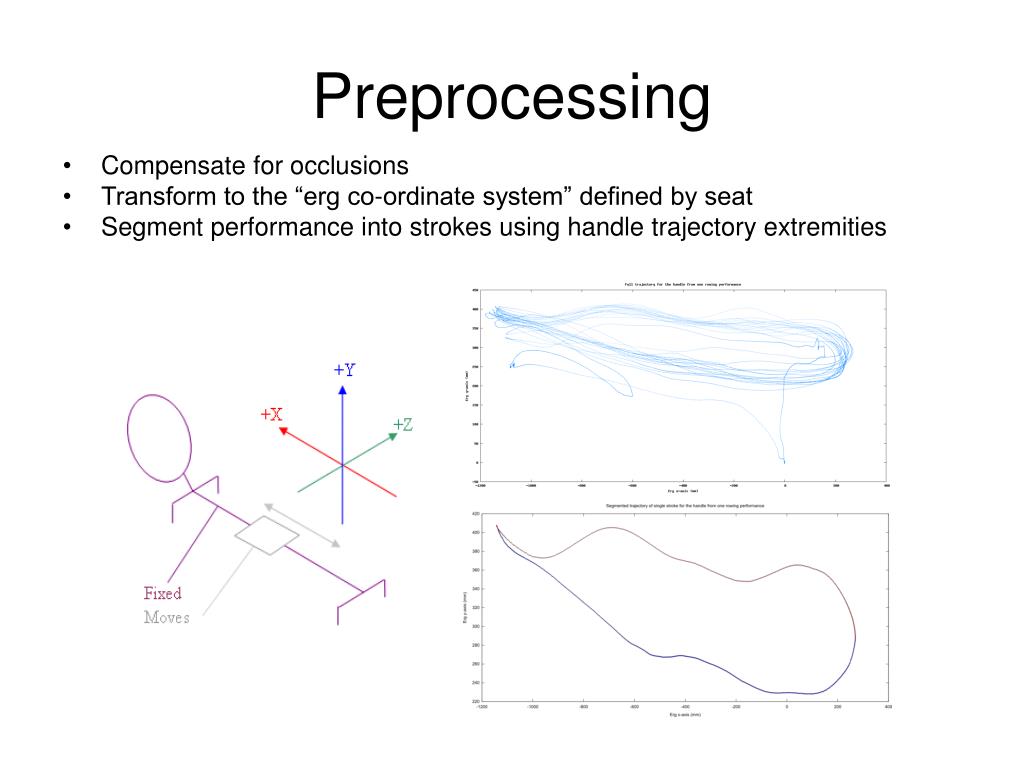

Preprocessing
Preprocessing

  • Compensate for occlusions

  • Transform to the “erg co-ordinate system” defined by seat

  • Segment performance into strokes using handle trajectory extremities


Feature extraction
Feature extraction

  • Art

  • Modified various algorithms until found “a good one” for a set of strokes where each stroke is obviously different in over-all quality.

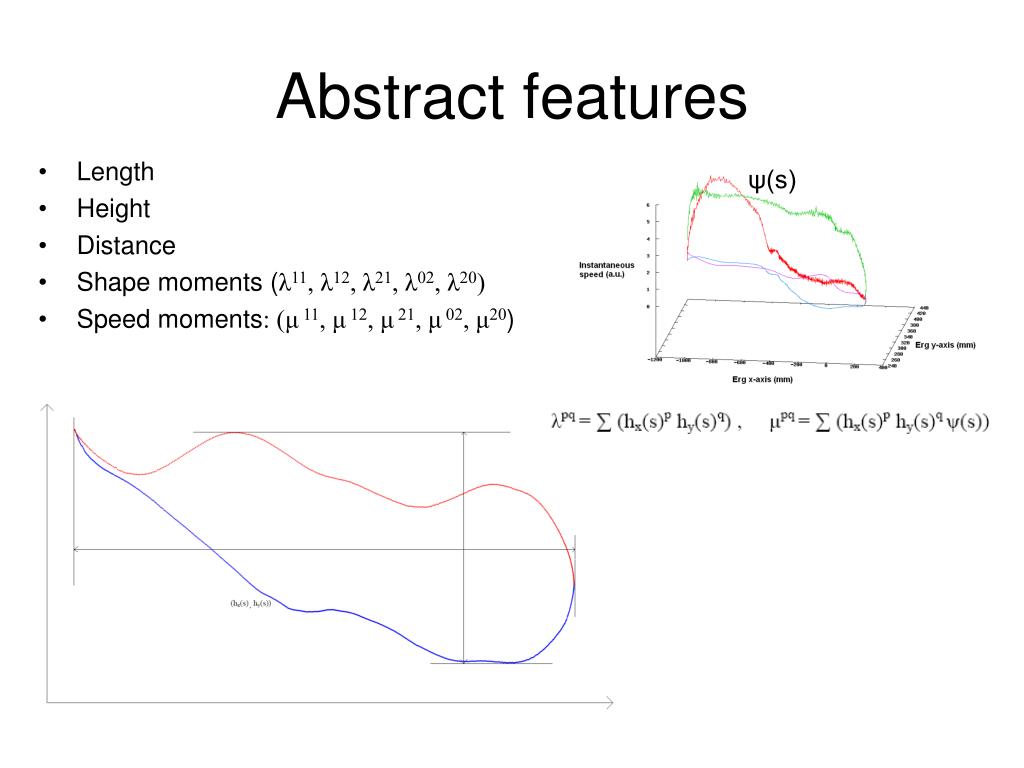

Abstract features
Abstract features

  • Length

  • Height

  • Distance

  • Shape moments (λ11, λ12, λ21, λ02, λ20)

  • Speed moments: (μ 11, μ 12, μ 21, μ 02, μ20)

ψ(s)


Physical performance features

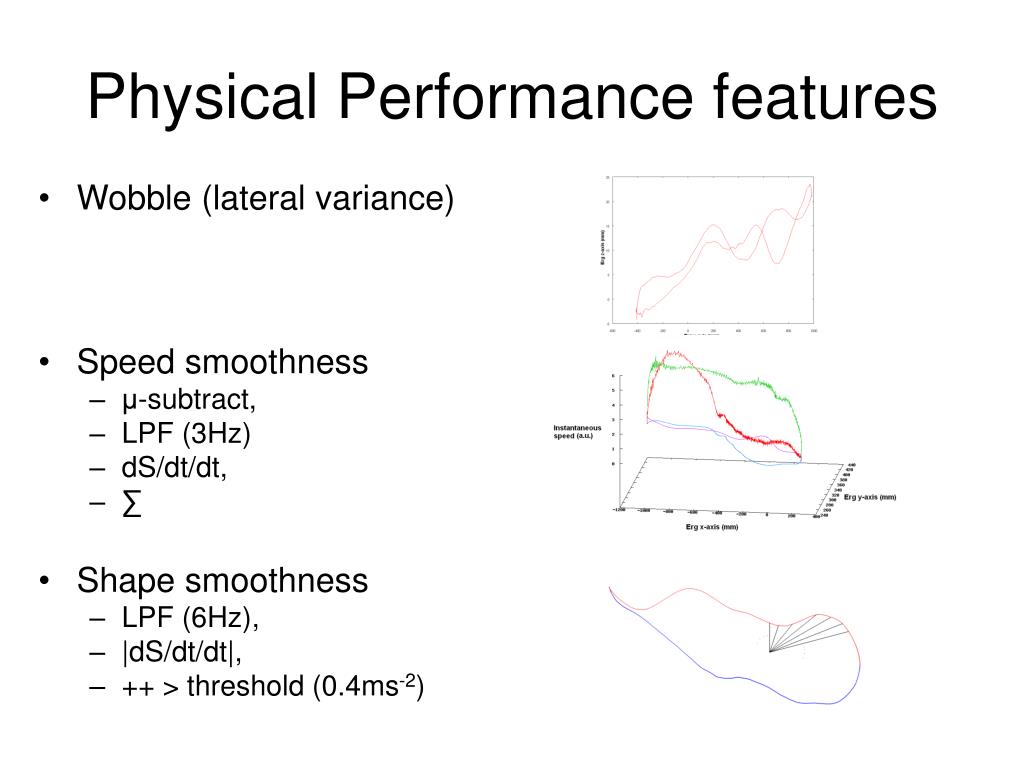

Physical Performance features

  • Wobble (lateral variance)

  • Speed smoothness

    • μ-subtract,

    • LPF (3Hz)

    • dS/dt/dt,

  • Shape smoothness

    • LPF (6Hz),

    • |dS/dt/dt|,

    • ++ > threshold (0.4ms-2)

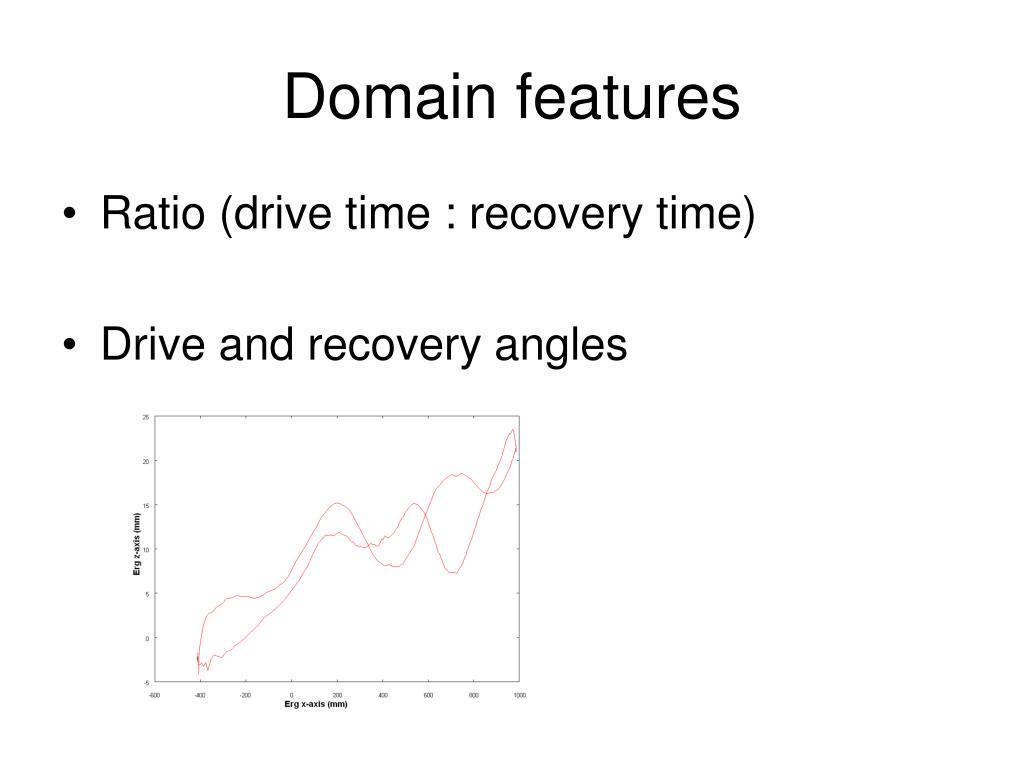

Domain features
Domain features

  • Ratio (drive time : recovery time)

  • Drive and recovery angles


System overview1
System overview

Population of

strokes

Individual

aspect of

technique

Good

Stroke quality classifier

stroke

Bad

Motion capture system Lightweight markers

Preprocessing of motion data

Feature extraction

Classification


Machine learning
Machine learning

  • Normalisation and Negation

    • Each feature’s values are normalised to roughly between 0 and 1

    • Highly negatively correlated features are negated

    • Good strokes are scored as 1

    • Bad strokes are scored as 0


Machine learning1

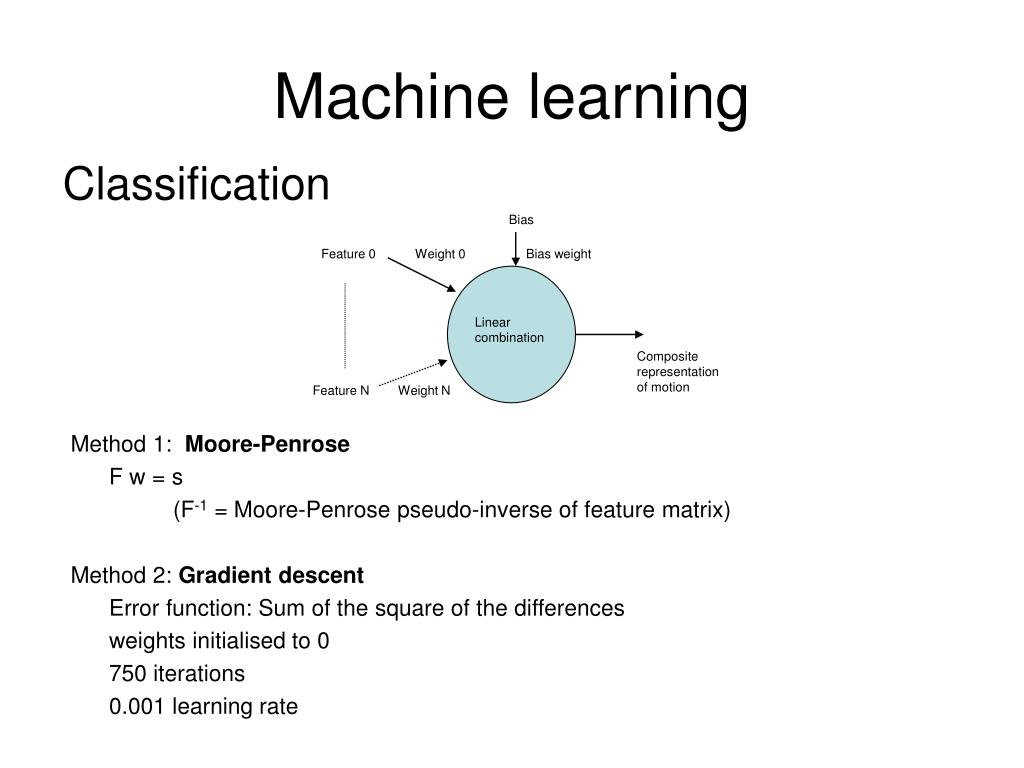

Bias

Feature 0

Weight 0

Bias weight

Linear combination

Composite representation of motion

Feature N

Weight N

Machine learning

Classification

Method 1: Moore-Penrose

F w = s

(F-1 = Moore-Penrose pseudo-inverse of feature matrix)

Method 2: Gradient descent

Error function: Sum of the square of the differences

weights initialised to 0

750 iterations

0.001 learning rate


Machine learning2

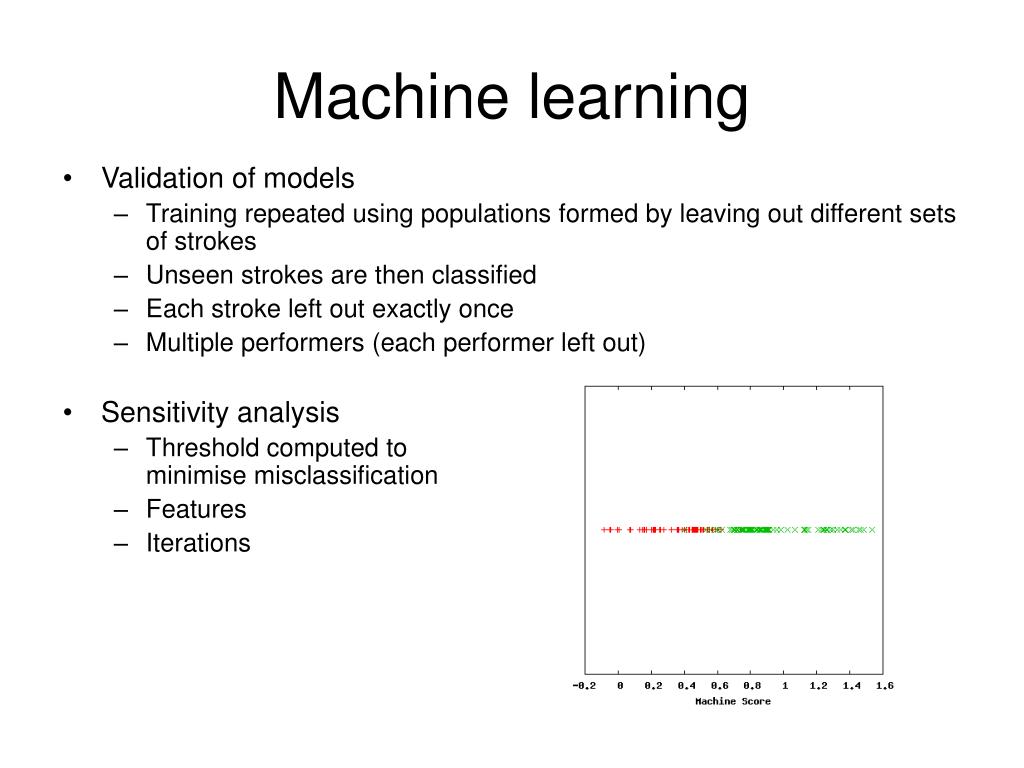

Machine learning

  • Validation of models

    • Training repeated using populations formed by leaving out different sets of strokes

    • Unseen strokes are then classified

    • Each stroke left out exactly once

    • Multiple performers (each performer left out)

  • Sensitivity analysis

    • Threshold computed to minimise misclassification

    • Features

    • Iterations


Empirical validation

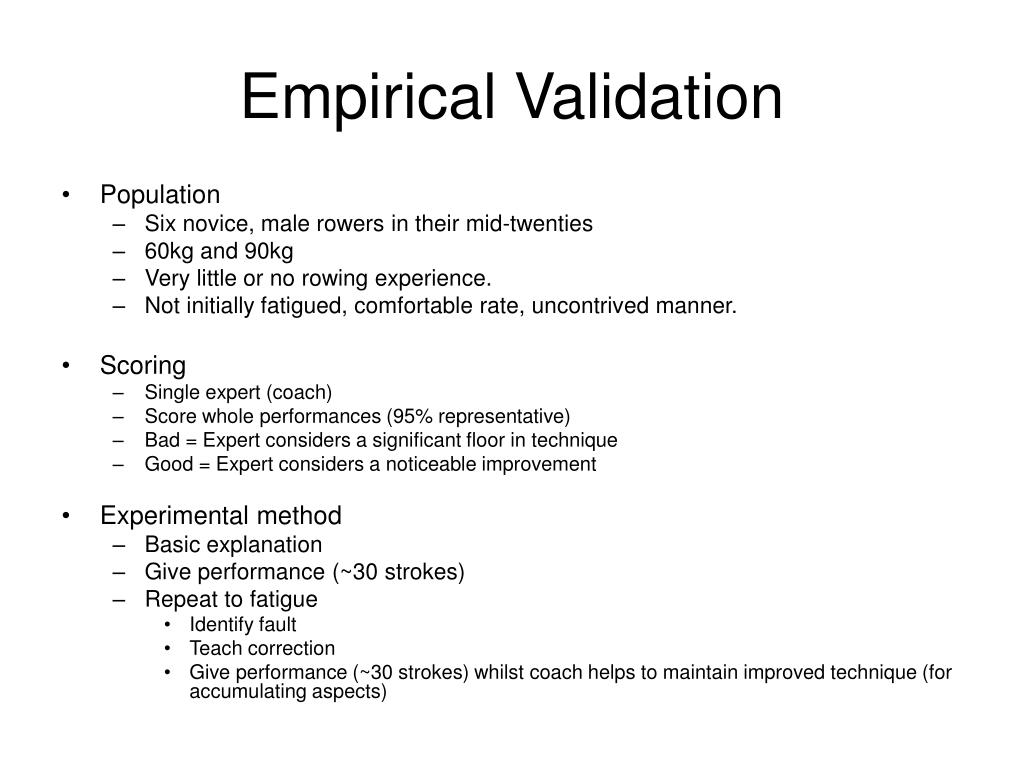

Empirical Validation

  • Population

    • Six novice, male rowers in their mid-twenties

    • 60kg and 90kg

    • Very little or no rowing experience.

    • Not initially fatigued, comfortable rate, uncontrived manner.

  • Scoring

    • Single expert (coach)

    • Score whole performances (95% representative)

    • Bad = Expert considers a significant floor in technique

    • Good = Expert considers a noticeable improvement

  • Experimental method

    • Basic explanation

    • Give performance (~30 strokes)

    • Repeat to fatigue

      • Identify fault

      • Teach correction

      • Give performance (~30 strokes) whilst coach helps to maintain improved technique (for accumulating aspects)


Empirical validation1
Empirical Validation

  • For an Individual and specific aspect

    • Training just that single aspects

    • Recognition of that single aspects with realistic combinations of different qualities for different aspects


Empirical validation2
Empirical Validation

  • Across Individuals


Discussion and conclusions

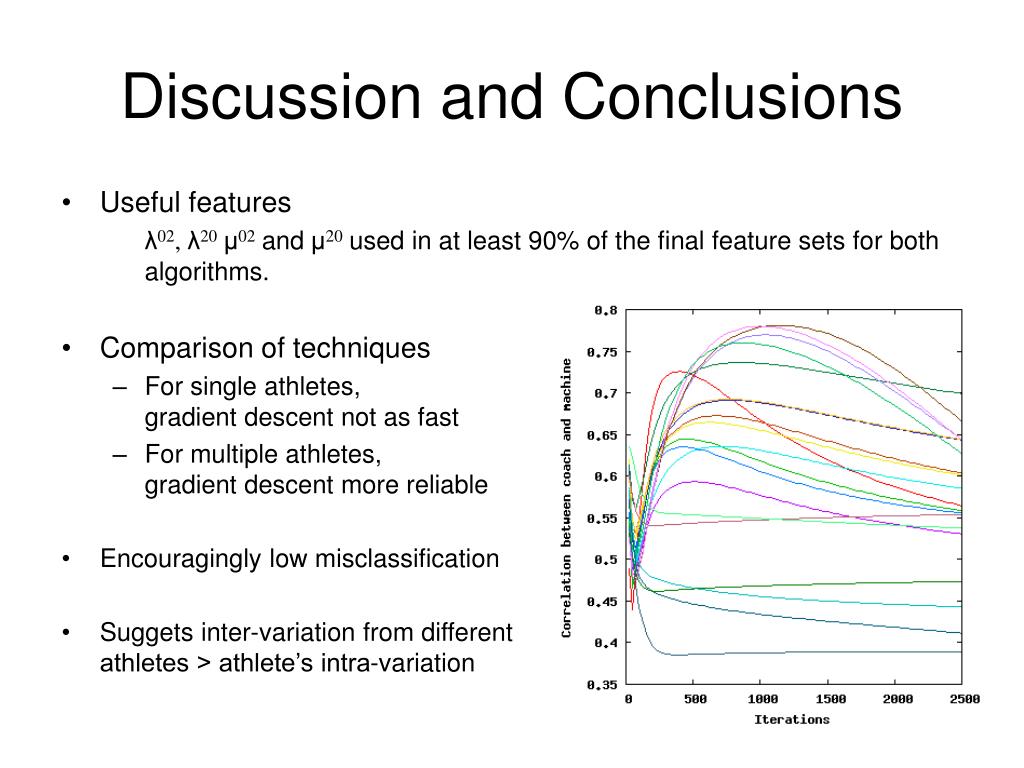

Discussion and Conclusions

  • Useful features

    λ02, λ20μ02andμ20used in at least 90% of the final feature sets for both algorithms.

  • Comparison of techniques

    • For single athletes, gradient descent not as fast

    • For multiple athletes, gradient descent more reliable

  • Encouragingly low misclassification

  • Suggets inter-variation from different athletes > athlete’s intra-variation

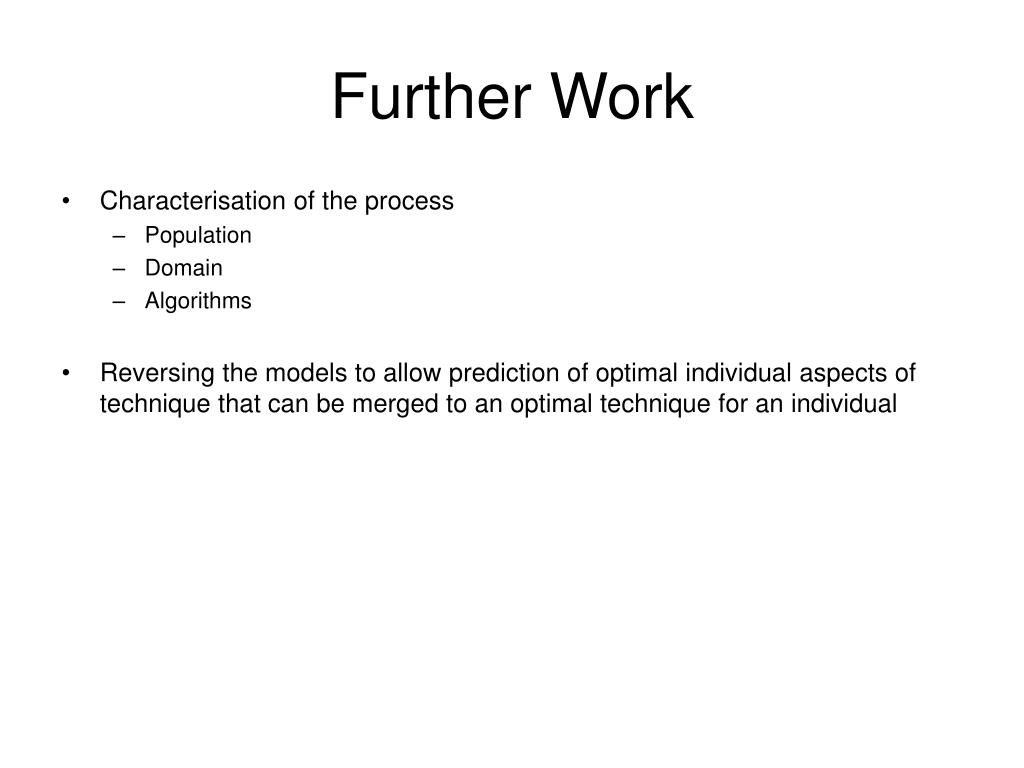

Further work
Further Work

  • Characterisation of the process

    • Population

    • Domain

    • Algorithms

  • Reversing the models to allow prediction of optimal individual aspects of technique that can be merged to an optimal technique for an individual


References
References

  • Modelling the Model Athlete : Automatic Coaching of Rowing Technique; Simon Fothergill, Rob Harle, Sean Holden; S+SSPR08; Orlando, Florida, USA, December 2008

    • Ilg, Mezger & Giese. Estimation of Skill Levels in Sports Based on Hierarchical Spatio-Temporal Correspondences. DAGM 2003, LNCS 2781, pp. 523-531, 2003.

    • Murphy, Vignes, Yuh, Okamura. Automatic Motion Recognition and Skill Evaluation for Dynamic Tasks. EuroHaptics 2003, 2003.

    • Gordon. Automated Video Assessment of Human Performance. J. Greer (ed) Proceedings of AI-ED 95. pp. 541-546, 1995.

    • Rosen, Solazzo, Hannaford & Sinanan. Objective Laparoscopic Skills Assessments of Surgical Residents Using Hidden Markov Models Based on Haptic Information and Tool/Tissue Interactions. The Ninth Conference on Medicine Meets Virtual Reality, 2001.

  • Joint IAPR International Workshops on Structural and Syntactic Pattern Recognition and Statistical Techniques in Pattern Recognition (S+SSPR 2008) Orlando, Florida, USA, December 4-6, 2008 (http://ml.eecs.ucf.edu/ssspr/index.php)

  • 19th International Conference of Pattern Recognition, ICPR 2008 (http://www.icpr2008.org/)

  • Computer Laboratory, University of Cambridge (www.cl.cam.ac.uk)


Acknowledgements

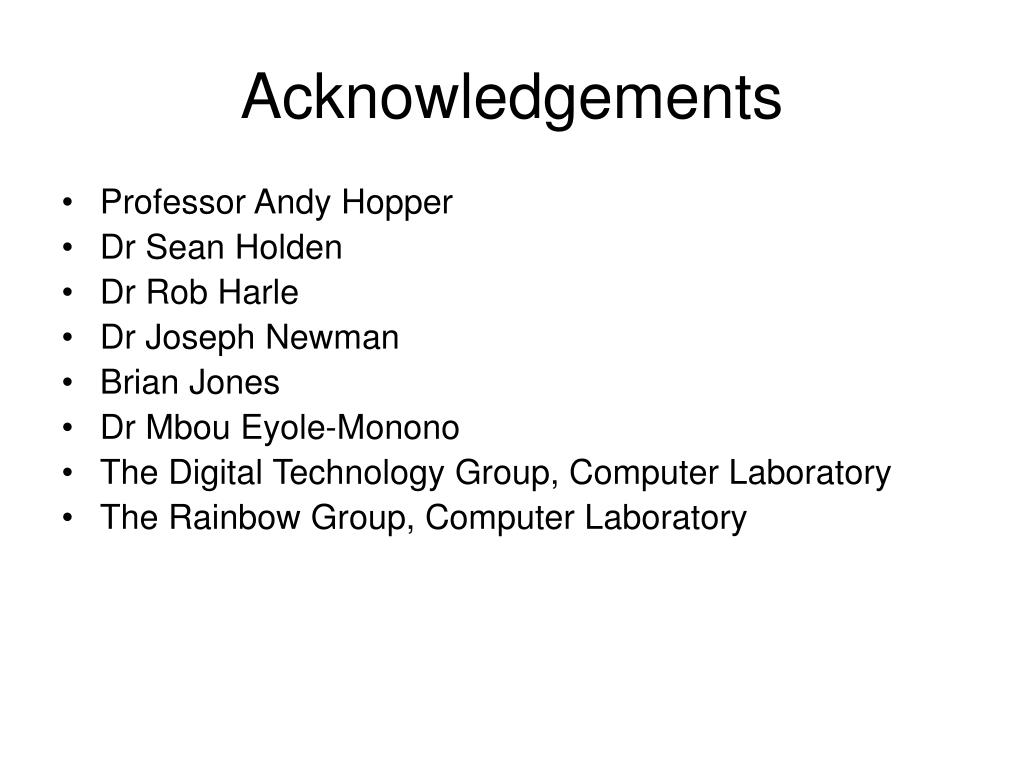

Acknowledgements

  • Professor Andy Hopper

  • Dr Sean Holden

  • Dr Rob Harle

  • Dr Joseph Newman

  • Brian Jones

  • Dr Mbou Eyole-Monono

  • The Digital Technology Group, Computer Laboratory

  • The Rainbow Group, Computer Laboratory


Thank you
Thank you!

Questions?
