Presentation Transcript


Innovative surveying solutions

Sunflower Pump Station Trough and Auger Rehabilitation - Pump No. 2

Innovative Surveying Solutions

Presented by Timothy R. Case, PLS


Laser scanning equipment

Laser Scanning Equipment


Auger scan scope of services

Auger Scan – Scope of Services

  • Perform High Definition Laser Scanning

  • Provide laser scanning of the final rehabilitated trough area and auger flights after all coating systems have been applied.

  • Compile point cloud data to assemble a three dimensional model of the  new cradle (trough) and auger in Cloud Worx (or equal) software (Cyclone).  The rehabilitated concrete cradle shall be represented by a triangulated surface together with the rotational axis of the bearing plates.  Submit graphical representation of trough and auger flights based on elevation to the Sanitation District for documentation.

  • The gap between the finish surface of the auger flight edges and the finish surface of the trough shall not exceed 0.50 inches nor be less than 0.25 inches along the entire length of the trough to auger interface.

  • If the gap is not as specified, the Contractor shall make corrections and remediate the auger flight(s) outside diameter(s) and/or surface of the trough prior to auger being installed.  The Contractor shall re-scan and re-validate the remedial work with the laser scanner to verify that the gap is within tolerances..  A stamped and signed report shall be submitted by the surveyor documenting that the surfaces are within tolerances prior to reinstallation.


Auger scan photo of auger in its rehabilitation cradle

Auger ScanPhoto of Auger in its Rehabilitation Cradle


Auger scan photo of auger in its rehabilitation cradle1

Auger ScanPhoto of Auger in its Rehabilitation Cradle


Auger scan photo of auger in its rehabilitation cradle2

Auger ScanPhoto of Auger in its Rehabilitation Cradle


Auger scan photo of auger in its rehabilitation cradle3

Auger ScanPhoto of Auger in its Rehabilitation Cradle


Trough scan

Trough Scan


Trough scan1

Trough Scan


Trough scan2

Trough Scan


Auger registration

Auger Registration

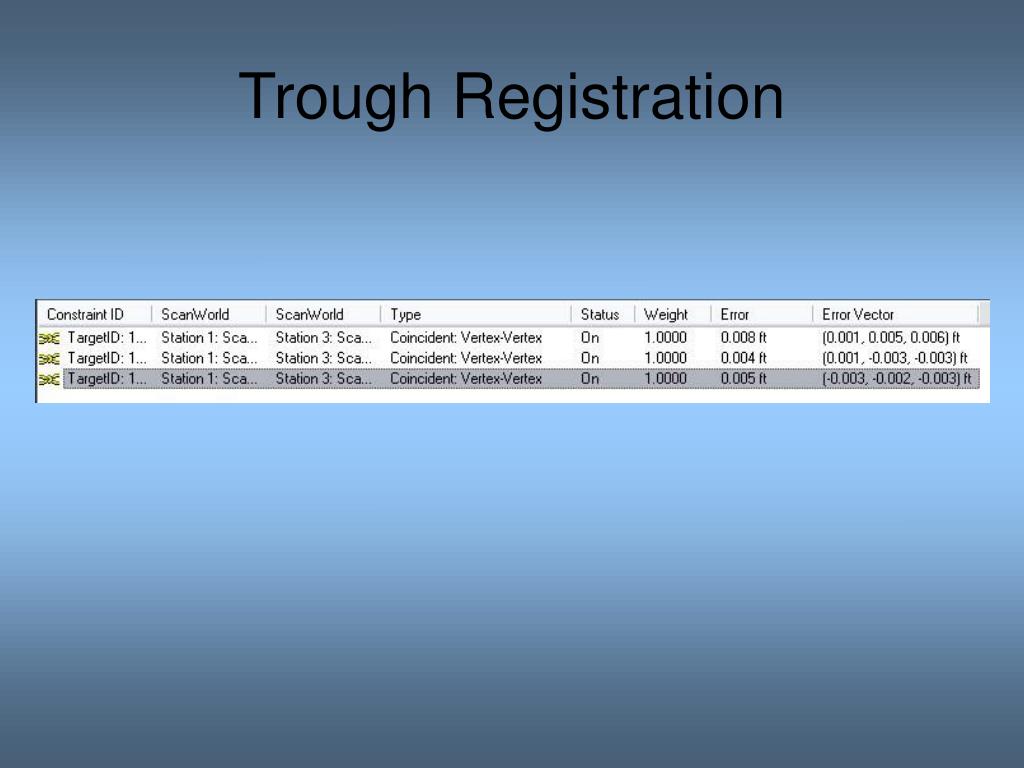

Trough registration

Trough Registration


Auger point cloud

Auger Point Cloud


Auger point cloud surrounding artifacts removed

Auger Point CloudSurrounding Artifacts Removed

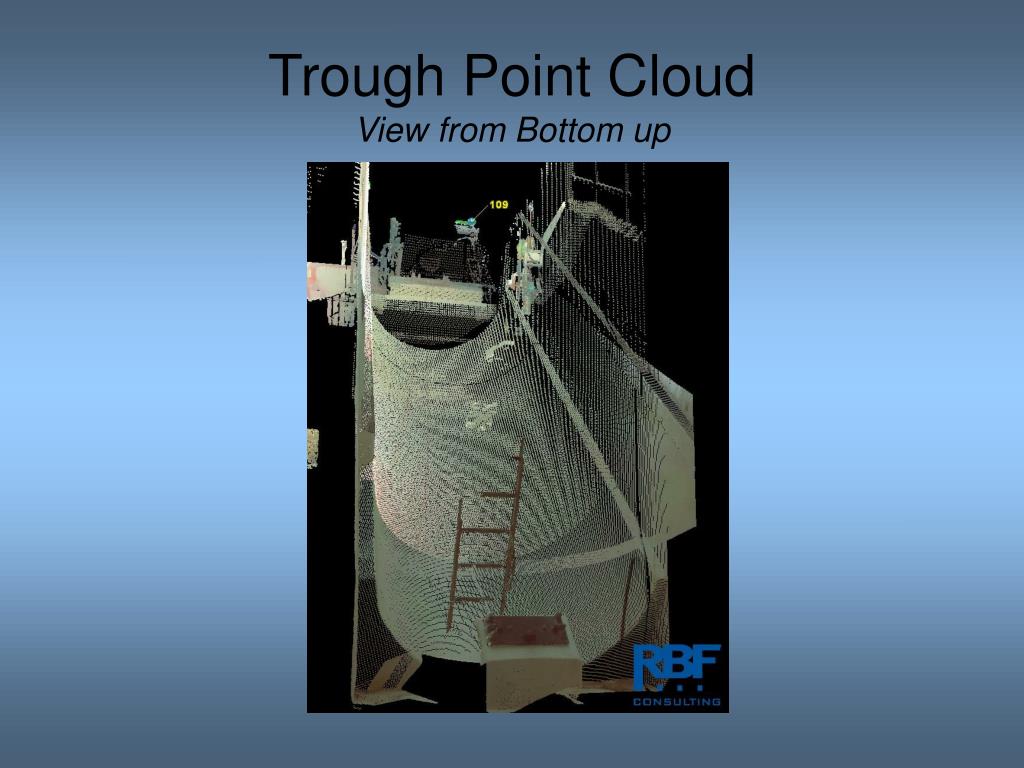

Trough point cloud view from bottom up

Trough Point CloudView from Bottom up


Trough point cloud view from top down

Trough Point CloudView from Top Down


Trough radius

Trough Radius


Rotational radius station 0 00 set at bolt hole

Rotational RadiusStation 0.00 set at Bolt Hole


Rotational radius view along z axis

Rotational RadiusView along Z Axis

Y-Axis

Station 0+00 set at Bolt Hole

X-Axis


Rotational radius view along y axis

Rotational RadiusView Along Y-Axis

Z-Axis – Stationing

Sta 3.20

X-Axis

Sta 0.00


Innovative surveying solutions

Rotational Radius VerificationCalculated from Total Station Measurements to Targets on Auger Rotated Through Three Positions


Auger flight radius calculations limit box with 1 ft slice profile view

Auger Flight Radius CalculationsLimit Box with 1-ft slice – Profile View


Auger flight radius calculations limit box with 1 ft slice plan view

Auger Flight Radius CalculationsLimit Box with 1-ft slice – Plan View

X: -1.809

Y: 4.413

Z: 3.50 (Station)

Scan Shadow

Extracted Point

Coordinates from

Point Cloud

Reference

Beam

X: -3.541

Y: -2.759

Z: 3.20 (Station)

Scan Shadow


Auger flight radius calculations

Auger Flight Radius Calculations


Final report

Final Report

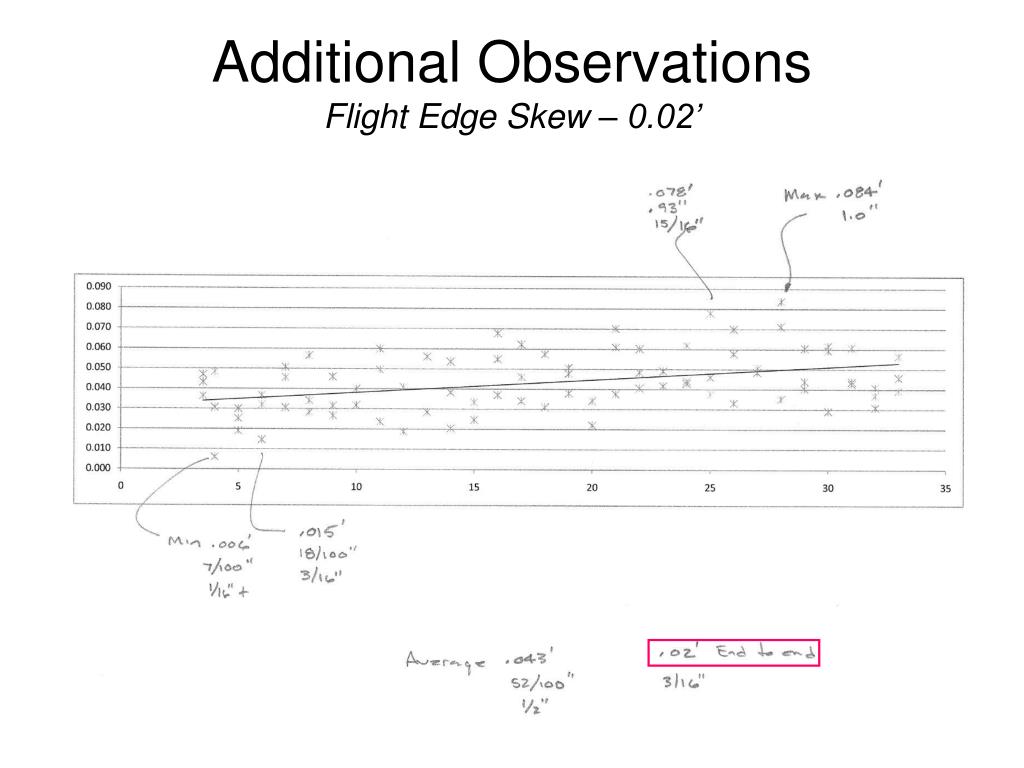

Additional observations flight edge skew 0 02

Additional ObservationsFlight Edge Skew – 0.02’


Additional observations reference beam skew 0 02 0 03 note same skew as seen on auger flight edges

Additional ObservationsReference Beam Skew – 0.02’-0.03’Note : Same Skew as seen on Auger Flight Edges

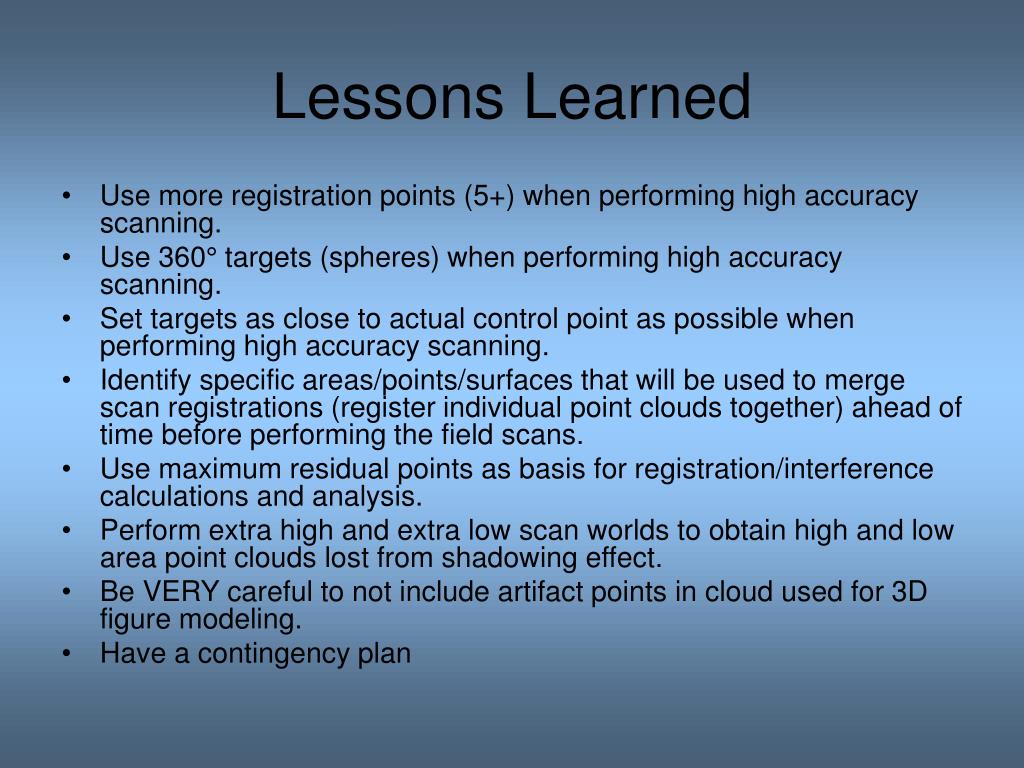

Lessons learned

Lessons Learned

  • Use more registration points (5+) when performing high accuracy scanning.

  • Use 360° targets (spheres) when performing high accuracy scanning.

  • Set targets as close to actual control point as possible when performing high accuracy scanning.

  • Identify specific areas/points/surfaces that will be used to merge scan registrations (register individual point clouds together) ahead of time before performing the field scans.

  • Use maximum residual points as basis for registration/interference calculations and analysis.

  • Perform extra high and extra low scan worlds to obtain high and low area point clouds lost from shadowing effect.

  • Be VERY careful to not include artifact points in cloud used for 3D figure modeling.

  • Have a contingency plan


Questions

Questions
