  1. The PrimEx HyCal Calorimeter Outline • HyCal calorimeter • PbW04 detectors • Resolutions • Transition region A. Gasparian NC A&T State University, Greensboro, NC GlueX Col meeting, A. Gasparian 1

  2. The PrimEx HyCal Calorimeter • 1152 PbWO4 individual crystal detectors (70 x 70 cm2 insertion) • 576 Lead Glass detectors GlueX Col meeting, A. Gasparian

  3. The HYCAL Calorimeter (Crystal part) GlueX Col meeting, A. Gasparian

  4. PbWO4 Crystal Dimensions • Tolerances (mm): • 20.5 + 0.0 - 0.1 • 180.0 + 0.3 -0.0 • Geometrical size: • 20.5 x 20.5 x 180.0 mm3 • Specified • Measured A. Gasparian

  5. PbWO4: Optical Properties A. Gasparian

  6. PbWO4: Position Resolution vs. Energy • Detector characteristics and resolution have been done in different ways: • with secondary electron beam (PS in Hall B); • with low intensity tagged photon beam (Hall B tagger) σ =2.7 mm @ 1. GeV

  7. PbWO4: Position Resolution vs. impact coordinate

  8. Lead-Glass: Position Resolutionvs. Energy σ =5.6 mm @ 1. GeV

  9. PbWO4: Energy Resolution vs. Energy σ =2.45% @ 1. GeV

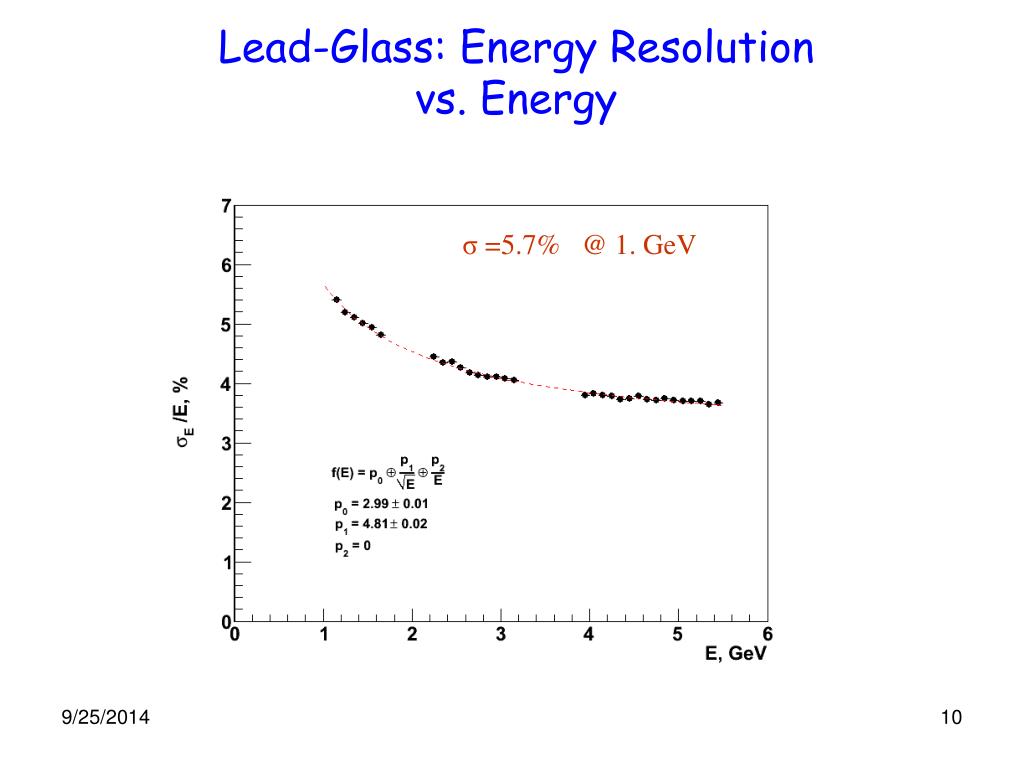

  10. Lead-Glass: Energy Resolution vs. Energy σ =5.7% @ 1. GeV

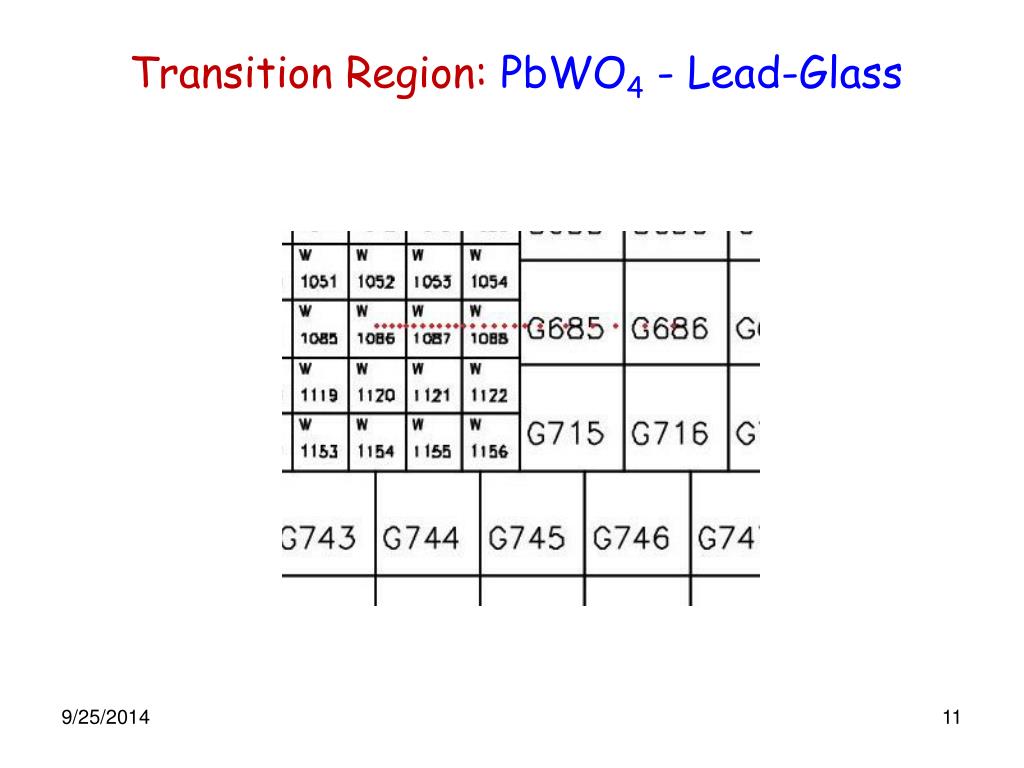

  11. Transition Region: PbWO4 - Lead-Glass

  12. Transition Region: PbWO4 - Lead-GlassReconstructed Coordinate

  13. Transition Region: PbWO4 - Lead-GlassReconstructed Coordinate (Eγ = 5.2 GeV)

  14. Transition Region: PbWO4 - Lead-GlassPosition Resolution (Eγ = 5.2 GeV)

  15. Transition Region: PbWO4 - Lead-GlassReconstructed Energy (Eγ = 5.2 GeV)

  16. Transition Region: PbWO4 - Lead-GlassEnergy Resolution (Eγ = 5.2 GeV)

  17. Sensitivity to Magnetic Field • The current design do not have extended µ-metal on photocathode • Try to shield the FCAL frame with some µ-metal, if it is all possible Possible modifications: • change the G10 housing to sift ion housing and extend it to ~1” • insert optical extension • extend the brass strips (look at different options first) No need to change the optical wrapping GlueX Col meeting, A. Gasparian

  18. Summary • TheHybrid Calorimeter concept have been successfully reapproved with the HyCal calorimeter in the PrimEx experiment. • Technical and methodical aspects of the Hybrid calorimeter are well understood and tested. On-site expertise is available. • HyCal is equipped with ~2000 channel power supply (CAEN) unit; Trigger and analog electronics are old. • 1152 PbWO4 high resolution, radiation hard crystal detectors are available for future experiments. • HyCal will stay in Hall B up to the end of PrimEx-II experiment. GlueX Col meeting, A. Gasparian

  19. The End A. Gasparian GlueX Col meeting, A. Gasparian 19

  20. Invariant Mass Resolution PbWO4 only Pb-Glass only
