Microtubules, Actin

(and intermediate filaments)

Macrophage microtubulin green

Intermediate filaments red

DNA blue

Mitochondria, actin

Cytoplasmic microtubules

Cytoplasmic mtubules


Mitotic spindle

Differentiated cell types have

stable mtubule structures

Cilia, flagella form from

basal bodies

So what are Microtubules??

… hollow, rigid tubes composed of a/b heterodimers

POLAR.. w/o polarity, it can not function.

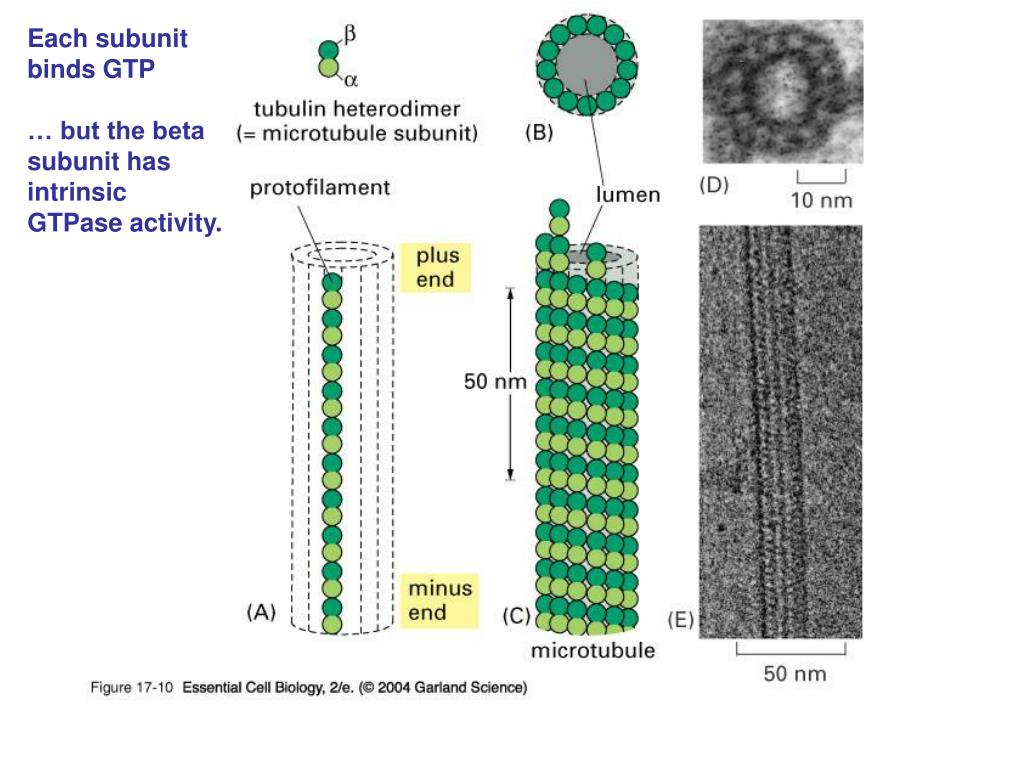

Each subunit binds GTP

… but the beta

subunit has intrinsic

GTPase activity.

Microtubule networks assemble and disassemble

Assembly is initiated at MTOCs

MicroTubule Organizing Centers

(aka centrosomes)

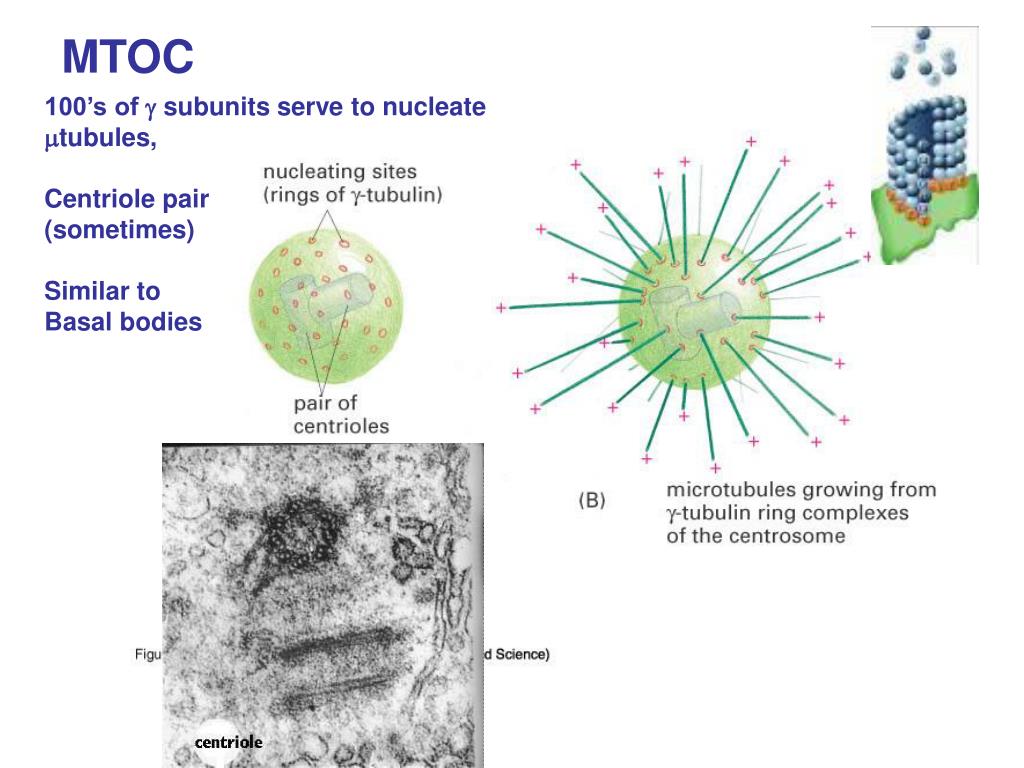

100’s of g subunits serve to nucleate


Centriole pair


Similar to

Basal bodies

Anti a tubulin, anti g tubulin

Growth vs. shrinking

is related to the amt.

of free tubulin (Cc)

Growth when balanced

tipped toward >[Cc]

Microtubule assembly and disassemble is


Occurs preferentially at the plus ends

Critical Concentration, Cc, above grows/below shrinks

Does not require GTP hydrolysis for assembly

The rapid nature of disassembly is due to its constrained

internal structure (GDP tubulin)

Autumn Crocus


Colchicine (from crocus) binds free tubulin

Taxol (from yew) stabilizes microtubules

Both cancer therapy drugs, both block mitosis.

How? If opposite modes of action?


Microtubules in the mitotic spindle of a mouse fibroblast in culture.

Image by Steve Rogers, UNC Dept. Biology.  (Confocal Microscope)

Organelles, vesicles with

cargo move around the cell.

Why’s that?

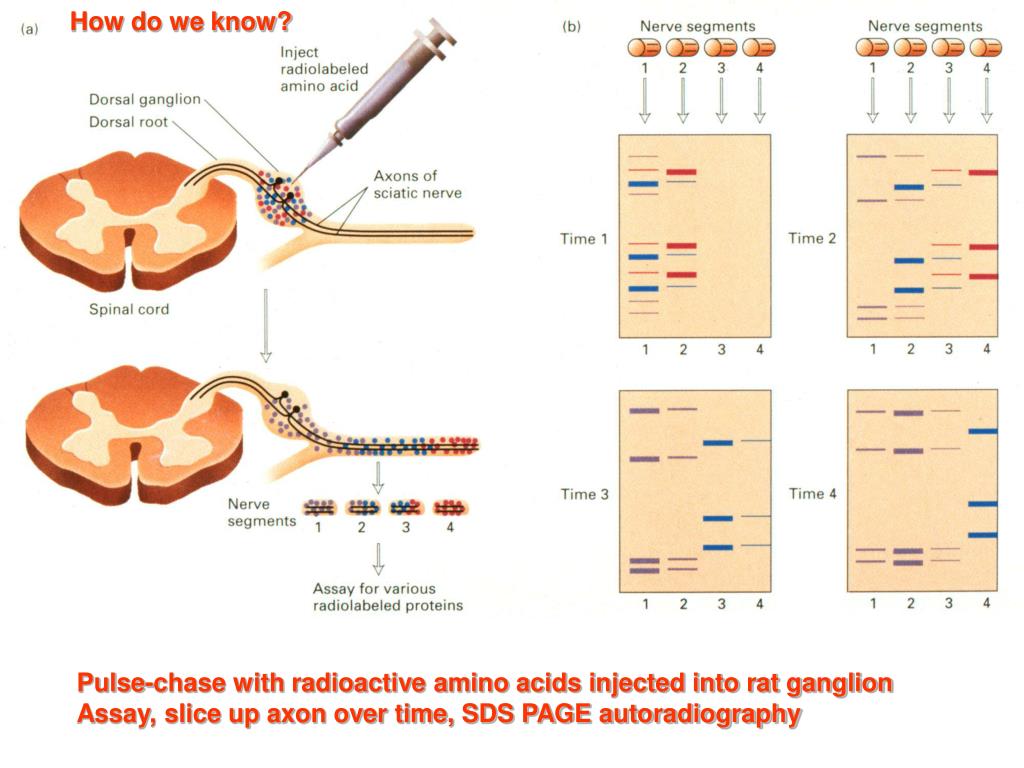

How do we know?

Pulse-chase with radioactive amino acids injected into rat ganglion

Assay, slice up axon over time, SDS PAGE autoradiography

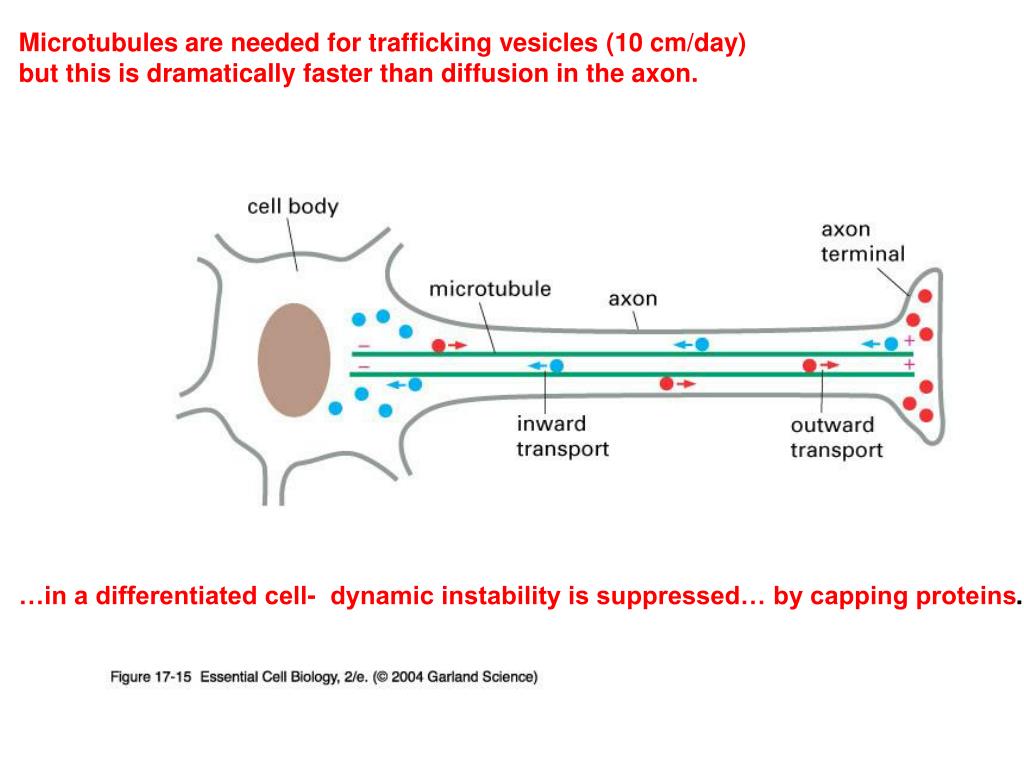

Microtubules are needed for trafficking vesicles (10 cm/day)

but this is dramatically faster than diffusion in the axon.

…in a differentiated cell- dynamic instability is suppressed… by capping proteins.

In vitro,




Centrosomes …… away from

Video microscopy

increases resolution and

visualizes movement.

This movement requires ATP.

But AMP-PNP (analog)

Competitively inhibits

Ron Vale, UCSF

… and AMP-PNP

Michael Sheetz, Columbia

17.5 kinesin.mov

Movie from Jeff Gelles lab

Sliding microtubule assay- used to purify kinesin.

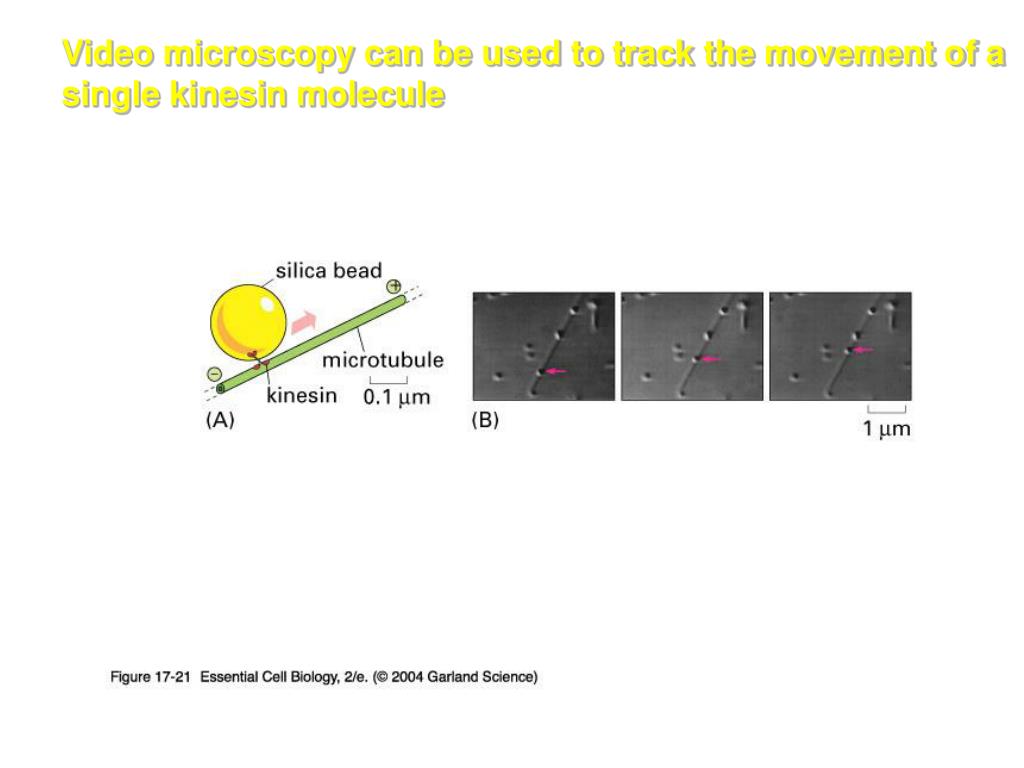

Video microscopy can be used to track the movement of a

single kinesin molecule

One example of microtubules in action…

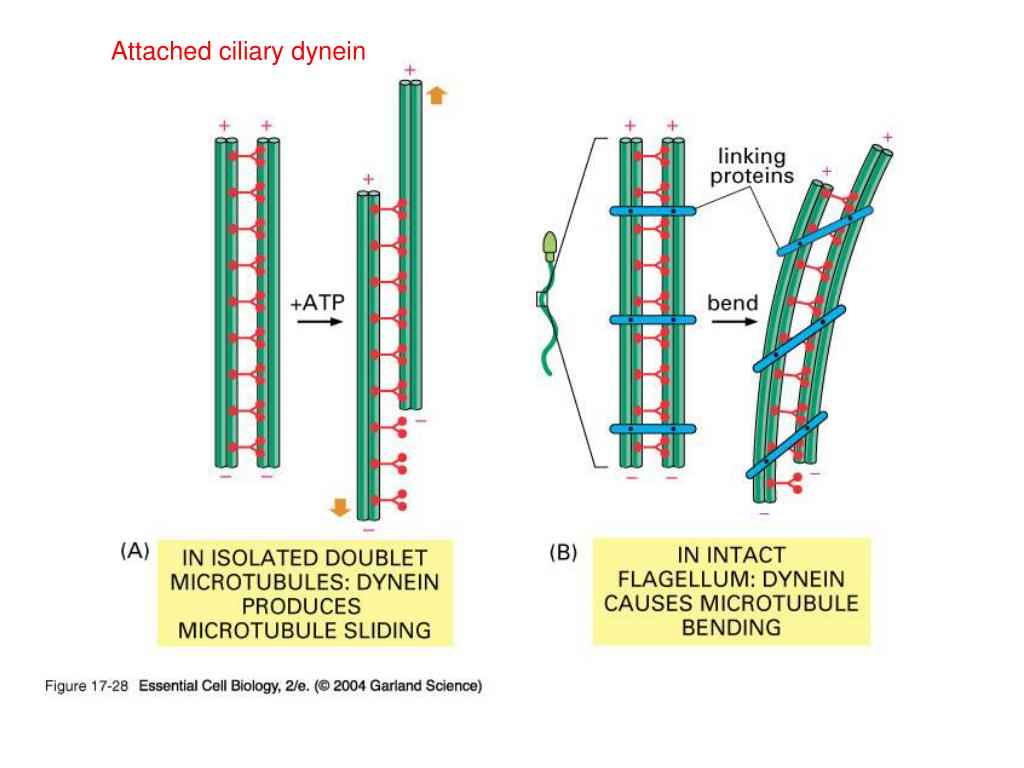

Attached ciliary dynein

Filaments (F actin) are another important

means by which the cytoskeleton is used for trafficking.

It is important for cell shape, location and contraction


5% of total protein,

half as filaments

Actin monomers

in 4 colors

F actin grows at BOTH ends but the plus ends grows faster.

ATP hydrolysis is not required for assembly.

Phalloidin binds F actin, from Death Angel

Cytochalasins and lantrunculin

bind G actin

Actin filaments are rarely single …

Nets and bundles.

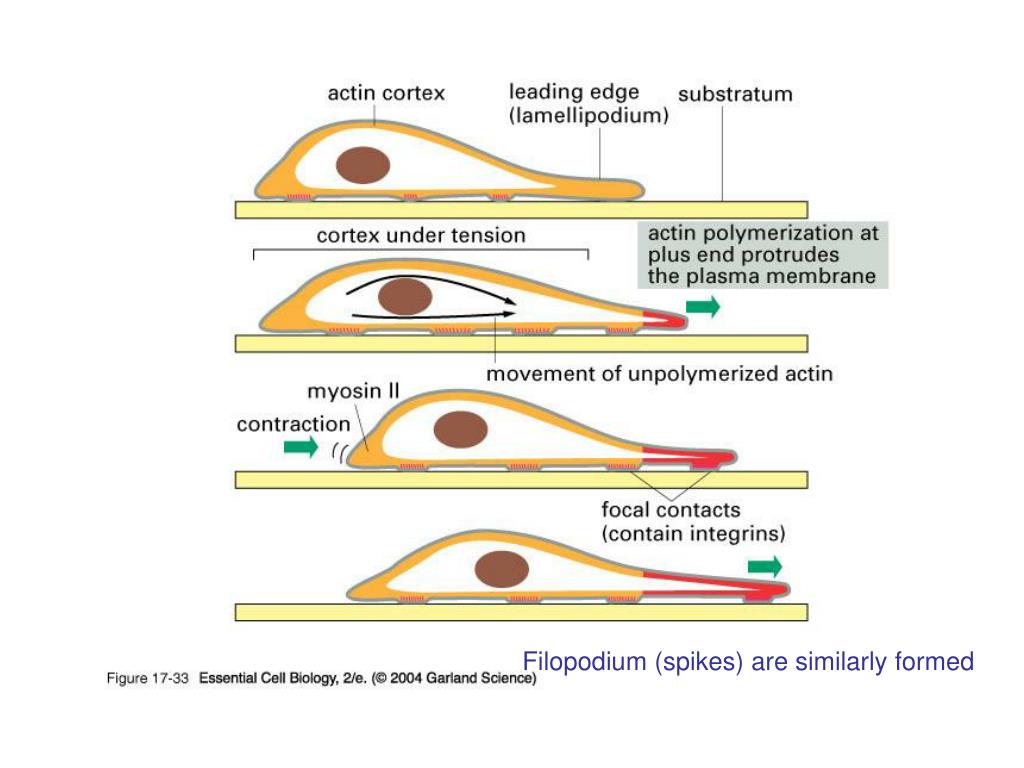

Filopodium (spikes) are similarly formed

Actin-related proteins

promote branching

More distally

Racs (Cdc42 is a member) are small GTPases related to the Ras members

discussed before.

These can be activated by recptors and in turn activate actin assembly

Myosin is a motor that runs along (or tugs at) actin.

Actin-based movement of vesicles

Myosin-driven cell shape changes

Muscle contraction

Myosin I and myosin I

One head (ATPase) and one tail, tail varies


300 heads here, bind actin

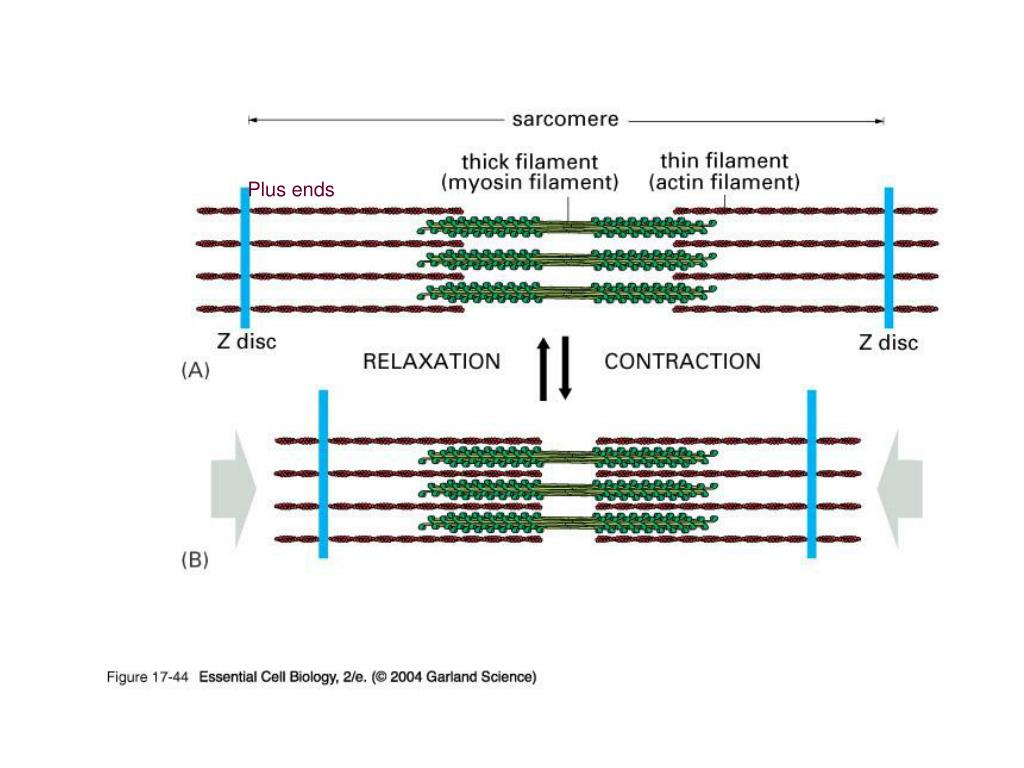

Best understood example … contraction in muscle cells.

Multinucleate (formed by cell fusions

50 mm diameter and centimeters long)

… just one sarcomere.

Plus ends

Each filament has ~300 heads.

Each head binds 5X/s

32 mm in 0.1 s

Attached, No ATP, “rigor”

Released, binds ATP

Cocked, hydrolysis

Loose Pi

Power stroke, loose ADP

Attached again,

T-tubules bring PM up close to the SR …
