  1. The two minute myMix pitch… Decentralized digital mixing console with local inputs and outputs Networked personal monitor mixer for each musician Up to 8 myMix with up to 16 channels of audio on each myMix Control channel volume, tone, effect amount and pan Designed for ease of use with simple name based operation myMix units “talk” to each other over standard fast Ethernet switches utilizing the new AVB protocol Multi-track recorder – up to 18 tracks on SD card (16 + stereo mix) Ships with power supply and 5/8” metal microphone stand adapter List $599 MAP $499

  2. Universal Truth : Musicians rarely hear the music the way they want to hear it.

  3. Every musician hears the band in their own unique way There is no good or bad, it is purely subjective Virtually every musician dreams of being in control of his own mix

  4. Mixing monitors is a thankless job, and is a major source of stress between musicians and engineers.

  5. Left brain (sound engineers) Right brain (musicians) Creativity Imagination Art & Music Rhythm Intuition Emotion Numbers Sequence Logic Math Lists Analysis

  6. Left brain (sound engineers) Right brain (musicians) Roland RSS ProCo Momentum Aviom A-16 HearBack JamHub

  7. Combo ¼” XLR Inputs (Neutrik) DC Power RJ45 Ethernet Network Jack Balanced ¼” TRS Outputs (Neutrik)

  8. Mic/line input gain knobs 1/8” headphone jack

  9. Channel input signal present/clip LED Buttons change functions based on current screen All output MUTE Start/stop recording PUSH TURN

  10. myMix main mix screen default view

  11. myMix preferences screen default view

  12. Renaming the unit and setting the time and date

  13. myMix settings screen

  14. myMix input screen default view

  15. Renaming inputs, setting input types, phantom power toggle (both inputs)

  16. myMix channel auto discovery Update – new in v1.23 – zero mix level is new default

  17. myMix channel auto discovery

  18. myMix channel auto discovery

  19. myMix channel auto discovery

  20. myMix channel auto discovery

  21. myMix channel auto discovery

  22. myMix channel auto discovery

  23. myMix channel auto discovery

  24. Scroll to desired channel

  25. Click on channel to bring up channel detail (defaults to volume)

  26. Click on corresponding function button for tone

  27. …for effect send level Update – new in v1.23 – Large Hall is new default effect

  28. …and for pan

  29. Input clipping is indicated by local channel LED as well as channel name on all myMix

  30. Solo and mute every channel – hold down either button for four seconds to clear all

  31. Firmware updates Newest version is 1.23 Zero channel level default Large Room effect default

  32. Record up to 18 tracks of 24bit, 48kHz time stamped broadcast .WAV audio on each myMix to SD or SDHC cards Multi-track audio is tapped directly after the preamps on each unit Channels 17 & 18 = YOUR stereo mix

  33. Don’t forget to format new SD cards before you start recording!

  34. Sessions screen

  35. Remix the multi-track session on your myMix When disconnected from the network you can play back recorded tracks from the SD card myMix allows you to remix the recorded multi-track audio and recreates the channel names from the original session This is a great way to demonstrate the mixing capabilities of myMix with only one unit

  36. myMix file translator

  37. or… or or or or… or or or… or

  38. or FOH console or Stage Box

  39. or FOH console or Stage Box with Split

  40. Stereo drum submix or FOH console or Return Stage Box with Split

  41. NETWORKING • What kind of Ethernet switch do I need? • Any standard 100Mbs fast Ethernet switch will work • Gigabit switches are not required for myMix • How can I power myMix with a POE switch? • Each myMix requires a POE device that can provide 15.4 watts to each unit AT THE SAME TIME • Don’t be misled by POE switches that say “up to 15.4 watts per port” • Be cautious with “managed” switches • What is AVB? • Audio Video Bridging (aka Ethernet AV) reserves more bandwidth on an Ethernet network for audio and video • Very low latency, open source, destined to become THE networking standard for the AV industry

  42. MOVEK recommends power injectors Power injectors work in conjunction with a standard switch. These come in a couple of varieties – multi-port injectors such as the Lan-Power LP2401-08 provide 18 watts on eight ports at the same time The second variety is a single power injector such as the 3COM 3CNJPSE. Power injectors like these will work with 100Mbs, Gigabit and upcoming AVB switches – ideal for future switch upgrades without the need to buy a costly POE version. Lan-Power LP2401-08 3COM 3CNJPSE

  43. www.mymixaudio.com Support Resources

  44. myMix brochure

  45. myMix application drawings

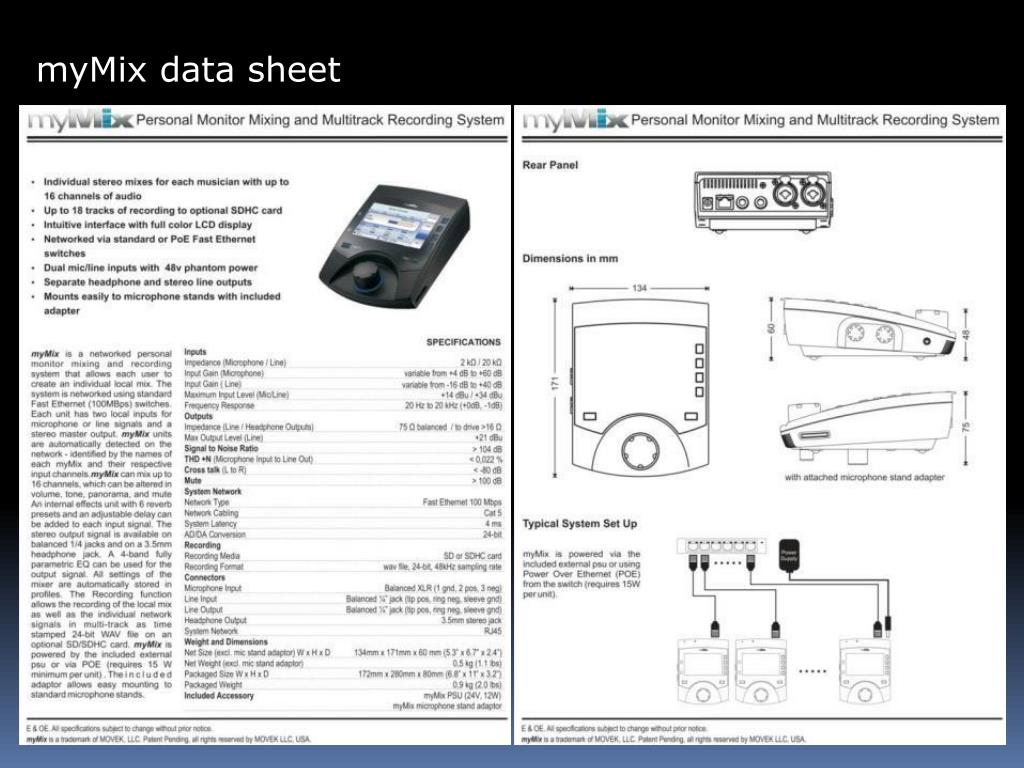

  46. myMix data sheet

  47. www.mymixaudio.com – mailing list, firmware updates, manual, etc Search “mymix” – Staying connected with our fans www.twitter.com/mymixaudio www.youtube.com/mymixaudio - view content, videos from NAMM, testimonials www.myspace.com/mymixaudio

  48. myMix potential markets Rehearsal rooms Live sound Theater House of worship Music education Music retail
