  1. Wicket in 60 Minutes Wicket 4 Newbs

  2. Even Voorstellen ...

  3. Agenda • Waarom Wicket? • Basis Ingredienten Wicket Applicatie • Demo: Hello World! met Maven en Wicket • Enkele Wicket Componenten • Demo: Wicked Bookstore

  4. Waarom Wicket? (Hadden nog niet genoeg web frameworks?)

  5. Jawel ...

  6. Maar Wicket ... • Is Component Oriented • Houd HTML en Java Strikt Gescheiden • Heeft Geen XML configuratie nodig!

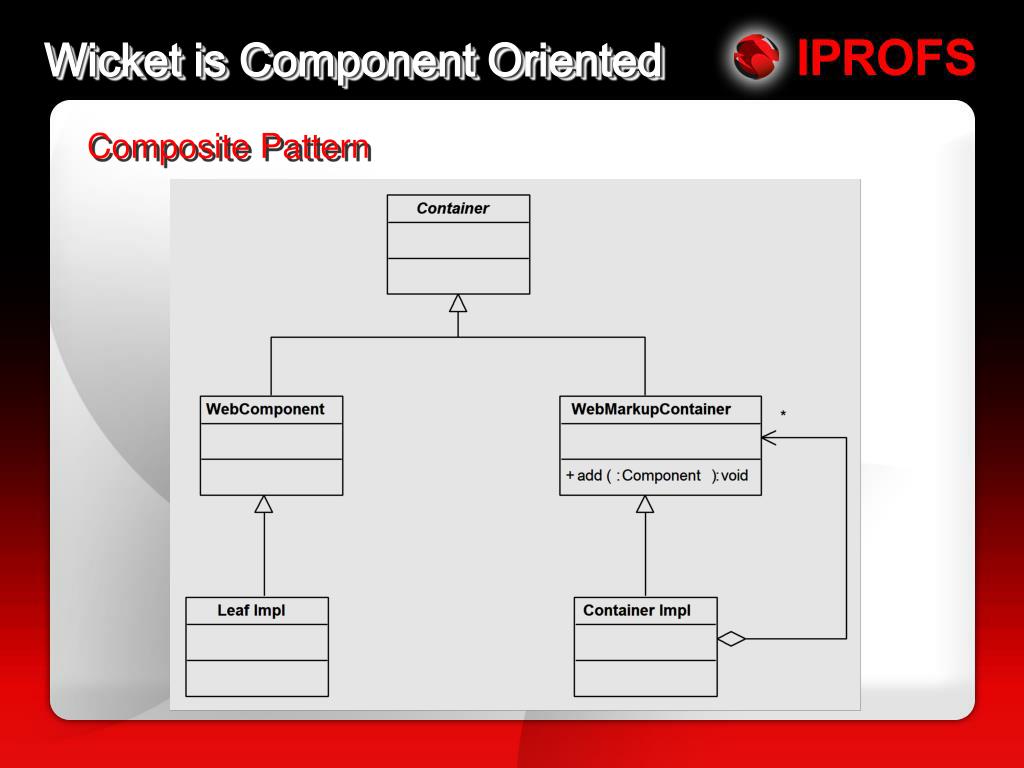

  7. Wicket is Component Oriented Composite Pattern

  8. Wicket is Component Oriented Voorbeeld: Form Components

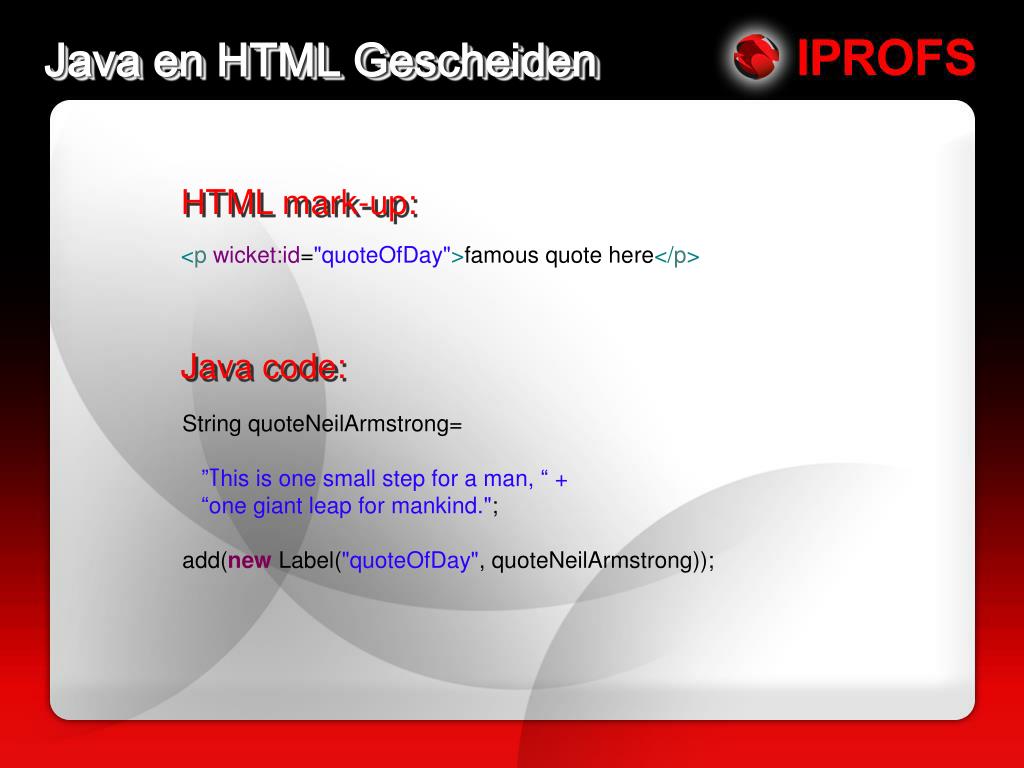

  9. HTML mark-up: <p wicket:id="quoteOfDay">famous quote here</p> Java code: String quoteNeilArmstrong= ”This is one small step for a man, “ + “one giant leap for mankind."; add(new Label("quoteOfDay", quoteNeilArmstrong)); Java en HTML Gescheiden

  10. Geen XML Configuraties Meer! <?xml version="1.0" encoding="ISO-8859-1" ?> <!DOCTYPE struts-config PUBLIC "-//Apache Software Foundation//DTD Struts Configuration 1.0//EN" "http://jakarta.apache.org/dtds/struts-config_1_2.dtd"> <struts-config> <!-- ========== Form Bean Definitions ============ --> <form-beans> <form-bean name="loginFormBean" type="test.struts.LoginForm" /> (...) </form-beans> <!-- ========== Action Mapping Definitions ======== --> <action-mappings> <action path="/login" type="test.struts.LoginAction" > <forward name="valid" path="/jsp/MainMenu.jsp" /> <forward name="invalid" path="/jsp/LoginView.jsp" /> </action> (...) </action-mappings> </struts-config>

  11. Wat gaat er in de soep? Wicket Basis Ingredienten

  12. Wicket Basis Ingredienten • Wicket dependency in pom.xml • Wicket Servlet Filter in web.xml • WebApplication class • WebPage class • HTML template ( + CSS )

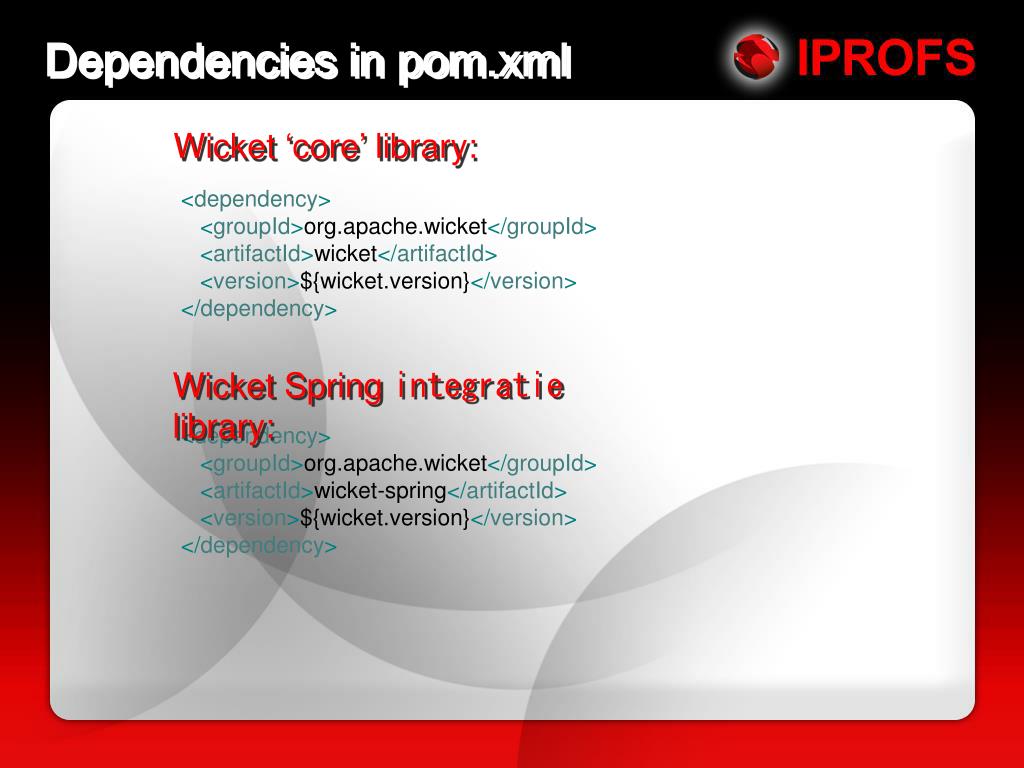

  13. Wicket ‘core’ library: <dependency> <groupId>org.apache.wicket</groupId> <artifactId>wicket</artifactId> <version>${wicket.version}</version> </dependency> Wicket Spring integratie library: <dependency> <groupId>org.apache.wicket</groupId> <artifactId>wicket-spring</artifactId> <version>${wicket.version}</version> </dependency> Dependencies in pom.xml

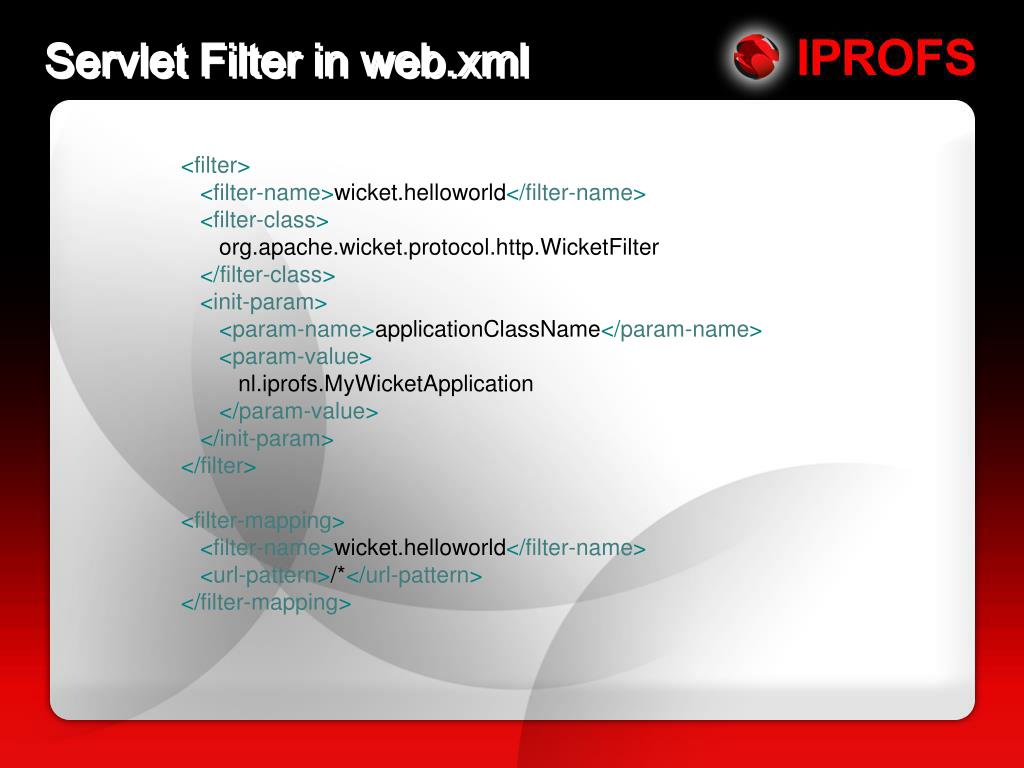

  14. Servlet Filter in web.xml <filter> <filter-name>wicket.helloworld</filter-name> <filter-class> org.apache.wicket.protocol.http.WicketFilter </filter-class> <init-param> <param-name>applicationClassName</param-name> <param-value> nl.iprofs.MyWicketApplication </param-value> </init-param> </filter> <filter-mapping> <filter-name>wicket.helloworld</filter-name> <url-pattern>/*</url-pattern> </filter-mapping>

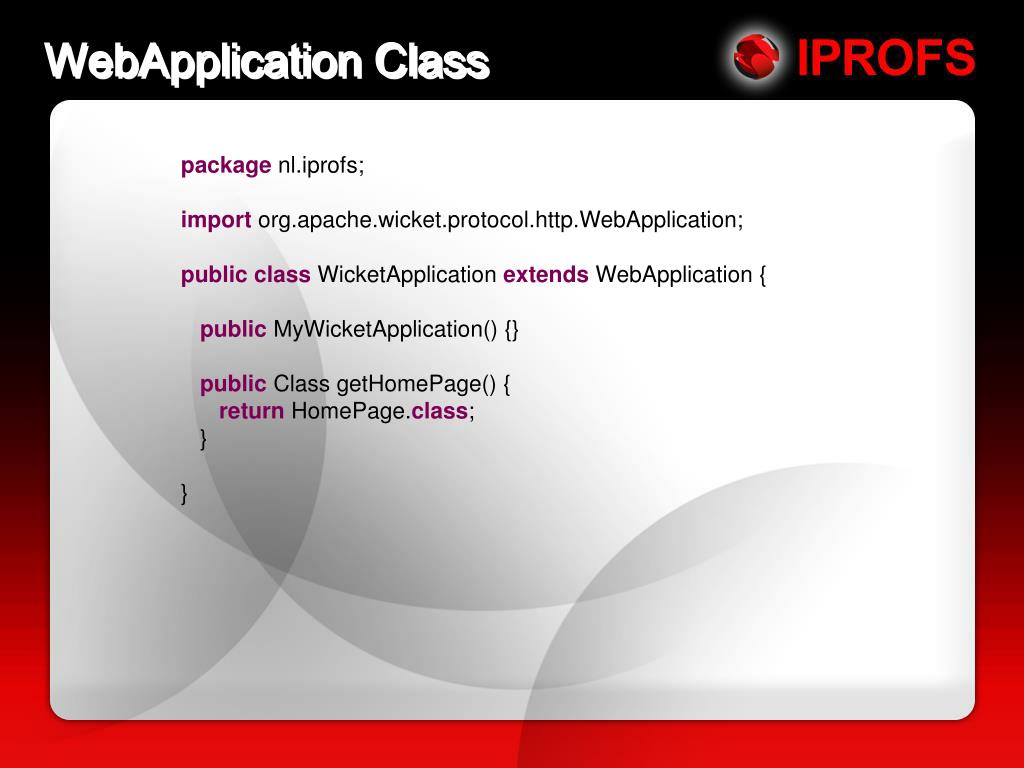

  15. WebApplication Class package nl.iprofs; import org.apache.wicket.protocol.http.WebApplication; publicclass WicketApplication extends WebApplication { public MyWicketApplication() {} public Class getHomePage() { return HomePage.class; } }

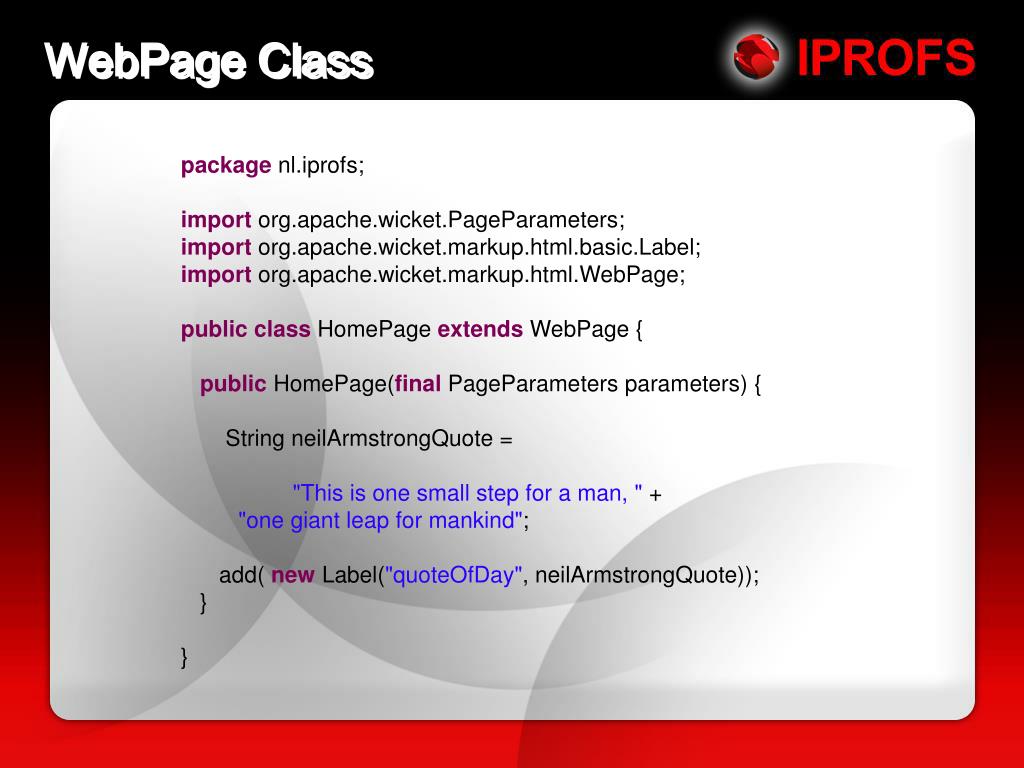

  16. WebPage Class package nl.iprofs; import org.apache.wicket.PageParameters; import org.apache.wicket.markup.html.basic.Label; import org.apache.wicket.markup.html.WebPage; publicclass HomePage extends WebPage { public HomePage(final PageParameters parameters) { String neilArmstrongQuote = "This is one small step for a man, " + "one giant leap for mankind"; add( new Label("quoteOfDay", neilArmstrongQuote)); } }

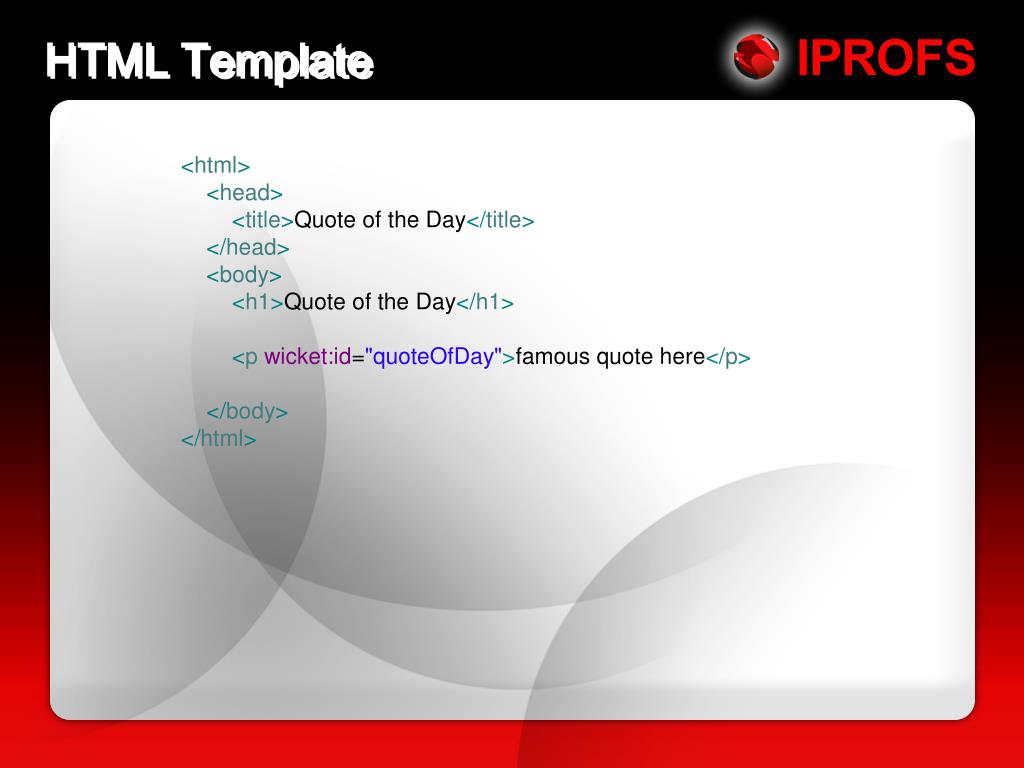

  17. HTML Template <html> <head> <title>Quote of the Day</title> </head> <body> <h1>Quote of the Day</h1> <p wicket:id="quoteOfDay">famous quote here</p> </body> </html>

  18. Demo Hello Wicked World

  19. Wicket Componenten

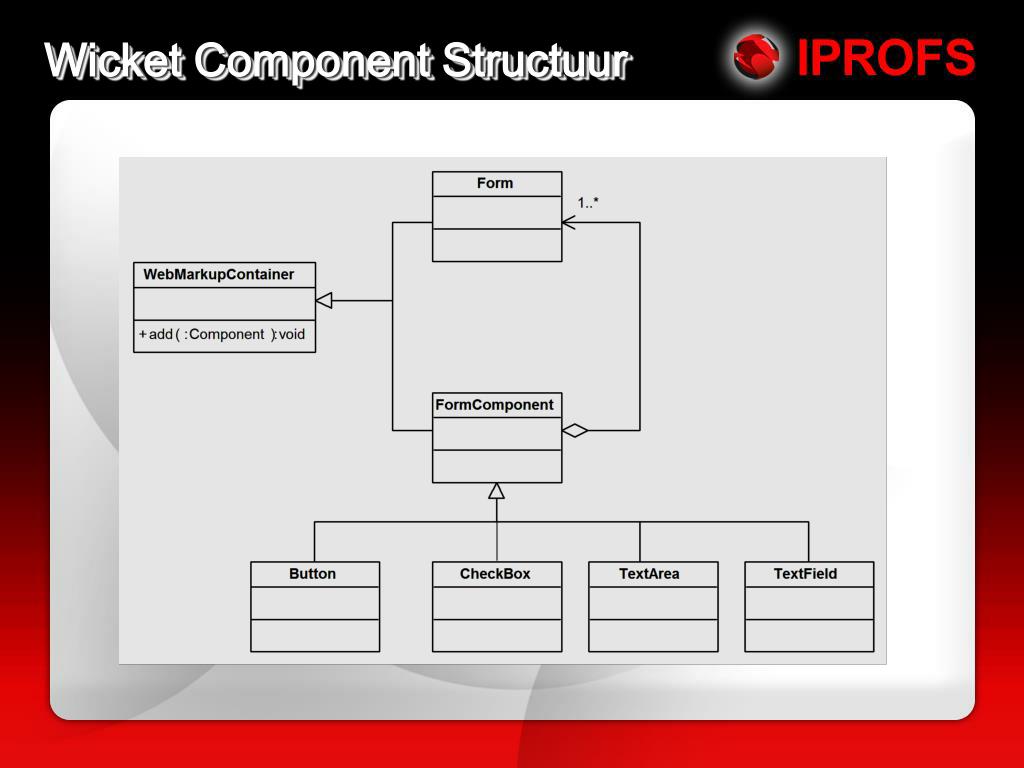

  20. Wicket Component Structuur

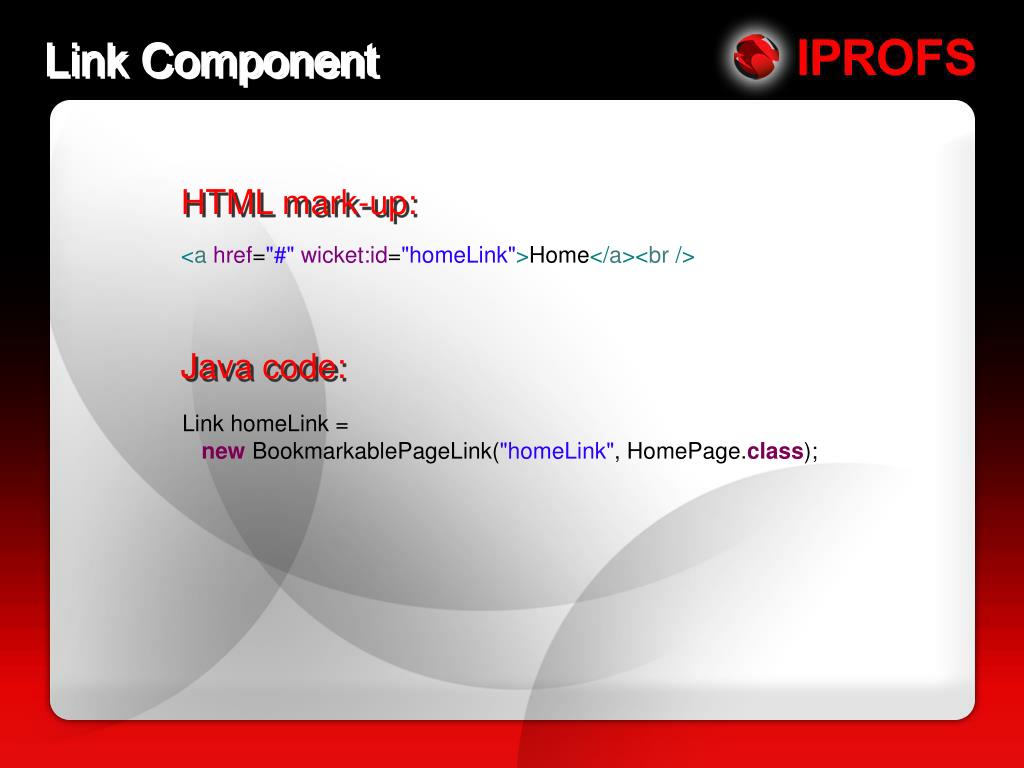

  21. HTML mark-up: <a href="#" wicket:id="homeLink">Home</a><br /> Java code: Link homeLink = new BookmarkablePageLink("homeLink", HomePage.class); Link Component

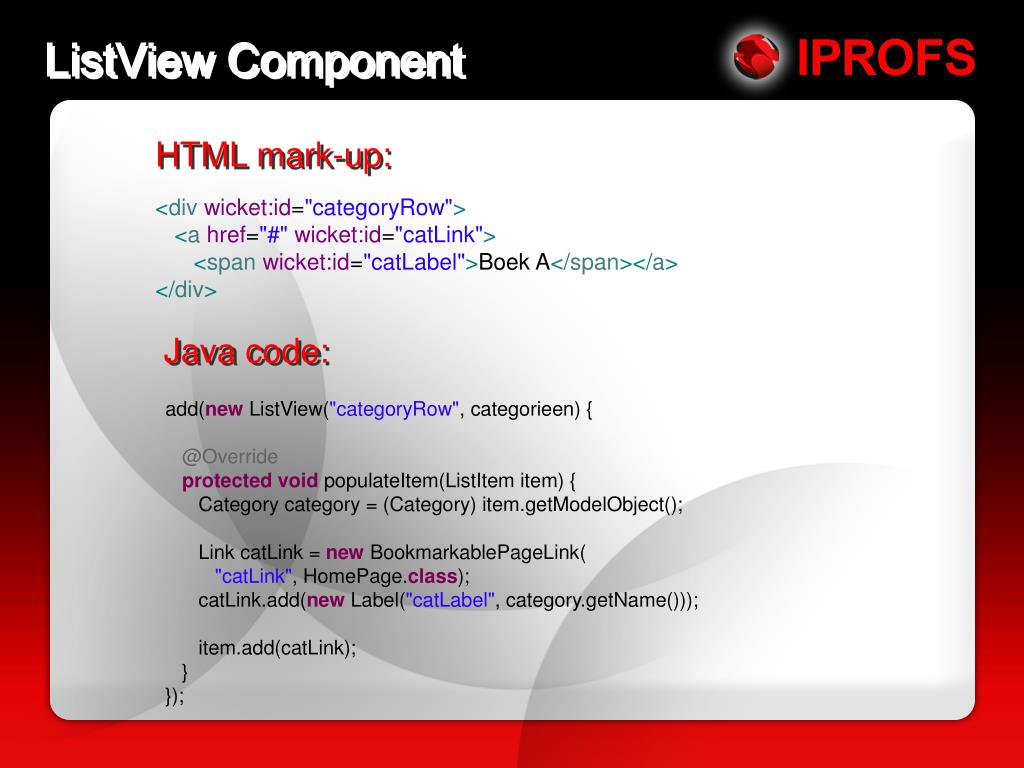

  22. HTML mark-up: <div wicket:id="categoryRow"> <a href="#" wicket:id="catLink"> <span wicket:id="catLabel">Boek A</span></a> </div> Java code: add(new ListView("categoryRow", categorieen) { @Override protectedvoid populateItem(ListItem item) { Category category = (Category) item.getModelObject(); Link catLink = new BookmarkablePageLink( "catLink", HomePage.class); catLink.add(new Label("catLabel", category.getName())); item.add(catLink); } }); ListView Component

  23. Demo WickedBookstore

  24. Vragen ... en antwoorden
