Up time operating instruction
Download
1 / 27

UP TIME OPERATING INSTRUCTION - PowerPoint PPT Presentation


  • 114 Views
  • Uploaded on

UP TIME OPERATING INSTRUCTION. Diagnostic Software. Three Wheeler, Electric AC System FB16NT ~ FB20NT. Software Description. New windows based PC GSE software. Features: Setup options can be viewed and changed easily

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about ' UP TIME OPERATING INSTRUCTION' - tod


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

Diagnostic software
Diagnostic Software

Three Wheeler, Electric AC System

FB16NT ~ FB20NT


Software description
Software Description

New windows based PC GSE software.

Features:

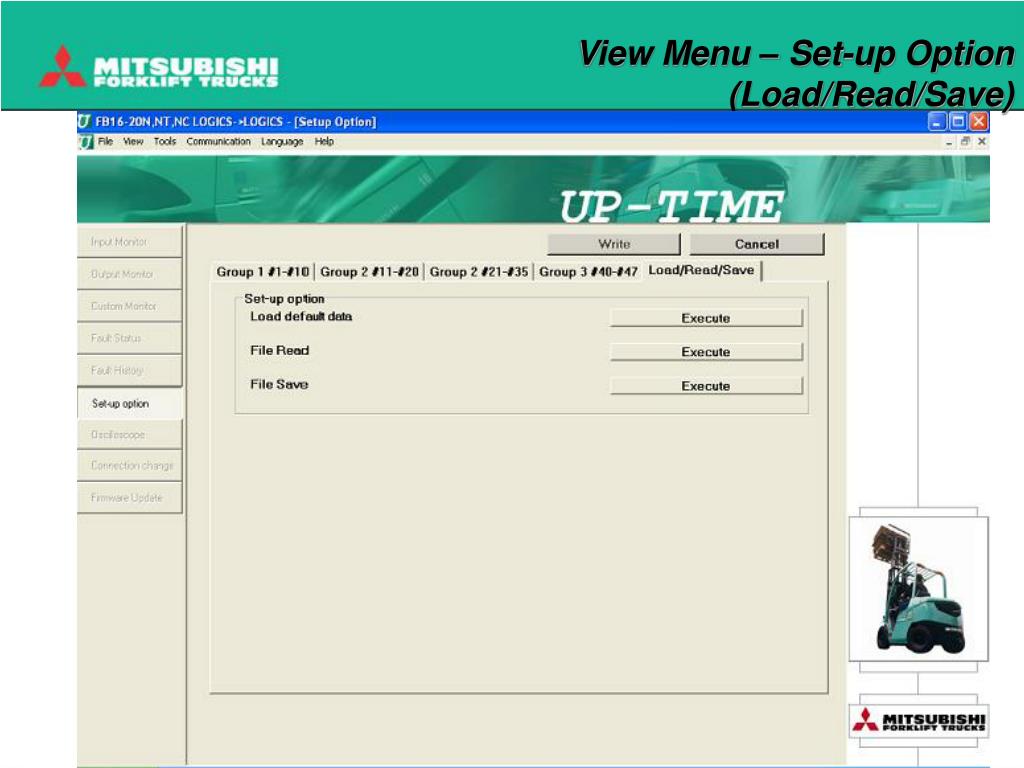

  • Setup options can be viewed and changed easily

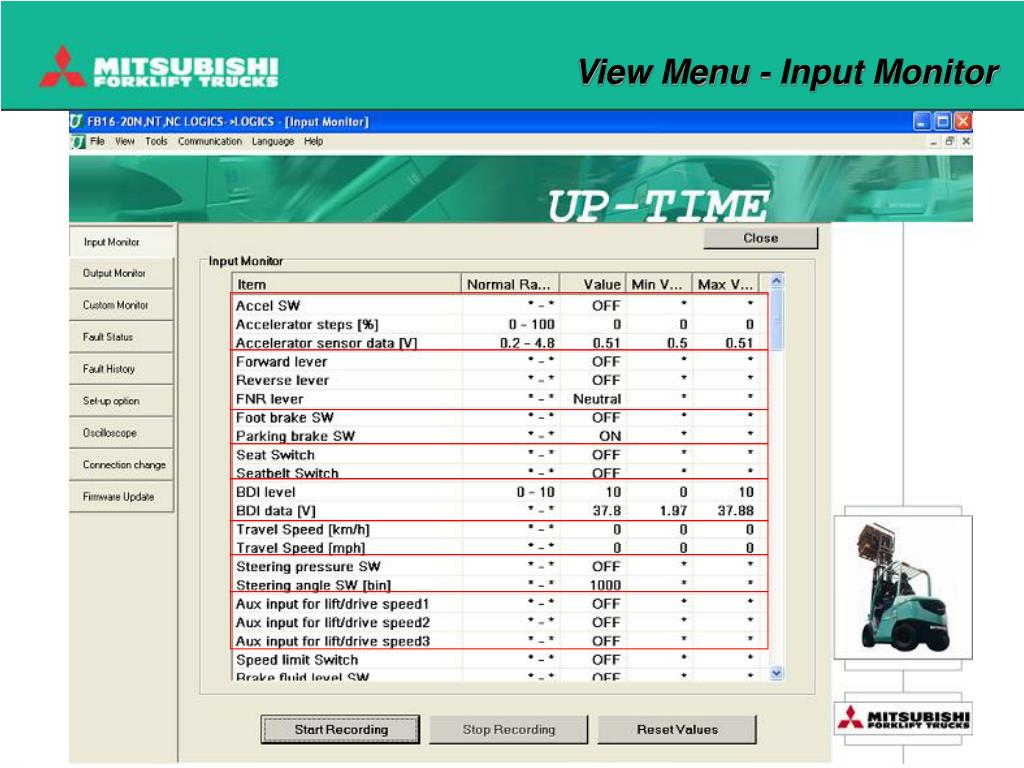

  • A custom selection of inputs and outputs can be monitored and recorded dependent on the fault

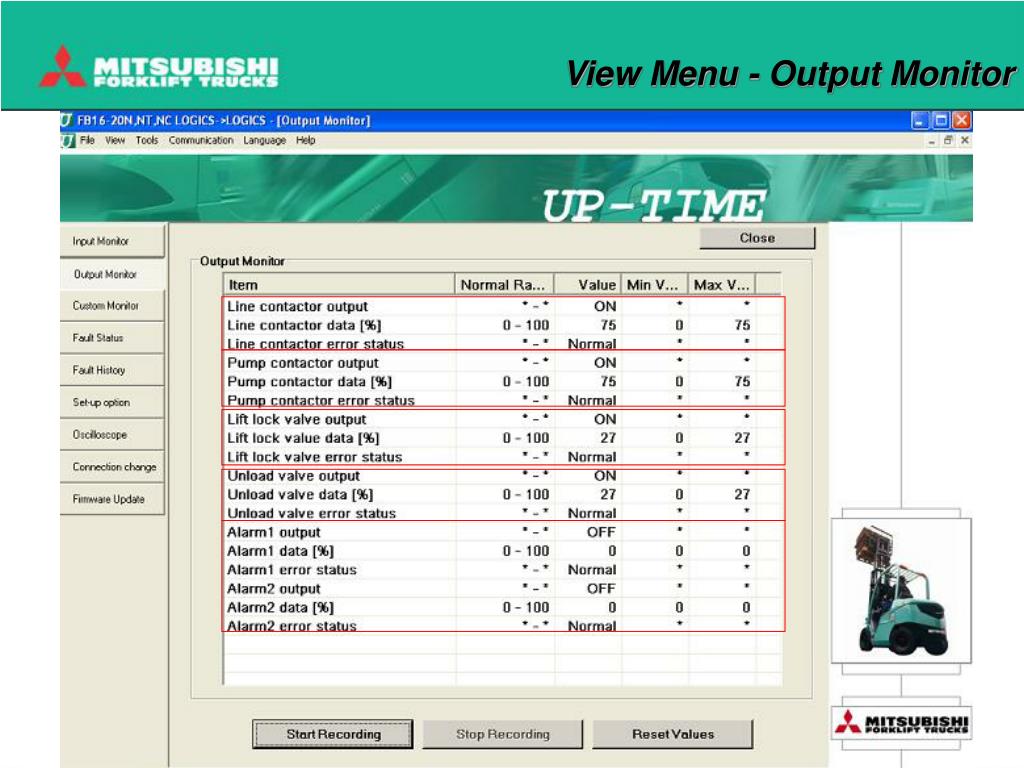

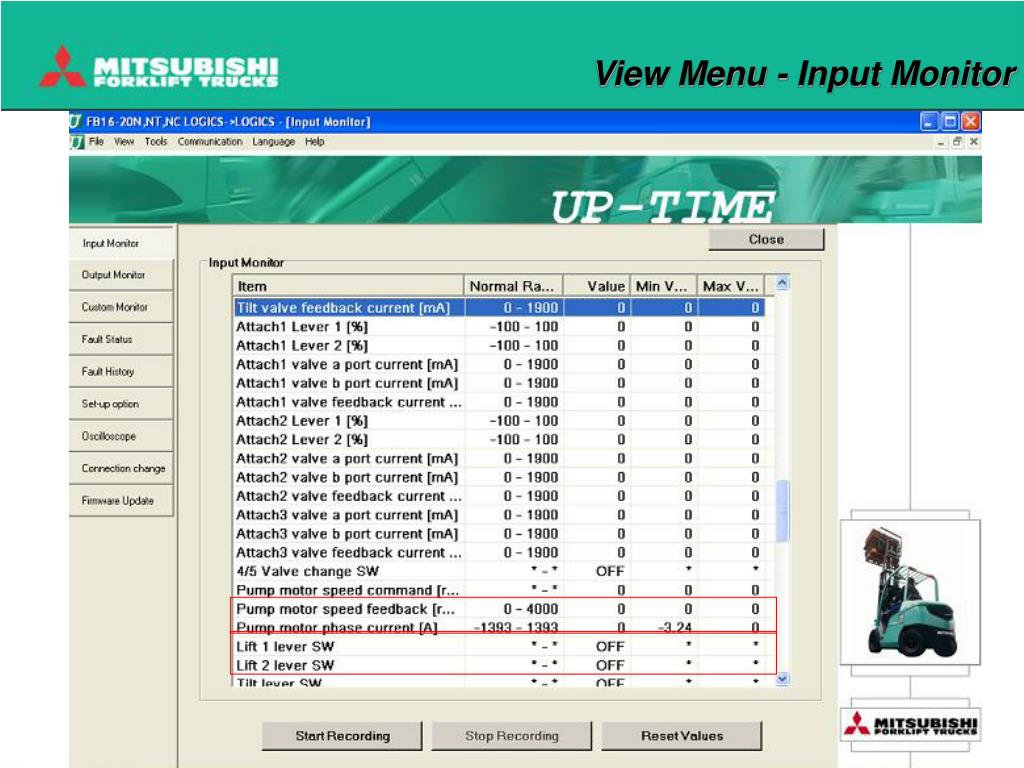

  • 2-channel oscilloscope function for monitoring inputs/outputs allows a real-time representation of the machine in use

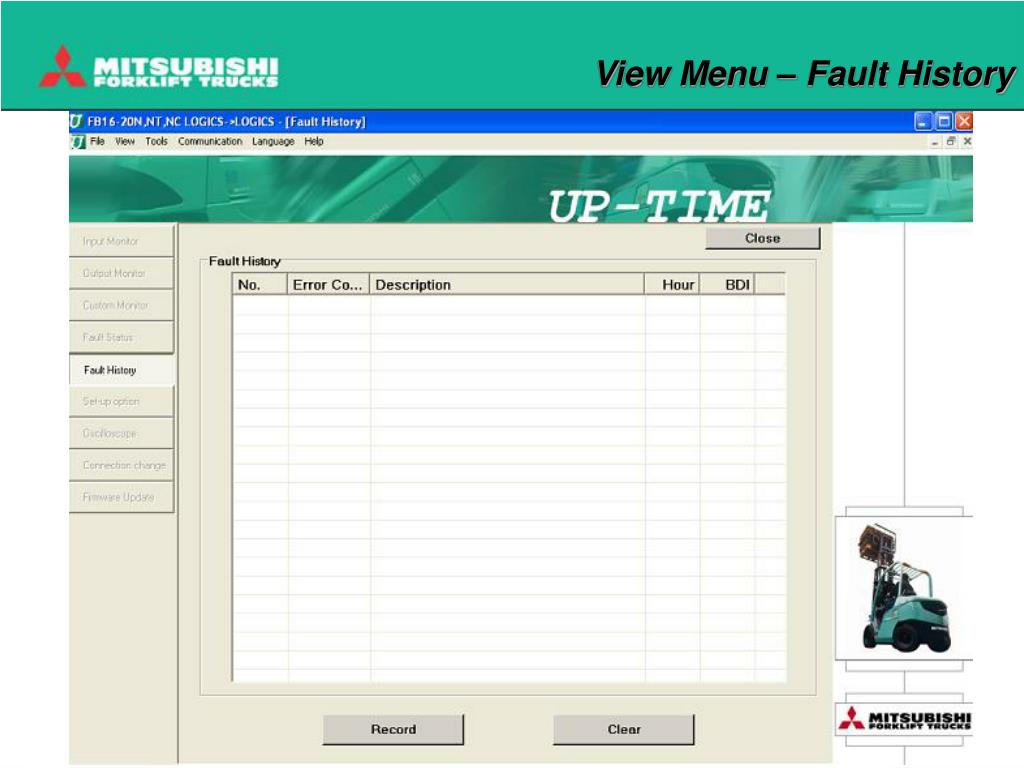

  • Troubleshooting information linked to fault codes within the program allowing very quick diagnosis and repair

  • Language support for 6 languages, English, French, Spanish, Italian, German and Japanese.


Requirement request
Requirement Request

  • Software requests from MCFS Service

  • System requirement- Operating system: Windows 2000 or XP- CPU: 800MHz or above (1 GHz recommended)- Memory: 256MB or higher (512MB recommended)- Hard Disk: 50MB or higher- Resolution: 1024x768 or higher- Communication: RS232 communications port of USB port with USB-Serial conversion cable

  • ConnectivityGSE Cable, Part Number: 16A68-11320 (Different Cable used as Grendia)

    • [Note: Cables can be ordered through the MCF parts system]

  • Installation ProcedurePlease carefully read the installation manual before attempting to install the software

  • Prior to InstallationYou will need to request a serial code by sending an email with subject “UP TIME 2.2 Serial code with the below detail as(1) Dealer Name: (Full dealer name)(2) Dealer code: (Your dealership code)(3) Requested by: (Your name)(4) End User: (Sub-dealer name of the company)(5) Number of Activations: (No of computers within the dealership that are to have the software installed)


Modify the current gse cable to new cable
Modify the current GSE Cable to New Cable

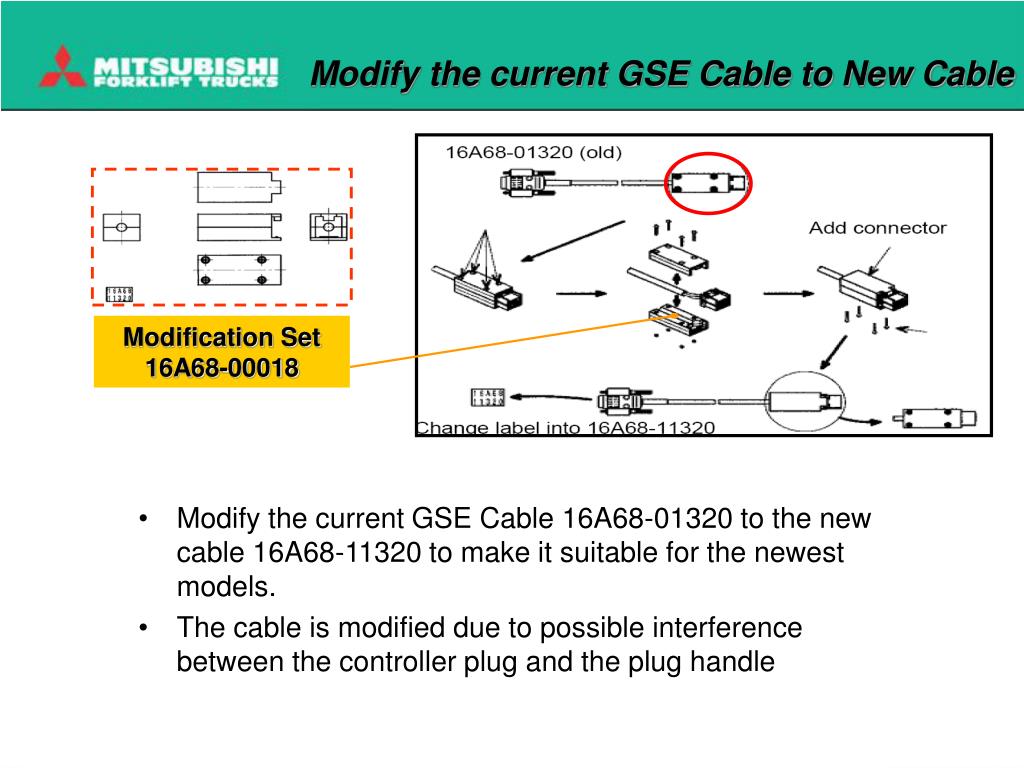

  • Modify the current GSE Cable 16A68-01320 to the new cable 16A68-11320 to make it suitable for the newest models.

  • The cable is modified due to possible interference between the controller plug and the plug handle

Modification Set16A68-00018


Service tool connection
Service Tool Connection

Controller’s GSE Connector Position

GSE Connection at RHS, B-Harness


Model selection
Model Selection

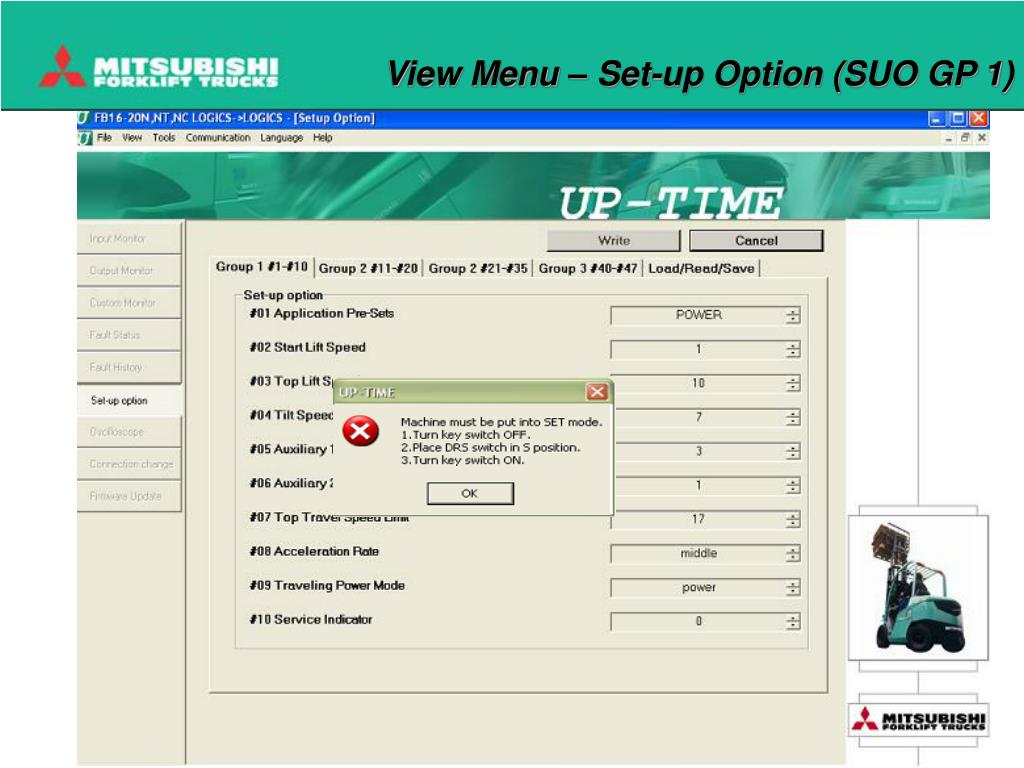

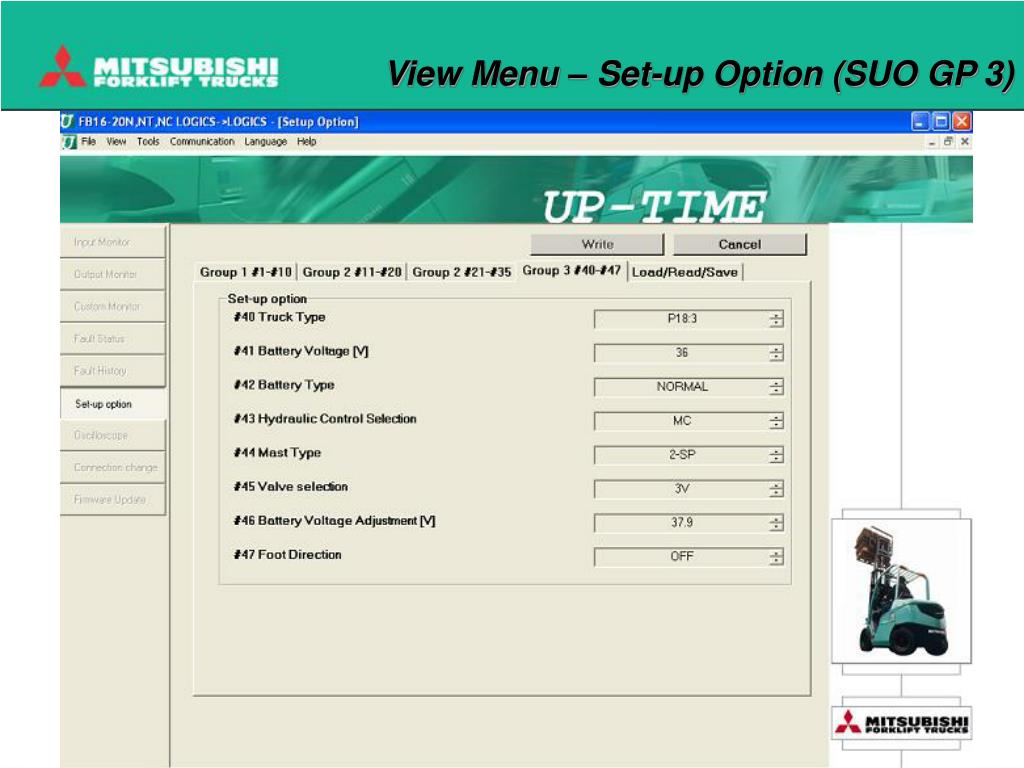

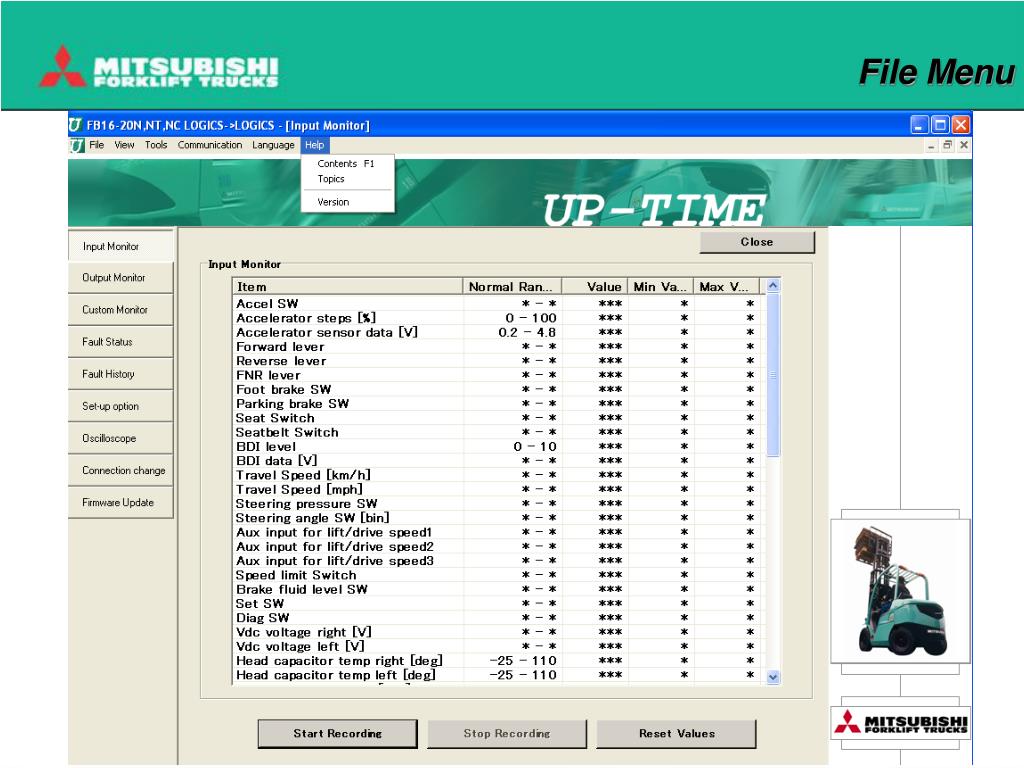

Model Selection:

  • Click the upper left window to select the type of Forklift Truck

  • Click on the truck model





















Up time

UP- TIME

Questions?


ad
