Concept of Modular Design

Module Carriers. Embedded or PC-Host. Modules. A/D,D/A,I/O DSP,FPGA IMAGING,MEMORY. Systems. Data Acquisition Medical Industrial Control Telecom. Concept of Modular Design. Development System. Low-cost PC Development System Modular based Add more Modules according to demand

tod
Download Presentation

Concept of Modular Design

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Module Carriers Embedded or PC-Host Modules A/D,D/A,I/O DSP,FPGA IMAGING,MEMORY Systems • Data Acquisition • Medical • Industrial Control • Telecom Concept of Modular Design

  2. Development System • Low-cost PC Development System • Modular based • Add more Modules according to demand • Re-useable • The Carrier will hold any Module • Long-life investment

  3. MathWorksTM SimulinkTM SMT6050 DSP Graphics Development Tool SMT6040 VHDL Graphics Development Tool Code Composer StudioTM Traditional VHDL Development Tools Software Level 2 Level 1 Sundance Target Hardware SMT319 with Xilinx Virtex II XC2V2000-4

  4. Typical SDR Processing ADC FPGA DSP FPGA DAC Data Data Data Data Dual Analog In, I & Q Analog Out, I & Q Signal Sampling Pre- Processing – Down Conversion Algorithms – Filtering Post-processing Up Conversation Signal Generation PCI Bus, USB or Ethernet Host System Display, Disk Storage etc.

  5. SMT8036 SDR-Kit System • Complete Software Defined Radio Solution • 600MHz TMS320C6416™ Fixed-point DSP Module • XDS-510 JTAG Debugger Interface on Carrier • High-speed data-transfer to PC-Host (Peak of 100Mb/sec) • Dual ADC Interface; 14-bits, 105MSPS • Dual DAC Iinterface; 16-bit; 160MSPS • Code Composer Studio Support • MathWorks™ Support • Linux and Windows XP™ Host Support • www.sundance.com/offer/choice.htm • Price: USD7985 (Commercial Program) • 75% Discount !! (University Program) • More than 50 seats installed Home Page

  6. SMT8096 SDR System • Second Generation SDR Solution from Sundance • 1GHz TMS320C6416T™ Fixed-point DSP Module • XDS-510 JTAG Debugger Interface on Carrier • High-speed RTDX between DSP<> PC (100Mb/sec peak) • Dual ADC Interface; 14-bits, 125MSPS, ADC5500 • Dual DAC Iinterface; 16-bit; 500MSPS, DAC5686 • Dual Xilinx Virtex II Pro™ VP30 FPGA, Rocket I/O • TI Code Composer Studio Support • Xilinx EDK – Embedded Development Kit • MathWorks™ Support • Linux and Windows XP™ Host Support • www.sundance.com/sdr • Price: USD10K (Commercial Program)

  7. SMT8096- The platform

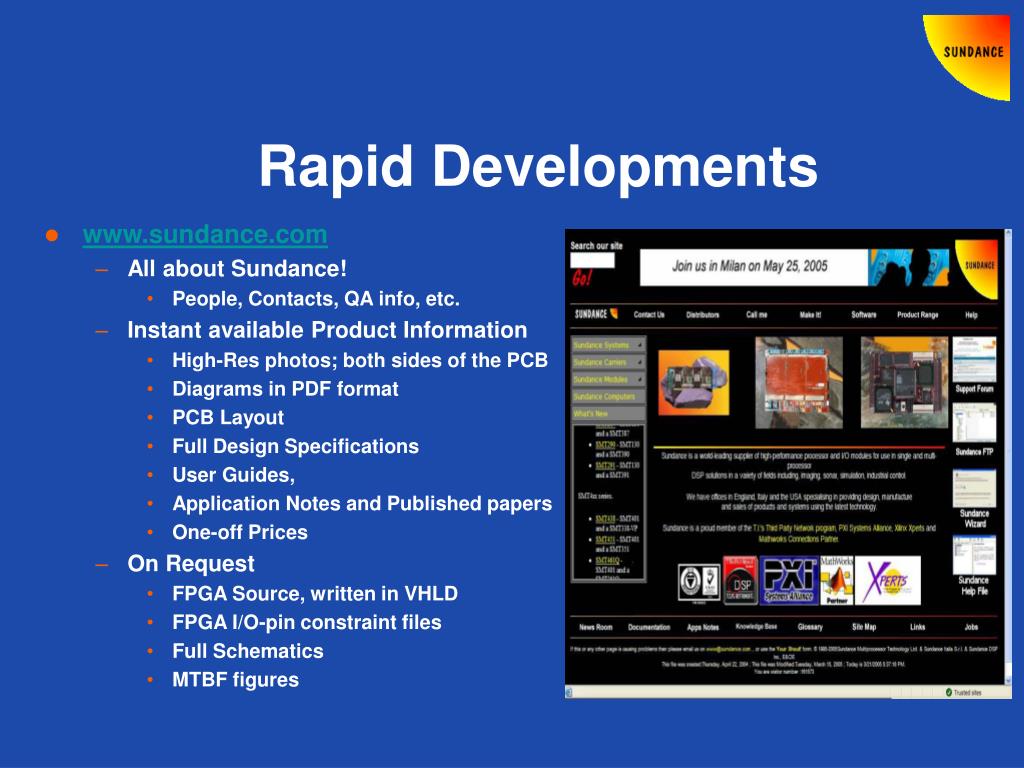

  8. Rapid Developments • www.sundance.com • All about Sundance! • People, Contacts, QA info, etc. • Instant available Product Information • High-Res photos; both sides of the PCB • Diagrams in PDF format • PCB Layout • Full Design Specifications • User Guides, • Application Notes and Published papers • One-off Prices • On Request • FPGA Source, written in VHLD • FPGA I/O-pin constraint files • Full Schematics • MTBF figures

  9. Rapid Support • http://support.sundance.com/ • General Section • Latest versions of software, etc. • FAQ Section • The same old stories… • Dedicated Forums • Customer has a unique Forum • Password protected • Dedicated Sundance technical person • Dedicated Sundance Sales person • Telephone Support • Call anytime to anybody • Direct lines to design engineers • No ‘In-between’ people • Cost.. • Getting started is free • Development support is not!

  10. Rapid On-Line Help • www.sundance.com/docs/Sundance.chm • General Introduction • What is what!. • Hardware Section • How do I get all those bits connected • Firmware Section • How does the DSP Boot • How is the FPGA configured • How to create ‘Custom’ firmware • Software Section • How to program the DSP • How to write API for the Host PC • Diamond/CCS • Troubleshooting • Ahhh, I see!! – That is way.

  11. Sundance Wizard • support.sundance.com/updates/wizard/setup.exe • Wizard! • Install PC-Host Drivers • Install CCS Drivers • Configure CCS.. Yes! • Install ‘Support Software’ • Automatic Updates • Automatic download • Internet based • Hardware Section • Remote Assistance • We can debug customer remotely

  12. SDR CUSTOMERSabout 50 UNIVERSITIES

  13. SDR CUSTOMERSabout 50 OEMs

  14. QUESTIONS? Thank you
