  1. Sprinkler Buddy “Low Cost Irrigation Management For Everyone ! ” Presentation #7: “Redesign of Adder Parts And Layout of Other Major Blocks” 3/07/2007 Team M3 Kalyan Kommineni Kartik Murthy Panchalam Ramanujan Sasidhar Uppuluri Devesh Nema Design Manager: Bowei Gai

  2. CurrentStatus • Determine Project  • Develop Project Specifications  • Plan Architectural Design  • Determination of all components in design  • Detailed logical flowchart  • Design a Floor Plan  • Create Structural Verilog  • Make Transistor Level Schematic  • Layout • (~65% done with all big modules except FP Add passing LVS …) • Testing (Extraction, LVS, and Analog Sim.) (ongoing…)

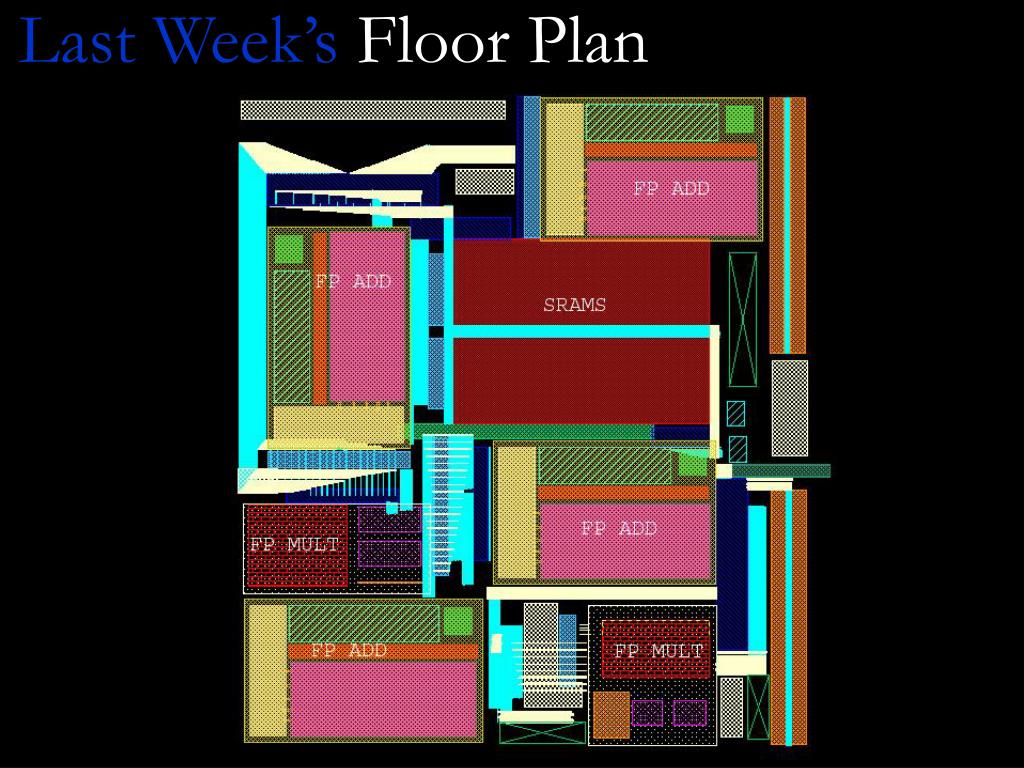

  3. Last Week’s Floor Plan

  4. Current Floor Plan

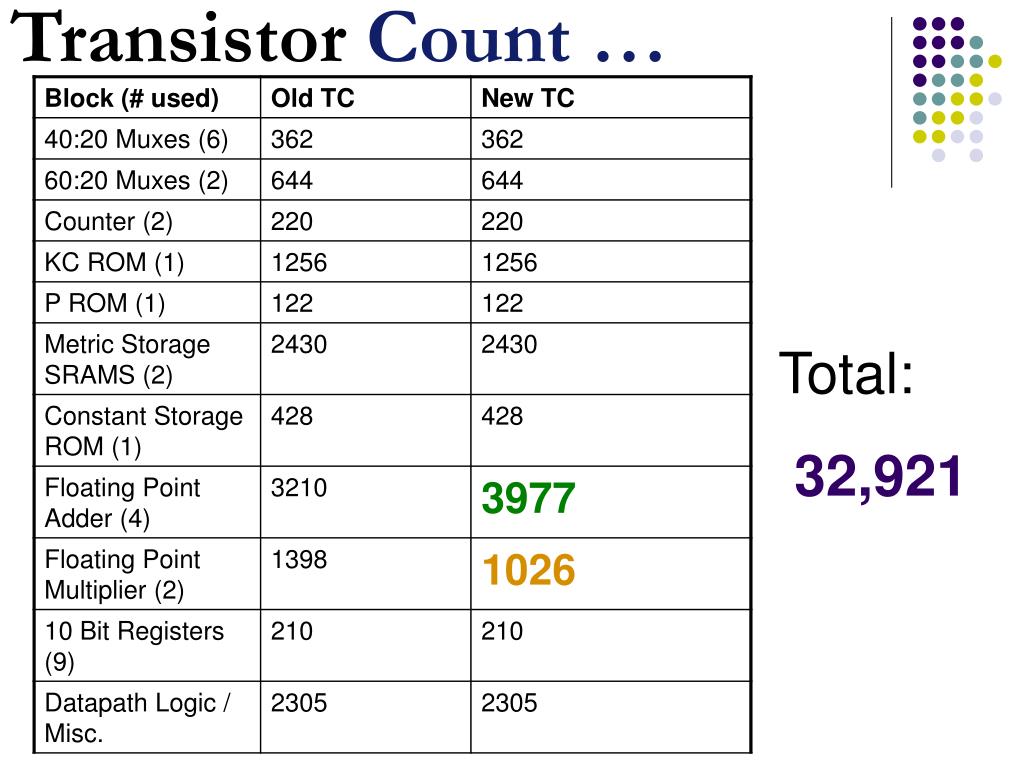

  5. Transistor Count … Total: 32,921

  6. Updated Design Size • 441um x 411 um • ~ 1 : 1.07 aspect ratio • .181 mm^2 area

  7. Layout: Progress • Everything laid out has density > .3 transistors/um2 • All Big Modules LVS • FP Add is the exception • Had to redo many components • Initial layout was too big and messed up the floor plan • Currently done with all components except new shifter • New layouts enable us to match initial size estimate

  8. Layout : Muxes Density: .42transistors/um2 1 bit 6 bit

  9. Layout : Registers Density: .40transistors/um2 1 bit 10 bits

  10. Layout : Register Enable Custom “AND” Gate

  11. Layout : “Is Zero?” Unit Density: .41transistors/um2 • Sideways Inverters • Split NAND Gate

  12. Layout : Leading Zero Counter Density: .40transistors/um2

  13. Layout : Conditional Add/Sub Density: .30transistors/um2

  14. Layout : Subtract Density: .33transistors/um2

  15. Layout : New Barrel Shifter Still needs decoder and input buffers

  16. Layout : FP Add Exponent Unit Inputs Density: .34transistors/um2 Outputs

  17. Layout : FP Add Sig. Unit Inputs Density: .30transistors/um2 Outputs There is some wiring left and the shifter must be inserted

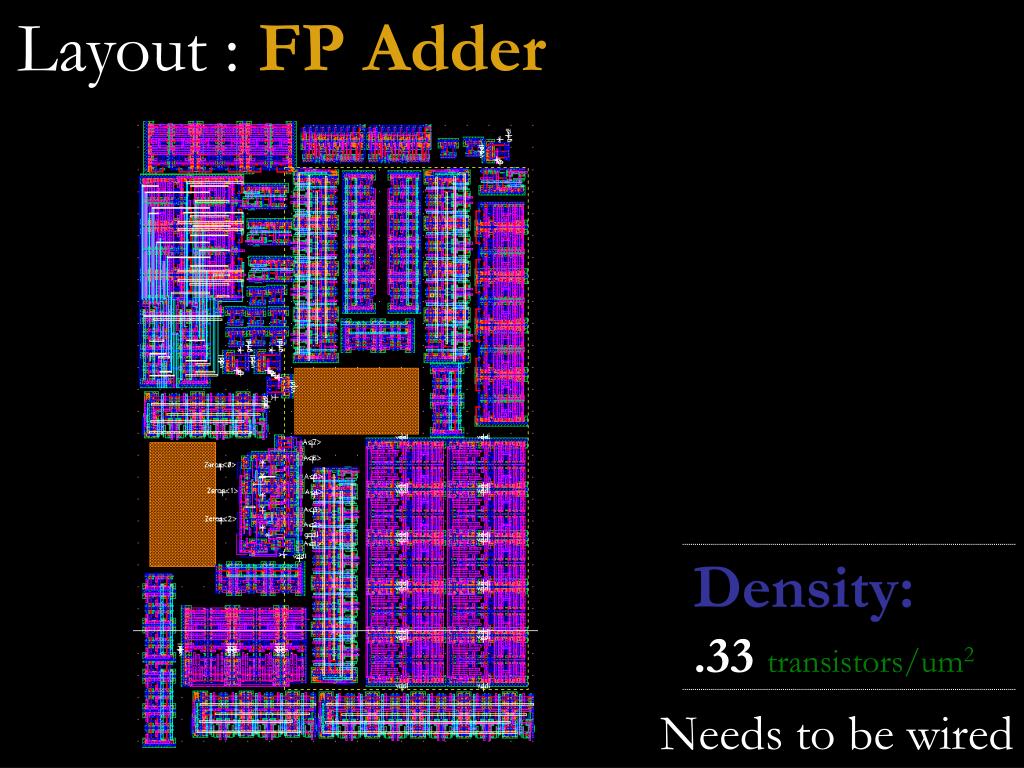

  18. Layout : FP Adder Density: .33transistors/um2 Needs to be wired

  19. Layout : Redone Integer Multiply So, why did we leave a HUGE hole? Density: .32transistors/um2

  20. Layout : Floating Point Multiply Inputs Outputs Density: .31transistors/um2

  21. Design Challenges and Implementation DecisionsFor The Past Week

  22. Problems/Questions • We cannot accurately lay out our control logic until the FP Adder is done and global layout is all positioned

  23. For Next Time • Lots and Lots more Layout • Finish the FP Adder • Place all blocks into global layout and fit control logic into the gaps • Global routing
