Cdot water quality program

CDOT WATER QUALITY PROGRAM

CDOT WATER QUALITY BMP TRAINING FACILITY CONSTRUCTION PHASE and OVERVIEW

10/2009

‘This project was undertaken in connection with the settlement of an enforcement action taken by the Colorado Department of Public Health and Environment for violations of the Colorado Water Quality Control Act.’”


Cdot water quality bmp training facility construction phase and overview
CDOT WATER QUALITY BMP TRAINING FACILITY CONSTRUCTION PHASE and OVERVIEW

Project completion Oct 2009

Supplemental Environmental Project:

“ CDOT shall construct a BMP Field Training Facility (“BMP Facility”) on its property located at or near the corner of S. Colorado Boulevard and Louisiana Avenue in Denver and shall use the BMP Facility to train construction companies, contractors, consultants, municipalities, or other related organizations and individuals on the proper purpose, use, installation and maintenance of erosion and sediment control BMP’s…” Compliance Order on Consent 2009


Cdot water quality program1
CDOT Water Quality Program and OVERVIEW

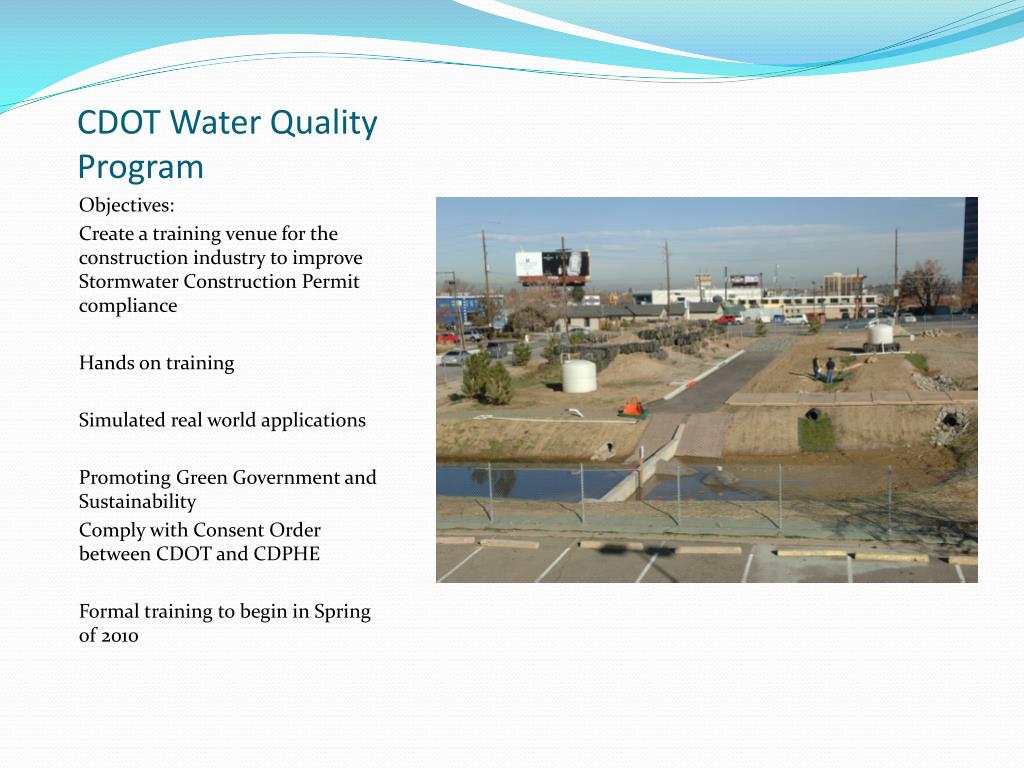

Objectives:

Create a training venue for the construction industry to improve Stormwater Construction Permit compliance

Hands on training

Simulated real world applications

Promoting Green Government and Sustainability

Comply with Consent Order between CDOT and CDPHE

Formal training to begin in Spring of 2010


Cdot water quality program bmp training facility 4201 e arkansas ave denver co 80222

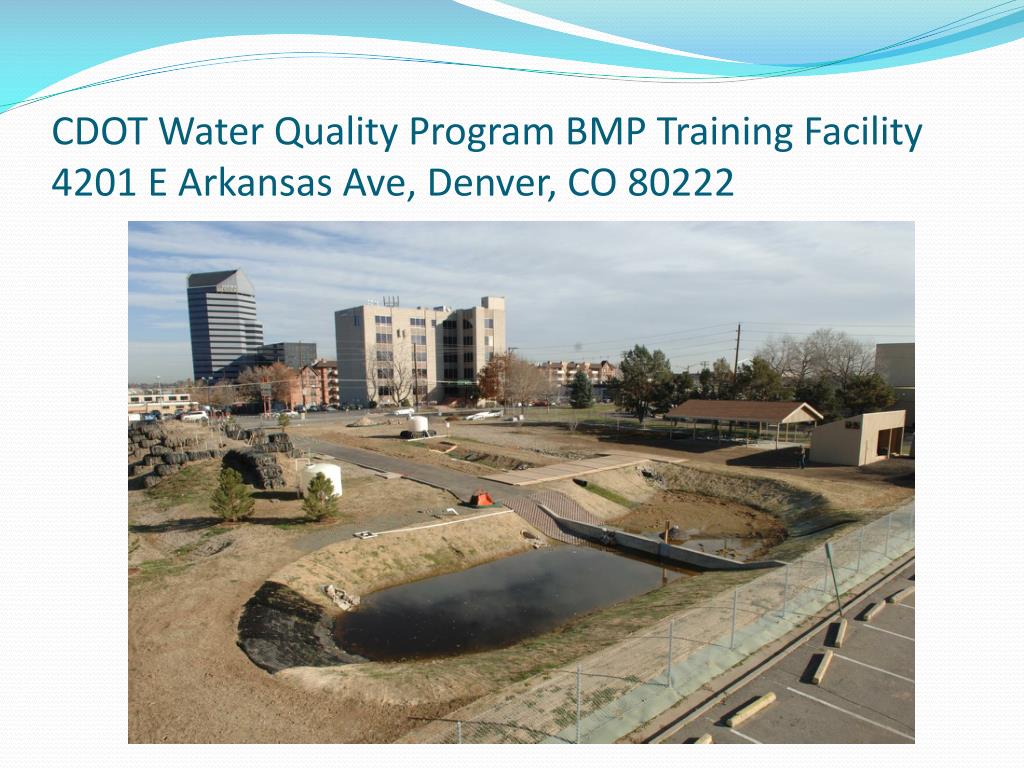

CDOT Water Quality Program BMP Training Facility and OVERVIEW4201 E Arkansas Ave, Denver, CO 80222


Cdot water quality program2
CDOT Water Quality Program and OVERVIEW

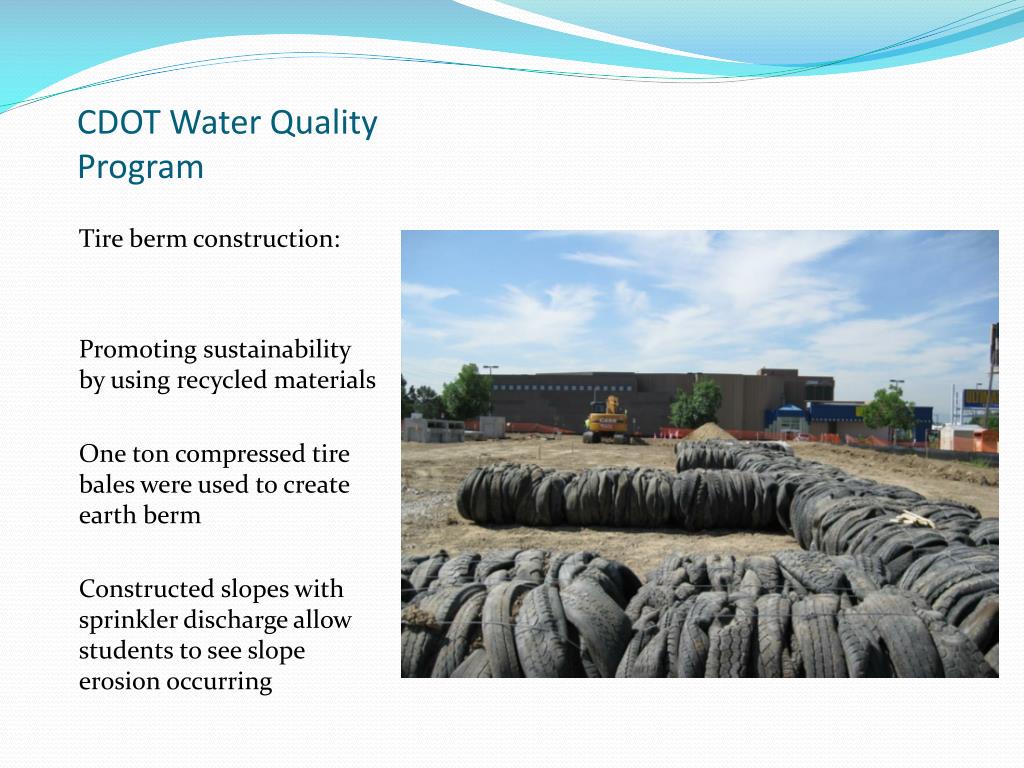

Tire berm construction:

Promoting sustainability by using recycled materials

One ton compressed tire bales were used to create earth berm

Constructed slopes with sprinkler discharge allow students to see slope erosion occurring


Cdot water quality program3
CDOT Water Quality Program and OVERVIEW

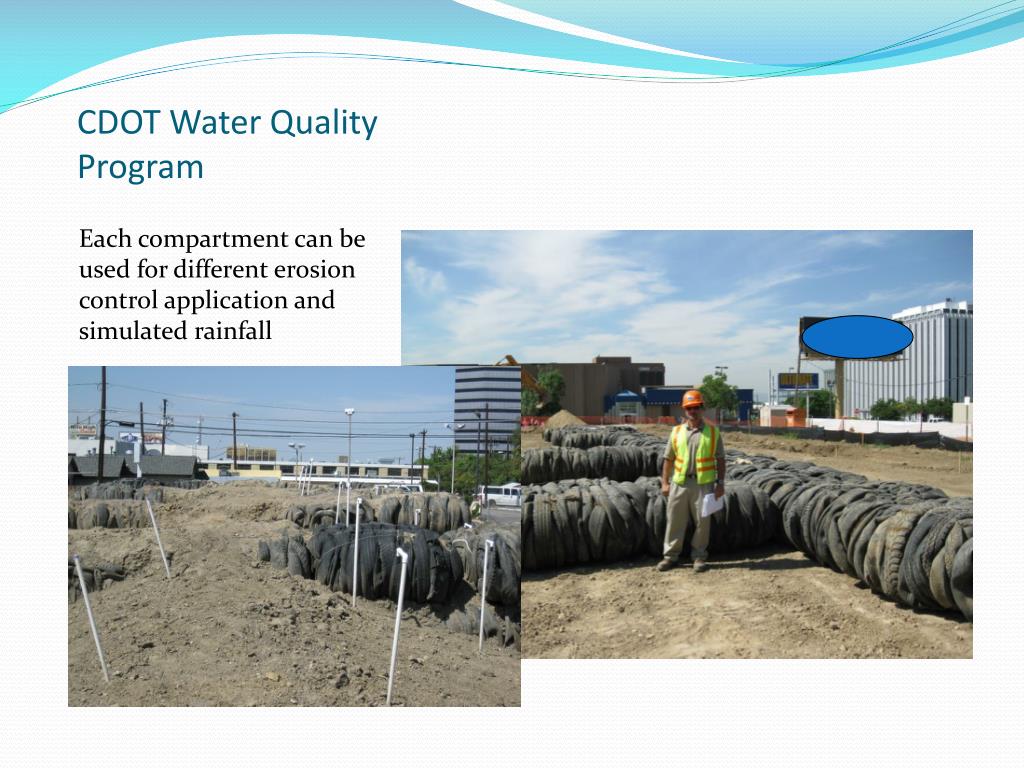

Each compartment can be used for different erosion control application and simulated rainfall


Cdot water quality program4
CDOT Water Quality Program and OVERVIEW

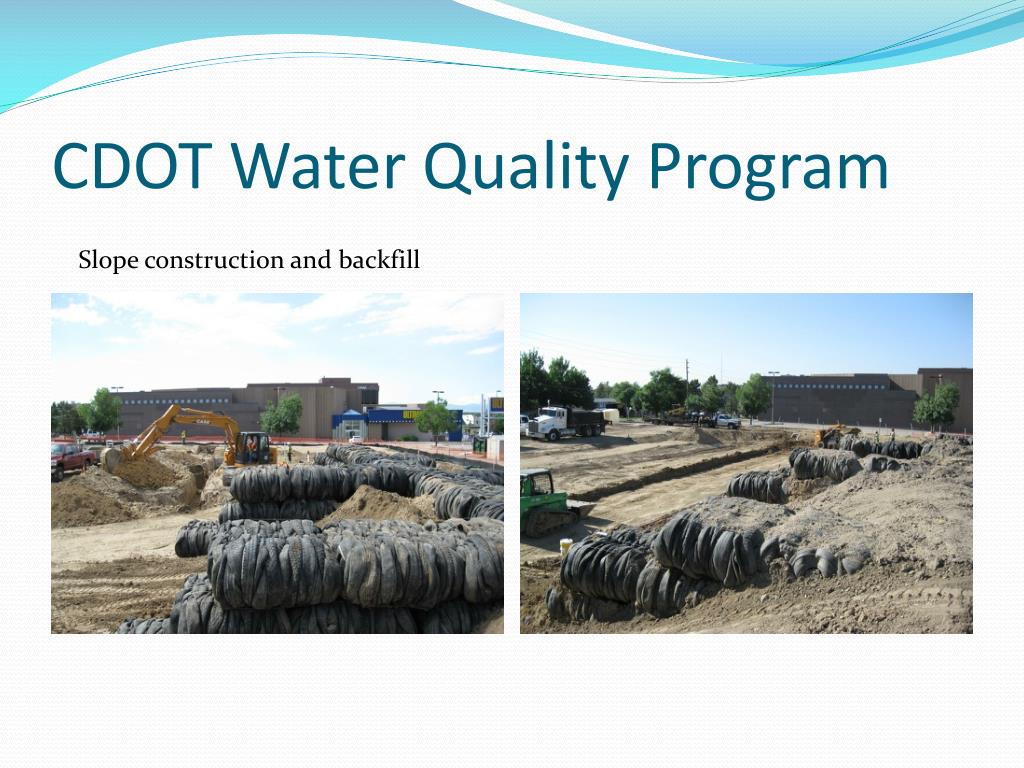

Slope construction and backfill


Cdot water quality program5
CDOT Water Quality Program and OVERVIEW

Completed berm for slope stabilization best management practice’s


Cdot water quality program6
CDOT Water Quality Program and OVERVIEW

  • Water Quality Ponds constructed to display various outlet control BMP’s, slope control and access options

  • Ponds capture stormwater from rain events and water used during training.


Cdot water quality program7
CDOT Water Quality Program and OVERVIEW

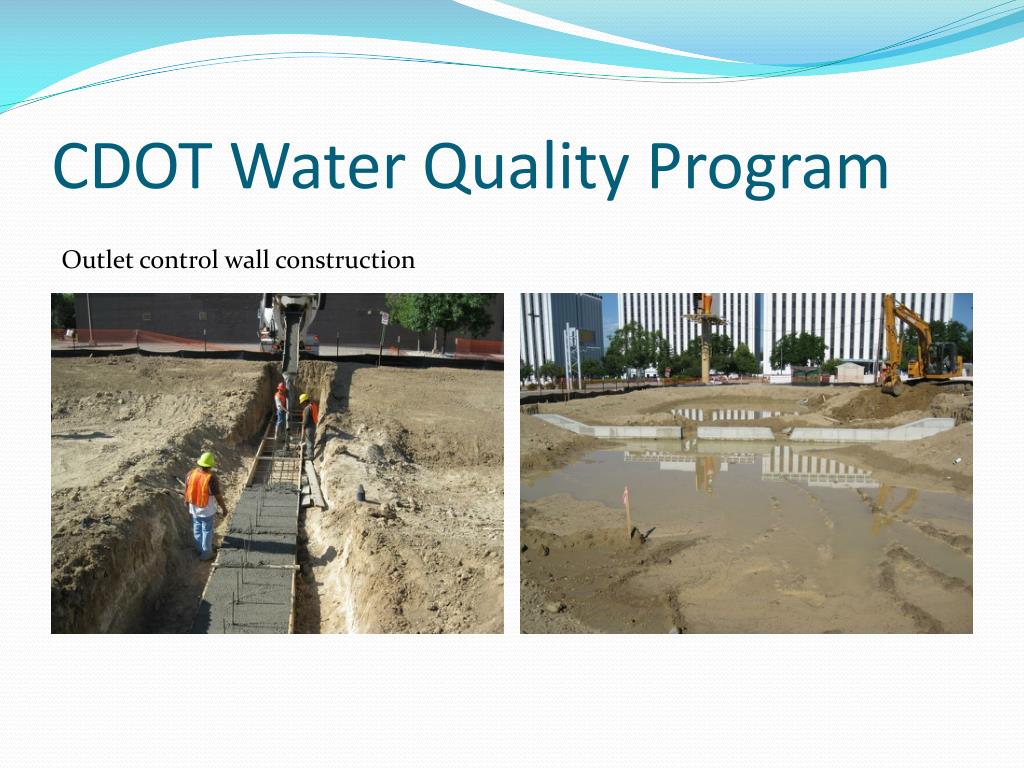

Outlet control wall construction


Cdot water quality program8
CDOT Water Quality Program and OVERVIEW

Pond side slope stabilization using soil retention blankets


Cdot water quality program9
CDOT Water Quality Program and OVERVIEW

Final pond configuration and completed outlet controls


Cdot water quality program10
CDOT Water Quality Program and OVERVIEW

Roadway template with curb, gutter and curb inlets demonstrates the following:

Pavement runoff and adjacent soil runoff onto template

Type R drain and BMP’s

Drainage to a Type C inlet


Cdot water quality program11
CDOT Water Quality Program and OVERVIEW

Roadway template for curb and gutter, and shoulder bmp applications

Concrete washout during construction and used in training


Cdot water quality program12
CDOT Water Quality Program and OVERVIEW

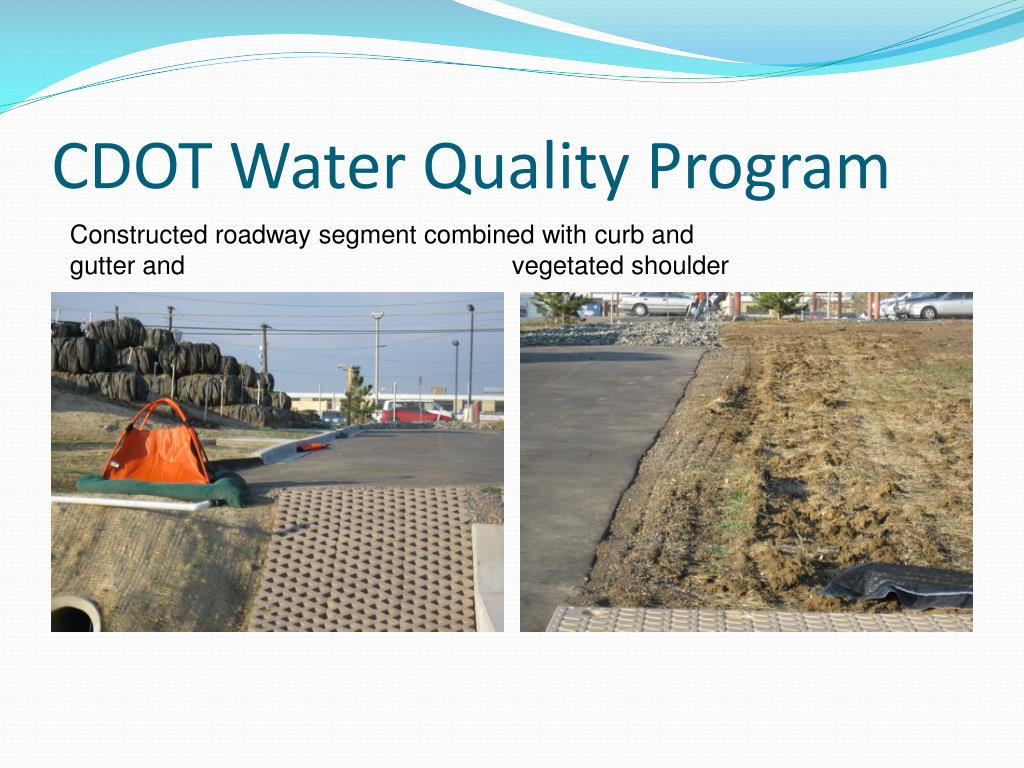

Constructed roadway segment combined with curb and gutter and vegetated shoulder


Cdot water quality program13
CDOT Water Quality Program and OVERVIEW

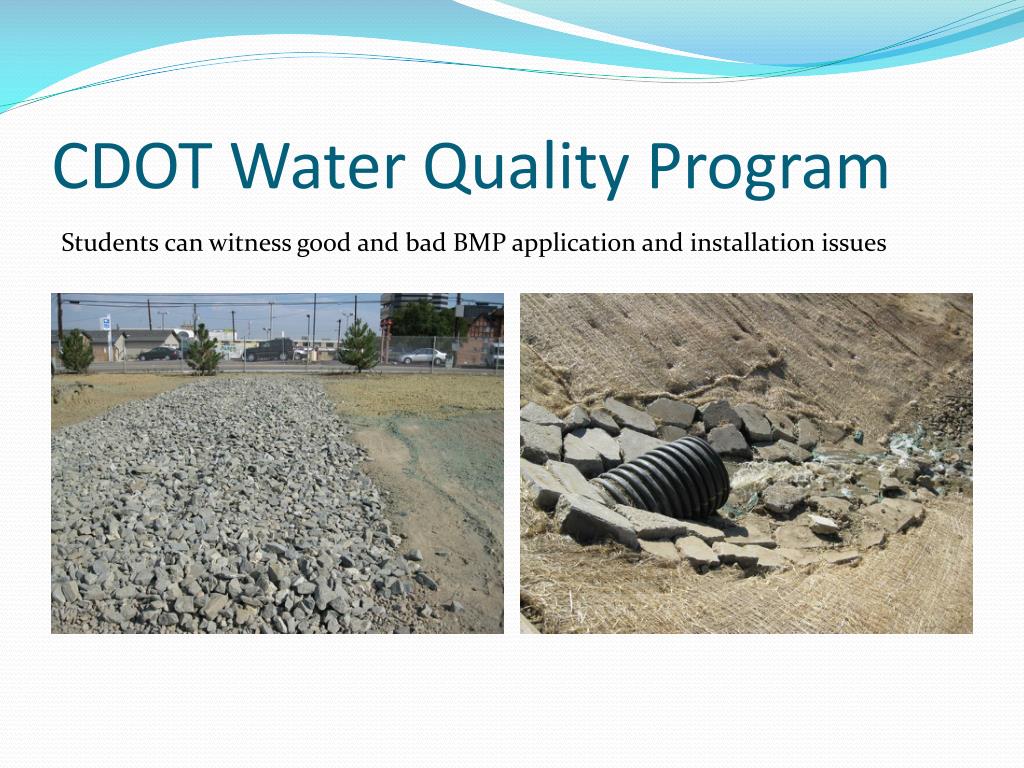

Students can witness good and bad BMP application and installation issues


Cdot water quality program14
CDOT Water Quality Program and OVERVIEW

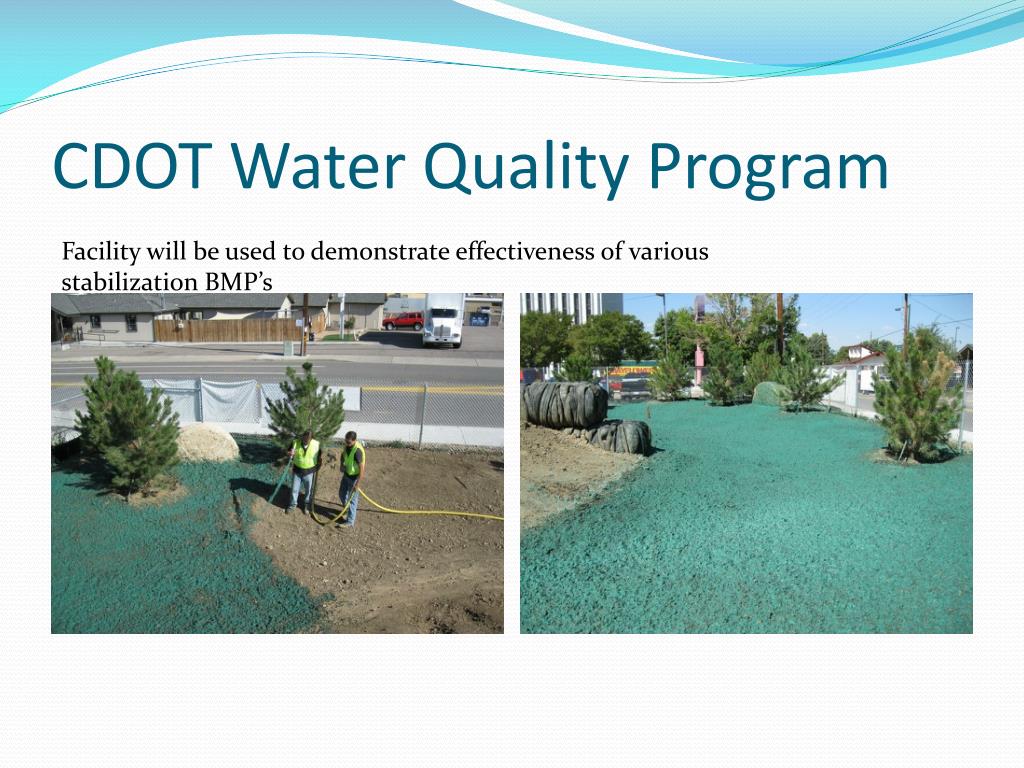

Facility will be used to demonstrate effectiveness of various stabilization BMP’s


Cdot water quality program15
CDOT Water Quality Program and OVERVIEW

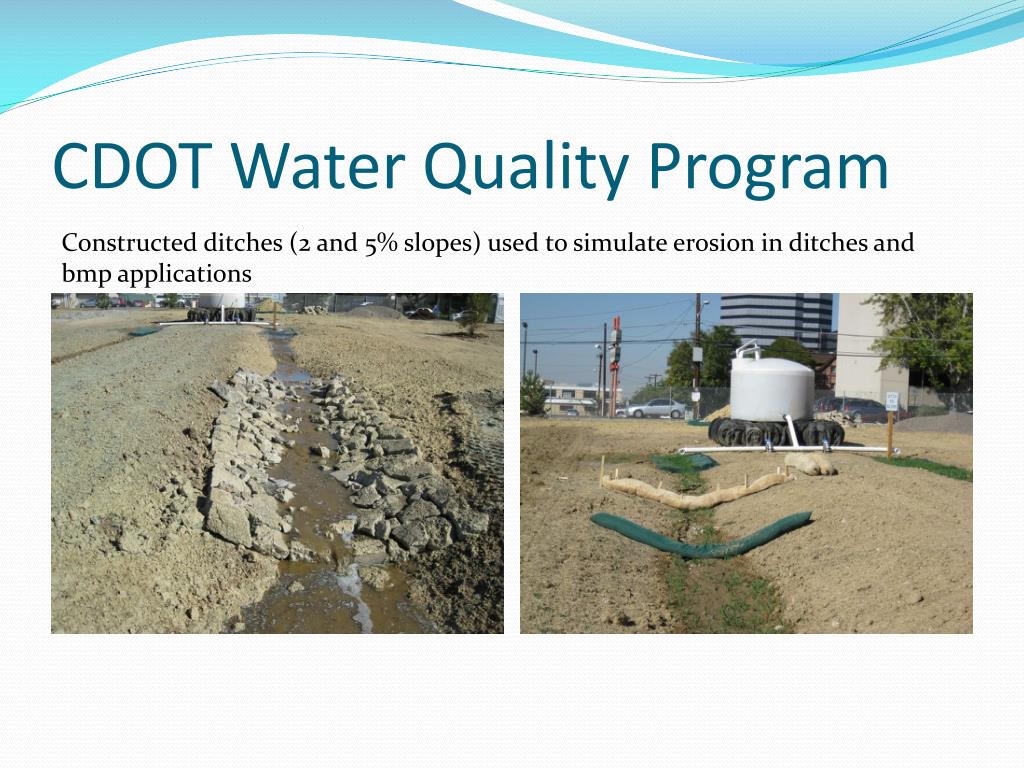

Constructed ditches (2 and 5% slopes) used to simulate erosion in ditches and bmp applications


Cdot water quality program16
CDOT Water Quality Program and OVERVIEW

Temp stream crossing with a durable road surface mat


Site Applications and BMP’s and OVERVIEW

Slope

Ditch

Temp xing

Slope & ditch reveg

WQ Pond

Soil retention

blanket

Mulch


Cdot water quality program17
CDOT Water Quality Program and OVERVIEW

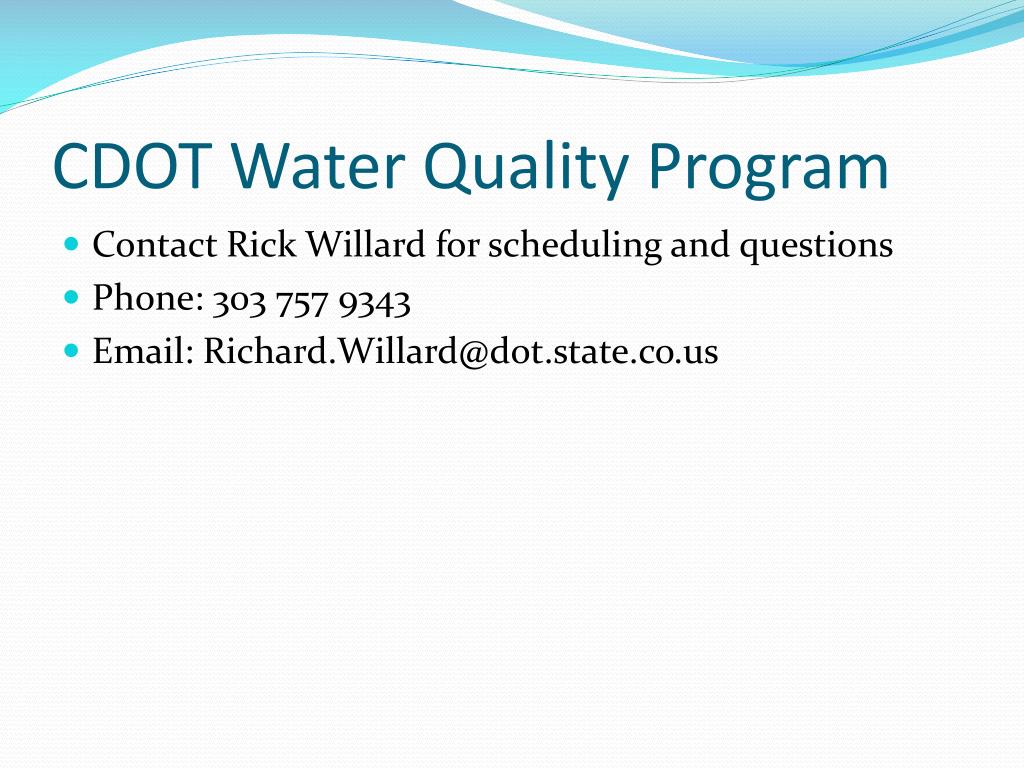

  • Contact Rick Willard for scheduling and questions

  • Phone: 303 757 9343

  • Email: [email protected]


Cdot water quality program18
CDOT Water Quality Program and OVERVIEW

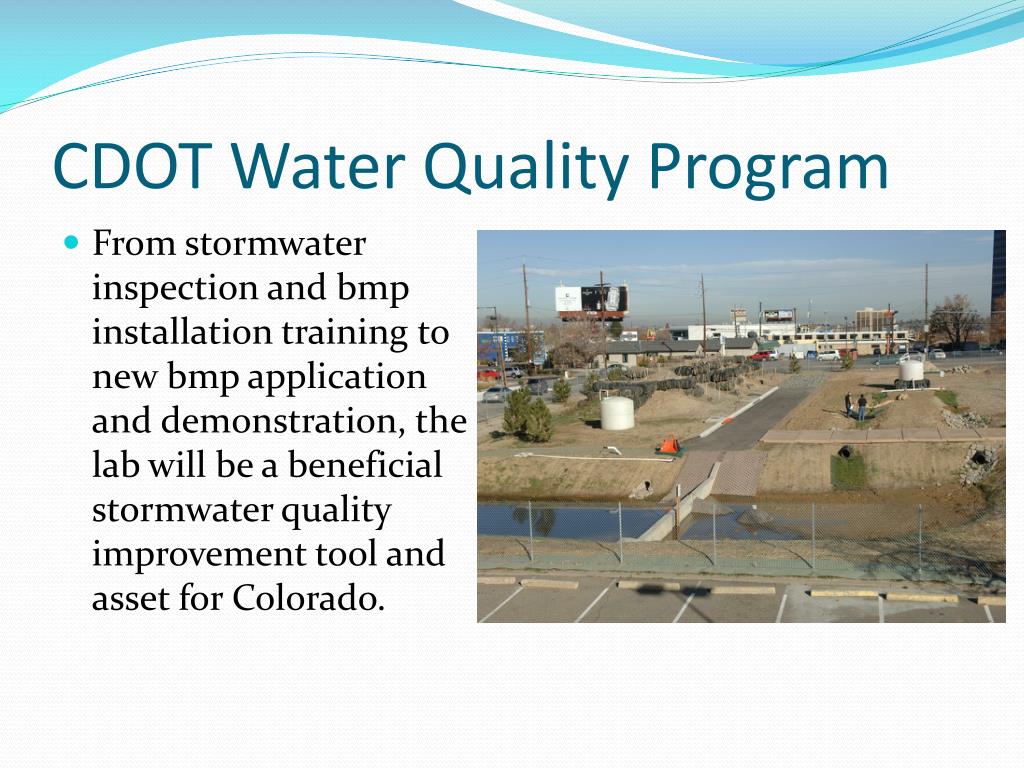

  • From stormwater inspection and bmp installation training to new bmp application and demonstration, the lab will be a beneficial stormwater quality improvement tool and asset for Colorado.
