General technology print cartridge maintenance tips cleaning frequency cleaning procedure

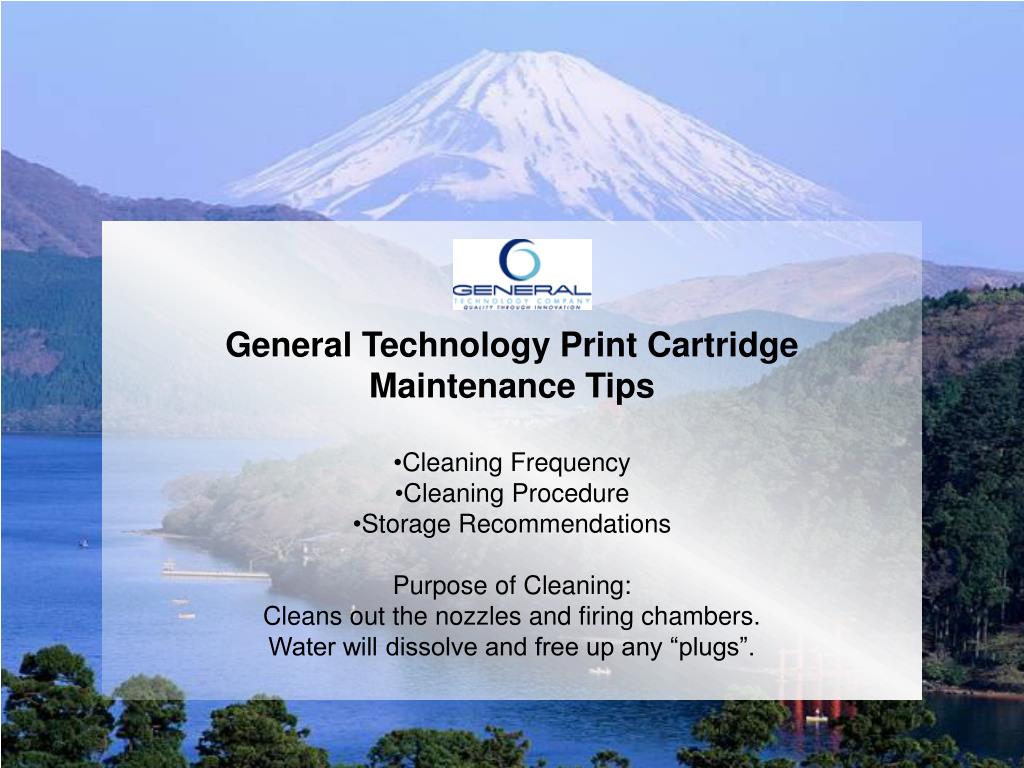

General Technology Print Cartridge

Maintenance Tips

Cleaning Frequency

Cleaning Procedure

Storage Recommendations

Purpose of Cleaning:

Cleans out the nozzles and firing chambers.

Water will dissolve and free up any “plugs”.


What are you buying

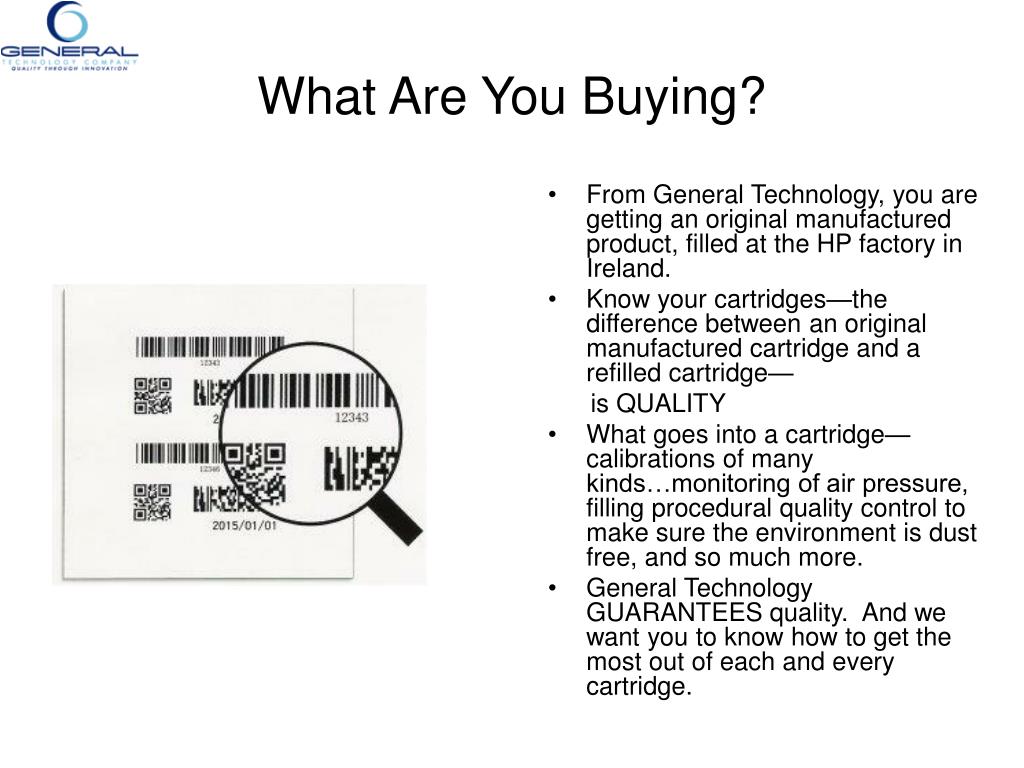

What Are You Buying?

  • From General Technology, you are getting an original manufactured product, filled at the HP factory in Ireland.

  • Know your cartridges—the difference between an original manufactured cartridge and a refilled cartridge—

    is QUALITY

  • What goes into a cartridge—calibrations of many kinds…monitoring of air pressure, filling procedural quality control to make sure the environment is dust free, and so much more.

  • General Technology GUARANTEES quality. And we want you to know how to get the most out of each and every cartridge.


How iq2392a g404 is manufactured

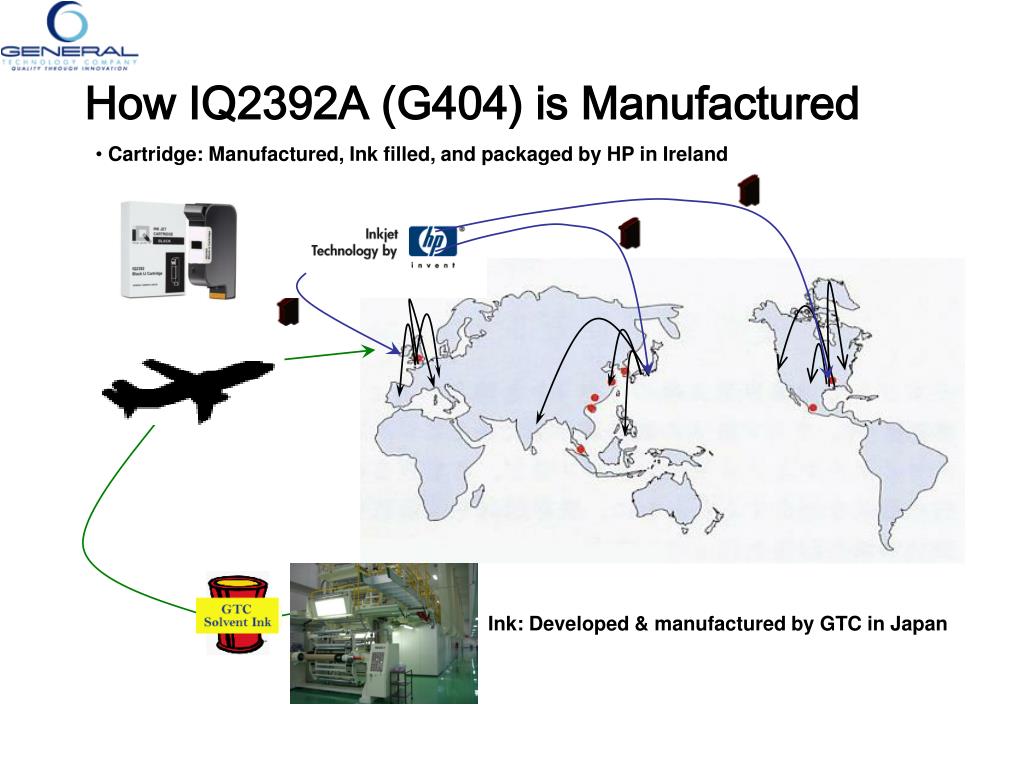

How IQ2392A (G404) is Manufactured

  • Cartridge: Manufactured, Ink filled, and packaged by HP in Ireland

Ink: Developed & manufactured by GTC in Japan


Benefits of g404 ink

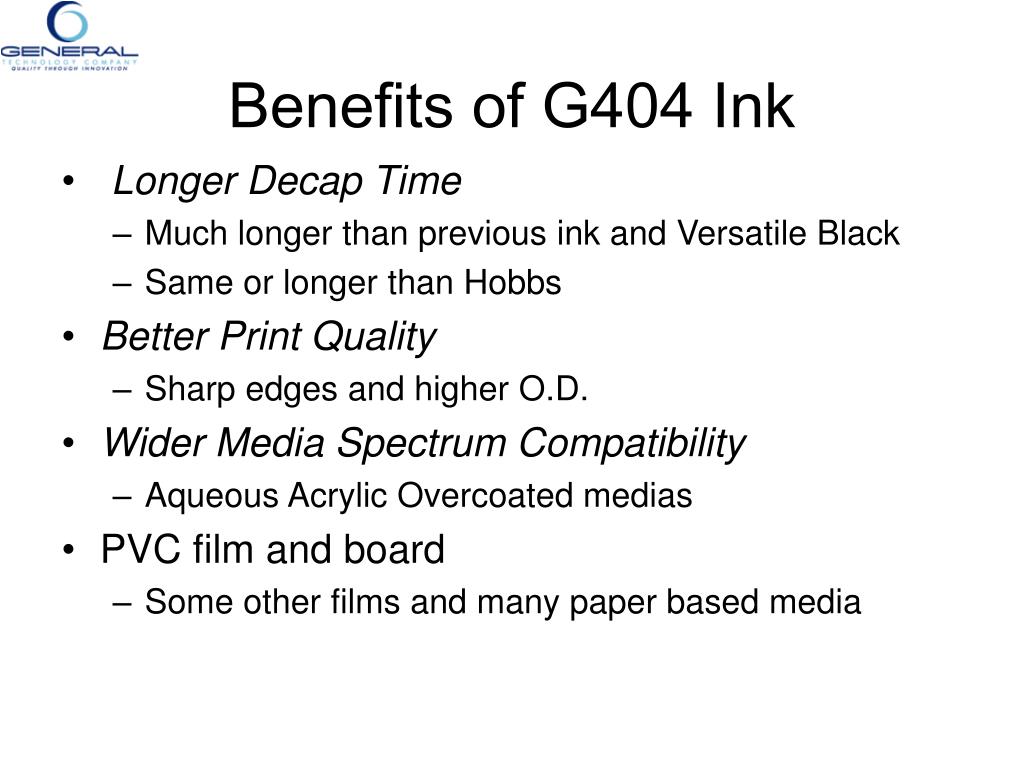

Benefits of G404 Ink

  • Longer Decap Time

    • Much longer than previous ink and Versatile Black

    • Same or longer than Hobbs

  • Better Print Quality

    • Sharp edges and higher O.D.

  • Wider Media SpectrumCompatibility

    • Aqueous Acrylic Overcoated medias

  • PVC film and board

    • Some other films and many paper based media


Decap time

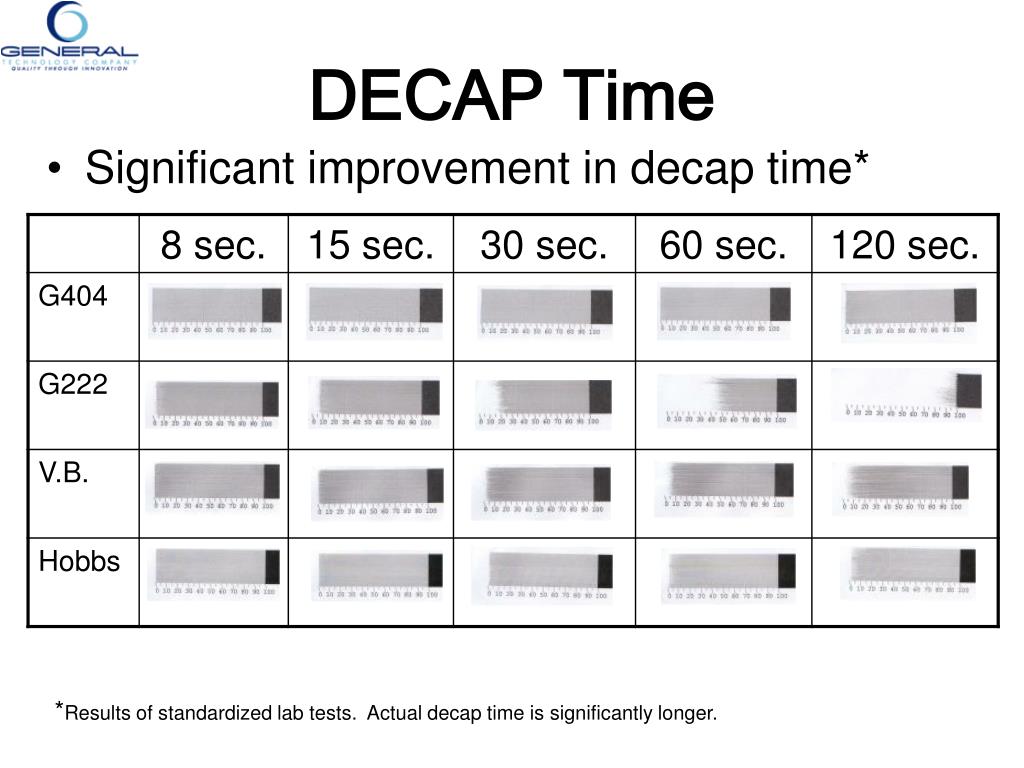

DECAP Time

  • Significant improvement in decap time*

*Results of standardized lab tests. Actual decap time is significantly longer.


Print quality p q

Print Quality (P.Q.)

  • Significant improvement in Print Quality

  • ※Observed sharpness. (The details are wetting on the substrate, bleeding.)

  • Note: Grade 1 Fail, 2 Below average, 3 Fair, 4 Very good, 5 Excellent

  • Comments

  • G404 gave good PQ (over 3) on most substrates except UV varnish coated paper.

  • G404 has less blot on matte substrates than G222.


Print quality p q1

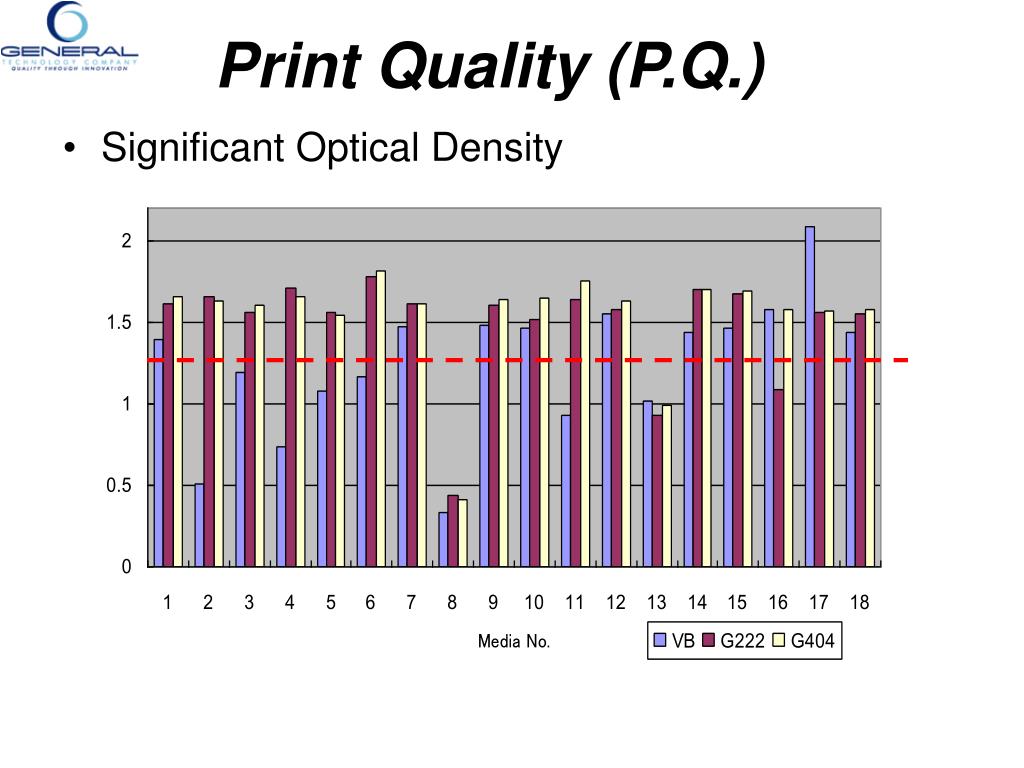

Significant Optical Density

Print Quality (P.Q.)


Wider media spectrum

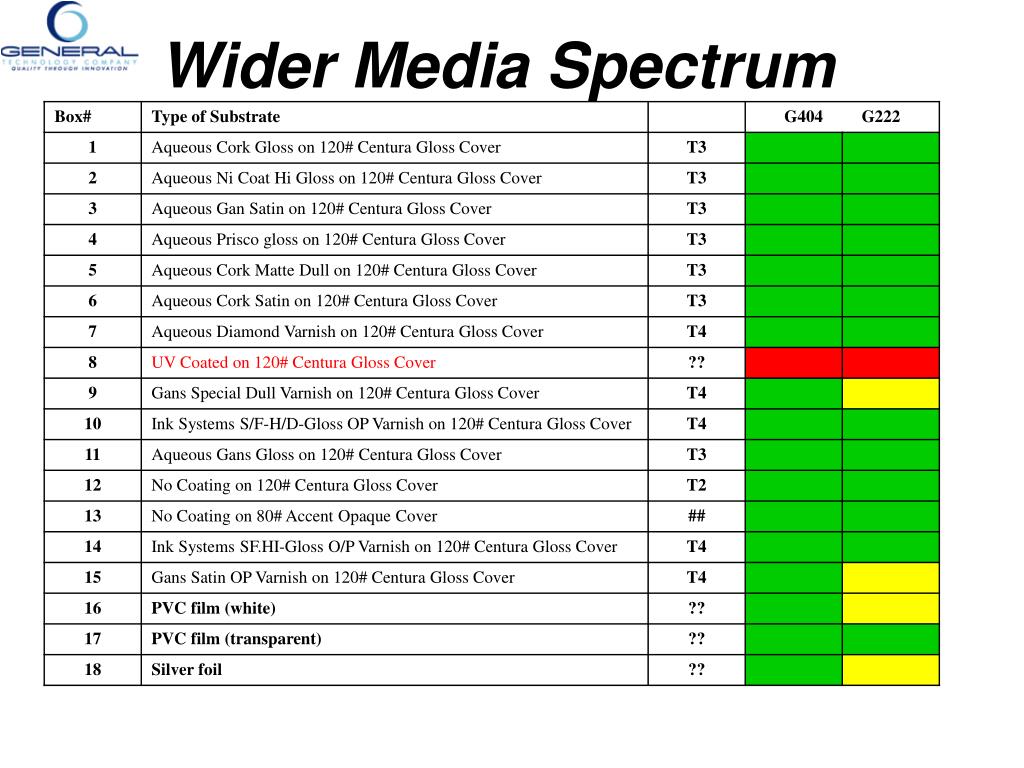

Wider Media Spectrum


When to clean

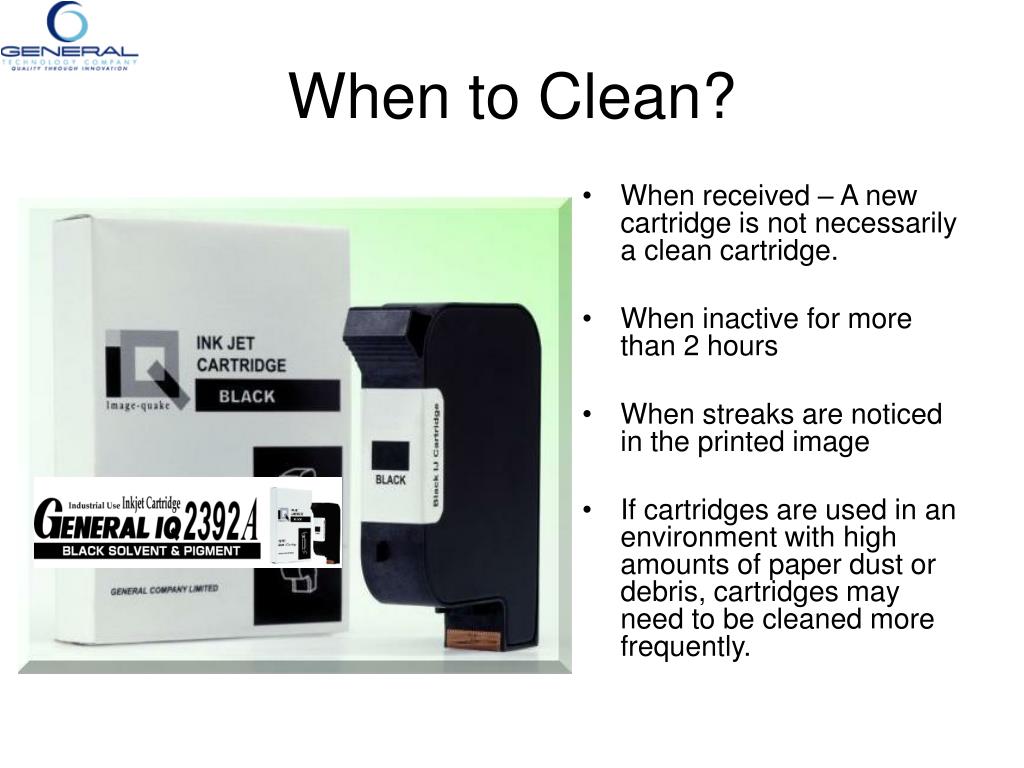

When to Clean?

  • When received – A new cartridge is not necessarily a clean cartridge.

  • When inactive for more than 2 hours

  • When streaks are noticed in the printed image

  • If cartridges are used in an environment with high amounts of paper dust or debris, cartridges may need to be cleaned more frequently.


How to clean preparation

How to Clean - Preparation

  • Use cotton-free, fibreless, clean “tech wipes” are best – no paper towels or cotton rags.

  • Fold wipe once, and place folded cloth on a firm, flat surface.

  • Moisten an area on cloth approximately 1” X 4” with water (de-ionized is best, bottled water such as Dasani or Poland Springs is better than tap water.)

  • Fold wipe once, and place folded cloth on a firm, flat surface.


Cleaning procedure

Cleaning Procedure

  • Place cartridge – pen nozzles down – on damp area with approximately 1-2 pounds of downward pressure, and hold for 1-2 seconds to allow ink to “wick”.

  • Wipe slowly across long-axis facing down with one 3” stroke, pulling in the same direction as the nozzle lines. Two lines of ink should appear if nozzles are clear.

  • Do not wipe in dry area of cloth – this may scratch or damage nozzles.

  • Repeat as necessary

  • If streaks still appear after cleaning, execute Purge operation.

  • DO NOT CLEAN WITH SOLVENTS OR CHEMICAL CLEANERS. DO NOT IMMERSE CARTRIDGES IN ANY LIQUID.


Cartridge storage

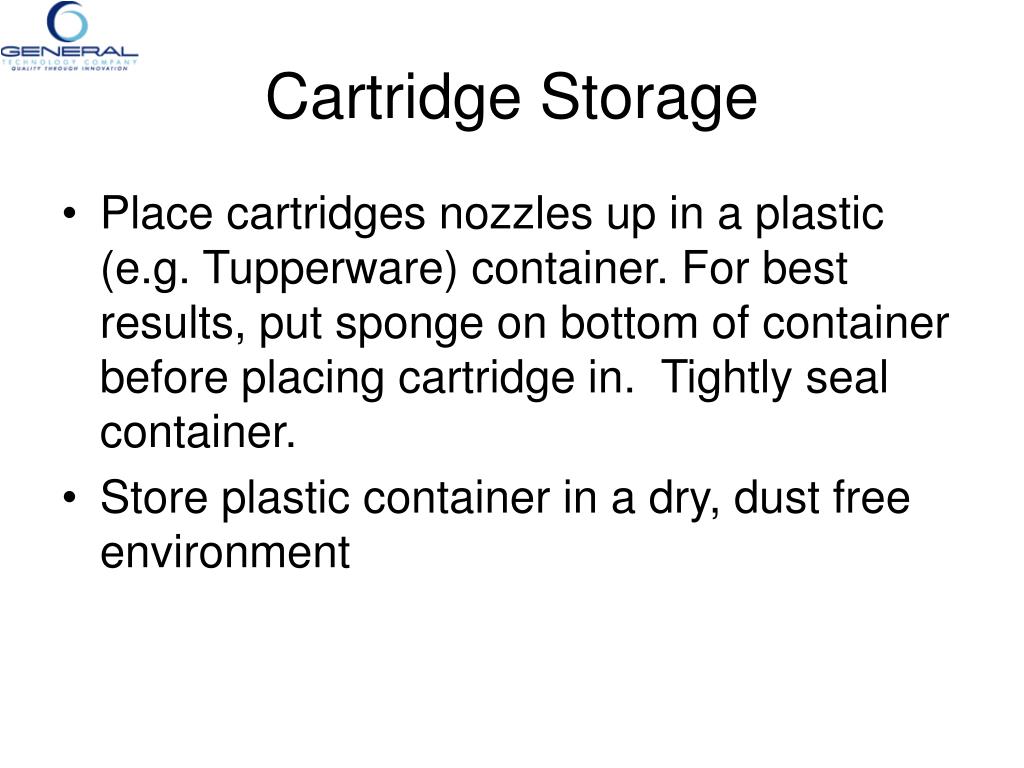

Cartridge Storage

  • Place cartridges nozzles up in a plastic (e.g. Tupperware) container. For best results, put sponge on bottom of container before placing cartridge in. Tightly seal container.

  • Store plastic container in a dry, dust free environment


General technology print cartridge maintenance tips cleaning frequency cleaning procedure

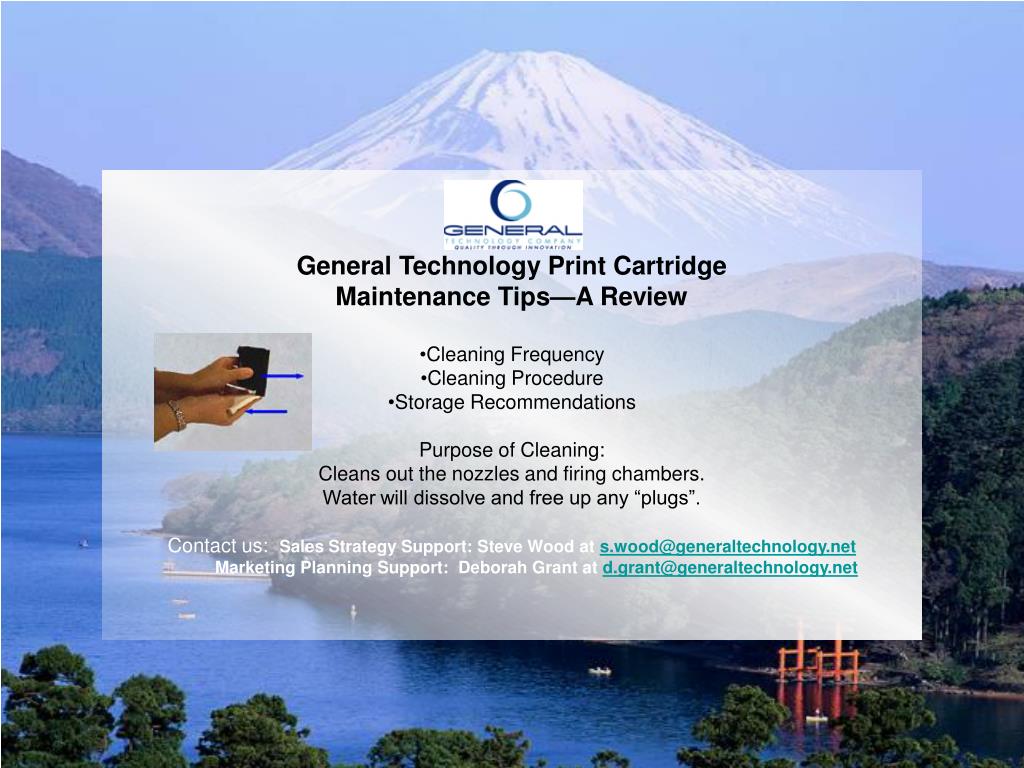

General Technology Print Cartridge

Maintenance Tips—A Review

Cleaning Frequency

Cleaning Procedure

Storage Recommendations

Purpose of Cleaning:

Cleans out the nozzles and firing chambers.

Water will dissolve and free up any “plugs”.

Contact us: Sales Strategy Support: Steve Wood at [email protected]

Marketing Planning Support: Deborah Grant at [email protected]
