Air car

AIR CAR

123seminarsonly.com email us for more reports 123seminarsonly@gmail.com

123seminarsonly.com email us for more reports 123seminarsonly@gmail.com

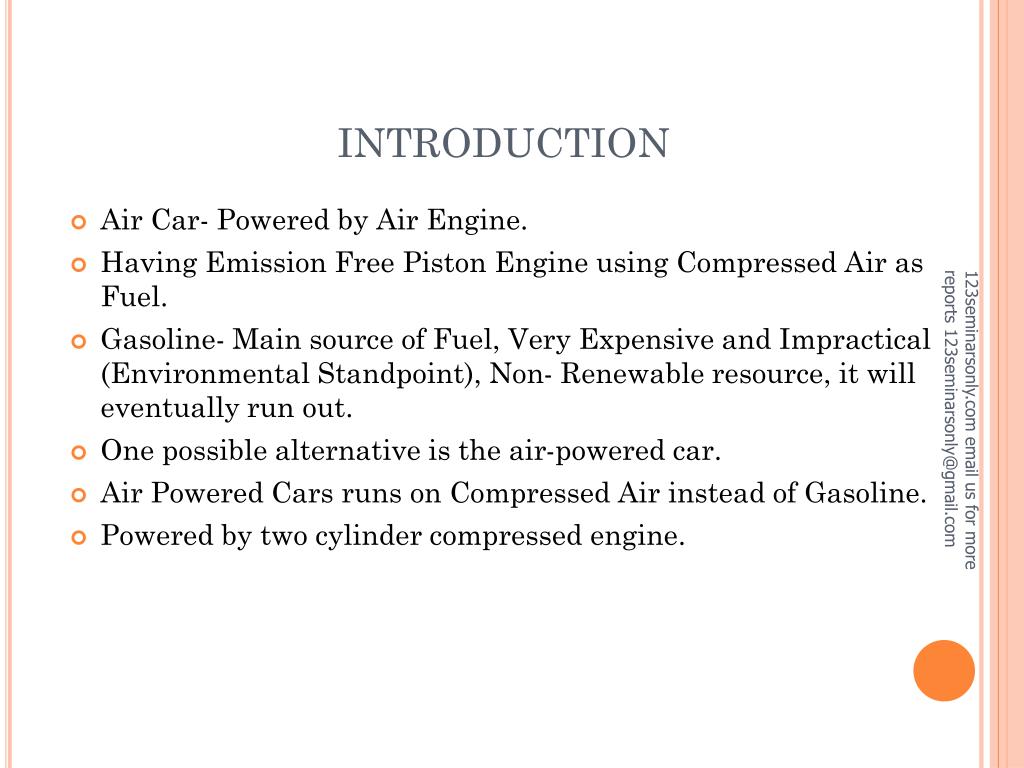

Introduction
INTRODUCTION

  • Air Car- Powered by Air Engine.

  • Having Emission Free Piston Engine using Compressed Air as Fuel.

  • Gasoline- Main source of Fuel, Very Expensive and Impractical (Environmental Standpoint), Non- Renewable resource, it will eventually run out.

  • One possible alternative is the air-powered car.

  • Air Powered Cars runs on Compressed Air instead of Gasoline.

  • Powered by two cylinder compressed engine.

123seminarsonly.com email us for more reports 123seminarsonly@gmail.com


Vehicle parts
VEHICLE PARTS

COMPRESSED AIR TANK

  • Are Localized Underneath the Vehicle.

  • This Compressed Air Storage System is Safe to Risk of Explosion.

  • Hold 90 cubic meters of air, compressed to 300 bars.

  • Are the same tanks used to carry the liquid gas used by buses for public transport.

  • Are Designed and Officially approved to carry an Explosive Product: Methane gas.

  • Tanks are Not Made of Metals, Rather they are made Of Carbon Fibers.

  • So if Tanks Rupture, They would not Explode, Rather They Would Crack

123seminarsonly.com email us for more reports 123seminarsonly@gmail.com


The body
THE BODY

  • Car Body- Built with Fiber and Injected Foam.

  • Two main advantages: Cost and Weight.

  • Sheet Steel-Low Cost than Fiber.

  • Fiber is safer.

  • It doesn’t cut like steel.

  • Easier to Repair, glue, doesn’t rust.

123seminarsonly.com email us for more reports 123seminarsonly@gmail.com


The air filter
THE AIR FILTER

  • Air- Compressed by On Board Compressor Or Service Stations Equipped with High-Pressure Compressor.

  • Before compression, Air must be Filtered to get rid of any Impurities.

  • Carbon Filters are used to Eliminate dirt, dust, humidity and abundant abrasive particles.

  • System eliminates and reduces existing Pollution.

  • The Exhaust pipe on the Air-Powered Cars produces clean air which is cold on exit (between 15o and 0o) and harmless to human life.

  • The air that comes out of the car is cleaner than the Air that went in.

123seminarsonly.com email us for more reports 123seminarsonly@gmail.com


The chassis
THE CHASSIS

  • Chassis- Highly resistant, Light, Aluminium Rods glued together.

  • Aluminium rods Enables to build More Shock-Resistant Chassis than Regular Chassis.

  • The rods are Glued in the Same way as Aircraft.

  • Allowing quick assembly.

  • More secure join than Welding.

  • This System helps to reduce Manufacture Time.

123seminarsonly.com email us for more reports 123seminarsonly@gmail.com


Technology descreption
TECHNOLOGY DESCREPTION

  • Piston 1- Takes in Air, Compresses at 300 psi & 200 *F in Compression Chamber During 1st Cycle of Engine.

  • Piston Pauses. Small Amount Of Air is released in Expansion Chamber. It Creates Low Pressure of 140 psi, Low Temperature, Low volume.

  • A High Speed Shutter Connects the Compression & Expansion Chamber.

  • Sudden Pressure & Temperature Difference in the two Chamber creates Pressure Wave in Expansion Chamber, Thus Producing Work that drives the piston to Power the Engine.

123seminarsonly.com email us for more reports 123seminarsonly@gmail.com

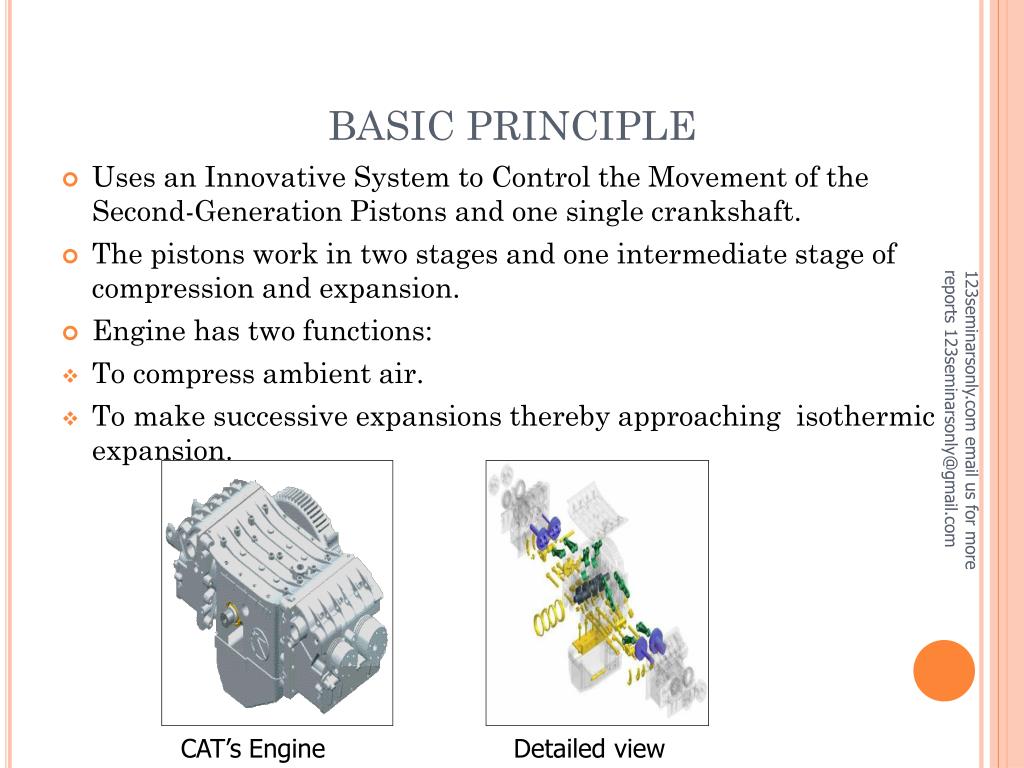

Basic principle
BASIC PRINCIPLE

  • Uses an Innovative System to Control the Movement of the Second-Generation Pistons and one single crankshaft.

  • The pistons work in two stages and one intermediate stage of compression and expansion.

  • Engine has two functions:

  • To compress ambient air.

  • To make successive expansions thereby approaching isothermic expansion.

123seminarsonly.com email us for more reports 123seminarsonly@gmail.com

CAT’s Engine

Detailed view


Working

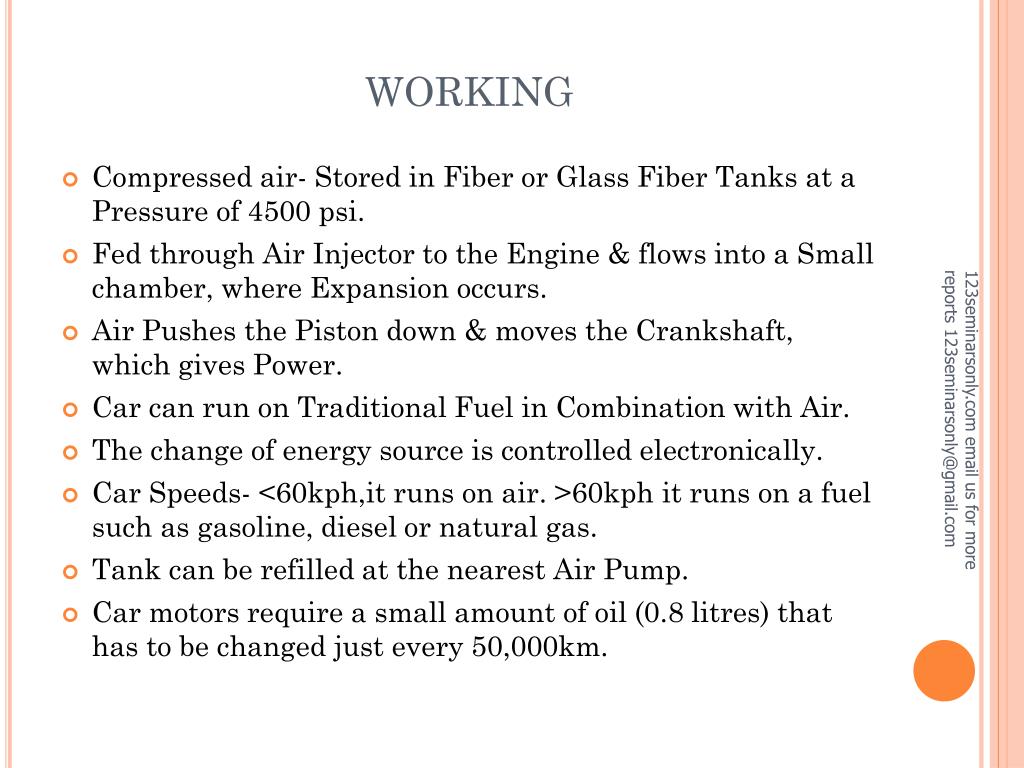

WORKING

  • Compressed air- Stored in Fiber or Glass Fiber Tanks at a Pressure of 4500 psi.

  • Fed through Air Injector to the Engine & flows into a Small chamber, where Expansion occurs.

  • Air Pushes the Piston down & moves the Crankshaft, which gives Power.

  • Car can run on Traditional Fuel in Combination with Air.

  • The change of energy source is controlled electronically.

  • Car Speeds- <60kph,it runs on air. >60kph it runs on a fuel such as gasoline, diesel or natural gas.

  • Tank can be refilled at the nearest Air Pump.

  • Car motors require a small amount of oil (0.8 litres) that has to be changed just every 50,000km.

123seminarsonly.com email us for more reports 123seminarsonly@gmail.com


Articulated con rod
ARTICULATED CON-ROD

  • The Con-Rod System- Allows the Piston to be held at Top Dead Centre for 70% of the cycle.

  • This way, enough time is given to create the pressure in the cylinder.

  • The torque is also better so the force exerted on the crankshaft is less substantial than in a classic system.

123seminarsonly.com email us for more reports 123seminarsonly@gmail.com


Gear box
GEAR BOX

  • Gear Changes are Automatic, Powered by an Electronic system.

  • A computer which controls speed of the car is effectively changing the gears.

    MOTO-ALTERNATOR

  • The Moto-alternator connects the engine to the gearbox.

  • It has many functions:

  • Supports the vehicle’s motor to allow the Tanks to be refilled.

  • As an alternator to produce Brake Power.

  • Starts the Vehicle and Provides Extra Power when necessary.

123seminarsonly.com email us for more reports 123seminarsonly@gmail.com


Distribution system

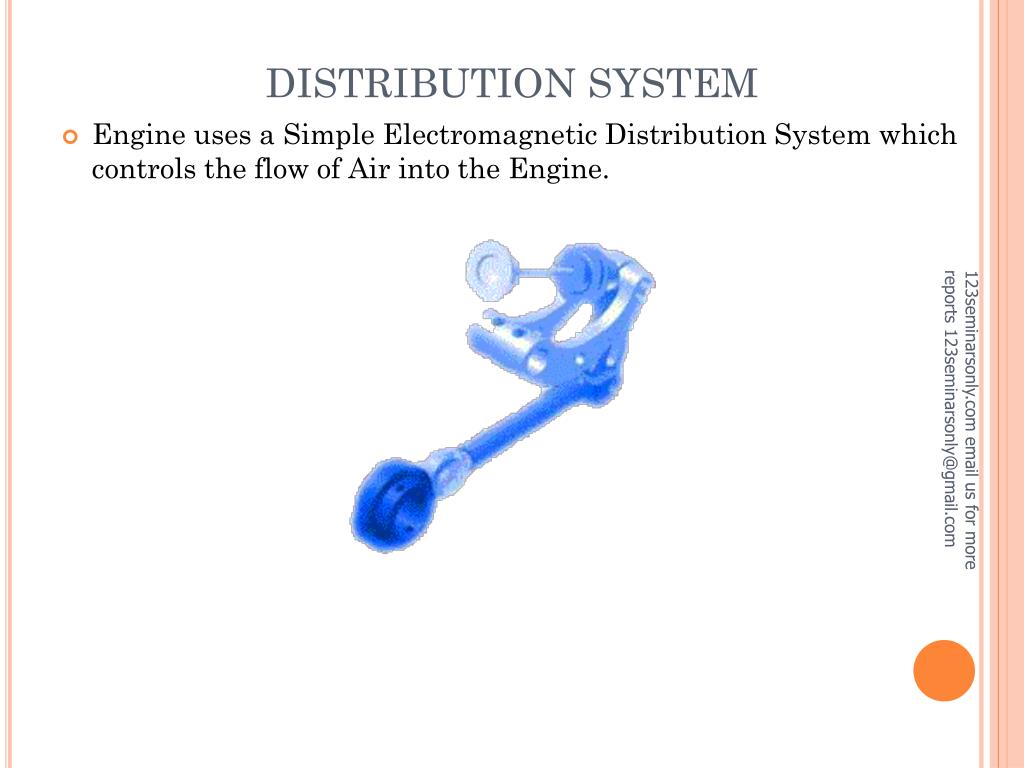

DISTRIBUTION SYSTEM

  • Engine uses a Simple Electromagnetic Distribution System which controls the flow of Air into the Engine.

123seminarsonly.com email us for more reports 123seminarsonly@gmail.com

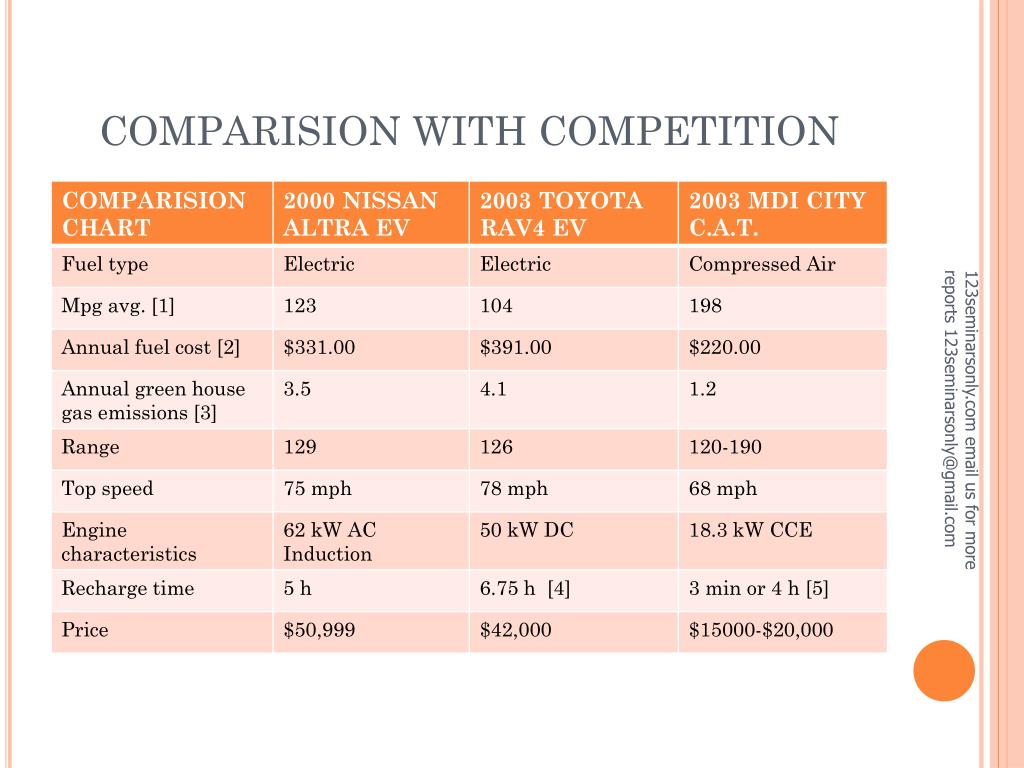

Comparision with competition
COMPARISION WITH COMPETITION

123seminarsonly.com email us for more reports 123seminarsonly@gmail.com


Legend
LEGEND:

1. MPG represents Number of Miles that can be travelled using equivalent Amount of Electrical Energy Compared with a gal of Gasoline.

2. Based on 45% Highway Driving, 55%City driving,15000 miles per year and following fuel prices:

Electricity: $0.08 per kWh ($2.71 per gal of gasoline equivalent)

3.Green house gas emissions expressed in CO2 equivalents.

4.Based on tests conducted.

5.Three minutes through air station or 4 hour, if connected to conventional washer & dryer plug(220V).

123seminarsonly.com email us for more reports 123seminarsonly@gmail.com

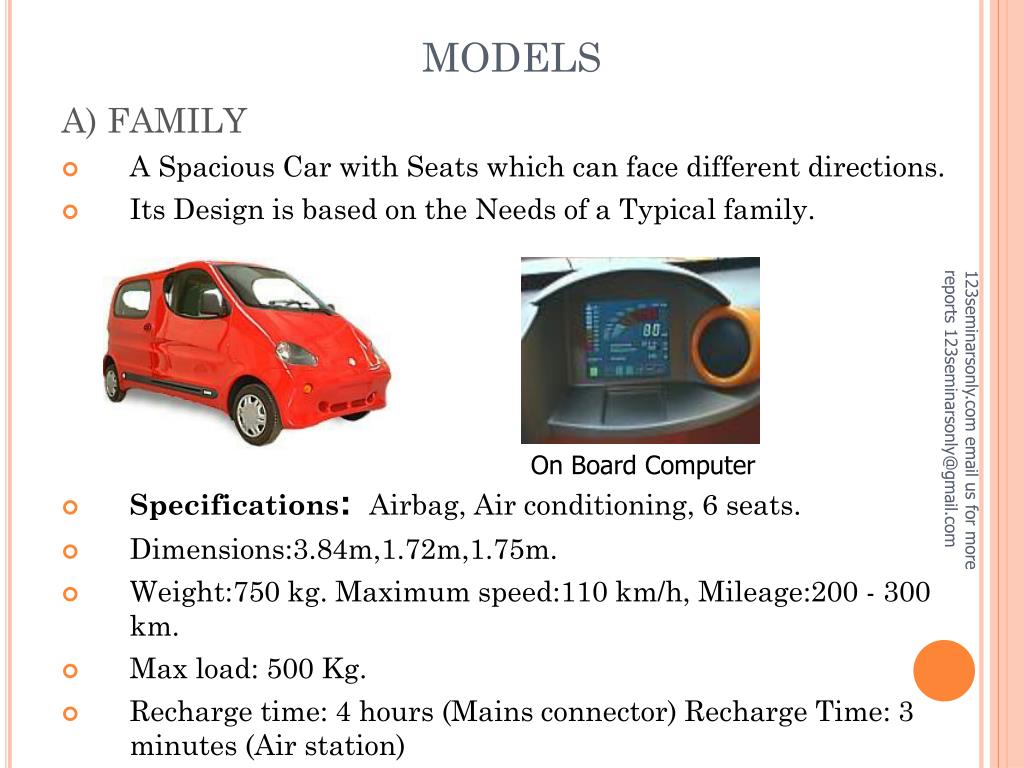

Models
MODELS

A) FAMILY

  • A Spacious Car with Seats which can face different directions.

  • Its Design is based on the Needs of a Typical family.

  • Specifications: Airbag, Air conditioning, 6 seats.

  • Dimensions:3.84m,1.72m,1.75m.

  • Weight:750 kg. Maximum speed:110 km/h, Mileage:200 - 300 km.

  • Max load: 500 Kg.

  • Recharge time: 4 hours (Mains connector) Recharge Time: 3 minutes (Air station)

123seminarsonly.com email us for more reports 123seminarsonly@gmail.com

On Board Computer


B van
B) VAN

  • Designed for daily use in industrial, urban or rural environments, whose primary drivers would be tradesmen, farmers and delivery drivers.

    Specifications: Airbag, air conditioning,2 seats

123seminarsonly.com email us for more reports 123seminarsonly@gmail.com

Steering Wheel


C taxi
C) TAXI

  • Inspired by the London Taxi, with numerous ergonomic and comfort advantages for the passenger as well as for the driver.

    Specifications: Airbag, air conditioning, 6 seats

123seminarsonly.com email us for more reports 123seminarsonly@gmail.com

Steering Wheel


D pick up

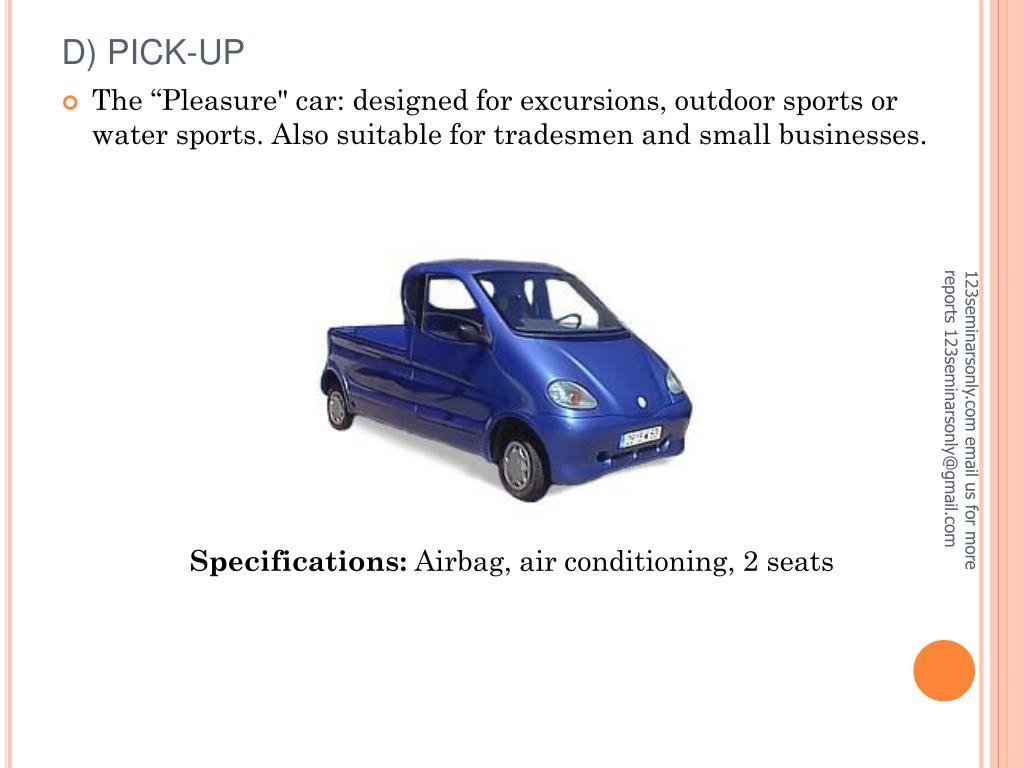

D) PICK-UP

  • The “Pleasure" car: designed for excursions, outdoor sports or water sports. Also suitable for tradesmen and small businesses.

    Specifications: Airbag, air conditioning, 2 seats

123seminarsonly.com email us for more reports 123seminarsonly@gmail.com


E mini cat
E) MINI CAT

  • The smallest and most Innovative: Three seats, Minimal dimensions with the Boot of a saloon.

  • A great challenge for such a small car which runs on compressed air.

  • The Mini Cat is the city car of the future.

    Specifications: Airbag, air conditioning, 3 seats

  • Dimensions:2.65m, 1.62m, 1.64m.

  • Weight:750 kg, Maximum speed:110 km/h. Mileage: 200 - 300 km

  • Maximum load: 270 Kg. Recharging time:  4 hours (Mains connector) Recharging time:3 minutes (Air station).

123seminarsonly.com email us for more reports 123seminarsonly@gmail.com

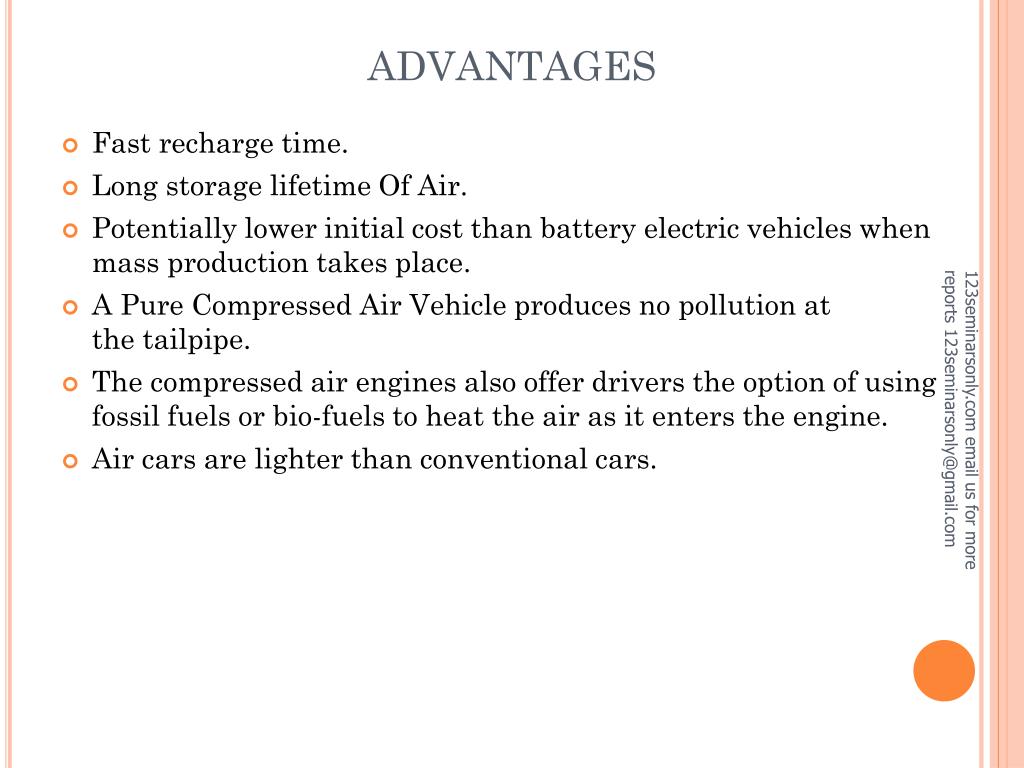

Advantages
ADVANTAGES

  • Fast recharge time.

  • Long storage lifetime Of Air.

  • Potentially lower initial cost than battery electric vehicles when mass production takes place.

  • A Pure Compressed Air Vehicle produces no pollution at the tailpipe.

  • The compressed air engines also offer drivers the option of using fossil fuels or bio-fuels to heat the air as it enters the engine.

  • Air cars are lighter than conventional cars.

123seminarsonly.com email us for more reports 123seminarsonly@gmail.com


Disadvantages

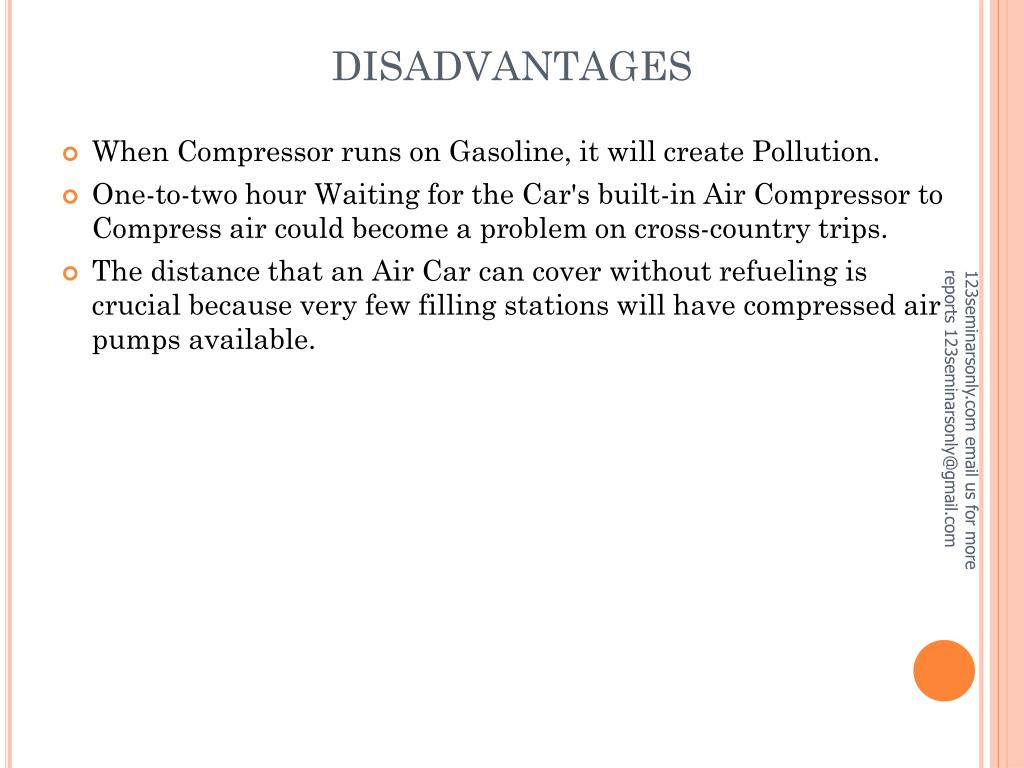

DISADVANTAGES

  • When Compressor runs on Gasoline, it will create Pollution.

  • One-to-two hour Waiting for the Car's built-in Air Compressor to Compress air could become a problem on cross-country trips.

  • The distance that an Air Car can cover without refueling is crucial because very few filling stations will have compressed air pumps available.

123seminarsonly.com email us for more reports 123seminarsonly@gmail.com


Conclusion
CONCLUSION

  • Air powered cars is a Realization of latest technology in automobile field.

  • It eliminates the use of Non-Renewable fuels.

  • Prevents Pollution caused by Millions of Automobiles all over the world.

  • This could be the future of automobiles and step to a Healthier Environment.
