Nomenclature

Nomenclature. Nucleoside Nucleotide Base + deoxyribose +phosphate. Purines adenine adenosine guanine guanosine hypoxanthine inosine Pyrimidines thymine thymidine cytosine cytidine +ribose uracil uridine. ii). Structure of the DNA double helix.

tobias
Download Presentation

Nomenclature

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Nomenclature Nucleoside Nucleotide Base +deoxyribose +phosphate Purines adenine adenosine guanine guanosine hypoxanthine inosine Pyrimidines thymine thymidine cytosine cytidine +ribose uraciluridine

  2. ii). Structure of the DNA double helix Structure of the DNA polynucleotide chain 5’ 3’ • polynucleotide chain • 3’,5’-phosphodiester bond

  3. ii). Structure of the DNA double helix • The DNA double helix requires that the two polynucleotide chains be base-paired to each other.

  4. X ray diffraction • When X rays are focused through isolated macromolecules or crystals of purified molecules, the X ray are deflected by the atom of the molecules in specific patterns called diffraction patterns. • It provides the information about the organization of the components of the molecules. • Watson and Crick had X ray crystallographic data on DNA structure from the studies of Wilkins and Franklin and their coworkers. • These data indicated that DNA was a highly ordered, multiple stranded structure with repeating sub structures spaced every 3.4 Ao (1 Angstrom = 10-10 m )

  5. X-ray diffraction patterns of DNA – Rosalind Franklin and Maurice Wilkins The central cross shaped pattern as indicative of a helical structure. The heavy dark patterns (top and bottom) indicate that the bases are stacked perpendicular to the axis of the molecule.

  6. A-T base pair Hydrogen bonding of the bases G-C base pair Chargaff’s rule: The content of A equals the content of T, and the content of G equals the content of C in double-stranded DNA from any species

  7. Double-stranded DNA • Double-stranded DNA, is composed of two base-paired, complementary polynucleotide chains. • Base-pairing between the complementary strands is required for two important functions of DNA: 1) DNA replication involves an unwinding of the double helix (right) followed by synthesis of a complementary strand from each of the unpaired template strands, and 2) RNA synthesis DNA serves as a template for by utilizing the information in one strand to code for a complementary RNA strand.

  8. DNA in the "B" form has - a major groove and a minor groove, -and has 10 base pairs per one turn of the double helix. • “Supercoiled" DNA that is overwound or underwound, with fewer than or more than 10 base pairs per turn. • Antiparallel with respect to each other. • Each polynucleotide chain has a 5' end and a 3' end.

  9. Double-stranded DNA 5’ 3’ Major groove Minor groove “B” DNA 3’ 5’ 3’ 5’

  10. Deoxyribonucleases (or DNases) are enzymes that cleave phosphodiester bonds. • Some are used for constructive purposes, such as proofreading during DNA replication, whereas others are used to degrade DNA. • There are two basic classes of DNases: exonucleases and endonucleases. Exonucleases remove only the terminal nucleotide, whereas endonucleases cleave anywhere within the DNA double helix.

  11. Forces affecting the stability of the DNA double helix • hydrophobic interactions - stabilize • - hydrophobic inside and hydrophilic outside • stacking interactions - stabilize • - relatively weak but additive van der Waals forces • hydrogen bonding - stabilize • - relatively weak but additive and facilitates stacking • electrostatic interactions - destabilize • - contributed primarily by the (negative) phosphates • - affect intrastrand and interstrand interactions • - repulsion can be neutralized with positive charges • (e.g., positively charged Na+ ions or proteins)

  12. Stacking interactions Charge repulsion Charge repulsion

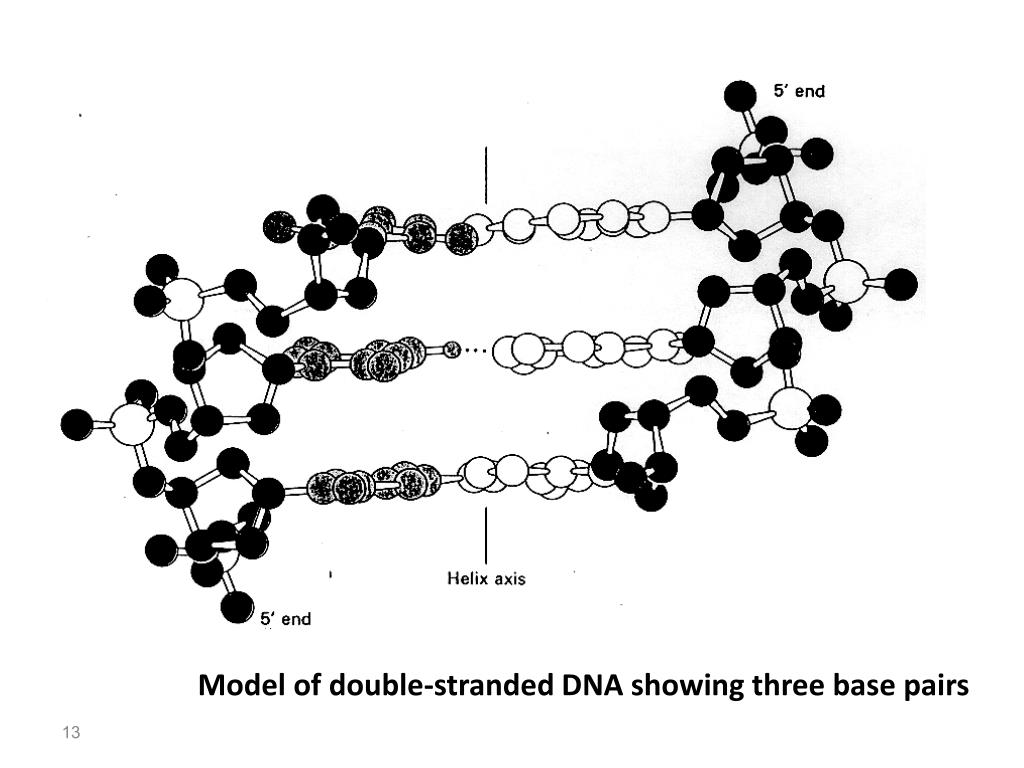

  13. Model of double-stranded DNA showing three base pairs

  14. Denaturation of DNA Strand separation and formation of single-stranded random coils Double-stranded DNA Extremes in pH or high temperature A-T rich regions denature first Cooperative unwinding of the DNA strands

  15. Electron micrograph of partially melted DNA Double-stranded, G-C rich DNA has not yet melted A-T rich region of DNA has melted into a single-stranded bubble • A-T rich regions melt first, followed by G-C rich regions

  16. Hyperchromicity Absorbance maximum for single-stranded DNA Absorbance maximum for double-stranded DNA Absorbance 220 260 300 The absorbance at 260 nm of a DNA solution increases when the double helix is melted into single strands.
