In-Process Inspection / Serialized Test Inspection

1. In-Process Inspection / Serialized Test Inspection NEW Mike Miller

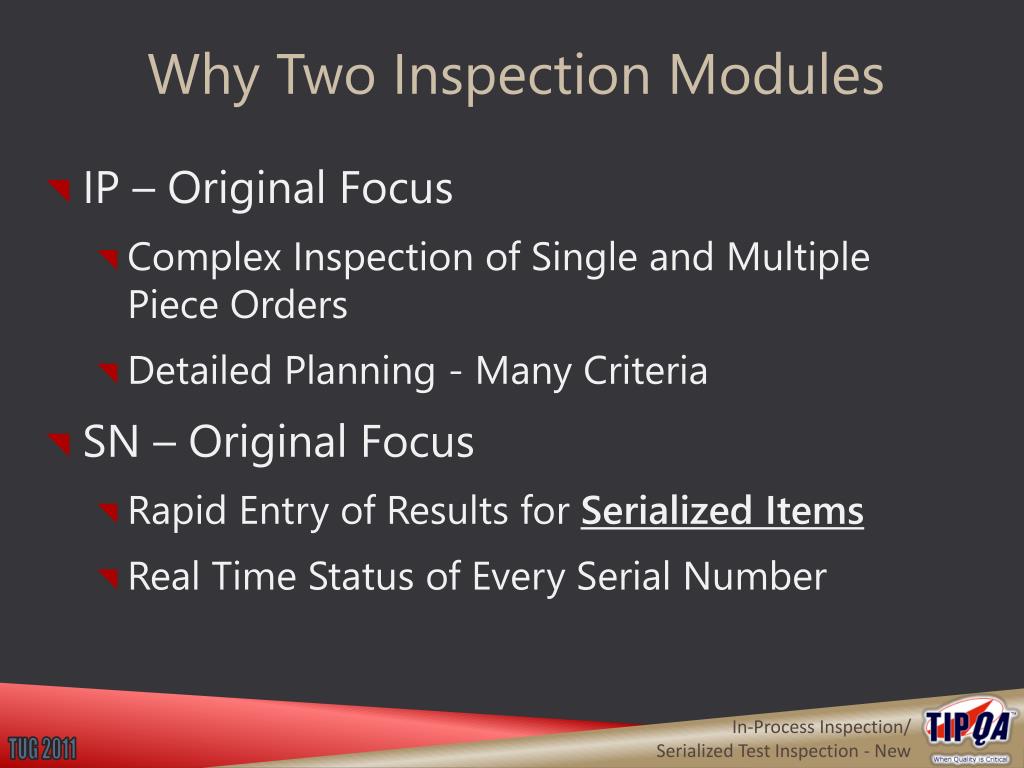

2. Why Two Inspection Modules • IP – Original Focus • Complex Inspection of Single and Multiple Piece Orders • Detailed Planning - Many Criteria • SN – Original Focus • Rapid Entry of Results for Serialized Items • Real Time Status of Every Serial Number

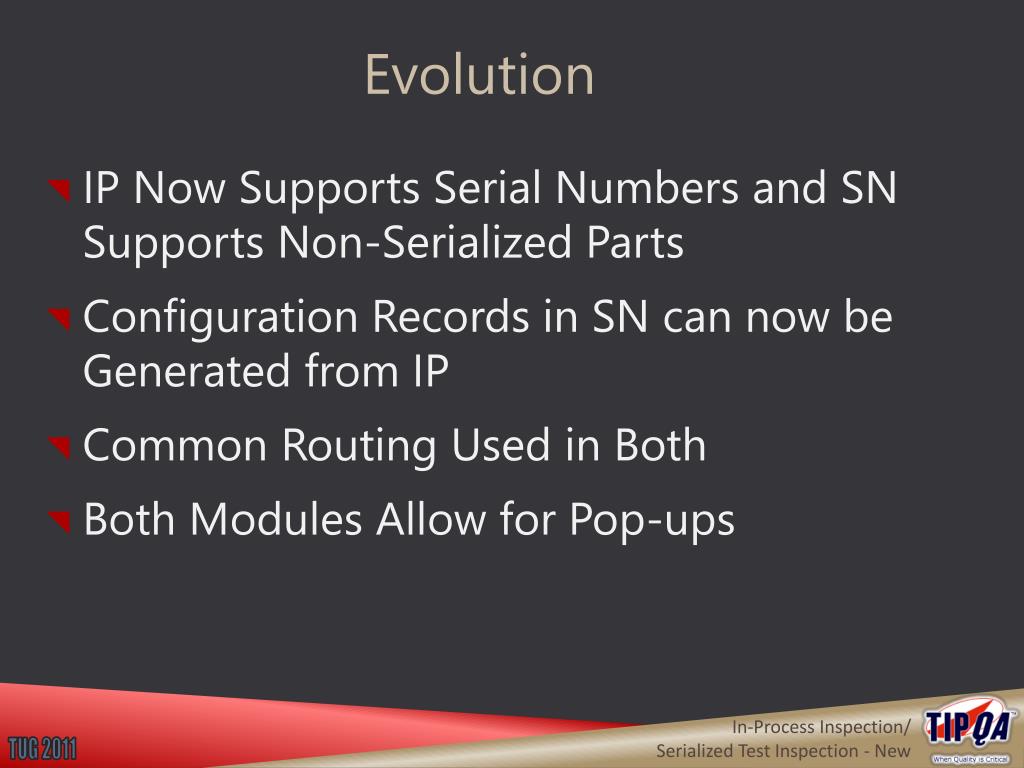

3. Evolution • IP Now Supports Serial Numbers and SN Supports Non-Serialized Parts • Configuration Records in SN can now be Generated from IP • Common Routing Used in Both • Both Modules Allow for Pop-ups

4. In-Process Inspection and Test • Online Work Instructions Delivered to Operator Based On: • Part Number / Revision • Part Commodity Code • Operation • Revision Controlled for Master Record Accuracy

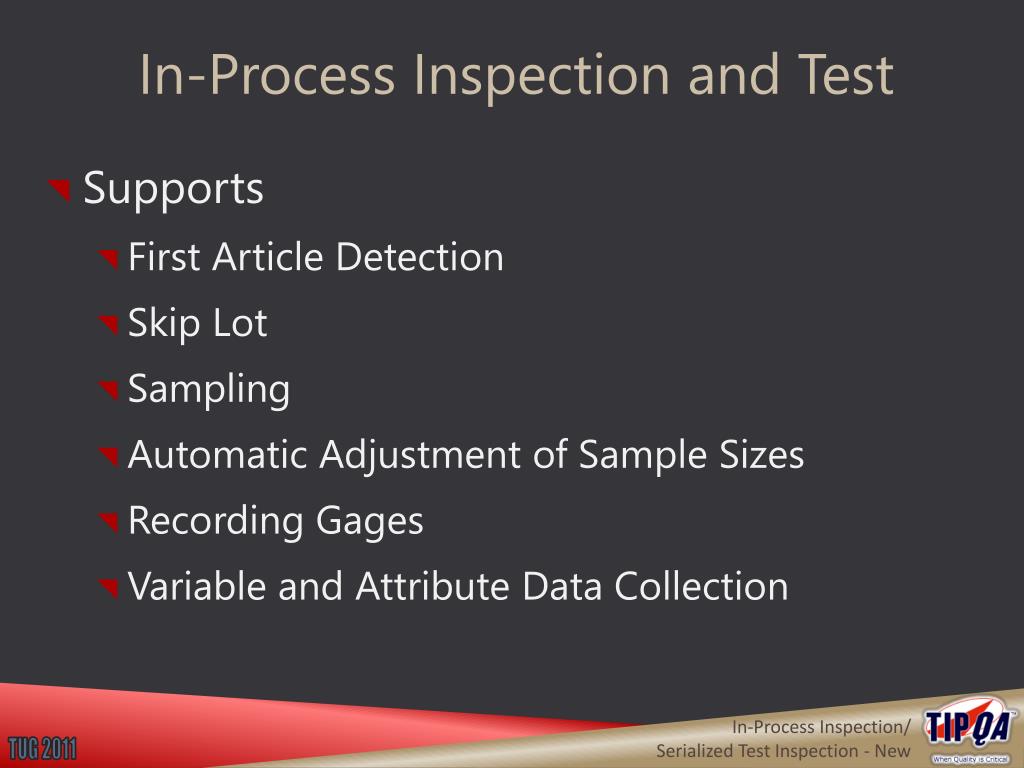

5. In-Process Inspection and Test • Supports • First Article Detection • Skip Lot • Sampling • Automatic Adjustment of Sample Sizes • Recording Gages • Variable and Attribute Data Collection

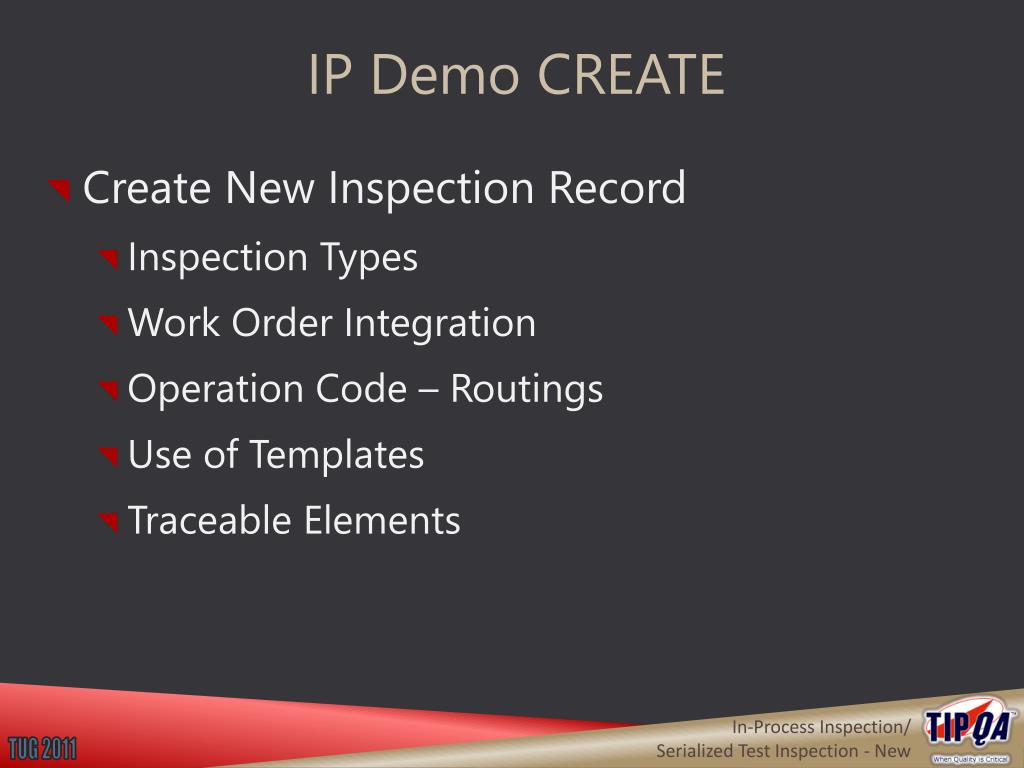

6. IP Demo CREATE • Create New Inspection Record • Inspection Types • Work Order Integration • Operation Code – Routings • Use of Templates • Traceable Elements

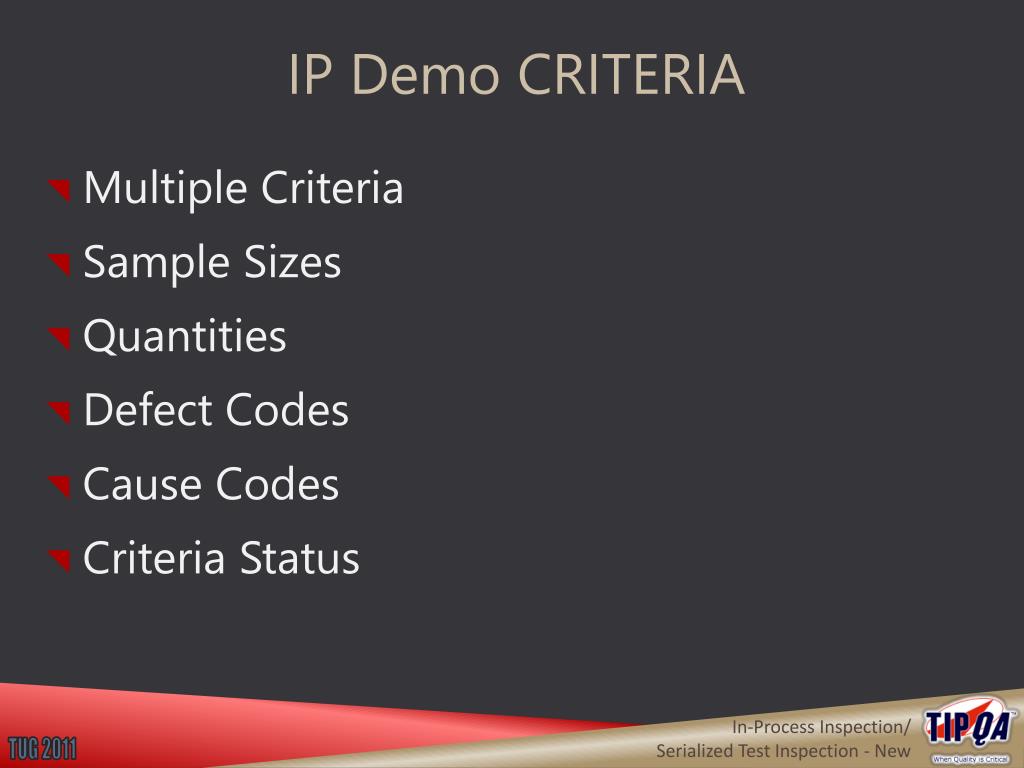

7. IP Demo CRITERIA • Multiple Criteria • Sample Sizes • Quantities • Defect Codes • Cause Codes • Criteria Status

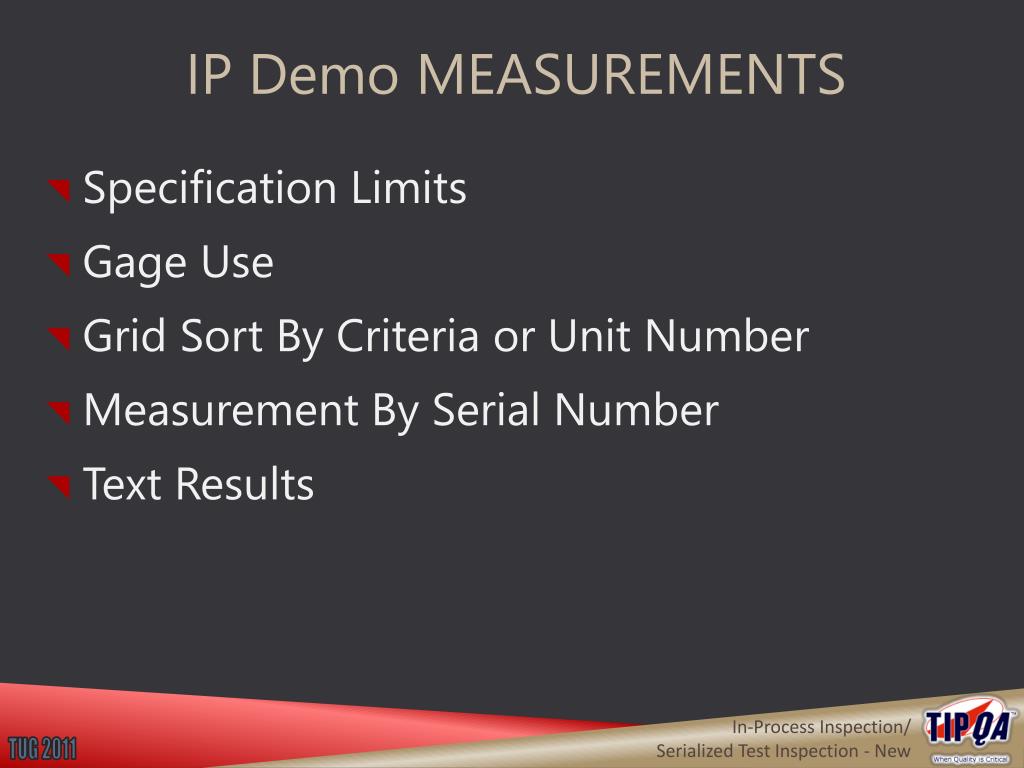

8. IP Demo MEASUREMENTS • Specification Limits • Gage Use • Grid Sort By Criteria or Unit Number • Measurement By Serial Number • Text Results

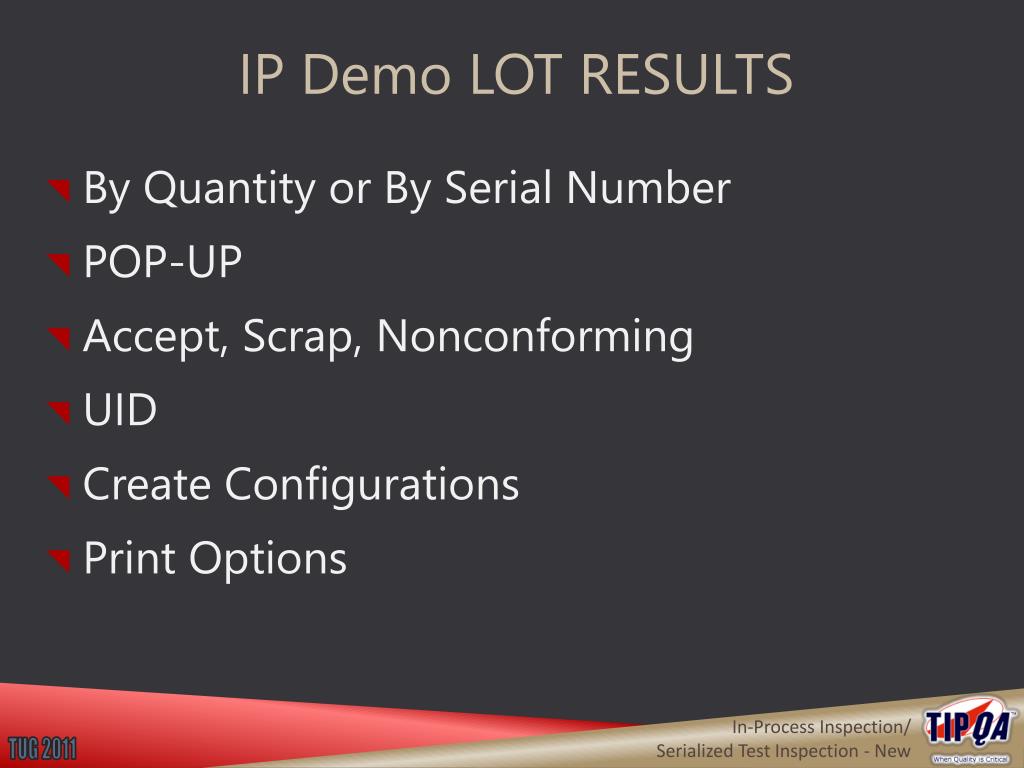

9. IP Demo LOT RESULTS • By Quantity or By Serial Number • POP-UP • Accept, Scrap, Nonconforming • UID • Create Configurations • Print Options

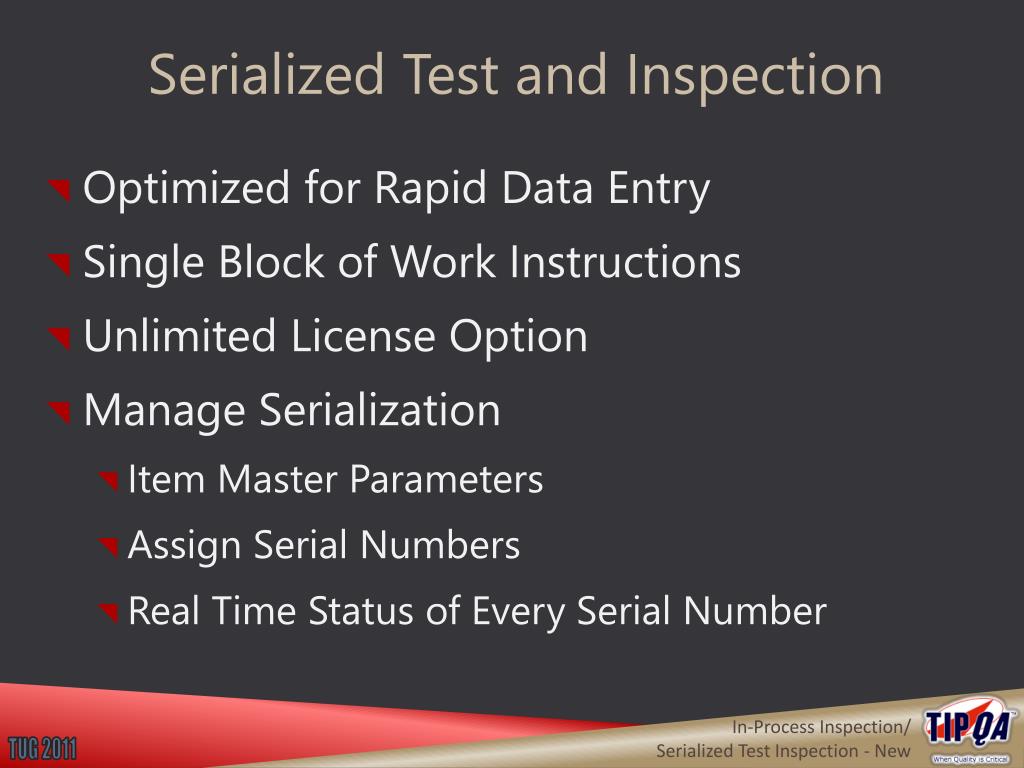

10. Serialized Test and Inspection • Optimized for Rapid Data Entry • Single Block of Work Instructions • Unlimited License Option • Manage Serialization • Item Master Parameters • Assign Serial Numbers • Real Time Status of Every Serial Number

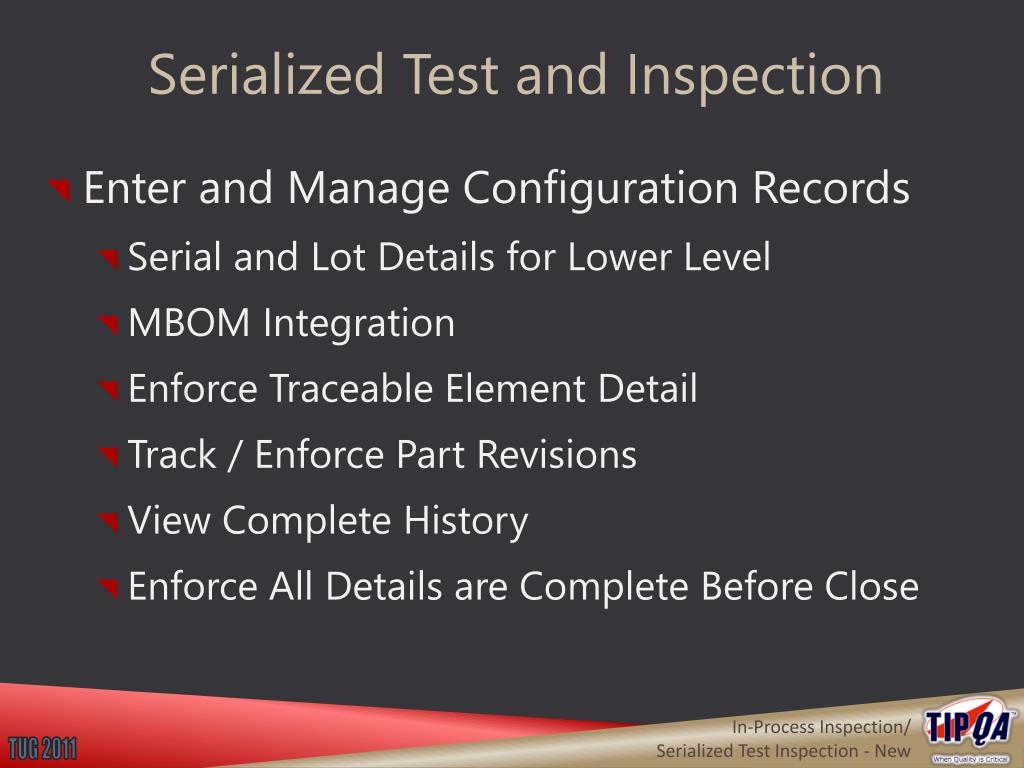

11. Serialized Test and Inspection • Enter and Manage Configuration Records • Serial and Lot Details for Lower Level • MBOM Integration • Enforce Traceable Element Detail • Track / Enforce Part Revisions • View Complete History • Enforce All Details are Complete Before Close

12. DEMO - SERIAL # ASSIGNMENT • WO Integration • Auto Assign • Manual Assign • Phantom Parts • Print Labels • Create Configurations

13. DEMO – TEST/INSP TRANSACTIONS • Serial Numbers / Work Order Only • Routing Integration • Operation Code Maintenance • Part / Operation Specific Instructions • POP-UP Forms • Results • Buyoff NC

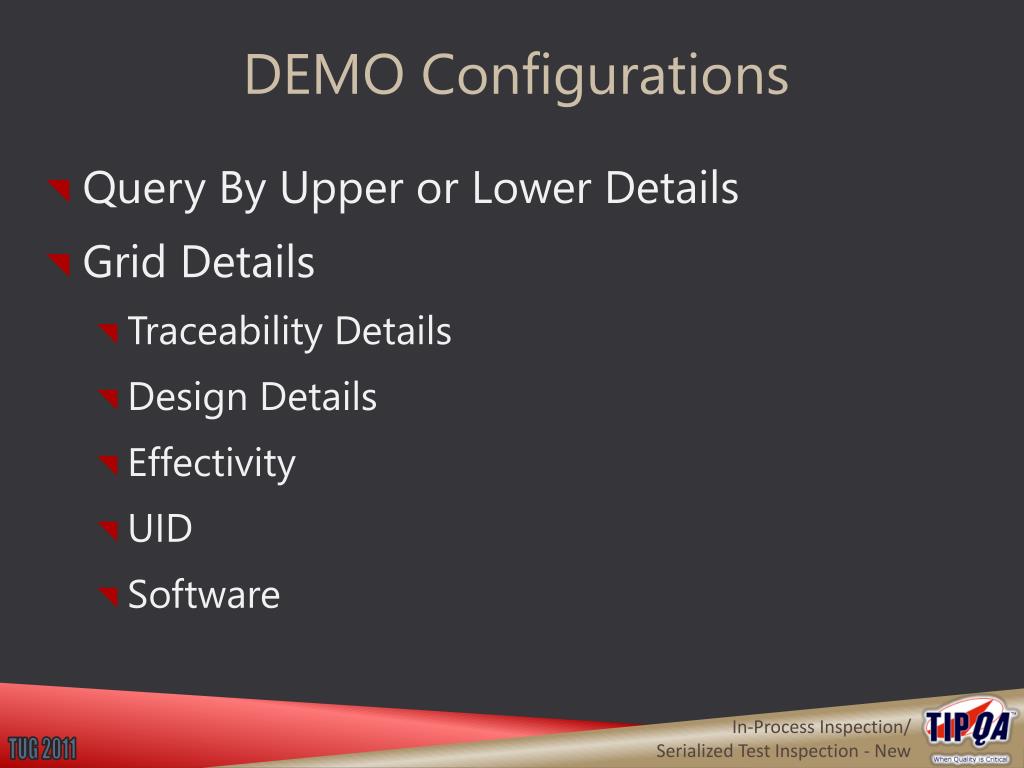

14. DEMO Configurations • Query By Upper or Lower Details • Grid Details • Traceability Details • Design Details • Effectivity • UID • Software

15. DEMO Configurations • View Configurations • Include NC’s • Drill Into NC • Tree / Chart Views • Grid Order Single Save Option

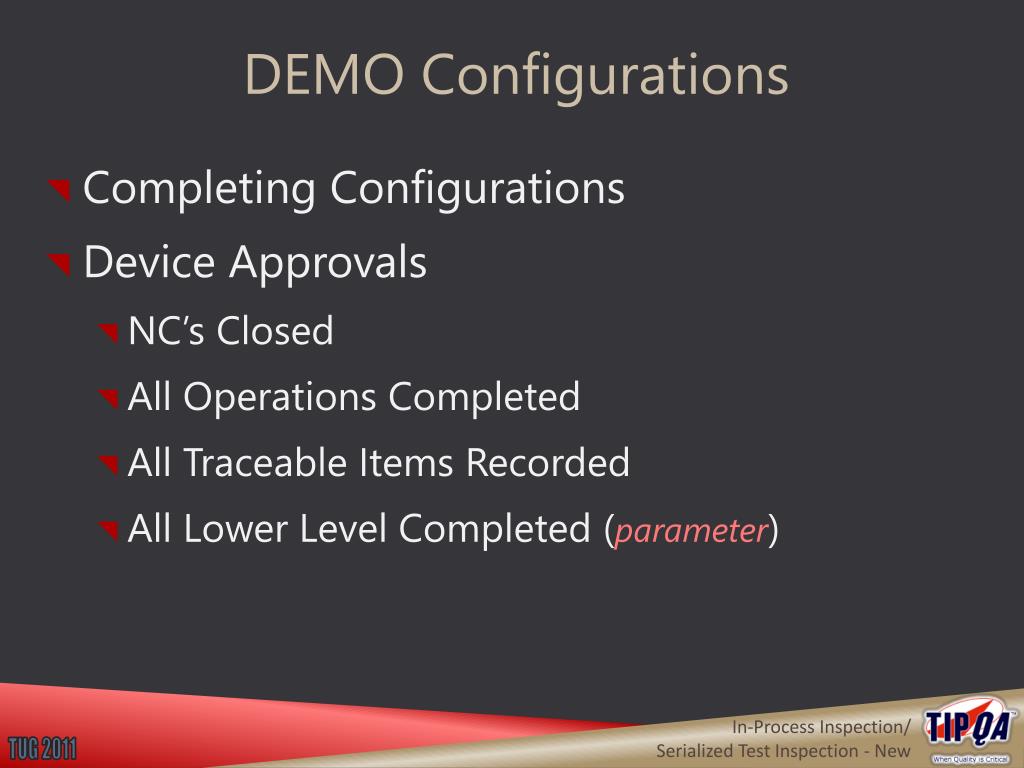

16. DEMO Configurations • Completing Configurations • Device Approvals • NC’s Closed • All Operations Completed • All Traceable Items Recorded • All Lower Level Completed (parameter)

17. DEMO - MISC • Dispatch Lists • Defects Per Million • Scan SN’s to Stock • Internal / Customer Serial Numbers

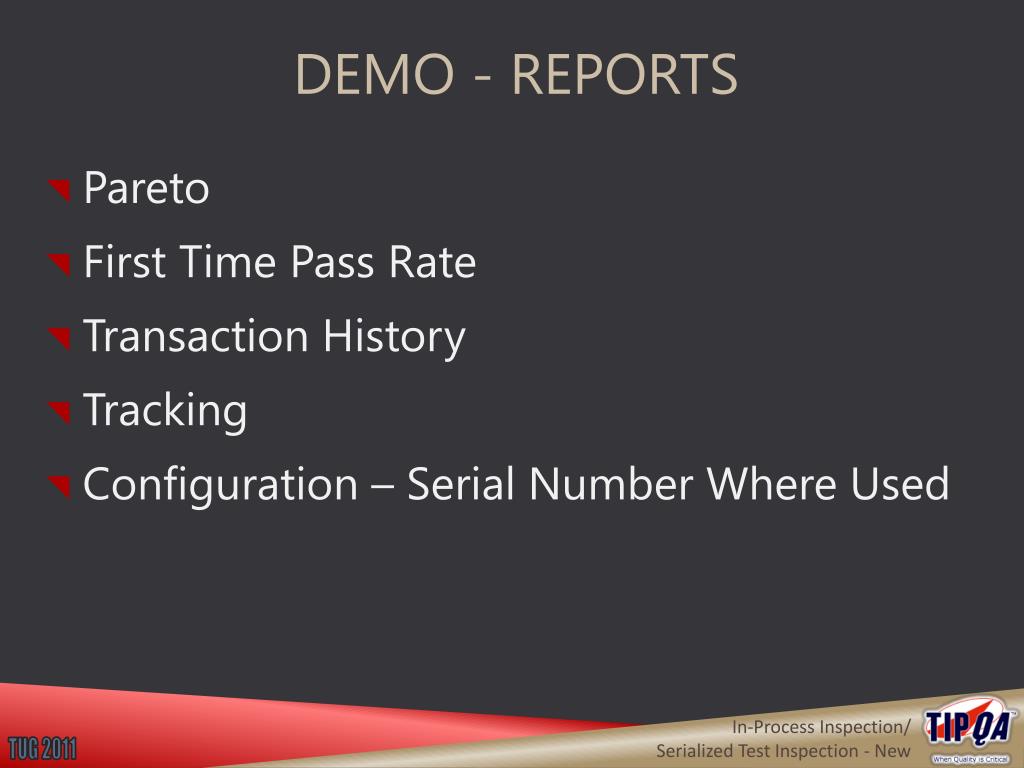

18. DEMO - REPORTS • Pareto • First Time Pass Rate • Transaction History • Tracking • Configuration – Serial Number Where Used

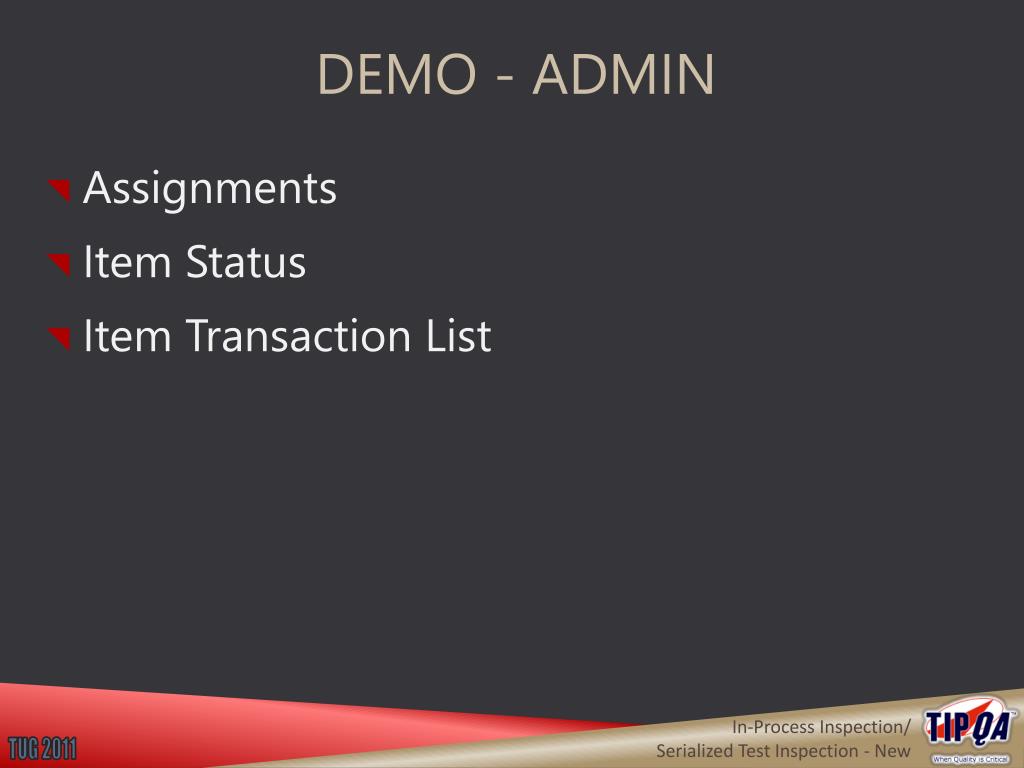

19. DEMO - ADMIN • Assignments • Item Status • Item Transaction List

20. DEMO - SETUP • Validations • Codes • Results Entry • Operations / Routings
