Mechanical ventilation

Mechanical Ventilation

Mary P. Martinasek BS, RRT

Director of Clinical Education

Hillsborough Community College


Goals of mechanical ventilation

Goals of Mechanical Ventilation

  • Normalization and maintenance of blood gases

  • Prevention of iatrogenic complications

  • Support patient’s respiratory needs


Mechanical ventilation

ABG

pH = 7.35 - 7.45

paCO2 = 35 - 45 mmHg

paO2 = 50 - 80 mmHg

Avoid high O2 sats if delivering O2


Common terms

Common terms

  • PIP = Peak Inspiratory Pressure

  • Peep = Positive End Expiratory Pressure

  • Frequency = rate of ventilation (20 – 40 bpm)

  • I – time = Inspiratory time (.2 - .8 seconds)

  • MAP = Mean airway pressure

  • Tidal Volume = amount of air inhaled in a single breath

  • Minute Ventilation


Neonatal ventilation

Neonatal Ventilation

  • Time Cycled and Pressure Limited Ventilation

    • Inspiration is stopped when the selected inspiratory time has been reached

    • PIP is the maximum amount of pressure exerted on the patient’s airway during the inspiration

    • Initial values = 16-20 cmH20 of PIP

    • Good chest rise and Good breath sounds


Neonatal ventilation1

Neonatal Ventilation

  • Peep = Positive pressure maintained in the patient’s airway during expiration

    • Prevents collapsed alveoli

    • Increases FRC

    • Improves compliance

    • Improves oxygenation

    • Decreases intrapulmonary shunting

    • Allows for lower PIPs to be used


Cpap vs peep

CPAP vs PEEP

  • Same distending alveolar pressure

  • PEEP is used in conjunction with ventilator rate

  • CPAP is used in spontaneously breathing patient


Methods of administering cpap

Methods of administering CPAP

  • Endotracheal Tube

    • Patent airway, airway clearance

    • Disadvantage: plugging, malacia, infection

  • Nasal Prongs

    • Decrease infection, no malacia

    • Disadv. = plugging,pressure necrosis, gastric distention

  • Nasopharyngeal

    • Pressure necrosis, infection

  • Face Mask

    • Temporary measure prior to intubation or for apnea episode

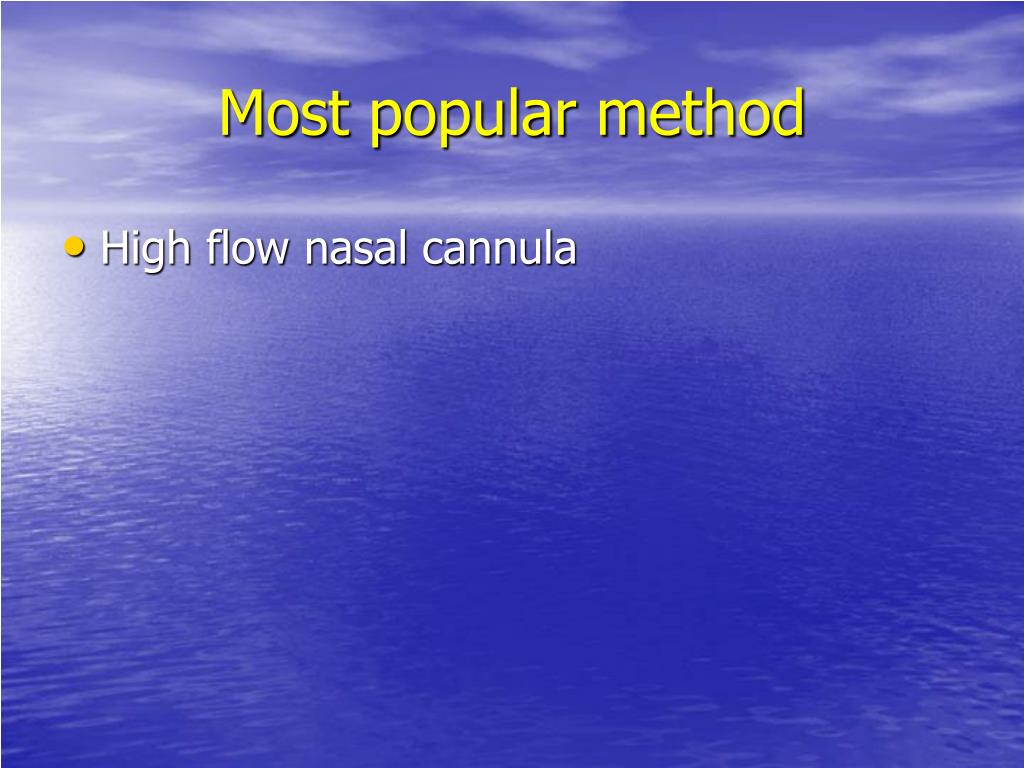

Most popular method

Most popular method

  • High flow nasal cannula


Et cpap in pediatrics

ET - CPAP in Pediatrics

  • Pre and Post operatively to support structures

    • Subglottic stenosis

    • Cleft palate

    • Laryngeal papillomas

    • Neck tumors

    • Tonsillitis

    • epiglottitis


Indications for ncpap aarc clinical guidelines

Indications for NCPAPAARC Clinical Guidelines

  • Increased WOB with retractions, flaring, grunting and cyanosis

  • Inadequate ABG’s

  • Presence of poor expansion on CXR

  • Presence of conditions responsive to CPAP

    • RDS, Pulmonary edema, atelectasis, apnea, tracheal malacia, TTN

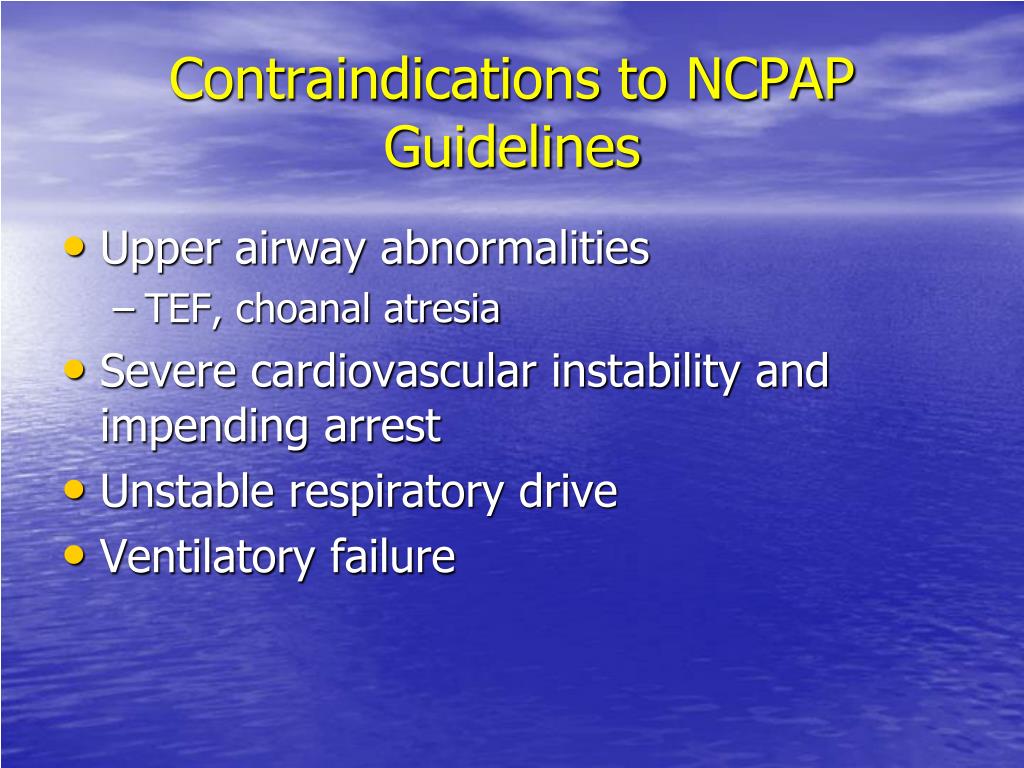

Contraindications to ncpap guidelines

Contraindications to NCPAPGuidelines

  • Upper airway abnormalities

    • TEF, choanal atresia

  • Severe cardiovascular instability and impending arrest

  • Unstable respiratory drive

  • Ventilatory failure


Hazards of ncpap

Hazards of NCPAP

  • Air leaks

  • Ventilation Perfusion Mismatch

  • CO2 retention and increased WOB

  • Increase in PVR due to impedence of blood flow

  • Nasal irritation with septal distortion

  • Pressure necrosis

  • Nasal mucosal damage due to inadequate humidification


Mechanical ventilation

MAP

  • Most powerful influence on oxygenation

  • Average pressure exerted on the airway and lungs for the entire breath cycle

  • Affected by: PIP,PEEP,I-Time, Rate

  • High levels can lead to decreased CO, pulmonary hypoperfusion and barotrauma


Physiologic deadspace

Physiologic Deadspace

  • Physiologic = anatomic + alveolar

  • Anatomic = Gas that fills the airways and never participates in gas exchange

  • Alveolar = gas that goes to unperfused alveoli and thus never participates in gas exchange

  • Nl physiologic Vd in neonate = 2cc/kg


Flow rate

Flow rate

  • Flow rate used determines the type of wave pattern

  • Goal is to set flow to allow maximum diffusion time without causing turbulent flow

    • Diffusion time is the length of time that the gas is in contact with the alveoli


Indications for vent support

Indications for Vent Support

  • Respiratory Failure

    • Hypoxemic respiratory failure

      • PaO2 less than 50 on FIO2 greater than 60

    • Hypercapnic respiratory failure

      • PaCO2 greater than 50 and pH less than 7.25

    • Mixed respiratory failure

      • Both hypoxemia and hypercapnia


Initial setting on neonatal vent

Initial Setting on neonatal vent

  • Time cycled – Pressure Limited ventilator

    • PIP set 15 – 20 cm H20

    • Peep set 3 – 5 cm H2O

    • Rate set 20 – 40 bpm

    • Flow set 6 – 8 lpm

    • I time set .3 - .5 seconds for LBW and .5 - .8 seconds for larger infants

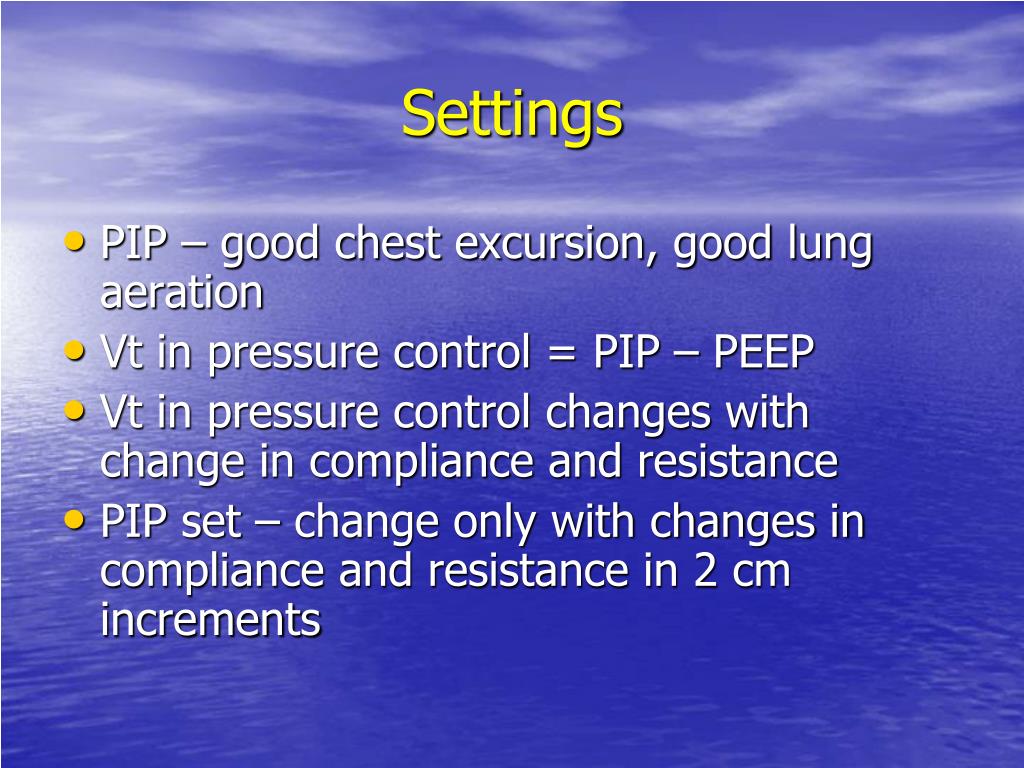

Settings

Settings

  • PIP – good chest excursion, good lung aeration

  • Vt in pressure control = PIP – PEEP

  • Vt in pressure control changes with change in compliance and resistance

  • PIP set – change only with changes in compliance and resistance in 2 cm increments
