Richard chen greater china strategic marketing

Richard Chen

Greater China Strategic Marketing

CDMA-2000 数据网络


Cdma2000 1x functionality overview cdma2000 1x

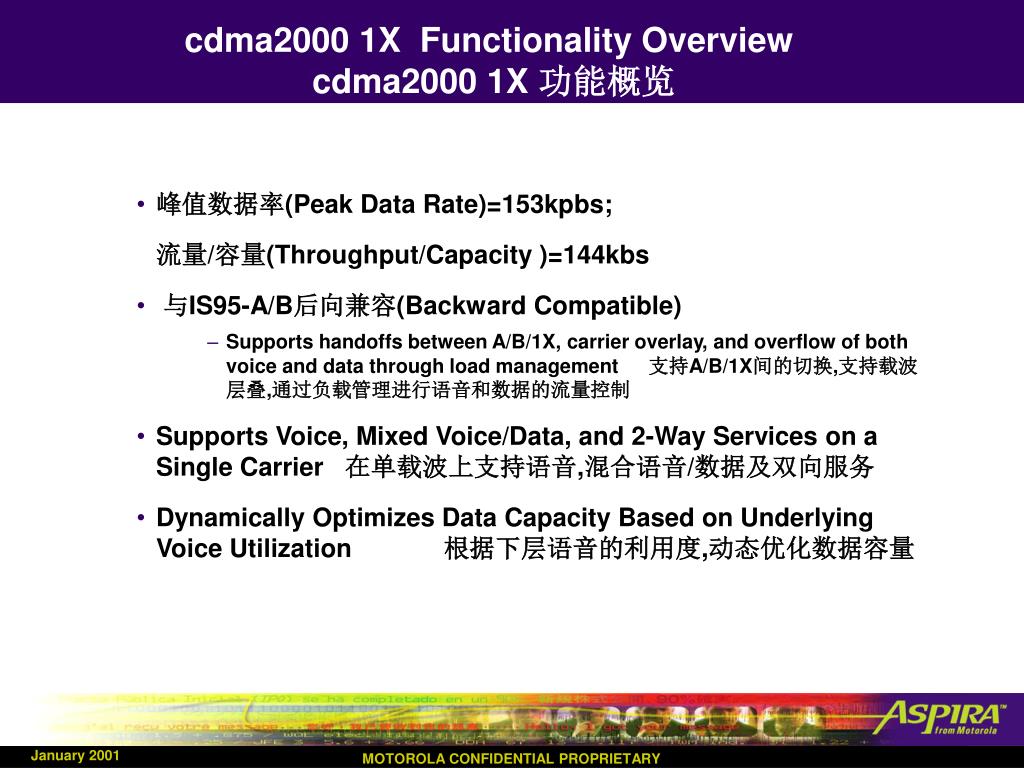

cdma2000 1X Functionality Overview cdma2000 1X 功能概览

  • 峰值数据率(Peak Data Rate)=153kpbs;

    流量/容量(Throughput/Capacity )=144kbs

  • 与IS95-A/B后向兼容(Backward Compatible)

    • Supports handoffs between A/B/1X, carrier overlay, and overflow of both voice and data through load management支持A/B/1X间的切换,支持载波层叠,通过负载管理进行语音和数据的流量控制

  • Supports Voice, Mixed Voice/Data, and 2-Way Services on a Single Carrier 在单载波上支持语音,混合语音/数据及双向服务

  • Dynamically Optimizes Data Capacity Based on Underlying Voice Utilization根据下层语音的利用度,动态优化数据容量


Cdma 2000

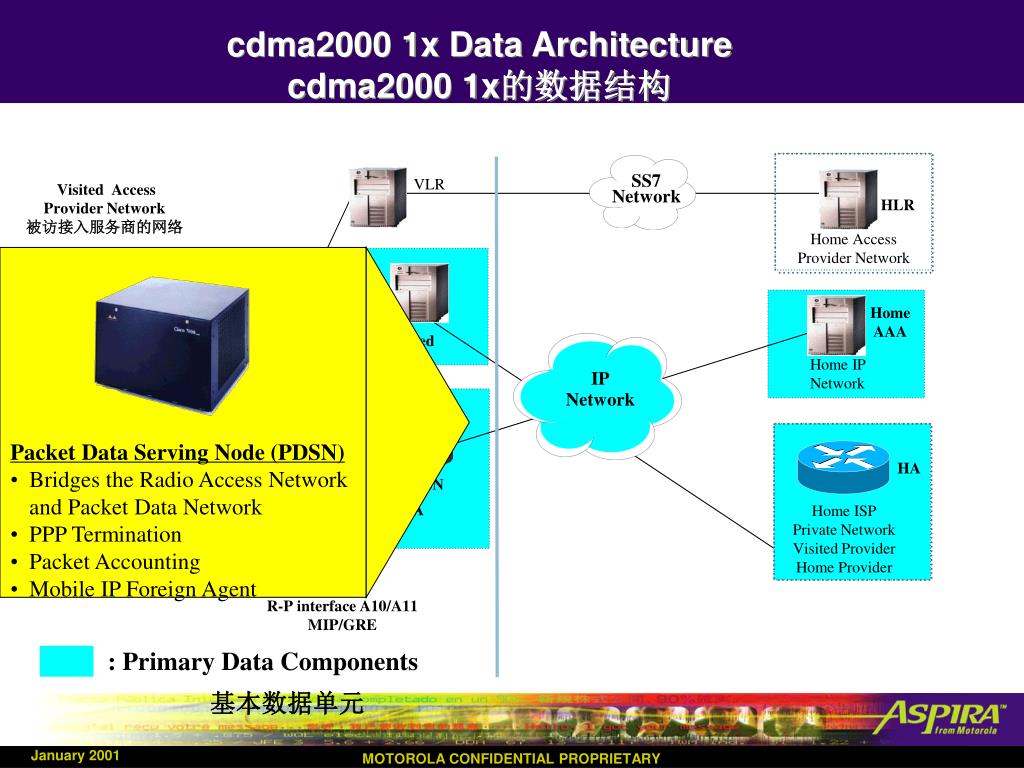

  • cdma2000 1x Data Architecture

  • cdma2000 1x的数据结构

  • Packet Data Serving Node (PDSN)

  • Bridges the Radio Access Network

  • and Packet Data Network

  • PPP Termination

  • Packet Accounting

  • Mobile IP Foreign Agent

HLR

Home Access

Provider Network

Home

AAA

Home IP

Network

IP

Network

HA

Home ISP

Private Network

Visited Provider

Home Provider

VLR

SS7

Network

Visited Access

Provider Network

被访接入服务商的网络

Visited

AAA

R-P

Interface

PDSN

Mobile Station

Mobile

Client

Access Network

PCF

FA

R-P interface A10/A11 MIP/GRE

: Primary Data Components 基本数据单元


Packet data service node pdsn pdsn

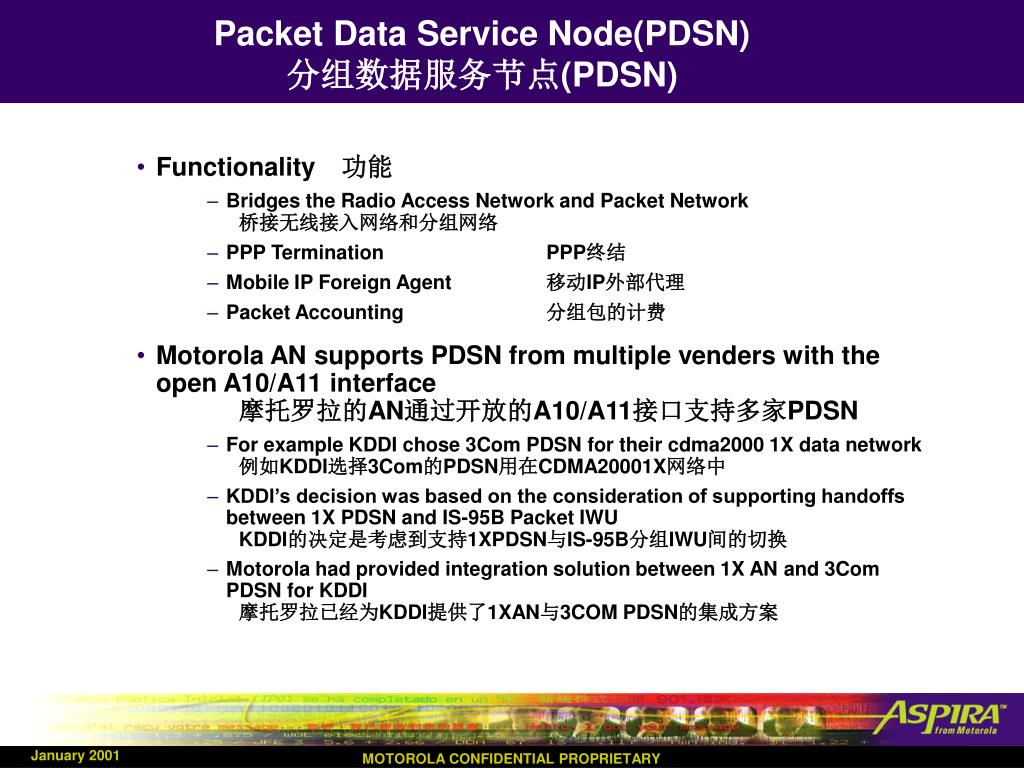

Packet Data Service Node(PDSN)分组数据服务节点(PDSN)

  • Functionality功能

    • Bridges the Radio Access Network and Packet Network桥接无线接入网络和分组网络

    • PPP TerminationPPP终结

    • Mobile IP Foreign Agent移动IP外部代理

    • Packet Accounting分组包的计费

  • Motorola AN supports PDSN from multiple venders with the open A10/A11 interface摩托罗拉的AN通过开放的A10/A11接口支持多家PDSN

    • For example KDDI chose 3Com PDSN for their cdma2000 1X data network例如KDDI选择3Com的PDSN用在CDMA20001X网络中

    • KDDI’s decision was based on the consideration of supporting handoffs between 1X PDSN and IS-95B Packet IWUKDDI的决定是考虑到支持1XPDSN与IS-95B分组IWU间的切换

    • Motorola had provided integration solution between 1X AN and 3Com PDSN for KDDI摩托罗拉已经为KDDI提供了1XAN与3COM PDSN的集成方案


Cdma 2000

  • Protocol Layers (Signaling)

  • 协议层(信令)

MS

BSS/PCF

PDSN

Home Agent

Mobile IP

Mobile IP

IKE

IKE

Mobile IP

UDP

UDP

UDP

IP

IP

IP/IPsec

IP/IPsec

PPP

PPP

Link

Layer

Link

Layer

LAC

LAC

Link Layer A10/A11

Link Layer A10/A11

MAC

MAC

CDMA 2000 Air link

CDMA 2000 Air link

Wired Physical

Wired Physical

Wired Physical

Air Interface

A11 Interface


Cdma 2000

  • Protocol Layers (Bearer)

  • 协议层(承载)

Upper Layer

Upper Layer

Upper Layer

Upper Layer

IP

IP

IP

IP

IPsec

IPsec

PPP

PPP

Link Layer

Link Layer

Link Layer

Link Layer

LAC

LAC

A10/A11

A10/A11

MAC

MAC

CDMA 2000 Air link

CDMA 2000 Air link

Wired Physical

Wired Physical

Wired Physical

Wired Physical

Air Interface

A10 Interface

MS

BSS/PCF

PDSN

Home Agent

Application Server


Cdma 2000

PDSN Cluster - Selection, Load Balancing and Redundancy 选择,负载均衡和冗余

顺从标准的

A11 接口

Mobile Station

Mobile

Client

PDSN1 Sessions

MN1

MN2

PDSN2 Sessions

MN5

MN7

RAN

  • A PDSN Cluster is a group of Cisco PDSN on the same IP subnet with PDSN selection function enabledPDSN集群是在同一IP子网上具备选择功能的一组PDSN

  • Standards compliant符合标准

    • Utilizing A11 code 136

  • Minimizes inter-PDSN handoff减少PDSN间切换

  • Provides load balancing提供负载均衡

  • Provides high availability提供高可用性


Cdma 2000

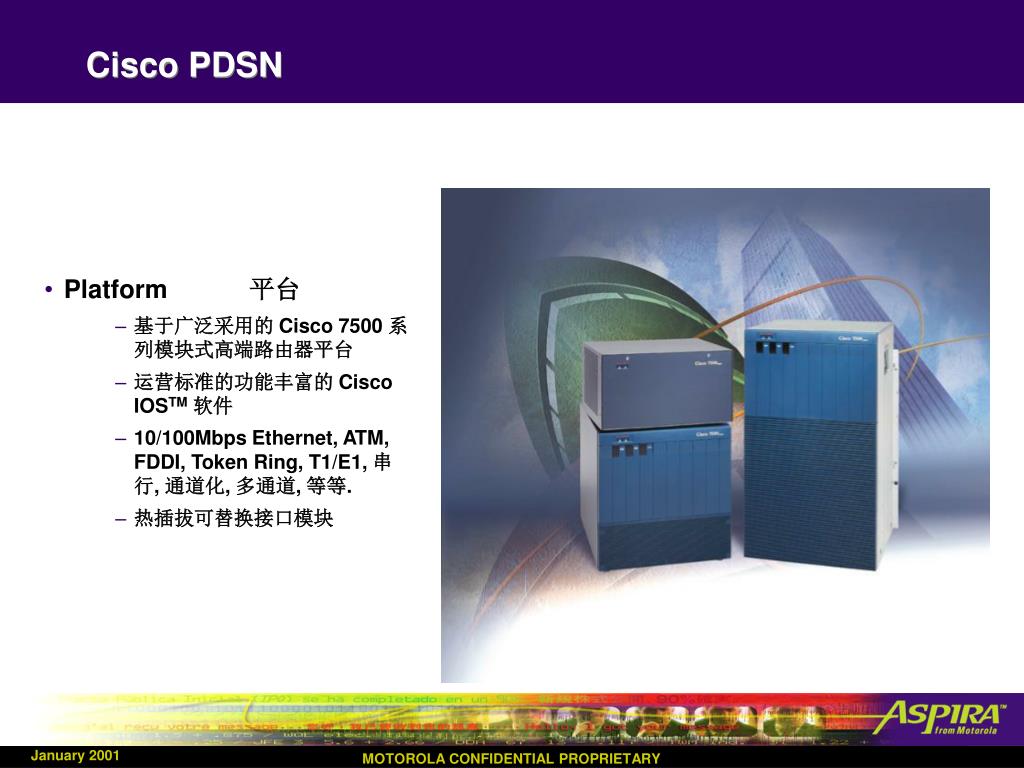

Cisco PDSN

  • Platform平台

    • 基于广泛采用的Cisco 7500 系列模块式高端路由器平台

    • 运营标准的功能丰富的 Cisco IOSTM软件

    • 10/100Mbps Ethernet, ATM, FDDI, Token Ring, T1/E1, 串行, 通道化, 多通道, 等等.

    • 热插拔可替换接口模块


Cisco 7505 architecture and capacity cisco 7505

VIP

VIP

VIP

VIP

Four VIP Slots

Cisco 7505 Architecture and Capacity Cisco 7505 结构与容量

Route Switch Processor

  • Single route switch processor单路由交换处理器

  • 1-Gbps Cybuses 1-Gpbs总线

  • VIPs provide mixed media, high-port density and high bandwidthVIP提供多媒体,高端口容量,高带宽

  • Distributed switching and Cisco IOS services and scalable performance分布式交换,Cisco IOS服务及可扩展性能

  • Capacity容量

    • 支持1X至3G网络中的任何速率 (单用户可高达 2Mbps)

    • 每单元支持8000 个激活的PPP会话

    • 对 1500-byte的R-P 接口包可承载到60 Mbps


Cdma 2000

O&M for PDSN: OMC-IP

  • Do not use the term CEM, as you will not find this in any other documentation.

  • In the 16.0 timeframe the OMC-IP will support the 7505 router, but does not provide specific support for “PDSN” as an application. There really is no product on the marketplace where this is true. Plan of record has UNO performing PDSN configuration mgmt, and support of PDSN’s SNMP interface.

  • 3. The hardware required is multiple platforms, not a single Ultra60 and multiple Cisco software products. Cisco Works 2K, and Cisco WanManager

  • O&M for PDSN is based on OMC-IPPDSN的操作和维护是通过OMC-IP实现的

  • OMC-IP

    • Provide element management facilities for Cisco equipments:对Cisco设备提供单元管理功能

      • MGX8850 Aggregation Node

      • Catalyst6509 Ethernet Switching

      • Inter-RAN Gateway (Cisco 3660 series router)

      • PDSN (Cisco 7505 router)

    • Integration of alarms and events from Cisco equipments into OMCR将告警和事件信息从Cisco设备集中传送到OMCR

    • Hardware: SUN Ultra60

    • Software: CiscoWorks2000


Cdma 2000

  • cdma2000 1x Data Architecture

  • cdma2000 1x的数据结构

HLR

Home Access

Provider Network

Home

AAA

Home IP

Network

IP

Network

  • Authentication, Authorization, Accounting

  • Server (AAA)

  • Authentication of profile information

  • Authorization of data services

  • Collects billing information from PDSN

HA

Home ISP

Private Network

Visited Provider

Home Provider

VLR

SS7

Network

Visited Access

Provider Network

被访接入服务商的网络

Visited

AAA

R-P

Interface

PDSN

Mobile Station

Mobile

Client

Access Network

PCF

FA

R-P interface A10/A11 MIP/GRE

: Primary Data Components 基本数据单元


Authentication accounting and authorization aaa aaa

Authentication, Accounting and Authorization (AAA)鉴权,计费,授权服务器(AAA)

  • Functionalities功能

    • Authentication鉴权

      • Different solutions for simple IP and Mobile IP对简单IP和移动IP提供不同方案

    • Accounting计费

      • Collects Billing Information from PDSN从PDSN收集计费信息

      • Supports packet-based billing

        支持基于分组的计费

      • Motorola has provided accurate and flexible packet-based billing solutions to multiple customers in Japan, H.K. and Korea摩托罗拉已经在日本,香港和韩国为多个客户提供了精确的,灵活的分组计费方案

    • Authorization授权

      • User Profile Information用户配置信息

  • Platform 平台

    • SUN workstation


Cdma 2000

  • cdma2000 1x Data Architecture

  • cdma2000 1x的数据结构

HLR

Home Access

Provider Network

Home

AAA

  • Home Agent (HA)

  • Supports Mobile IP Foreign Agent

Home IP

Network

IP

Network

HA

Home ISP

Private Network

Visited Provider

Home Provider

VLR

SS7

Network

Visited Access

Provider Network

被访接入服务商的网络

Visited

AAA

R-P

Interface

PDSN

Mobile Station

Mobile

Client

Access Network

PCF

FA

R-P interface A10/A11 MIP/GRE

: Primary Data Components 基本数据单元


Simple ip vs mobile ip ip ip

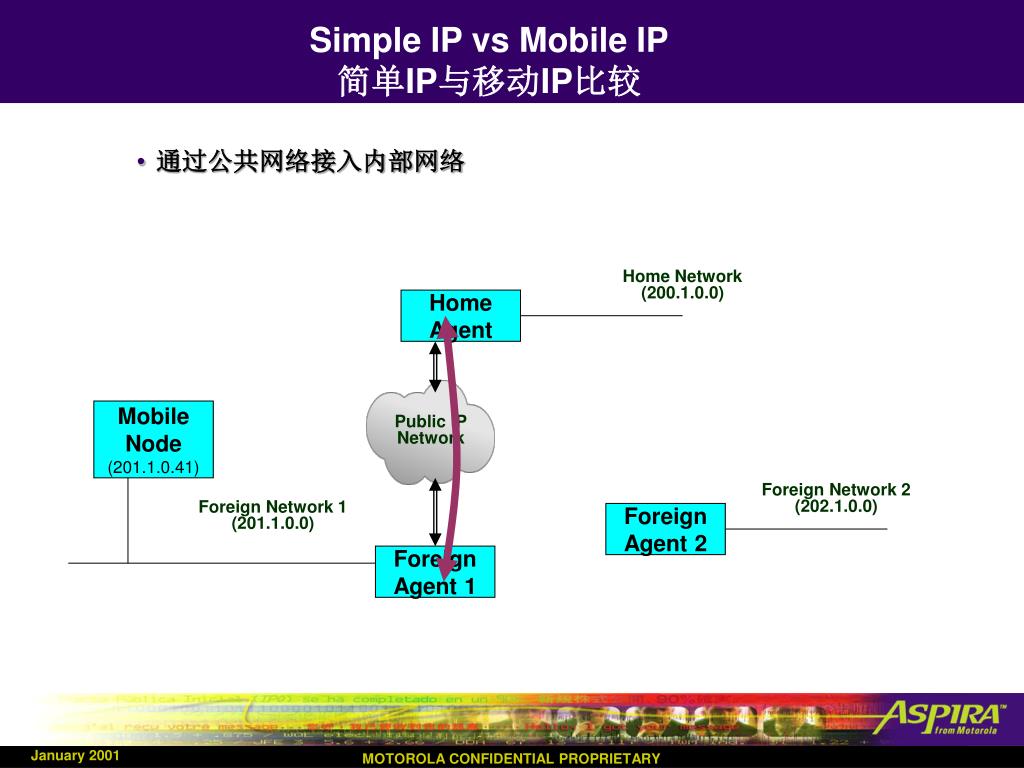

Simple IP vs Mobile IP简单IP与移动IP比较

  • 通过公共网络接入内部网络

Home Network (200.1.0.0)

Home Agent

Mobile Node

(201.1.0.41)

Public IP

Network

Foreign Network 2 (202.1.0.0)

Foreign Network 1 (201.1.0.0)

Foreign Agent 2

Foreign Agent 1


Simple ip vs mobile ip ip ip1

Simple IP vs Mobile IP简单IP与移动IP比较

  • Mobile IP Key Components:移动IP关键组件

    • Mobile Node (MN)移动节点(MN)

    • Home Agent (HA)归属代理(HA)

    • Foreign Agent (FA)外部代理(FA)

  • Mobile IP Key Processes移动IP关键过程

    • Agent discovery代理寻找

    • Registration注册

    • Tunneling隧道

  • IP address AssignmentIP地址分配

    • Simple IP: PDSN or AAA简单IP: PDSN或AAA

    • Mobile IP: Home Agent移动IP: 归属代理


Cdma 2000

Home Agent Functionality HA的功能

  • Proven commercial HA products

  • 现有商用HA产品

    • HA function is currently available on most Cisco IOSTM router platforms HA功能目前在大多数Cisco IOSTM路由器平台上均已支持

  • Functionality 功 能

    • Authentication and authorization uses AAA servers 利用AAA执行鉴权和认证

    • Assign IP address after authentication鉴权后分配IP地址

    • Optionally, securely tunnels packets to PDSN,Maintains user registration and redirects packets to the PDSN 执行用户登记和转发数据包到服务PSDN

    • 作为可选功能,数据包通过安全隧道技术传输到PDSN


Mobility management

Mobility Management移动性管理

  • Continuity of data service during interface change from one entity to another当接口在不同实体间改变时,保持数据服务的连贯性

    • Keep the IP address for the mobile (Layer 3)为移动用户保持IP地址(第3层)

    • Keep the PPP session in PDSN serving Area (Layer 2)在PDSN服务区中保持PPP会话(第2层)

  • Inter-PDSN handoffPDSN间切换

    • For Simple IP, Set up new PPP session with new IP address对简单IP,需用新的IP地址建立新的PPP会话

    • For Mobile IP, determine new FA, registration with HA again and maintain original IP address对移动IP,决定新的外部代理,在归属代理再次注册,并维持原来的IP地址


Cdma 2000

Inter-PDSN Handoff for Simple IP

简单IP的PDSN间切换

CBSC-2

MM-2

BTS-2

Proxy RADIUS

-

PCF-2

PDSN-2

Home RADIUS

(201.1.0.41)

(202.1.0.41)

Application Server

CBSC-1

MM-1

IP

Network

BTS-1

PCF-1

PDSN-1

HA

Inter-PDSN Handoff


Cdma 2000

Inter-PDSN Handoff for Mobile IP

移动IP的PDSN间切换

CBSC-2

MM-2

BTS-2

Proxy RADIUS

-

PCF-2

PDSN-2/FA-2

Home RADIUS

(201.1.0.41)

Application Server

CBSC-1

MM-1

Public IP

Network

BTS-1

PCF-1

PDSN-1/FA-1

HA


Compression

Compression压缩

  • PPP CompressionPPP压缩

    • Compression at PPP layer to improve throughput在PPP层压缩以提高流量

    • PDSN will bill for the uncompressed amount of dataPDSN对未压缩的数据量计费

    • PPP compression algorithms include MPPC and STACPPP压缩算法包括MPPC和STAC

    • Compression Rate for MPPC 对MPPC的压缩率

      • ASCII files: 2.5 to 4 times

      • Kanji files (Japanese): 2.5 to 3.5 times (Similar to Chinese Character)

      • Bin files: 2 to 2.5 times

      • Zip, JPG files: no improvement

  • IP Header compression(V-J Compression)IP包头压缩(V-J压缩)

    • Improves the network performance with smaller overhead更小的开销提高网络性能


  • Cdma 2000

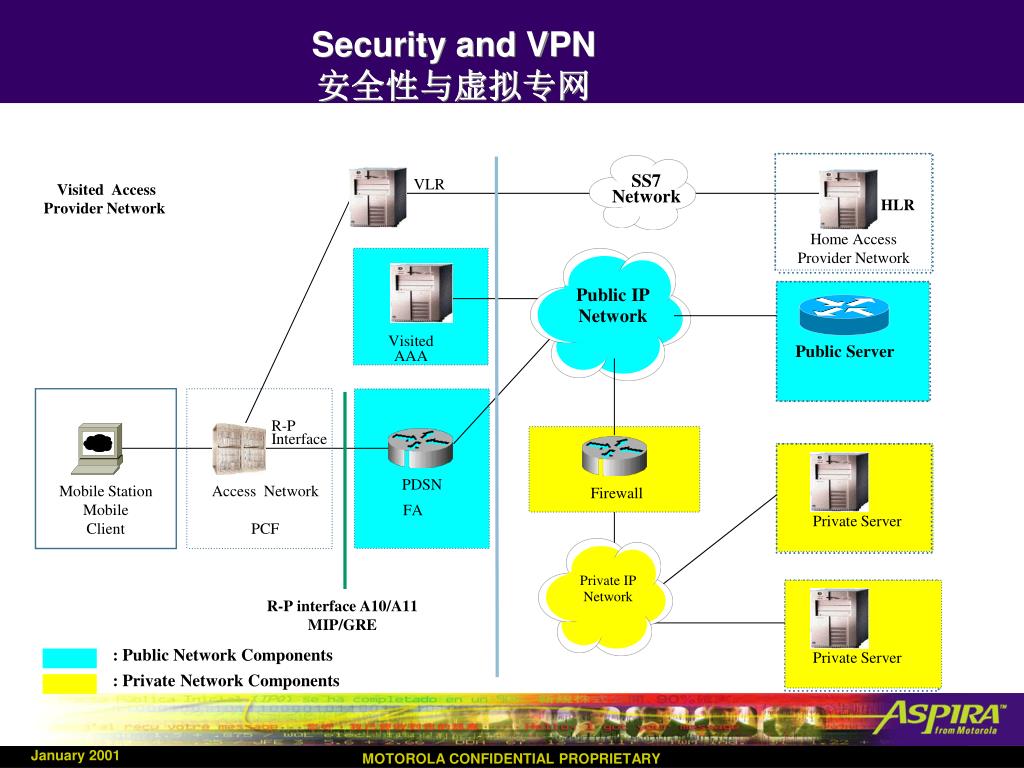

    Security and VPN

    安全性与虚拟专网

    HLR

    Home Access

    Provider Network

    Private Server

    Private Server

    Private IP

    Network

    Public IP

    Network

    Public Server

    VLR

    SS7

    Network

    Visited Access

    Provider Network

    Visited

    AAA

    R-P

    Interface

    PDSN

    Firewall

    Mobile Station

    Mobile

    Client

    Access Network

    PCF

    FA

    R-P interface A10/A11 MIP/GRE

    : Public Network Components

    : Private Network Components


    Security and vpn continue

    Security and VPN (continue)安全性与虚拟专网(续)

    • VPN can be helpful in solving the security by meeting the following Requirements:要求

      • Critical authentication to verify remote mobile user严格的认证来校验远端移动用户

      • Strong data encryption to protest sensitive information强力的数据加密来保证敏感信息

      • Centralized management and scalable to handle vast number of remote users集中管理和扩展来处理大量的远端用户

    • VPN Implementation虚拟专网的实现

      • L2TP

      • IP Sec

      • At Layer 5 or higher

    • Motorola CDMA2000 VPN is based on IP Sec with IKE(Internet Key Exchange)摩托罗拉CDMA2000的虚拟专网是基于IP Sec和IKE (互连网密钥交换)


    Cdma 2000

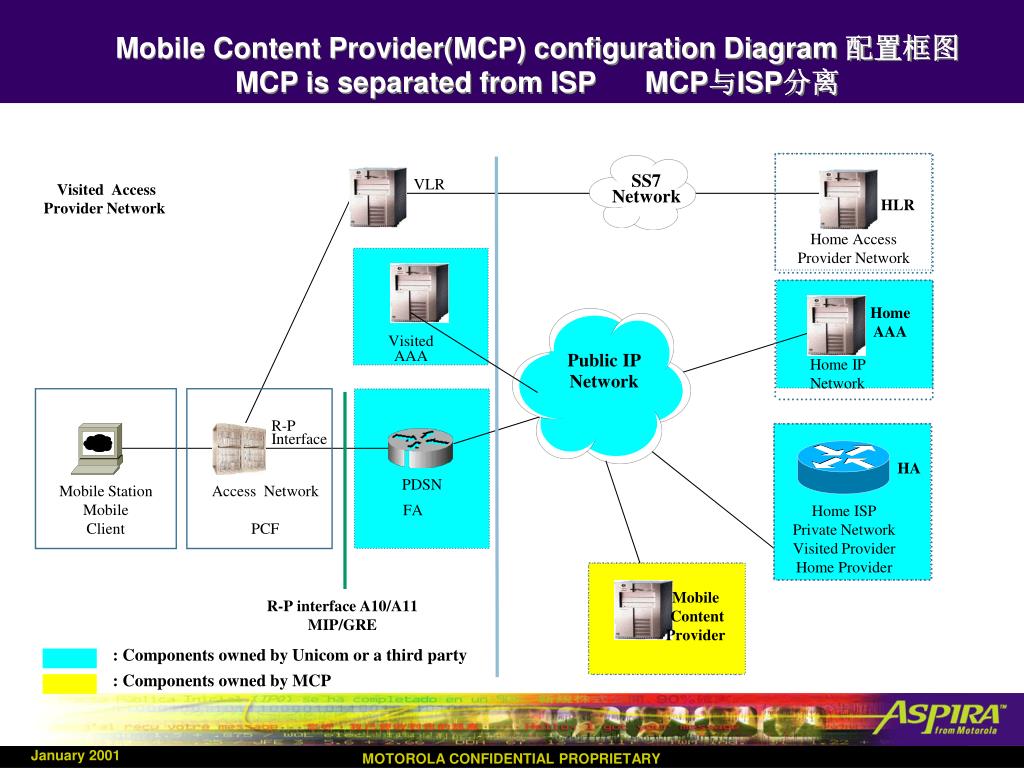

    Mobile Content Provider(MCP) configuration Diagram 配置框图

    MCP is separated from ISPMCP与ISP分离

    HLR

    Home Access

    Provider Network

    Mobile

    Content

    Provider

    Home

    AAA

    Home IP

    Network

    Public IP

    Network

    HA

    Home ISP

    Private Network

    Visited Provider

    Home Provider

    VLR

    SS7

    Network

    Visited Access

    Provider Network

    Visited

    AAA

    R-P

    Interface

    PDSN

    Mobile Station

    Mobile

    Client

    Access Network

    PCF

    FA

    R-P interface A10/A11 MIP/GRE

    : Components owned by Unicom or a third party

    : Components owned by MCP


    Cdma 2000

    Mobile Content Provider(MCP) configuration Diagram 配置框图

    MCP is also an ISPMCP也是ISP

    HLR

    Home Access

    Provider Network

    Mobile

    Content

    Server

    MCP

    AAA

    MCP Home

    Network

    Public IP

    Network

    HA

    Home ISP

    Private Network

    Visited Provider

    Home Provider

    VLR

    SS7

    Network

    Visited Access

    Provider Network

    Visited

    AAA

    R-P

    Interface

    PDSN

    Mobile Station

    Mobile

    Client

    Access Network

    PCF

    FA

    R-P interface A10/A11 MIP/GRE

    Gateway Router

    : Components owned by Unicom or a third party

    : Components owned by MCP


    Mcp solutions

    MCP Solutions移动内容供应商解决方案

    • Mobile Content Providers(MCP) provide content services for mobile subscribers and charge for what they provide移动内容供应商对移动用户提供内容服务并相应收费

    • Two types of MCP based on the difference of billing Mode:按不同的计费模式可划分为两种类型的MCP

      • Type1: Separated from ISP类型一:与ISP分离

        • Retrieves billing information from AAA owned by Unicom or a third party从联通或第三方拥有的AAA中获取计费信息

        • Needs additional interfaces for billing purpose为实现计费的目的需增加另外的接口

      • Type2: Combined with ISP类型二:与ISP整合

        • MCP owns the billing information for its authenticated usersMCP对它的认证用户拥有计费信息

        • No additional interfaces for billing

          无需为计费加另外接口

    • Motorola’s solution supports both types of MCP 摩托罗拉的方案支持这两种类型的MCP


    Cdma2000 1x solution summary cdma2000 1x

    CDMA2000 1x Solution SummaryCDMA2000 1X数据方案小结

    • Enables cdma2000 1X Voice and DataCDMA2000可同提供语音和数据

    • Introduces new packet based components引入基于分组的组件

    • 1st step to migrate towards a packet network 演进到分组网络的第一步

    • Enables higher capacities提供高容量

    • Allows new revenue generating opportunities带来新的业务和收入增长机会


  • Login
