Presentation Transcript
exception handling 2

Exception Handling (2)

Lecture 3 - Instruction Set - Al

68000 exception handling
68000 Exception Handling
  • The 68000’s exception vector table

Lecture 3 - Instruction Set - Al

exception vector table

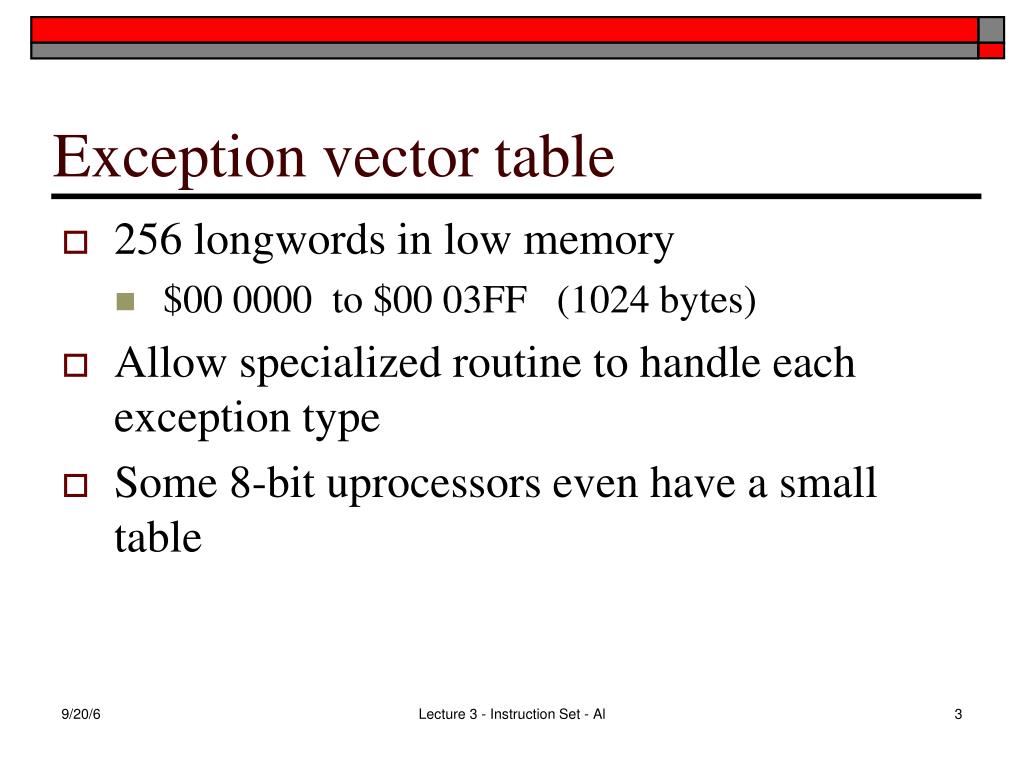

Exception vector table
  • 256 longwords in low memory
    • $00 0000 to $00 03FF (1024 bytes)
  • Allow specialized routine to handle each exception type
  • Some 8-bit uprocessors even have a small table

Lecture 3 - Instruction Set - Al

exception vector table1

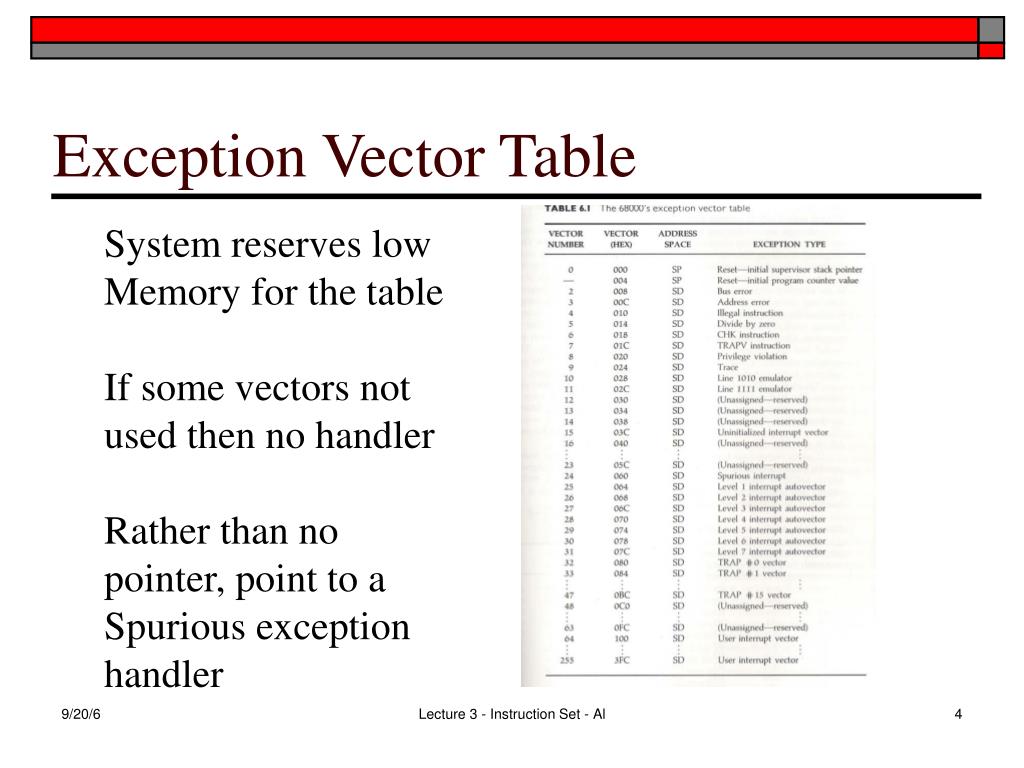

Exception Vector Table

System reserves low

Memory for the table

If some vectors not used then no handler

Rather than no pointer, point to a

Spurious exception handler

Lecture 3 - Instruction Set - Al

how to implement it

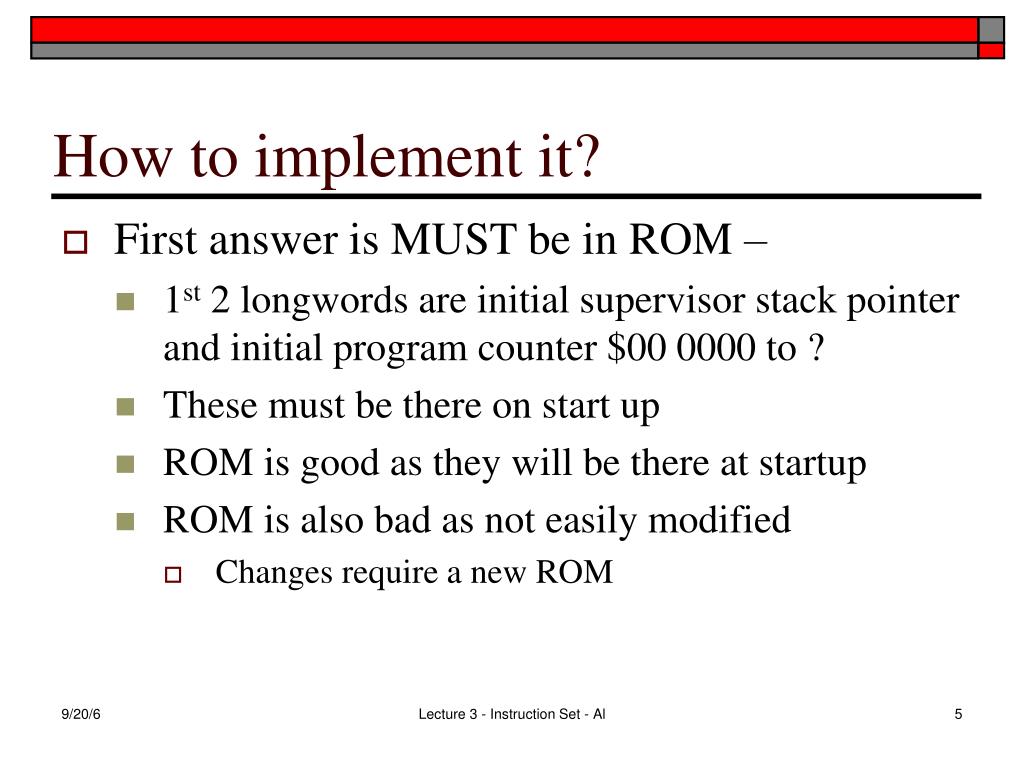

How to implement it?
  • First answer is MUST be in ROM –
    • 1st 2 longwords are initial supervisor stack pointer and initial program counter $00 0000 to ?
    • These must be there on start up
    • ROM is good as they will be there at startup
    • ROM is also bad as not easily modified
      • Changes require a new ROM

Lecture 3 - Instruction Set - Al

solutions
Solutions
  • Fixed vector in ROM points to a second vector in RAM that points to routine
  • WHY? Not possible to get a 16 byte ROM
  • Possibly overlay a ROM and RAM at same addresses?
    • When address is in range $00 0000 to $00 0007 ROM is being addressed
    • Otherwise RAM

Lecture 3 - Instruction Set - Al

overlay scheme

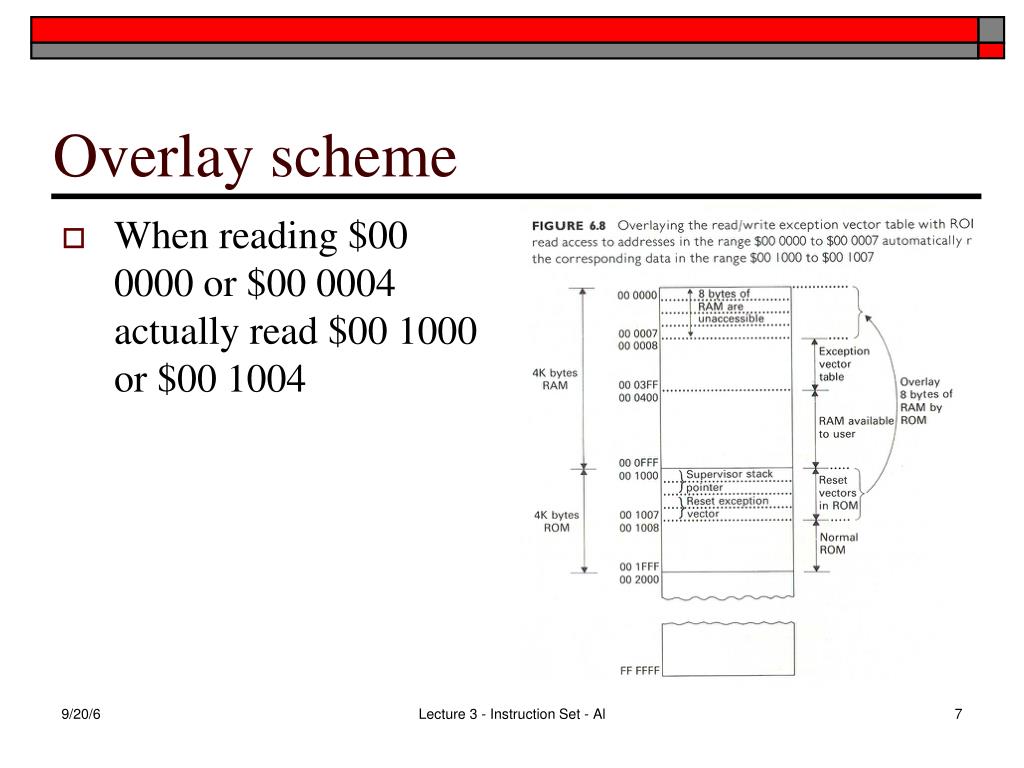

Overlay scheme
  • When reading $00 0000 or $00 0004 actually read $00 1000 or $00 1004

Lecture 3 - Instruction Set - Al

implementation of overlay
Implementation of Overlay
  • When location $00 0000 or $00 0004 is address ROM is selected

Lecture 3 - Instruction Set - Al

2 nd method shadow rom
2nd Method – Shadow ROM
  • RAM and ROM are located in the same address space
  • At startup POR* selects ROM
    • POR* does a reset of FF1
  • On Reads ROM is selected, on Writes RAM
  • Once vector table copied FF1 is set so future reads are from RAM

Lecture 3 - Instruction Set - Al

implementation

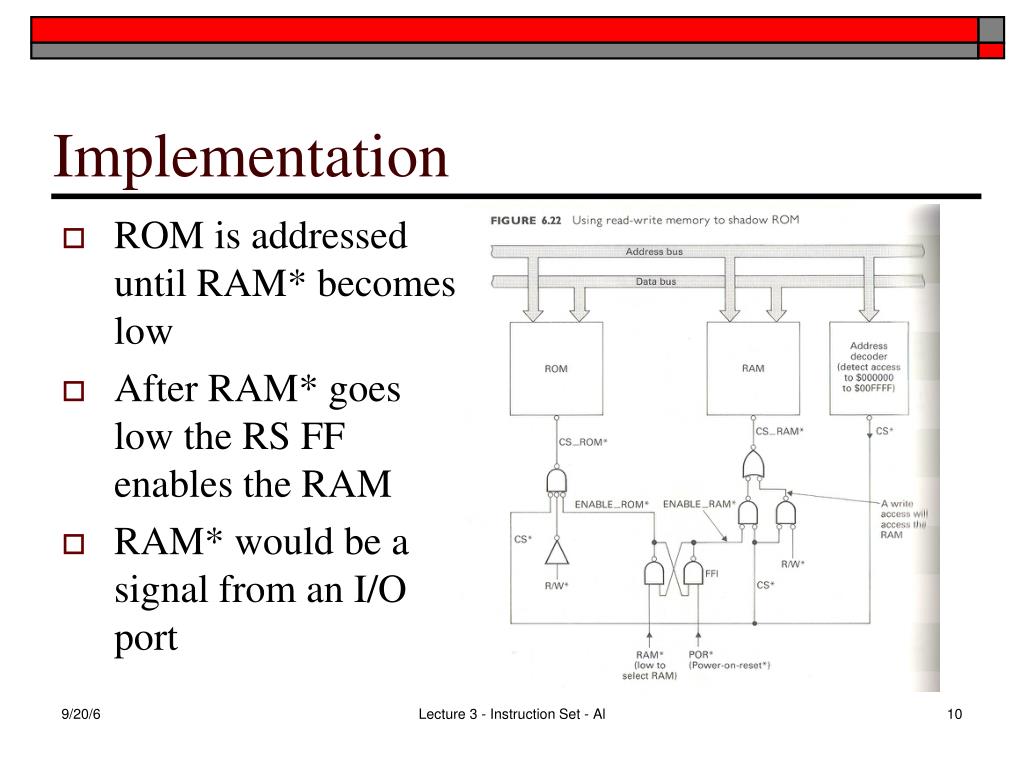

Implementation
  • ROM is addressed until RAM* becomes low
  • After RAM* goes low the RS FF enables the RAM
  • RAM* would be a signal from an I/O port

Lecture 3 - Instruction Set - Al

processing an vectored interrupt

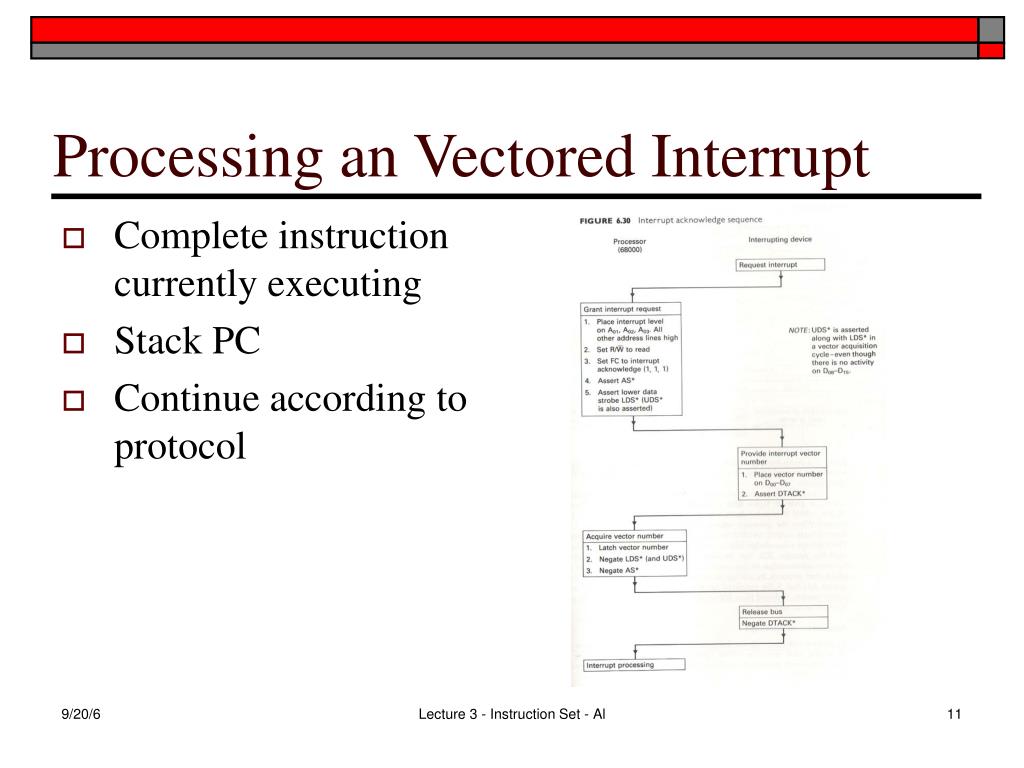

Processing an Vectored Interrupt
  • Complete instruction currently executing
  • Stack PC
  • Continue according to protocol

Lecture 3 - Instruction Set - Al

iack cycle

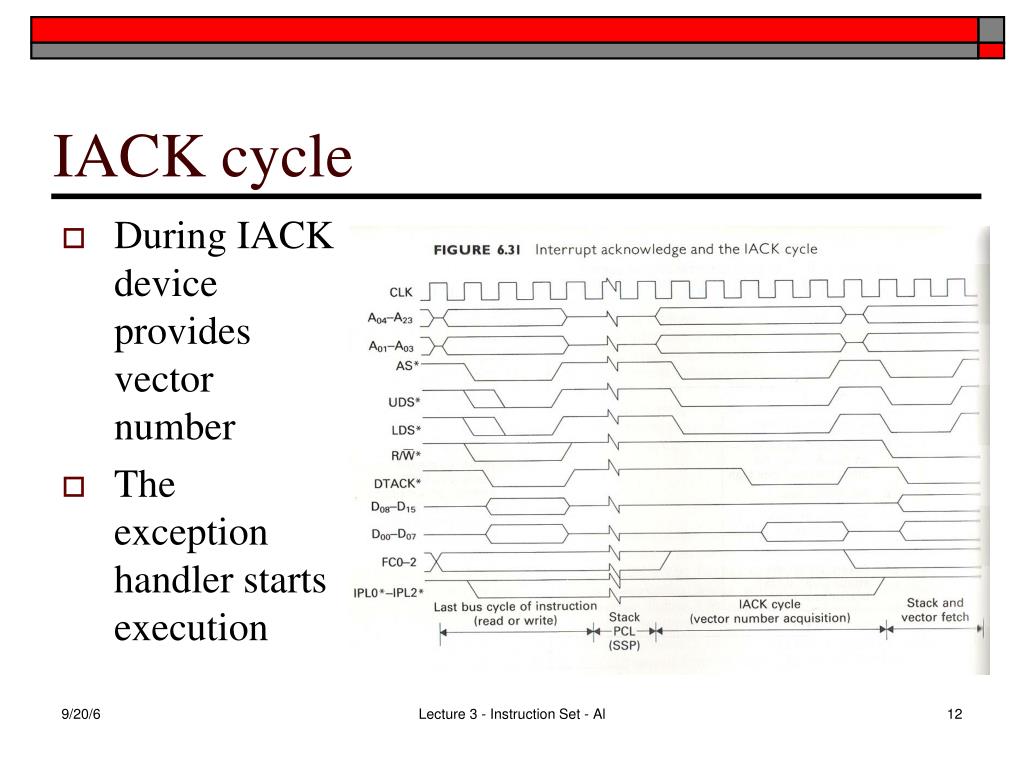

IACK cycle
  • During IACK device provides vector number
  • The exception handler starts execution

Lecture 3 - Instruction Set - Al

hardware interface of device

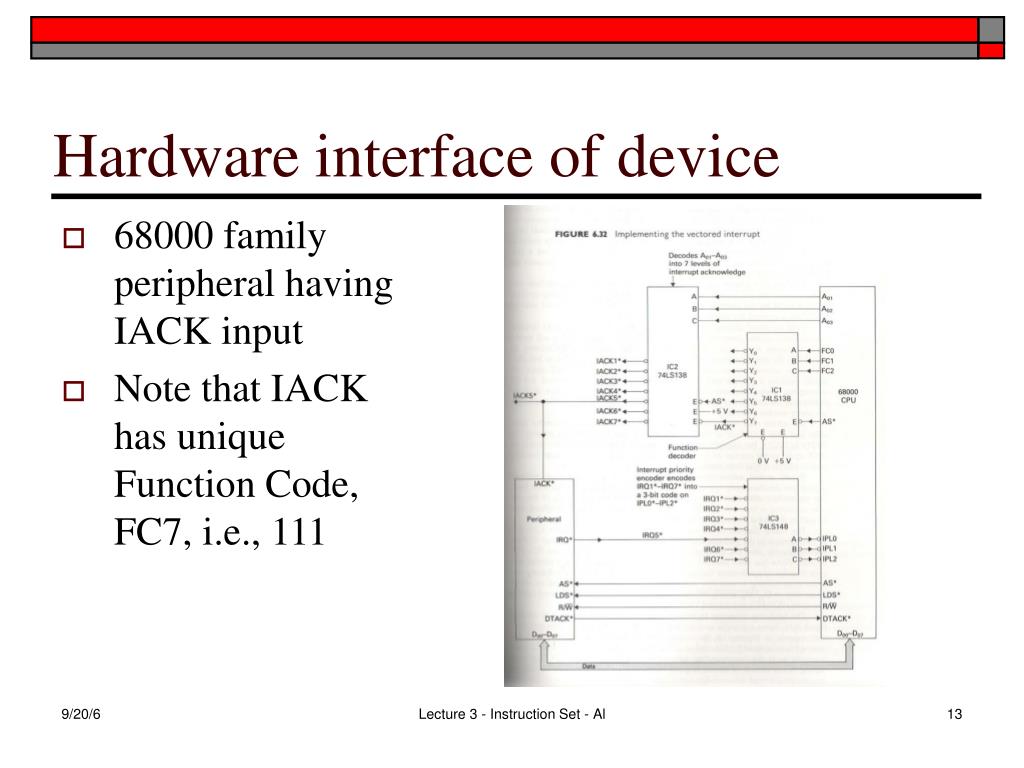

Hardware interface of device
  • 68000 family peripheral having IACK input
  • Note that IACK has unique Function Code, FC7, i.e., 111

Lecture 3 - Instruction Set - Al

autovectored interrupt

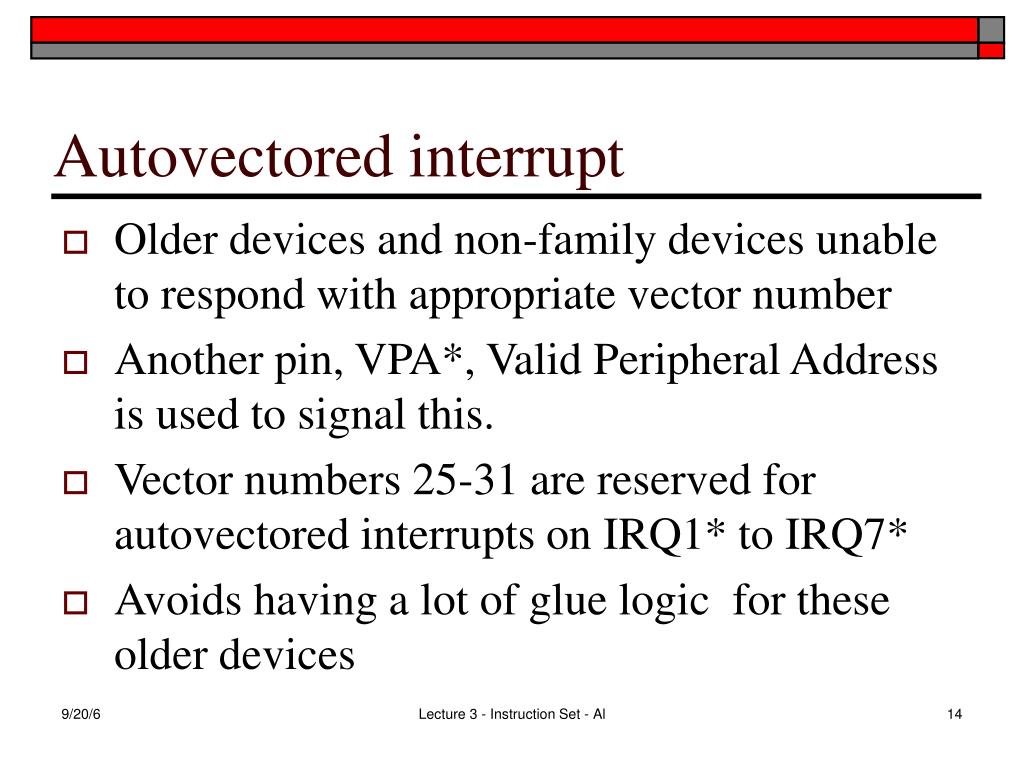

Autovectored interrupt
  • Older devices and non-family devices unable to respond with appropriate vector number
  • Another pin, VPA*, Valid Peripheral Address is used to signal this.
  • Vector numbers 25-31 are reserved for autovectored interrupts on IRQ1* to IRQ7*
  • Avoids having a lot of glue logic for these older devices

Lecture 3 - Instruction Set - Al

timing of autovectored interrupts

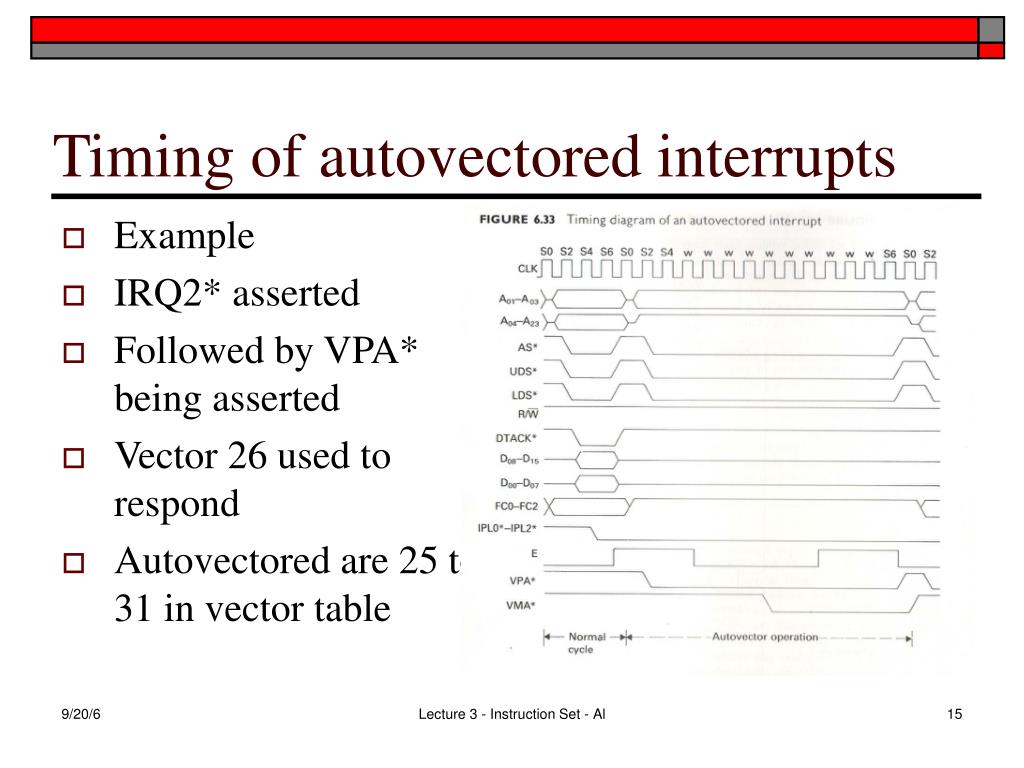

Timing of autovectored interrupts
  • Example
  • IRQ2* asserted
  • Followed by VPA* being asserted
  • Vector 26 used to respond
  • Autovectored are 25 to 31 in vector table

Lecture 3 - Instruction Set - Al

autovectored hardware

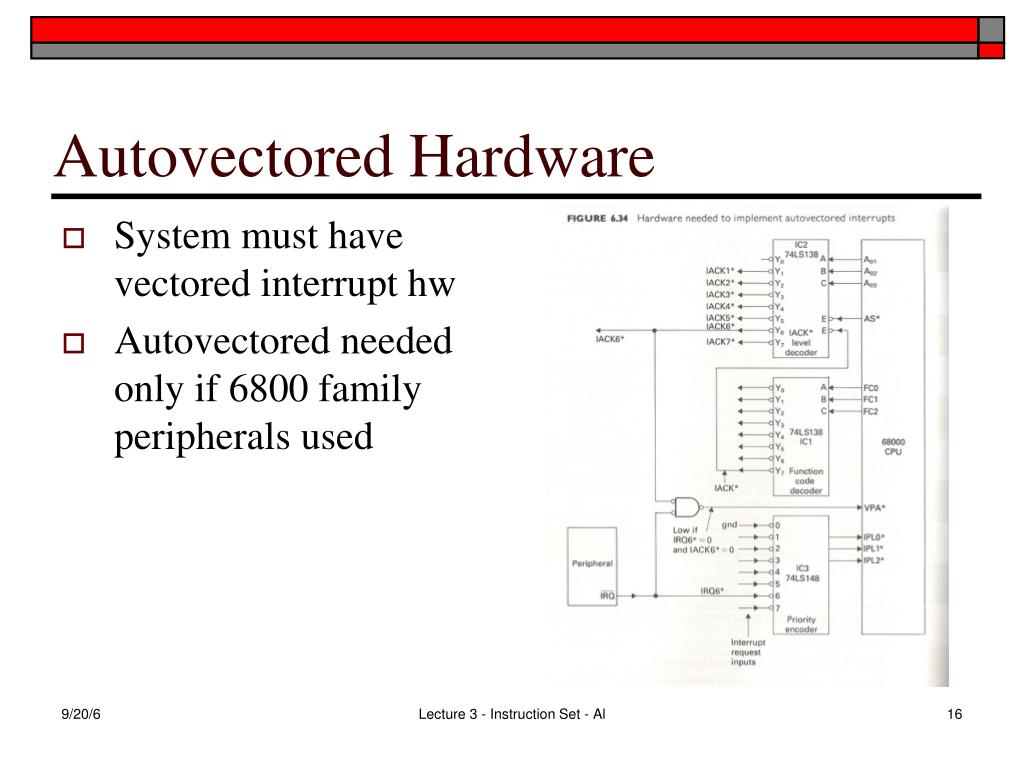

Autovectored Hardware
  • System must have vectored interrupt hw
  • Autovectored needed only if 6800 family peripherals used
