9-1A Surface Area of Prisms

9-1A Surface Area of Prisms. What is a prism? What are the bases of a prism? What are the lateral faces of a prism? What is a right prism? What is an oblique prism? What is lateral area? What is surface area?. True or False?. Rectangular prisms are often referred to as boxes.

timon-mcmahon
Download Presentation

9-1A Surface Area of Prisms

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 9-1A Surface Area of Prisms What is a prism? What are the bases of a prism? What are the lateral faces of a prism? What is a right prism? What is an oblique prism? What is lateral area? What is surface area?

  2. True or False? • Rectangular prisms are often referred to as boxes. • Each prism has two lateral faces. • The length of an altitude is the height of a prism. • If the lateral edges of a prism are perpendicular to its bases, the prism is an oblique prism. • The lateral area of a prism is the total area of all of its faces including the bases.

  3. Open your book to page 604 Read pages 604 to 606 Create a chart with the highlighted vocabulary words and a picture showing the vocabulary word or words. Hint—start by drawing one prism showing the first four highlighted words. Continue from there.

  4. True or False? • Rectangular prisms are often referred to as boxes. • Each prism has two lateral faces. • The length of an altitude is the height of a prism. • If the lateral edges of a prism are perpendicular to its bases, the prism is an oblique prism. • The lateral area of a prism is the total area of all of its faces including the bases.

  5. Definition The light through the prism on the window made a rainbow on the wall. A prism is a polyhedron with two identical polygonal faces called bases that lie in parallel planes. The other parallelogram-shaped faces are lateral faces.

  6. Rectangular Prism We often refer to rectangular prisms as boxes.

  7. Altitude or Height? An altitude of a prism is a segment perpendicular to both bases whose endpoints are in the planes of the bases. The length of an altitude is the height of the prism. Altitude See page 604 for other altitudes.

  8. Right or Oblique? Right prism—the lateral edges of the prism are perpendicular to its bases. Oblique prism---the lateral edges of the prism are not perpendicular to its bases. Classify each prism.

  9. Lateral Area Lateral area is the sum of the areas of the lateral faces of a prism. Theorem The lateral area of a right prism is the product of the perimeter of its base and the height of the prism. LA = ph

  10. Lateral Area Sides only No bases b

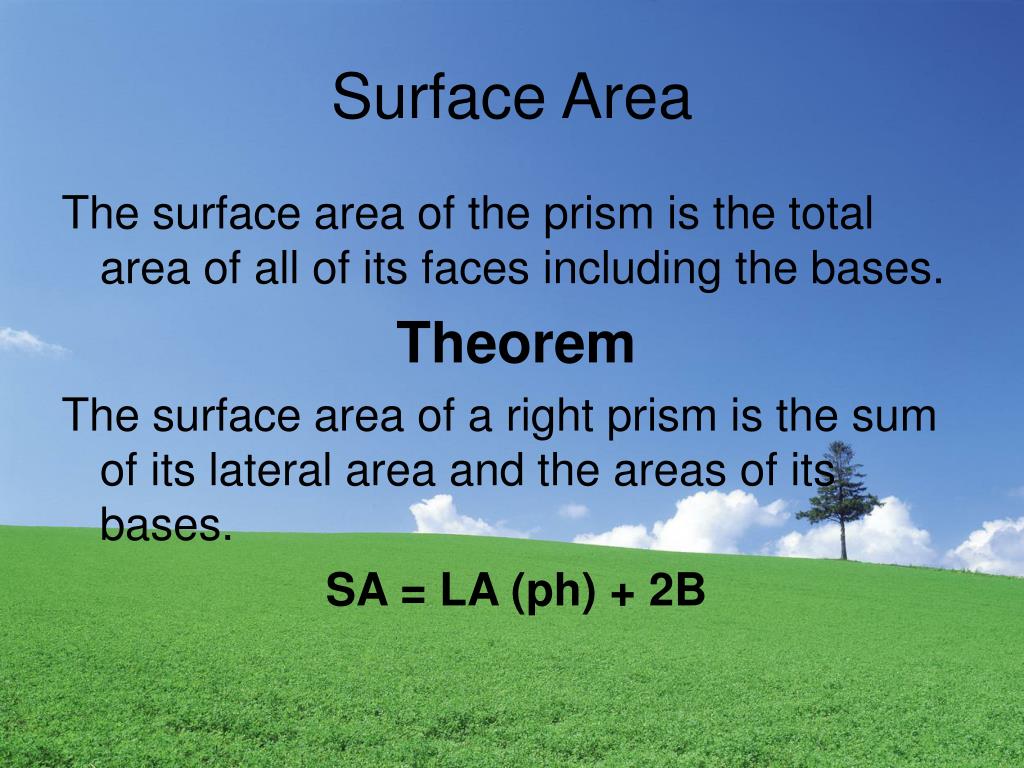

  11. Surface Area The surface area of the prism is the total area of all of its faces including the bases. Theorem The surface area of a right prism is the sum of its lateral area and the areas of its bases. SA = LA (ph) + 2B

  12. Surface Area SA = P h + 2 (1/2 b h) or

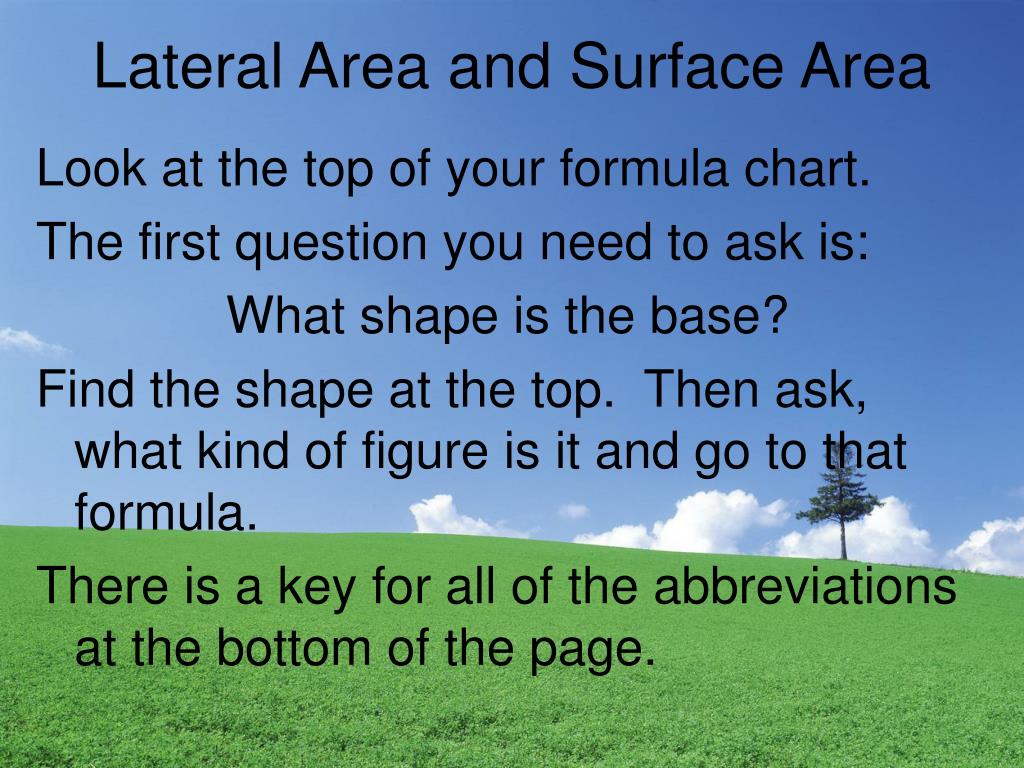

  13. Lateral Area and Surface Area Look at the top of your formula chart. The first question you need to ask is: What shape is the base? Find the shape at the top. Then ask, what kind of figure is it and go to that formula. There is a key for all of the abbreviations at the bottom of the page.

  14. 8 6 10 9 Find the lateral area of the right prism with right triangular bases. Ask: What is the shape of the base? Triangle Find the triangle LA formula

  15. Find the surface area of the right prism with right triangular bases. Ask: What is the shape of the base? Triangle Find the triangle SA formula 8 6 10 9

  16. True or False? • Rectangular prisms are often referred to as boxes. • Each prism has two lateral faces. • The length of an altitude is the height of a prism. • If the lateral edges of a prism are perpendicular to its bases, the prism is an oblique prism. • The lateral area of a prism is the total area of all of its faces including the bases.

  17. Assignment 9-1A Page 606, 1-16, skip 12 NO FORMULAS WITH NUMBERS NO CREDIT
