  1. Future Plans

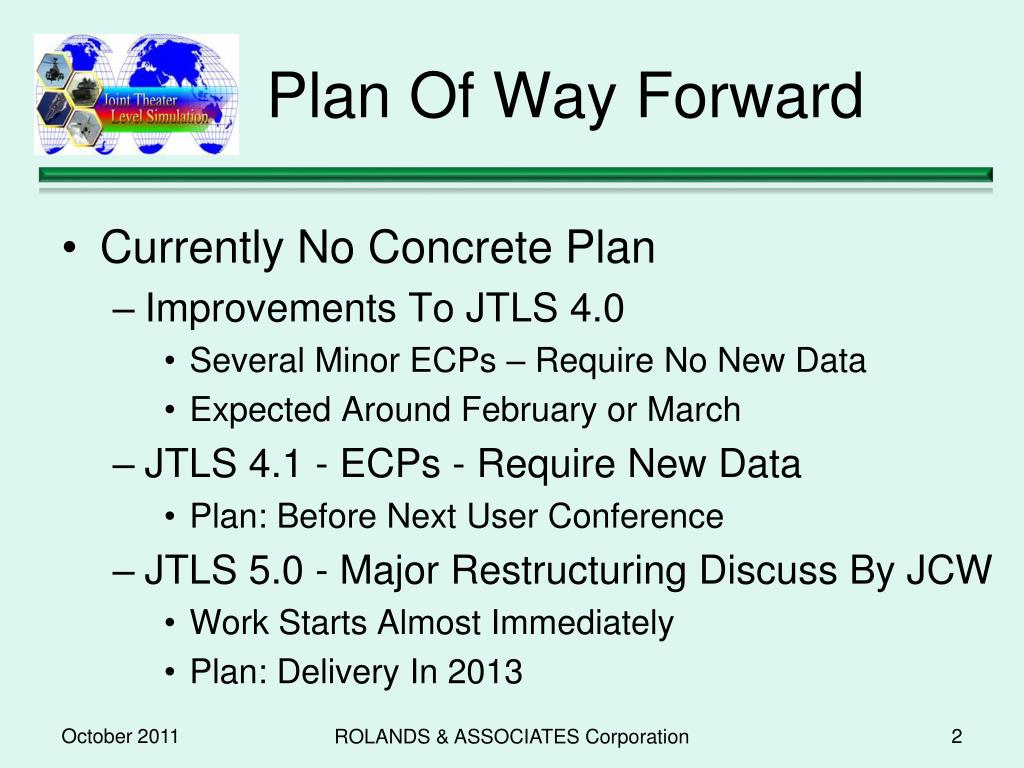

  2. Plan Of Way Forward • Currently No Concrete Plan • Improvements To JTLS 4.0 • Several Minor ECPs – Require No New Data • Expected Around February or March • JTLS 4.1 - ECPs - Require New Data • Plan: Before Next User Conference • JTLS 5.0 - Major Restructuring Discuss By JCW • Work Starts Almost Immediately • Plan: Delivery In 2013 ROLANDS & ASSOCIATES Corporation

  3. Plan Of Way Forward • Implications • R&A Has • Two Separate Development Streams (JTLS 4.1, 5.0) • Two Maintenance Streams (JTLS 3.4, JTLS 4.0) • This Will Take A Month Just To Alter Procedures • When To Integrate Changes • Immediately – Interferes With Big Changes • Postpone – Will New Changes • Work With New Structure • Will We Remember What Needs To Be Integrated ROLANDS & ASSOCIATES Corporation

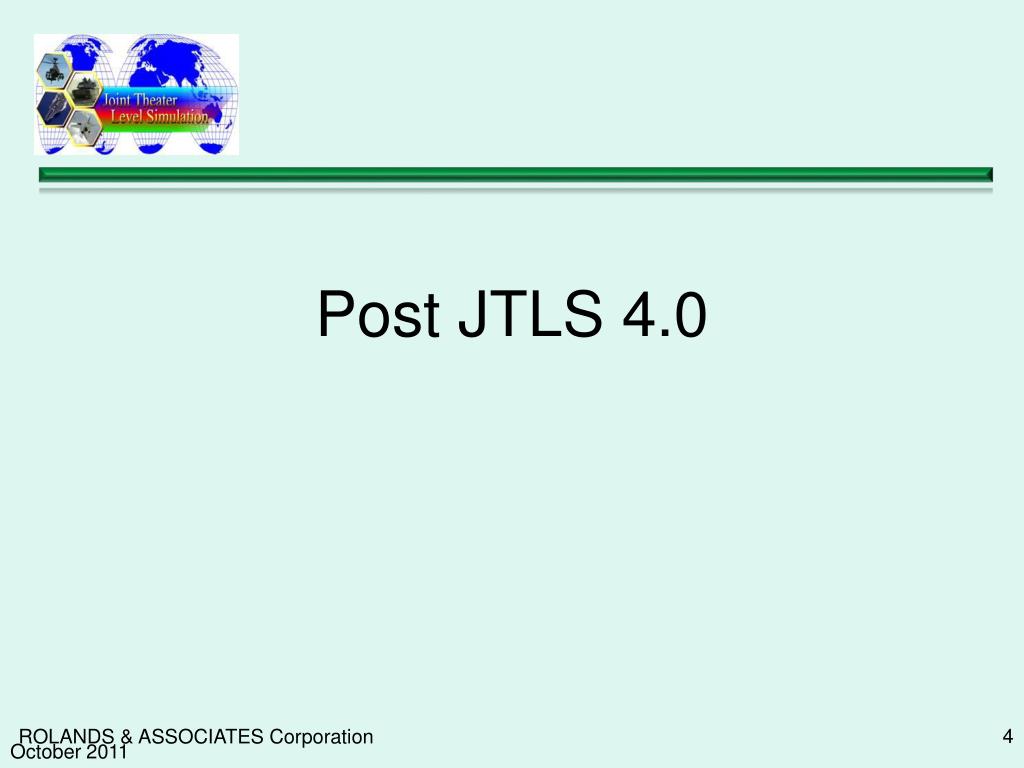

  4. Post JTLS 4.0 ROLANDS & ASSOCIATES Corporation

  5. DDS • Add Random Process Visualization Tool • Existed In Old DDS • Add GDP Capabilities To DDS • Map / Terrain Changes • Object Movement • Network Creation • Command Hierarchy • Logistics Hierarchy ROLANDS & ASSOCIATES Corporation

  6. Diesel Electric Submarines • Provide Remaining Battery Time On IMT • Currently Only Get Percentage Remaining • Address Assumptions • Speed Greater Submerged • Battery Not Used When Surfaced or Snorkel ROLANDS & ASSOCIATES Corporation

  7. Odds and Ends • Add OPM Time Unit Of Measure • BDA Summary Data In Air Mission Reports • Improve Intelligence Reports • JCW Provided Some New Requirements • Catapults Only Limit Takeoff • Limit Landing – Also Represent Arresting Gear • More Than One Glassfish Per Machine ROLANDS & ASSOCIATES Corporation

  8. AFAMS Test • Air Force Agency For Modeling and Simulation • Conducting Test – Can JTLS Be Used For • Tier 3 AOC Training • Prior To Test • Fix Some Known Tanker Reporting Issues • Expand TBMCS Reporting Details • Three Possible Outcomes • Yes, No • Maybe Due To Restrictions • Probably We Would Be Tasked To Correct Restrictions ROLANDS & ASSOCIATES Corporation

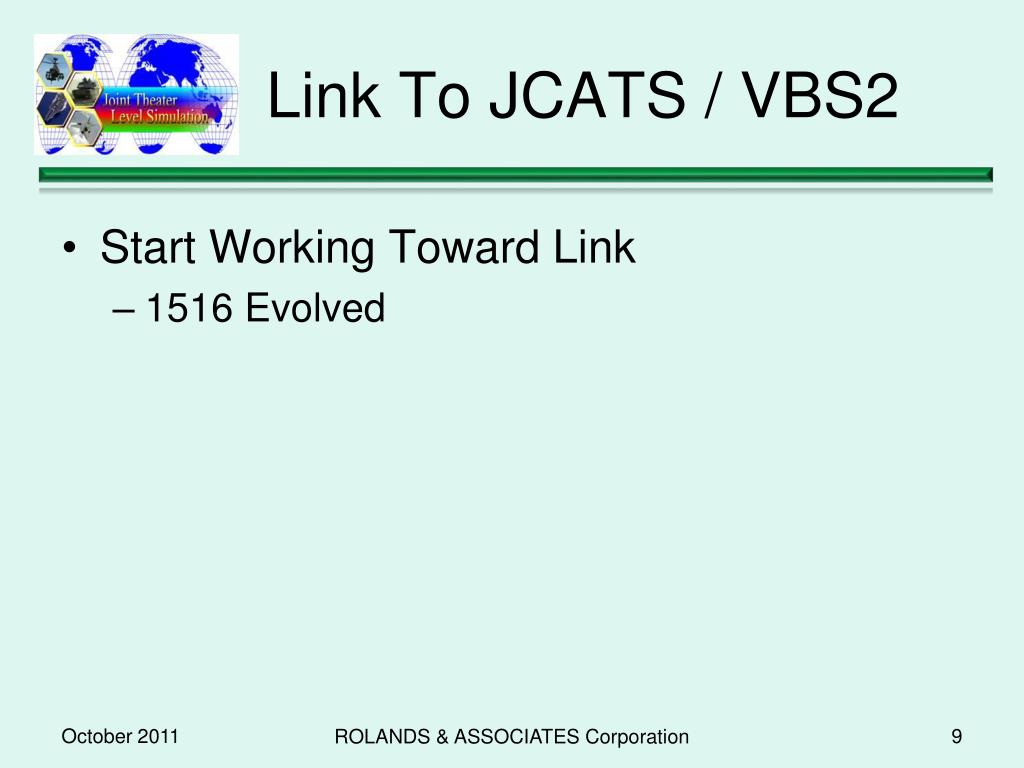

  9. Link To JCATS / VBS2 • Start Working Toward Link • 1516 Evolved ROLANDS & ASSOCIATES Corporation

  10. JTLS 4.1 ROLANDS & ASSOCIATES Corporation

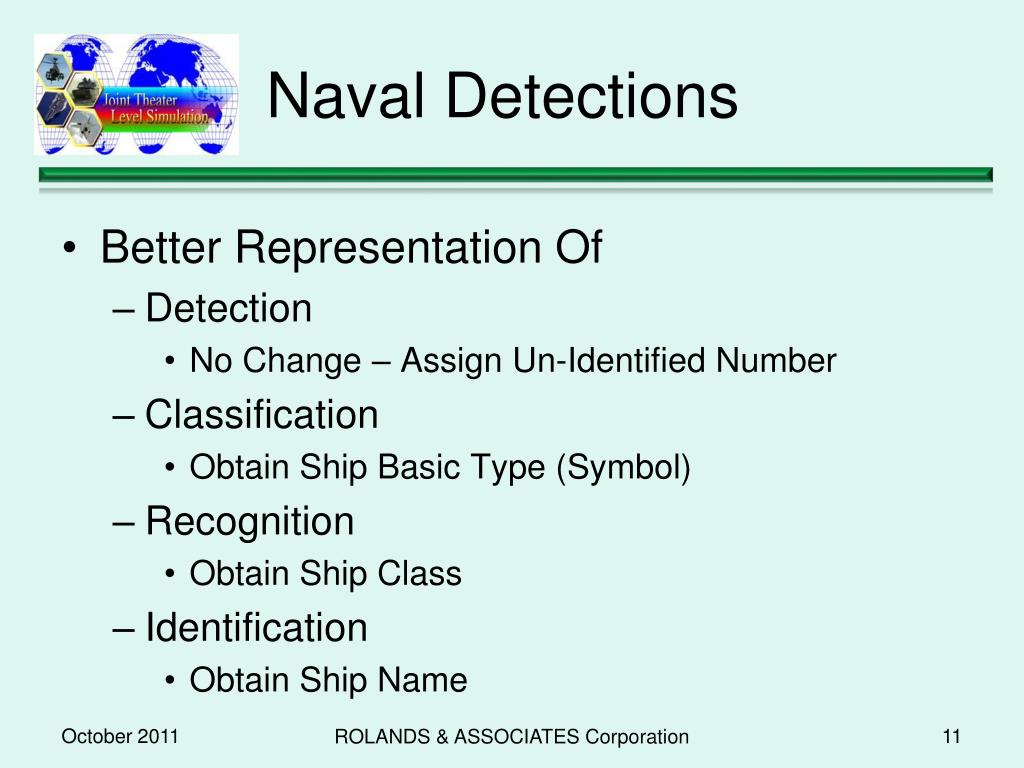

  11. Naval Detections • Better Representation Of • Detection • No Change – Assign Un-Identified Number • Classification • Obtain Ship Basic Type (Symbol) • Recognition • Obtain Ship Class • Identification • Obtain Ship Name ROLANDS & ASSOCIATES Corporation

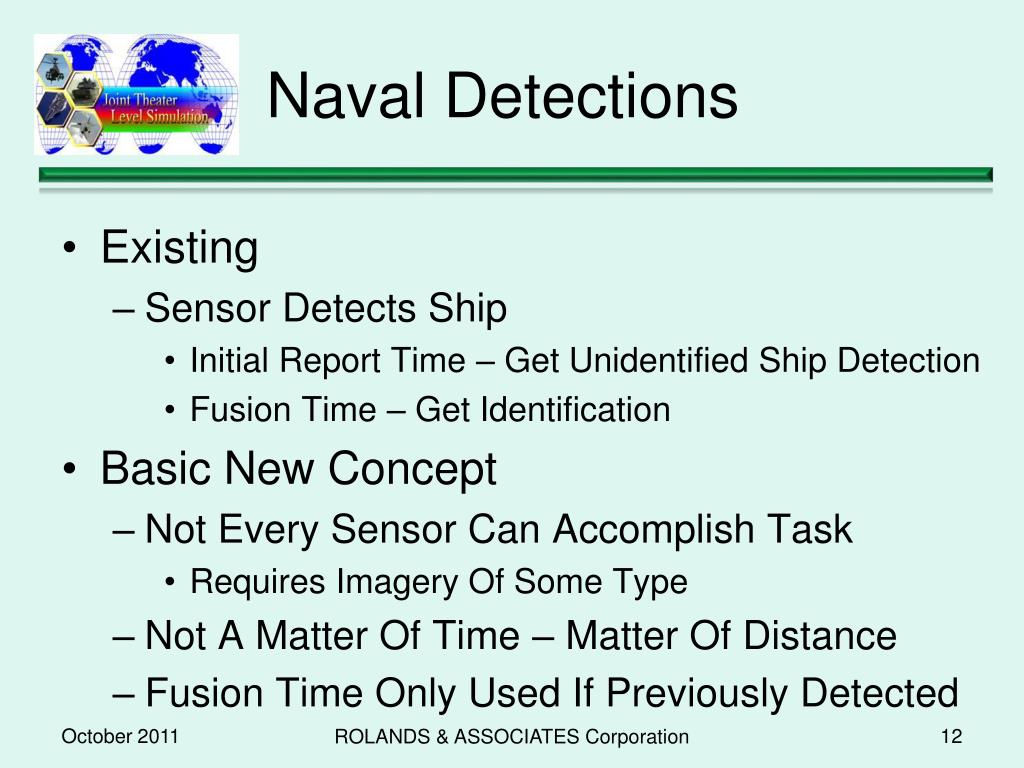

  12. Naval Detections • Existing • Sensor Detects Ship • Initial Report Time – Get Unidentified Ship Detection • Fusion Time – Get Identification • Basic New Concept • Not Every Sensor Can Accomplish Task • Requires Imagery Of Some Type • Not A Matter Of Time – Matter Of Distance • Fusion Time Only Used If Previously Detected ROLANDS & ASSOCIATES Corporation

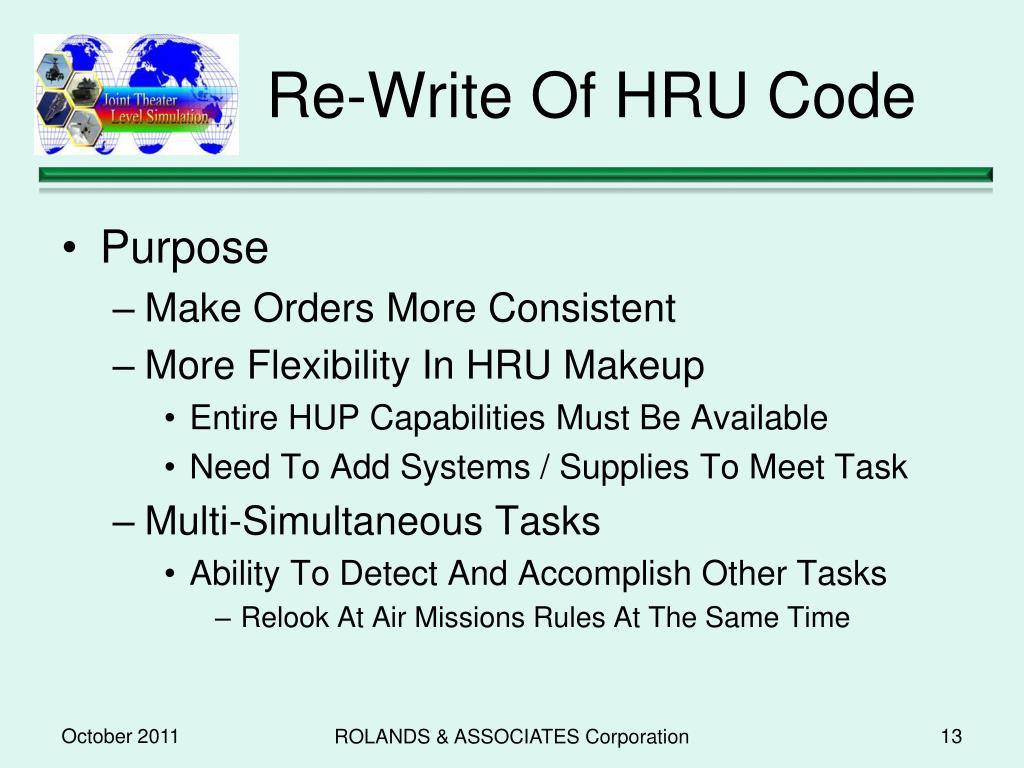

  13. Re-Write Of HRU Code • Purpose • Make Orders More Consistent • More Flexibility In HRU Makeup • Entire HUP Capabilities Must Be Available • Need To Add Systems / Supplies To Meet Task • Multi-Simultaneous Tasks • Ability To Detect And Accomplish Other Tasks • Relook At Air Missions Rules At The Same Time ROLANDS & ASSOCIATES Corporation

  14. Representation Of TLAM-E • Also Known As Tomahawk® Block IV • Additional Capability Required • Reprogram the missile while in-flight • Required Two-way Satellite Communications • Can Only Strike15 Pre-Programmed Alternate Targets • May Not Implement This Restriction • Alternate Strike Any Target Coordinates • Using Global Positioning System (GPS) ROLANDS & ASSOCIATES Corporation

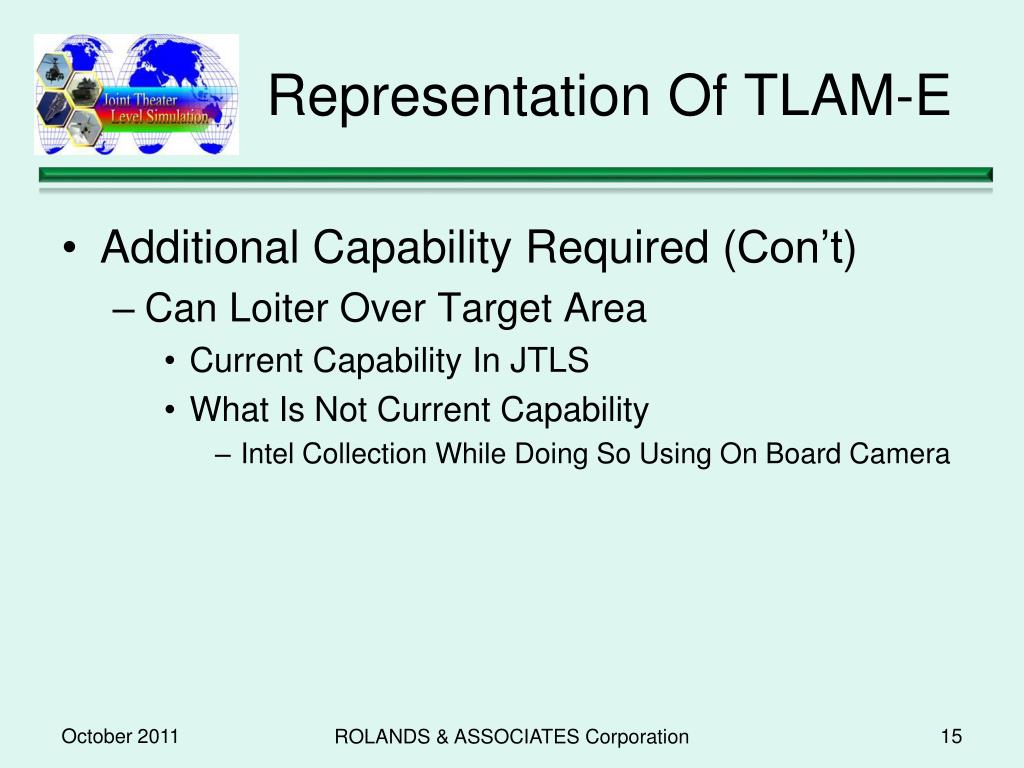

  15. Representation Of TLAM-E • Additional Capability Required (Con’t) • Can Loiter Over Target Area • Current Capability In JTLS • What Is Not Current Capability • Intel Collection While Doing So Using On Board Camera ROLANDS & ASSOCIATES Corporation

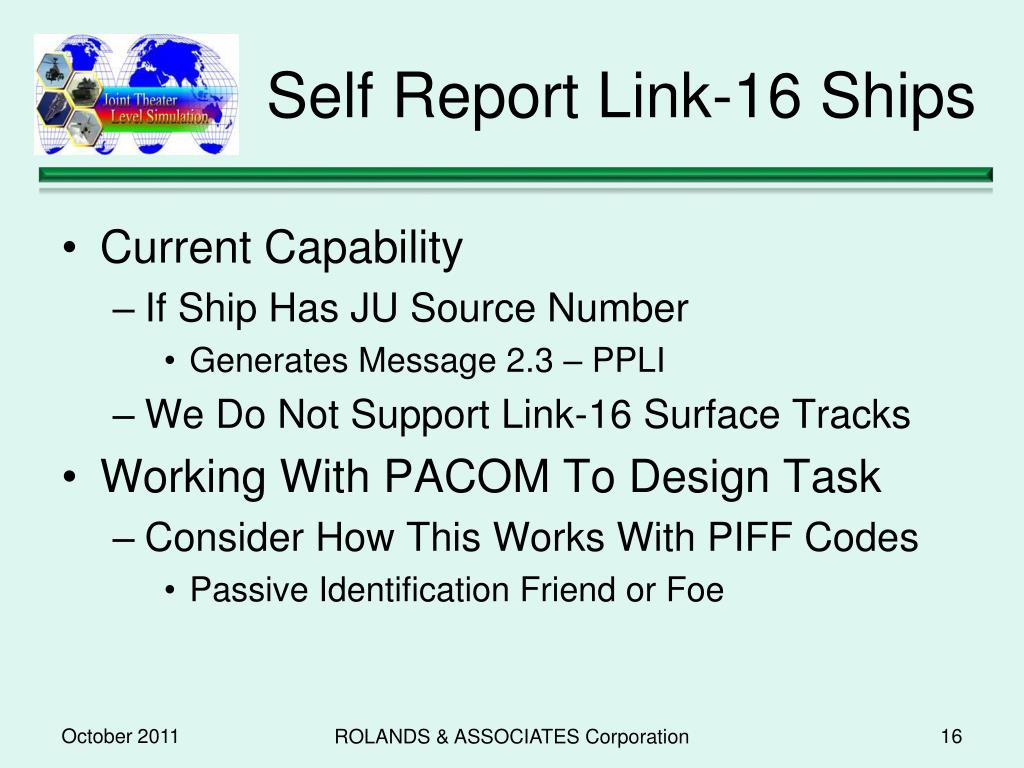

  16. Self Report Link-16 Ships • Current Capability • If Ship Has JU Source Number • Generates Message 2.3 – PPLI • We Do Not Support Link-16 Surface Tracks • Working With PACOM To Design Task • Consider How This Works With PIFF Codes • Passive Identification Friend or Foe ROLANDS & ASSOCIATES Corporation

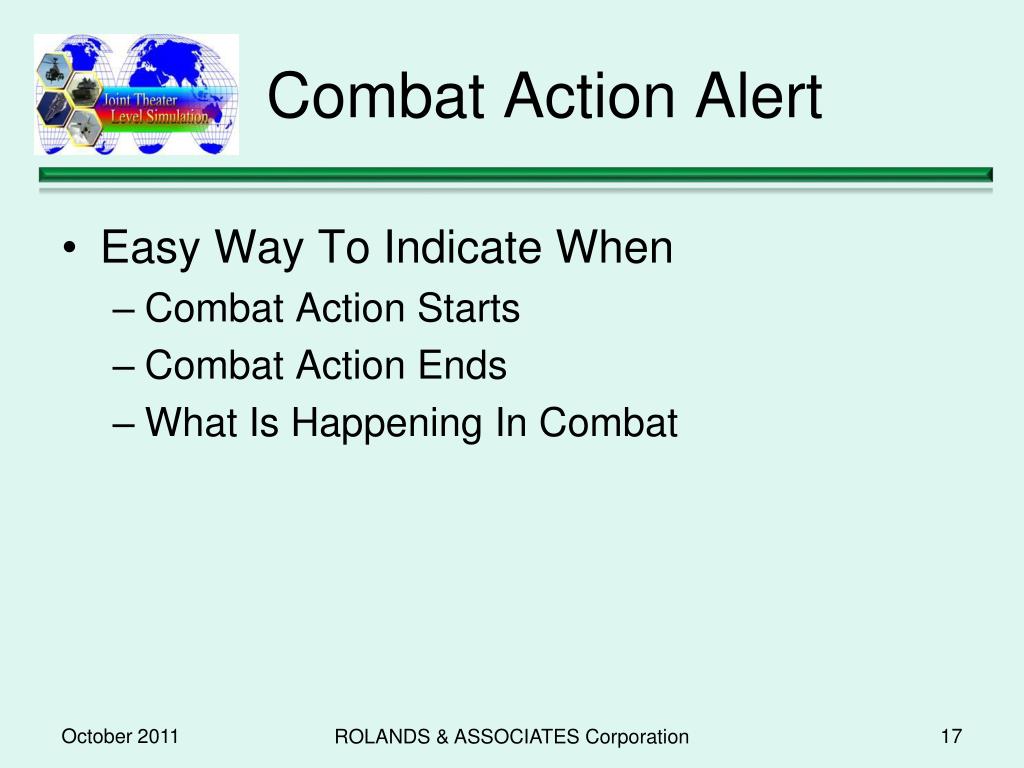

  17. Combat Action Alert • Easy Way To Indicate When • Combat Action Starts • Combat Action Ends • What Is Happening In Combat ROLANDS & ASSOCIATES Corporation

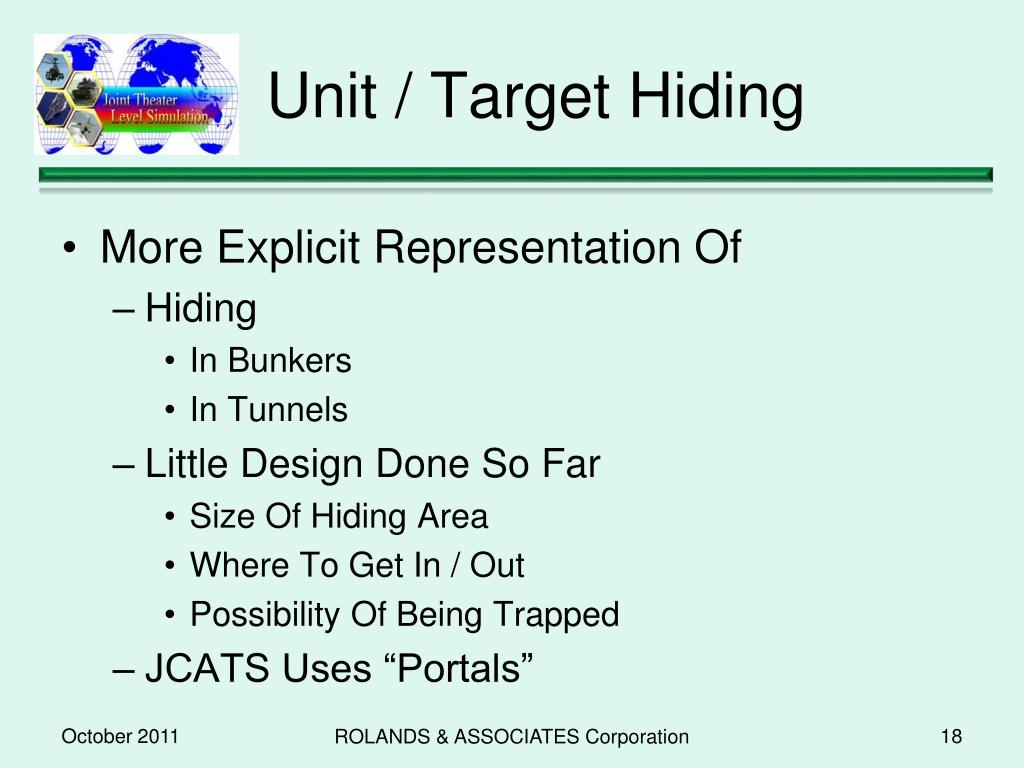

  18. Unit / Target Hiding • More Explicit Representation Of • Hiding • In Bunkers • In Tunnels • Little Design Done So Far • Size Of Hiding Area • Where To Get In / Out • Possibility Of Being Trapped • JCATS Uses “Portals” ROLANDS & ASSOCIATES Corporation

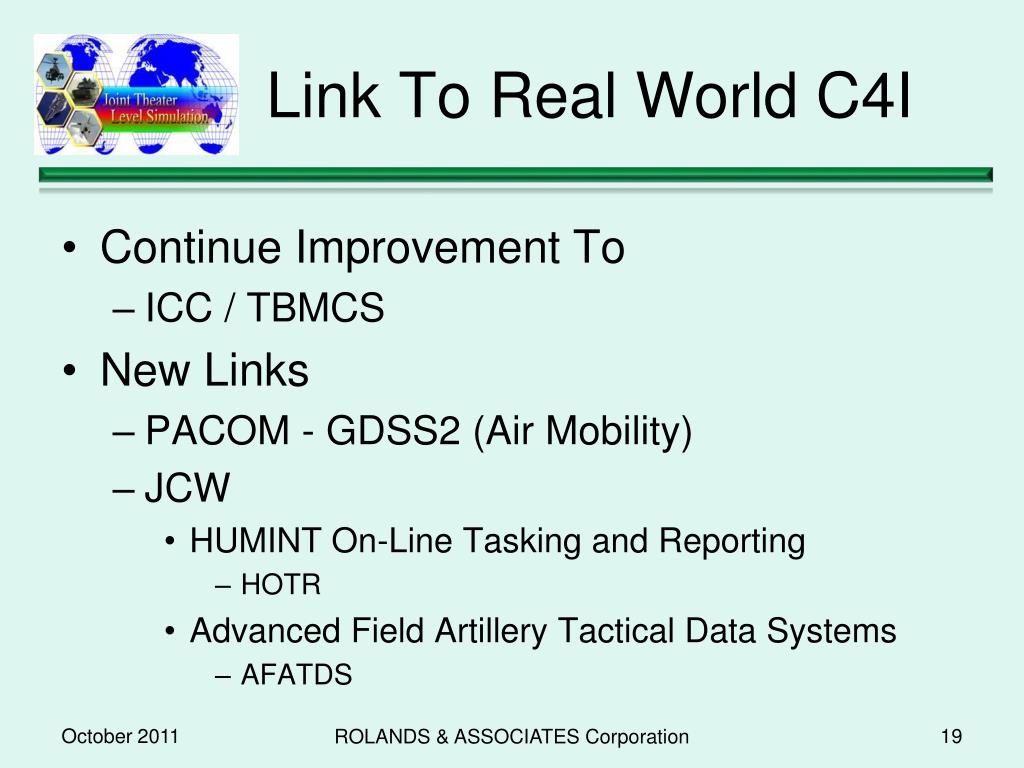

  19. Link To Real World C4I • Continue Improvement To • ICC / TBMCS • New Links • PACOM - GDSS2 (Air Mobility) • JCW • HUMINT On-Line Tasking and Reporting • HOTR • Advanced Field Artillery Tactical Data Systems • AFATDS ROLANDS & ASSOCIATES Corporation

  20. Improve User Workload • Add Higher Level Planning Capability • New WHIP Tools • Air Tasking Order Generator • Ground Plan Development Tool • Contingency Development • Rule Based Execution Start • Spreadsheet Type Order Specification • Automated MSEL or MEL/MIL Order Entry ROLANDS & ASSOCIATES Corporation

  21. Investigate SOA • Service Oriented Architecture • Possible Models • Maintenance Model • Weather Model • Contamination Model • Line of Sight Model • Emitter Model ROLANDS & ASSOCIATES Corporation

  22. Investigate SOA • Service Oriented Architecture • Investigate • Method To Communicate (HLA / Other) • One Way Service • Request Service • Two Way Service • Speed Implications • Time Coordination Issues ROLANDS & ASSOCIATES Corporation

  23. Investigate SOA One Way Service - Example JTLS Emitter Turn On Turn Off ROLANDS & ASSOCIATES Corporation

  24. Investigate SOA Request Service - Example What Is The Weather At JTLS Weather The Weather Is Cloudy ROLANDS & ASSOCIATES Corporation

  25. Investigate SOA Two Way Service - Example Accept Damaged System Assets Such As Tow Truck JTLS Maintenance System Is Repaired ROLANDS & ASSOCIATES Corporation

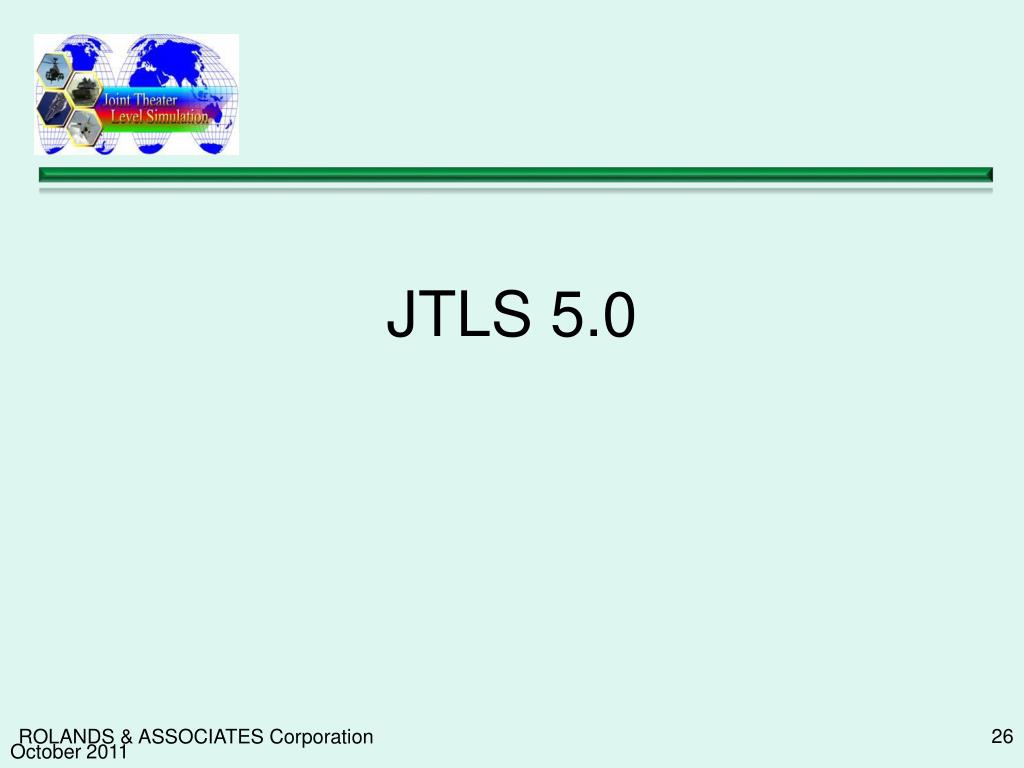

  26. JTLS 5.0 ROLANDS & ASSOCIATES Corporation

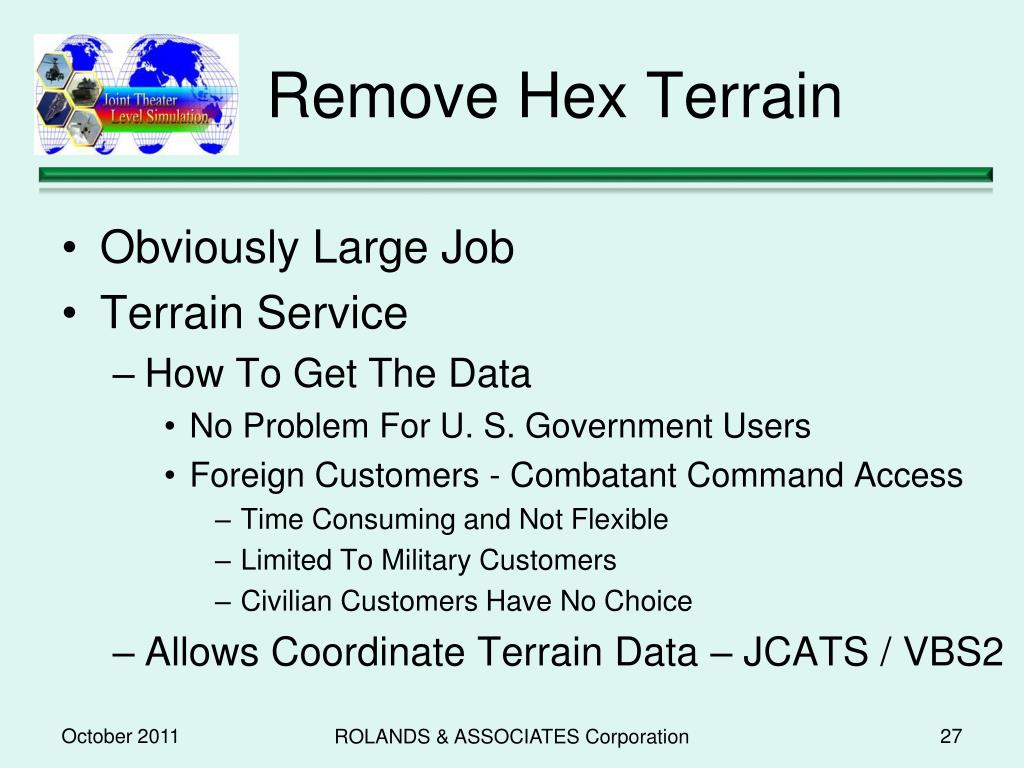

  27. Remove Hex Terrain • Obviously Large Job • Terrain Service • How To Get The Data • No Problem For U. S. Government Users • Foreign Customers - Combatant Command Access • Time Consuming and Not Flexible • Limited To Military Customers • Civilian Customers Have No Choice • Allows Coordinate Terrain Data – JCATS / VBS2 ROLANDS & ASSOCIATES Corporation

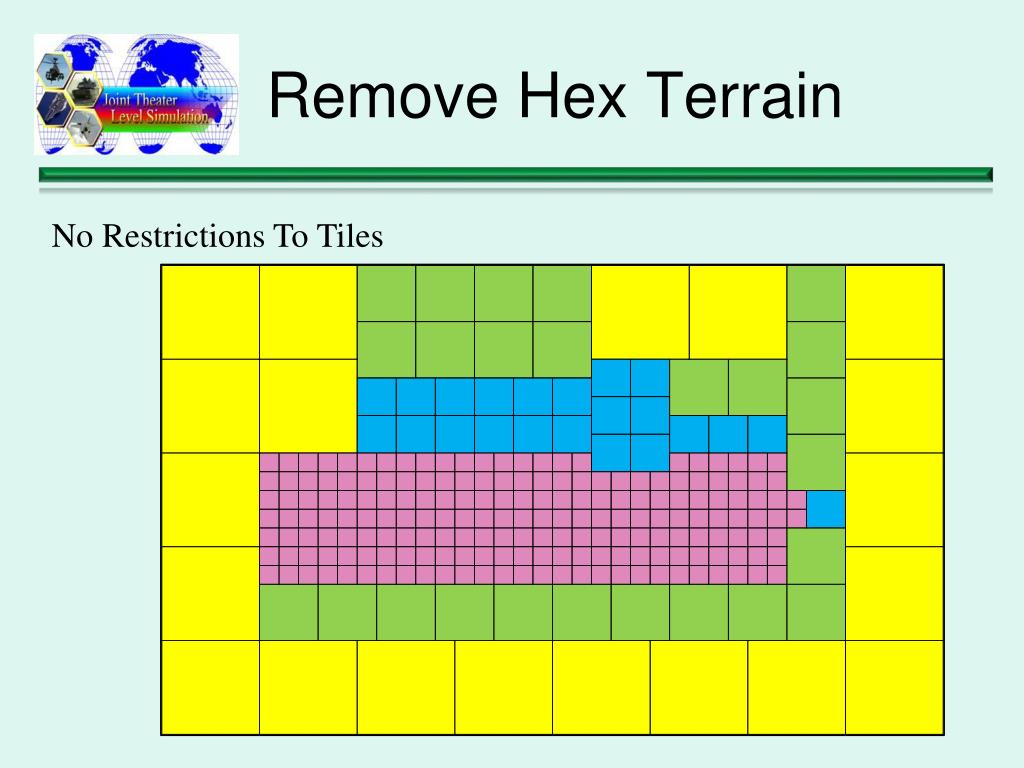

  28. Remove Hex Terrain No Restrictions To Tiles

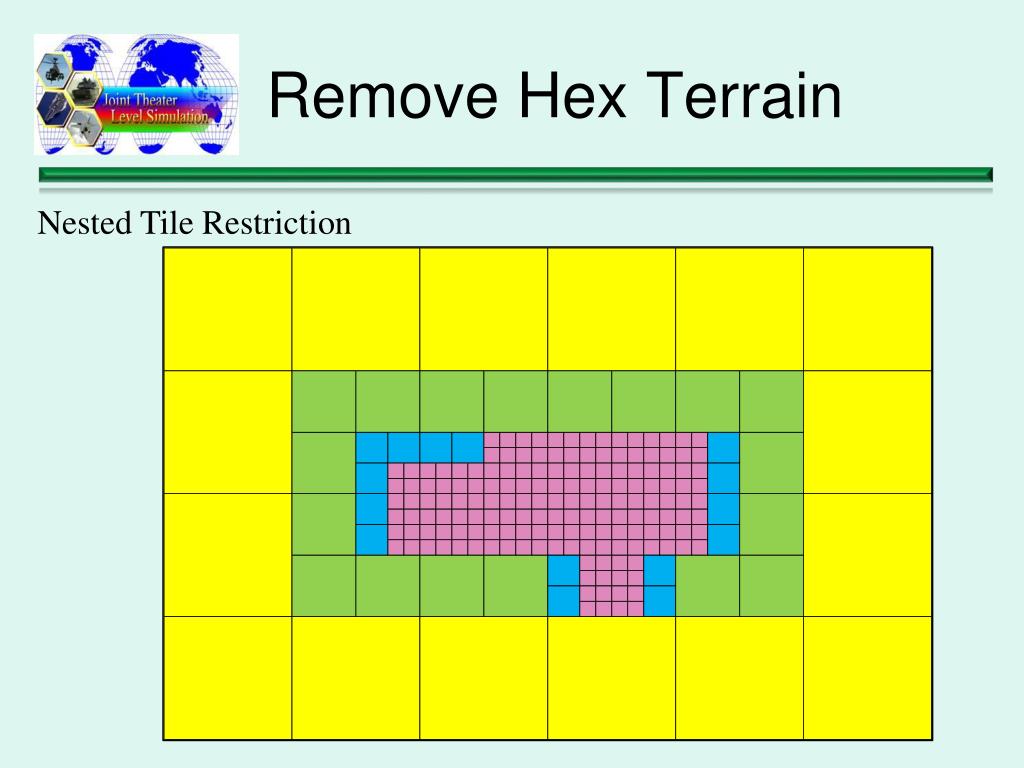

  29. Remove Hex Terrain Nested Tile Restriction

  30. Remove Hex Terrain • Committed To Network Overlay • Types Of Networks • Road • River – May Be Move To 4.1 • Rail • Air Corridor • Naval Lanes • Smooth Movement ROLANDS & ASSOCIATES Corporation

  31. Questions ROLANDS & ASSOCIATES Corporation
