Introduction to mpls and traffic engineering

Introduction to MPLS and Traffic Engineering

Zartash Afzal Uzmi


Outline

Outline

  • Traditional IP Routing

    • Forwarding and routing

    • Problems with IP routing

    • Motivations behind MPLS

  • MPLS Terminology and Operation

    • MPLS Label, LSR and LSP, LFIB Vs FIB

    • Transport of an IP packet over MPLS

    • More MPLS terminology

  • Traffic Engineering [with MPLS]

    • Nomenclature

    • Requirements

    • Examples

CS 573: Network Protocols and Standards


Outline1

Outline

  • Traditional IP Routing

    • Forwarding and routing

    • Problems with IP routing

    • Motivations behind MPLS

  • MPLS Terminology and Operation

    • MPLS Label, LSR and LSP, LFIB Vs FIB

    • Transport of an IP packet over MPLS

    • More MPLS terminology

  • Traffic Engineering [with MPLS]

    • Nomenclature

    • Requirements

    • Examples

CS 573: Network Protocols and Standards


Forwarding and routing

Forwarding and routing

  • Forwarding:

    • Passing a packet to the next hop router

  • Routing:

    • Computing the “best” path to the destination

  • IP routing – includes routing and forwarding

    • Each router makes the forwarding decision

    • Each router makes the routing decision

  • MPLS routing

    • Only one router (source) makes the routing decision

    • Intermediate routers make the forwarding decision

CS 573: Network Protocols and Standards


Ip versus mpls routing

IP versus MPLS routing

  • IP routing

    • Each IP datagram is routed independently

    • Routing and forwarding is destination-based

      • Routers look at the destination addresses

      • May lead to congestion in parts of the network

  • MPLS routing

    • A path is computed “in advance” and a “virtual circuit” is established from ingress to egress

    • An MPLS path from ingress to egress node is called a label switched path (LSP)

CS 573: Network Protocols and Standards


How ip routing works

How IP routing works

Searching Longest Prefix Match in FIB (Too Slow)

CS 573: Network Protocols and Standards


Problems with ip routing

Problems with IP routing

  • Too slow

    • IP lookup (longest prefix matching) “was” a major bottleneck in high performance routers

    • This was made worse by the fact that IP forwarding requires complex lookup operation at every hop along the path

  • Too rigid – no flexibility

    • Routing decisions are destination-based

  • Not scalable in some desirable applications

    • When mapping IP traffic onto ATM

CS 573: Network Protocols and Standards


Ip routing rigidity example

IP routing rigidity example

D

1

1

A

S

A

B

B

1

2

C

  • Packet 1: Destination A

  • Packet 2: Destination B

  • S computes shortest paths to A and B; finds D as next hop

  • Both packets will follow the same path

    • Leads to IP hotspots!

  • Solution?

    • Try to divert the traffic onto alternate paths

CS 573: Network Protocols and Standards


Ip routing rigidity example1

IP routing rigidity example

D

1

4

A

S

A

B

B

1

2

C

  • Increase the cost of link DA from 1 to 4

  • Traffic is diverted away from node D

  • A new IP hotspot is created!

  • Solution(?): Network Engineering

    • Put more bandwidth where the traffic is!

    • Leads to underutilized links; not suitable for large networks

CS 573: Network Protocols and Standards


Motivations behind mpls

Motivations behind MPLS

  • Avoid [slow] IP lookup

    • Led to the development of IP switching in 1996

  • Provide some scalability for IP over ATM

  • Evolve routing functionality

    • Control was too closely tied to forwarding

  • Evolution of routing functionality led to some other benefits

    • Explicit path routing

    • Provision of service differentiation (QoS)

CS 573: Network Protocols and Standards


Ip routing versus mpls routing

IP routing versus MPLS routing

Traditional IP Routing

Multiprotocol Label Switching (MPLS)

1

2

S

D

3

4

5

MPLS allows overriding shortest paths!

CS 573: Network Protocols and Standards


Outline2

Outline

  • Traditional IP Routing

    • Forwarding and routing

    • Problems with IP routing

    • Motivations behind MPLS

  • MPLS Terminology and Operation

    • MPLS Label, LSR and LSP, LFIB Vs FIB

    • Transport of an IP packet over MPLS

    • More MPLS terminology

  • Traffic Engineering [with MPLS]

    • Nomenclature

    • Requirements

    • Examples

CS 573: Network Protocols and Standards


Mpls label

MPLS label

  • To avoid IP lookup MPLS packets carry extra information called “Label”

  • Packet forwarding decision is made using label-based lookups

  • Labels have local significance only!

  • How routing along explicit path works?

Label

IP Datagram

CS 573: Network Protocols and Standards


Routing along explicit paths

Routing along explicit paths

  • Idea: Let the source make the complete routing decision

  • How is this accomplished?

    • Let the ingress attach a label to the IP packet and let intermediate routers make forwarding decisions only

  • On what basis should you choose different paths for different flows?

    • Define some constraints and hope that the constraints will take “some” traffic away from the hotspot!

    • Use CSPF instead of SPF (shortest path first)

CS 573: Network Protocols and Standards


Label lsp and lsr

0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1

Label | Exp|S| TTL

Label = 20 bits

Exp = Experimental, 3 bits

S = Bottom of stack, 1bit

TTL = Time to live, 8 bits

Label, LSP and LSR

  • Label

  • Router that supports MPLS is known as label switching router (LSR)

  • An “Edge” LSR is also known as LER (edge router)

  • Path which is followed using labels is called LSP

CS 573: Network Protocols and Standards


Lfib versus fib

LFIB versus FIB

  • Labels are searched in LFIB whereas normal IP Routing uses FIB to search longest prefix match for a destination IP address

  • Why switching based on labels is faster?

    • LFIB has fewer entries

    • Routing table FIB has larger number of entries???

    • In LFIB, label is an exact match

    • In FIB, IP is longest prefix match

CS 573: Network Protocols and Standards


Mpls flow progress

Mpls Flow Progress

D

R1

LSR4

R2

LSR1

D

destination

LSR6

LSR3

LSR2

R1 and R2 are

regular routers

LSR5

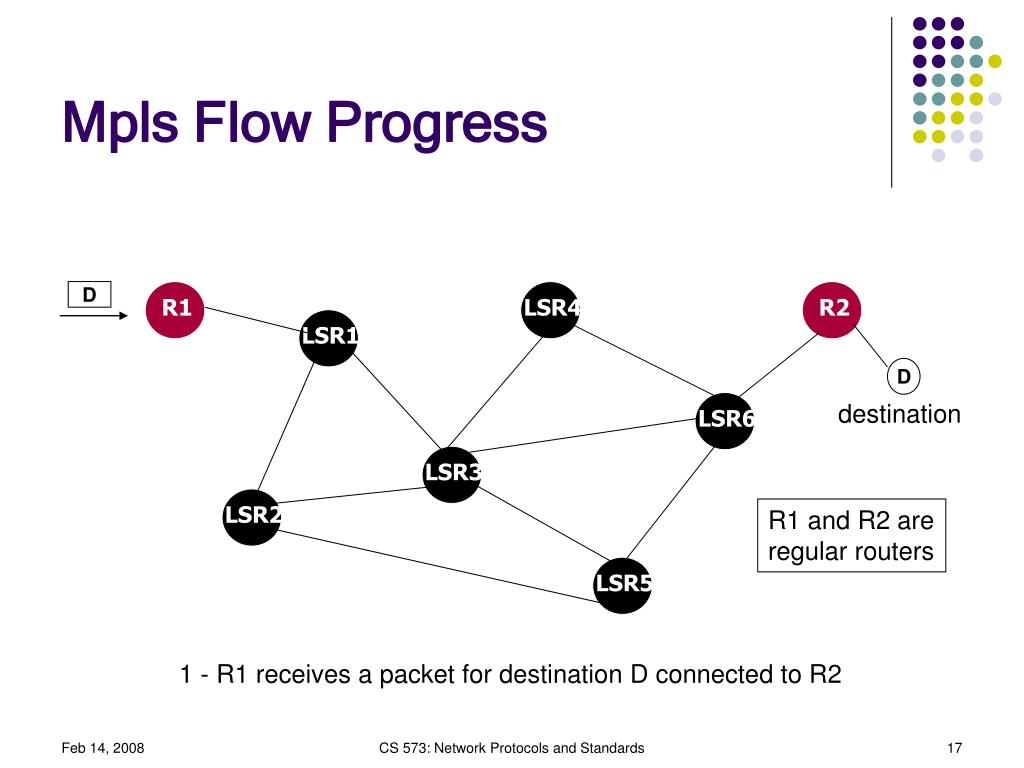

1 - R1 receives a packet for destination D connected to R2

CS 573: Network Protocols and Standards


Mpls flow progress1

Mpls Flow Progress

D

R1

LSR4

R2

LSR1

D

destination

LSR6

LSR3

LSR2

LSR5

2 - R1 determines the next hop as LSR1 and forwards the packet

(Makes a routing as well as a forwarding decision)

CS 573: Network Protocols and Standards


Mpls flow progress2

Mpls Flow Progress

R1

LSR4

R2

LSR1

31

D

D

destination

LSR6

LSR3

LSR2

LSR5

3 – LSR1 establishes a path to LSR6 and “PUSHES” a label

(Makes a routing as well as a forwarding decision)

CS 573: Network Protocols and Standards


Mpls flow progress3

Mpls Flow Progress

R1

LSR4

R2

LSR1

D

destination

LSR6

LSR3

17

D

LSR2

Labels have local

signifacance!

LSR5

4 – LSR3 just looks at the incoming label

LSR3 “SWAPS” with another label before forwarding

CS 573: Network Protocols and Standards


Mpls flow progress4

MPLS Flow Progress

R1

LSR4

R2

LSR1

D

destination

LSR6

LSR3

17

D

LSR2

Path within MPLS cloud

is pre-established:

LSP (label-switched path)

LSR5

5 – LSR6 looks at the incoming label

LSR6 “POPS” the label before forwarding to R2

CS 573: Network Protocols and Standards


Mpls and explicit routing recap

MPLS and explicit routing recap

  • Who establishes the LSPs in advance?

    • Ingress routers

  • How do ingress routers decide not to always take the shortest path?

    • Ingress routers use CSPF (constrained shortest path first) instead of SPF

    • Examples of constraints:

      • Do not use links left with less than 7Mb/s bandwidth

      • Do not use blue-colored links for this request

      • Use a path with delay less than 130ms

CS 573: Network Protocols and Standards


Introduction to mpls and traffic engineering

CSPF

  • What is the mechanism? (in typical cases!)

    • First prune all links not fulfilling constrains

    • Now find shortest path on the rest of the topology

  • Requires some reservation mechanism

  • Changing state of the network must also be recorded and propagated

    • For example, ingress needs to know how much bandwidth is left on links

    • The information is propagated by means of routing protocols and their extensions

CS 573: Network Protocols and Standards


More mpls terminology

Data

More MPLS terminology

Upstream

Downstream

172.68.10/24

LSR1

LSR2

CS 573: Network Protocols and Standards


Label advertisement

Use label 5 for destination 171.68.32/24

MPLS Data Packet

with label 5 travels

Label advertisement

  • Always downstream to upstream label advertisement and distribution

Downstream

Upstream

171.68.32/24

LSR2

LSR1

CS 573: Network Protocols and Standards


Label advertisement1

Sends label ONLY after

receiving request

Sends label

Without any Request

Request For label

Label advertisement

  • Label advertisement can be downstream unsolicited or downstream on-demand

Downstream

Upstream

171.68.32/24

LSR2

LSR1

Downstream

Upstream

171.68.32/24

LSR1

LSR2

CS 573: Network Protocols and Standards


Label distribution

Egress LSR

Ingress LSR

Label distribution

  • Label distribution can be ordered or unordered

  • First we see an example of ordered label distribution

Label

CS 573: Network Protocols and Standards


Label distribution1

Egress LSR

Ingress LSR

Label distribution

  • Label distribution can be ordered or unordered

  • Next we see an example of unordered label distribution

Label

Label

CS 573: Network Protocols and Standards


Label retention modes

Label retention modes

  • Label retention can be conservative or liberal

?

Destination

Label

LSR1

Label

CS 573: Network Protocols and Standards


Label operations

Label operations

  • Advertisement

    • Downstream unsolicited

    • Downstream on-demand

  • Distribution

    • Ordered

    • Unordered

  • Retention

    • Liberal

    • Conservative

CS 573: Network Protocols and Standards


Outline3

Outline

  • Traditional IP Routing

    • Forwarding and routing

    • Problems with IP routing

    • Motivations behind MPLS

  • MPLS Terminology and Operation

    • MPLS Label, LSR and LSP, LFIB Vs FIB

    • Transport of an IP packet over MPLS

    • More MPLS terminology

  • Traffic Engineering [with MPLS]

    • Nomenclature

    • Requirements

    • Examples

CS 573: Network Protocols and Standards


Traffic engineering

Traffic Engineering

Traffic Engineering with MPLS

(Application of CSPF)


What is traffic engineering

What is traffic engineering?

  • Performance optimization of operational networks

    • optimizing resource utilization

    • optimizing traffic performance

    • reliable network operation

  • How is traffic engineered?

    • measurement, modeling, characterization, and control of Internet traffic

  • Why?

    • high cost of network assets

    • service differentiation

CS 573: Network Protocols and Standards


Traffic engineering1

Traffic engineering

  • Recall the IP hotspot problem

  • The ability to move traffic away from the shortest path calculated by the IGP (such as OSPF) to a less congested path

  • IP: changing a metric will cause ALL the traffic to divert to the less congested path

  • MPLS: allows explicit routing (using CSPF) and setup of such explicitly computed LSPs

CS 573: Network Protocols and Standards


Mpls te how to do it

MPLS-TE: How to do it?

  • LSPs are set up by LSRs based on information they learn from routing protocols (IGPs)

  • This defeats the purpose!

    • If we were to use “shortest path”, IGP was okay

CS 573: Network Protocols and Standards


Mpls te how we actually do it

MPLS TE: How we actually do it?

  • MPLS TE Requires:

    • Enhancements to routing protocols

      • OSPF-TE

      • ISIS-TE

    • Enhancement to signaling protocols to allow explicit constraint based routing

      • RSVP-TE and CR-LDP

    • Constraint based routing

      • Explicit route selection

      • Recovery mechanisms defined

CS 573: Network Protocols and Standards


Signaling mechanisms

Signaling mechanisms

  • RSVP-TE

    • Extensions to RSVP for traffic engineering

  • BGP-4

    • Carrying label information in BGP-4

  • CR-LDP

    • A label distribution protocol that distributes labels determined based on constraint based routing

  • RSVP-TE and CR-LDP both do label distribution and path reservation – use any one of them!

CS 573: Network Protocols and Standards


Rsvp te

RSVP-TE

Basic flow of LSP set-up using RSVP

CS 573: Network Protocols and Standards


Rsvp te path message

RSVP-TE PATH Message

  • PATH message is used to establish state and request label assignment

  • R1 transmits a PATH message addressed to R9

CS 573: Network Protocols and Standards


Rsvp te resv message

RSVP-TE RESV Message

  • RESV is used to distribute labels after reserving resources

  • R9 transmits a RESV message, with label=3, to R8

  • R8 and R4 store “outbound” label and allocate an “inbound” label. They also transmits RESV with inbound label to upstream LSR

  • R1 binds label to forwarding equivalence class (FEC)

CS 573: Network Protocols and Standards


Rerouting lsp tunnels

Rerouting LSP tunnels

  • When a more “optimal” route/path becomes available

  • When a failure of a resource occurs along a TE LSP

  • Make-before-break mechanism

    • Adaptive, smooth rerouting and traffic transfer before tearing down the old LSP

    • Not disruptive to traffic

CS 573: Network Protocols and Standards


Recovering lsp tunnels

Recovering LSP tunnels

LSP Set-up

CS 573: Network Protocols and Standards


Protection lsp set up

Protection LSP set up

CS 573: Network Protocols and Standards


Protection lsp

Protection LSP

CS 573: Network Protocols and Standards


References

References

  • RFC 2702 “Requirements for Traffic Engineering Over MPLS”

  • RFC 3031 “Multiprotocol Label Switching Architecture”

  • RFC 3272 “Overview and Principles of Internet Traffic Engineering”

  • RFC 3346 “Applicability Statement for Traffic Engineering with MPLS”

  • MPLS Forum (http://www.mplsforum.org)

CS 573: Network Protocols and Standards


  • Login
