Presentation Transcript


Cern usa connectivity update datatag project l.jpg

CERN-USA connectivity updateDataTAG project

Olivier Martin & Paolo Moroni

IT Division, CERN

Internet2 Virtual Member Meeting, October 8

CERN Update & DataTAG Project


Slide2 l.jpg

KPNQWEST

T3 (21 Mb)

CERN - North America, today

STARTAP

T3 ATM

CERN PoP Chicago

STM-1 ATM

STM-1 POS

STM-1 ATM

TEN-155 ATM

ESnet

CERN

CIXP

CERN Update & DataTAG Project


Slide3 l.jpg

KPNQWEST

T3 (21 Mb)

CERN - North America, end 2001

STARTAP

T3 ATM

CERN PoP Chicago

STM-1 ATM

STM-1

POS

research

Gb test

equipment

STM-1 ATM

STM-1 POSproduction

GEANT

GBE

ESNET

CERN

CIXP

ABILENE

Gb test

equipment

CERN Update & DataTAG Project


Next year s transatlantic link l.jpg

Next year’s transatlantic link

  • A call for tender is starting with the following objectives:

    • increase the transatlantic bandwidth to OC-12c (612Mbps)

    • move the Chicago PoP to the STARLIGHT

    • keep T3 commercial Internet access, but have an additional (backup?) access in Europe

    • keep (ATM) connectivity to the STARTAP

    • aim at direct peerings with North American R&D networks at the STARLIGHT over Gigabit Ethernet

  • All this is a natural extension of the existing setup

CERN Update & DataTAG Project


Dedicated lambda for research l.jpg

Dedicated lambda for research

  • What is new is that the call for tender also includes an option for a 2.5 Gbps transatlantic lambda, which will be dedicated to Grid applied network research

  • The aim is to have a dedicated testbed where new things can be tried out without affecting production traffic

    • One of our major concerns is tcp/ip performance over large bandwidth*delay networks

      • Single vs multi stream performance

      • Auto-tuning

CERN Update & DataTAG Project


Slide6 l.jpg

DataTAG planned set up(second half 2002)

DataTAGtest equipment

CERN PoP Chicago

DataTAGtest equipment

DataTAGtest equipment

STARLIGHT

UvA

INFN

PPARC

…...

DataTAGtest equipment

ESNET

GEANT

ABILENE

2.5 Gb

DataGRID

PPDG

iVDGL

CERN

GriPhyN

DTF

CIXP

DataTAG test equipment

CERN Update & DataTAG Project


Slide7 l.jpg

The DataTAG Project


Datatag project l.jpg

DataTAG project

  • Transatlantic lambda dedicated to research (no production traffic)

  • 2.5 Gbps lambda between Chicago and Geneva

  • Primarily to connect GRID initiatives in Europe and North America

  • European partners: PPARC (UK), INFN (IT), University of Amsterdam (NL) and CERN, as project coordinator

  • The budget is 3.9 MEUR

CERN Update & DataTAG Project


Slide9 l.jpg

UK

SuperJANET4

NL

SURFnet

GEANT

IT

GARR-B

DataTAG project

NewYork

Abilene

STAR-LIGHT

ESNET

CERN

MREN

STAR-TAP

CERN Update & DataTAG Project


Datatag workplan l.jpg

DataTAG Workplan

  • WP1: Provisioning & Operations (CERN)

    • Will be done in cooperation with DANTE

    • Two major issues:

      • Cost, can we afford it?

      • Routing, how can the DataTAG partners have transparent access to the DataTAG circuit across GEANT and their national network?

  • WP5: Information dissemination and exploitation (CERN)

  • WP6: Project management (CERN)

CERN Update & DataTAG Project


Datatag workplan cont l.jpg

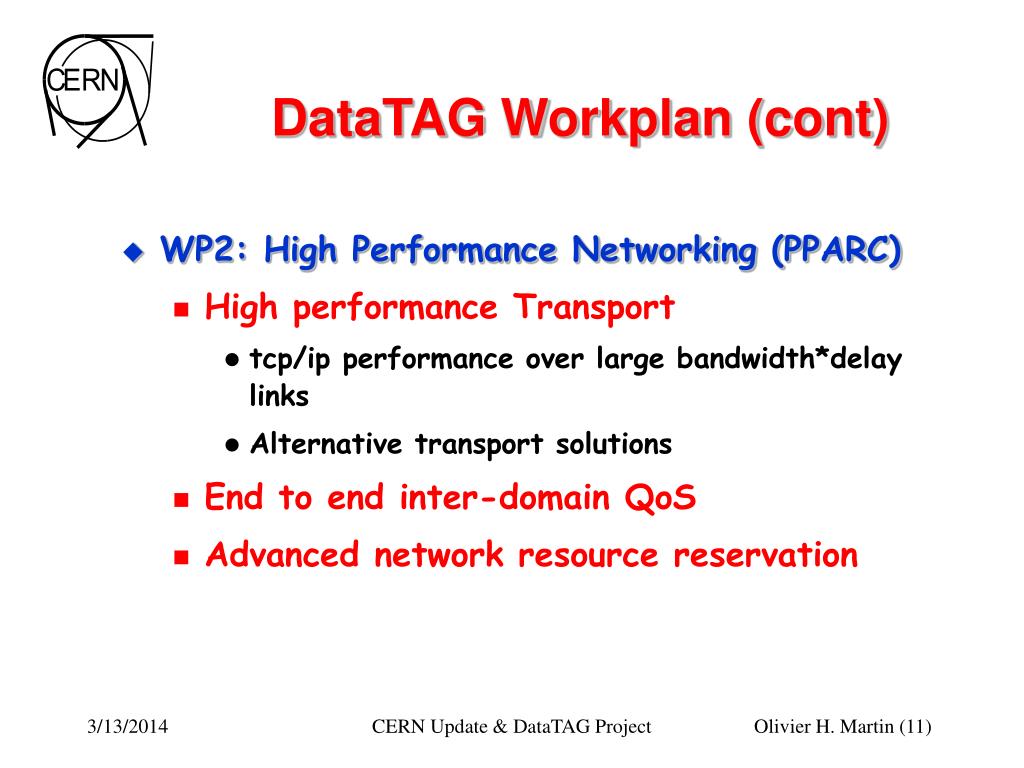

DataTAG Workplan (cont)

  • WP2: High Performance Networking (PPARC)

    • High performance Transport

      • tcp/ip performance over large bandwidth*delay links

      • Alternative transport solutions

    • End to end inter-domain QoS

    • Advanced network resource reservation

CERN Update & DataTAG Project


Datatag workplan cont12 l.jpg

DataTAG Workplan (cont)

  • WP3: Bulk Data Transfer & Application performance monitoring (UvA)

    • Performance validation

    • End to end user performance

      • Validation

      • Monitoring

      • Optimization

    • Application performance

      • Netlogger

CERN Update & DataTAG Project


Datatag workplan cont13 l.jpg

DataTAG Workplan (cont)

  • WP4: Interoperability between Grid Domains (INFN)

    • GRID resource discovery

    • Access policies, authorization & security

      • Identify major problems

      • Develop inter-Grid mechanisms able to interoperate with domain specific rules

    • Interworking between domain specific Grid services

    • Test Applications

      • Interoperability, performance & scalability issues

CERN Update & DataTAG Project
