A Multicast Transport Driver for Globus XIO

Karl Jeacle

[email protected]


Rationale

Rationale

  • Would like to achieve high-speed bulk data delivery to multiple sites

  • Multicasting would make sense

  • Existing multicast research has focused on sending to a large number of receivers

  • But Grid is an applied example where sending to a moderate number of receivers would be extremely beneficial


Multicast availability

Multicast availability

  • Deployment is a problem!

    • Protocols have been defined and implemented

    • Valid concerns about scalability; much FUD

    • “chicken & egg” means limited coverage

  • Clouds of native multicast

    • But can’t reach all destinations via multicast

    • So applications abandon in favour of unicast

    • What if we could multicast when possible…

    • …but fall back to unicast when necessary?


  • Multicast tcp

    Multicast TCP?

    • TCP

      • “single reliable stream between two hosts”

    • Multicast TCP

      • “multiple reliable streams from one to n hosts”

      • May seem a little odd, but there is precedent…

        • TCP-XMO – Liang & Cheriton

        • M-TCP – Mysore & Varghese

        • M/TCP – Visoottiviseth et al

        • PRMP – Barcellos et al

        • SCE – Talpade & Ammar


    Ack implosion

    ACK implosion


    Building multicast tcp

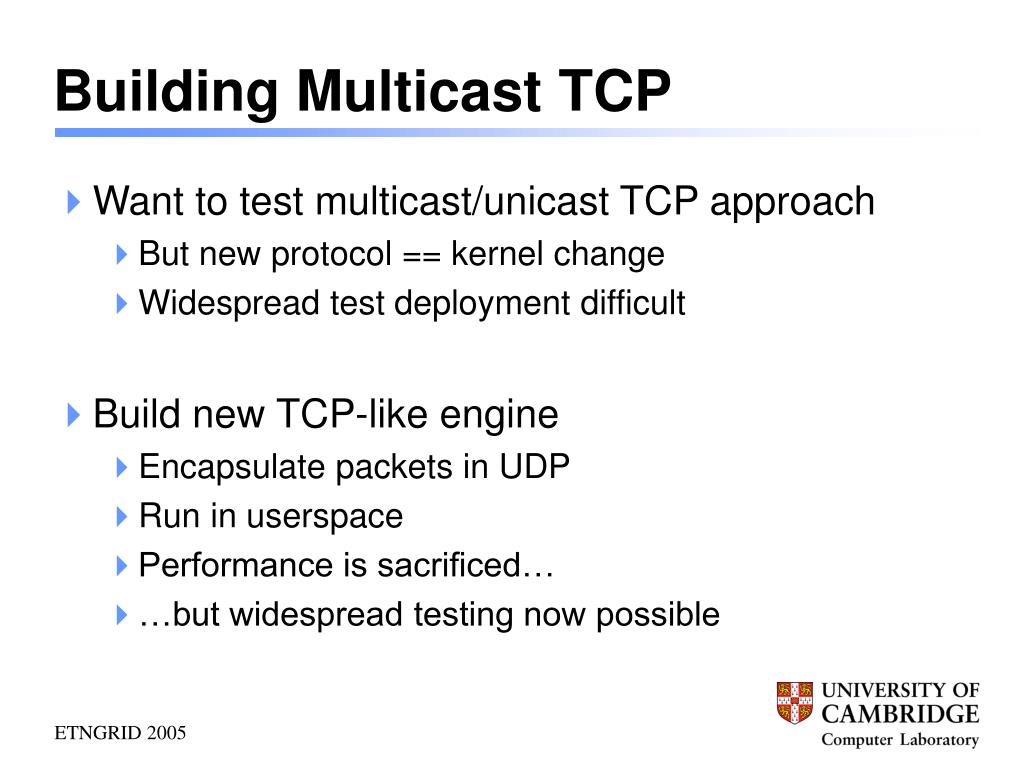

    Building Multicast TCP

    • Want to test multicast/unicast TCP approach

      • But new protocol == kernel change

      • Widespread test deployment difficult

    • Build new TCP-like engine

      • Encapsulate packets in UDP

      • Run in userspace

      • Performance is sacrificed…

      • …but widespread testing now possible


    Tcp ip udp ip

    Sending

    Application

    Receiving

    Application

    If natively implemented

    TCP

    TCP

    IP

    IP

    test deployment

    UDP

    UDP

    IP

    IP

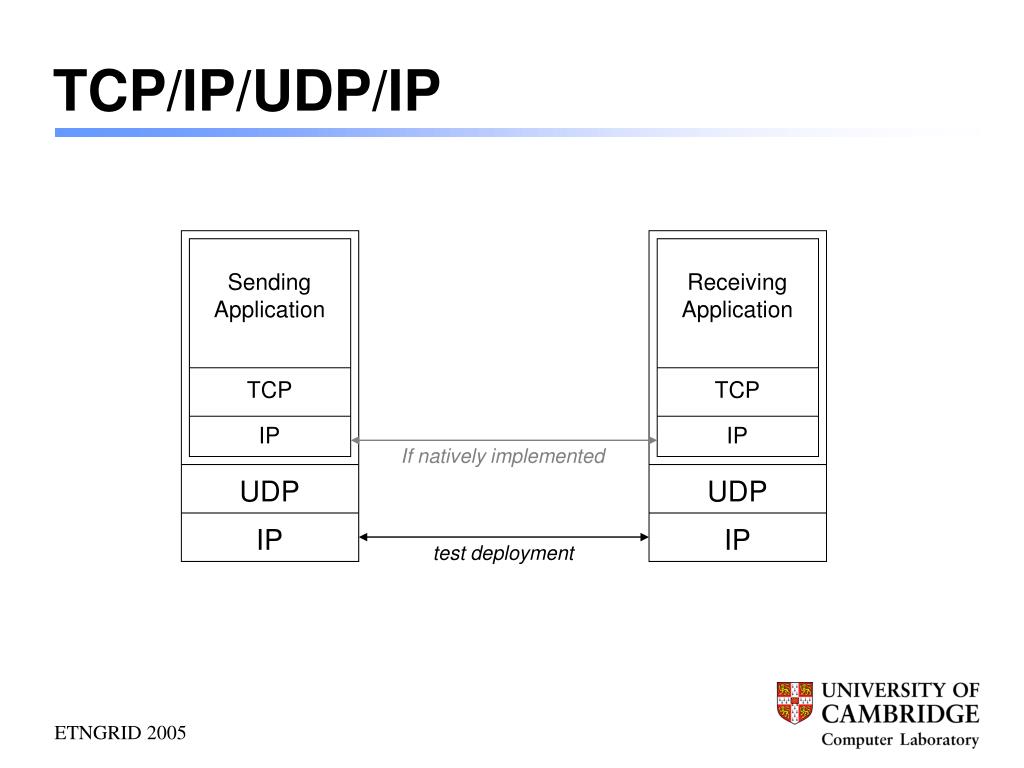

    TCP/IP/UDP/IP


    Tcp engine

    TCP engine

    • Where does initial TCP come from?

    • Could use BSD or Linux

      • Extracting from kernel could be problematic

    • More compact alternative

      • lwIP = Lightweight IP

      • Small but fully RFC-compliant TCP/IP stack

    • lwIP + multicast extensions = “TCP-XM”


    Tcp xm overview

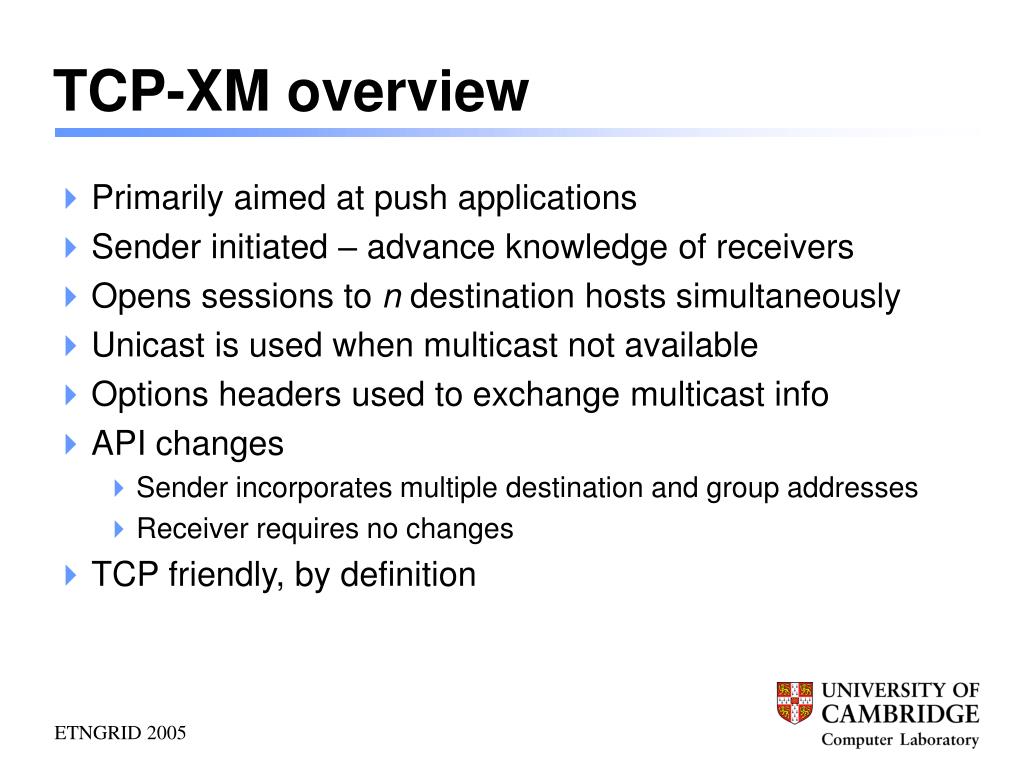

    TCP-XM overview

    • Primarily aimed at push applications

    • Sender initiated – advance knowledge of receivers

    • Opens sessions to n destination hosts simultaneously

    • Unicast is used when multicast not available

    • Options headers used to exchange multicast info

    • API changes

      • Sender incorporates multiple destination and group addresses

      • Receiver requires no changes

    • TCP friendly, by definition


    A multicast transport driver for globus xio

    TCP

    SYN

    SYNACK

    ACK

    Sender

    Receiver

    DATA

    ACK

    FIN

    ACK

    FIN

    ACK


    Tcp xm

    TCP-XM

    Receiver 1

    Sender

    Receiver 2

    Receiver 3


    Tcp xm connection

    TCP-XM connection

    • Connection

      • User connects to multiple unicast destinations

      • Multiple TCP PCBs created

      • Independent 3-way handshakes take place

      • SSM or random ASM group address allocated

        • (if not specified in advance by user/application)

      • Group address sent as TCP option

      • Ability to multicast depends on TCP option


    Tcp xm transmission

    TCP-XM transmission

    • Data transfer

      • Data replicated/enqueued on all send queues

      • PCB variables dictate transmission mode

      • Data packets are multicast (if possible)

      • Retransmissions are unicast

      • Auto fall back/forward to unicast/multicast

    • Close

      • Connections closed as per unicast TCP


    Fall back fall forward

    Fall back / fall forward

    • TCP-XM principle

      • “Multicast if possible, unicast when necessary”

    • Initial transmission mode is group unicast

      • Ensures successful initial data transfer

    • Fall forward to multicast on positive feedback

      • Typically after ~75K unicast data

    • Fall back to unicast on repeated mcast failure


    Tcp xm reception

    TCP-XM reception

    • Receiver

      • No API-level changes

      • Normal TCP listen

      • Auto-IGMP join on TCP-XM connect

      • Accepts data on both unicast/multicast ports

      • tcp_input() accepts:

        • packets addressed to existing unicast destination…

        • …but now also those addressed to multicast group

      • Tracks how last n segs received (u/m)


    Grid multicast

    Grid multicast?

    • How can multicast be used in Grid environment?

    • TCP-XM is new multicast-capable protocol

    • Globus is de-facto Grid middleware

    • Would like TCP-XM support in Globus…


    Globus xio

    Globus XIO

    • eXtensible Input Output library

      • Allows “i/o plugins” to Globus

    • API

      • Single POSIX-like API / set of semantics

      • Simple open/close/read/write API

    • Driver abstraction

      • Hides protocol details / Allows for extensibility

      • Stack of 1 transport & n transform drivers

      • Drivers can be selected at runtime


    Xio architecture

    XIO architecture


    Xio implementation

    XIO implementation


    Xio xm driver specifics

    XIO/XM driver specifics

    • Two important XIO data structures

      • Handle

        • Returned to user when XIO framework ready

        • Used for all open/close/read/write calls

        • lwIP netconn connection structure used

      • Attribute

        • Used to set XIO driver-specific parameters…

        • … and TCP-XM protocol-specific options

        • List of destination addresses


    Xio code example

    XIO code example

    // init stack

    globus_xio_stack_init(&stack, NULL);

    // load drivers onto stack

    globus_xio_driver_load("tcpxm", &txdriver);

    globus_xio_stack_push_driver(stack, txdriver);

    // init attributes

    globus_xio_attr_init(&attr);

    globus_xio_attr_cntl(attr, txdriver, GLOBUS_XIO_TCPXM_SET_REMOTE_HOSTS, hosts, numhosts);

    // create handle

    globus_xio_handle_create(&handle, stack);

    // send data

    globus_xio_open(&handle, NULL, target);

    globus_xio_write(handle, "hello\n", 6, 1, &nbytes, NULL);

    globus_xio_close(handle, NULL);


    One to many issues

    One-to-many issues

    • Stack assumes one-to-one connections

      • XIO user interface requires modification

      • Needs support for one-to-many protocols

      • Minimal user API changes

      • Framework changes more significant

    • GSI is one-to-one

      • Authentication with peer on connection setup

      • But cannot authenticate with n peers

      • Need some form of “GSI-M”


    Lan speed

    LAN speed


    Lan efficiency

    LAN efficiency


    Wan speed

    WAN speed


    Wan efficiency

    WAN efficiency


    Driver availability

    Driver availability

    • Multicast transport driver for Globus XIO

      • Requires Globus 3.2 or later

    • Source code online

      • Sample client

      • Sample server

      • Driver installation instructions

    • http://www.cl.cam.ac.uk/~kj234/xio/


    Mcp mcpd

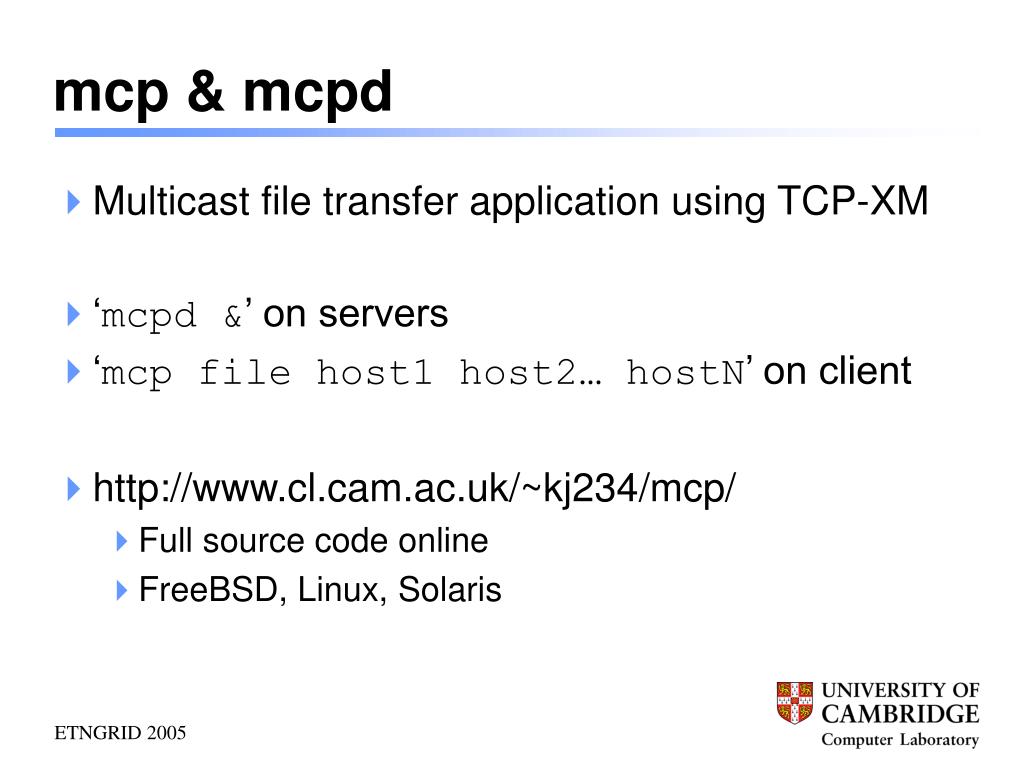

    mcp & mcpd

    • Multicast file transfer application using TCP-XM

    • ‘mcpd &’ on servers

    • ‘mcp file host1 host2… hostN’ on client

    • http://www.cl.cam.ac.uk/~kj234/mcp/

      • Full source code online

      • FreeBSD, Linux, Solaris


    All done

    All done!

    • Thanks for listening!

    • Questions?
