An implementation of mostly copying gc on ruby vm

An Implementation of Mostly-Copying GC on Ruby VM

Tomoharu Ugawa

The University of Electro-Communications, Japan


Background 1 2

Background(1/2)

  • Script languages are used at various scene

    • Before: only for tiny applications

      • Short lifetime

      • Runs with little memory

        ⇒GC (Garbage Collection) was not important

    • Now:for servers such as Rails, as well

      • May have long lifetime

      • May create a lot of objects

        ⇒GC has a great impact on total performance


Background 2 2

Background(2/2)

  • Ruby’s GC

    • Conservative Mark-Sweep GC⇒Does not move objects

    • Once we expanded the heap, we can hardly shrink the heap

      • Heap cannot release unless it contains NO object

      • Lucky cases rarely happen

        Ex) Once a server uses a lot of memory for a heavy request, it will run with a large heap even after responding the request.

Live

Additional Heap 2

Initial Heap

Additional Heap 1


An implementation of mostly copying gc on ruby vm

Goal

  • Compact the heap so that Ruby can return unused memory to OS.

  • Use Mostly-Copying GC

    • Modify the algorithm for Ruby

  • Minimize the change of C-libraries


Agenda

Agenda

  • Shrinking the heap using Mostly-Copying GC

  • Modified Mostly-Copying algorithm

  • Evaluation

  • Related work

  • Conclusion


Why ruby does not move objects

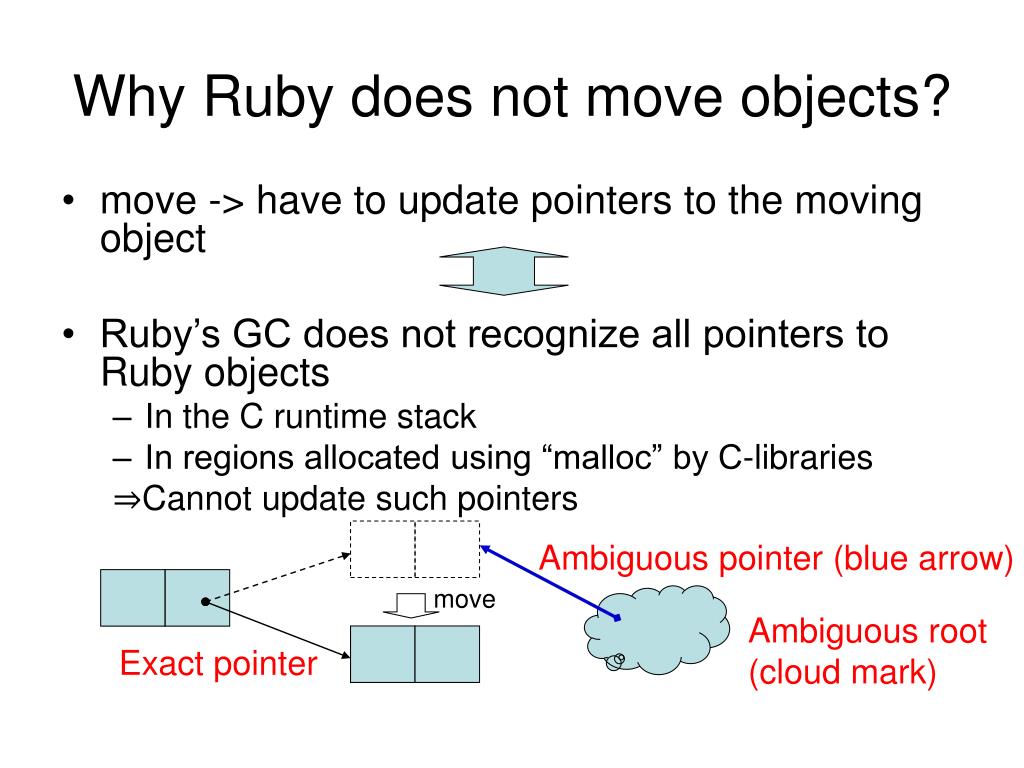

Why Ruby does not move objects?

  • move -> have to update pointers to the moving object

  • Ruby’s GC does not recognize all pointers to Ruby objects

    • In the C runtime stack

    • In regions allocated using “malloc” by C-libraries

      ⇒Cannot update such pointers

Ambiguous pointer (blue arrow)

move

Ambiguous root(cloud mark)

Exact pointer


Even so we can move most objects

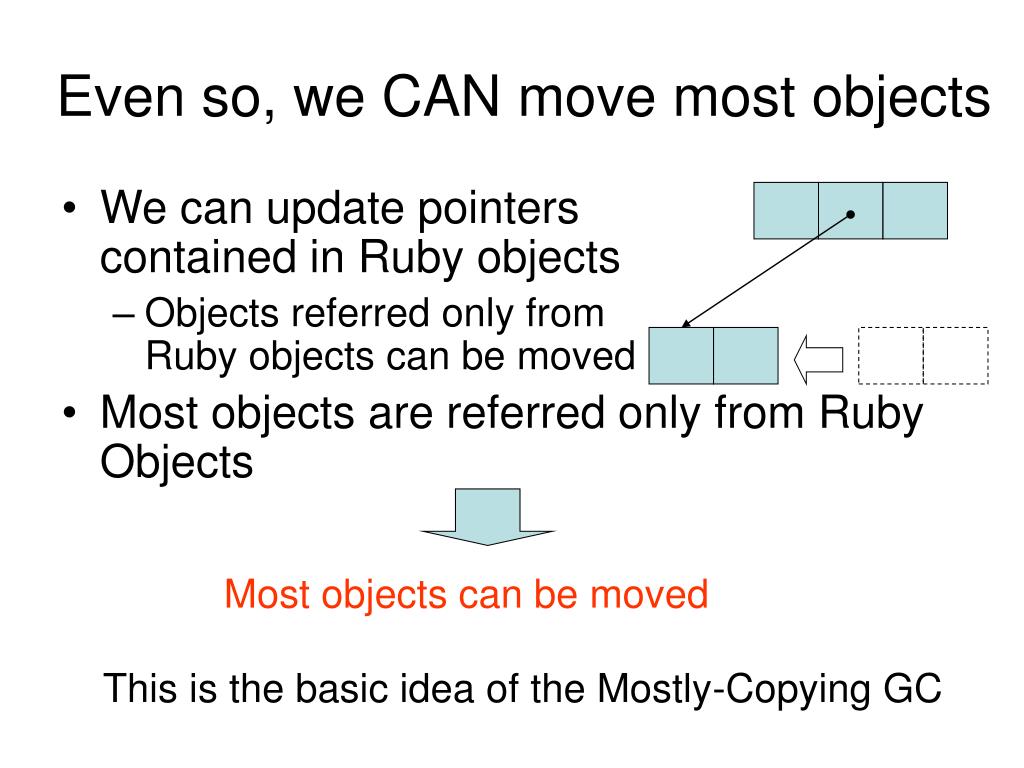

Even so, we CAN move most objects

  • We can update pointerscontained in Ruby objects

    • Objects referred only fromRuby objects can be moved

  • Most objects are referred only from Ruby Objects

Most objects can be moved

This is the basic idea of the Mostly-Copying GC


Mostly copying gc bartlett 88

Mostly-Copying GC [Bartlett ’88]

  • Objects referred only by exact pointers⇒Move it and update referencing pointers

  • Objects referred by ambiguous pointers (as well)⇒Do not move it


The heap of mostly copying gc

The heap of Mostly-Copying GC

  • Break the heap into equal-sized blocks

    • From-space of copying GC is a set of blocks

From

From

To

root

To

To

From


Shrinking the heap

Shrinking the heap

Free blocks are not contiguous in mostly-coping collector

  • Release memory by the block

    • Block = hardware page

    • To release a block, do not access the block

      • Because such a blocks has no live object, all we have to do is not to allocate new objects on the block

      • Virtual memory system automatically reuses the page frame assigned to the block

    • (optional) We can tell the OS that the page has no valid data

      • madvise system call (Linux)


C libraries

C-libraries

  • C-libraries wraps “malloc”-ed data to handle as Ruby objects. A wrapper object has:

    • A pointer to “malloc”-ed area

    • A function that “marks” objects referred from the data

    • NO pointer updating interface

Treat all pointers from“malloc”-ed dataas ambiguous pointers

traverse(data) {

mark(data->p1);

mark_location(…);

}

p1


Agenda1

Agenda

  • Shrinking the heap using Mostly-Copying GC

  • Modified Mostly-Copying algorithm

  • Evaluation

  • Related work

  • Conclusion


Mostly copying gc of bartlett

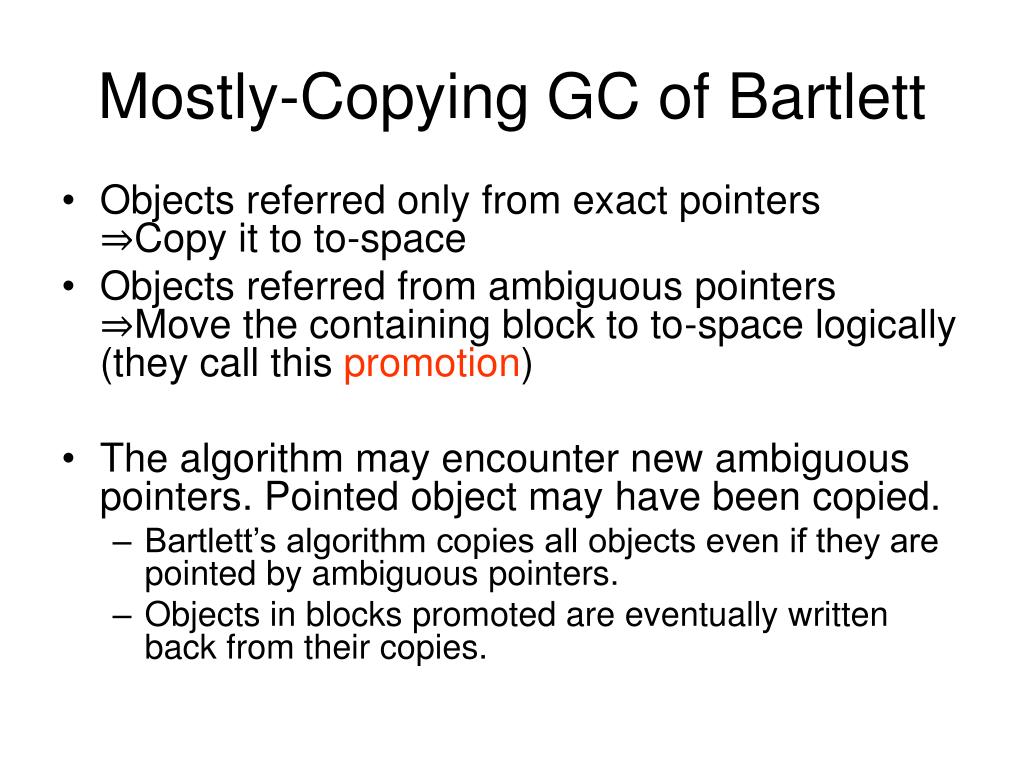

Mostly-Copying GC of Bartlett

  • Objects referred only from exact pointers⇒Copy it to to-space

  • Objects referred from ambiguous pointers⇒Move the containing block to to-space logically(they call this promotion)

  • The algorithm may encounter new ambiguous pointers. Pointed object may have been copied.

    • Bartlett’s algorithm copies all objects even if they are pointed by ambiguous pointers.

    • Objects in blocks promoted are eventually written back from their copies.


Problem

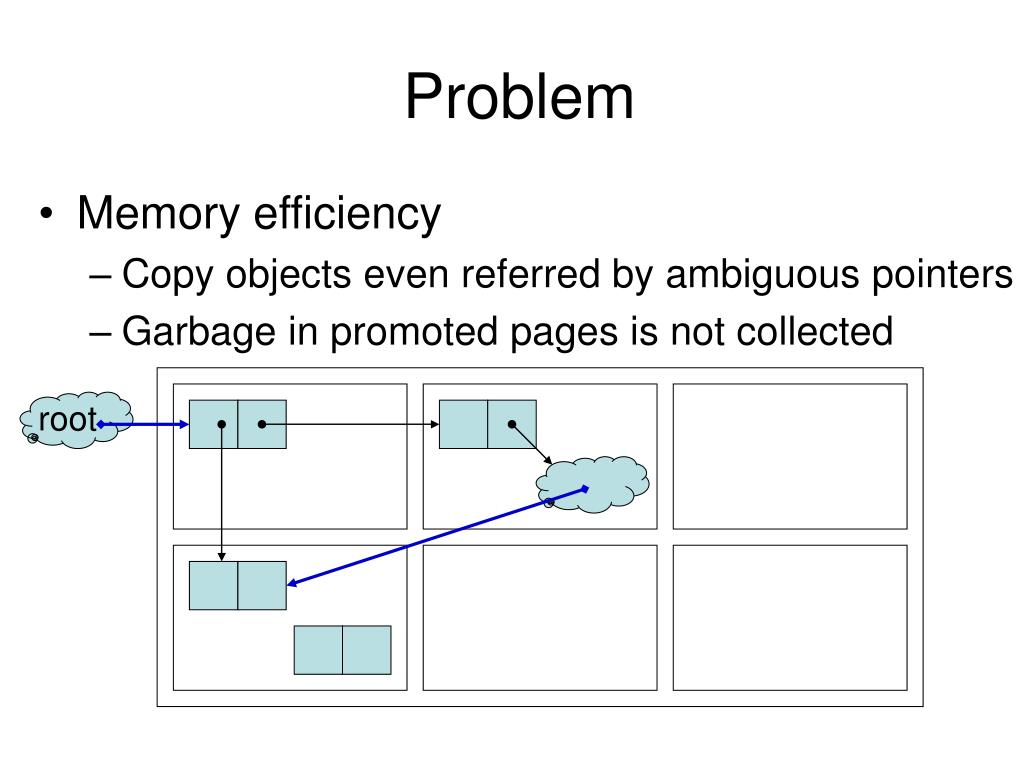

Problem

  • Memory efficiency

    • Copy objects even referred by ambiguous pointers

    • Garbage in promoted pages is not collected

root


Problem1

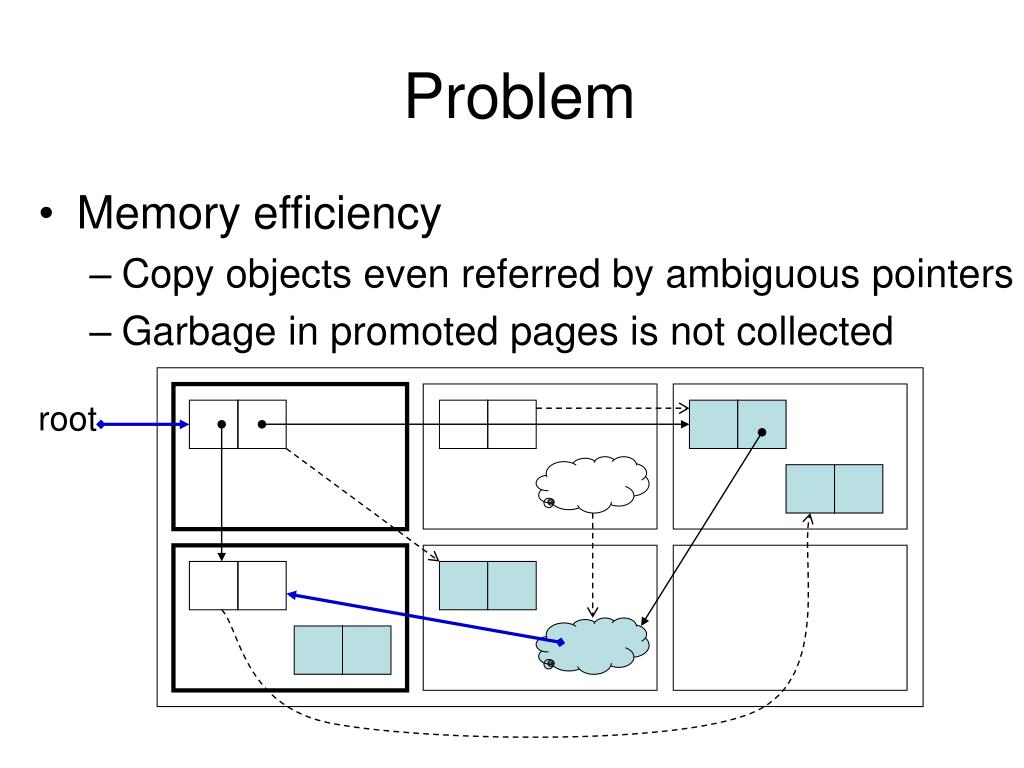

Problem

  • Memory efficiency

    • Copy objects even referred by ambiguous pointers

    • Garbage in promoted pages is not collected

root


Problem2

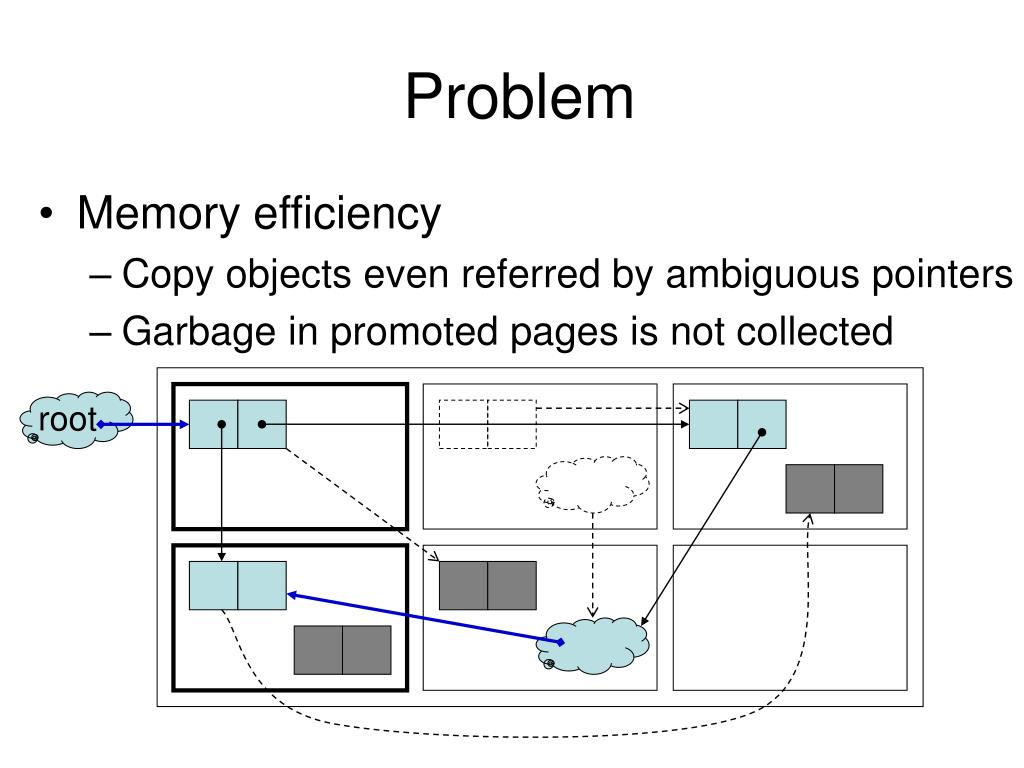

Problem

  • Memory efficiency

    • Copy objects even referred by ambiguous pointers

    • Garbage in promoted pages is not collected

root


Modify the algorithm

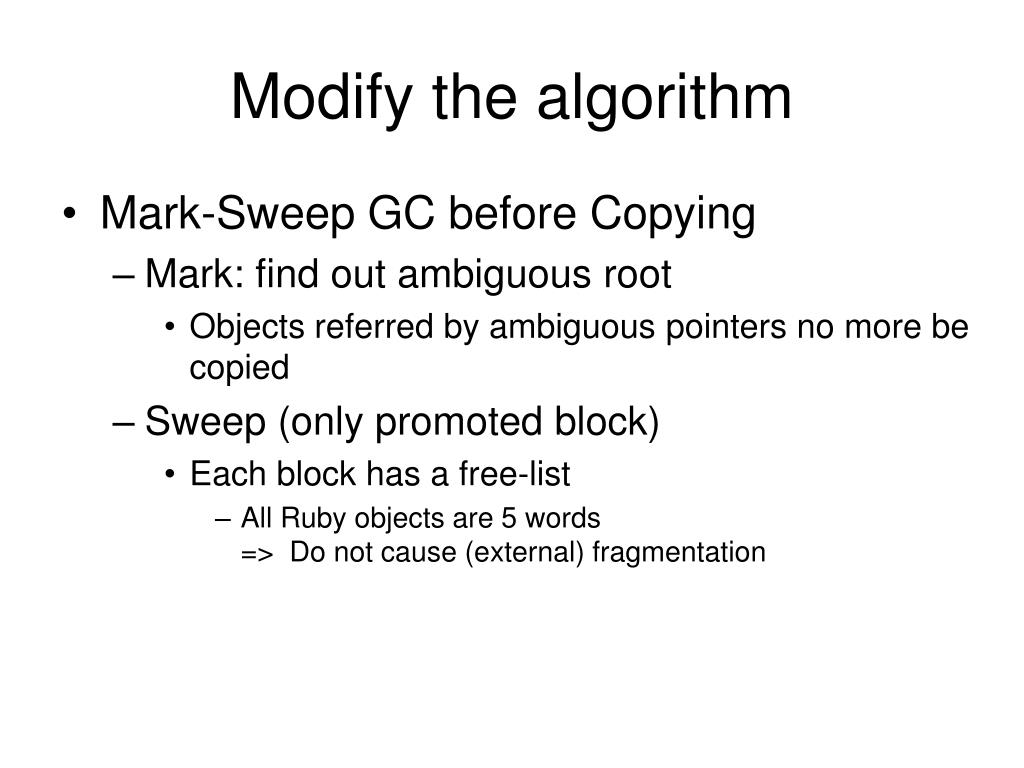

Modify the algorithm

  • Mark-Sweep GC before Copying

    • Mark: find out ambiguous root

      • Objects referred by ambiguous pointers no more be copied

    • Sweep (only promoted block)

      • Each block has a free-list

        • All Ruby objects are 5 words=> Do not cause (external) fragmentation


Modified algorithm 1 4

Modified Algorithm(1/4)

  • Trace pointers from the root set

    • Mark all visited objects

    • Promote blocks containing objects referred by ambiguous pointers

root

Promoted(thick border)

Live mark


Modified algorithm 2 4

Modified Algorithm(2/4)

  • Sweep promoted blocks

    • Collect objects that are not marked

root


Modified algorithm 3 4

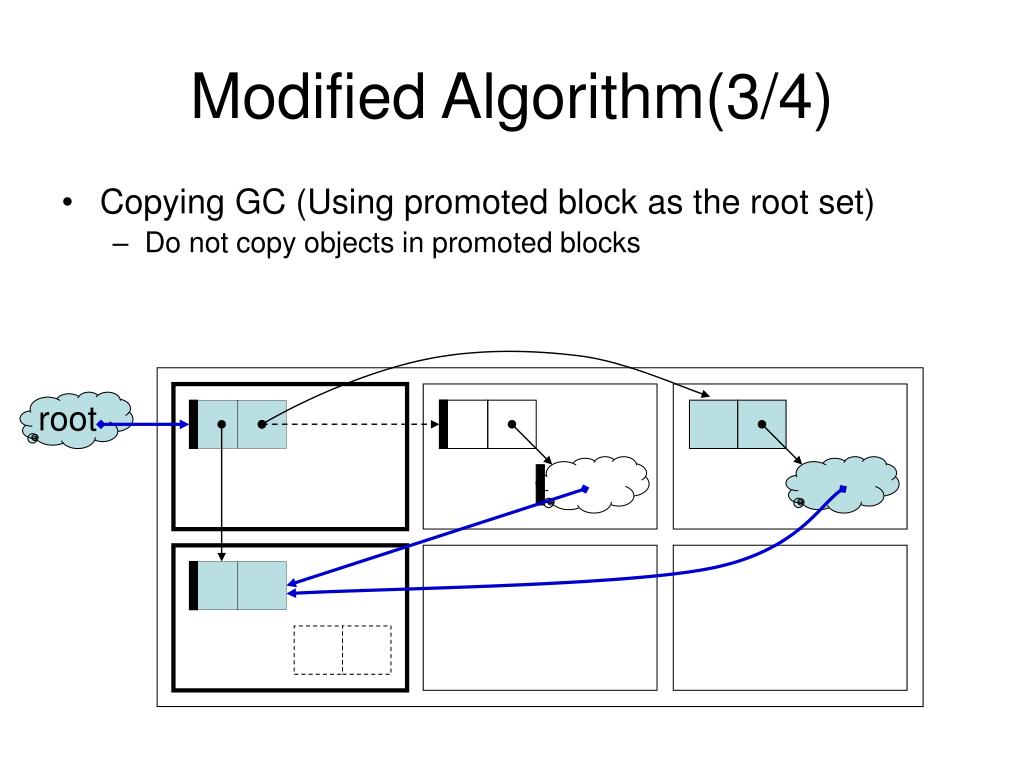

Modified Algorithm(3/4)

  • Copying GC (Using promoted block as the root set)

    • Do not copy objects in promoted blocks

root


Modified algorithm 4 4

Modified Algorithm(4/4)

  • Scan promoted blocks to erase mark of each objects

空き

root

空き

空き


The only change of c libraries

The only change of C-libraries

  • Mark-array

    • An array that has the same pointers held in “malloc”-ed data

    • The C-library marks only the mark-array

    • The collector can traverse further

    • But, it cannot recognize they are ambiguous pointers

      • Remember: all pointers from “malloc”-ed data are treated as ambiguous ones

  • Impact

    • 2 modules

    • 3 parts

Change C-libraries so that THEY scan mark-array as ambiguous roots


Evaluation

Ruby VM

YARV r590

(This is old but has essentially the same GC as Ruby 1.9)

Items

Heap size

Elapsed time

Environment

CPU: Pentium 3GHz

OS: Linux 2.6.22

compiler: gcc 4.1.3 (-O2)

Evaluation


Benchmark program

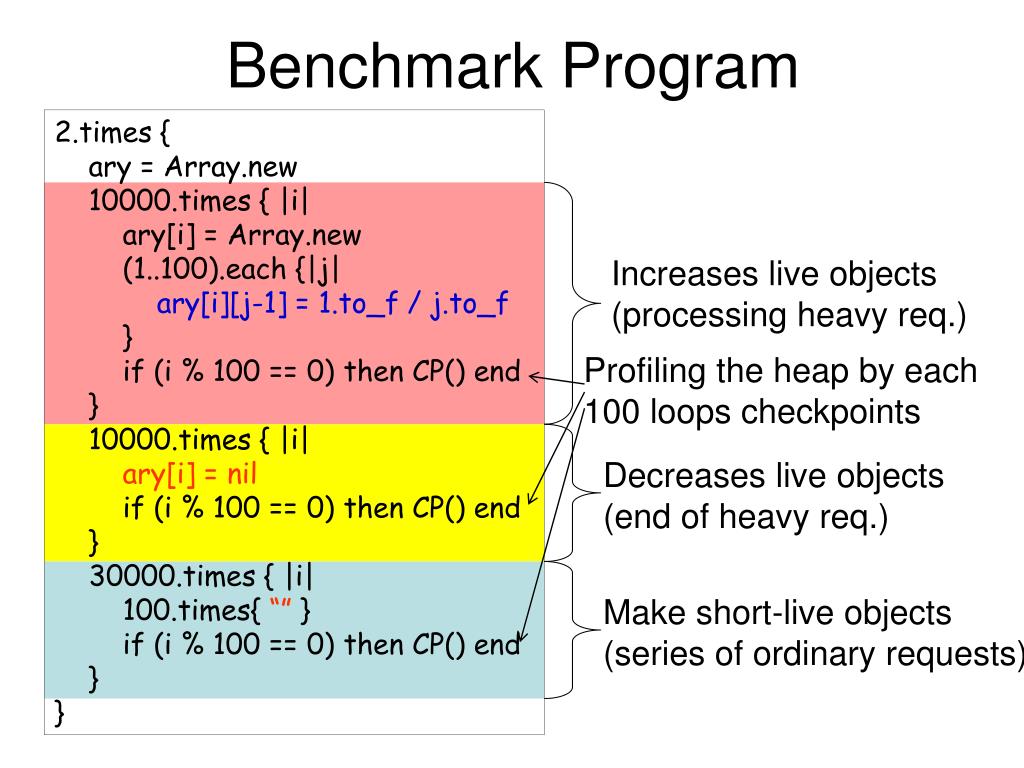

Benchmark Program

2.times {

ary = Array.new

10000.times { |i|

ary[i] = Array.new

(1..100).each {|j|

ary[i][j-1] = 1.to_f / j.to_f

}

if (i % 100 == 0) then CP() end

}

10000.times { |i|

ary[i] = nil

if (i % 100 == 0) then CP() end

}

30000.times { |i|

100.times{ “” }

if (i % 100 == 0) then CP() end

}

}

Increases live objects(processing heavy req.)

Profiling the heap by each100 loops checkpoints

Decreases live objects(end of heavy req.)

Make short-live objects(series of ordinary requests)


Heap size

Heap size

(MB)

Traditional VM

Our VM

Checkpoint

Black line: amount of live objects


An implementation of mostly copying gc on ruby vm

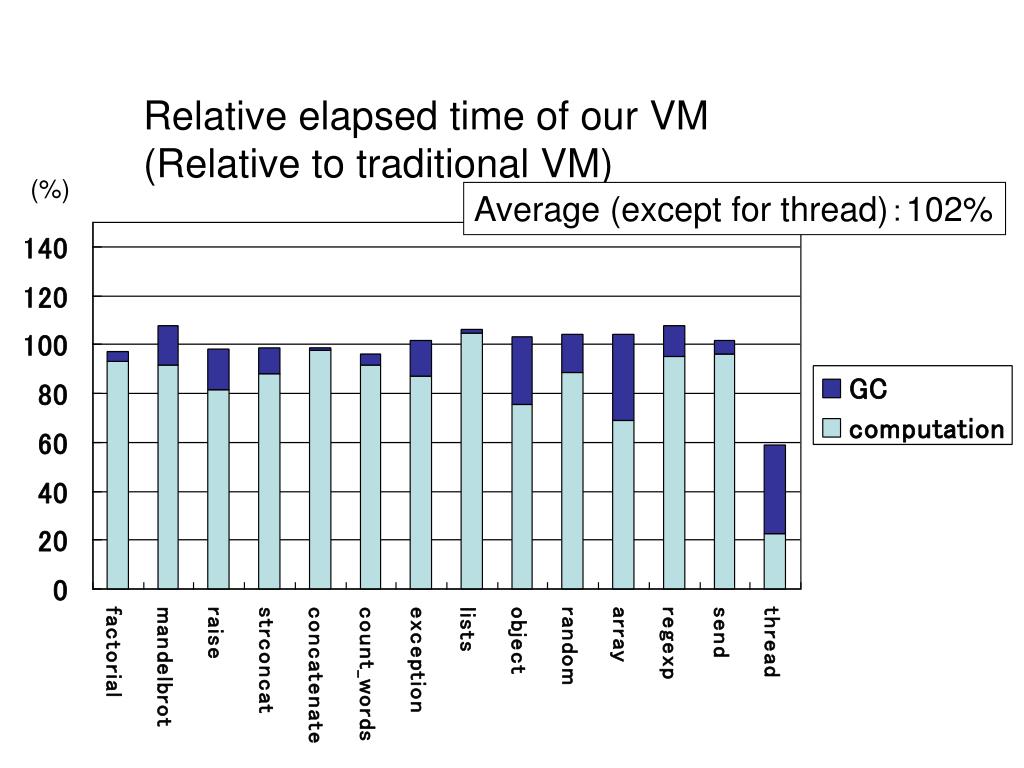

Relative elapsed time of our VM(Relative to traditional VM)

(%)

Average (except for thread):102%


Related work

Related work

  • Customizable Memory Management Framework [Attardi et. al ’94]

    • Collect garbage by sweeping promoted blocks

    • Ambiguous pointer are found out during copying

      • Copies of objects that has been copied when the collector recognizes they should not be copied will become garbage

      • Our algorithm detects such objects before copying


Related work1

Related work

  • MCC [Smith et. al ’98]

    • Pins objects referred from ambiguous root

    • Always manage locations of ambiguous root by a list

      • C-libraries have to register/unregister ambiguous root each time they “malloc”/”free”

      • Our algorithm finds ambiguous root by tracing at the beginning of GC


Related work2

Related work

  • Ruby 1.9

    • Reduce the size of additional heap to 16KB(i.e., heap is expanded by the 16KB block)

    • Increase the opportunity for releasing

      • Objects become distributed all over the heap as execution advances

    • We compact the heap


Conclusion

Conclusion

  • Implemented mostly-copying GC on Ruby VM

    • Modify the algorithm for memory efficiency

  • Evaluated its implementation

    • Shirked the heap after those phases of a program where it temporary uses a lot of memory

    • Elapsed time to execute benchmarks is comparable to traditional VM


Heap size with ruby 1 9

Heap size (with Ruby 1.9)

(MB)

Ruby 1.9

YARV

Increase astime spends(even Ruby 1.9)

Our VM

checkpoint

Black line: amount of live objects


Benchmark program 2

Benchmark Program 2

2.times {

ary = Array.new

10000.times { |i|

ary[i] = Array.new

(1..100).each {|j|

ary[i][j-1] = 1.to_f / j.to_f

}

if (i % 100 == 0) then CP() end

}

10000.times { |i|

ary[i] = nil

if (i % 100 == 0) then CP() end

}

30000.times { |i|

100.times{ “” }

if (i % 100 == 0) then CP() end

}

}

sum = 0

ary[i].each {|x| sum+=x}

ary[i] = sum

Make some long-lifetimeobjects during decreasingphase


Heap size benchmark 2

Heap size (benchmark 2)

(MB)

Ruby 1.9

YARV

Our VM

checkpoint


An implementation of mostly copying gc on ruby vm

Relative elapsed time of the VM with Bartlett’sAlgorithm. (Relative to traditional VM)

(%)


Related work3

Related work

  • Generational GC for Ruby [Kiyama ’01]

    • Generational Mark-Sweep GC

      • Reduced GC time

      • Uses much memory

        • All objects have extra two words (double-linked list) for representing generations

    • Mostly-Copying GC can divide space for generations [Bartlett et. al ’89]
