Environmental practical 2 a2 2vp2



Soils and soil profiles

Soils and Soil Profiles

  • What is a soil?

  • Factors influencing the nature of a soil

  • Weathering and soil development

  • Soil formation

  • Soil profile description

  • Soil classification systems

What is a soil

What is a Soil?

  • ‘uncemented or weakly cemented accumulation of mineral particles

  • formed by the weathering of rocks

  • the void space between the particles containing water and/or air’ (Craig 1998)

Environmental practical 2 a2 2vp2

Silt-size grains from an estuarine sequence in central Scotland. Shows grains and voids. Photo B.F.Barras

Environmental practical 2 a2 2vp2

Clay-size grains from an estuarine sequence in central Scotland. Shows structure of clay particles and voids.

Photo B.F.Barras

Environmental practical 2 a2 2vp2

Clay-size grains from an estuarine sequence in central Scotland. Shows structure of clay particles and voids.

Photo B.F.Barras

Factors influencing the nature of a soil

Factors influencing the nature of a soil

  • Soil is the result of the functioning of the following factors:

    • climate of the locality

    • nature of parent material

    • mass and character of the vegetation

    • age of the landscape

    • relief of the locality

Weathering and soil development

Weathering and Soil Development



  • Weathering is the breakdown of existing bedrock to form a covering of secondary materials (soil)

  • Soils form from the weathering of rocks by means of

    • Physical weathering

    • Chemical weathering

    • Biological weathering

Physical weathering


Physical weathering1

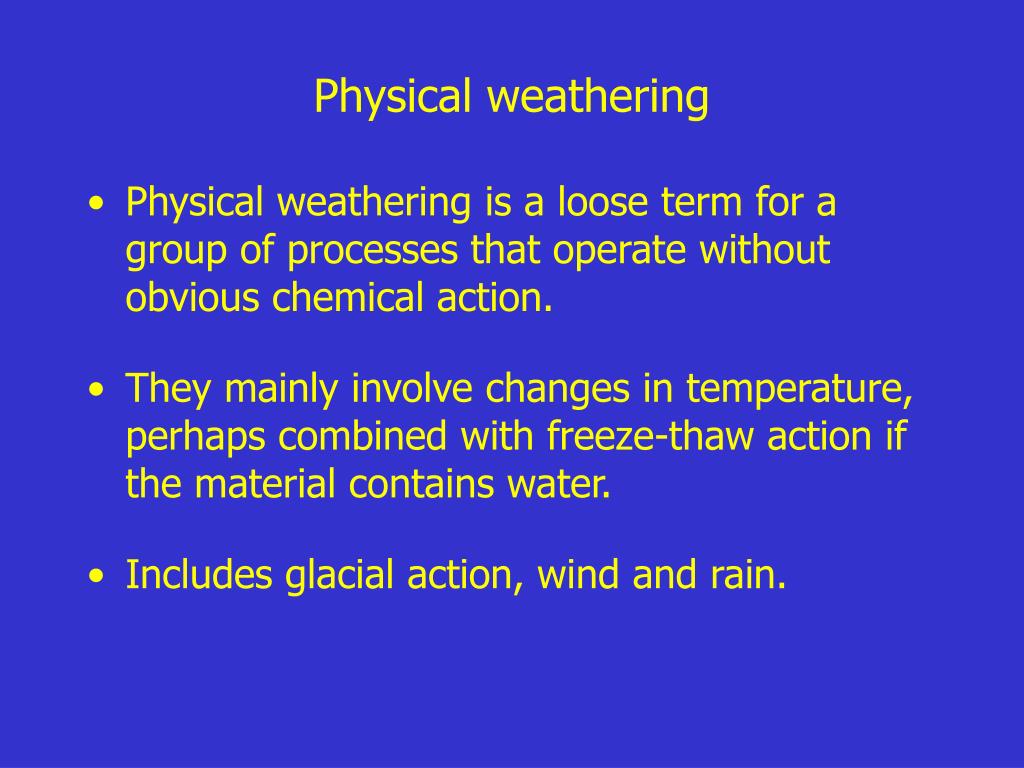

Physical weathering

  • Physical weathering is a loose term for a group of processes that operate without obvious chemical action.

  • They mainly involve changes in temperature, perhaps combined with freeze-thaw action if the material contains water.

  • Includes glacial action, wind and rain.

Physical weathering2

Physical weathering

  • Physical processes rarely act in isolation.

  • A more likely effect is that physical changes will lead to some damage to the rock fabric which permits the ingress of water and thus enables chemical weathering to occur.

Environmental practical 2 a2 2vp2

Uluru (formerly Ayres Rock) Australia

photo (m.a.paul)

Environmental practical 2 a2 2vp2

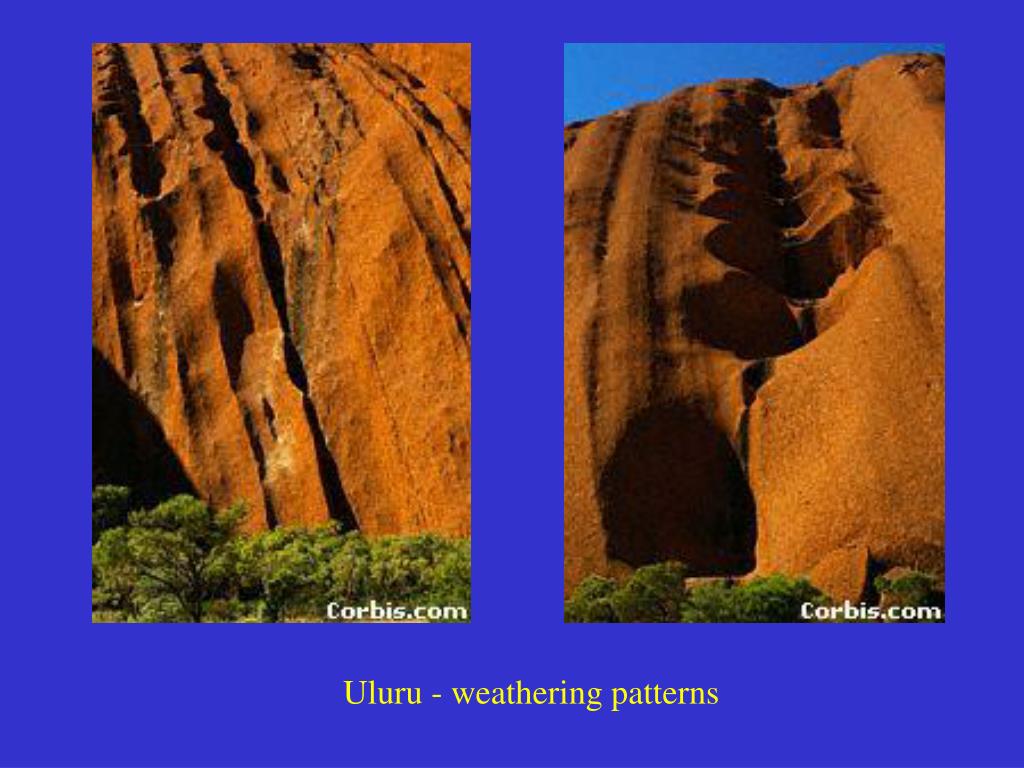

Uluru - weathering patterns

Environmental practical 2 a2 2vp2


Physical weathering3

Physical weathering

  • Thermal expansion/contraction. (To be effective, this is usually combined with other processes such as freeze-thaw or salt hydration).

  • This leads to exfoliation in some layered materials. In the case of already frozen soils it can lead to the formation of ice-wedge cracks.

Physical weathering4

Physical weathering

  • Freeze-thaw. This is probably the most effective physical process. The 9% volume expansion of water on freezing can generate internal stresses (in excess of 10MPa). This easily exceeds the strength of most rocks.

Physical weathering5

Physical weathering

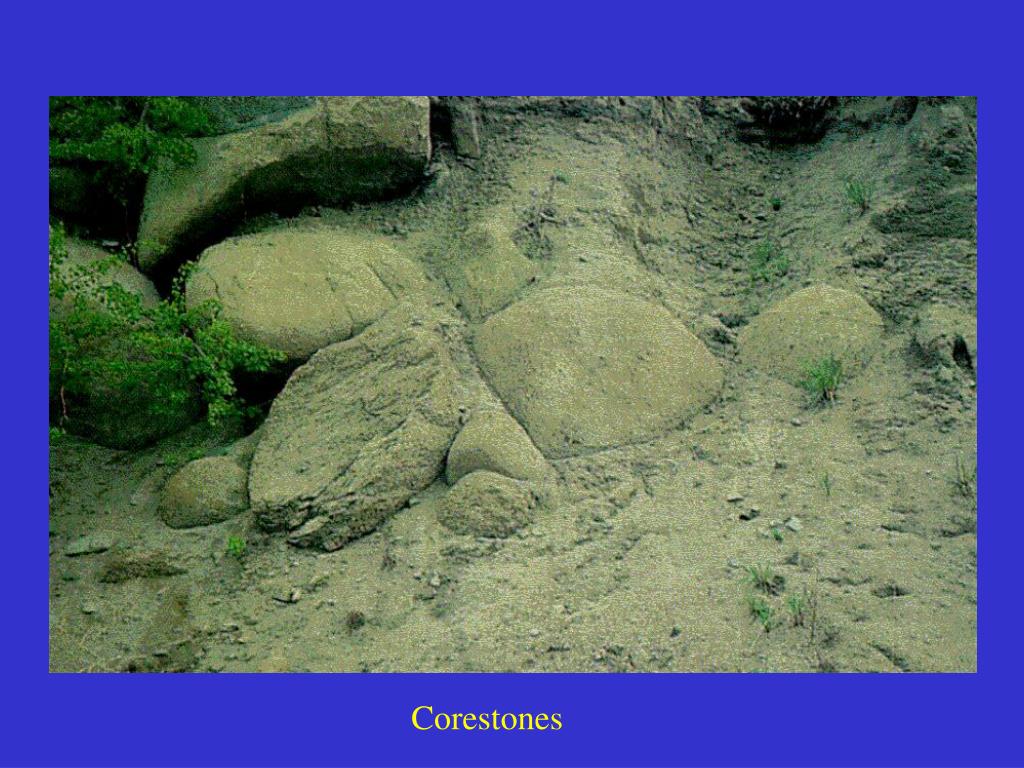

  • Freeze-thaw can also result in the characteristic spheriodal or “onionskin” weathering of some rocks .

Environmental practical 2 a2 2vp2


Physical weathering6

Physical weathering

  • Desiccation (drying). When a porous material is subject to extreme drying, high internal suction stresses can be generated.

    • This leads to shrinkage and consequent cracking.

    • This process is accelerated if the soil is subject cycles of wetting and drying (slaking).

Physical weathering7

Physical weathering

  • The effectiveness of physical processes is dependent on the nature of the rock.

  • Clearly porous rocks are more susceptible than massive crystalline materials.

  • There are degrees of susceptibility in porous rock, which depend upon the particle size and extent of pore connectedness.

  • Similarly, coarser-grained types of crystalline rock are more susceptible (due to internal cracking at grain boundaries) than are fine-grained materials.

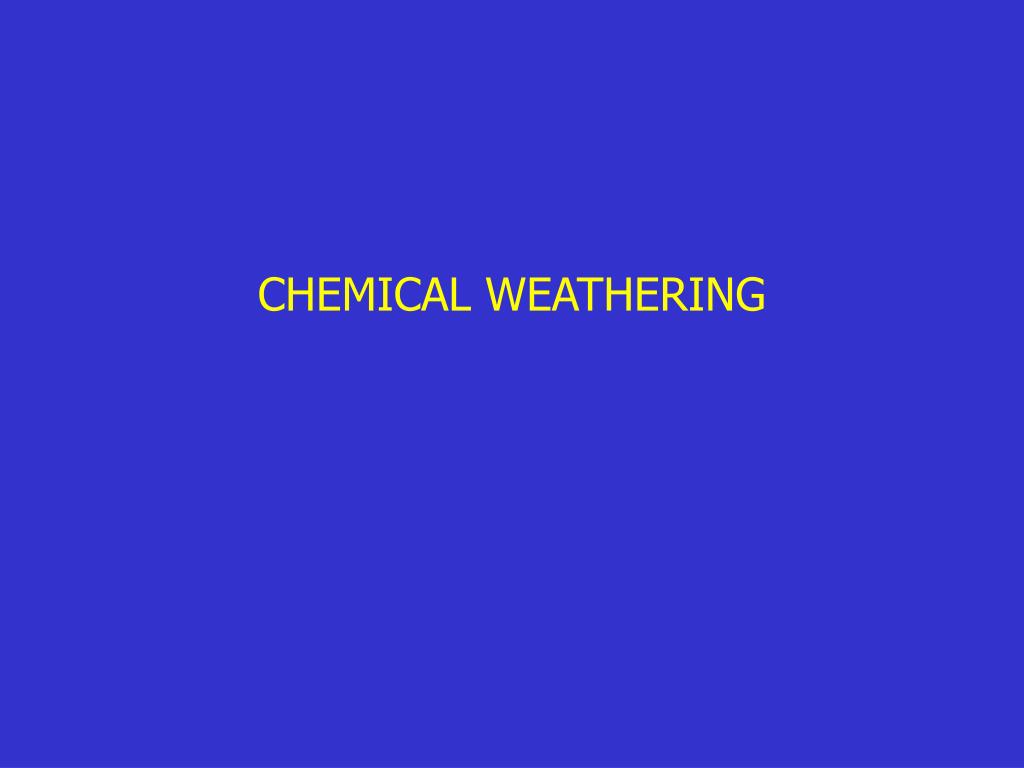

Chemical weathering


Chemical weathering1

Chemical weathering

  • In general chemical weathering is very much more effective than physical weathering. A number of mechanisms are known.

Chemical weathering2

Chemical weathering

  • Silica hydrolysis: natural acids attack rock materials through the breakage of the silicon-oxygen bond in silica tetrahedra.

  • This releases coordinated cations and forms colloidal silica. Secondary reactions reform some silica into sheet minerals such as clays.

Chemical weathering3

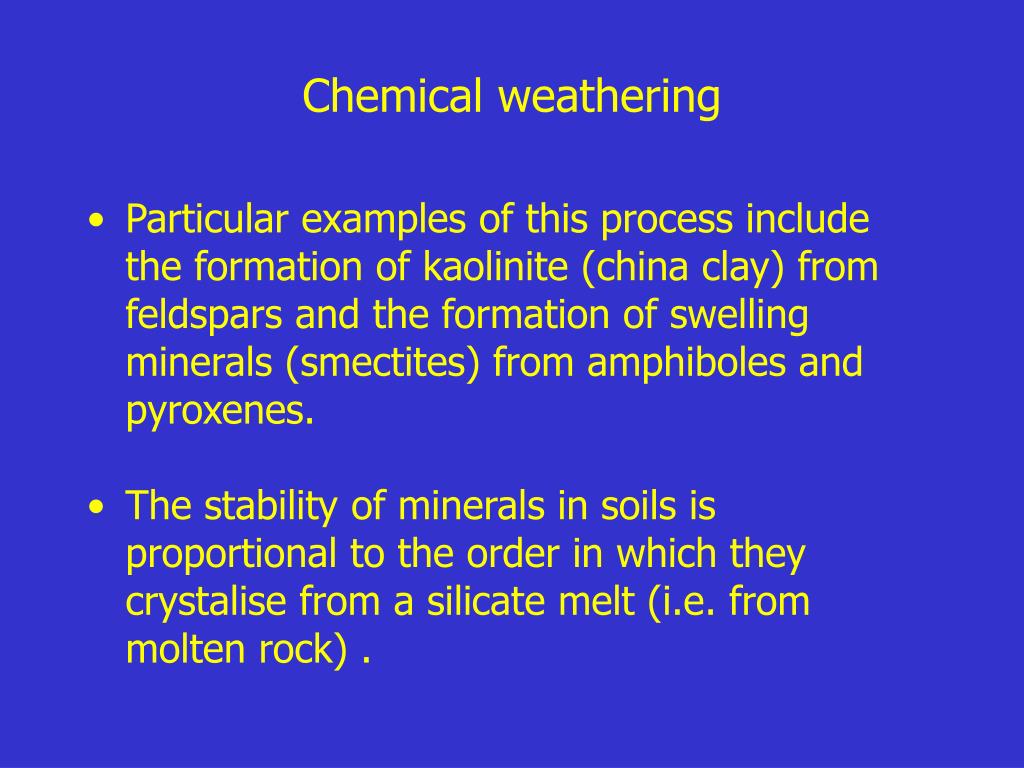

Chemical weathering

  • Particular examples of this process include the formation of kaolinite (china clay) from feldspars and the formation of swelling minerals (smectites) from amphiboles and pyroxenes.

  • The stability of minerals in soils is proportional to the order in which they crystalise from a silicate melt (i.e. from molten rock) .

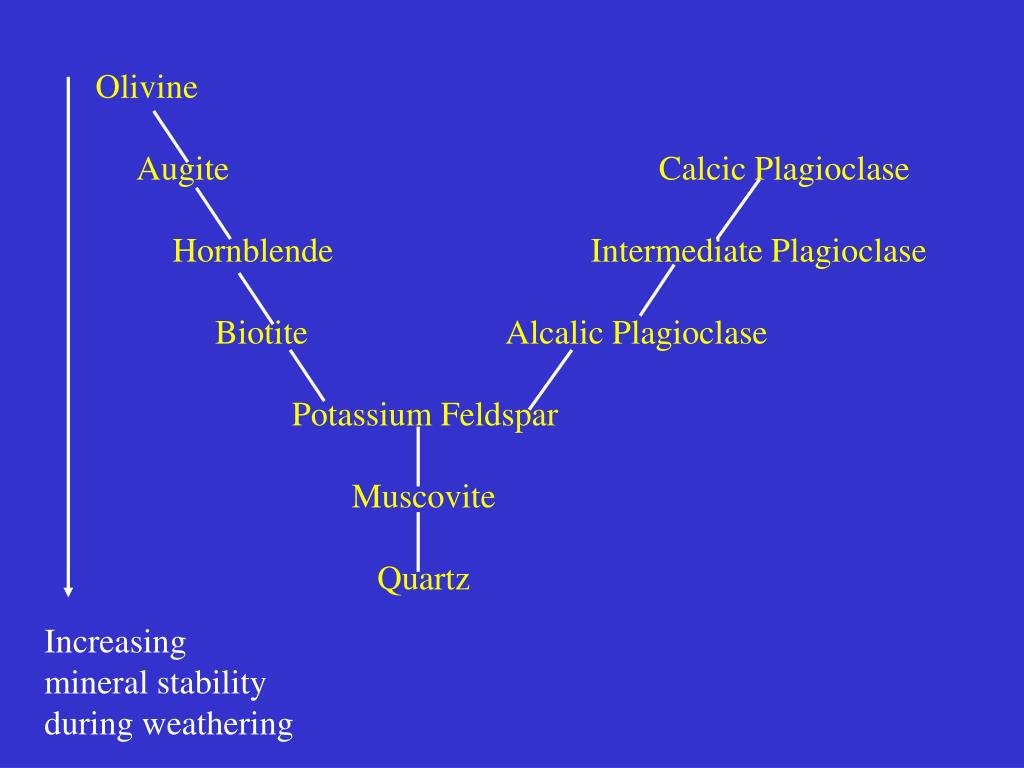

Environmental practical 2 a2 2vp2


Augite Calcic Plagioclase

Hornblende Intermediate Plagioclase

Biotite Alcalic Plagioclase

Potassium Feldspar



Increasing mineral stability during weathering

Chemical weathering4

Chemical weathering

  • Acid hydrolysis: this involves hydrogen ion attack on the carbonate anion (CO32-) to produce the bicarbonate (HCO3-), which is soluble.

  • This is the basic mechanism for the solution of limestones.

Chemical weathering5

Chemical weathering

  • Oxidation-reduction: there are a number of reactions involving the change of oxidation state (valency) of the cation (usually iron) in compounds such as oxides, hydroxides and sulphides.

  • These reactions are responsible for the colour changes in weathered materials and the release of iron oxides from many minerals. They are particularly important in pedogenesis (soil formation).

Chemical weathering6

Chemical weathering

  • Salt hydration: many minerals absorb water to form hydrated compounds. These may involve an increase in volume which is capable of exerting considerable pressure in a confined space.

  • A common example is the formation of gypsum (calcium sulphate), which can exert pressures up to 100 Mpa.

Biological weathering


Biological weathering1

Biological weathering

  • Due to the action of animals and plants (e.g. burrowing organisms and root growth) which exploit existing fractures in the rock and and increase weathering rates.

  • The boring of limestone rocks by molluscs and bivalves facilitate the ingress of water into the rock fabric.

Soil formation


Soil formation1

Soil formation

  • The formation of soil from weathered inorganic substrate involves physical, chemical and biotic processes and imparts a well-defined structure to the material.

  • Many of the processes are identical to those of chemical weathering, although they have evolved their own terminology.

Soil formation2

Soil formation

  • Five general descriptive terms are often applied:

    • Humification: the addition of organic material (humus) to the inorganic soil particles. The humus is provided by the decomposition of plant material and is mixed largely by the action of burrowers such as earthworms.

Soil formation3

Soil formation

  • Translocation: a general term for the downward movement of chemical compounds by leaching.

  • The most prominent of these are iron compounds which provide the characteristic red-brown colours of most soils.

  • Translocation involves solution in the more acid upper zone of the soil profile and deposition as hydroxides in the more alkaline lower zone.

Soil formation4

Soil formation

  • Lessivation: the downward movement of clay particles under the action of percolating water.

  • The movement of these particles typically causes a fining-downwards profile, possible with the formation of distinctive porous horizons near surface and dense, impermeable bands lower in the profile.

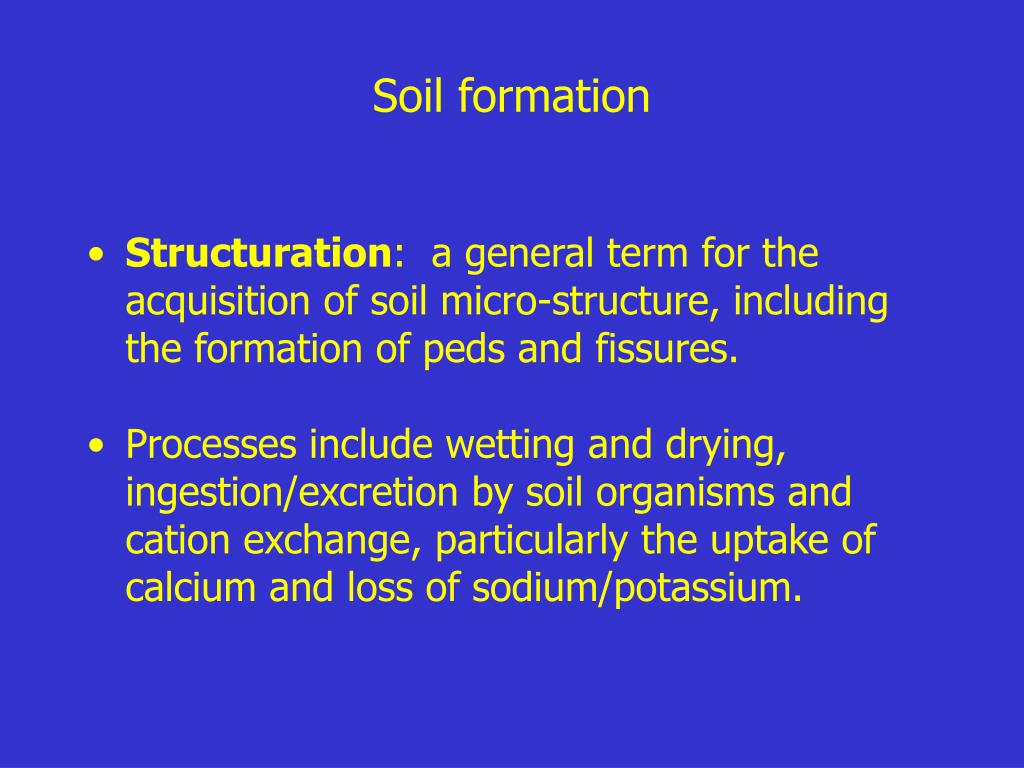

Soil formation5

Soil formation

  • Structuration: a general term for the acquisition of soil micro-structure, including the formation of peds and fissures.

  • Processes include wetting and drying, ingestion/excretion by soil organisms and cation exchange, particularly the uptake of calcium and loss of sodium/potassium.

Soil formation6

Soil formation

  • Gleying: a visible mottling, usually attributed to alternating changes in oxidation state in iron compounds due to a fluctuating water table.

Soil profile description


Soil profile description1

Soil profile description

  • The operation of the above processes, combined with the downward leaching of their products through the developing soil, usually lead to the formation of a number of distinctive horizons in the soil profile.

  • There is a standard nomenclature for these horizons, although not all will be present in any one soil.

Environmental practical 2 a2 2vp2

H or O Horizon

A Horizon

E Horizon

B Horizon

C Horizon

R Horizon

Soil profile description2

Soil profile description

  • H-horizon (or O): Formed by the accumulation of organic material deposited on the surface.

    • H- horizon: saturated with water for prolonged periods. Contains 20% or more organic matter.

    • O-horizon: Saturated with water for no more than a few days of a year. Contains 35% or more of organic matter.

Soil profile description3

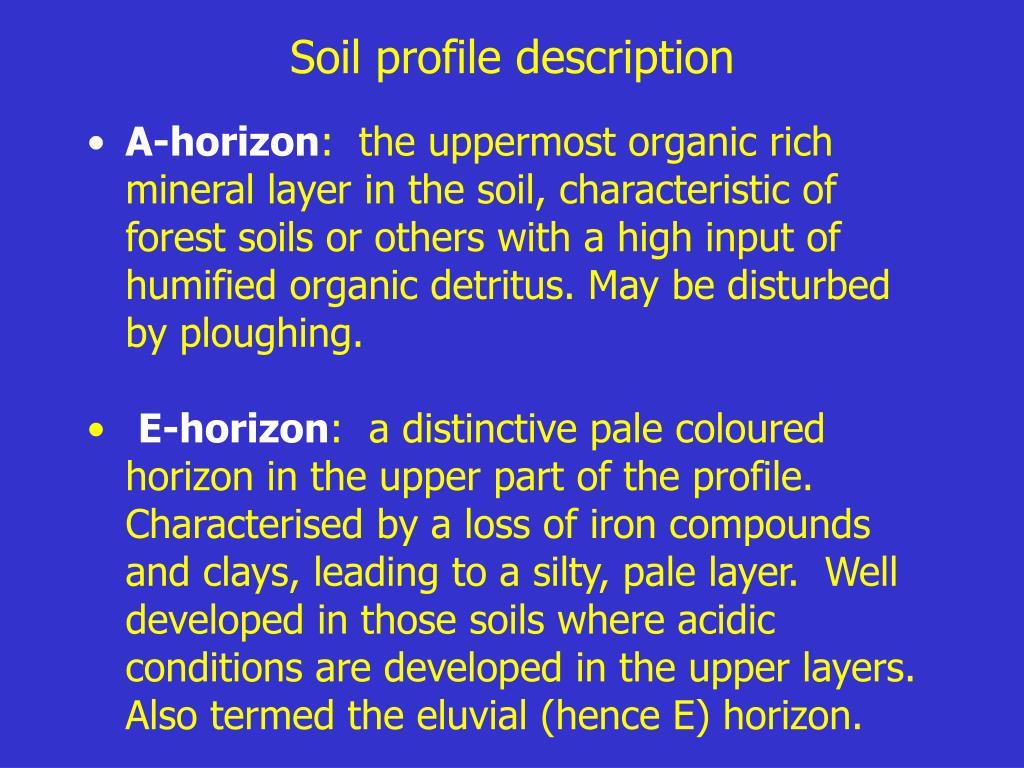

Soil profile description

  • A-horizon: the uppermost organic rich mineral layer in the soil, characteristic of forest soils or others with a high input of humified organic detritus. May be disturbed by ploughing.

  • E-horizon: a distinctive pale coloured horizon in the upper part of the profile. Characterised by a loss of iron compounds and clays, leading to a silty, pale layer. Well developed in those soils where acidic conditions are developed in the upper layers. Also termed the eluvial (hence E) horizon.

Environmental practical 2 a2 2vp2

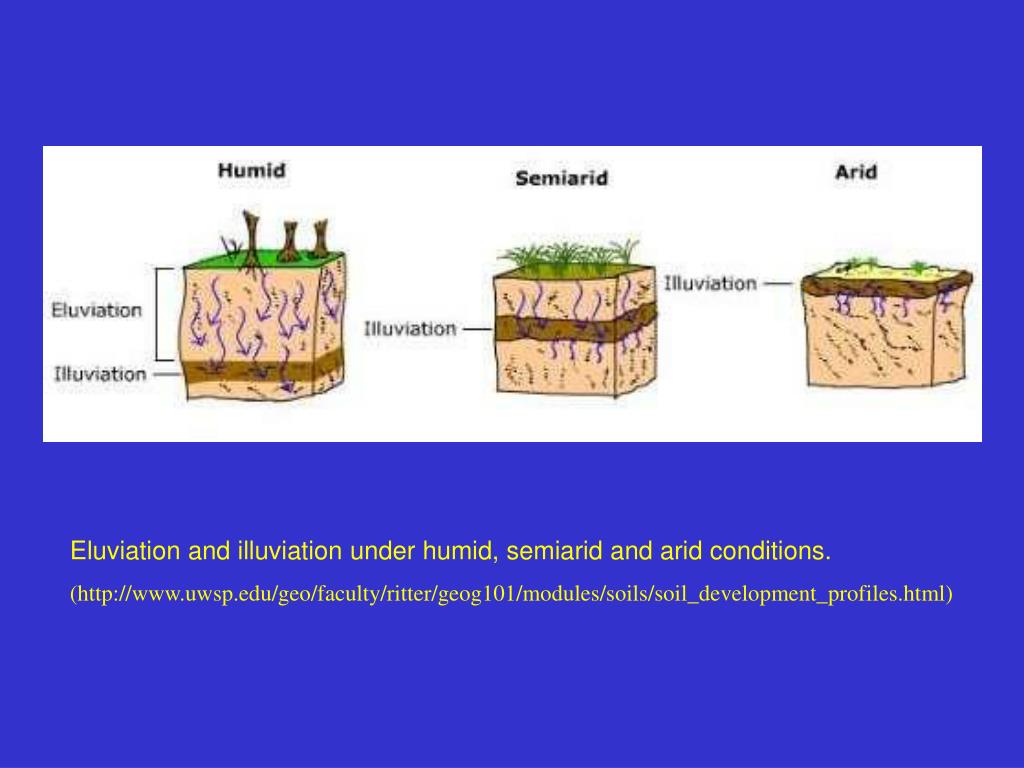

Eluviation and illuviation under humid, semiarid and arid conditions.


Soil profile description4

Soil profile description

  • B-horizon: the main soil horizon, usually subdivided according to the degree of iron translocation. Characteristically richer in iron compounds and fines due to the downward percolation of these materials. Sometimes termed an illuvial horizon for this reason. Shows variable stucturation.

  • C-horizon: the insitu substrate, may be weathered but not affected by soil formation.

  • R-horizon: Very hard bedrock.

Environmental practical 2 a2 2vp2

m OD

Soil profile from Bothkennar Soft Clay Research Site Photo: B.F.Barras

Soil profile description5

Soil profile description

  • The thickness and depths of these horizons vary greatly, depending on the substrate, rainfall, temperature permeability and age of the soil.

  • For example, old tropical soils may be several metres in depth, whereas immature soils on new deposits may be only a few tens of centimetres.

Soil classification systems


Soil classification systems1

Soil classification systems

  • There is a number of established soil classification systems, depending on their end use e.g.

    • soil surveyors

    • engineering geologists (geotechnical engineering, soil mechanics).

Soil classification systems2

Soil classification systems

  • There is a number of established soil classification systems that are used by soil surveyors. These can become quite complex, with many subdivisions based on very subtle criteria.

  • However, there are about six major divisions that it is useful to recognise, although these do not cover all the primary types worldwide.

Soil classification systems3

Soil classification systems

  • Lateritic soils are those which develop in tropical regions with high temperature and rainfall.

  • Characterised by an almost complete loss of clays and leachable cations, leaving a soil composed largely of alumina.

  • Very poor agricultural quality but valuable as an industrial source of bauxite (aluminium ore).

Environmental practical 2 a2 2vp2


Soil classification systems4

Soil classification systems

  • Black Chernozems are lowland prairie soils of central Europe, distinguished by well developed horizons and organic enrichment. Valuable agricultural resource.

  • Brown Chernozems or Brown Earths are the temperate forest equivalent of chernozems. Used broadly to describe those temperate region soils which are not podzols (see next).

Environmental practical 2 a2 2vp2

Black Chernozem Brown Chernozem or Brown Earth

(http://web.unbc.ca/~quarles/nres/soc/ggroup/obrc.html )

Soil classification systems5

Soil classification systems

  • Podzols are cool forest soils, often associated with coniferous forest. Distinguished by substantial loss of cations from their upper layers due to acidic conditions from leaf litter. Relatively poor agriculturally.

Environmental practical 2 a2 2vp2


Soil classification systems6

Soil classification systems

  • Gumbotils are sticky clay soils characteristic of hot, low-lying agricultural regions such as southern USA Mississippi basin.

  • Gleys are poorly developed, relatively unoxidised soils found in wetland temperate areas.

Environmental practical 2 a2 2vp2



Soil classification systems7

Soil classification systems

  • Histosols have a very high content of organic matter in the dark upper layer of the profile. Found in many different environments from the tundra to the tropics, Histosols form in places where organic matter is slow to decompose and thus accumulates over time. They are often found in bogs and swamps. They are often "mined" for peat.

Environmental practical 2 a2 2vp2


Soil classification systems8

Soil classification systems

  • Many Soil Surveys divide soils into genetic series based on these classes or their equivalents – perhaps using local type sites.

  • These relationships often illustrate the concept of catena development – the systematic variation of soil type down a slope as drainage and exposure conditions change from top to bottom.

Soil classification systems9

Soil classification systems

  • Engineering geological classification of soils

    • material characteristics (particle size; plasticity; organic content; colour; shape, texture and composition of particles)

    • mass characteristics (e.g. bedding, weathering)

  • These will be covered in the next two lectures of the module.

Environmental practical 2 a2 2vp2

The End
