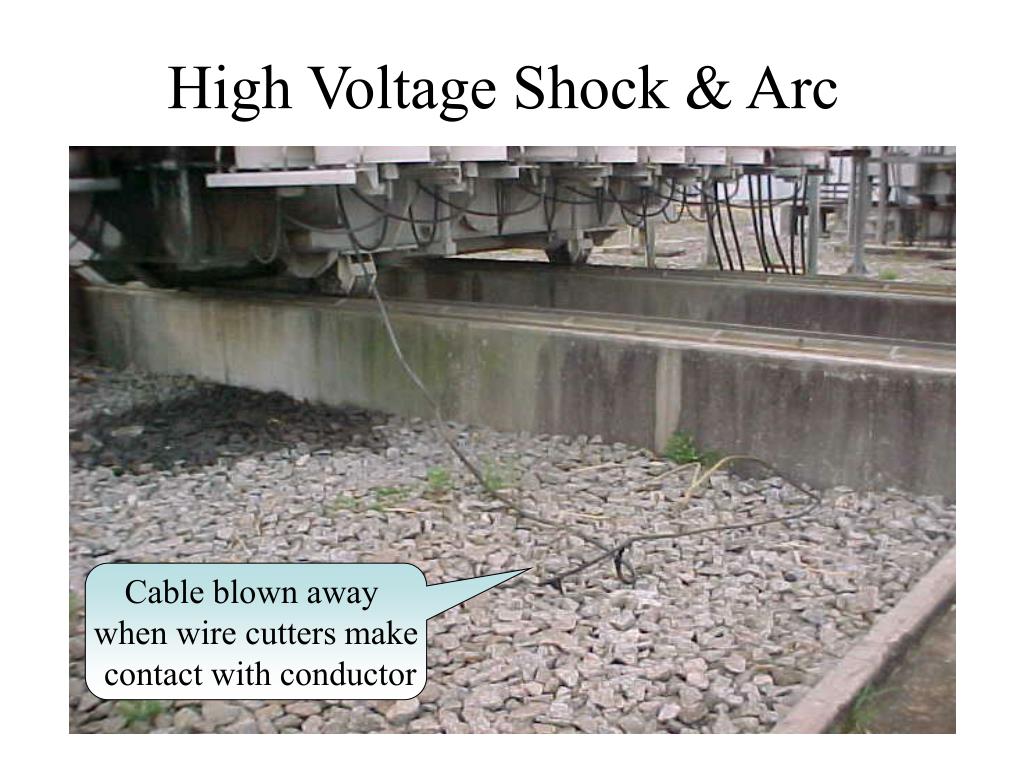

  1. High Voltage Shock & Arc Cable blown away when wire cutters make contact with conductor

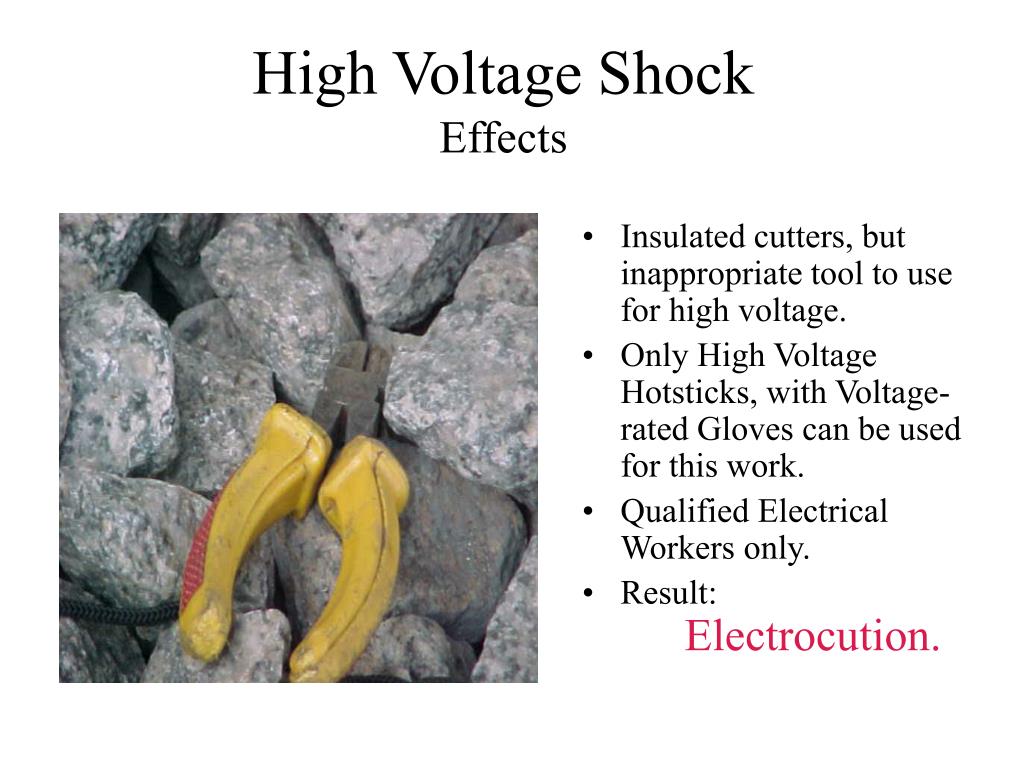

  2. High Voltage ShockEffects • Insulated cutters, but inappropriate tool to use for high voltage. • Only High Voltage Hotsticks, with Voltage-rated Gloves can be used for this work. • Qualified Electrical Workers only. • Result: Electrocution.

  3. High Voltage Shock Physical Effects of Electrocution

  4. High Voltage Shock Entry point of High Voltage

  5. High Voltage Shock Effects ~ Arcing to Grounded Conduits (2)

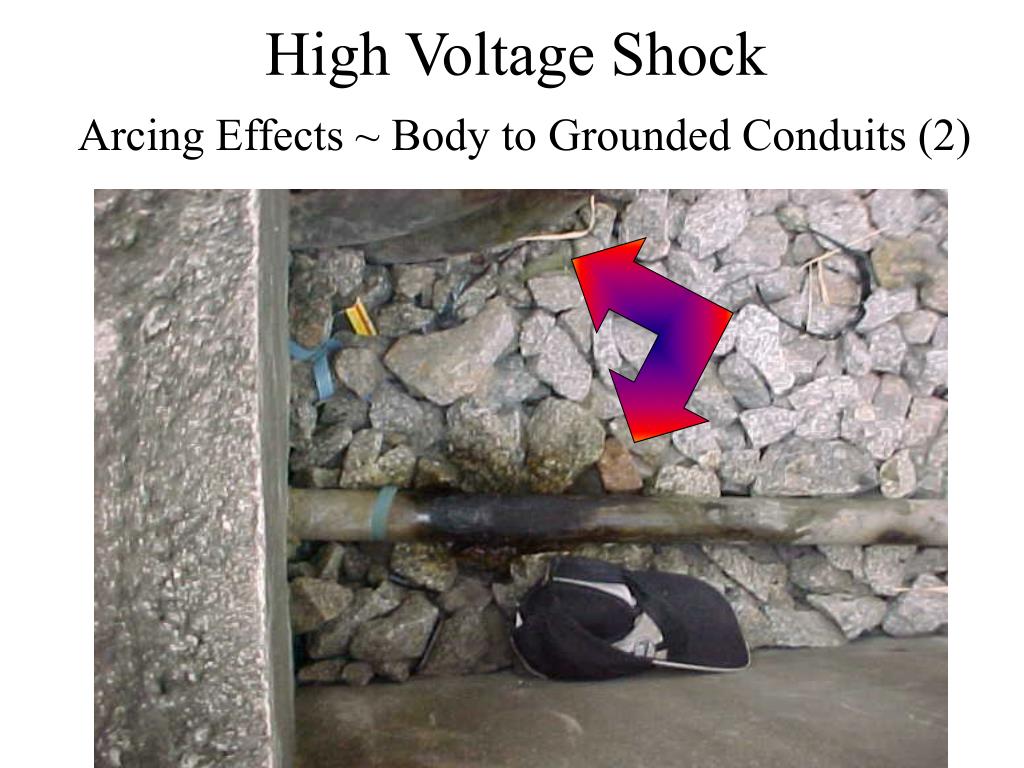

  6. High Voltage Shock Arcing Effects ~ Body to Grounded Conduits (2)

  7. High Voltage Shock Arcing Effects ~ Body to Grounded Conduit

  8. High Voltage Shock Blowout Effects • Exit points (4) • Thru the right thumb, left elbow, abdomen, and pelvic area; where High Voltage Arc blows out… completing the circuit to ground.

  9. High Voltage Shock Entry and Exit Wounds
