High performance storage system

High Performance Storage System

Harry Hulen


[email protected]

Hsm hierarchical storage management


File System


robotic tape

shelf tape

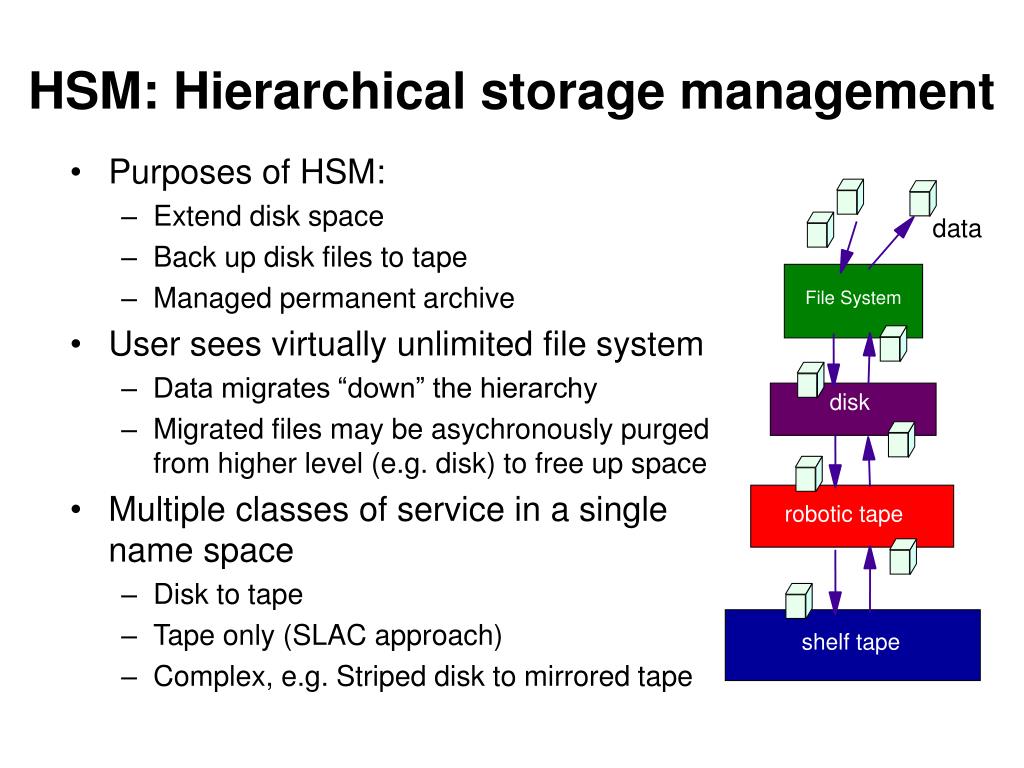

HSM: Hierarchical storage management

  • Purposes of HSM:

    • Extend disk space

    • Back up disk files to tape

    • Managed permanent archive

  • User sees virtually unlimited file system

    • Data migrates “down” the hierarchy

    • Migrated files may be asychronously purged from higher level (e.g. disk) to free up space

  • Multiple classes of service in a single name space

    • Disk to tape

    • Tape only (SLAC approach)

    • Complex, e.g. Striped disk to mirrored tape

Big storage like big computing is fundamentally an aggregation problem

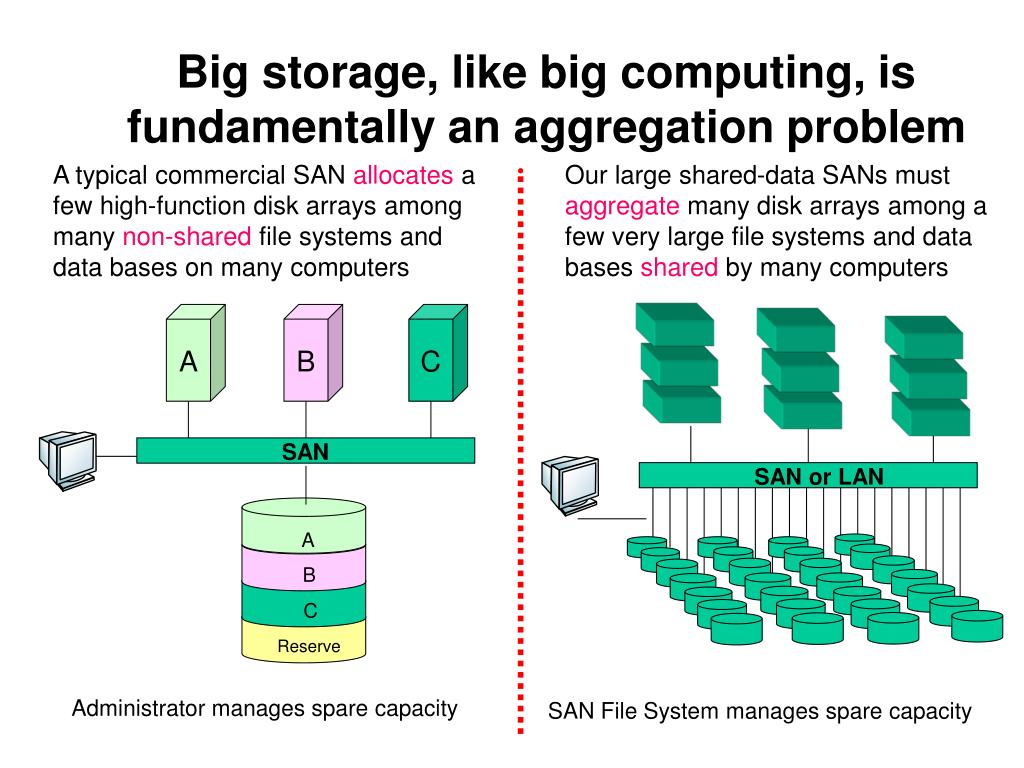

Big storage, like big computing, is fundamentally an aggregation problem









A typical commercial SAN allocates a few high-function disk arrays among many non-shared file systems and data bases on many computers

Our large shared-data SANs must aggregate many disk arrays among a few very large file systems and data bases shared by many computers


Administrator manages spare capacity

SAN File System manages spare capacity

Hpss architecture

Based on HPSS 6

Robotic Tape Libraries



BackupCore Server

Core Server



Tape-Disk Movers


Disk Arrays

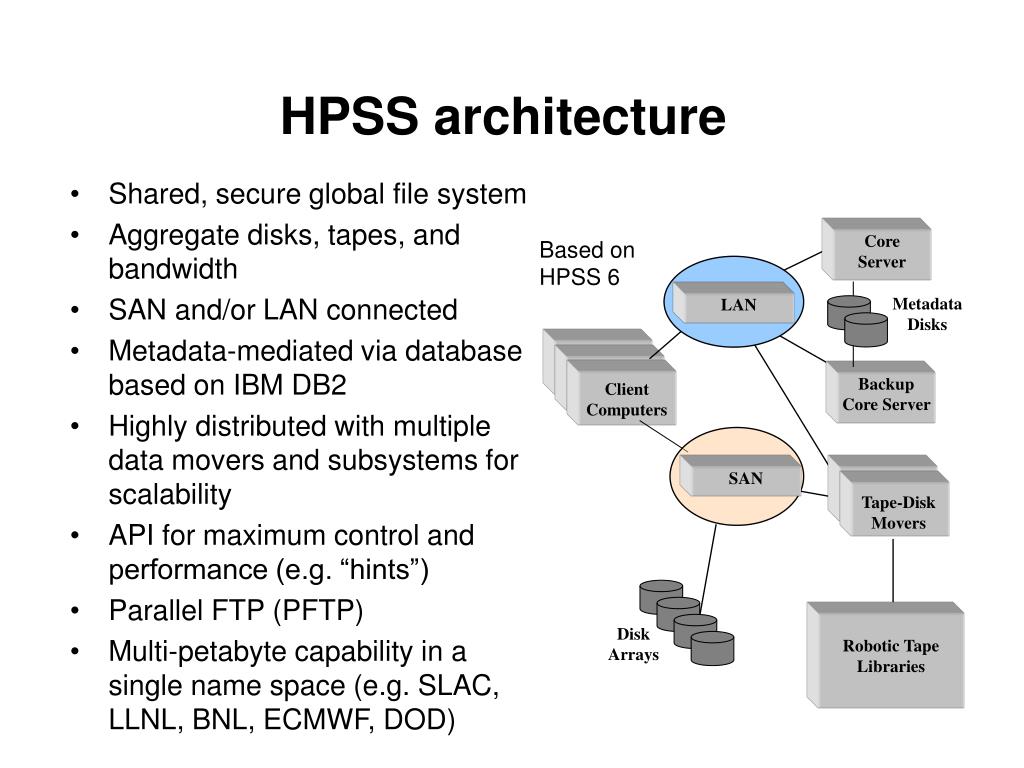

HPSS architecture

  • Shared, secure global file system

  • Aggregate disks, tapes, and bandwidth

  • SAN and/or LAN connected

  • Metadata-mediated via database based on IBM DB2

  • Highly distributed with multiple data movers and subsystems for scalability

  • API for maximum control and performance (e.g. “hints”)

  • Parallel FTP (PFTP)

  • Multi-petabyte capability in a single name space (e.g. SLAC, LLNL, BNL, ECMWF, DOD)

The hpss collaboration

The HPSS Collaboration

  • U.S Department of Energy Laboratories are Co-Developers

    • Lawrence Livermore National Lab. - Sandia National Laboratories

    • Los Alamos National Laboratory - Oak Ridge National Laboratory

    • Lawrence Berkeley National Lab.

  • IBM Global Services in Houston, Texas

    • Access to IBM technology (DB2, for example)

    • Project management

    • Quality assurance and testing (SEI CMM Level 3)

    • Outreach: commercial sales and service

  • Advantages of Collaborative Development

    • Developers are users: focus on what is needed and what works

    • Keeps focus on the high end: the largest data stores

    • A limited “open source” model for collaboration members and users

  • “Since 1993”

Hpss performance trivia

HPSS performance trivia

  • Capacity

    • Largest HPSS installation (BNL) has 2 petabytes in a single address space with no indications of an upper bound

    • Calculations show ability to handle 100s of millions of files in a name space

  • File Access Rate (recent data with DB2, not tuned)

    • 50 create-writes per second with 6-processor Power4 and AIX (ECMWF)

    • 20 create-writes per sec with 4-processor XEON with Linux (Test lab)

    • Hope to achieve 100 c-w/sec with optimization and newer hw

  • Data Bandwidth

    • Data rate benchmark 1 gigabyte per sec to 16 movers with 16 disks each (4 year old data)

    • 2-way and 4-way striping of disk arrays and tapes for higher single-file transfers

    • Concurrent transfers among many clients, disk arrays, and tape libraries for very high aggregate transfer capability

Disaster recovery difficulty grows with size

Disaster Recovery: Difficulty grows with size

  • For most cluster file systems, loss of disk corrupts entire file system

    • Entire file system must be rebuilt or restored from backup

    • Disk array availability about .9998 - .9999

  • HPSS keeps metadata separate from data

    • Metadata kept in a DB2 database

    • HPSS disk files and tape files use the same metadata

    • Loss of an entire disk array causes only loss of data not migrated to tape (or to another disk), HPSS continues to run

    • Restoration of system = reloading metadata

  • Recovery Performance

    • Capable of recovery in minutes from loss of any or all disk data (hours to days in other large systems)

    • Capable of recovery in hours from loss of all metadata (hours to days in other large systems)

Hpss plans

HPSS Plans

  • 2004

    • New HPSS infrastructure based on DB2 and eliminating DCE (transparent to users)

    • HPSS for Linux and “HPSS Light”

    • LAN-less data transfers (SAN capability)

    • Include support for HTAR and HSI utility packages

    • Stand-alone PFTP offering and push protocol

  • 2005

    • ASCI Parallel Local File Movers for Lustre archive

    • Globus Grid Gridftp capability

    • True VFS interface (initially Linux)

    • Additional small file performance improvements

    • Exploit multilevel hierarchy (e.g. MAID)

    • Better integration with application agents (e.g. Objectivity)

  • 2006

    • Object-based disk technology

    • Exploit DB2 metadata engine for content management

Hpss for linux will make hpss more widely available

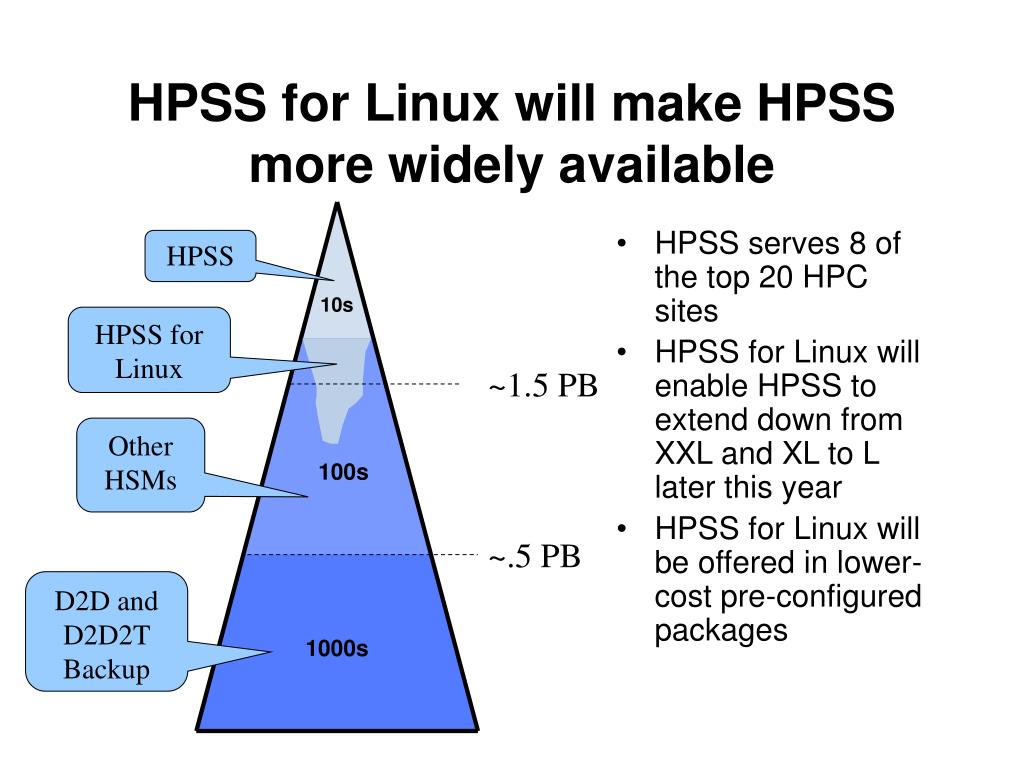

HPSS for Linux will make HPSS more widely available

  • HPSS serves 8 of the top 20 HPC sites

  • HPSS for Linux will enable HPSS to extend down from XXL and XL to L later this year

  • HPSS for Linux will be offered in lower-cost pre-configured packages



HPSS for Linux

~1.5 PB

Other HSMs


~.5 PB

D2D and D2D2T Backup


Asci purple parallel local file movers

Lustre is a shared global file system in development by DOE, HP, and others.


ASCI Purple Parallel Local File Movers

HPSS Parallel Local File Movers open, read, and write Lustre files using Unix semantics




Capacity Platform


Site-provided agent controls migration based on file content and not on empirical data






Lustre Disk

  • Simplicity (configuration, equipment expenditures, networking)

  • Performance potential

  • Minimize disk cache

High performance storage system

HTAR: Use Of Containerssaves metadata overhead

10 Records, 10 Files10 Metadata Entries

Local Disks

30 Records, 3 Files3 Metadata Entries

Global Disks

Data ismirrored,format is not

A file with multiplerecords is acontainer

A multi level hierarchy

Robotic Tape




BackupCore Server

Core Server



Tape-Disk Movers



Array of

Idle Disks(MAID)

A multi-level hierarchy

  • Example 3 level

    • Disk Arrays

    • Massive Arrays of Idle Disks

    • Tape Libraries

  • MAID will fill the “big middle” between disk and tape

  • HPSS supports multilevel hierarchies today

Based on HPSS 6

Disk Arrays

Hpss grid support

HPSS Grid support

  • Short-term plans include GSI FTP

    • LBL/NERSC has prototyped a GSI-enabled HPSS PFTP client and daemon

    • Tested by KEK lab (Japan) and U of Tokyo

  • Long-term plans include HPSS-compatible GridFTP

    • Argonne National Lab is designing and implementing

    • Fully Globus compatible

    • Target is later this year (2004)

High performance storage system

Writing concurrently does not interferewith processingaccess to primary disk

Batch intocontainers

Institutional metadatacan direct Processto Secondary disk incase of loss of Primary






Primary(e.g. GPFS)

Primary(e.g. SGFS)

Primary(e.g. GPFS)


Tertiary(e.g. HPSS)

Secondary(e.g. HPSS)

How to build a really large system to ingest and process data

Multiple primary file systems

Single hierarchical archive file system

High performance storage system


[email protected]
