Aerodrome weather report codes actuals metars

AERODROME WEATHER REPORT CODES

(ACTUALS)

METARS


Aerodrome weather report codes actuals metars

SAUK02 EGGY 231020Z

METAR

EGSS 231020Z 31015G30KT 1400SW 6000N R24L/P1500 SHRA FEW005 SCT010CB BKN025 10/03 Q0995 RETS WS RWY23 NOSIG 88290592=

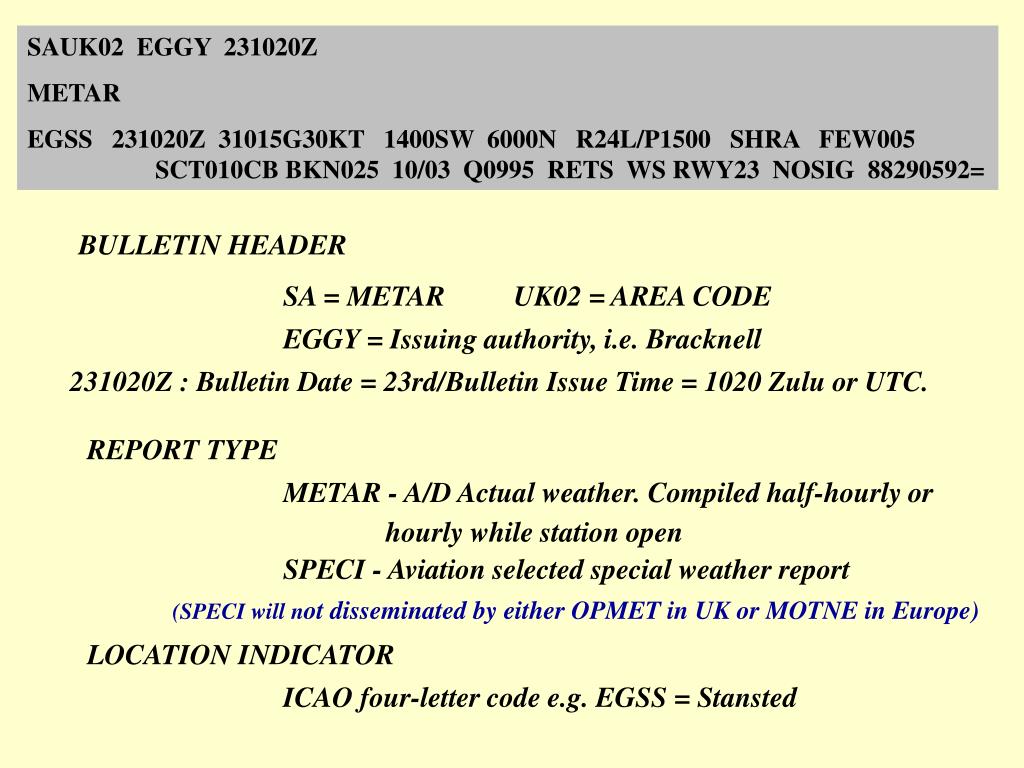

BULLETIN HEADER

SA = METAR

UK02 = AREA CODE

EGGY = Issuing authority, i.e. Bracknell

231020Z : Bulletin Date = 23rd/Bulletin Issue Time = 1020 Zulu or UTC.

REPORT TYPE

METAR - A/D Actual weather. Compiled half-hourly or hourly while station open

SPECI - Aviation selected special weather report

(SPECI will not disseminated by either OPMET in UK or MOTNE in Europe)

LOCATION INDICATOR

ICAO four-letter code e.g. EGSS = Stansted


Aerodrome weather report codes actuals metars

SAUK02 EGGY 231020Z

METAR

EGSS 231020Z 31015G30KT 1400SW 6000N R24L/P1500 SHRA FEW005 SCT010CB BKN025 10/03 Q0995 RETS WS RWY23 NOSIG 88290592=

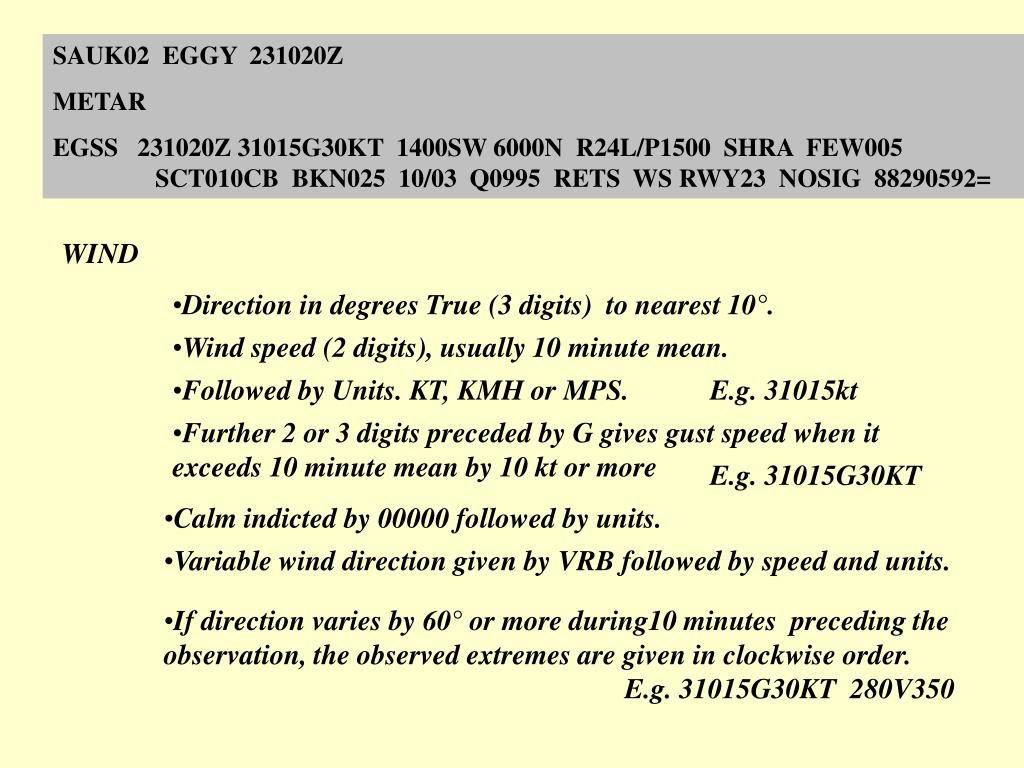

WIND

  • Direction in degrees True (3 digits) to nearest 10°.

  • Wind speed (2 digits), usually 10 minute mean.

  • Followed by Units. KT, KMH or MPS.

E.g. 31015kt

  • Further 2 or 3 digits preceded by G gives gust speed when it exceeds 10 minute mean by 10 kt or more

E.g. 31015G30KT

  • Calm indicted by 00000 followed by units.

  • Variable wind direction given by VRB followed by speed and units.

  • If direction varies by 60° or more during10 minutes preceding the observation, the observed extremes are given in clockwise order.

E.g. 31015G30KT 280V350


Aerodrome weather report codes actuals metars

SAUK02 EGGY 231020Z

METAR

EGSS 231020Z 31015G30KT 1400SW 6000N R24L/P1500 SHRA FEW005 SCT010CB BKN025 10/03 Q0995 RETS WS RWY23 NOSIG 88290592=

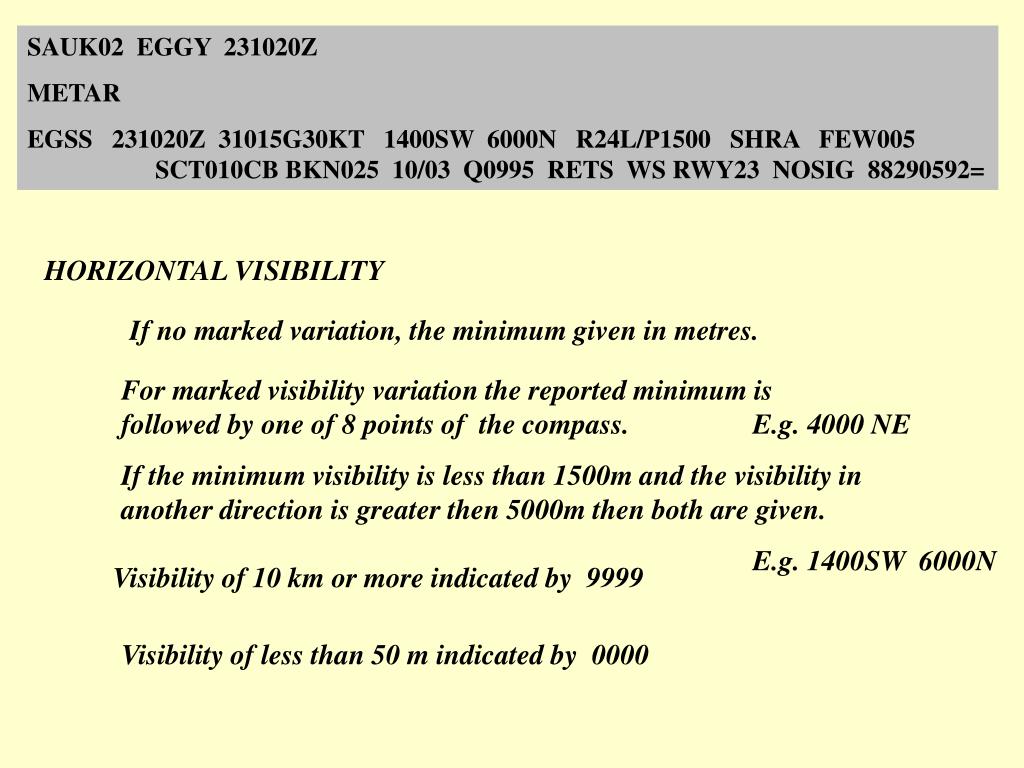

HORIZONTAL VISIBILITY

If no marked variation, the minimum given in metres.

For marked visibility variation the reported minimum is followed by one of 8 points of the compass.

E.g. 4000 NE

If the minimum visibility is less than 1500m and the visibility in another direction is greater then 5000m then both are given.

E.g. 1400SW 6000N

Visibility of 10 km or more indicated by 9999

Visibility of less than 50 m indicated by 0000


Aerodrome weather report codes actuals metars

SAUK02 EGGY 231020Z

METAR

EGSS 231020Z 31015G30KT 1400SW 6000N R24L/P1500 SHRA FEW005 SCT010CB BKN025 10/03 Q0995 RETS WS RWY23 NOSIG 88290592=

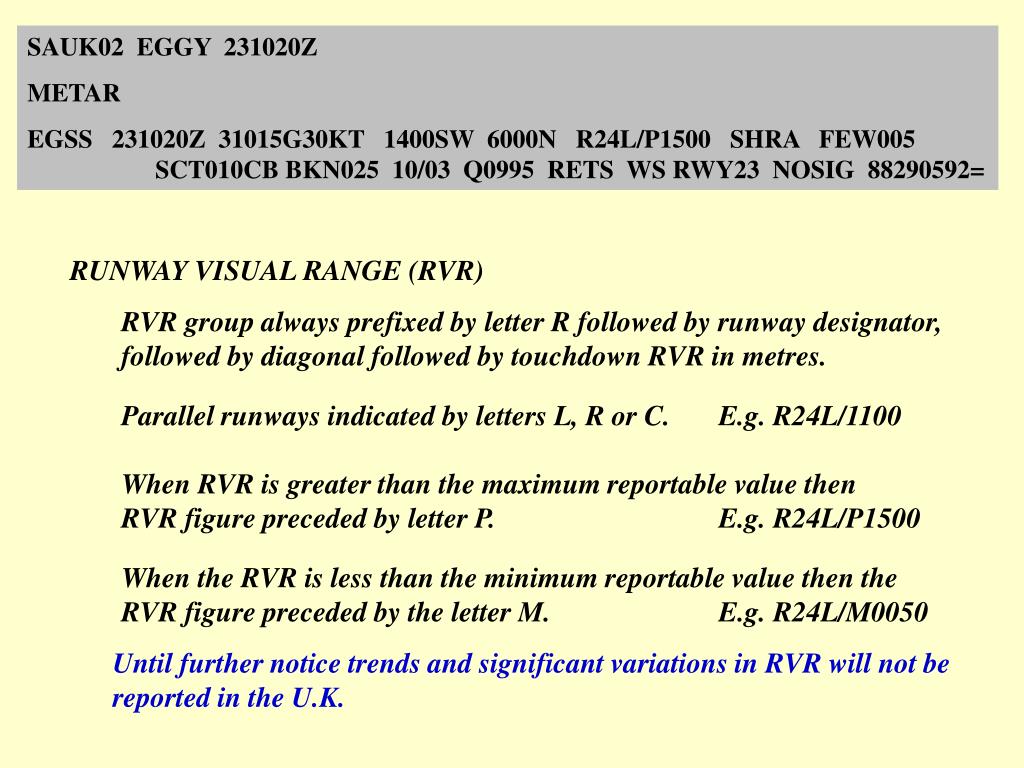

RUNWAY VISUAL RANGE (RVR)

RVR group always prefixed by letter R followed by runway designator, followed by diagonal followed by touchdown RVR in metres.

Parallel runways indicated by letters L, R or C.

E.g. R24L/1100

When RVR is greater than the maximum reportable value then RVR figure preceded by letter P.

E.g. R24L/P1500

When the RVR is less than the minimum reportable value then the RVR figure preceded by the letter M.

E.g. R24L/M0050

Until further notice trends and significant variations in RVR will not be reported in the U.K.


Aerodrome weather report codes actuals metars

SAUK02 EGGY 231020Z

METAR

EGSS 231020Z 31015G30KT 1400SW 6000N R24L/P1500 SHRA FEW005 SCT010CB BKN025 10/03 Q0995 RETS WS RWY23 NOSIG 88290592=

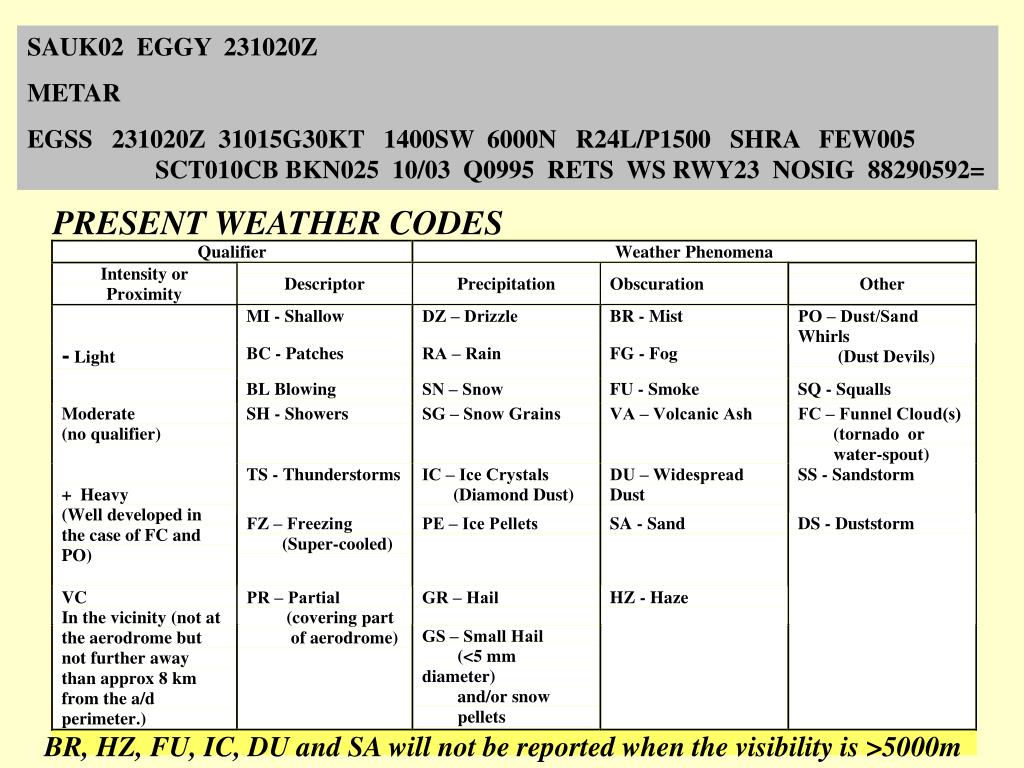

PRESENT WEATHER CODES

BR, HZ, FU, IC, DU and SA will not be reported when the visibility is >5000m


Aerodrome weather report codes actuals metars

SAUK02 EGGY 231020Z

METAR

EGSS 231020Z 31015G30KT 1400SW 6000N R24L/P1500 SHRA FEW005 SCT010CB BKN025 10/03 Q0995 RETS WS RWY23 NOSIG 88290592=

CLOUD COVER

Shown by 6 character group.

First 3 indicate cloud amount in OKTAS.

FEW = 1 to 2 oktas

BKN = 5 to 7 oktas

SCT = 3 to 4 oktas.

OVC = 8 oktas

Last 3 indicate height of cloud base above a/d level

E.g: FEW018 = 1 to 2 oktas at 1800 feet above a/d level.

Only significant convective cloud identified.

CB = Cumulonimbus

TCU = Towering Cumulus.

E.g: SCT018CB

Sky obscured = VV///


Aerodrome weather report codes actuals metars

SAUK02 EGGY 231020Z

METAR

EGSS 231020Z 31015G30KT 1400SW 6000N R24L/P1500 SHRA FEW005 SCT010CB BKN025 10/03 Q0995 RETS WS RWY23 NOSIG 88290592=

CLOUD COVER REPORTING SEQUENCE

First group = Lowest layer of 1 okta or more

Second group = Next layer of 3 oktas or more

Third group = Next layer of 5 oktas or more.

Additional group = Significant convective cloud if not

already reported.

Cloud groups given in ascending order of height.

E.g: FEW005 SCT010 SCT018CB BKN025

If there is no cloud to report and CAVOK does not apply, then SKC (sky clear) reported


Aerodrome weather report codes actuals metars

SAUK02 EGGY 231020Z

METAR

EGSS 231020Z 31015G30KT 1400SW 6000N R24L/P1500 SHRA FEW005 SCT010CB BKN025 10/03 Q0995 RETS WS RWY23 NOSIG 88290592=

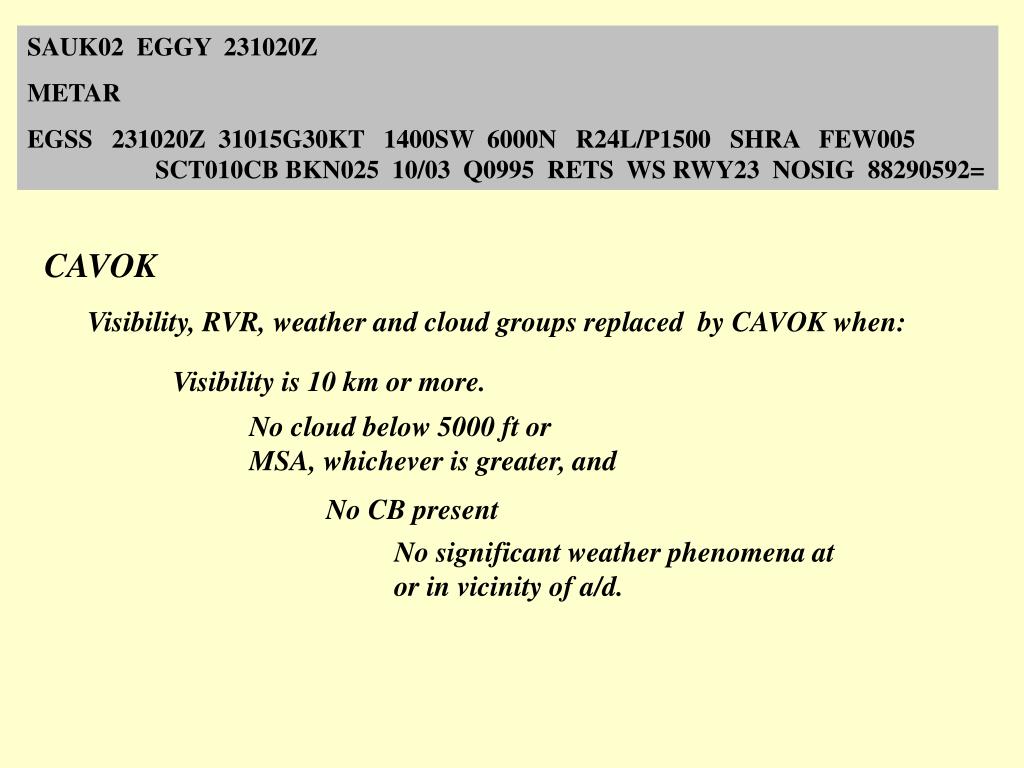

CAVOK

Visibility, RVR, weather and cloud groups replaced by CAVOK when:

Visibility is 10 km or more.

No cloud below 5000 ft or

MSA, whichever is greater, and

No CB present

No significant weather phenomena at or in vicinity of a/d.


Aerodrome weather report codes actuals metars

SAUK02 EGGY 231020Z

METAR

EGSS 231020Z 31015G30KT 1400SW 6000N R24L/P1500 SHRA FEW005 SCT010CB BKN025 10/03 Q0995 RETS WS RWY23 NOSIG 88290592=

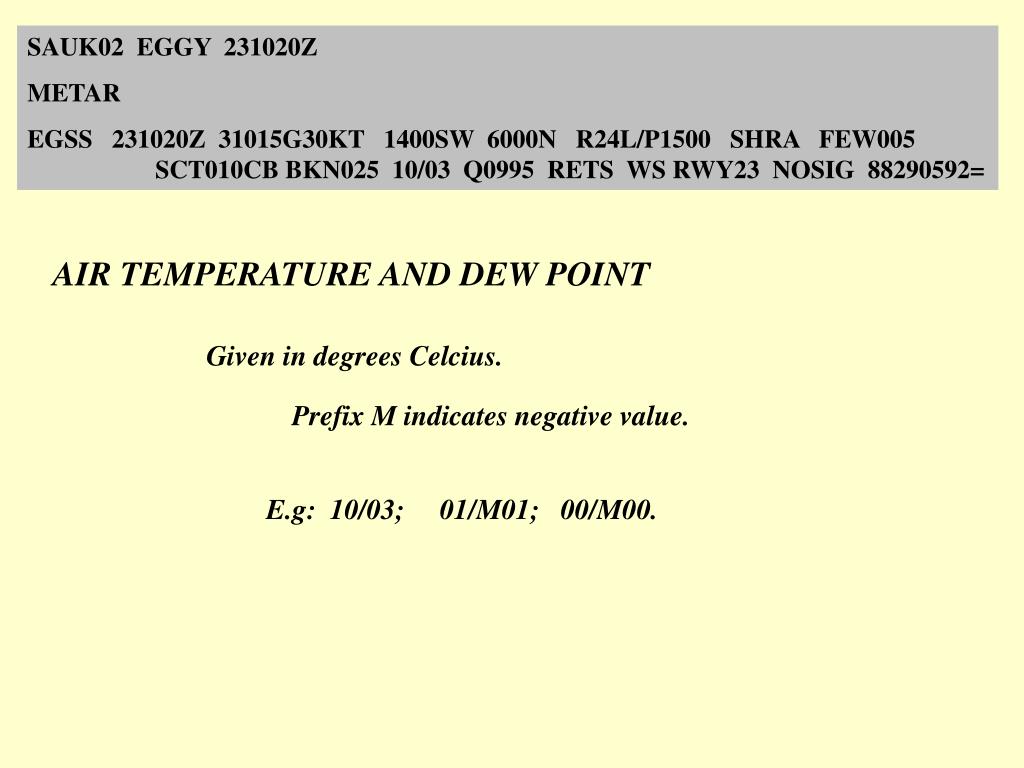

AIR TEMPERATURE AND DEW POINT

Given in degrees Celcius.

Prefix M indicates negative value.

E.g: 10/03; 01/M01; 00/M00.


Aerodrome weather report codes actuals metars

SAUK02 EGGY 231020Z

METAR

EGSS 231020Z 31015G30KT 1400SW 6000N R24L/P1500 SHRA FEW005 SCT010CB BKN025 10/03 Q0995 RETS WS RWY23 NOSIG 88290592=

ALTIMETER SETTING (QNH)

QNH is rounded down to nearest whole millibar.

Reported as 4 figure group preceded by letter Q

E.g: Q0995

When reported in inches of mercury

Prefixed by letter A followed by 4 figure group

E.g: A3027 = 30.27 inches of mercury.


Aerodrome weather report codes actuals metars

SAUK02 EGGY 231020Z

METAR

EGSS 231020Z 31015G30KT 1400SW 6000N R24L/P1500 SHRA FEW005 SCT010CB BKN025 10/03 Q0995 RETS WS RWY23 NOSIG 88290592=

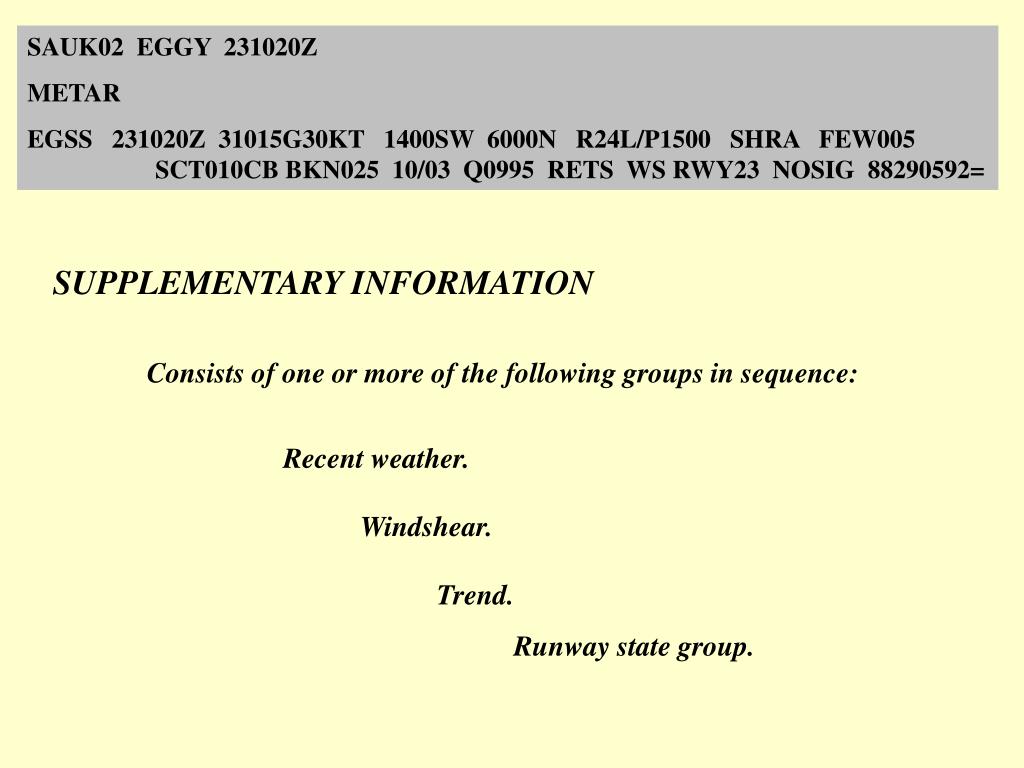

SUPPLEMENTARY INFORMATION

Consists of one or more of the following groups in sequence:

Recent weather.

Windshear.

Trend.

Runway state group.


Aerodrome weather report codes actuals metars

SAUK02 EGGY 231020Z

METAR

EGSS 231020Z 31015G30KT 1400SW 6000N R24L/P1500 SHRA FEW005 SCT010CB BKN025 10/03 Q0995 RETS WS RWY23 NOSIG 88290592=

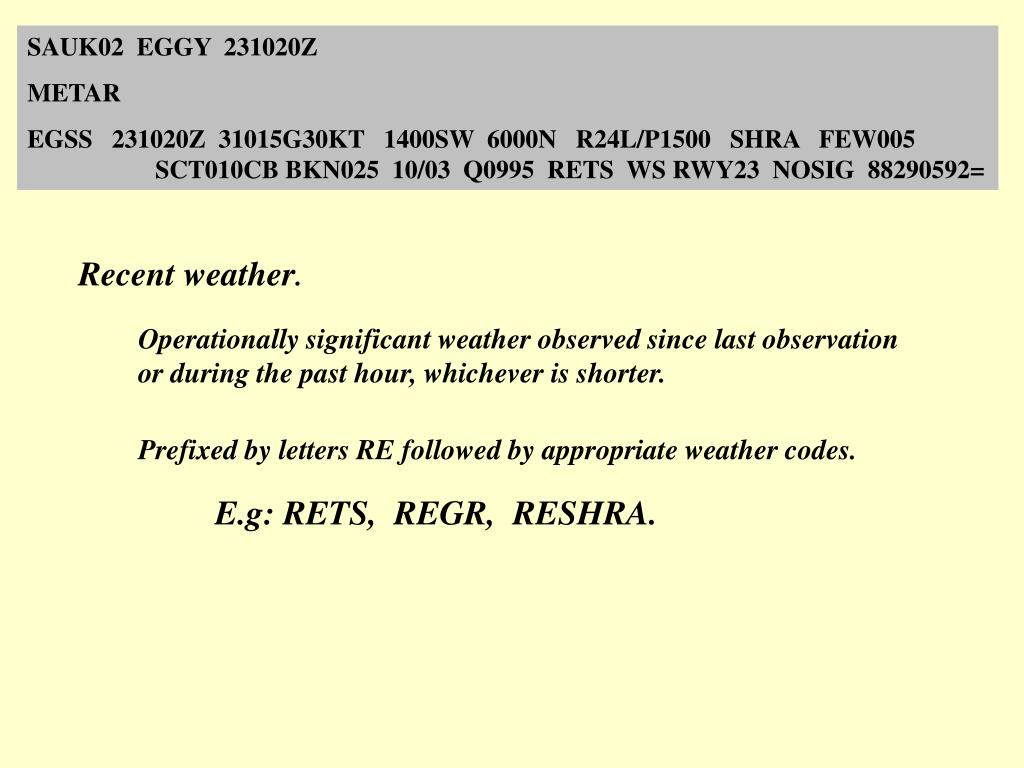

Recent weather.

Operationally significant weather observed since last observation or during the past hour, whichever is shorter.

Prefixed by letters RE followed by appropriate weather codes.

E.g: RETS, REGR, RESHRA.


Aerodrome weather report codes actuals metars

SAUK02 EGGY 231020Z

METAR

EGSS 231020Z 31015G30KT 1400SW 6000N R24L/P1500 SHRA FEW005 SCT010CB BKN025 10/03 Q0995 RETS WS RWY23 NOSIG 88290592=

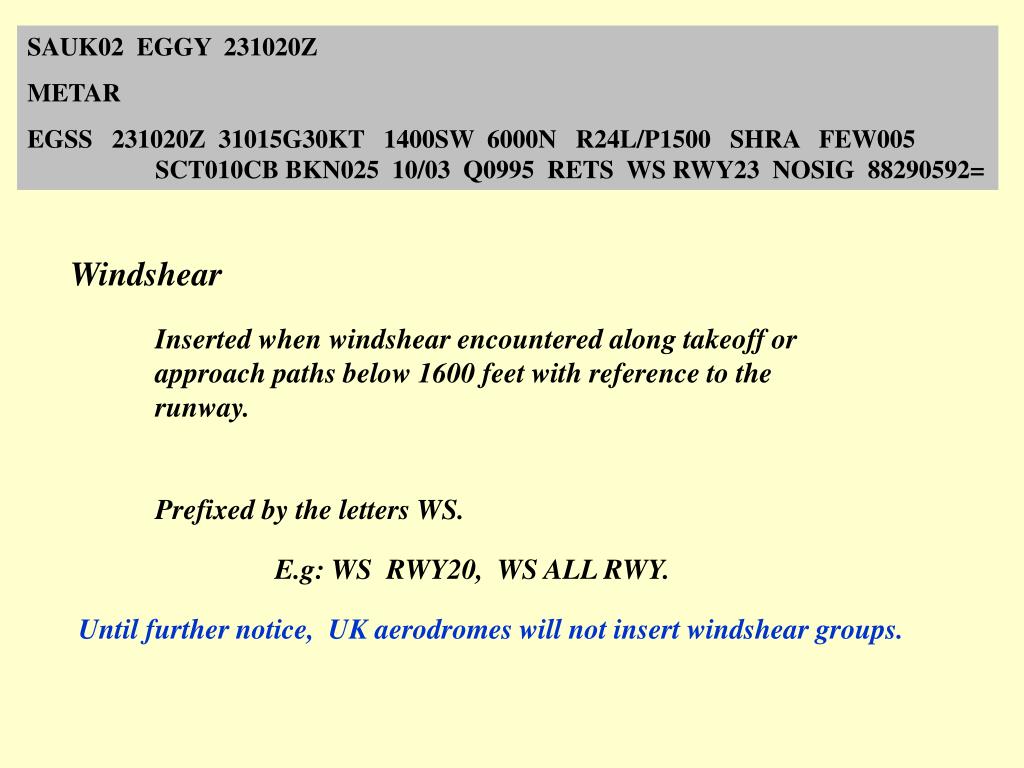

Windshear

Inserted when windshear encountered along takeoff or approach paths below 1600 feet with reference to the runway.

Prefixed by the letters WS.

E.g: WS RWY20, WS ALL RWY.

Until further notice, UK aerodromes will not insert windshear groups.


Aerodrome weather report codes actuals metars

SAUK02 EGGY 231020Z

METAR

EGSS 231020Z 31015G30KT 1400SW 6000N R24L/P1500 SHRA FEW005 SCT010CB BKN025 10/03 Q0995 RETS WS RWY23 NOSIG 88290592=

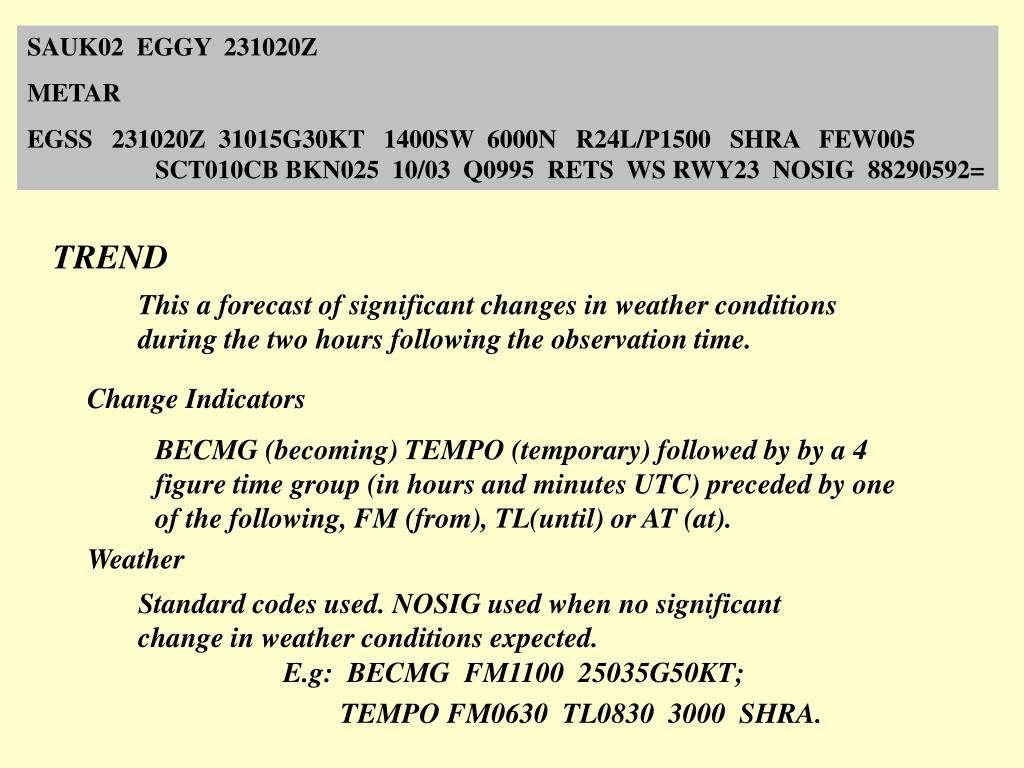

TREND

This a forecast of significant changes in weather conditions during the two hours following the observation time.

Change Indicators

BECMG (becoming) TEMPO (temporary) followed by by a 4 figure time group (in hours and minutes UTC) preceded by one of the following, FM (from), TL(until) or AT (at).

Weather

Standard codes used. NOSIG used when no significant change in weather conditions expected.

E.g: BECMG FM1100 25035G50KT;

TEMPO FM0630 TL0830 3000 SHRA.


Aerodrome weather report codes actuals metars

SAUK02 EGGY 231020Z

METAR

EGSS 231020Z 31015G30KT 1400SW 6000N R24L/P1500 SHRA FEW005 SCT010CB BKN025 10/03 Q0995 RETS WS RWY23 NOSIG 88290592=

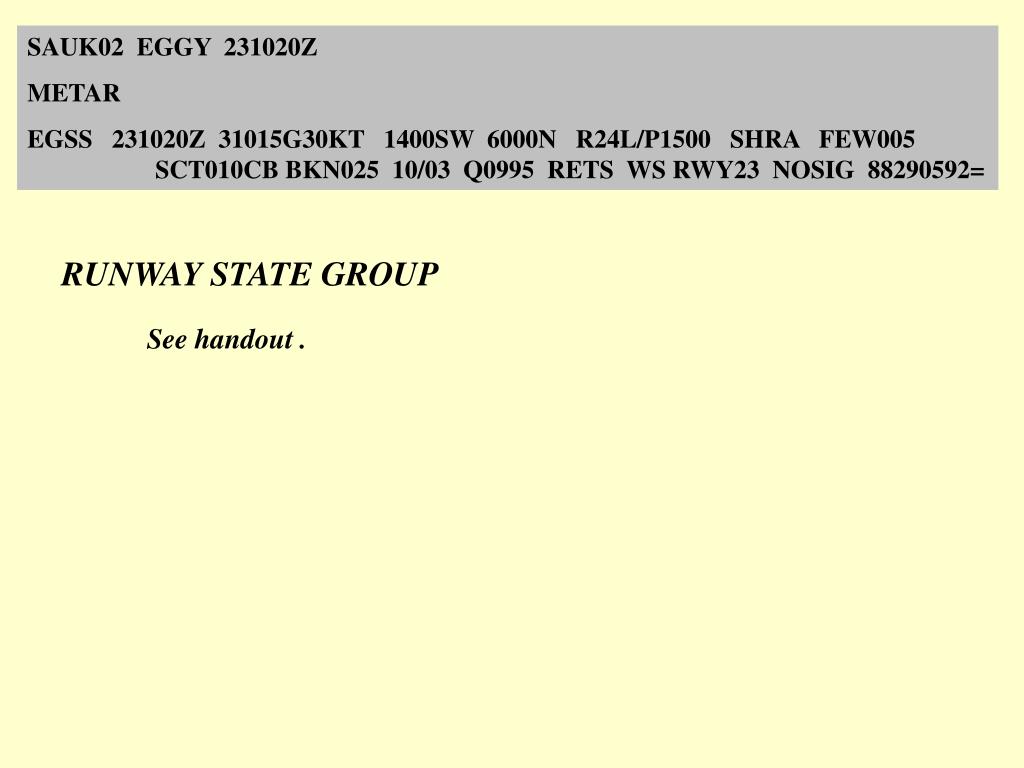

RUNWAY STATE GROUP

See handout .
