A “Short” Introduction to the IRIS Data Management CenterData HoldingsData Organization andData Access

By

Tim Ahern, Program Manager IRIS DMS


Overview what is iris

Overview: What is IRIS?

  • Consortium of 103 US Universities

  • National Science Foundation Funded

    • $12.5 - $14.5 million per year

    • Significant EarthScope Funding

  • Four Programs

    • GSN

      • 138 permanent stations

    • PASSCAL

      • 4000 portable channels

    • E&O

      • Workshops, posters, museum displays

    • DMS

      • 5000 stations over 40 years

      • Archives 9 terabytes per year

      • Distributes 12 terabyte per year

      • Services 200,000 data requests per year

      • Will serve about 1 billion seismograms


The iris data management system

U. of

S. Carolina

ASL DCC

Lamont

WQC

IDA DCC

DMC

KZNet

Almaty

UofW

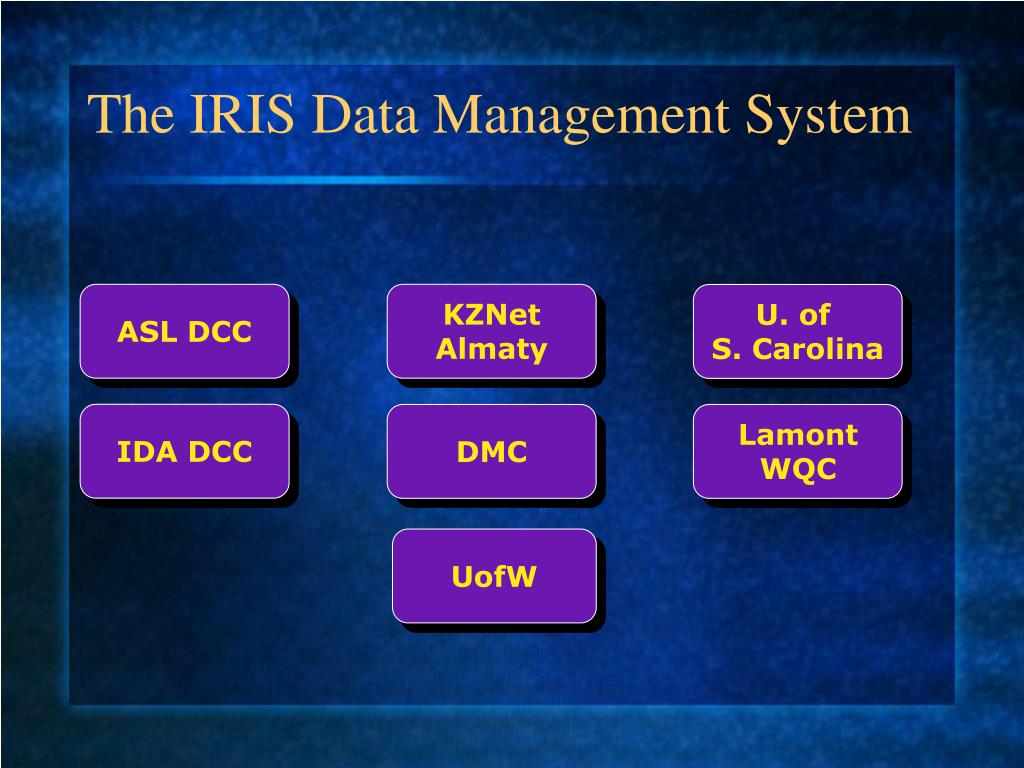

The IRIS Data Management System


Data sources

US Regional

Networks

USArray

GSN

PASSCAL

FDSN

DMC

Non-FDSN

Networks

PBO

SAFOD

Data Sources

IRIS

EarthScope


More than 5 000 seismic stations have data available through the iris dmc

More than 5,000 seismic stations have data available through the IRIS DMC


Stations in central south america

Stations in Central/South America

Metadata


1126 stations telemetered in real time from 54 different networks

1126 Stations telemetered in real timefrom 54 different networks

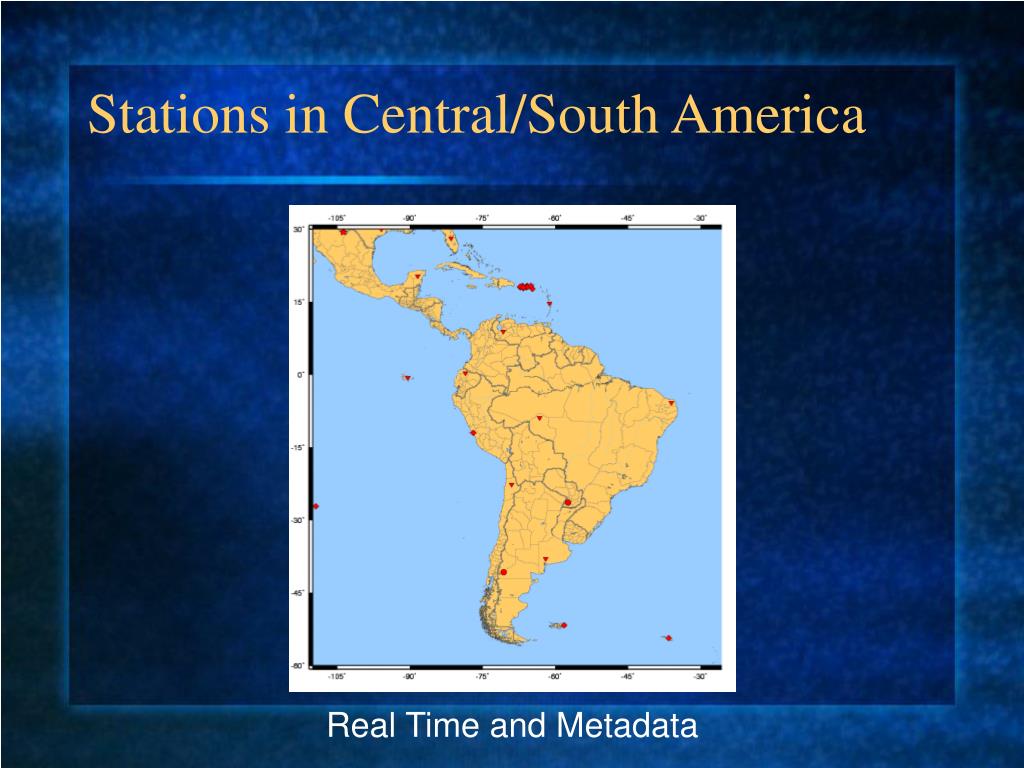

Stations in central south america1

Stations in Central/South America

Real Time and Metadata


Data from 1966 present

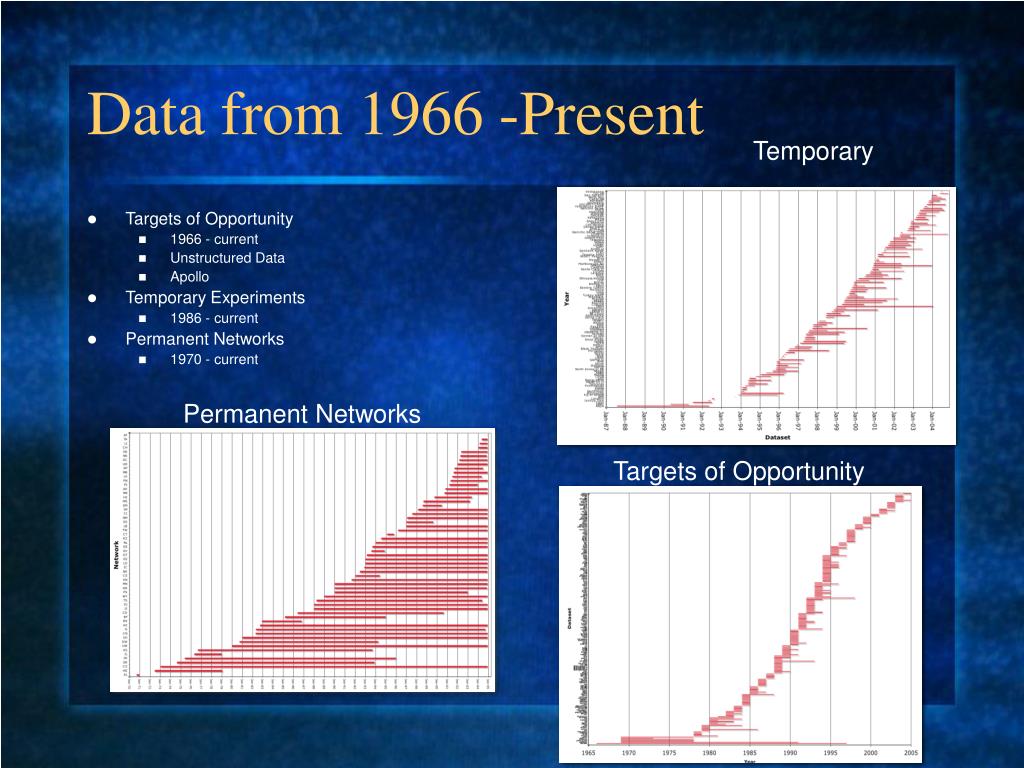

Data from 1966 -Present

Temporary

  • Targets of Opportunity

    • 1966 - current

    • Unstructured Data

    • Apollo

  • Temporary Experiments

    • 1986 - current

  • Permanent Networks

    • 1970 - current

Permanent Networks

Targets of Opportunity


Types of sensor data iris manages

Seismological

Broadband Seismometers

Strong Motion

Buildings

Structures

Free Field

Geophones

Hydrophones

Meteorological

Wind Speed

Wind Direction

Temperature

Humidity

Rain Gauge

Solar Radiaton

Insolation/Pyranometer

Microbarograph

Relative/Absolute

Infrasound

microphones

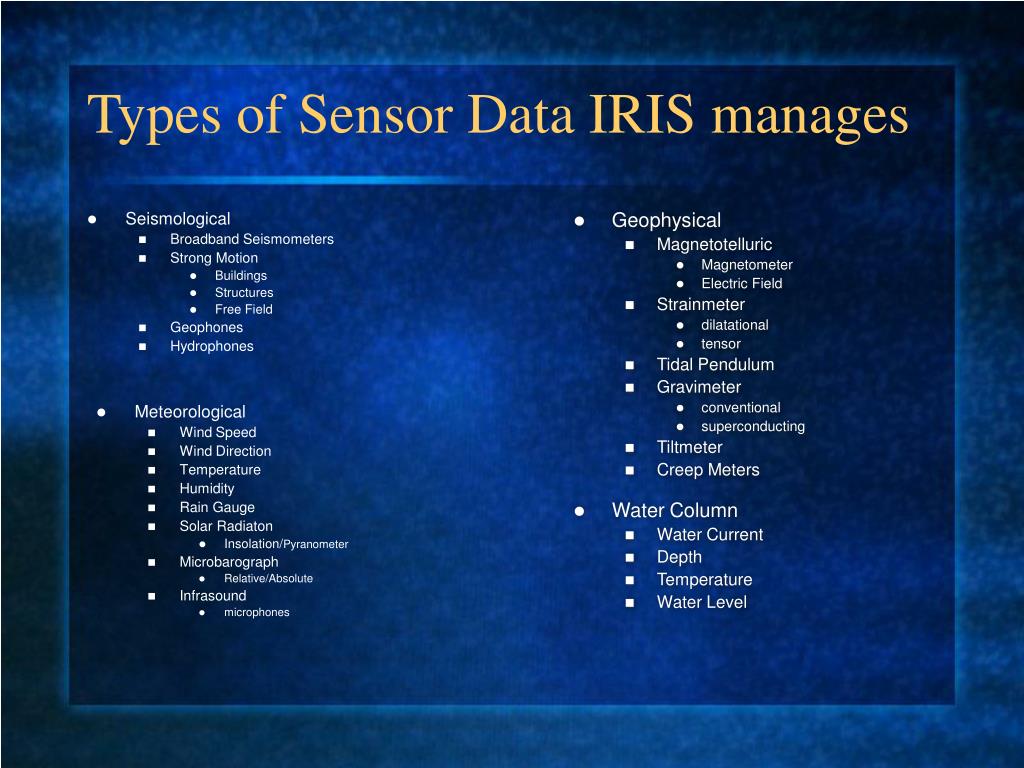

Types of Sensor Data IRIS manages

  • Geophysical

    • Magnetotelluric

      • Magnetometer

      • Electric Field

    • Strainmeter

      • dilatational

      • tensor

    • Tidal Pendulum

    • Gravimeter

      • conventional

      • superconducting

    • Tiltmeter

    • Creep Meters

  • Water Column

    • Water Current

    • Depth

    • Temperature

    • Water Level


Earthscope data

USArray

Seismic

Transportable Array

Permanent Array

Flexible Array

Magnetotelluric Data

SAFOD Seismic Data

IRIS/DMC and NCEDC

Monitoring Channels

250 samples/second

Triggered Events

4000 samples/second

Continuous Data

4000 samples/second

PBO

GPS Data

Via UNAVCO

Seismic Data

Borehole Seismic

Strain

Borehole Strain

Laser Strain

EarthScope Data


45 terabytes and growing

45 terabytes and growing


By tim ahern program manager iris dms

Data Request Tools at the IRIS DMC


Request methods

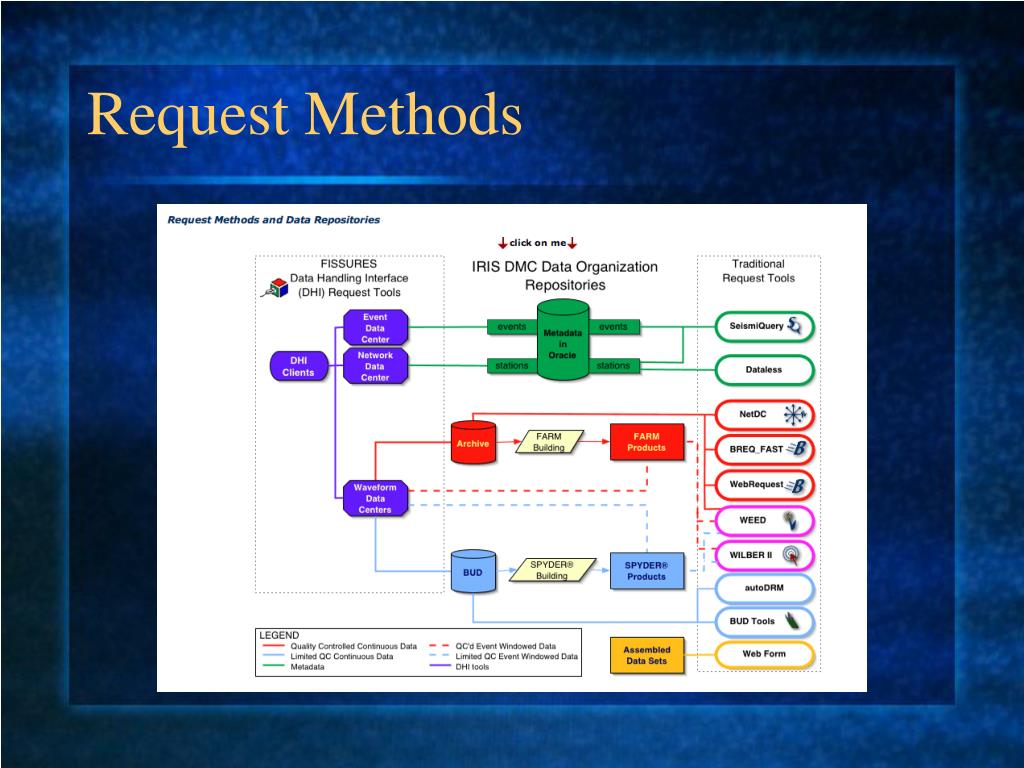

Request Methods


Networking data centers by email

CNSN

Canada

NetDC

Request

NCEDC

USA

SCEDC

USA

FDSN.ORG

IRIS DMC

USA

GEOSCOPE

France

PACIFIC 21

Japan

ORFEUS

Netherlands

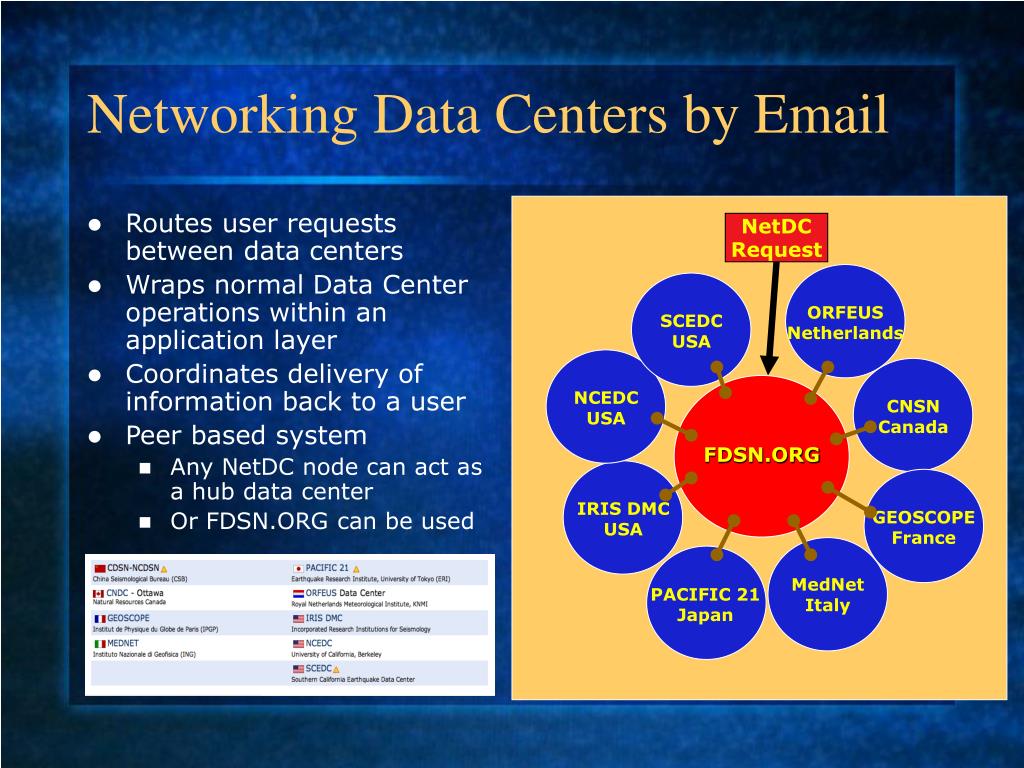

Networking Data Centers by Email

  • Routes user requests between data centers

  • Wraps normal Data Center operations within an application layer

  • Coordinates delivery of information back to a user

  • Peer based system

    • Any NetDC node can act as a hub data center

    • Or FDSN.ORG can be used

MedNet

Italy


Submitting netdc requests

Submitting NetDC Requests

mail [email protected]


By tim ahern program manager iris dms

Distributed Data Center Technologies

FISSURES

and the

Data Handling Interface


Data handling interface dhi access to distributed data centers

DHI Data Center

DHI Data Center

IDL

Network

Network

IDL

Waveforms

Waveforms

IDL

Events

Events

DHI Data Center

DHI Data Center

Network

Network

Waveforms

Waveforms

Events

Events

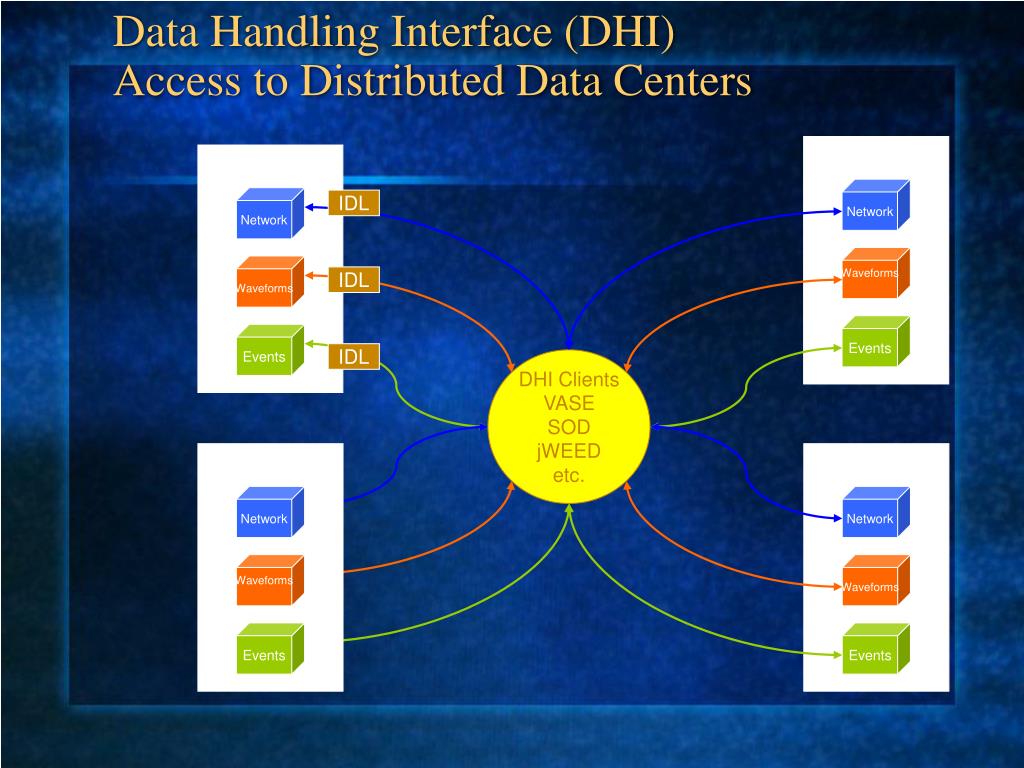

Data Handling Interface (DHI)Access to Distributed Data Centers

DHI Clients

VASE

SOD

jWEED

etc.


By tim ahern program manager iris dms

Distributed Data Center Technologies

DHI Enabled Data Centers


Dhi enabled centers

DHI Enabled Centers

Existing

Planned

Planned (Events)


Dhi enabled centers european

DHI Enabled Centers- European

Existing

Planned

Planned (Events)


By tim ahern program manager iris dms

Using Real Time Data from

the IRIS DMC


Real time data at iris

BB

Array

BK

AT

TA

NN

PN

LD

AZ

IU

H2

IC

IM

II

AK

EQ

NP

FA

LISS

(3)

CI

Antelope

ORB

(24)

GT

CD-1

AU

KZ

TW

MY

KN

CZ

BUD

Buffer of Uniform Data

SC

AR

XX

MB

SEEDLink

(5)

Earthworm

Waveserver

(21)

UU

CH

NL

UW

GE

MN

NI

PBO

UO

PR

PA

WY

NM

IW

ER

ER

RE

CC

PE

ET

IE

LI

US

LB

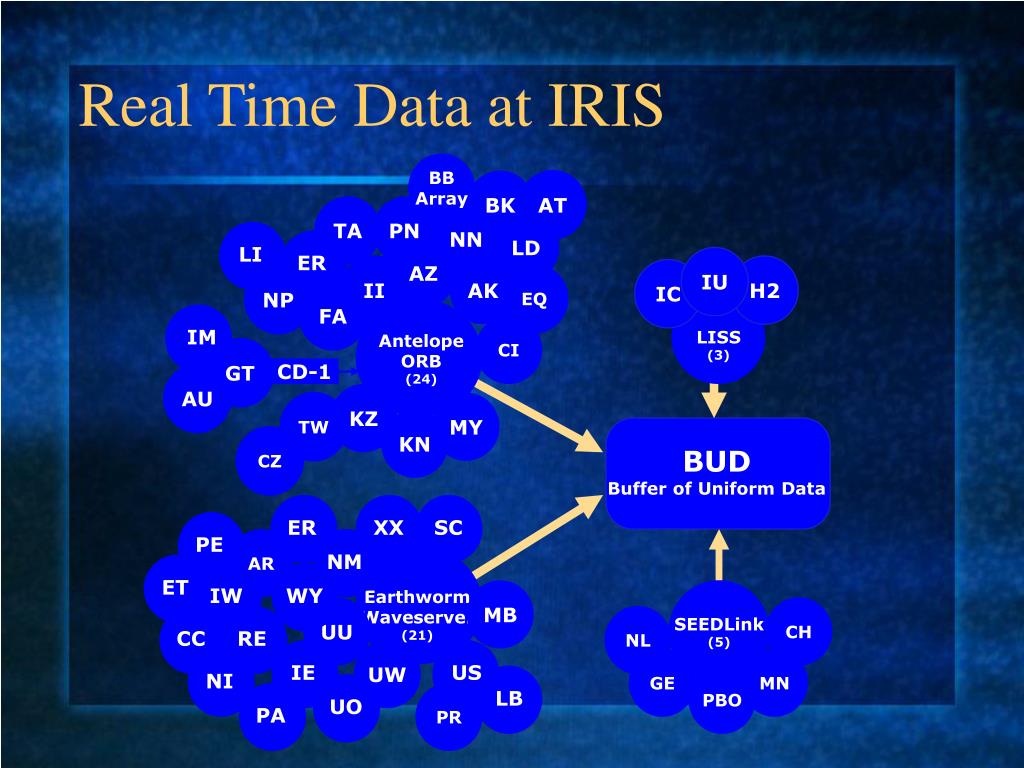

Real Time Data at IRIS


Real time data flow from dmc

LISS

SeedLink

DHI

BUD

Buffer of Uniform Data

Real Time Data Flow from DMC

Antelope

Earthworm

SeisGram2K

VASE

SOD

EMM


More information bud page

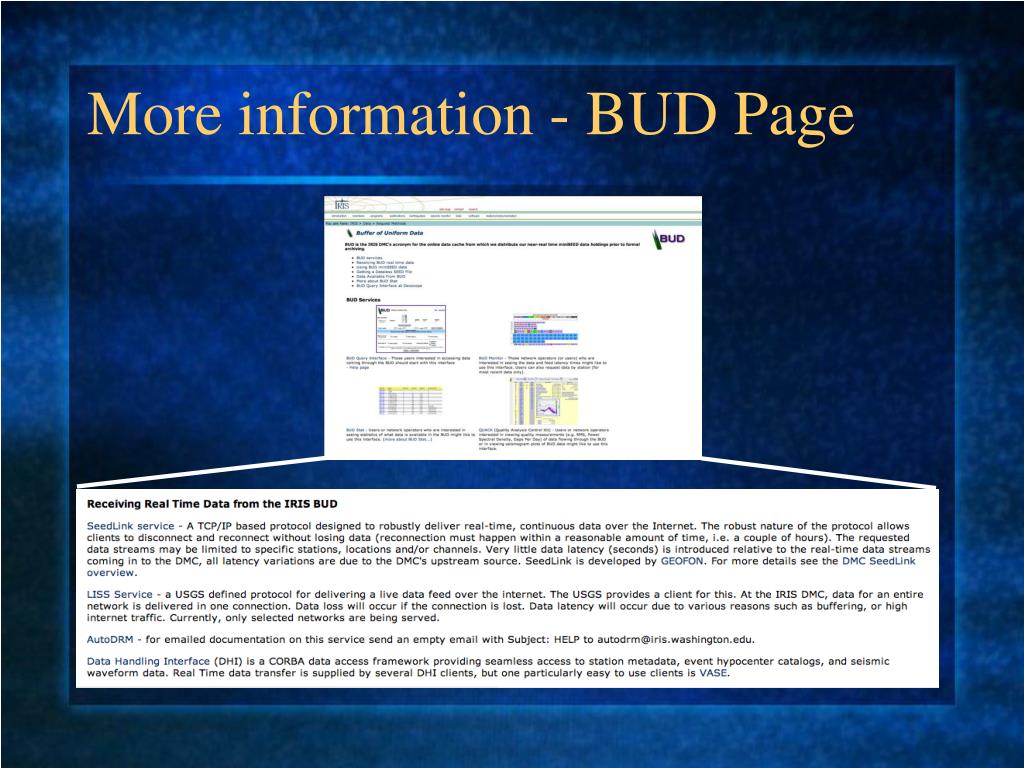

More information - BUD Page


Global sharing of data from remote places

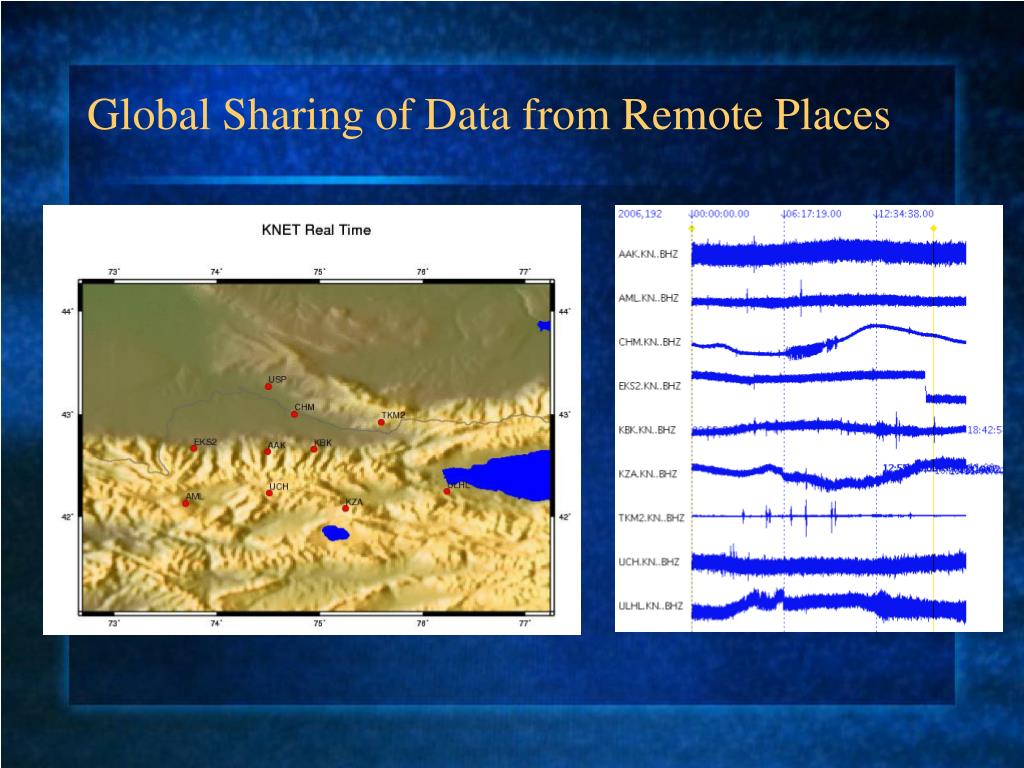

Global Sharing of Data from Remote Places
