Adaptive firs taking place at lasti

Adaptive FIRstaking place at Lasti

Richard Mittleman

Laurent Ruet

Brett Shapiro

April 2006

LIGO-G060161-00-Z


The problem

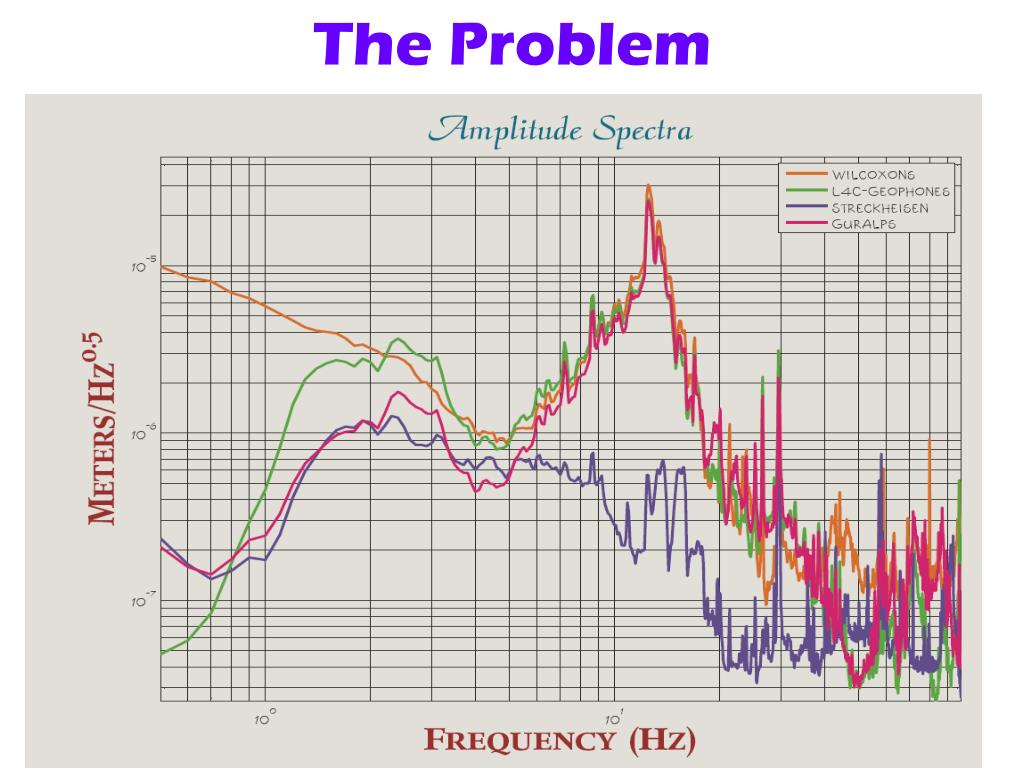

The Problem

LIGO-G060161-00-Z


Fir implementation

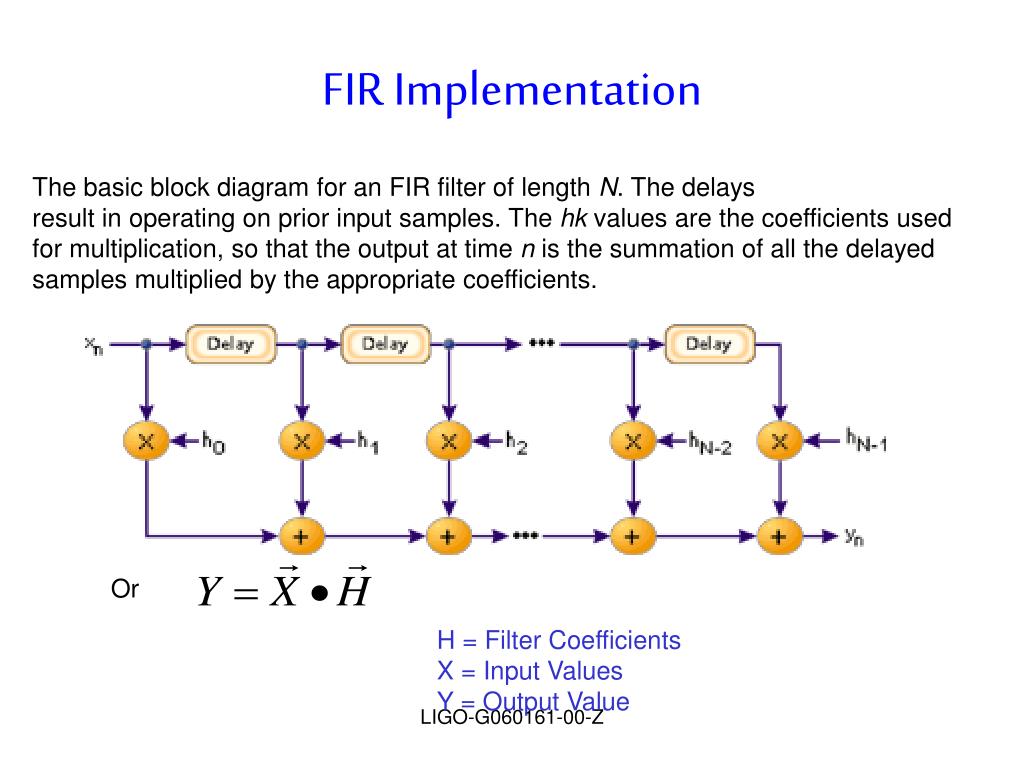

FIR Implementation

The basic block diagram for an FIR filter of length N. The delays

result in operating on prior input samples. The hk values are the coefficients used

for multiplication, so that the output at time n is the summation of all the delayed

samples multiplied by the appropriate coefficients.

Or

H = Filter Coefficients

X = Input Values

Y = Output Value

LIGO-G060161-00-Z


Iir implementation

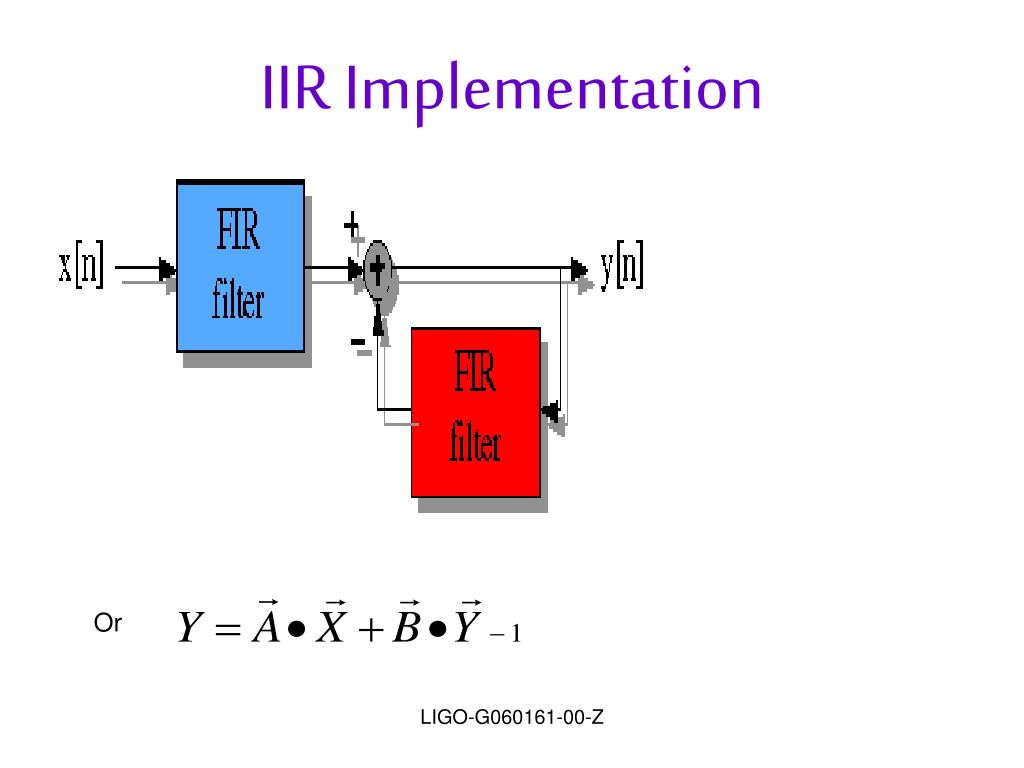

IIR Implementation

Or

LIGO-G060161-00-Z


Iir implementation1

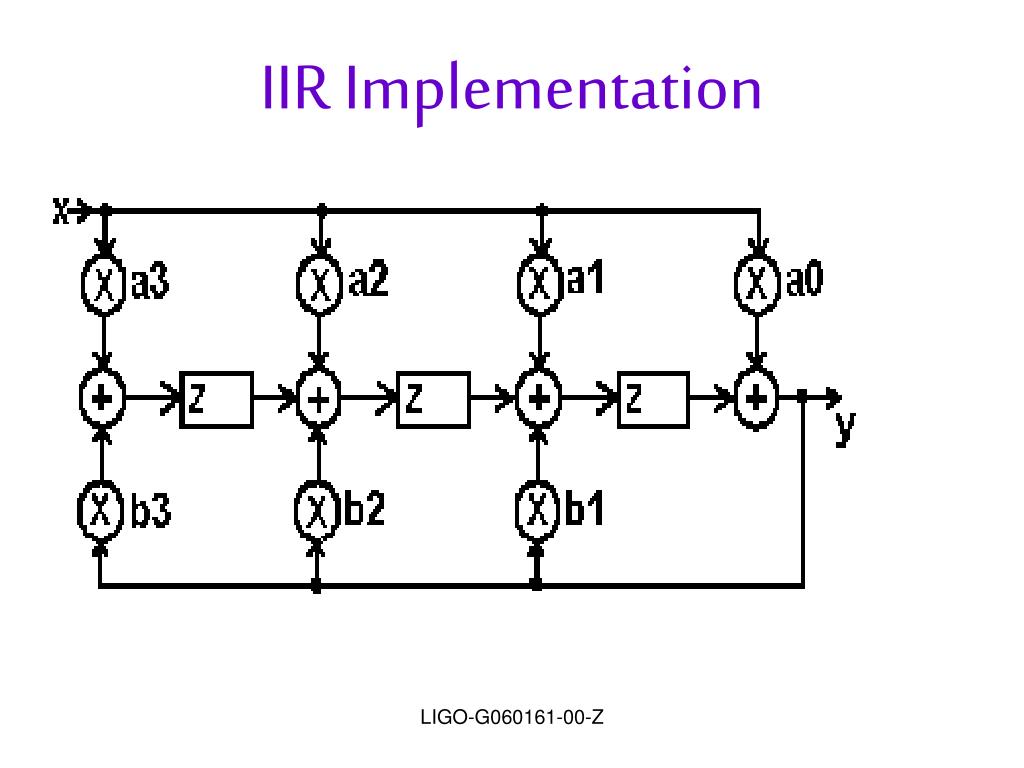

IIR Implementation

LIGO-G060161-00-Z


Adaptive algorithm

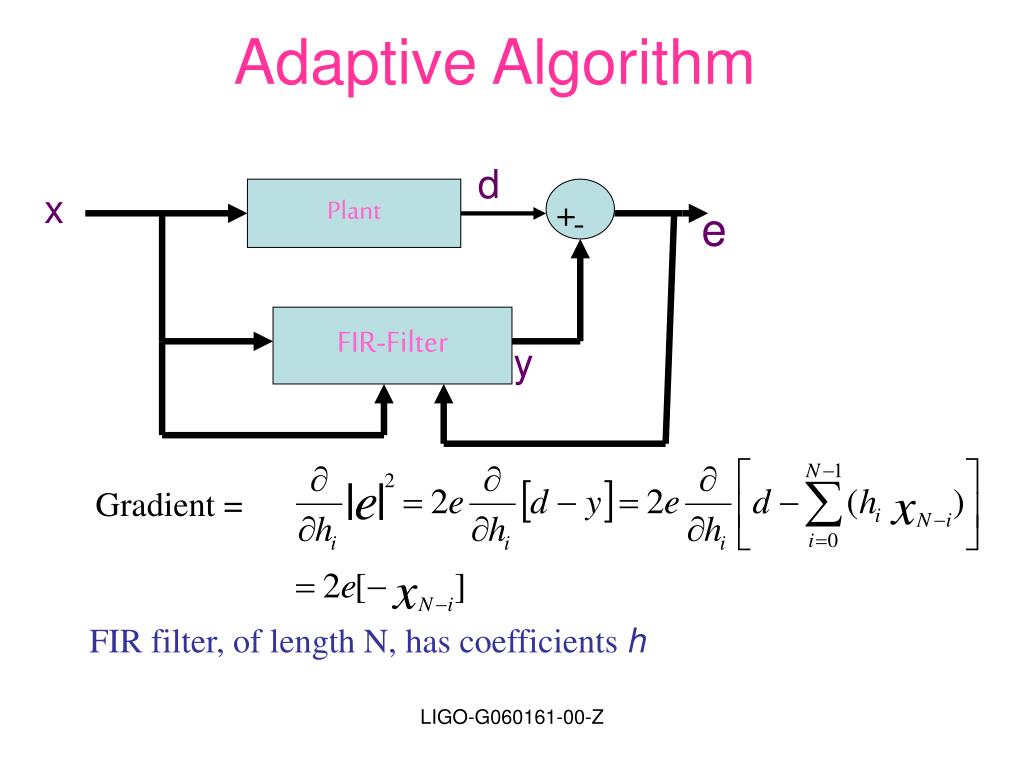

Adaptive Algorithm

d

x

Plant

+

-

e

FIR-Filter

y

Gradient =

FIR filter, of length N, has coefficients h

LIGO-G060161-00-Z


Control strategy

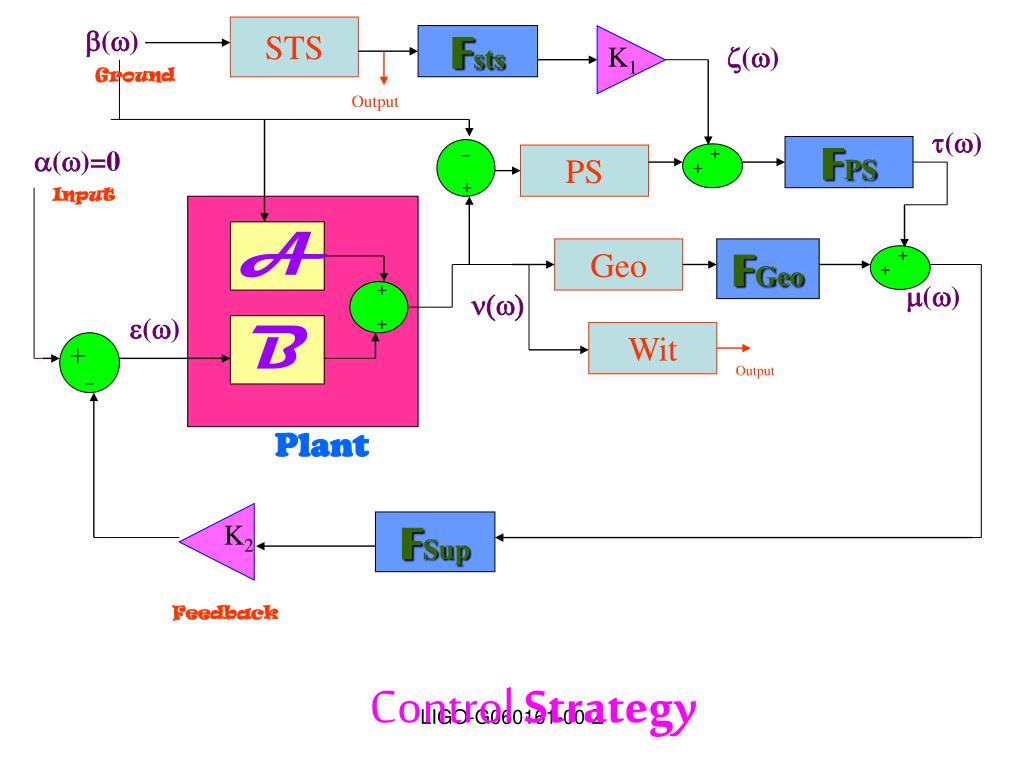

Control Strategy

K1

A

B

+

+

+

+

+

+

+

+

+

STS

()

Fsts

()

Ground

Output

()

FPS

()=0

PS

+

Input

Geo

FGeo

()

()

()

Wit

+

Output

Plant

K2

FSup

Feedback

LIGO-G060161-00-Z


Fir implementation1

FIR Implementation

G

+

Plant

Plant-B

B

-

Actuators

Shaping

Filter

Output

Filter

H(FIR)

S = Shaping Filter

O = Output Filter

P = Plant(Actuator to

Witness Sensor)

G = Ground input

LIGO-G060161-00-Z


Adaptive firs taking place at lasti

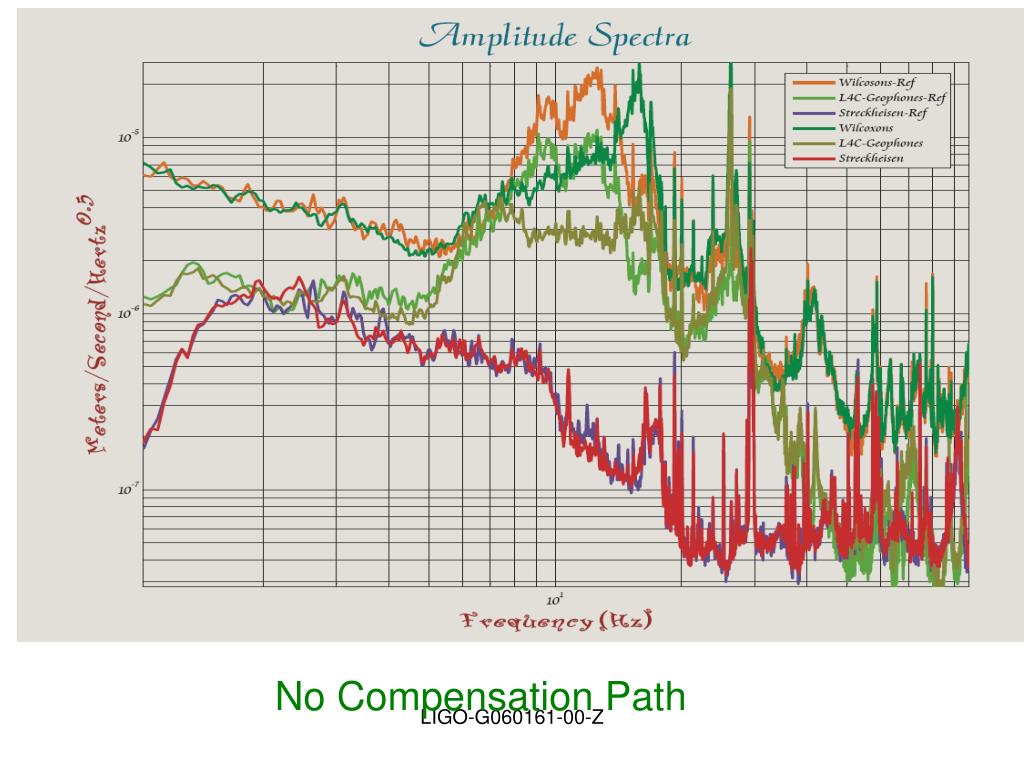

No Compensation Path

LIGO-G060161-00-Z


Adaptive firs taking place at lasti

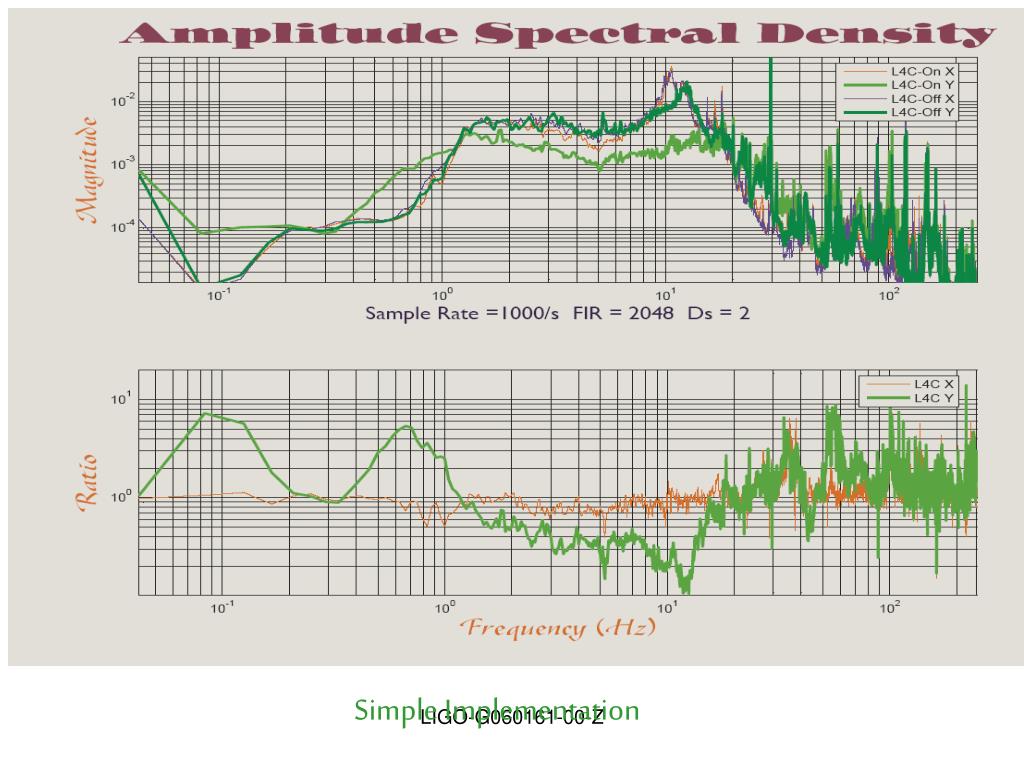

Simple Implementation

LIGO-G060161-00-Z


Feed forward sensor on the bsc

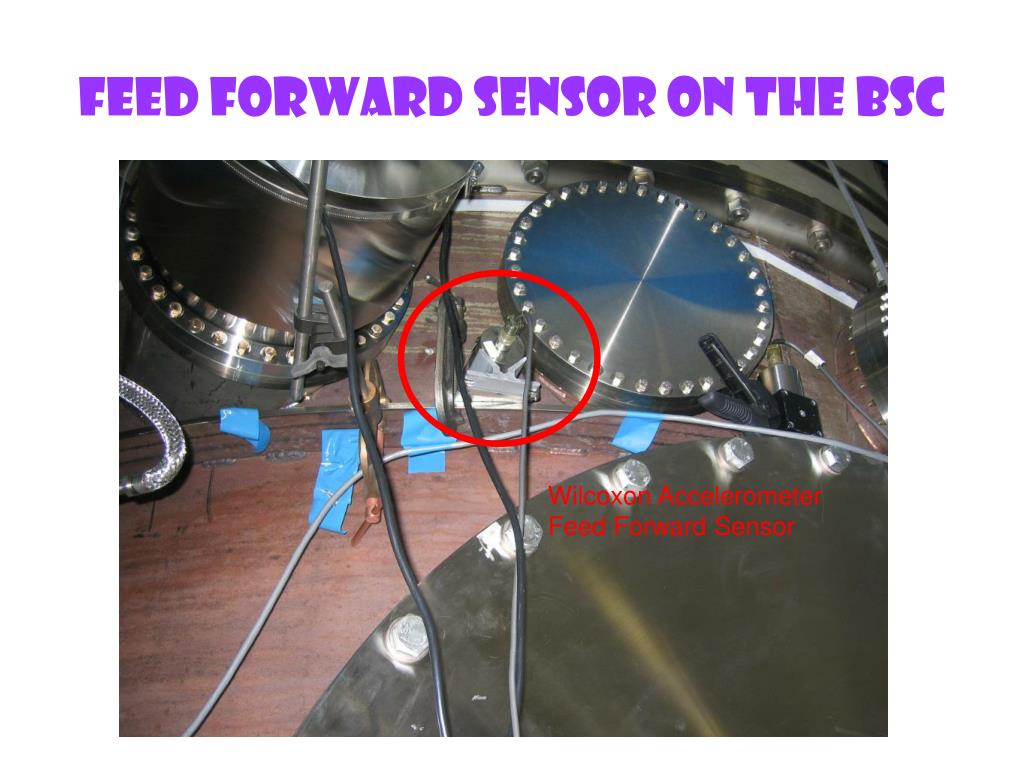

Feed Forward Sensor On The BSC

Wilcoxon Accelerometer

Feed Forward Sensor

LIGO-G060161-00-Z


Siso bsc model

SISO BSC Model

STS

+

STS_f

G

+

To Pier top

+

+

+

+

PS

PS_f

To payload

+

Plant

+

A

GEO

Geo_f

WIL

FIR

WIT

+

Sup_f

+

= Sensors

= Filters

LIGO-G060161-00-Z


Closed loop response

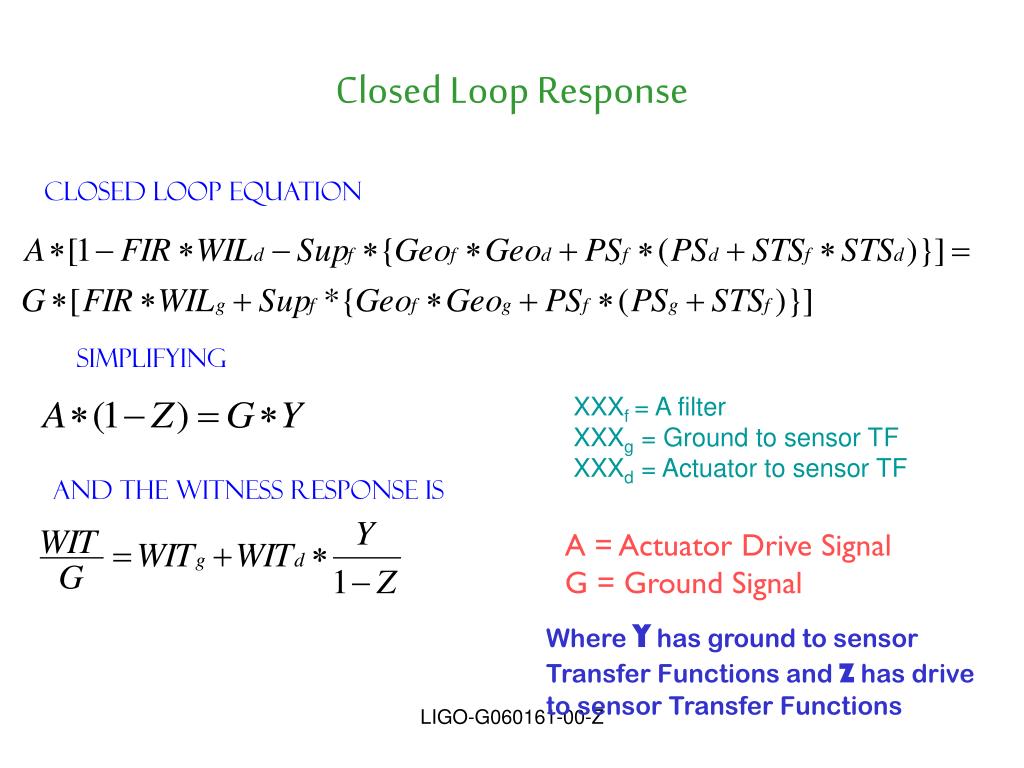

Closed Loop Response

Closed Loop Equation

Simplifying

XXXf = A filter

XXXg = Ground to sensor TF

XXXd = Actuator to sensor TF

And the Witness response is

A = Actuator Drive Signal

G = Ground Signal

Where Y has ground to sensor

Transfer Functions and Z has drive

to sensor Transfer Functions

LIGO-G060161-00-Z


Extra feed back path

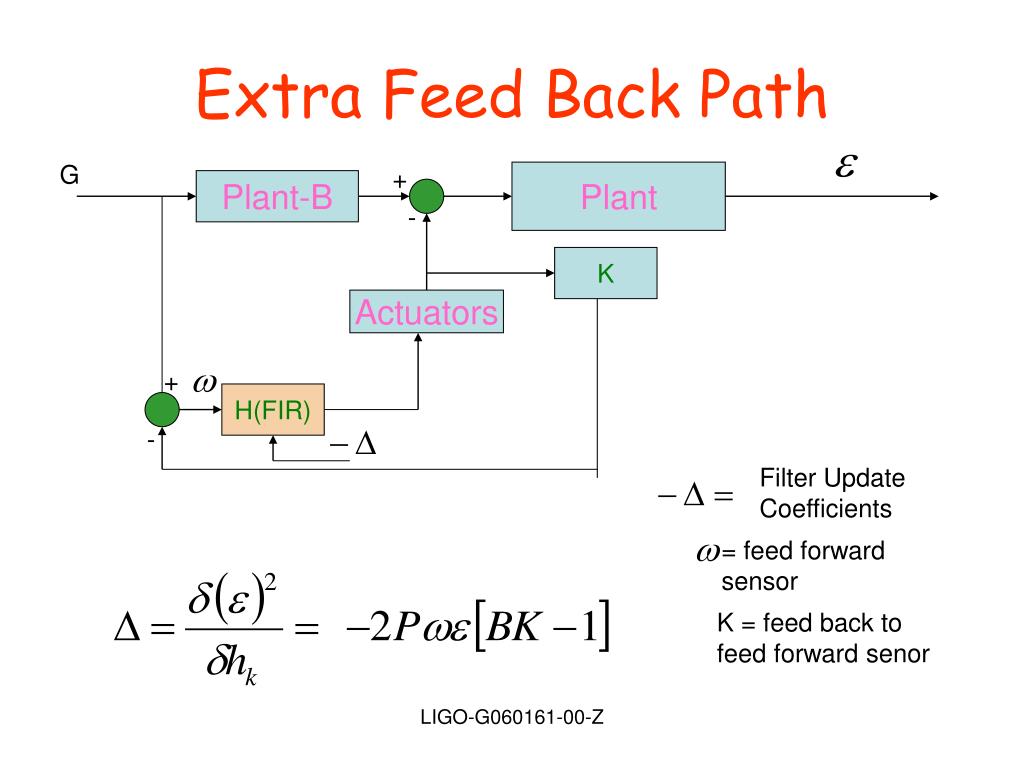

Extra Feed Back Path

G

+

Plant

Plant-B

B

-

K

Actuators

+

H(FIR)

-

Filter Update

Coefficients

= feed forward

sensor

K = feed back to

feed forward senor

LIGO-G060161-00-Z


Make an approximation

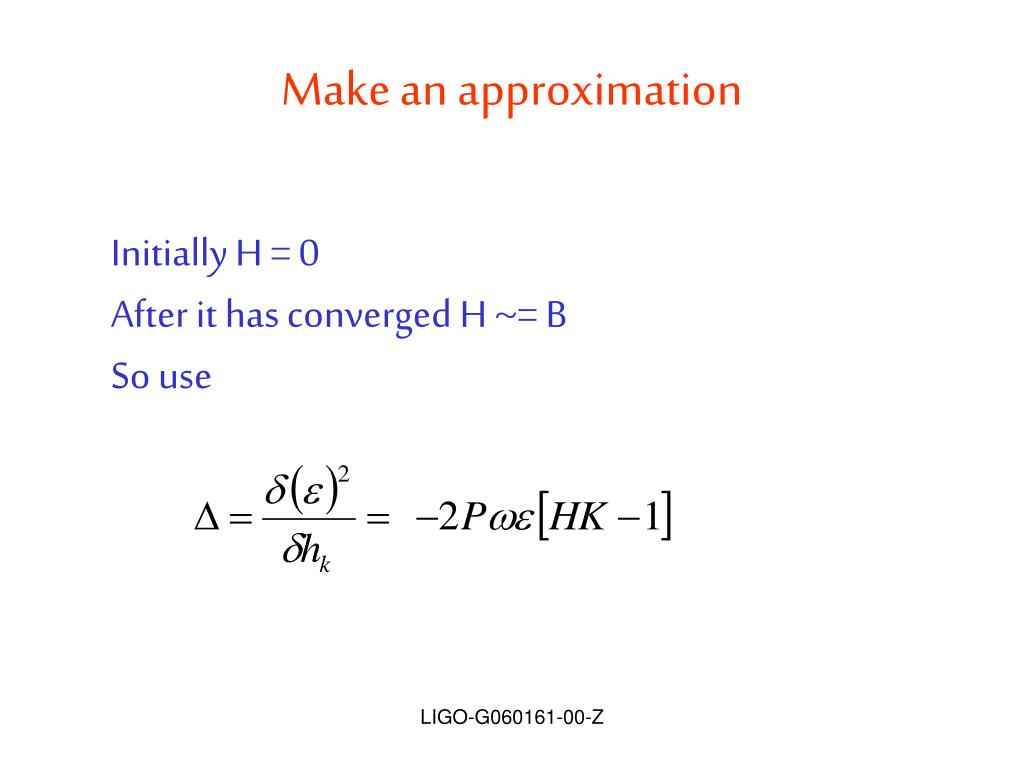

Make an approximation

Initially H = 0

After it has converged H ~= B

So use

LIGO-G060161-00-Z


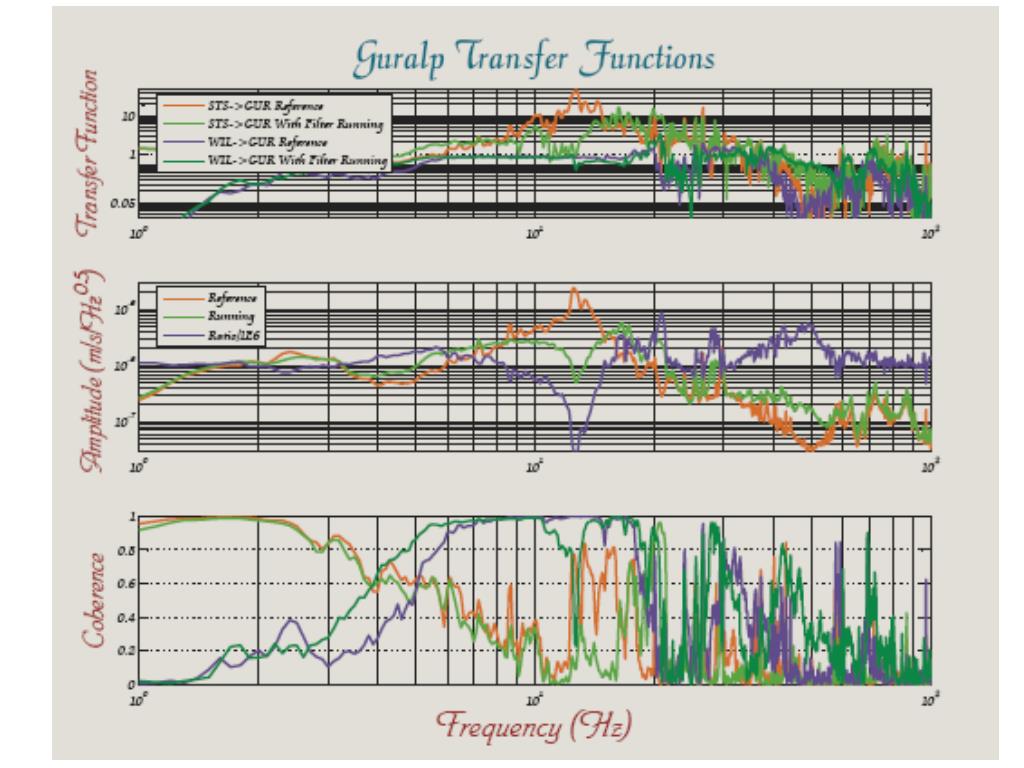

Adaptive firs taking place at lasti

LIGO-G060161-00-Z


Adaptive firs taking place at lasti

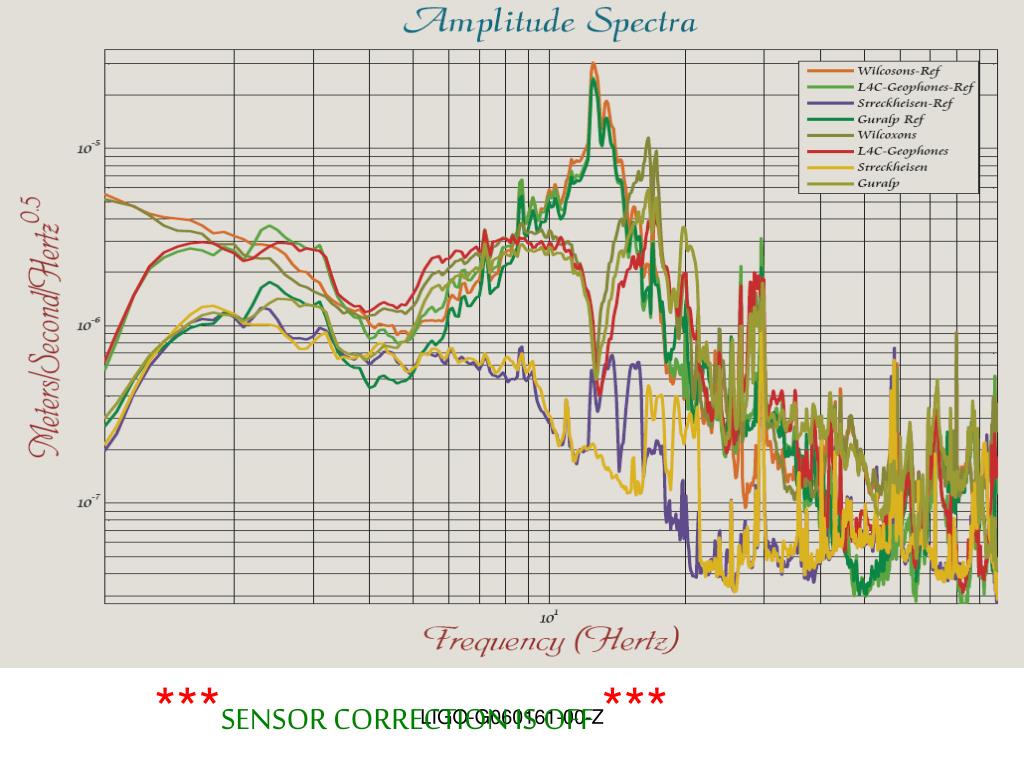

***SENSOR CORRECTION IS OFF***

LIGO-G060161-00-Z


What needs to get done

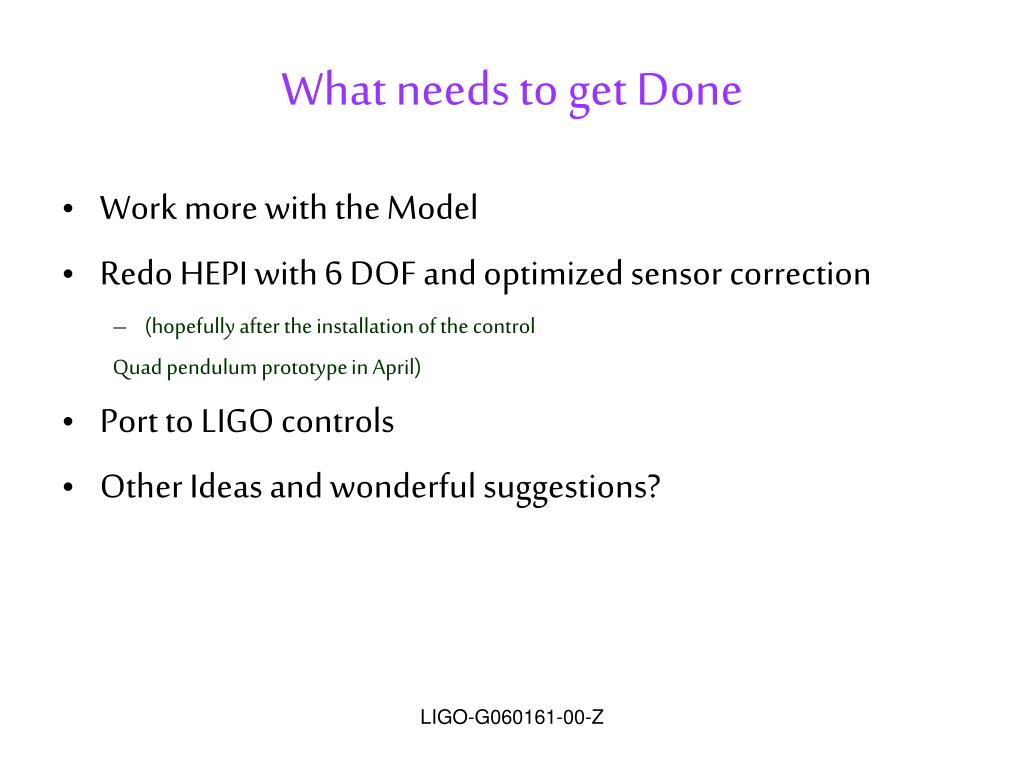

What needs to get Done

  • Work more with the Model

  • Redo HEPI with 6 DOF and optimized sensor correction

    • (hopefully after the installation of the control

      Quad pendulum prototype in April)

  • Port to LIGO controls

  • Other Ideas and wonderful suggestions?

LIGO-G060161-00-Z


Adaptive fir filters gradient minimization

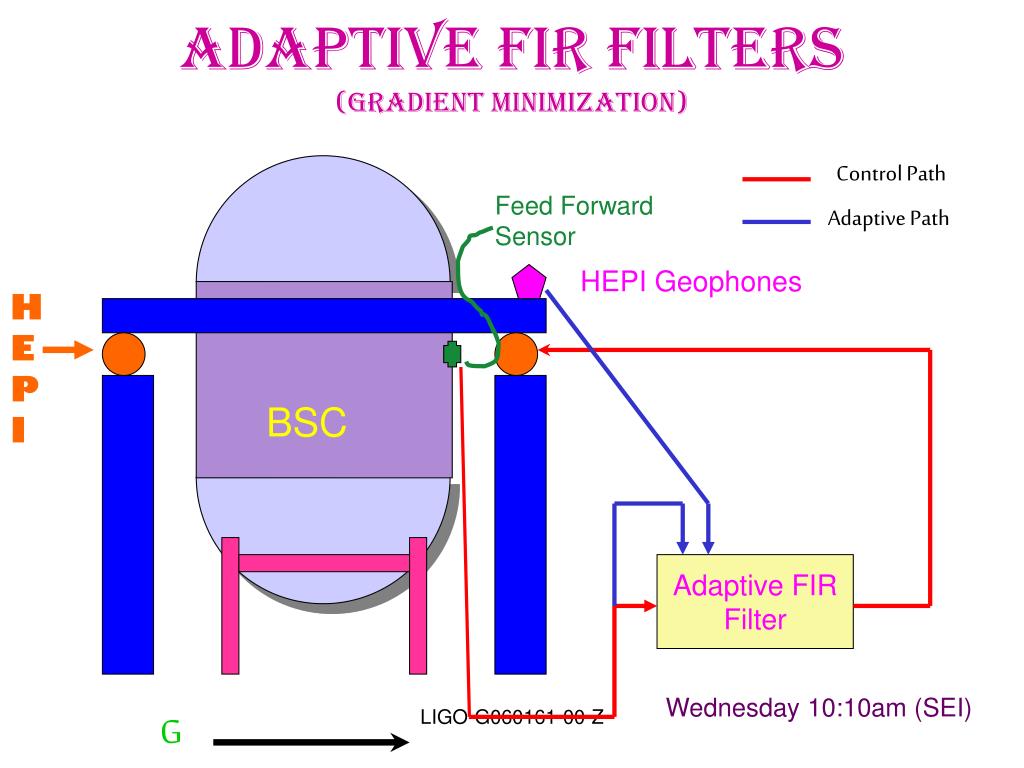

Adaptive FIR Filters(Gradient Minimization)

Control Path

Feed Forward

Sensor

Adaptive Path

HEPI Geophones

HEPI

BSC

Adaptive FIR

Filter

Wednesday 10:10am (SEI)

LIGO-G060161-00-Z
