Presentation Transcript

Notional Boundary Concept

1. Legal boundary is compliance boundary

Legal Boundary

50 metres?

Nominal Boundary

Compliance boundary

Contaminant mass


2 notional boundary is compliance boundary

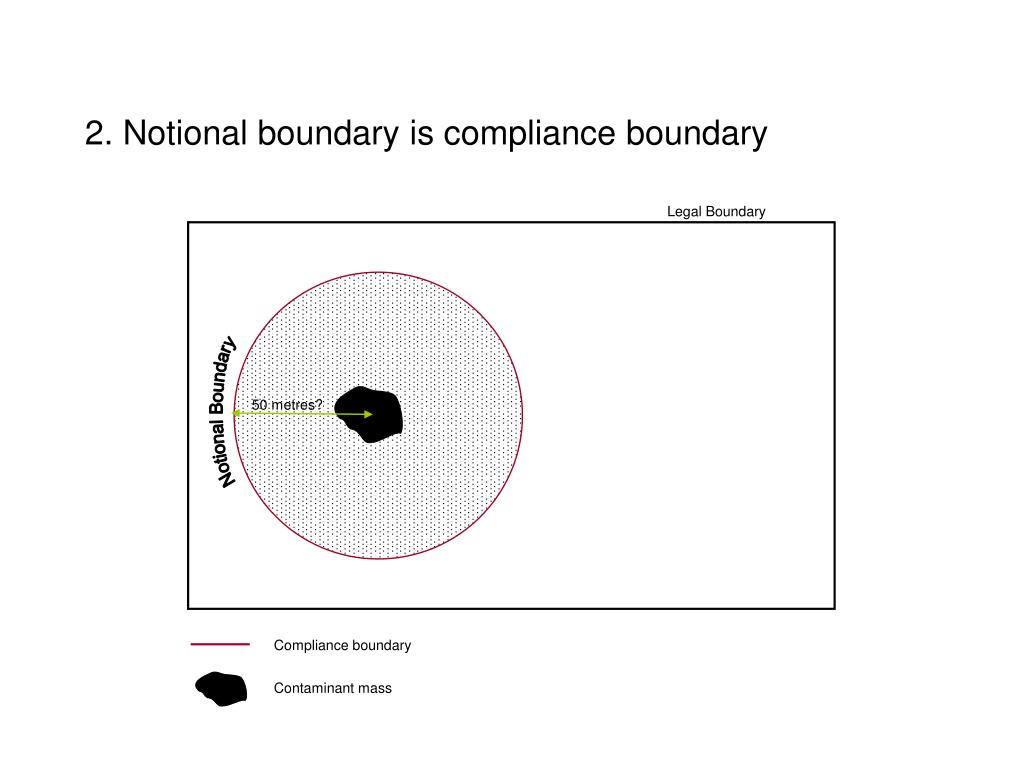

2. Notional boundary is compliance boundary

Legal Boundary

50 metres?

Notional Boundary

Compliance boundary

Contaminant mass


3 notional boundary is compliance boundary groundwater use

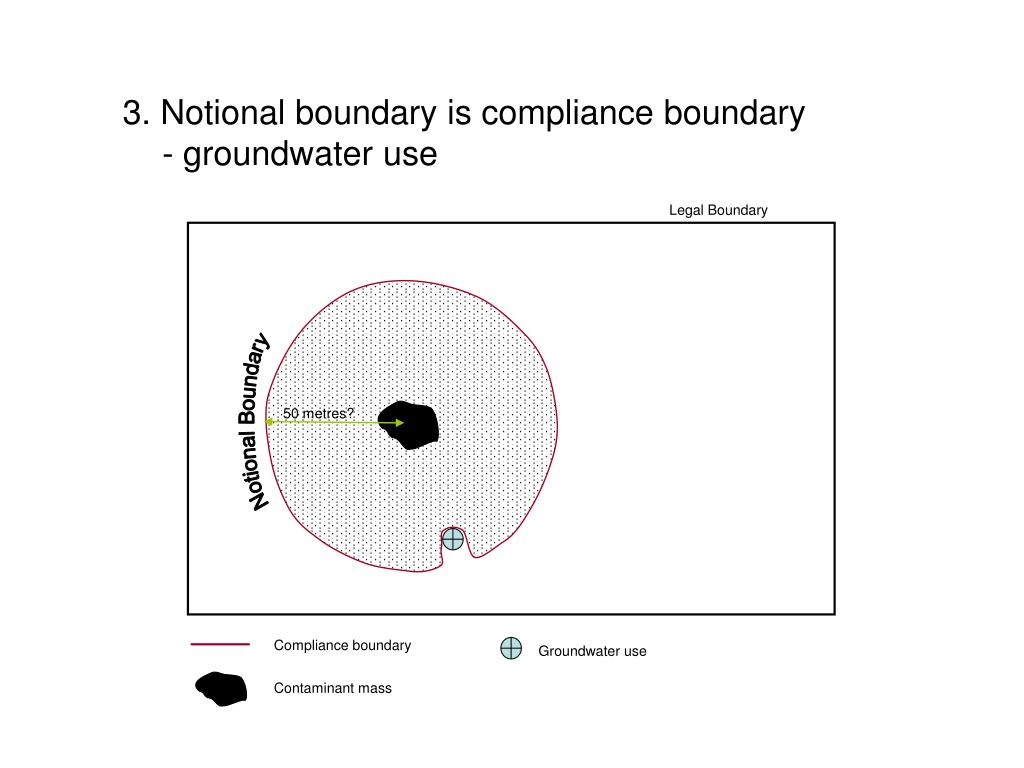

3. Notional boundary is compliance boundary- groundwater use

Legal Boundary

50 metres?

Notional Boundary

Compliance boundary

Groundwater use

Contaminant mass


4 notional boundary is compliance boundary groundwater use surface water

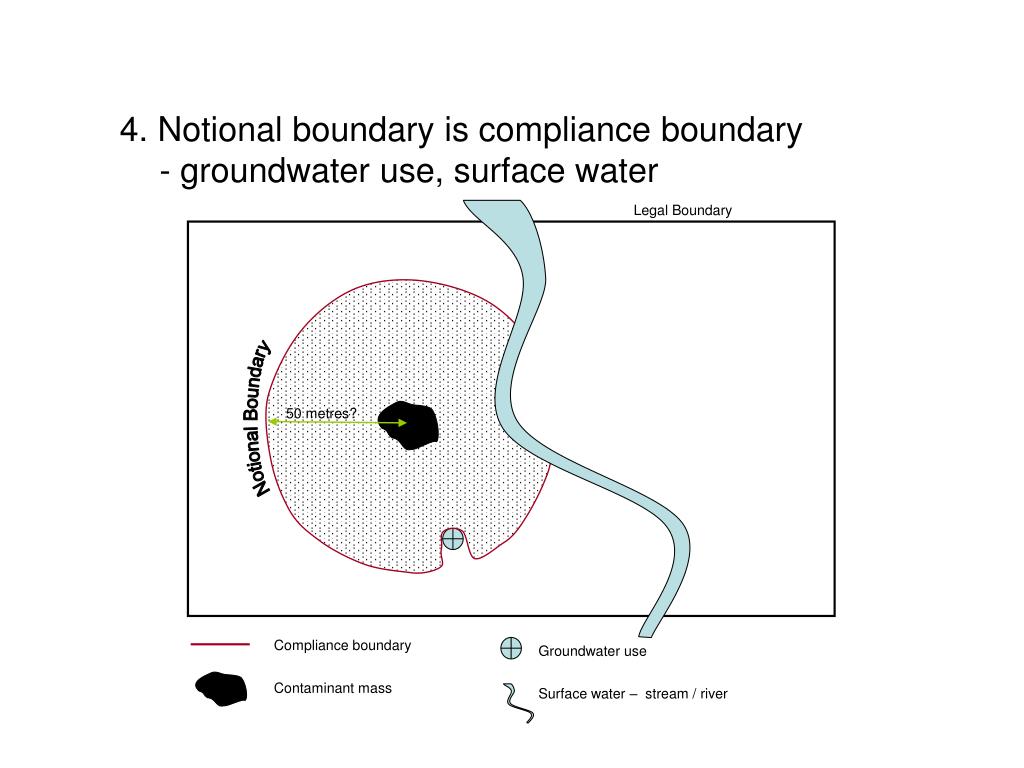

4. Notional boundary is compliance boundary - groundwater use, surface water

Legal Boundary

50 metres?

Notional Boundary

Compliance boundary

Groundwater use

Contaminant mass

Surface water – stream / river

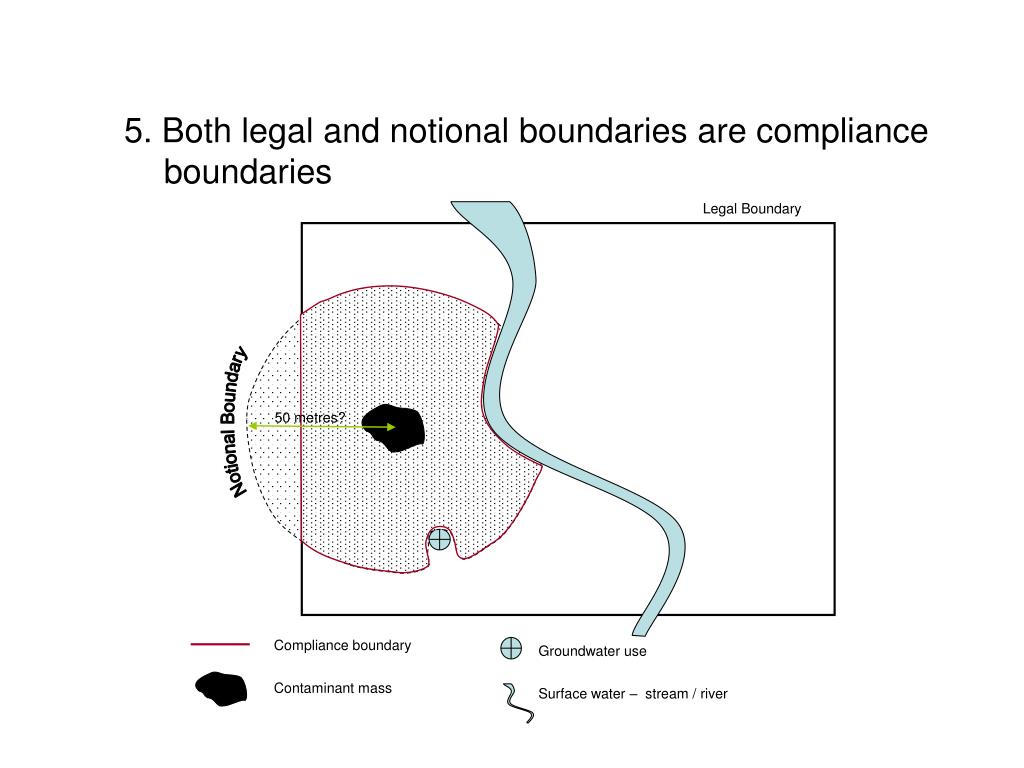

5. Both legal and notional boundaries are compliance boundaries

Legal Boundary

50 metres?

Notional Boundary

Compliance boundary

Groundwater use

Contaminant mass

Surface water – stream / river

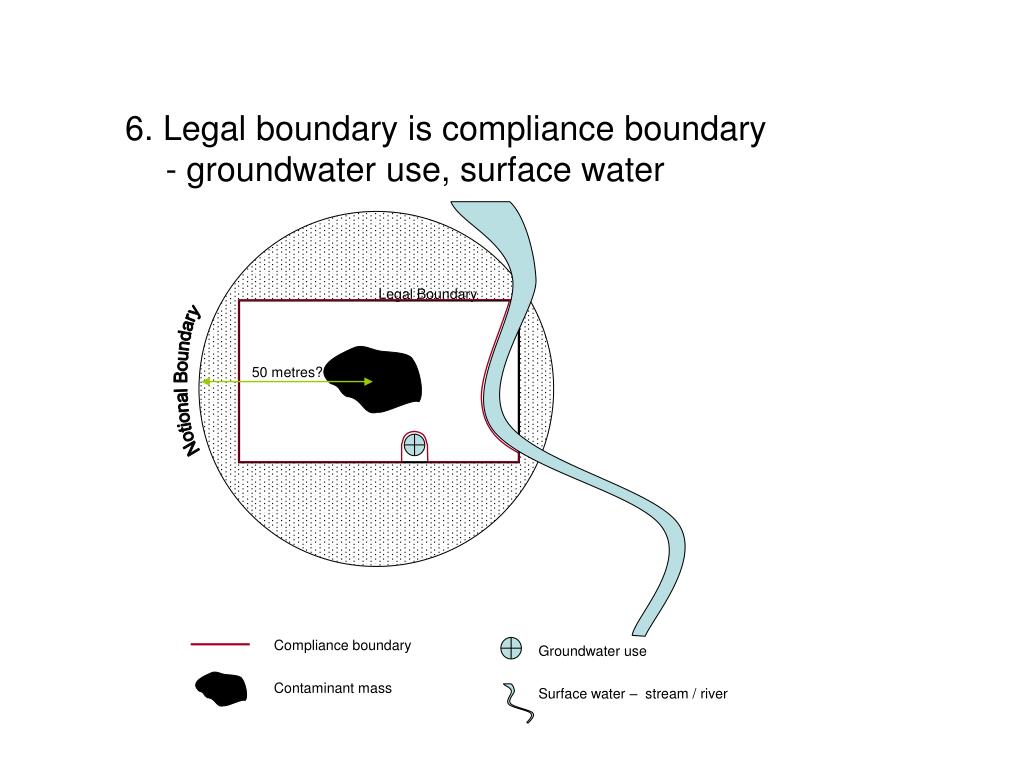

6. Legal boundary is compliance boundary boundaries- groundwater use, surface water

Legal Boundary

50 metres?

Notional Boundary

Compliance boundary

Groundwater use

Contaminant mass

Surface water – stream / river
