Presentation Transcript

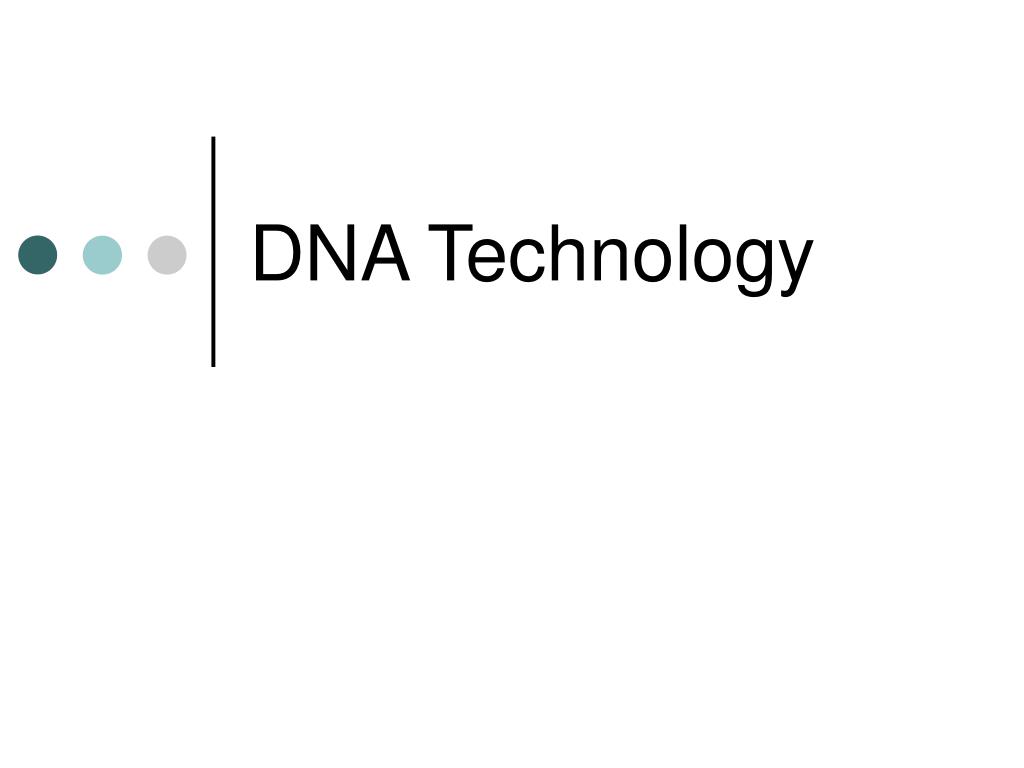

Dna technology

DNA Technology

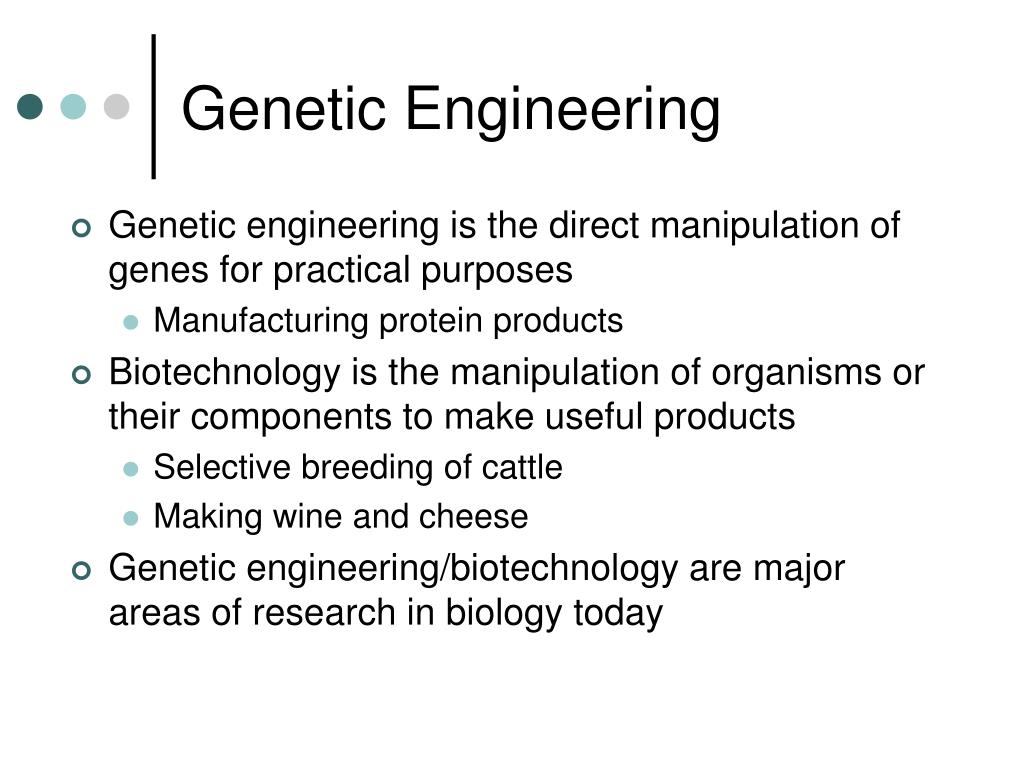

Genetic engineering

Genetic Engineering

  • Genetic engineering is the direct manipulation of genes for practical purposes

    • Manufacturing protein products

  • Biotechnology is the manipulation of organisms or their components to make useful products

    • Selective breeding of cattle

    • Making wine and cheese

  • Genetic engineering/biotechnology are major areas of research in biology today


Dna cloning

DNA Cloning

  • Preparing identical copies of a specific gene

    • Can be used to produce a protein product (gene  protein)

  • Copies of a gene can be used for:

    • Basic research

    • Endowing an organism with a new metabolic capability

      • pGLO

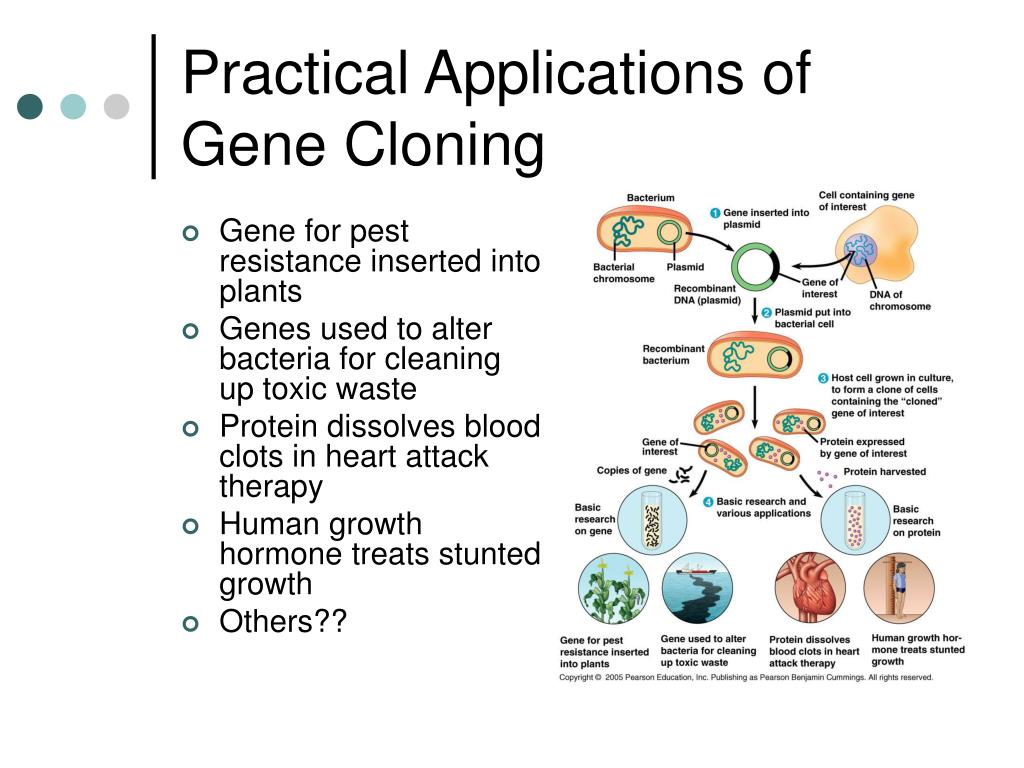

Practical applications of gene cloning

Practical Applications of Gene Cloning

  • Gene for pest resistance inserted into plants

  • Genes used to alter bacteria for cleaning up toxic waste

  • Protein dissolves blood clots in heart attack therapy

  • Human growth hormone treats stunted growth

  • Others??


Restriction enzymes recombinant dna

Restriction Enzymes & Recombinant DNA

  • Restriction Enzymes –

    • enzymes that cut DNA molecules at specific locations

    • Look for specific sequences:

      • Ie: ATTACCGTA

  • Recombinant DNA –

    • DNA in which nucleotide sequences from 2 different sources (often different species) are combined into the same DNA molecule

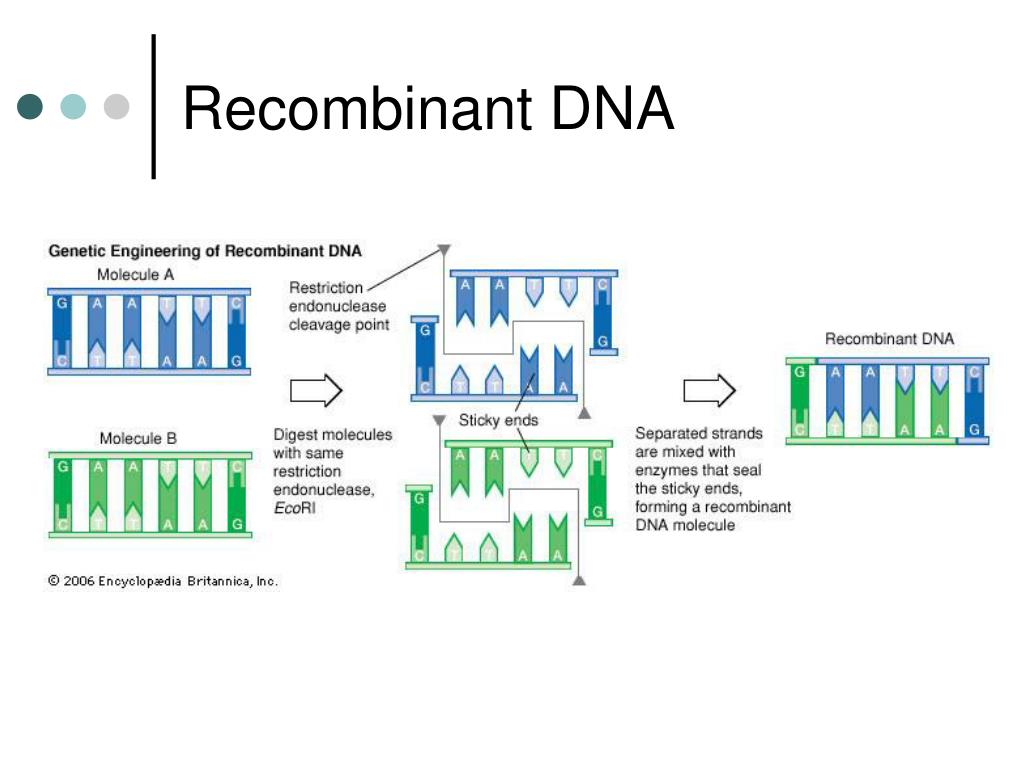

Recombinant dna

Recombinant DNA

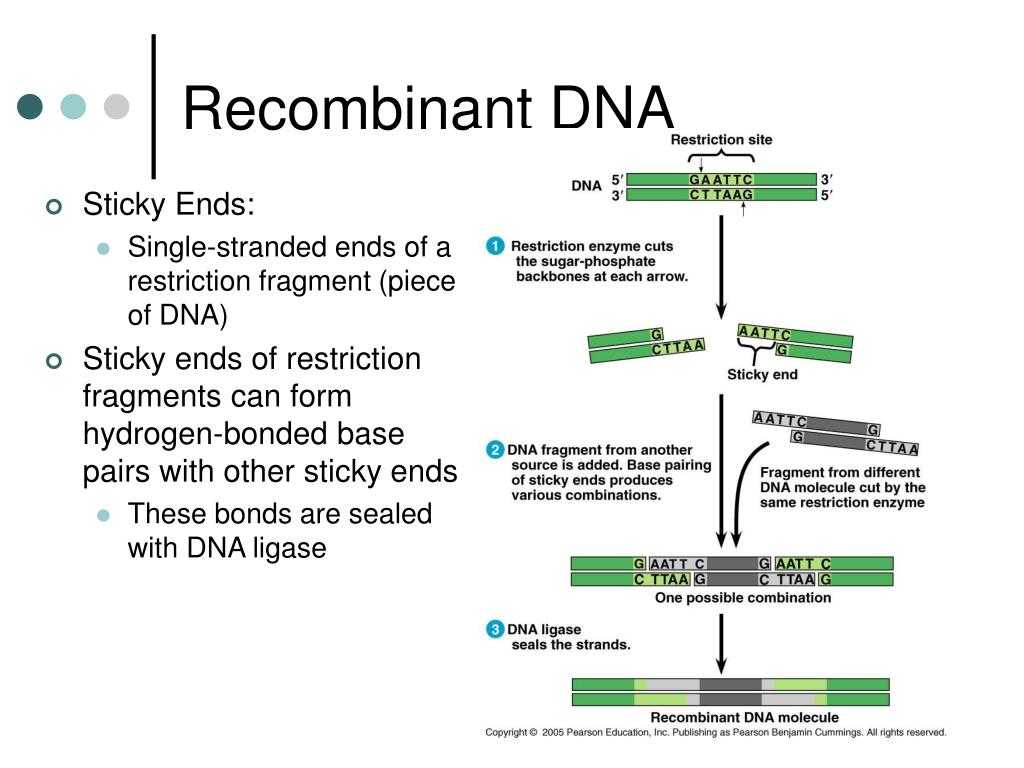

Recombinant dna1

Recombinant DNA

  • Sticky Ends:

    • Single-stranded ends of a restriction fragment (piece of DNA)

  • Sticky ends of restriction fragments can form hydrogen-bonded base pairs with other sticky ends

    • These bonds are sealed with DNA ligase


Plasmids

Plasmids

  • A plasmid is a DNA molecule that is not part of the chromosome in bacteria

    • Often give bacteria an “advantage” such as antibiotic resistance

  • Plasmids are often used as cloning vectors

    • Take foreign DNA into a cell and replicate there


Polymerase chain reaction pcr

Polymerase Chain Reaction (PCR)

  • PCR is a process used to copy a segment of one or many DNA molecules quickly in vitro (in a test tube)

  • PCR can make BILLIONS of copies of a target segment of DNA in a few hours

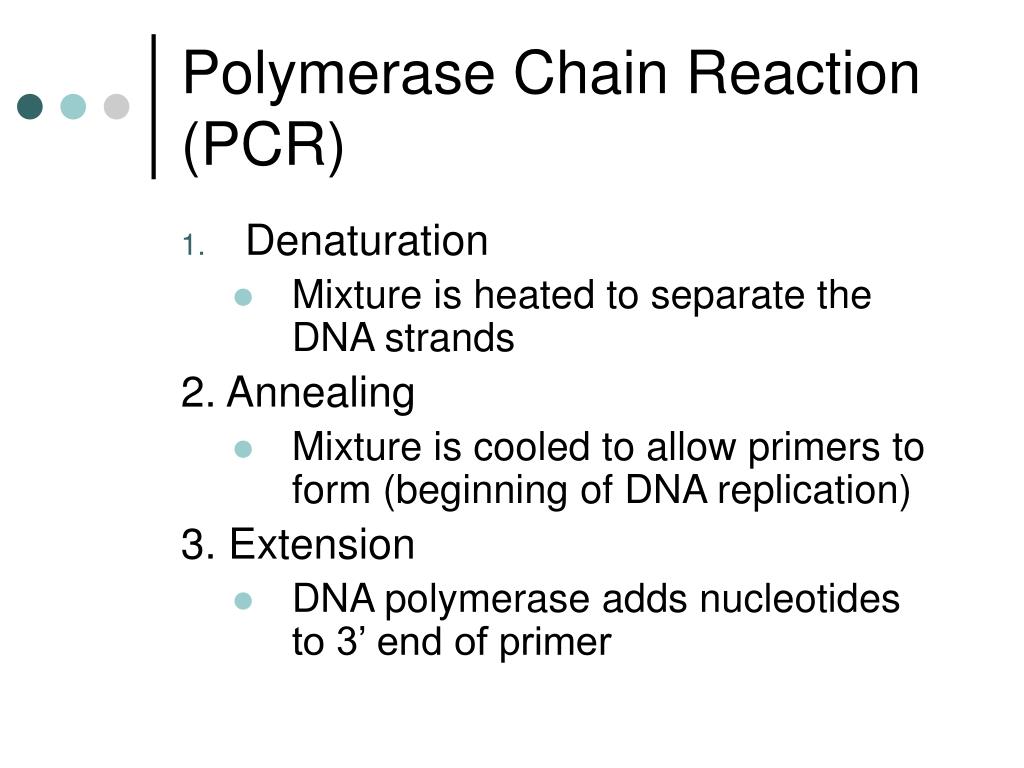

Polymerase chain reaction pcr1

Polymerase Chain Reaction (PCR)

  • Denaturation

    • Mixture is heated to separate the DNA strands

      2. Annealing

    • Mixture is cooled to allow primers to form (beginning of DNA replication)

      3. Extension

    • DNA polymerase adds nucleotides to 3’ end of primer


Polymerase chain reaction pcr2

Polymerase Chain Reaction (PCR)

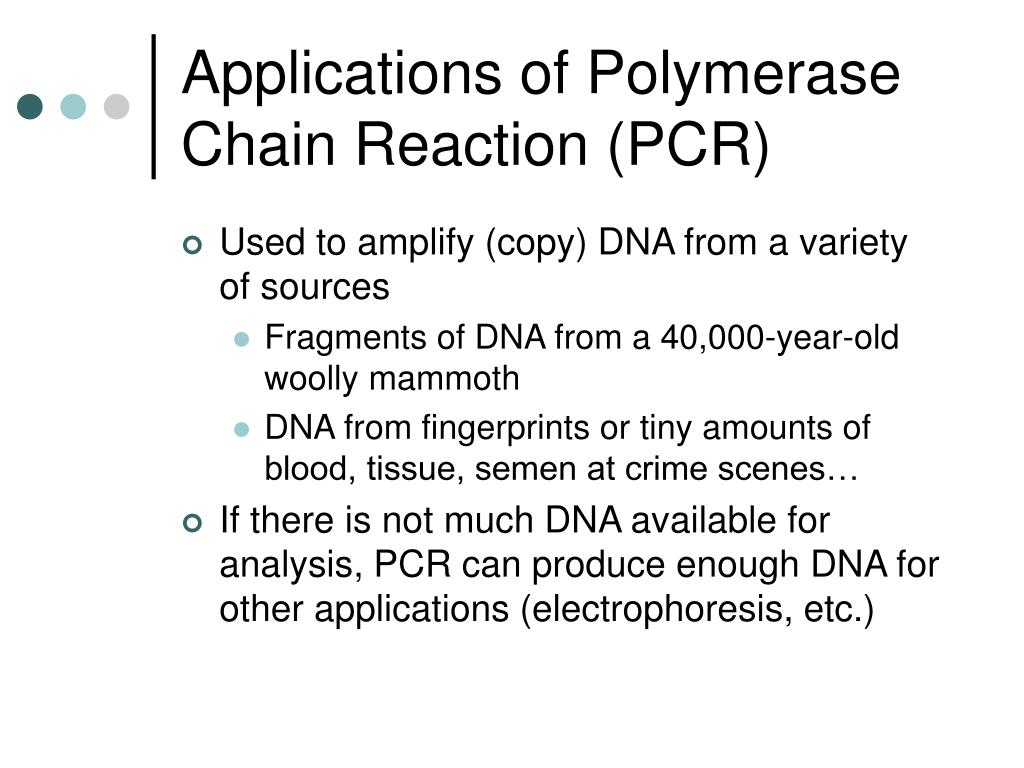

Applications of polymerase chain reaction pcr

Applications of Polymerase Chain Reaction (PCR)

  • Used to amplify (copy) DNA from a variety of sources

    • Fragments of DNA from a 40,000-year-old woolly mammoth

    • DNA from fingerprints or tiny amounts of blood, tissue, semen at crime scenes…

  • If there is not much DNA available for analysis, PCR can produce enough DNA for other applications (electrophoresis, etc.)


Restriction fragment analysis

Restriction Fragment Analysis

  • Restriction fragment analysis detects certain differences in the nucleotide sequences of DNA molecules


Restriction fragment length polymorphisms rflps

Restriction Fragment Length Polymorphisms (RFLPs)

  • RFLPs are differences in restriction sites on homologous chromosomes that result in different restriction fragment patterns

    • Everyone has a different DNA sequence, so the restriction enzymes will cut the DNA at different places

    • The length of the restriction fragments can be analyzed using electrophoresis

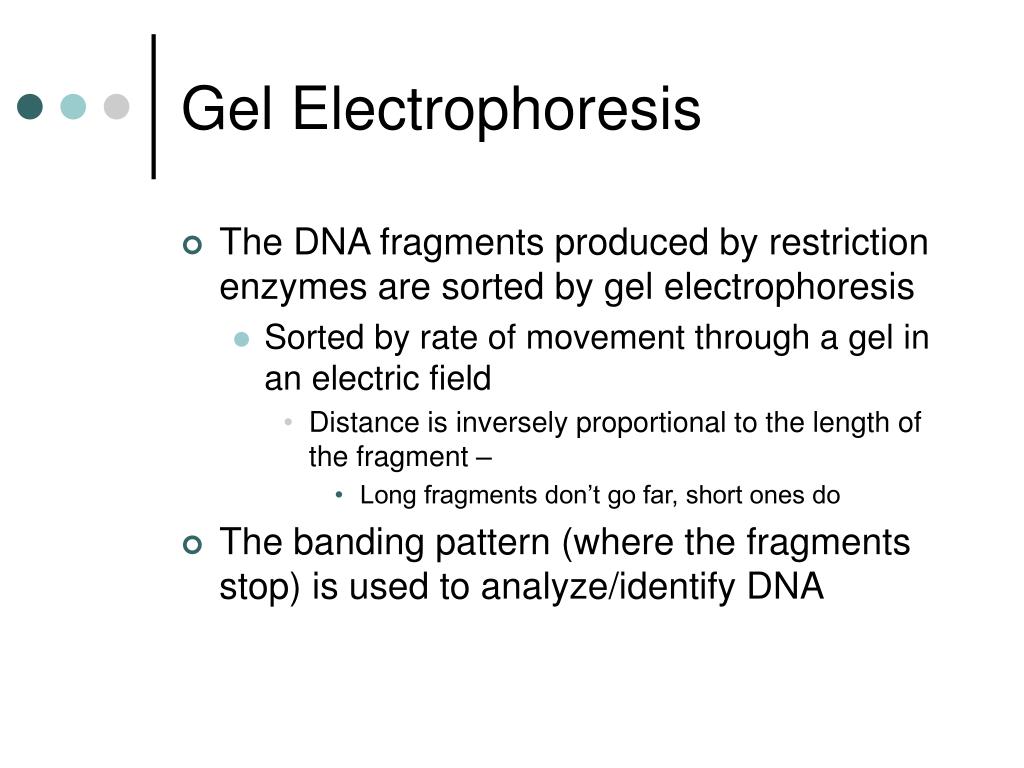

Gel electrophoresis

Gel Electrophoresis

  • The DNA fragments produced by restriction enzymes are sorted by gel electrophoresis

    • Sorted by rate of movement through a gel in an electric field

      • Distance is inversely proportional to the length of the fragment –

        • Long fragments don’t go far, short ones do

  • The banding pattern (where the fragments stop) is used to analyze/identify DNA


Gel electrophoresis1

Gel Electrophoresis


The human genome project

The Human Genome Project

  • Largely completed in 2003

  • Essentially, a detailed map of the entire human genome

    • Genetic mapping –

      • Relative order of genes (1st, 2nd, 3rd, etc.)

    • Physical mapping –

      • Definitive distance between genes (2457 bp, etc.)

    • DNA sequencing –

      • complete nucleotide sequence (ATCCG…)


Applications of dna technology

Applications of DNA Technology

  • Medical Applications

    • Diagnosing genetic diseases

      • Amplifying (cloning) genes and analyzing them

    • Gene therapy

      • Altering the genes of an afflicted individual

        • Replacing a “defective” allele with a “normal” allele

        • To be effective, it must be done in cells that multiply throughout life

          • Bone marrow cells (somatic cells)

          • Gametic cells (sperm/egg)

      • Lots of ethical issues involved here!

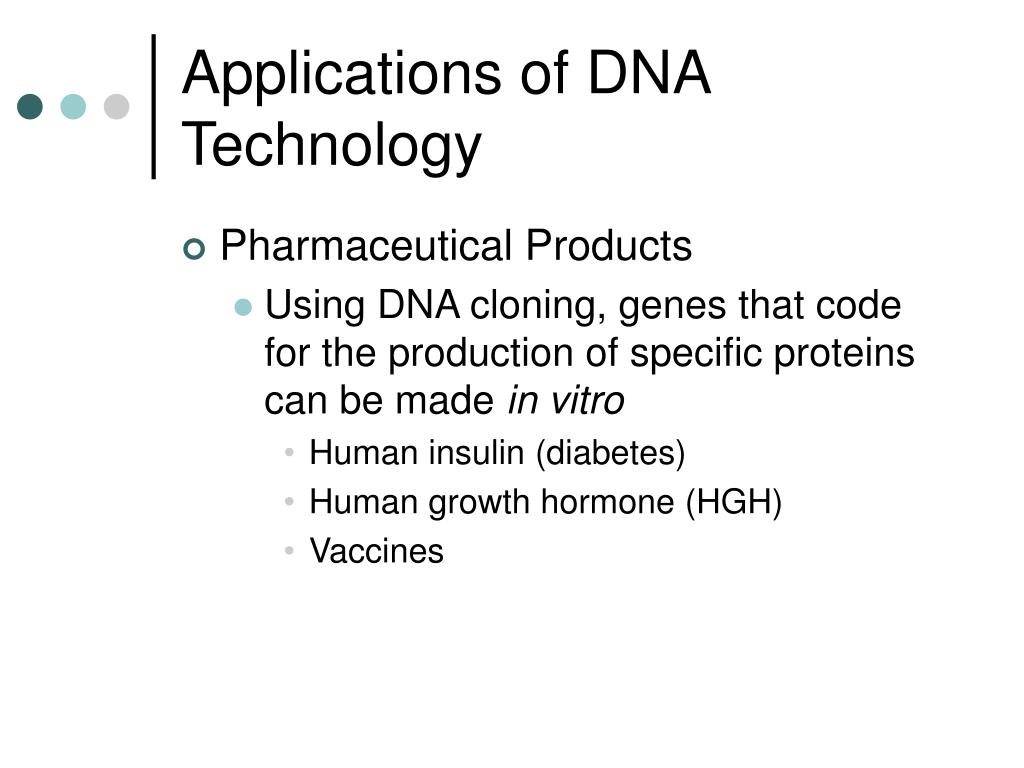

Applications of dna technology1

Applications of DNA Technology

  • Pharmaceutical Products

    • Using DNA cloning, genes that code for the production of specific proteins can be made in vitro

      • Human insulin (diabetes)

      • Human growth hormone (HGH)

      • Vaccines

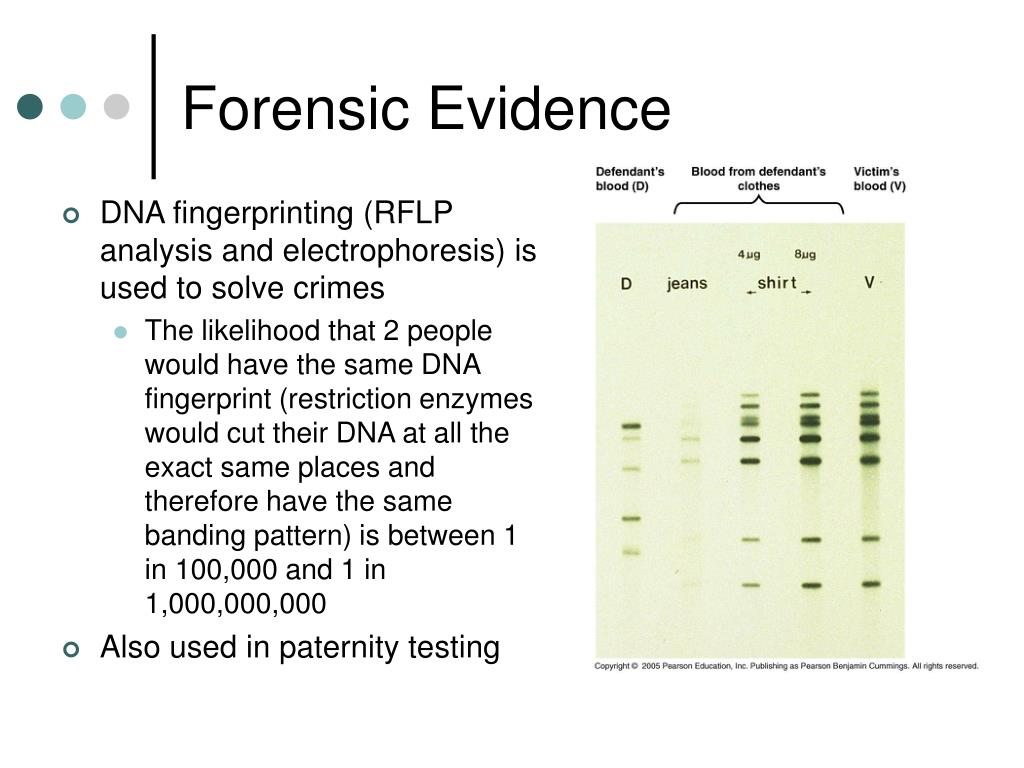

Forensic evidence

Forensic Evidence

  • DNA fingerprinting (RFLP analysis and electrophoresis) is used to solve crimes

    • The likelihood that 2 people would have the same DNA fingerprint (restriction enzymes would cut their DNA at all the exact same places and therefore have the same banding pattern) is between 1 in 100,000 and 1 in 1,000,000,000

  • Also used in paternity testing


Applications of dna technology2

Applications of DNA Technology

  • Environmental Cleanup

    • Many bacteria can extract heavy metals (copper, lead, nickel) from their environments

    • These genes could be added to other organisms to clean up mining wastes

    • Bacterial strains can degrade some of the chemicals released during oil spills


Ethics dna technology

Ethics & DNA Technology

  • The progress in genetic technology has raised new ethical questions:

    • Who should have the right to examine someone else’s genes?

    • How should that information be used?

    • Should a person’s genome be a factor in suitability for a job or eligibility for insurance?
