Spectrophotometry

Spectrophotometry. Electromagnetic Radiation = Light What is Light? Visible light is a particular kind of electromagnetic radiation X-rays, UV, Infrared, Microwaves, and Radio waves are all light forms Light is a form of Energy

therese
Download Presentation

Spectrophotometry

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Spectrophotometry • Electromagnetic Radiation = Light • What is Light? • Visible light is a particular kind of electromagnetic radiation • X-rays, UV, Infrared, Microwaves, and Radio waves are all light forms • Light is a form of Energy • All light travels in waves at “the speed of light” = c = 3 x 108 m/s

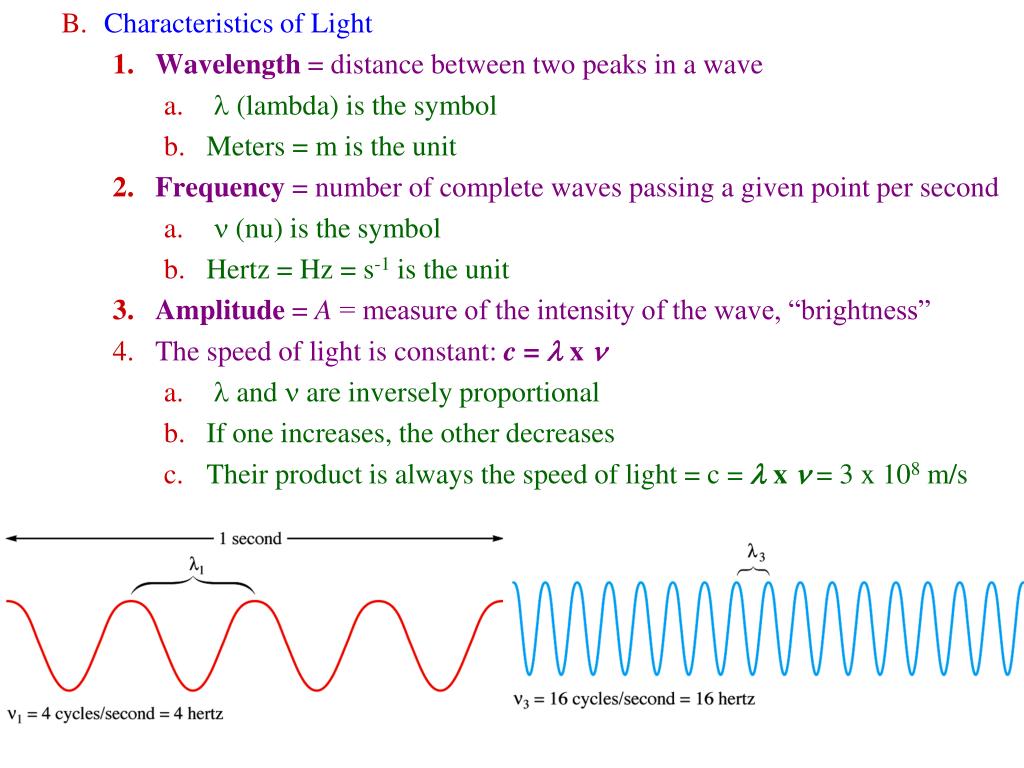

  2. Characteristics of Light • Wavelength = distance between two peaks in a wave • l (lambda) is the symbol • Meters = m is the unit • Frequency = number of complete waves passing a given point per second • n (nu) is the symbol • Hertz = Hz = s-1 is the unit • Amplitude = A = measure of the intensity of the wave, “brightness” • The speed of light is constant: c =  x  • l and n are inversely proportional • If one increases, the other decreases • Their product is always the speed of light = c =  x  = 3 x 108 m/s

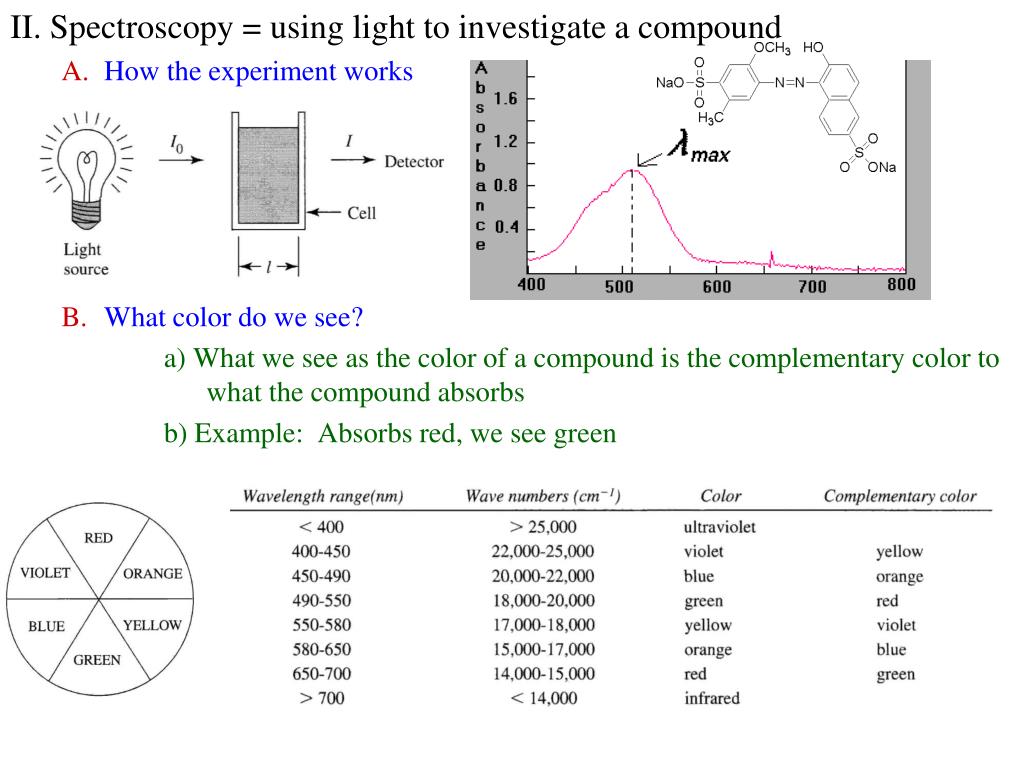

  3. II. Spectroscopy = using light to investigate a compound • How the experiment works • What color do we see? • a) What we see as the color of a compound is the complementary color to what the compound absorbs • b) Example: Absorbs red, we see green

  4. Beer’s Law • Absorbance tells us how much light is absorbed by the molecule • B. A = elc (y = mx + b) describes the absorption of light in a solution • l = the length of the cell containing the solution, usual 1 cm • c = concentration in mol/L = M • e = Molar extinction coefficient = constant for a given molecule at a given wavelength of light = how well the molecule absorbs light Percent T 0 10 25 50 75 100 2.0 1.0 0.6 0.3 0.1 0 Absorbance 1.0 0.5 0.0 e≈ 18,000 for our red dye Absorbance Slope = el [L/mol∙cm][cm] 0 0.00001 0.00002 0.00003 0.00004 0.00005 Concentration (mol/L)

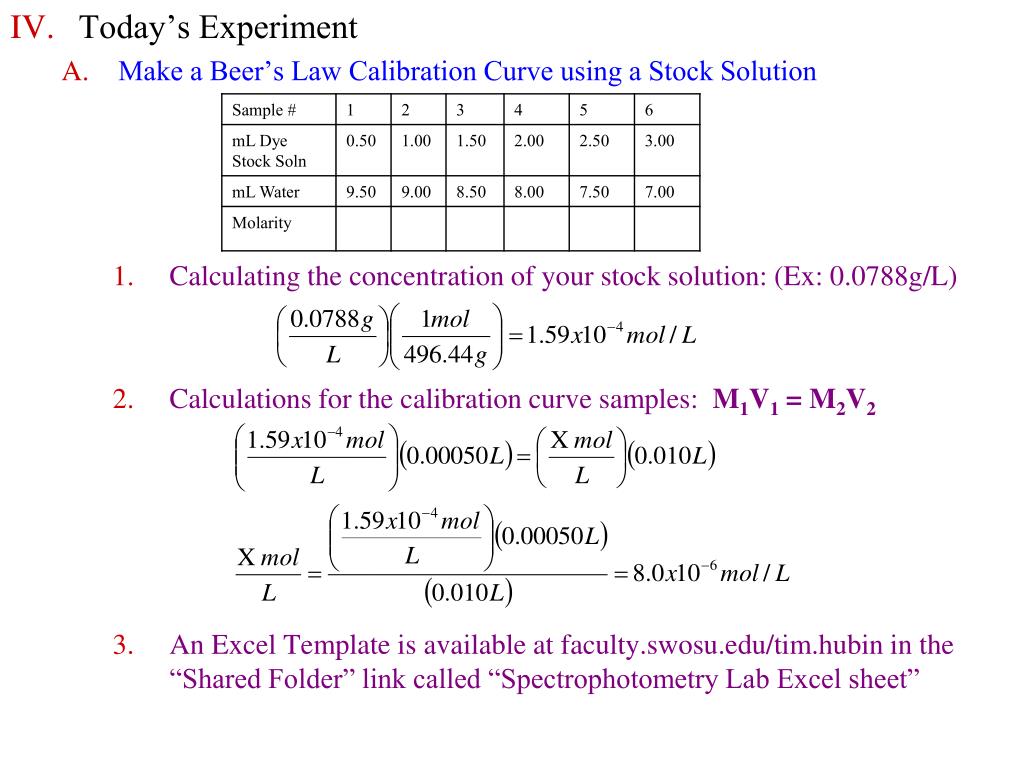

  5. Today’s Experiment • Make a Beer’s Law Calibration Curve using a Stock Solution • Calculating the concentration of your stock solution: (Ex: 0.0788g/L) • Calculations for the calibration curve samples: M1V1 = M2V2 • An Excel Template is available at faculty.swosu.edu/tim.hubin in the “Shared Folder” link called “Spectrophotometry Lab Excel sheet”

  6. Find the concentration of an unknown sample of the red dye • We will give you an unknown amount of the stock solution • Dilute it to 25 ml in a volumetric flask • Calculate the absorbance (from %T) on the Spec. 20 • Use your spreadsheet to calculate the concentration from the absorbance • Example Calculation: %T = 15% for your diluted unknown • Make 100ml of a solution of a known concentration (2.5 x 10-5 M)

  7. Chromic Acid Splash in Eyes • Frayed Electrical Cord Fire
